Description

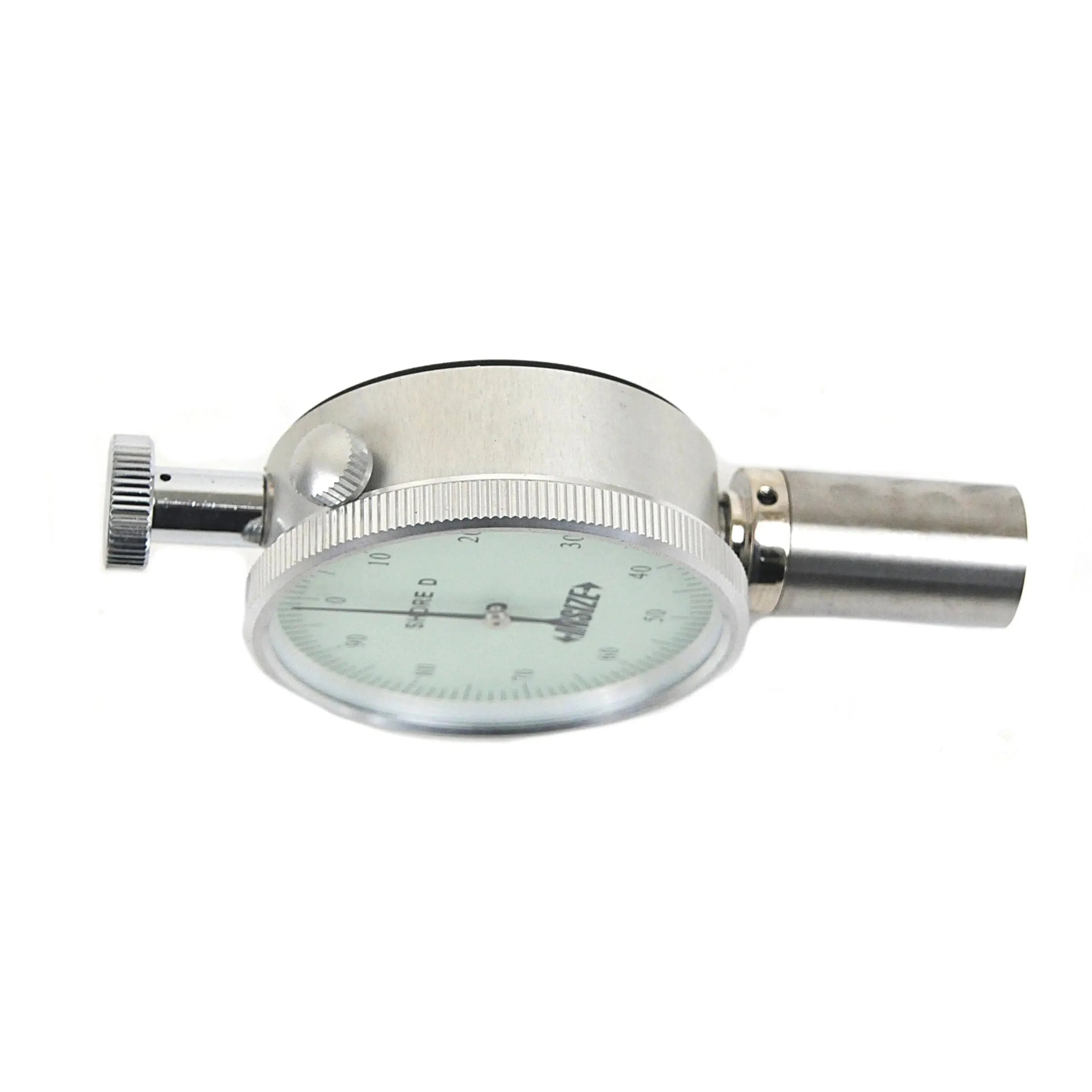

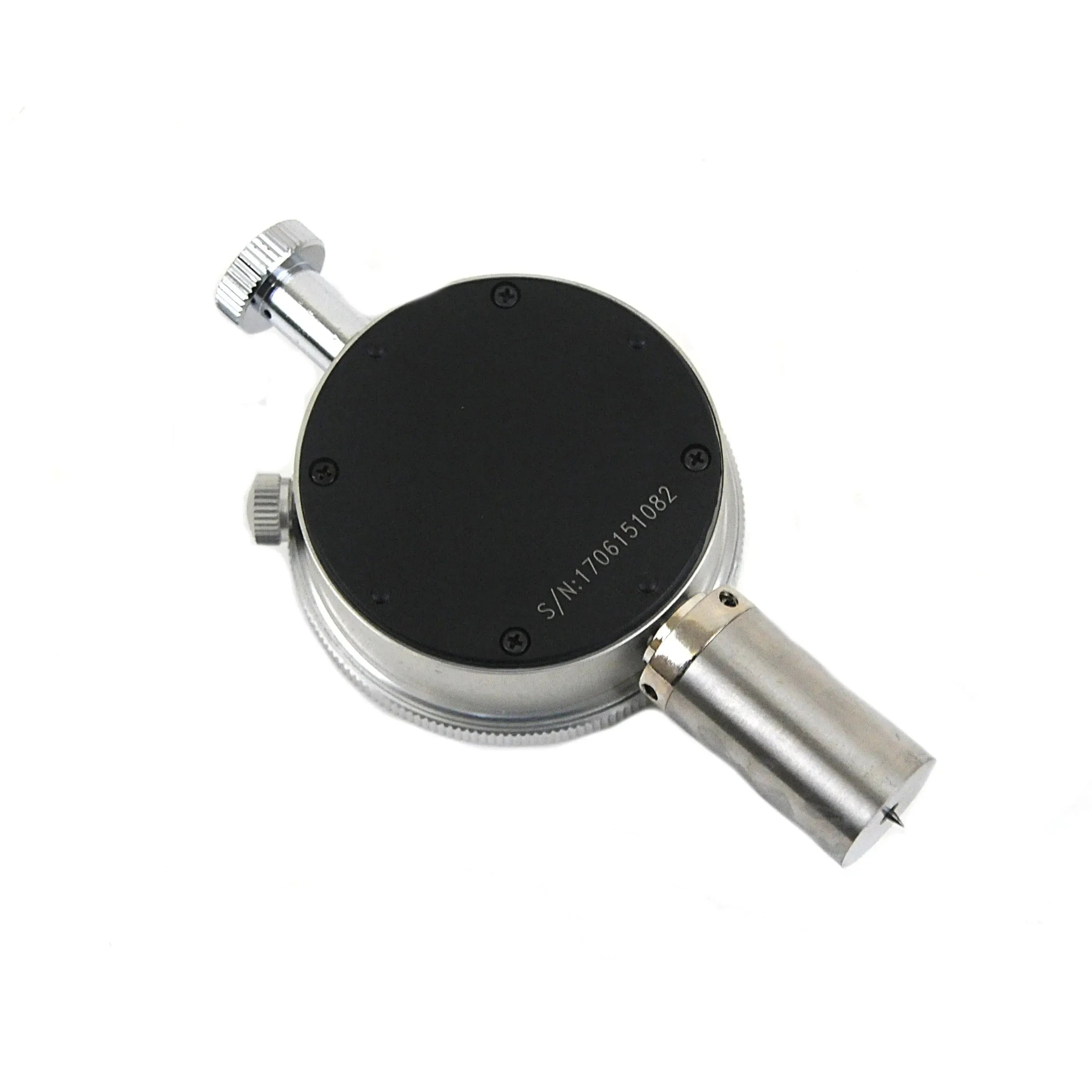

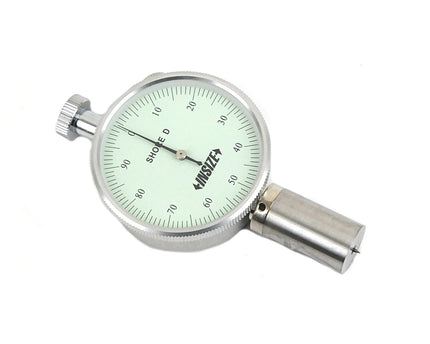

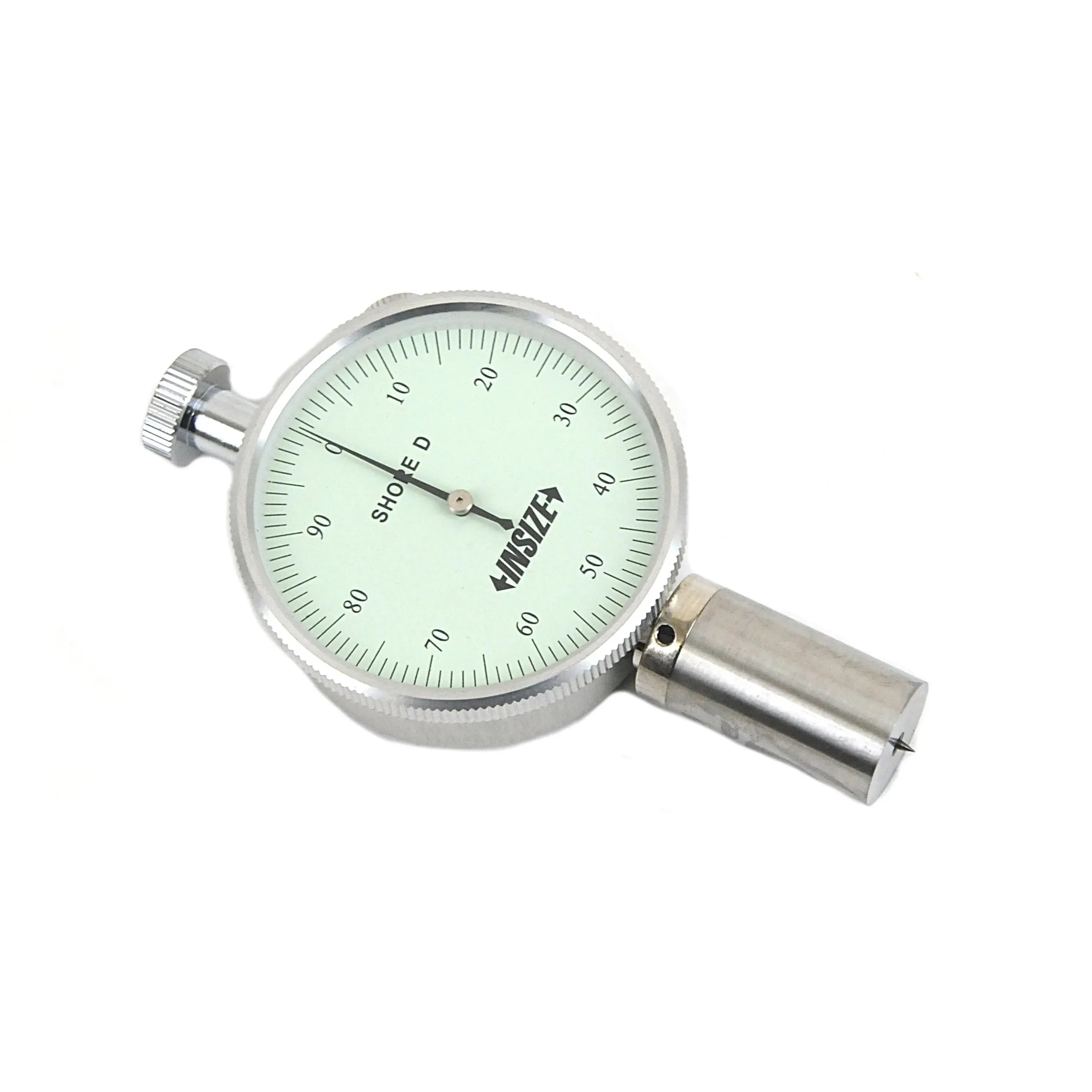

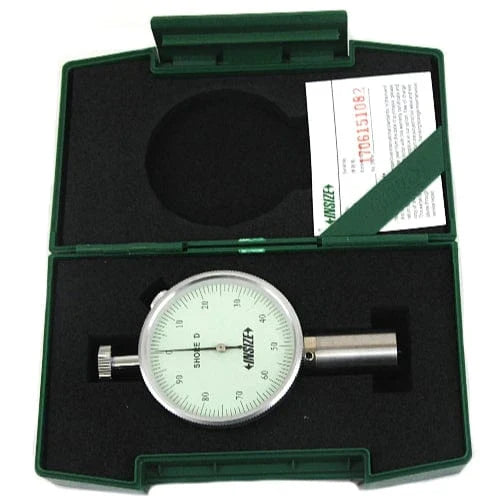

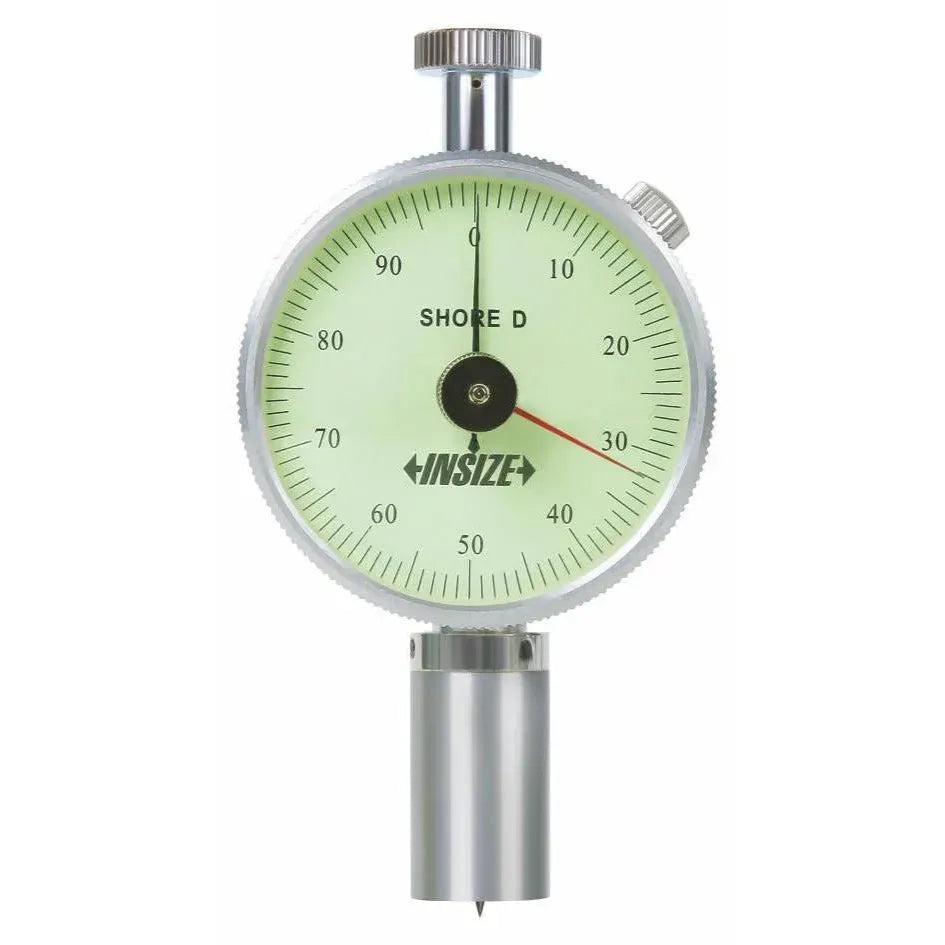

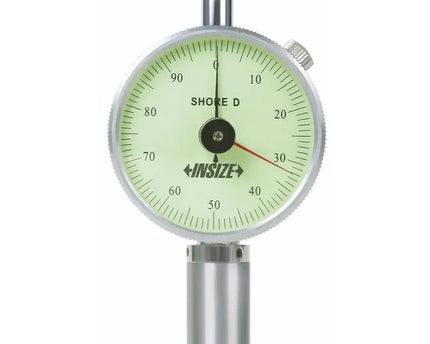

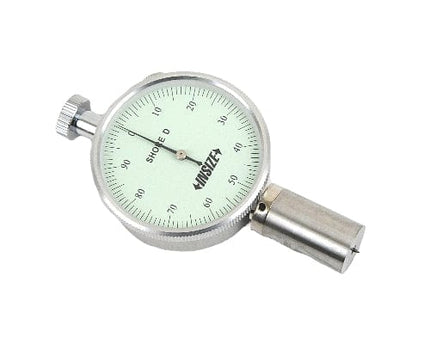

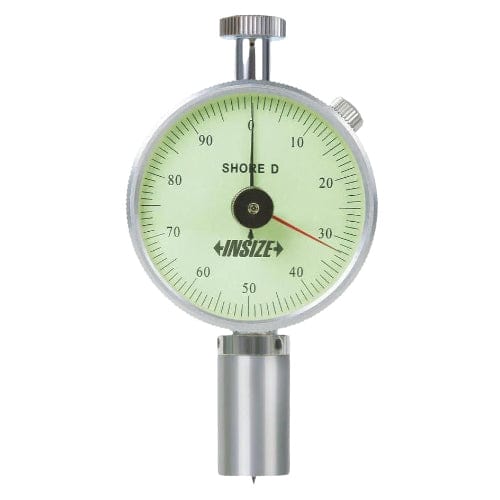

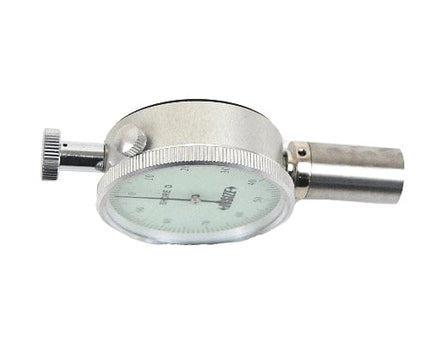

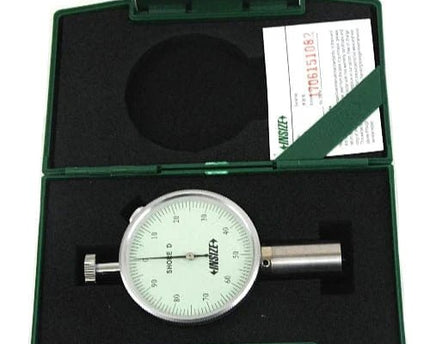

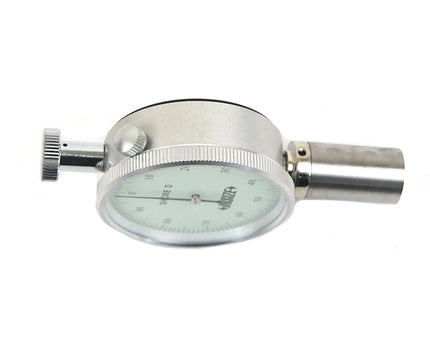

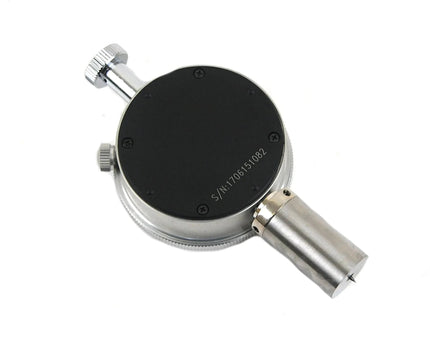

Insize Shore Durometer

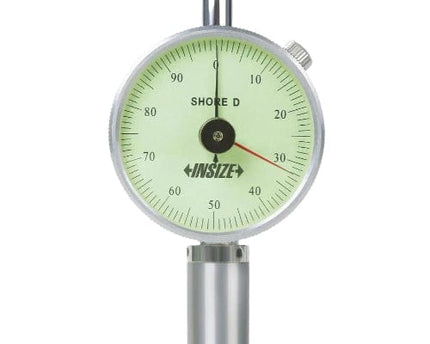

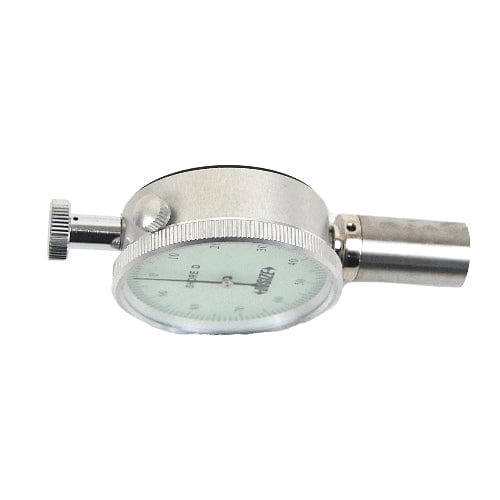

The INSIZE ISH-SDM Shore Durometer is designed for measuring hardness of hard rubber, plastic, and hard elastomers. It features a sharp point indenter with a 30° angle and SR0.1 mm tip, ensuring precise hardness readings. The peak value indicator allows users to easily capture maximum hardness values during testing. Compliant with ISO868, ISO7619, and ASTM D2240 standards, it provides reliable performance for laboratory and industrial applications.

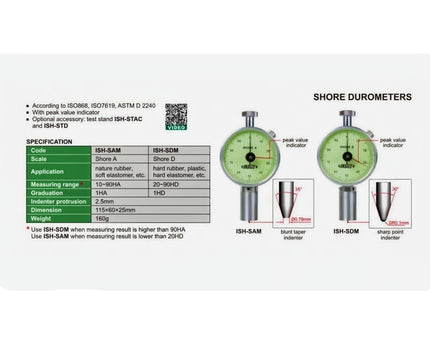

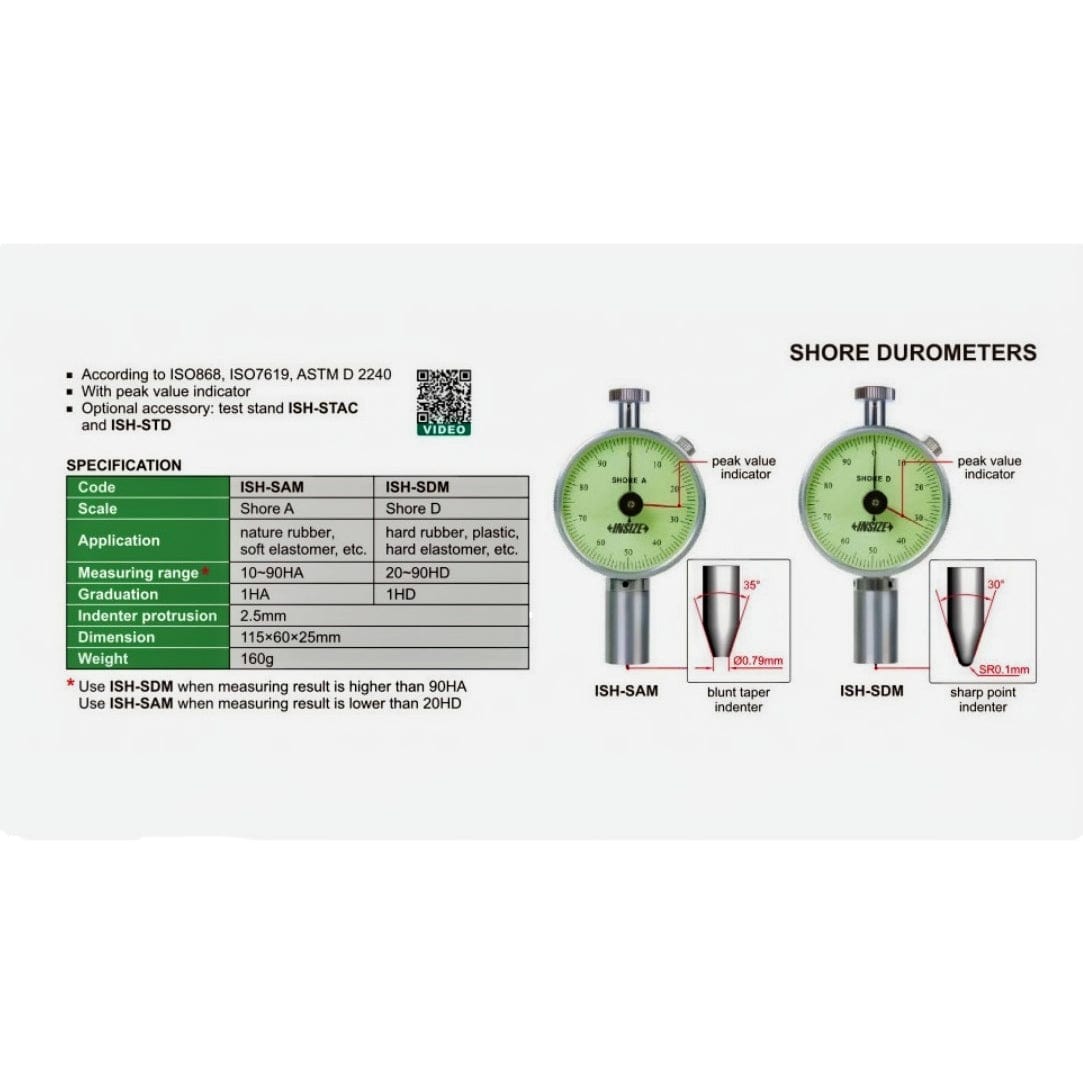

Specifications :
-
Part No: ISH-SDM
-
Scale: Shore D
-
Application: Hard rubber, plastic, hard elastomer
-
Measuring Range: 20–90HD
-
Graduation: 1HD
-
Indenter Protrusion: 2.5 mm
-
Dimension: 115 × 60 × 25 mm
-
Weight: 160 g
The INSIZE ISH-SDM is recommended when hardness results are above 90HA, providing accurate and repeatable measurements. Optional accessory: ISH-DS-BLOCK Calibration Block.
