Description

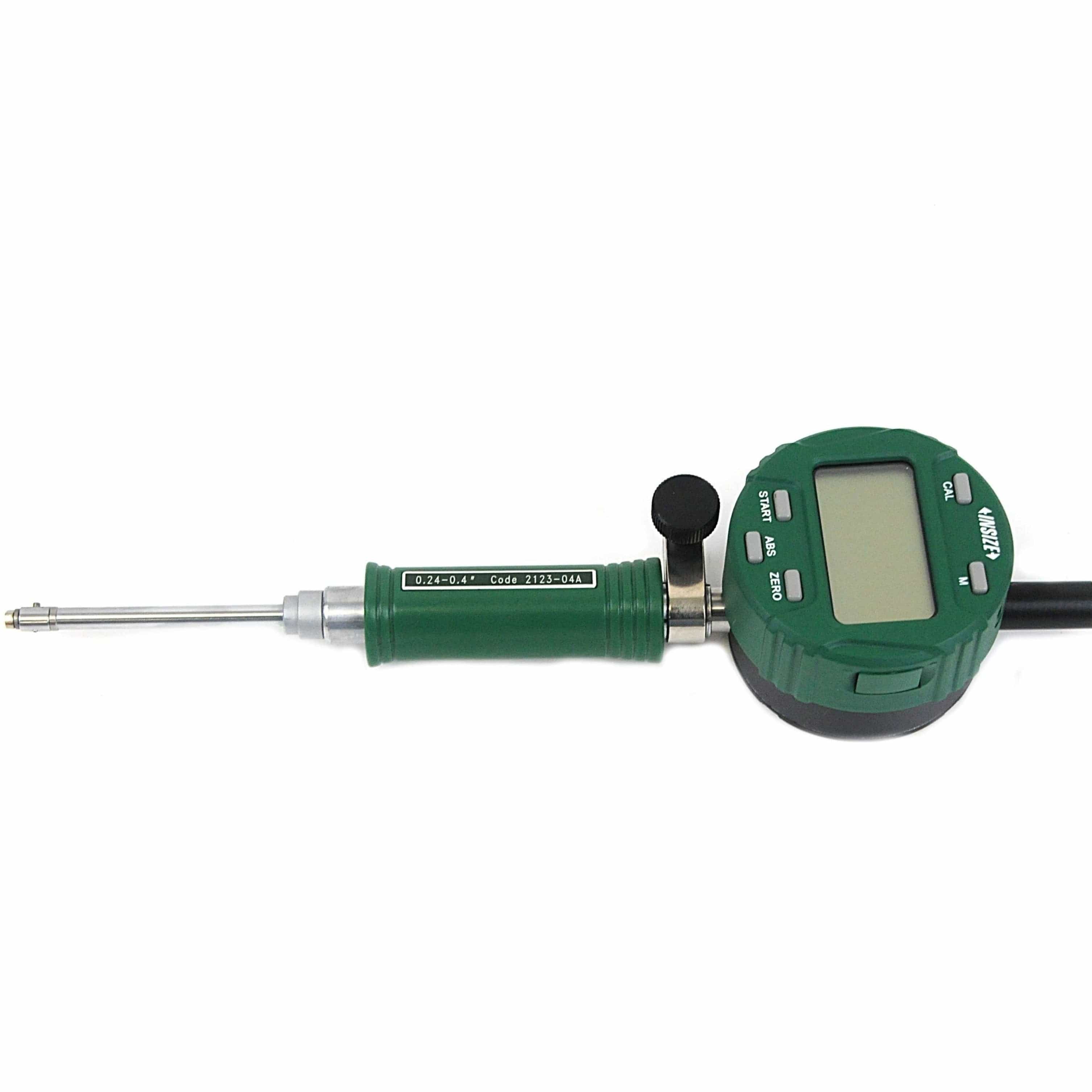

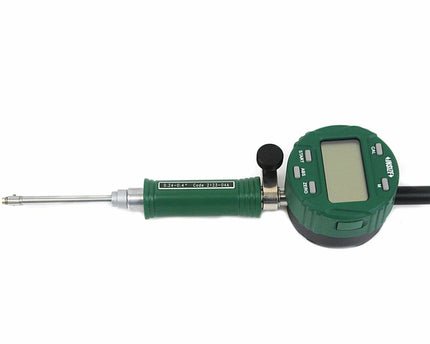

Insize Small Hole Digital Bore Gauge
A high-precision digital bore gauge designed for accurate measurement of small internal diameters. Built to Insize’s strict manufacturing standards, this instrument delivers reliable, repeatable performance and is suited for precision machining, inspection, and fine-tolerance engineering work. Each unit includes a unique identifier for product authenticity and traceability.
Specifications :
- Part no: 2123-04A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.0009"
- Repeatability: 0.0001"
- Large, easy-to-read LCD screen
- Automatic power off
- Range: 0.4–0.7"
- Strictly manufactured in accordance with DIN 878
- Silky smooth measuring movement
- Soft-grip ergonomic handle
- Supplied with extension rods

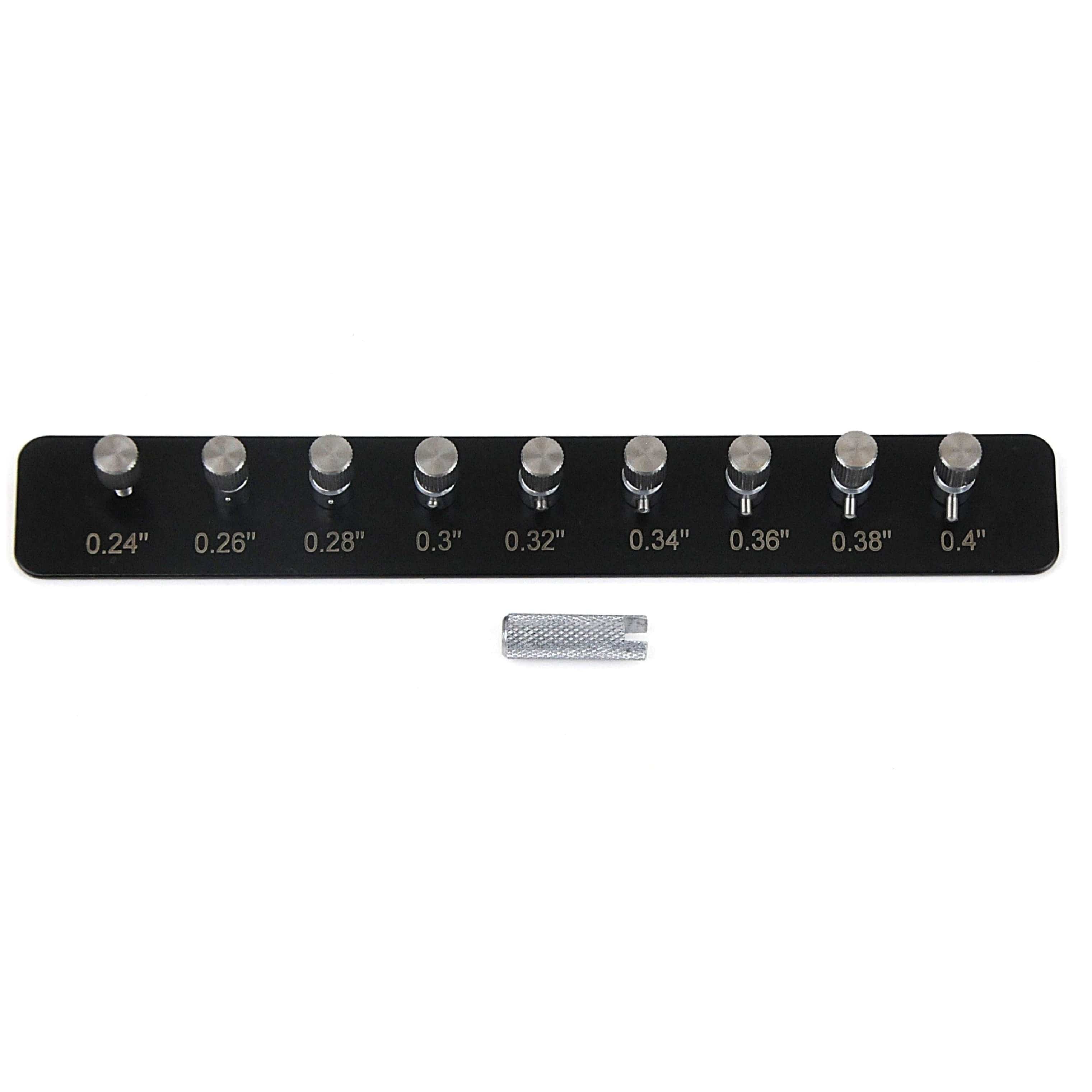

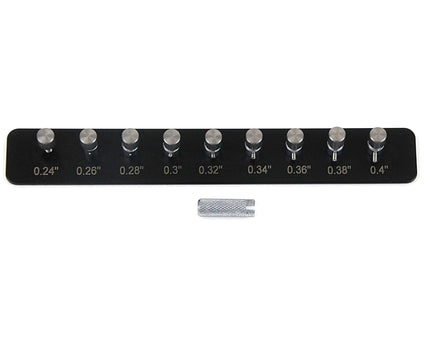

- Includes a range of adapter extensions
- Direct diameter reading after inputting the setting ring size
- Minimum-value tracking function automatically finds the true bore diameter
- Ceramic contact point for durability and stable measurement
- Supplied with a CR2032 battery
- Optional setting ring (not included)
- Optional long handle (not included)

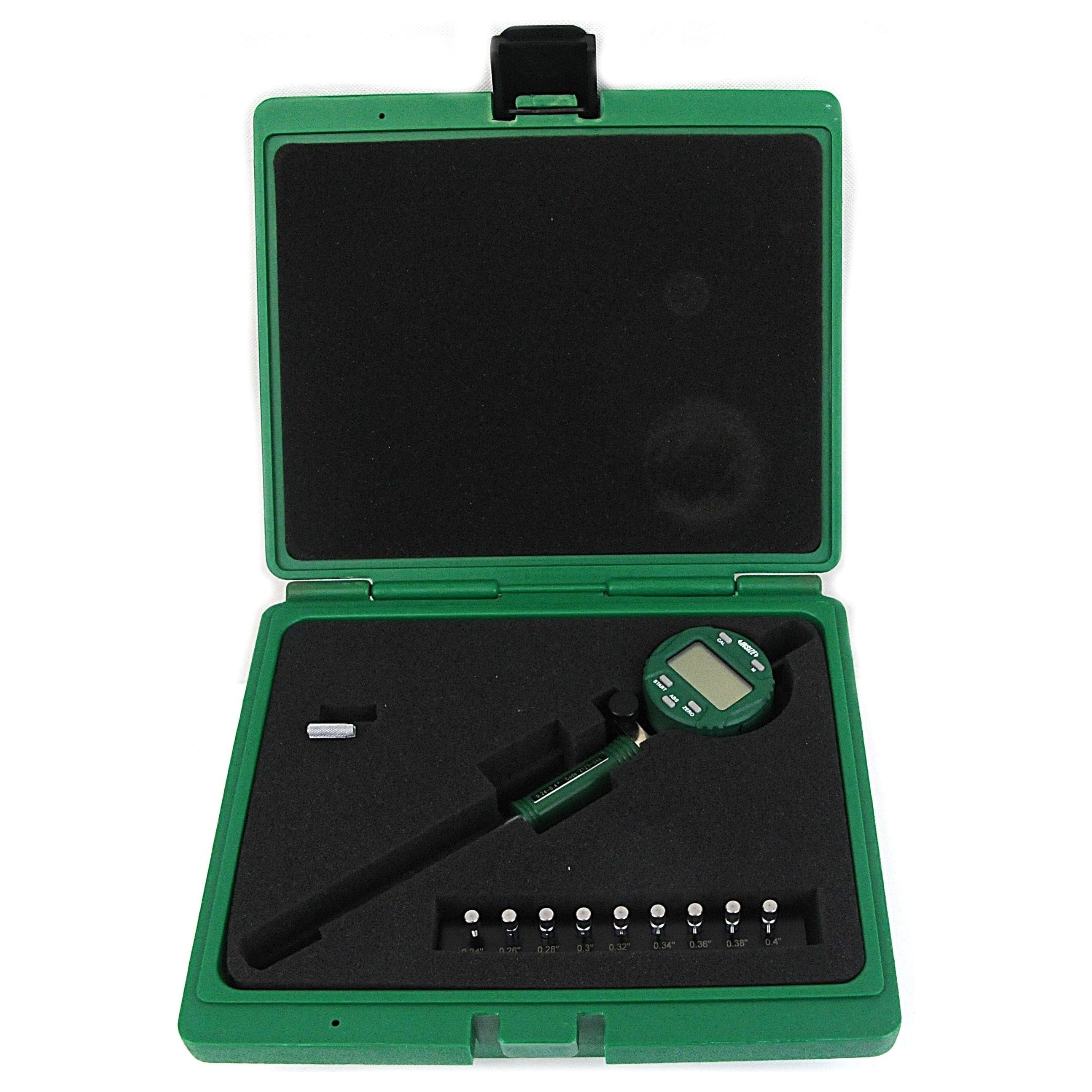

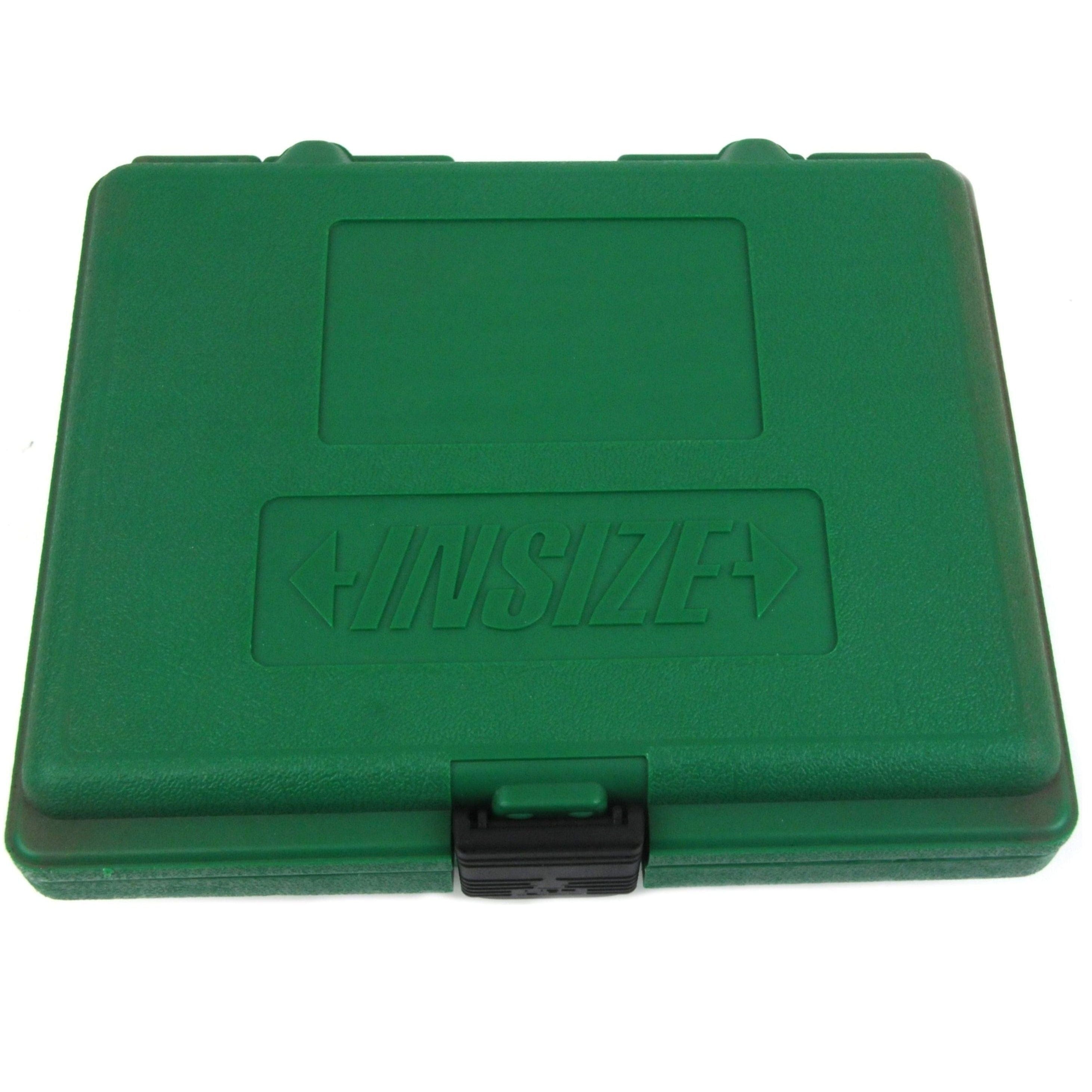

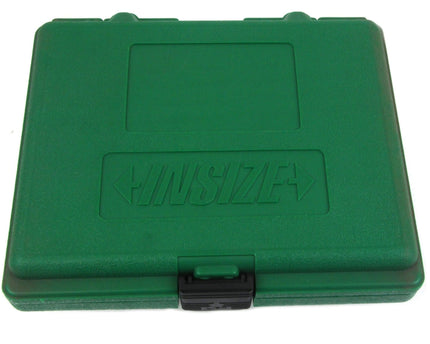

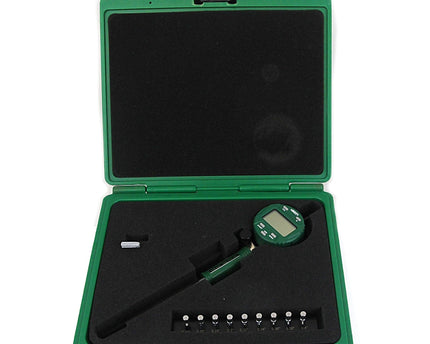

- Supplied in a moulded storage box
Well-designed, durable, and highly accurate, this instrument is ideal for inspecting small bores, sleeves, bushings, and precision-machined components. Insize digital bore gauges offer exceptional ease of use, stability, and clarity, making them a trusted choice for workshops, toolrooms, and professional metrology environments.
