Description

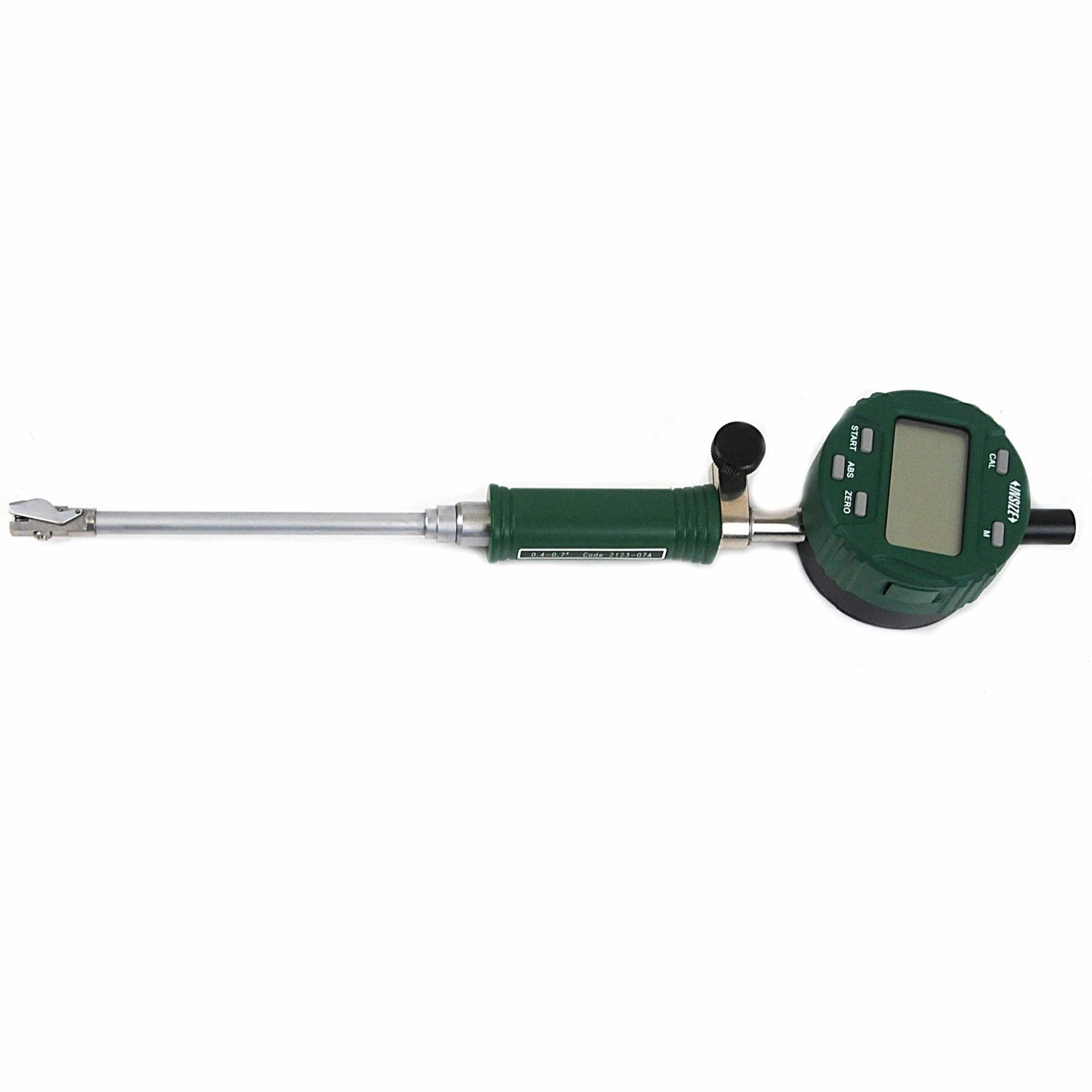

Insize Small Hole Digital Bore Gauge
This high-precision Insize digital bore gauge is engineered for accurate measurement of small internal diameters, delivering exceptional repeatability and stability even in demanding workshop environments. Designed for machinists, inspectors, and toolmakers who require reliable small-bore measurement, it features a smooth measuring mechanism, ceramic contact point, and a clear LCD display for easy reading in both metric and imperial units.
Specifications :
- Part No: 2123-07A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.0009"
- Repeatability: 0.0001"

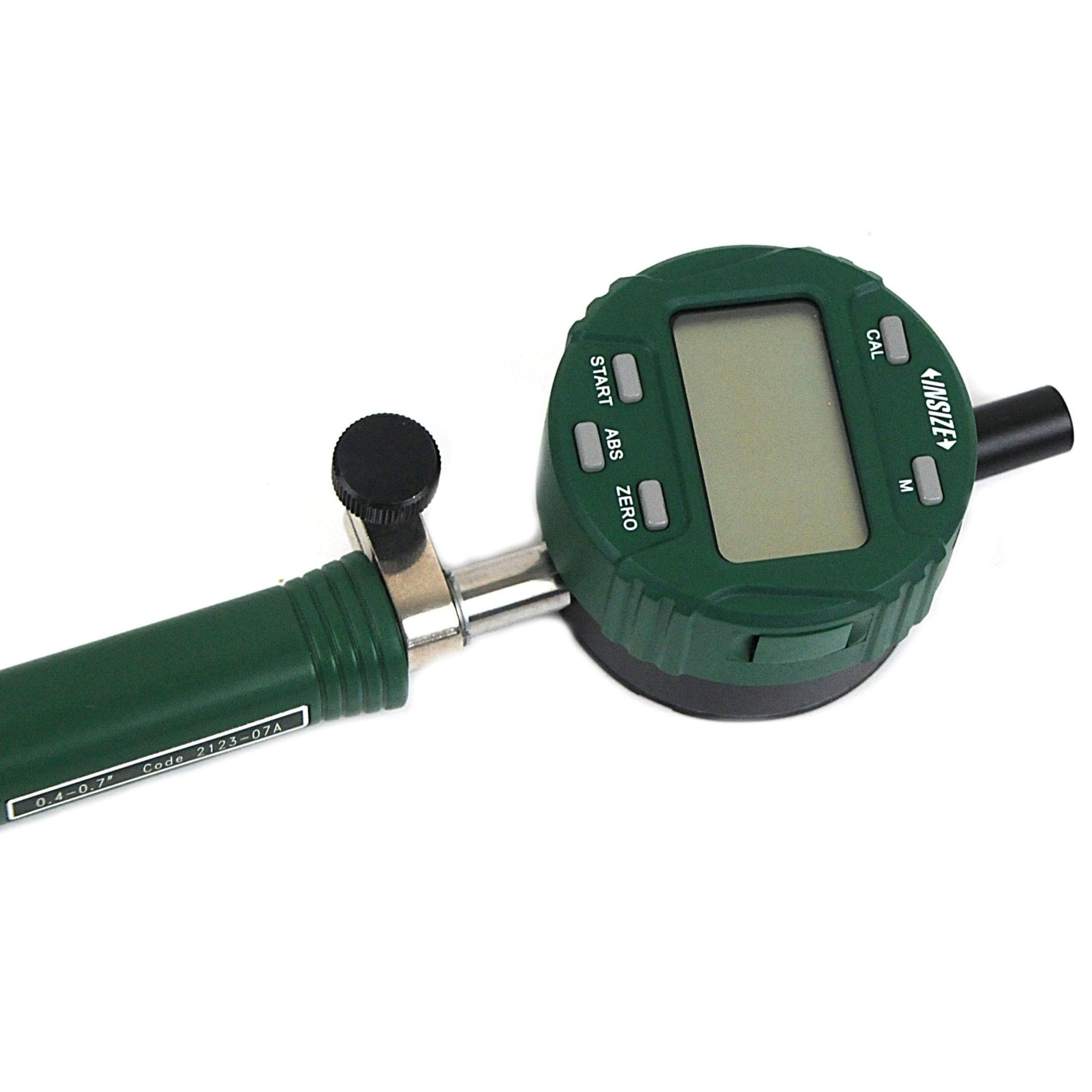

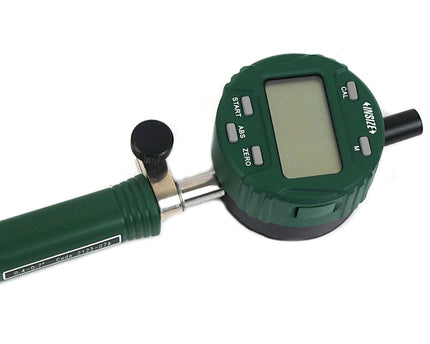

- Large, easy-to-read LCD display
- Automatic power off
- Measuring Range: 0.4–0.7"
- Manufactured in accordance with DIN 878
- Silky smooth measuring movement
- Soft-grip ergonomic handle
- Supplied with extension rods

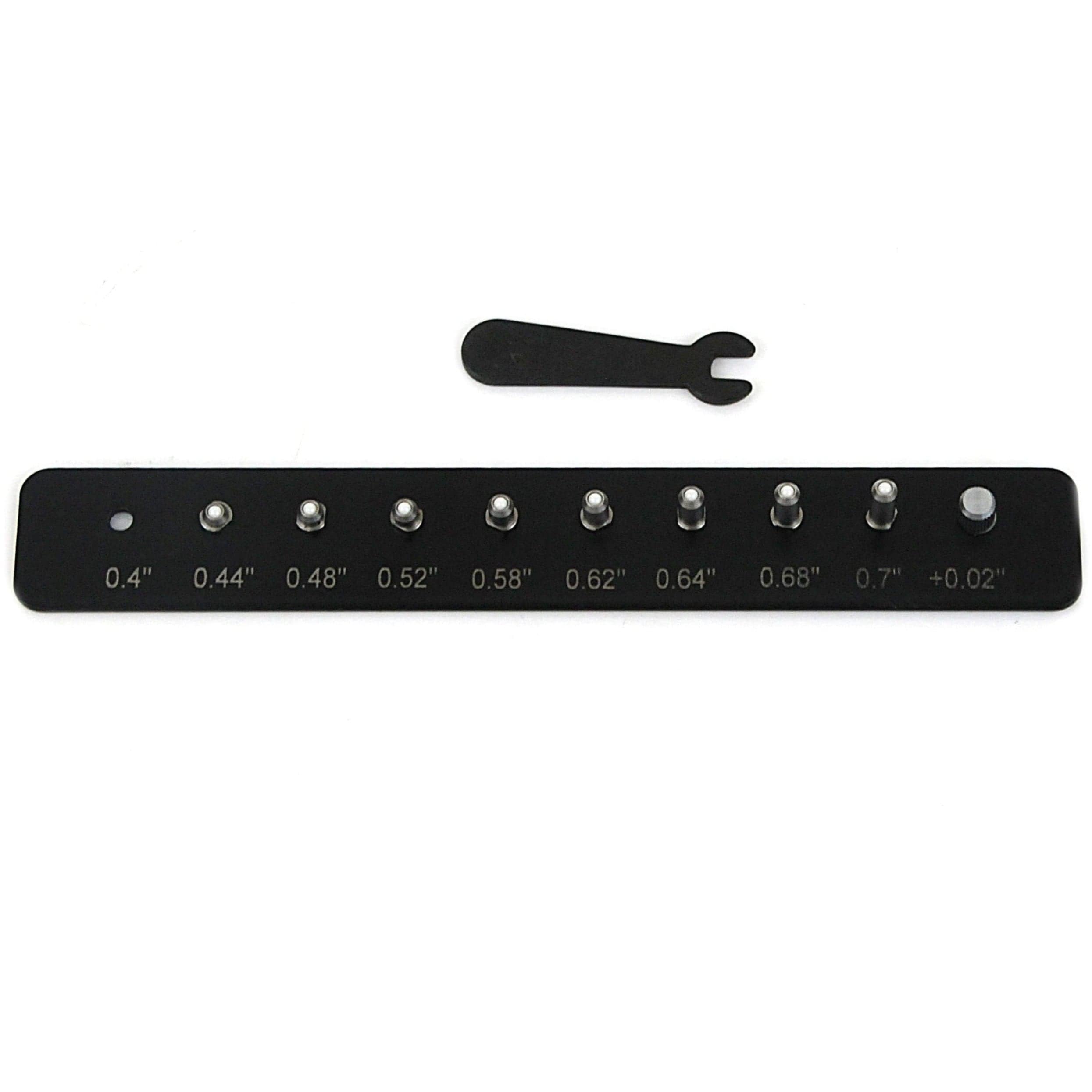

- Includes a range of adapter extensions
- Direct diameter reading after inputting the setting ring size
- Minimum value tracking automatically finds the true diameter
- Ceramic contact point for durability and wear resistance
- Supplied with a CR2032 battery
- Optional setting ring (not included)
- Optional long handle (not included)

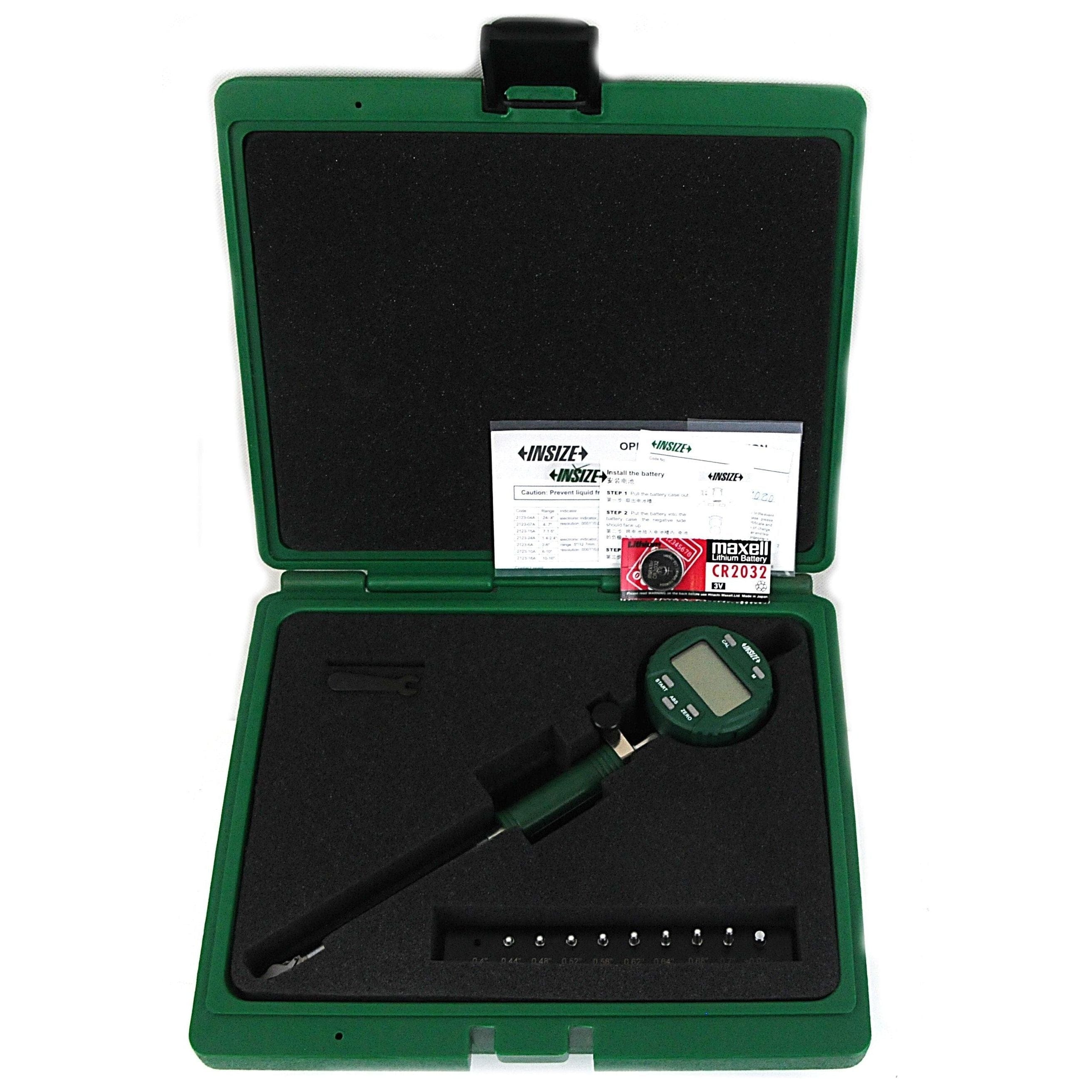

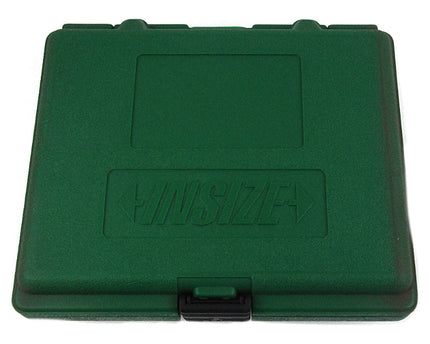

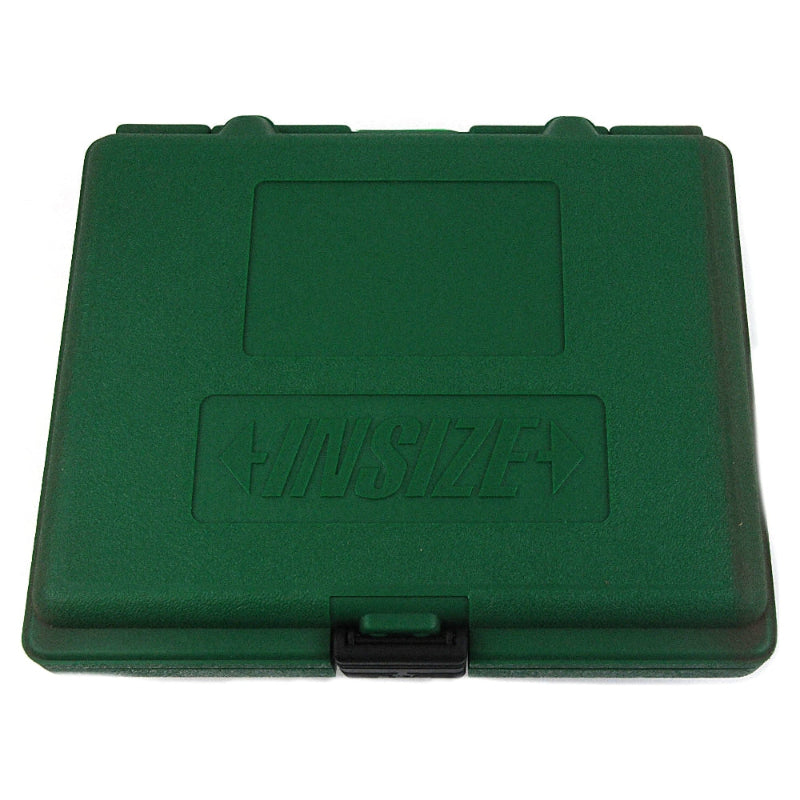

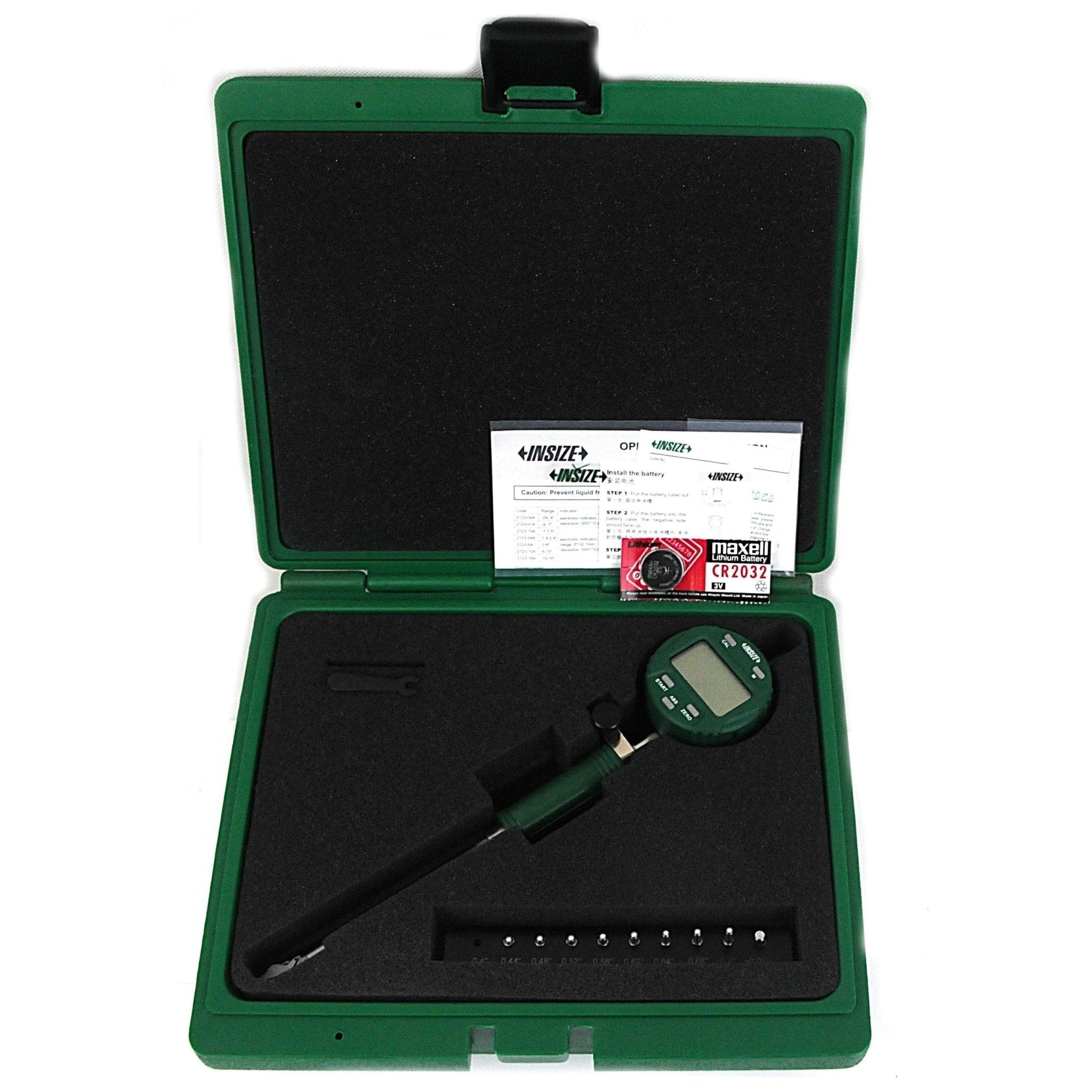

- Supplied in a moulded storage box
Well-designed and built for consistent accuracy, this digital bore gauge is ideal for precision work across manufacturing, machining, and inspection tasks. Insize small-bore gauges provide dependable performance and user-friendly operation, ensuring accurate measurement of small internal diameters with confidence.
