Description

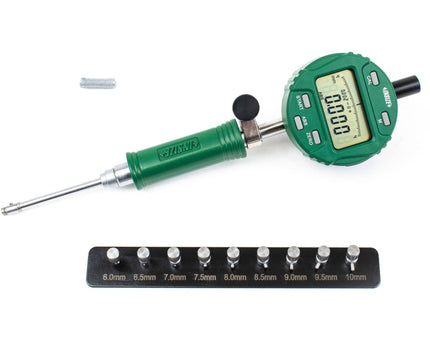

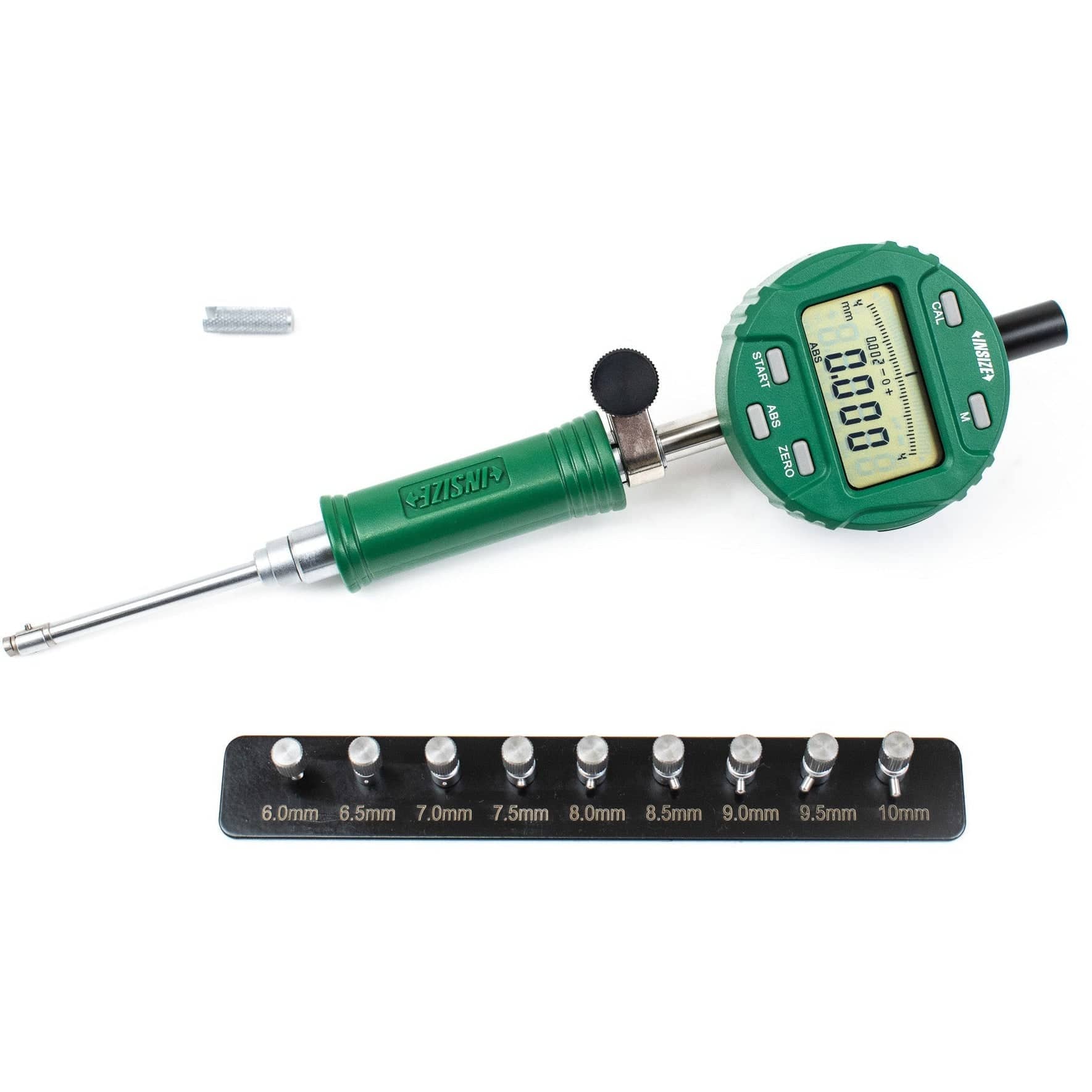

Insize Small Hole Digital Bore Gauge
A compact, precision-engineered bore gauge designed for accurate small-diameter internal measurements. The digital display provides clear, high-resolution readings, while the gauge’s smooth measuring action and stable construction ensure consistent performance in workshop and inspection environments. Ideal for machinists, toolmakers, and quality control applications where small bores must be measured reliably and repeatably.

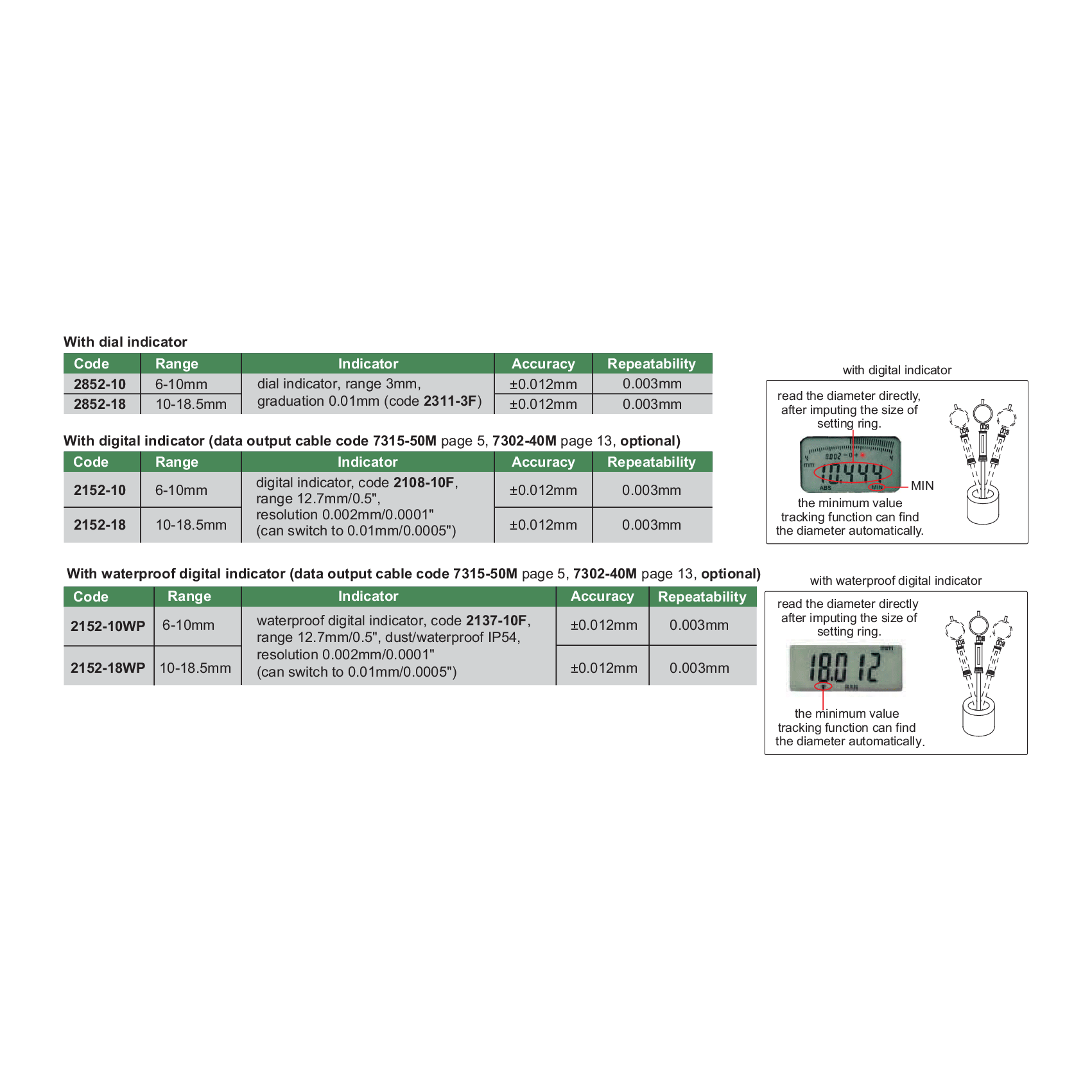

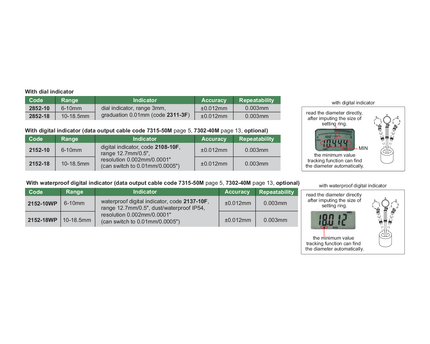

Specifications :
- Part no: 2152-10
- Reading: Metric
- Range: 6–10mm
- Accuracy: ±0.012mm
- Resolution: 0.0002mm
- Repeatability: 0.003mm
- Direct diameter reading after inputting the size of the setting ring
- Minimum value tracking automatically locates the true diameter
- Made from stainless steel for enhanced durability

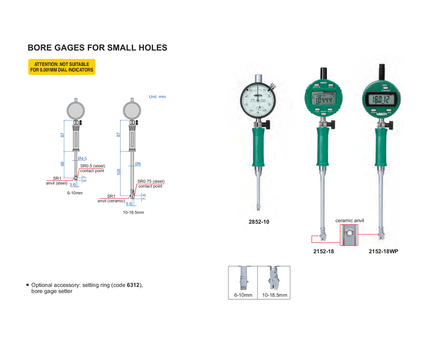

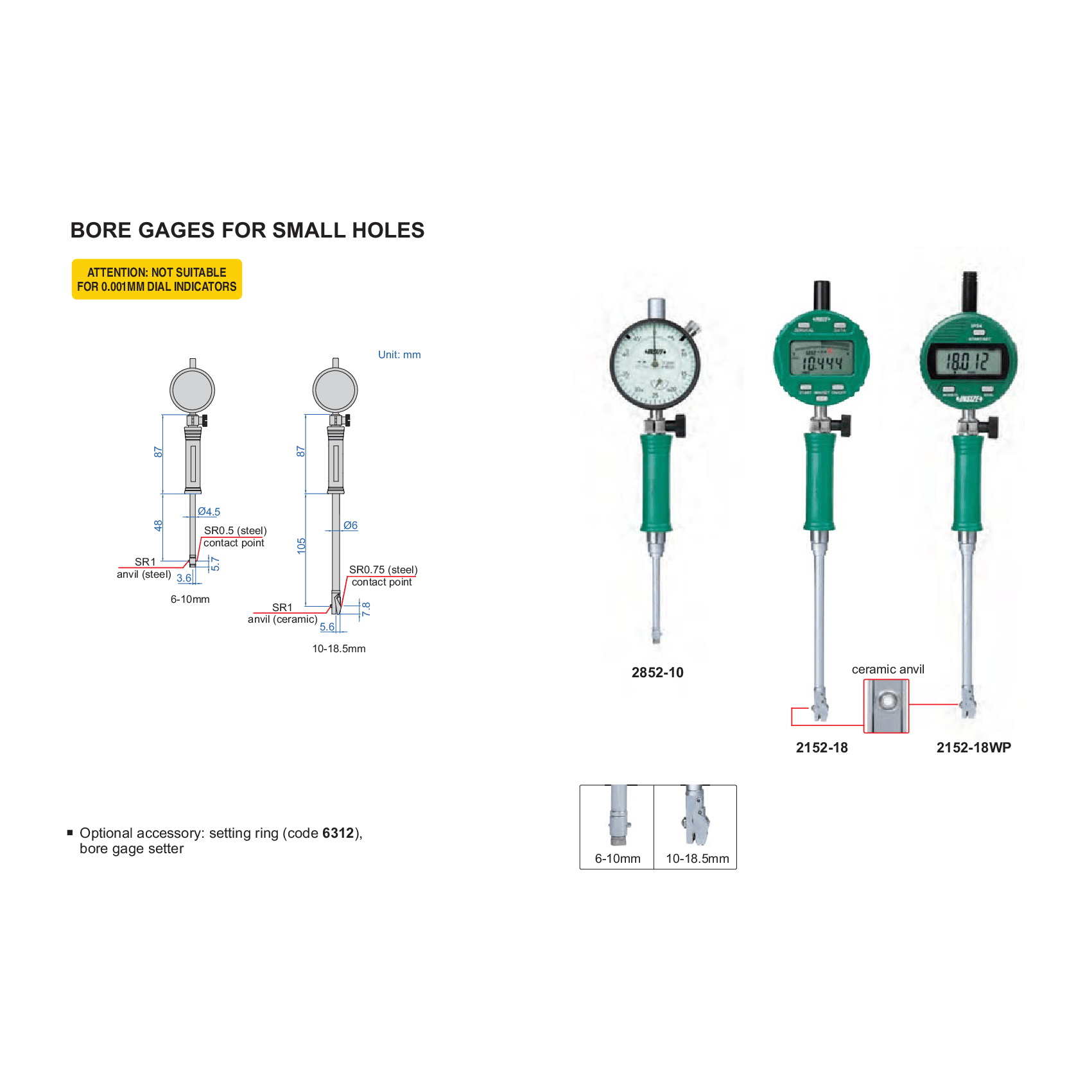

- Optional accessory: Setting ring (code 6312)

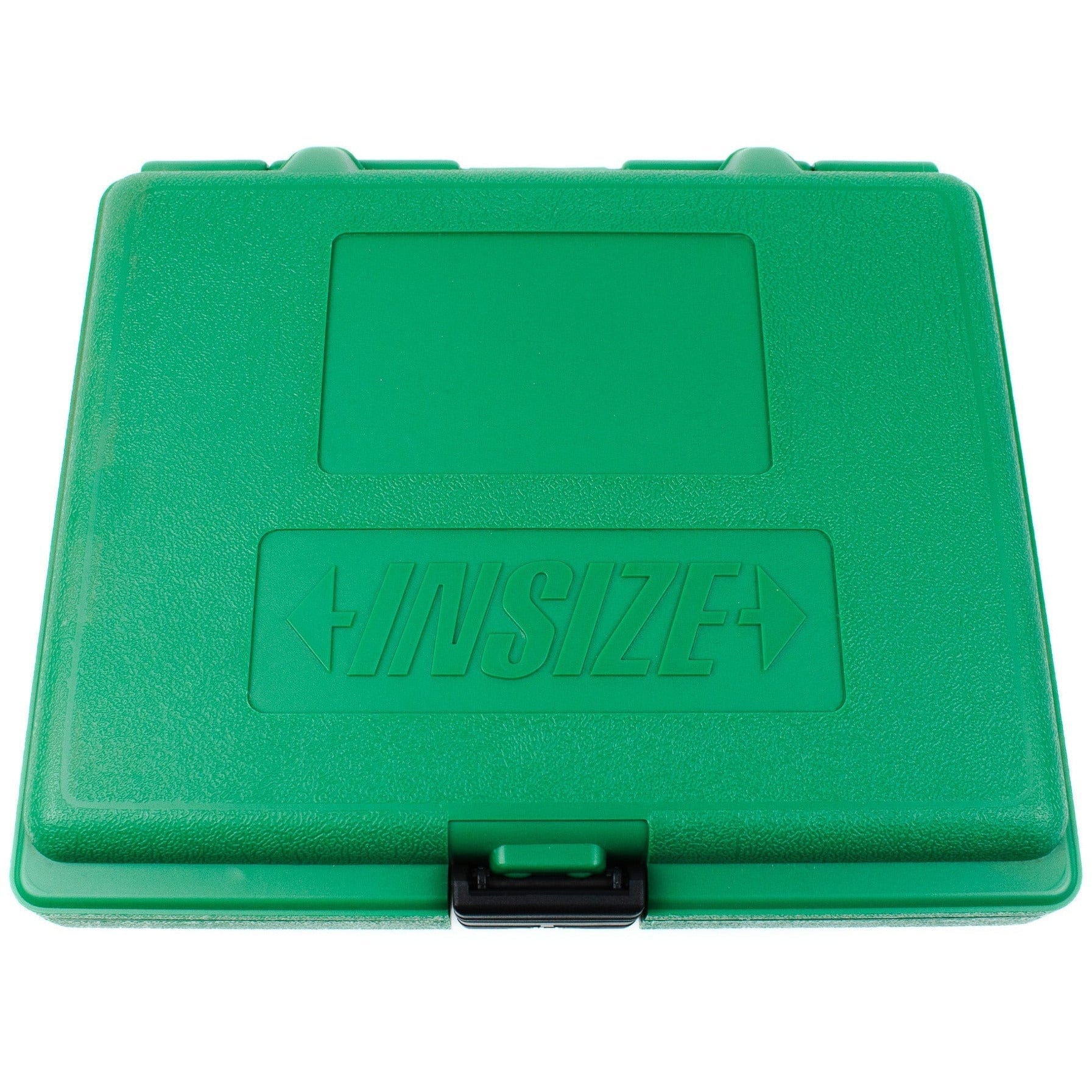

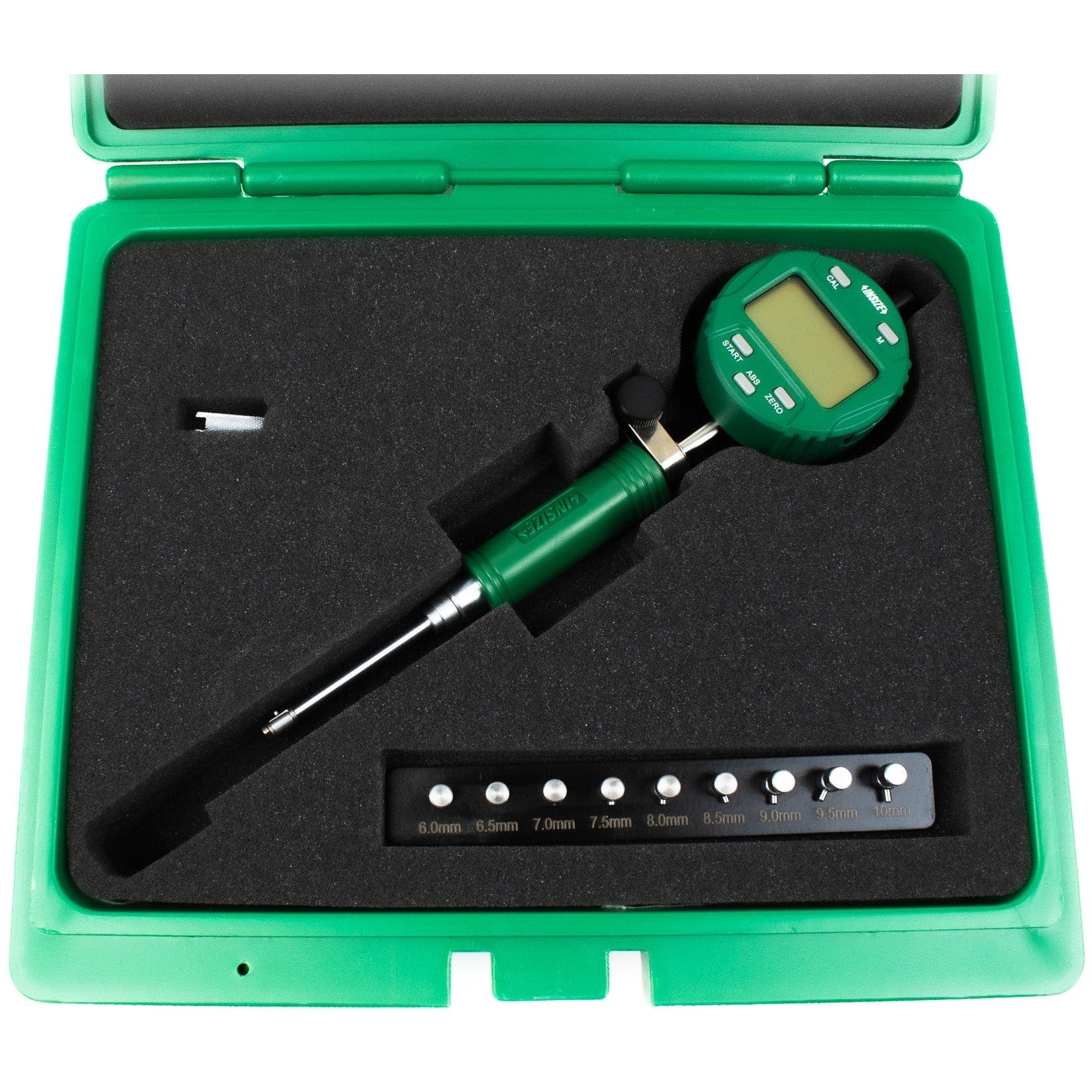

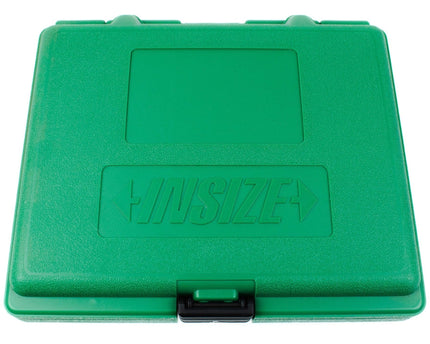

- Comes in moulded EVA housed in a sturdy storage case
Well-designed, durable, and highly precise, this instrument is suitable for a wide range of small-bore measuring tasks. INSIZE bore gauges deliver stable, easy-to-read measurements and are ideal for accurate inspection of internal diameters in machining, tooling, and engineering applications.
