Description

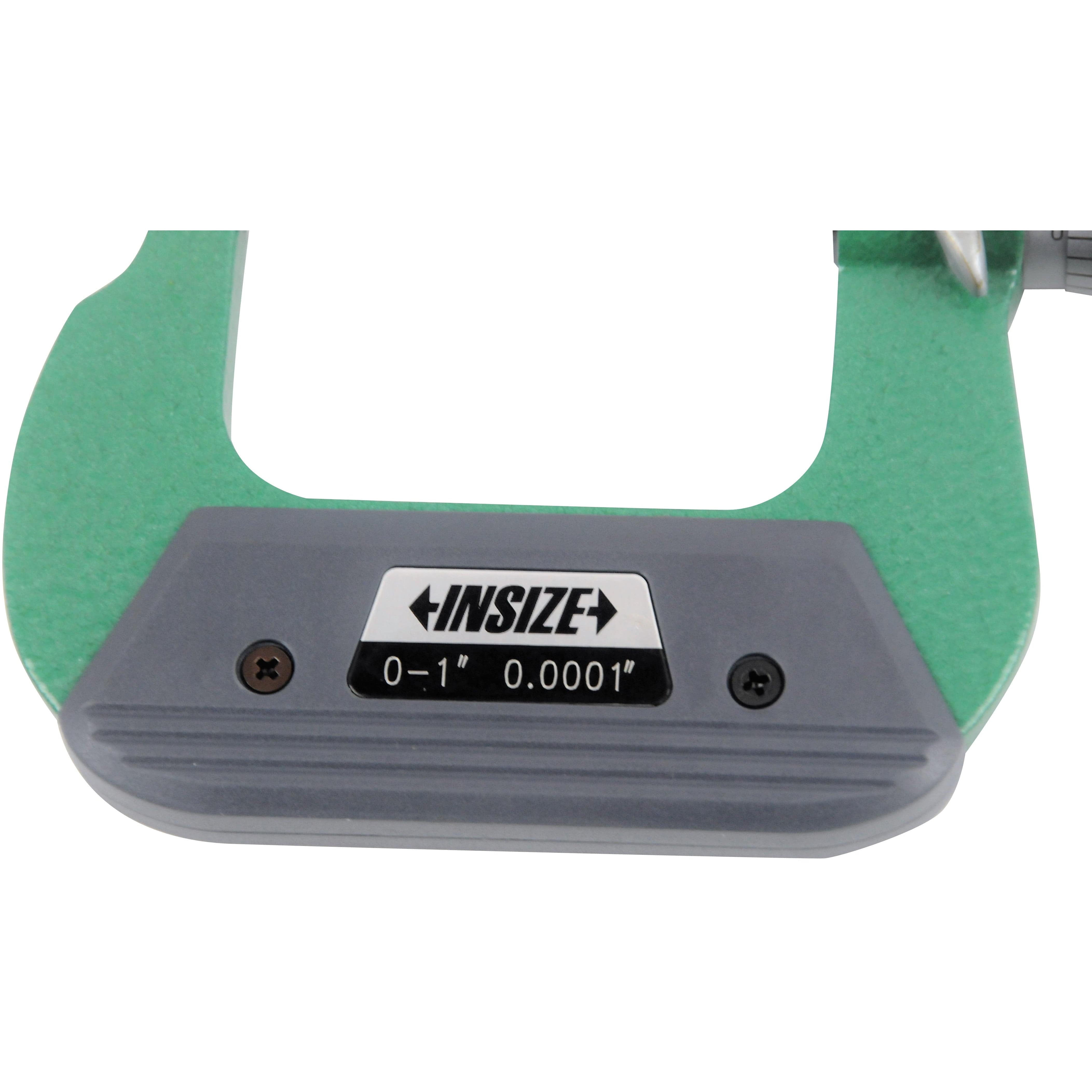

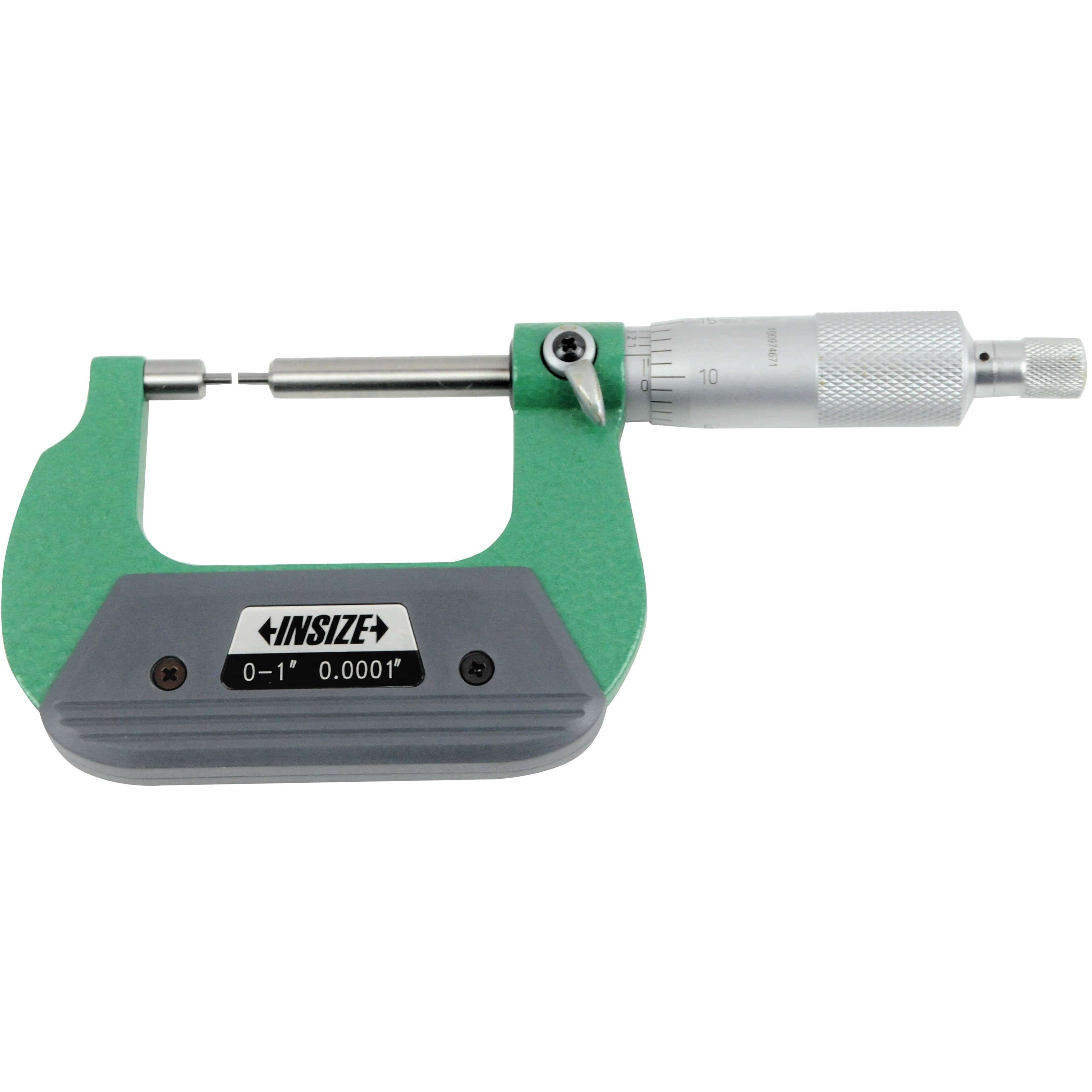

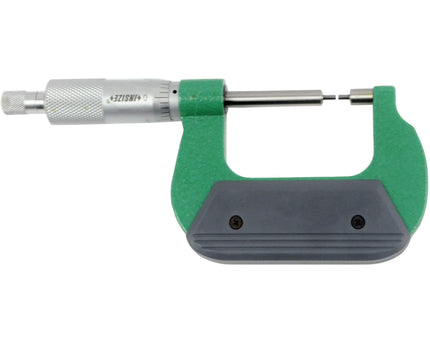

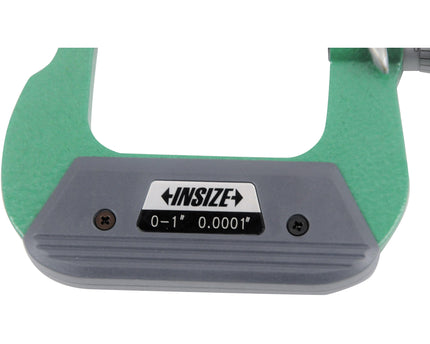

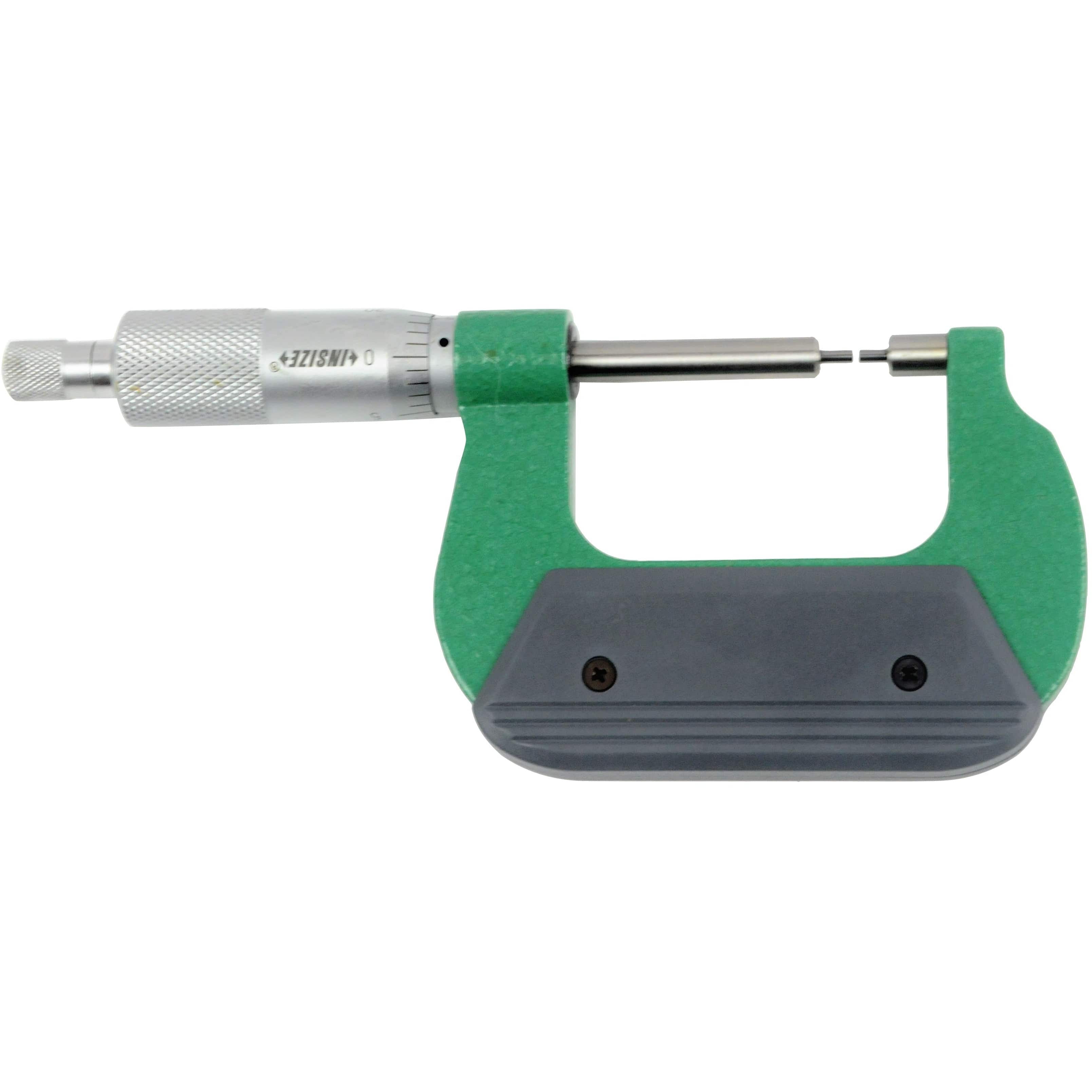

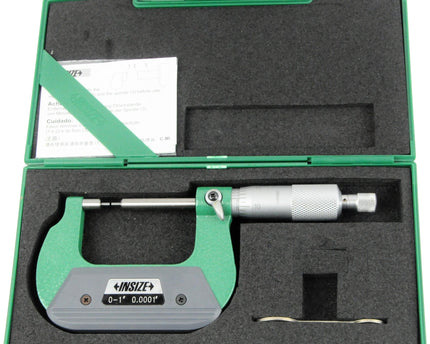

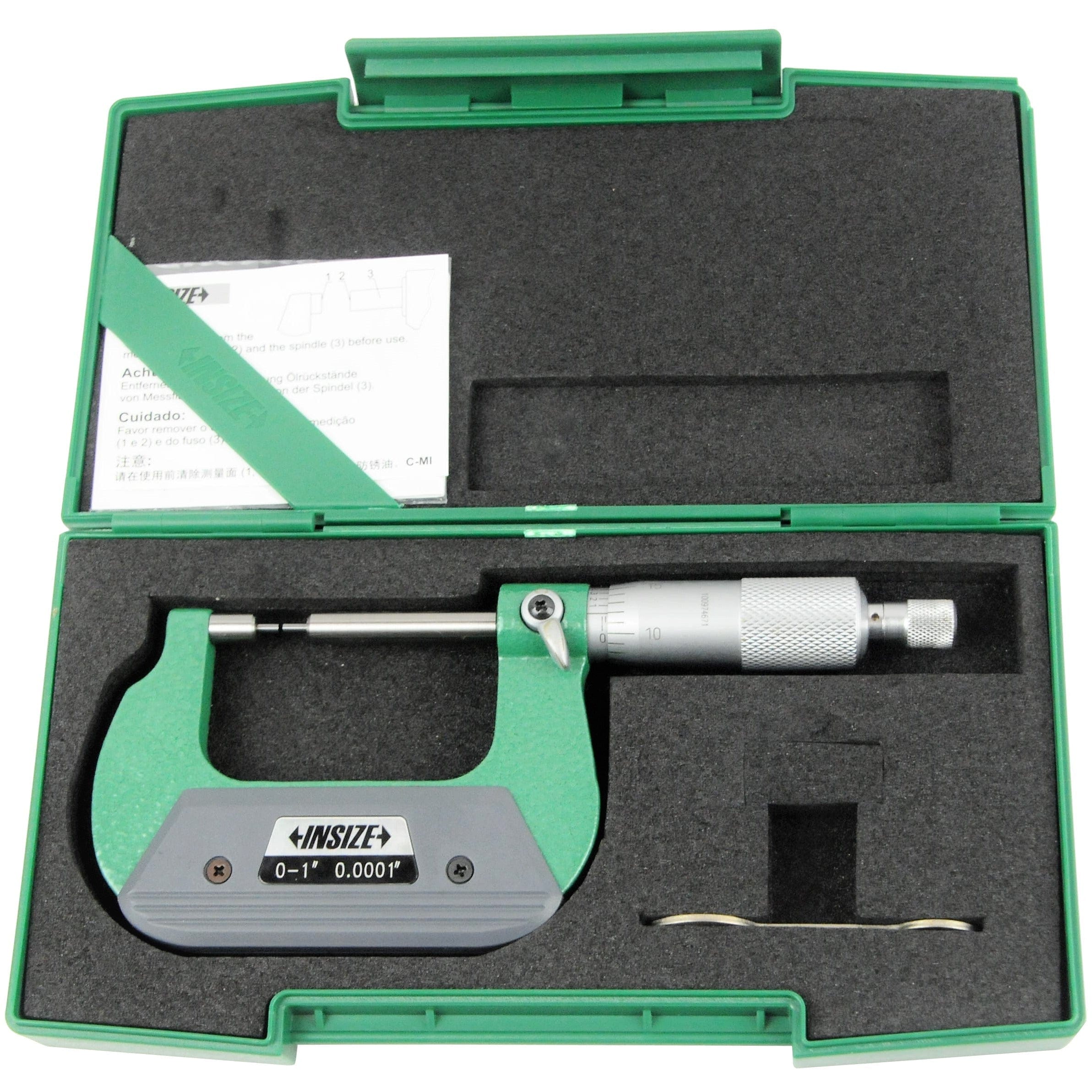

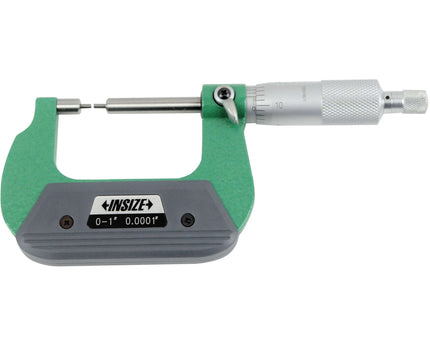

Insize Spline Micrometer 0–1″
The Insize Spline Micrometer is a high-precision measuring instrument designed specifically for measuring splined shafts, slots, and keyways. Featuring slim carbide measuring faces and a ratchet stop mechanism, this micrometer provides accurate, repeatable results for precision machining, inspection, and toolroom applications.

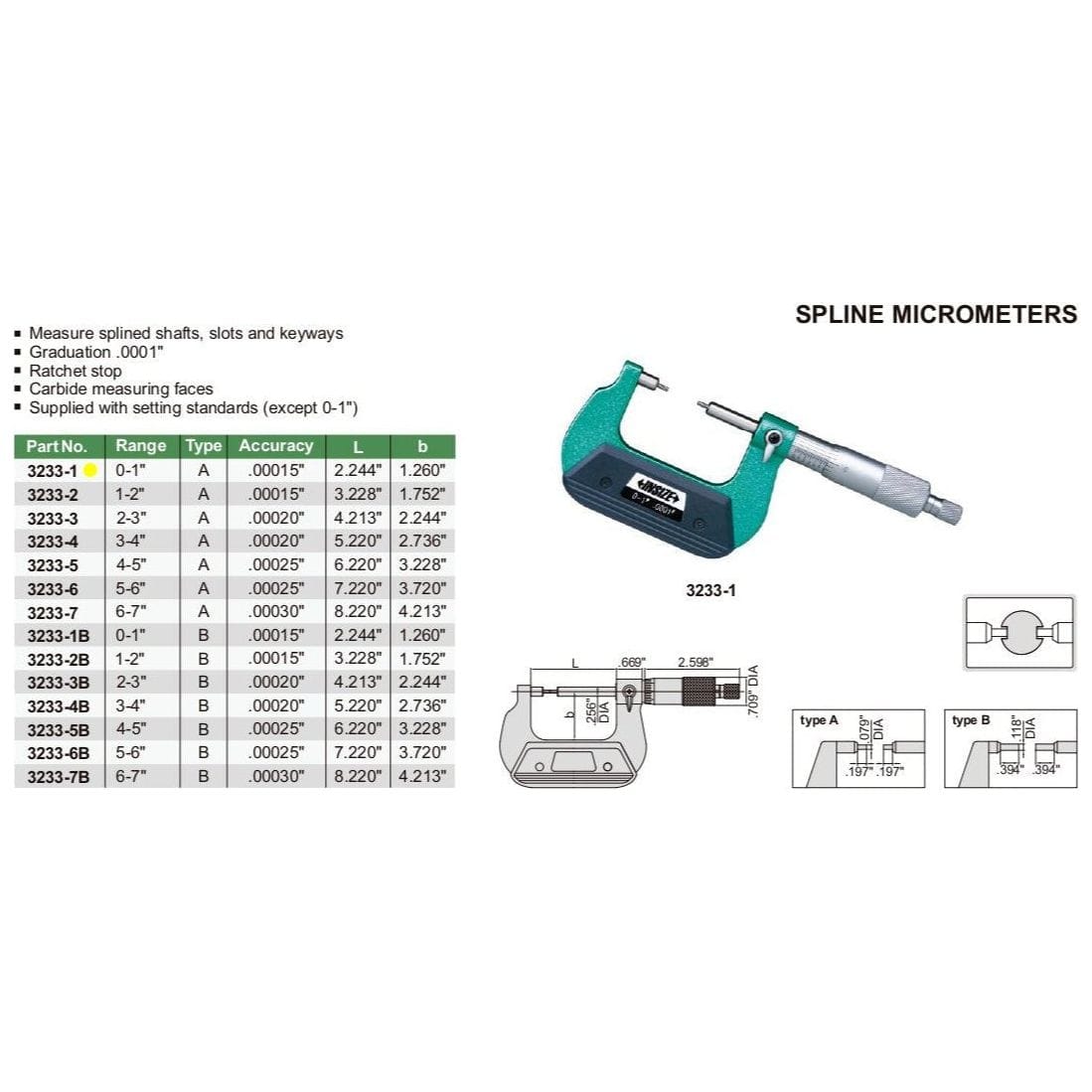

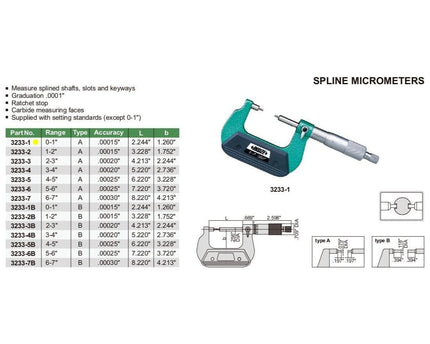

Specifications :
-
Part No: 3233-1
-
Measuring Range: 0–1″
-
Graduation: 0.0001″
-
Accuracy: 0.00015″
-
Type: Type A spline micrometer
-

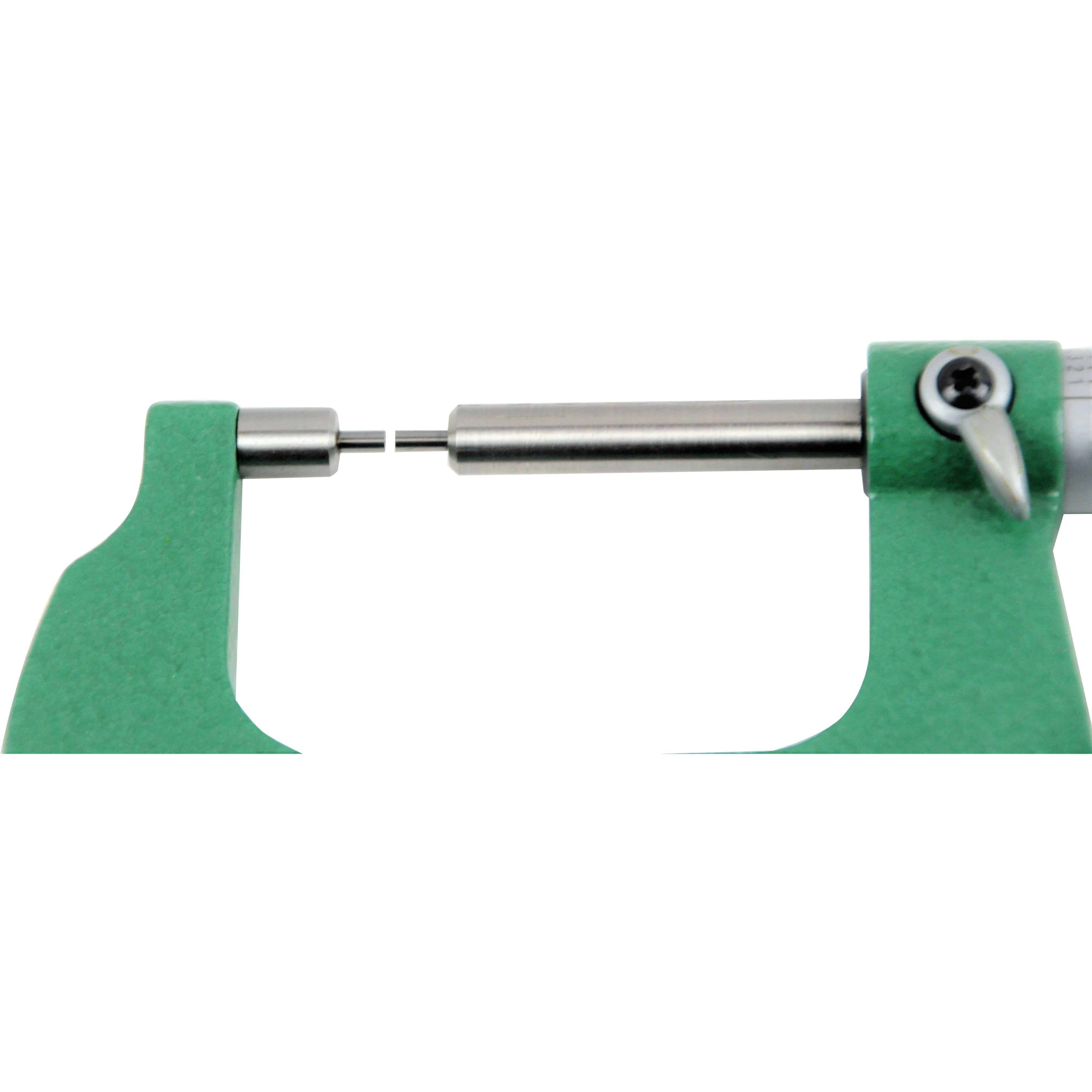

Measuring Faces: Carbide
-

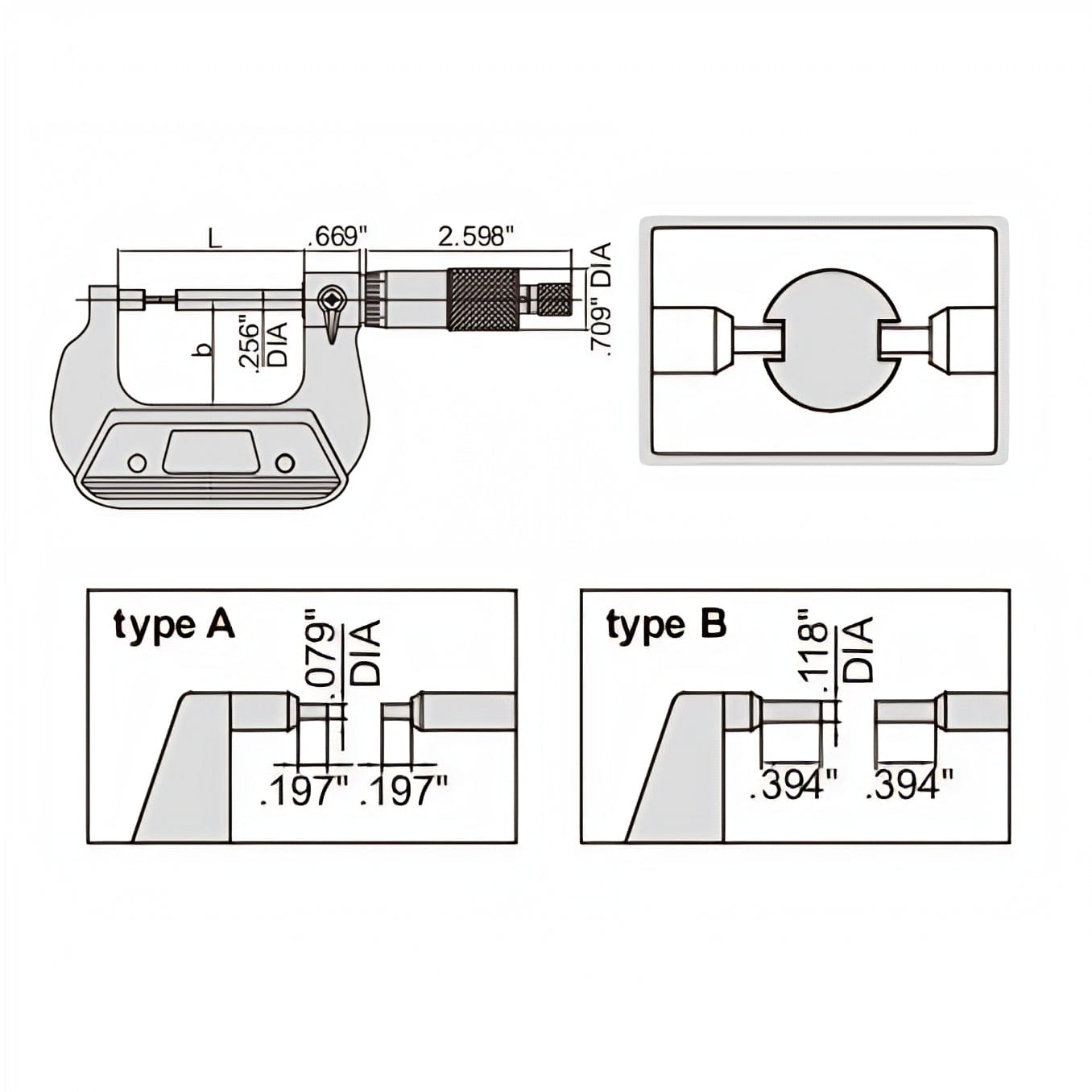

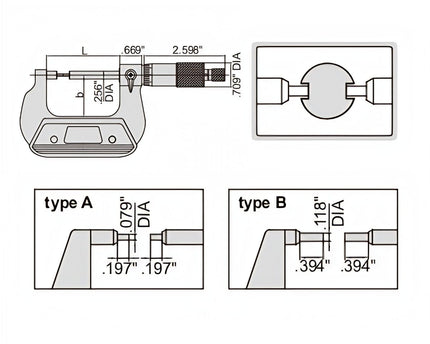

Dimensions: L: 2.244″, b: 1.260″
- Designed for measuring splined shafts, slots, and keyways

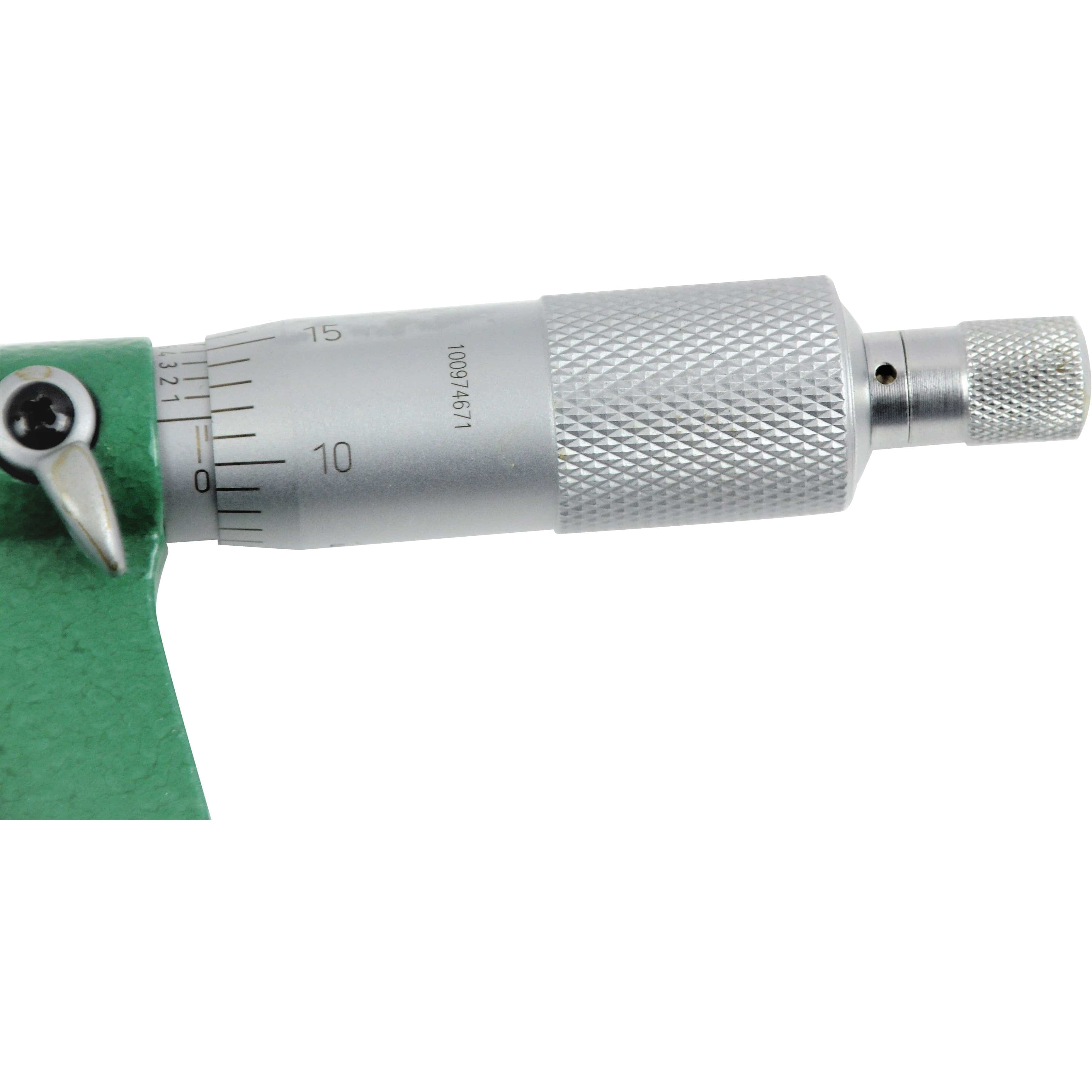

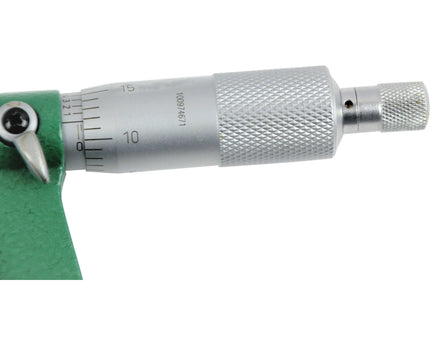

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-3
- Supplied with setting standards (except 0–1″)
Well-designed, durable, and highly accurate, Insize spline micrometers are ideal for precision measurement of splined components and recessed features where standard micrometers are not suitable.
