Description

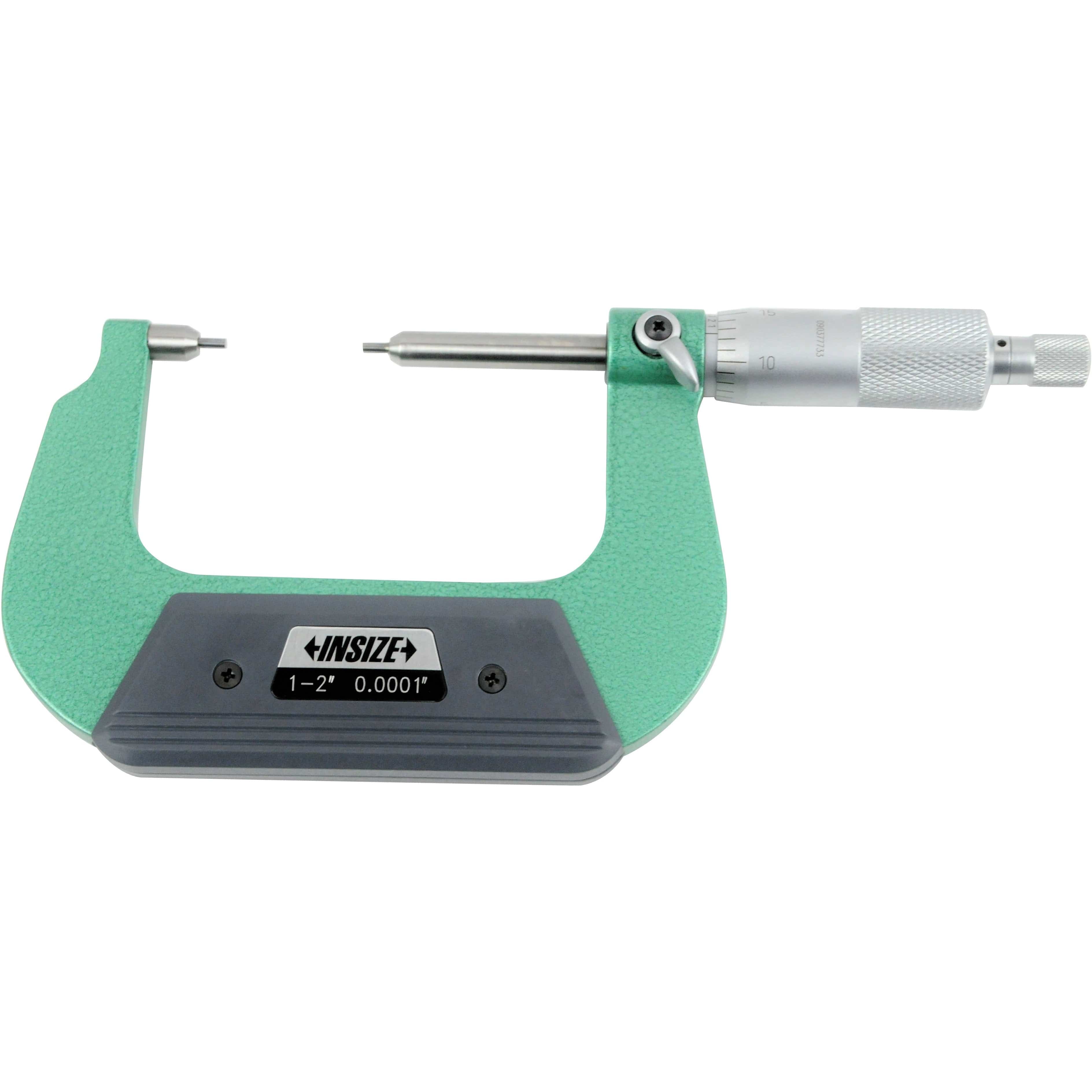

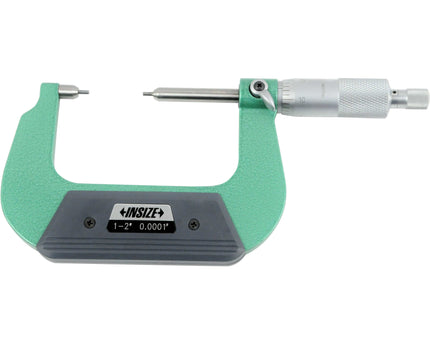

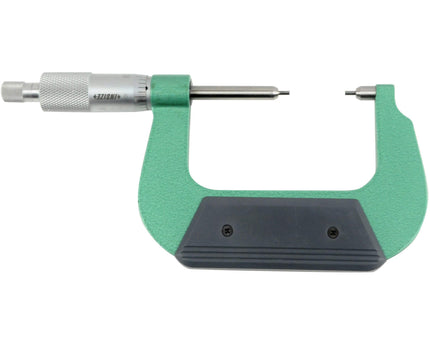

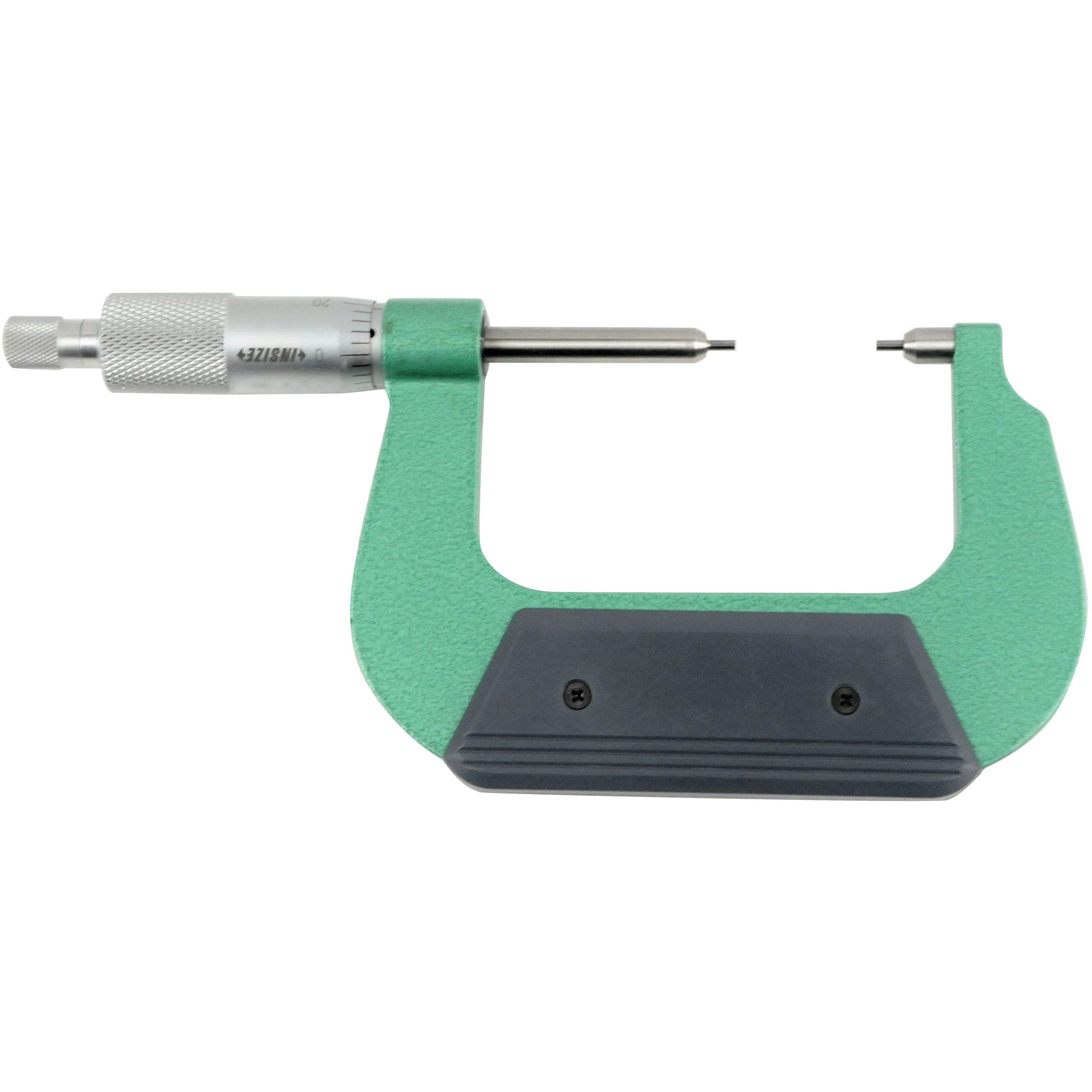

Insize Spline Micrometer 1–2"
The Insize Spline Micrometer is a high-precision measuring instrument designed for accurate measurement of splined shafts, slots, and keyways. Featuring hardened carbide measuring faces and a ratchet stop mechanism, it ensures consistent, repeatable measurements in machining, inspection, and quality control applications.

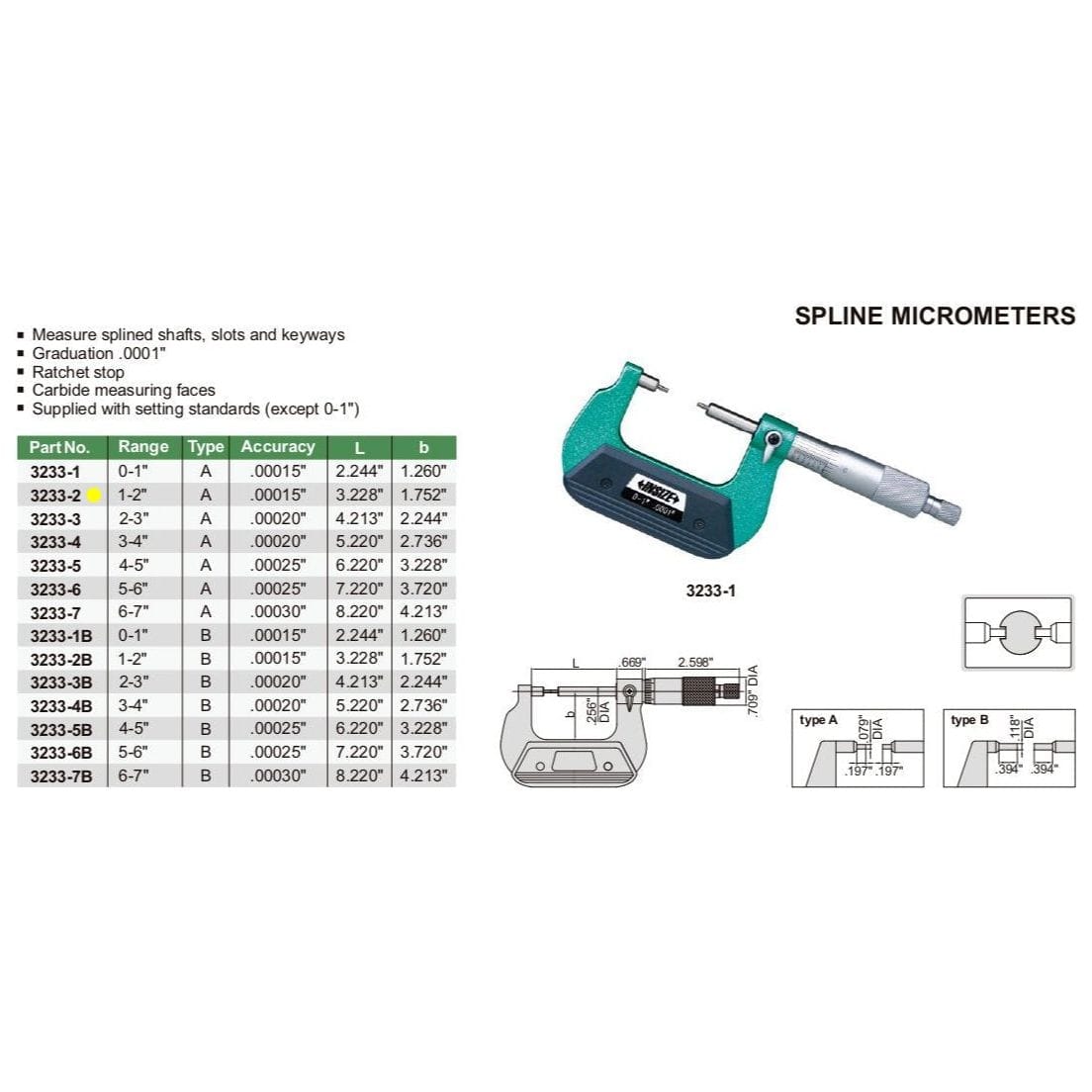

Specifications :
-
Part No: 3233-2
-
Measuring Range: 1–2"
-
Graduation: 0.0001"
-
Accuracy: ±0.00015"
-
Type: Type A spline micrometer
-

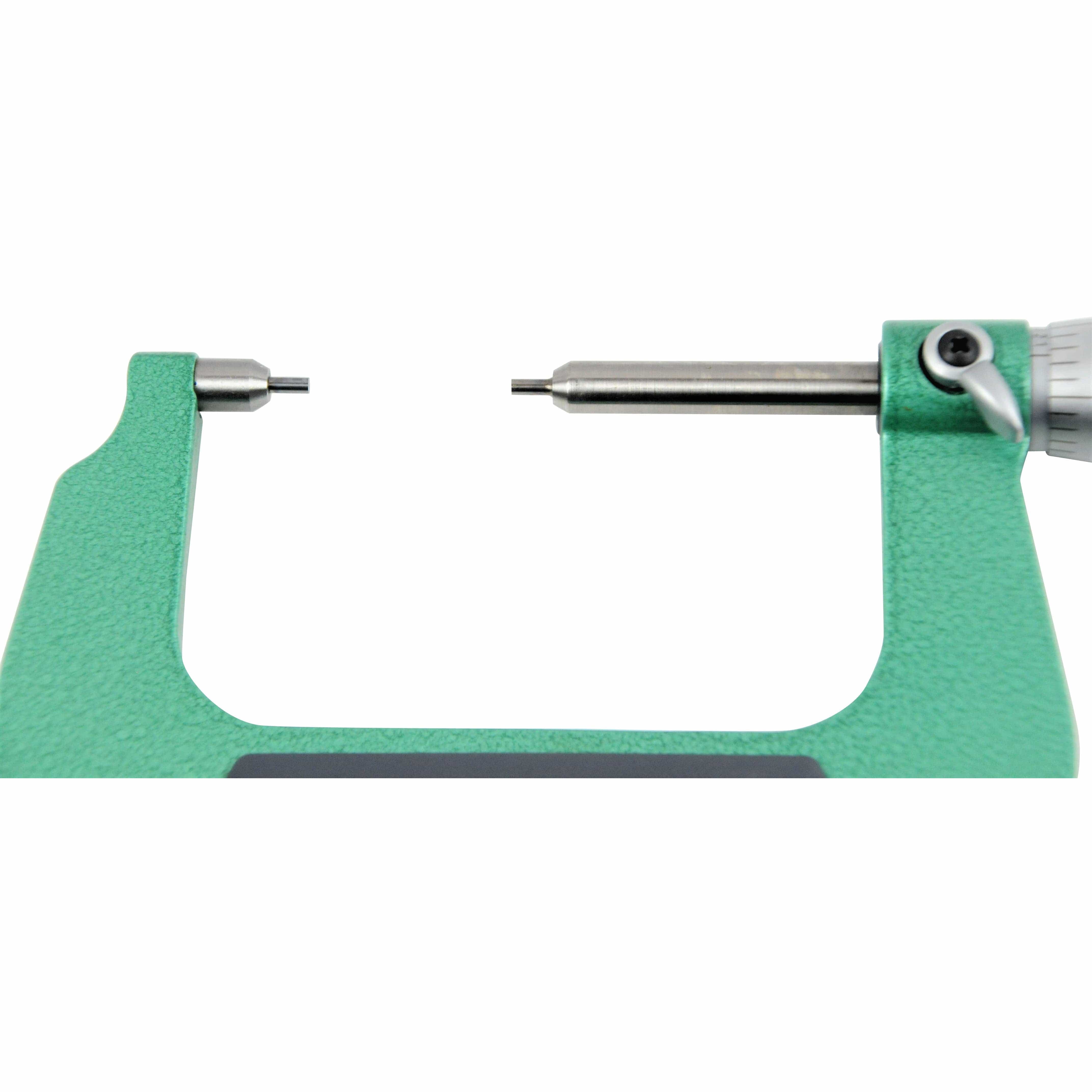

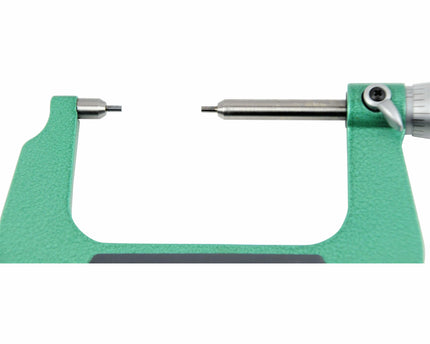

Measuring Faces: Carbide
-

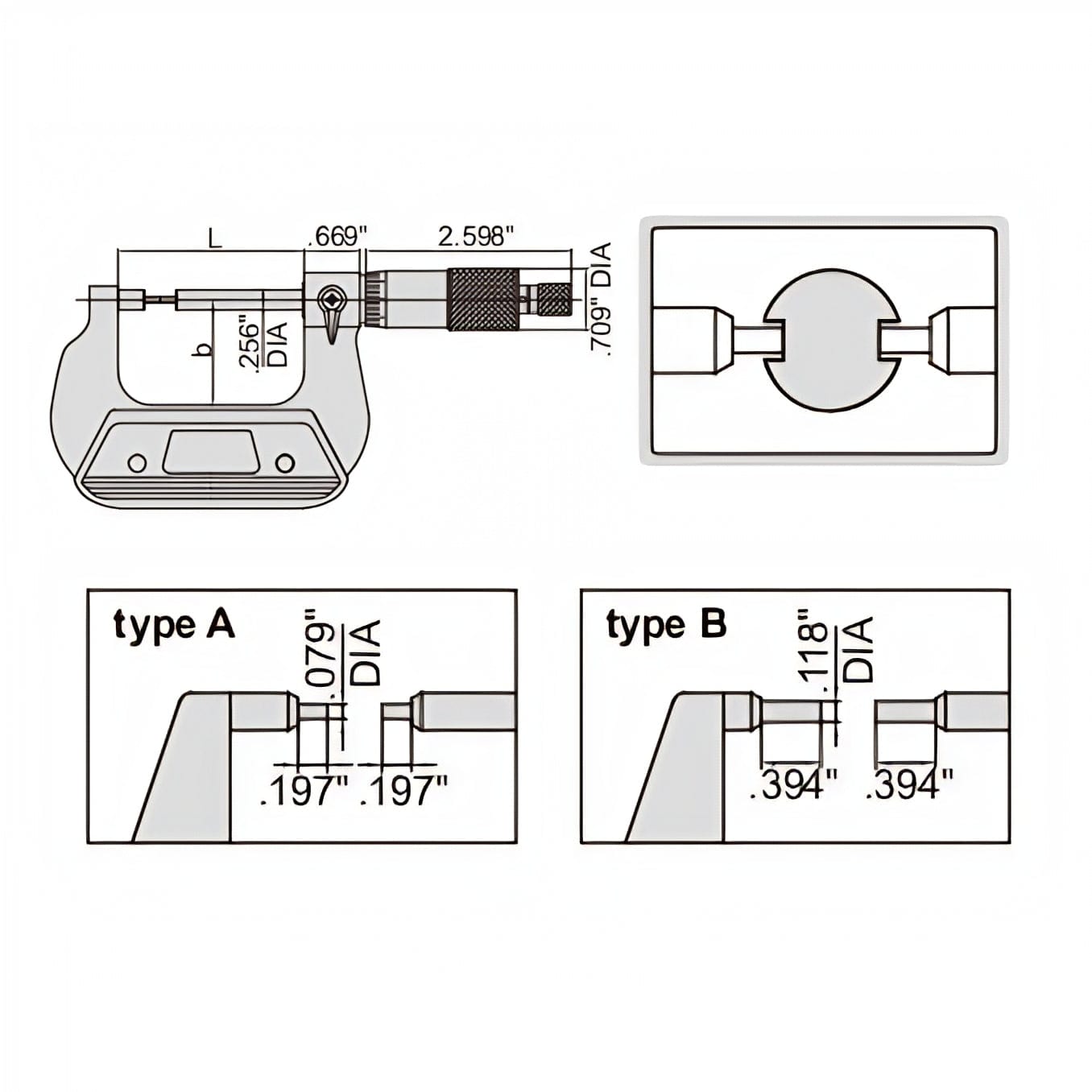

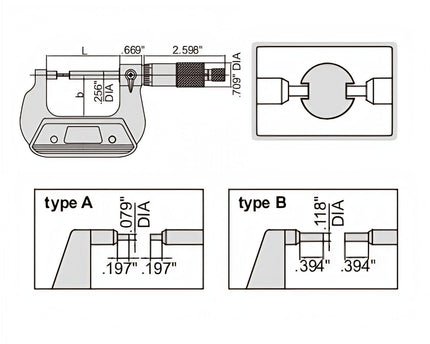

Dimensions: L: 3.228", b: 1.752"
- Designed for measuring splined shafts, slots, and keyways

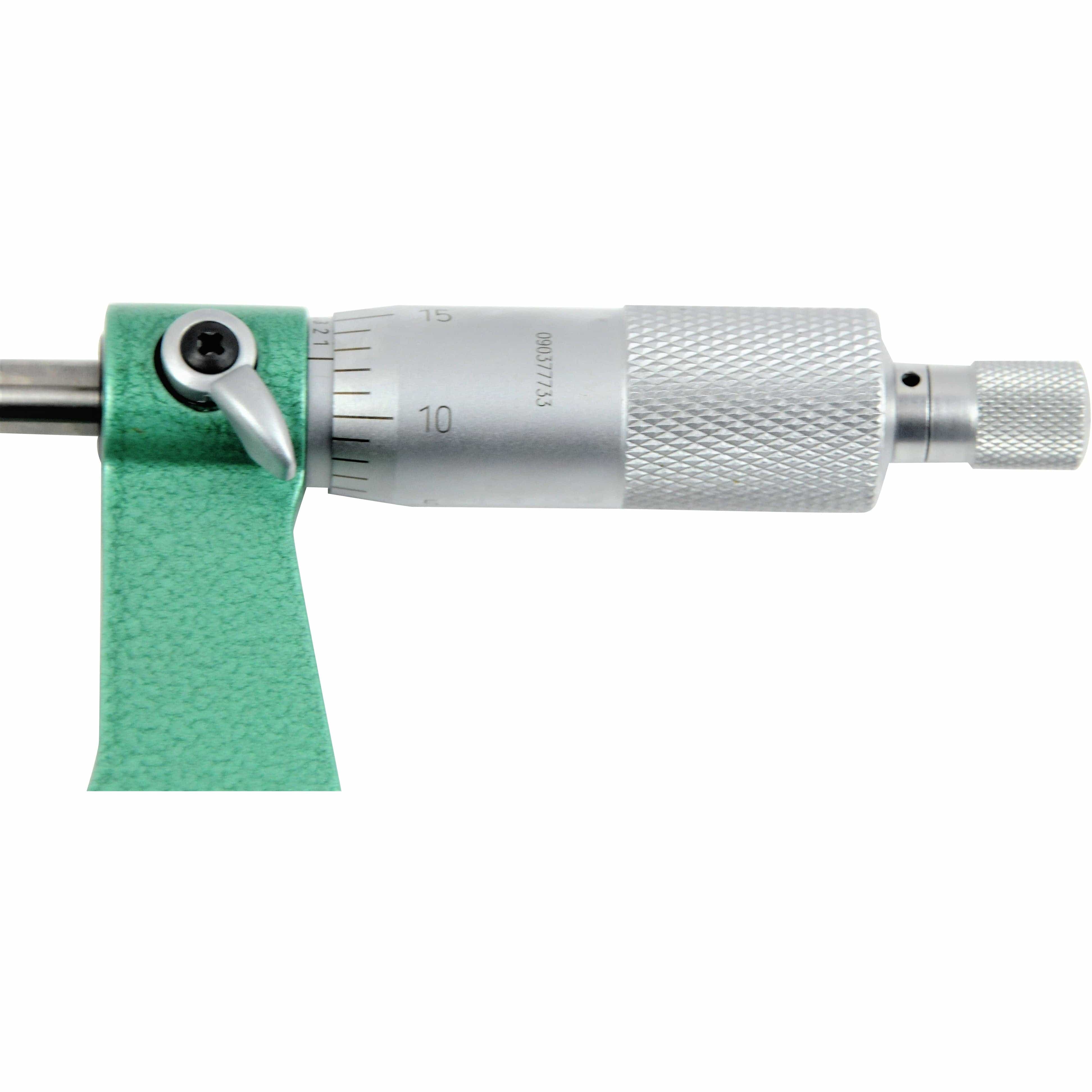

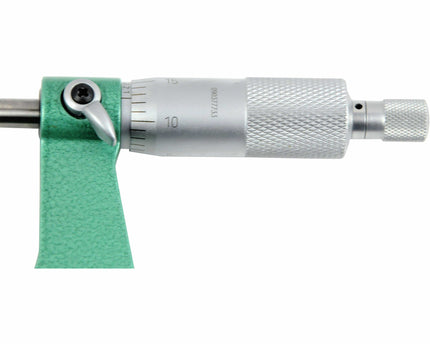

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-3

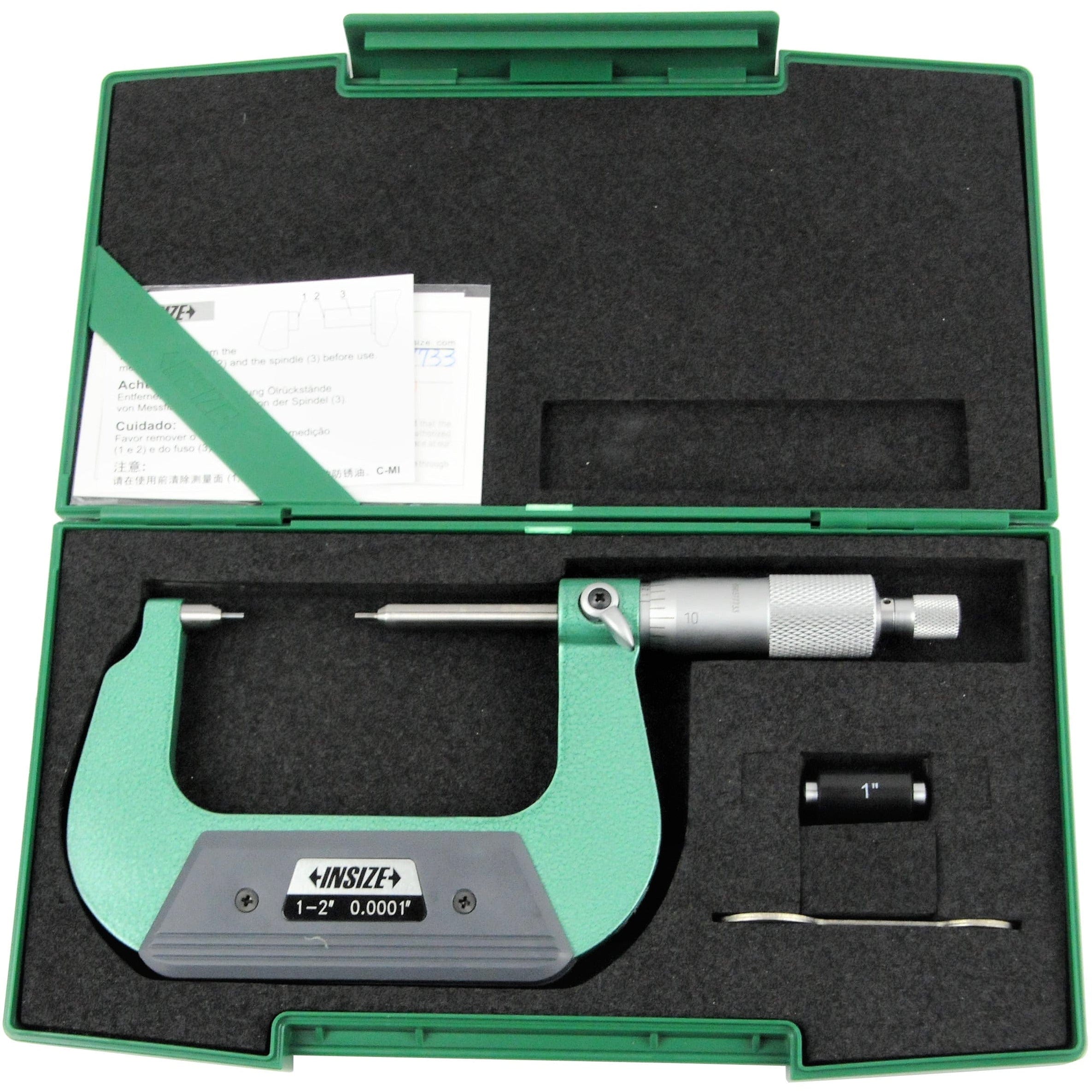

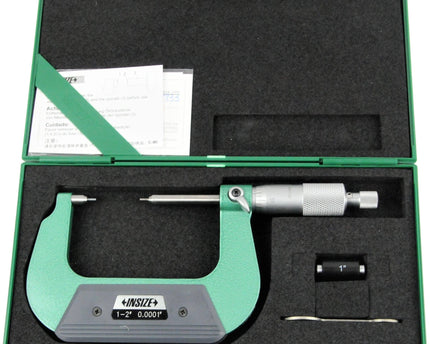

- Supplied with setting standards (except 0–1")
Well-designed, durable, and highly accurate, Insize spline micrometers are ideal for precision measurement of recessed features and narrow internal spaces where standard micrometers are not suitable.
