Description

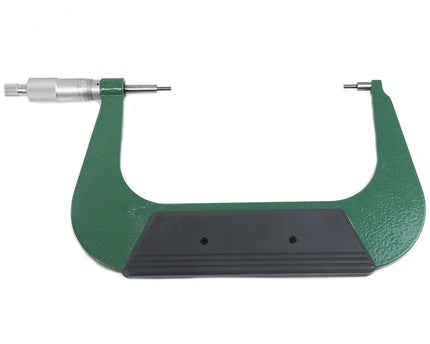

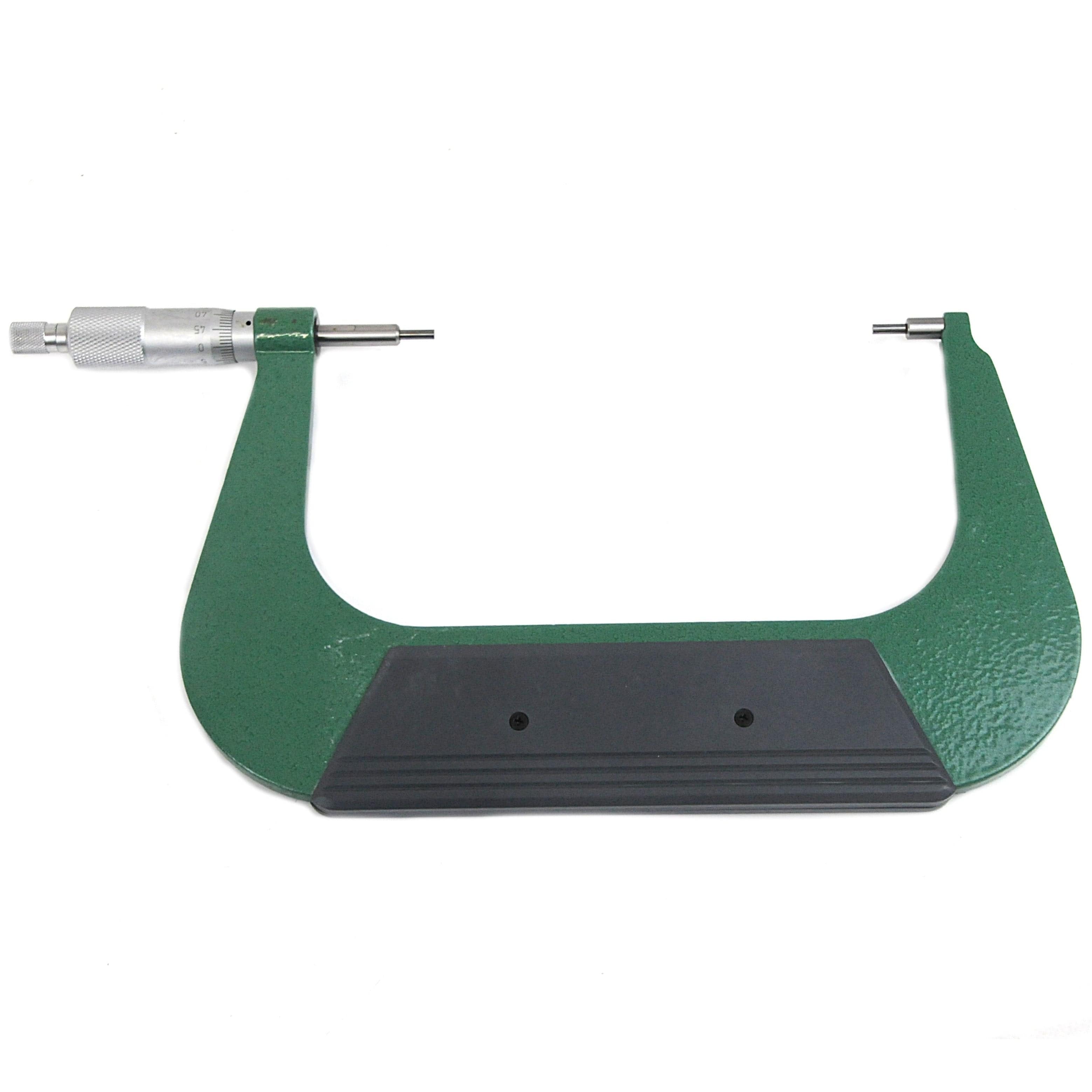

Insize Spline Micrometer 125–150 mm
The Insize Spline Micrometer is a precision measuring instrument designed for accurate measurement of splined shafts, slots, and keyways. Equipped with hardened carbide measuring faces and a ratchet stop mechanism, it delivers consistent, repeatable results for machining, inspection, and quality control applications.

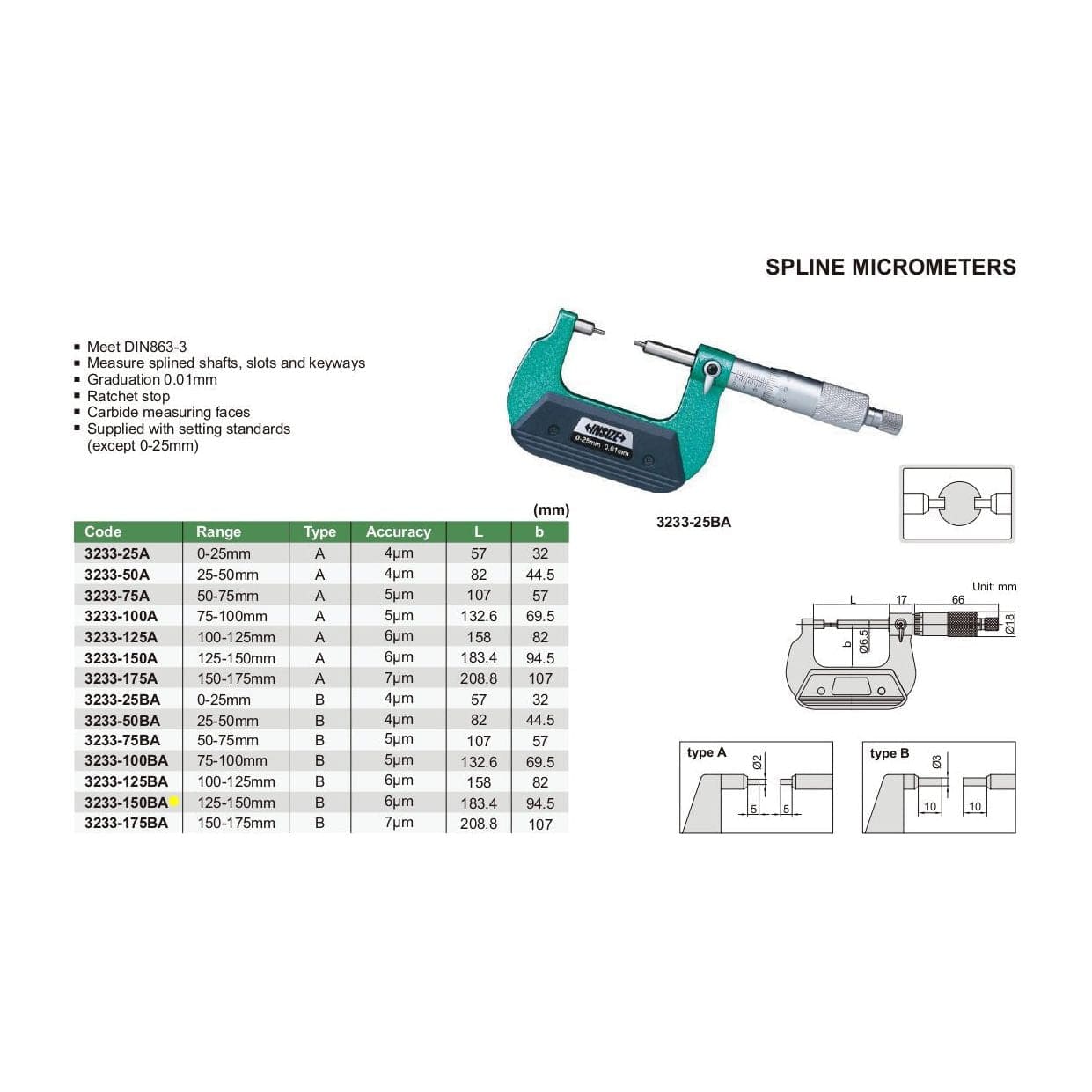

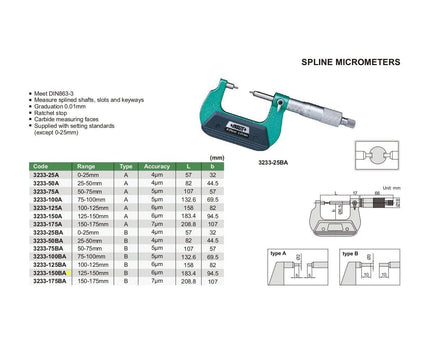

Specifications :
-
Part No: 3233-150BA
-
Measuring Range: 125–150 mm
-
Graduation: 0.01 mm
-
Type: Type B spline micrometer
-
Measuring Faces: Carbide
-

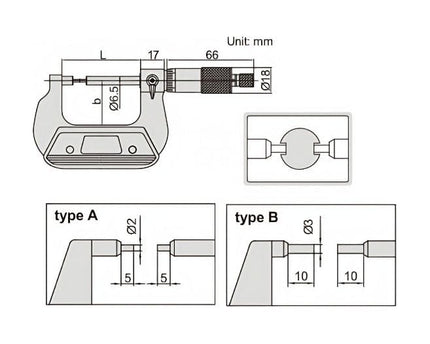

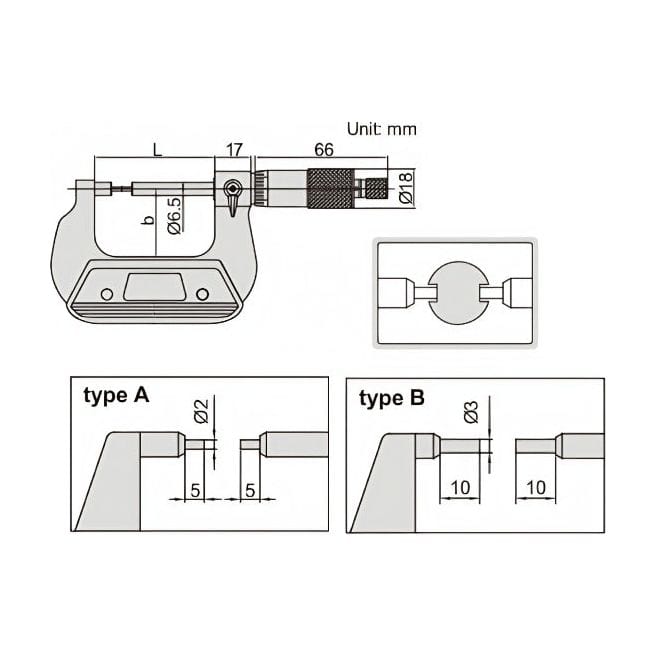

Dimensions: L: 183.4 mm, b: 94.5 mm
- Designed for measuring splined shafts, slots, and keyways
- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-3

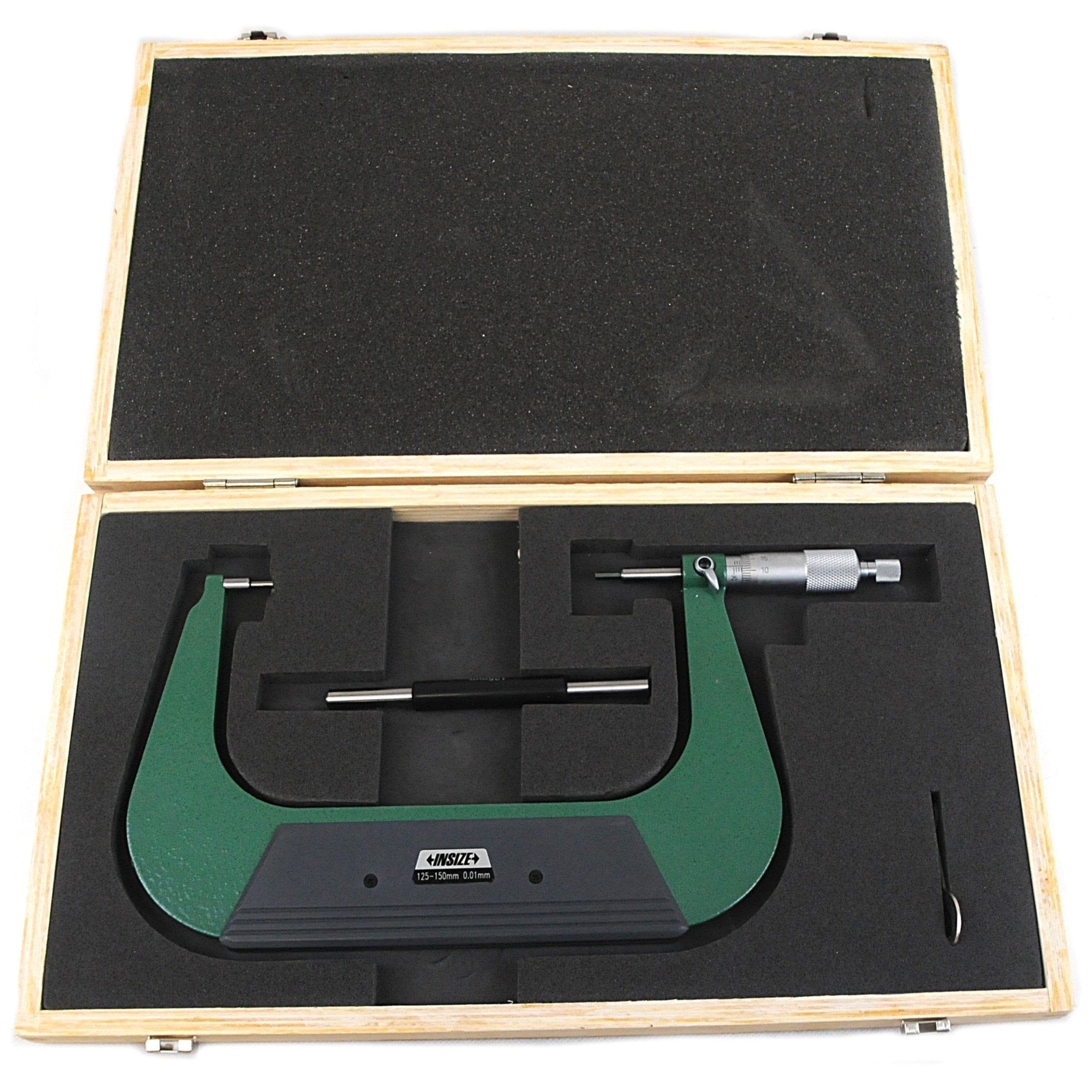

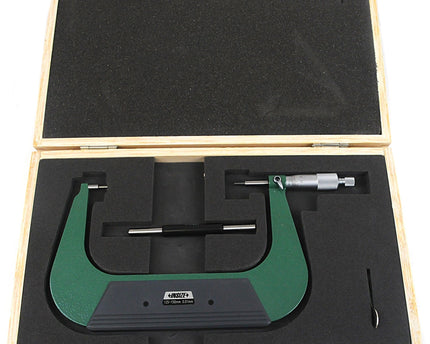

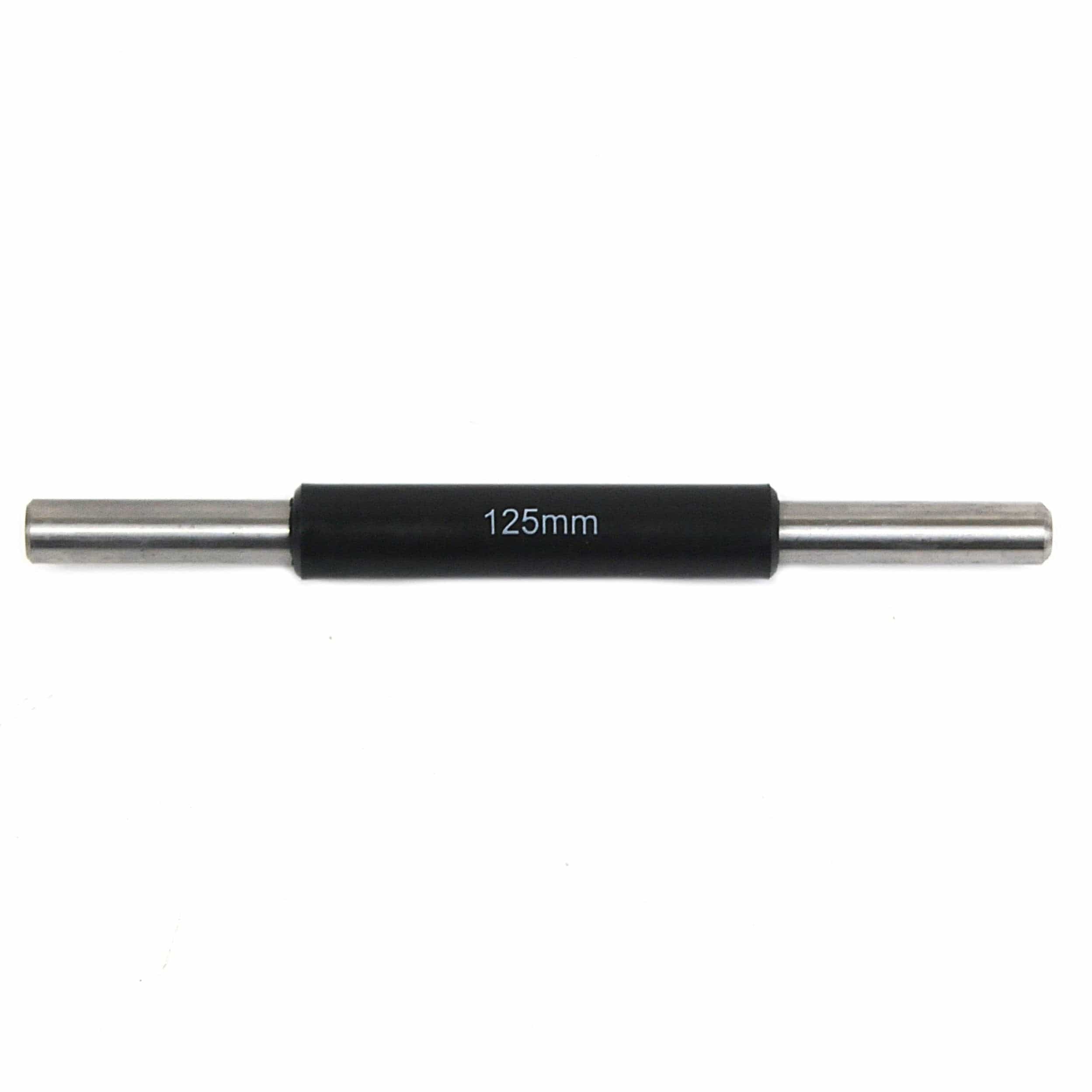

- Supplied with setting standards (except 0–25 mm)
Well-designed, durable, and highly accurate, Insize spline micrometers are ideal for precision measurement of splined components and recessed features where standard micrometers are not suitable.
