Description

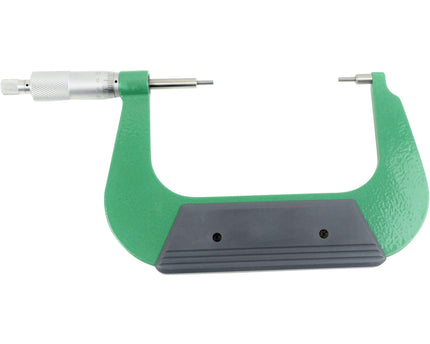

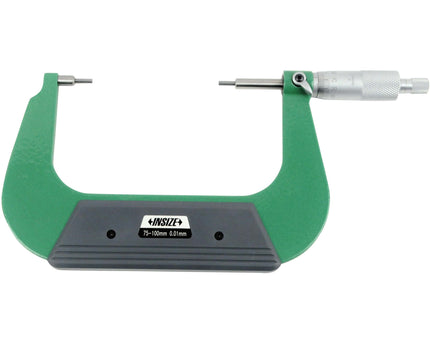

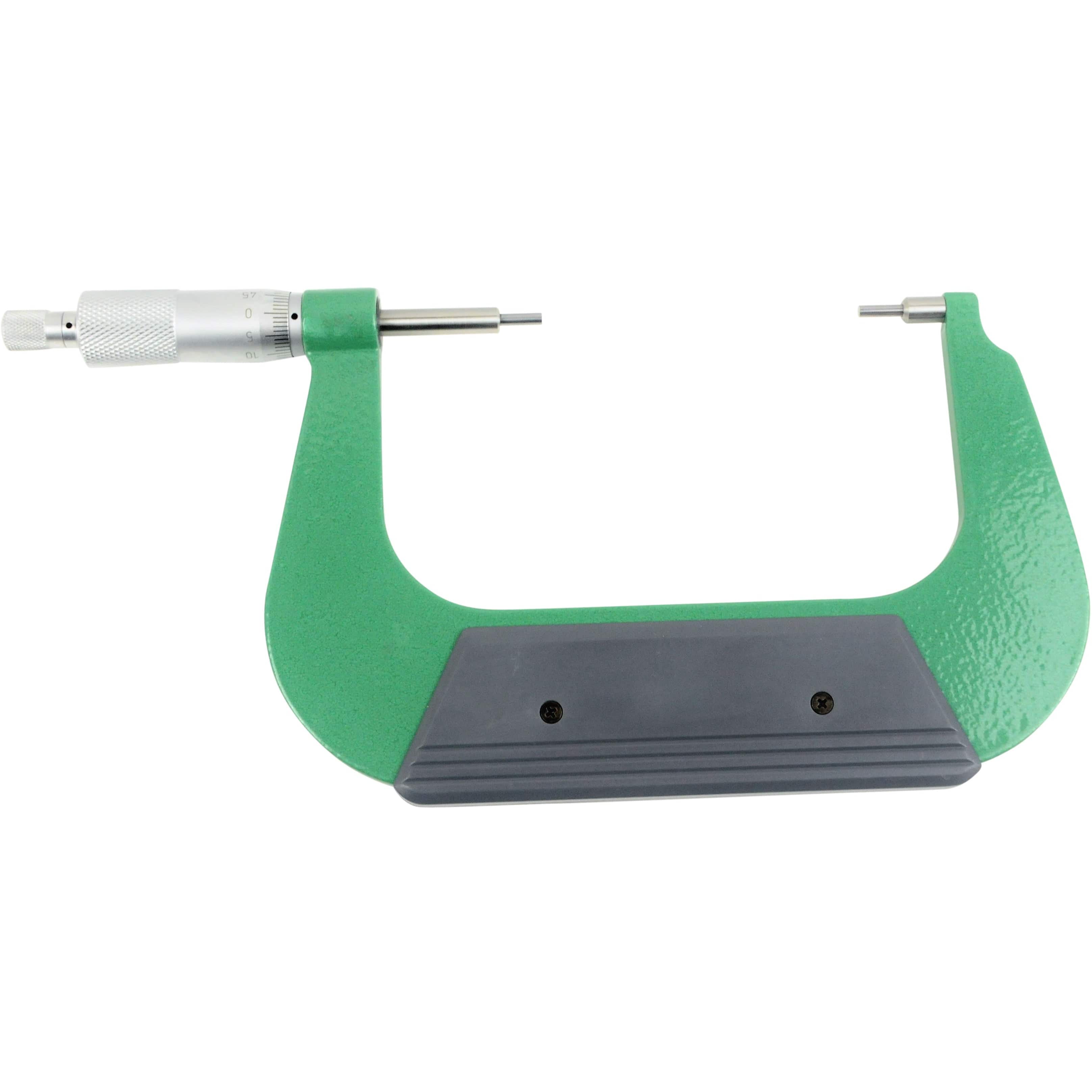

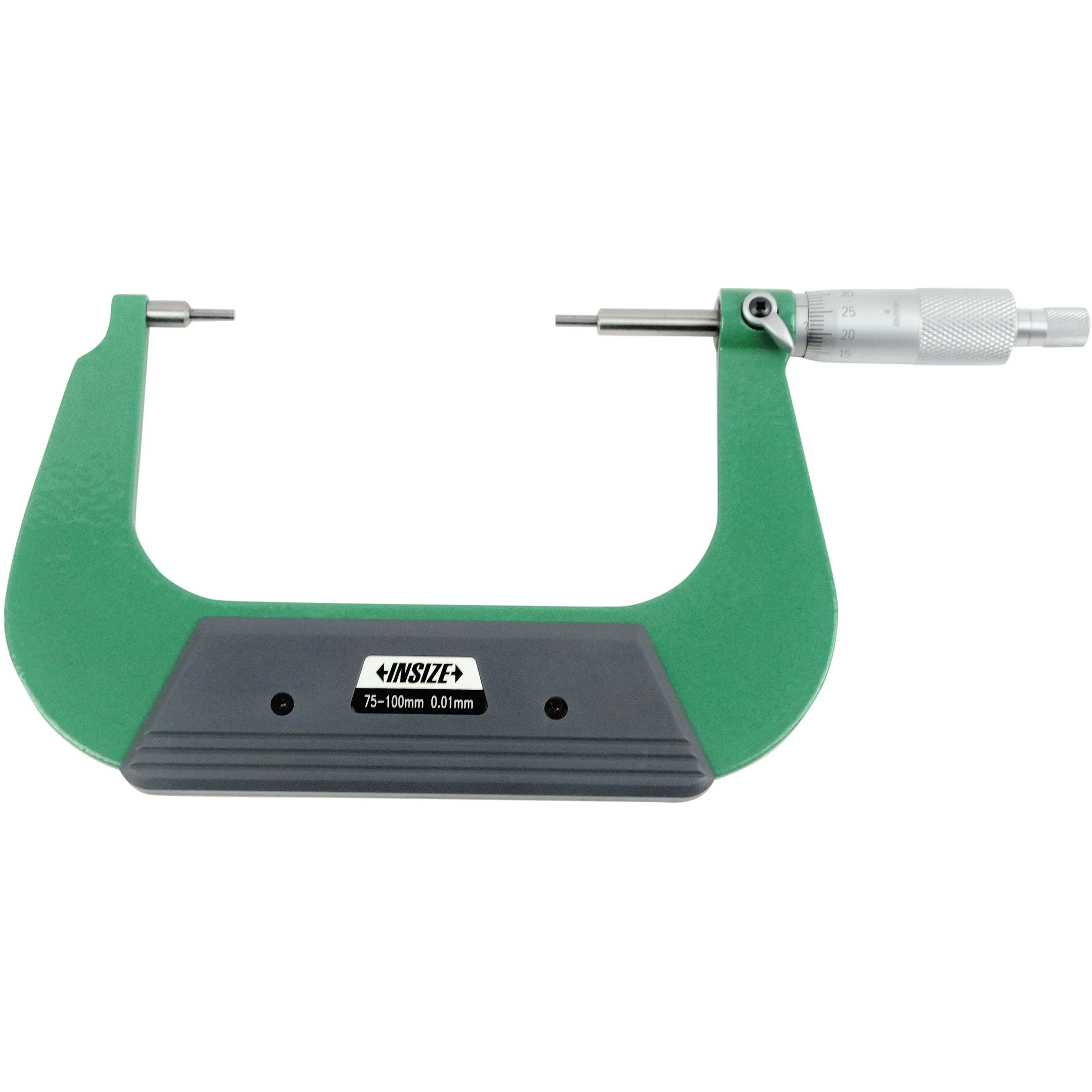

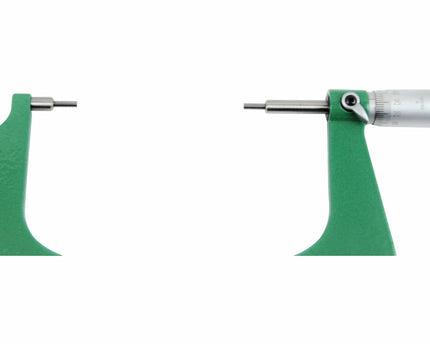

Insize Spline Micrometer 75–100 mm
The Insize Spline Micrometer is a precision measuring instrument designed for accurate measurement of splined shafts, slots, and keyways. Featuring hardened carbide measuring faces and a ratchet stop mechanism, this micrometer delivers consistent, repeatable results in machining, inspection, and quality control environments.

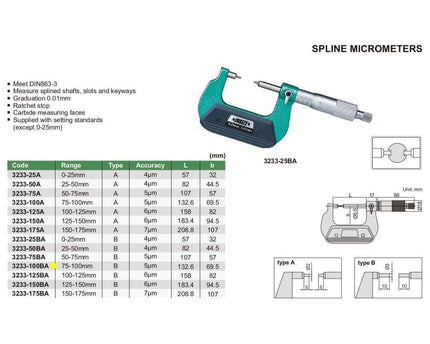

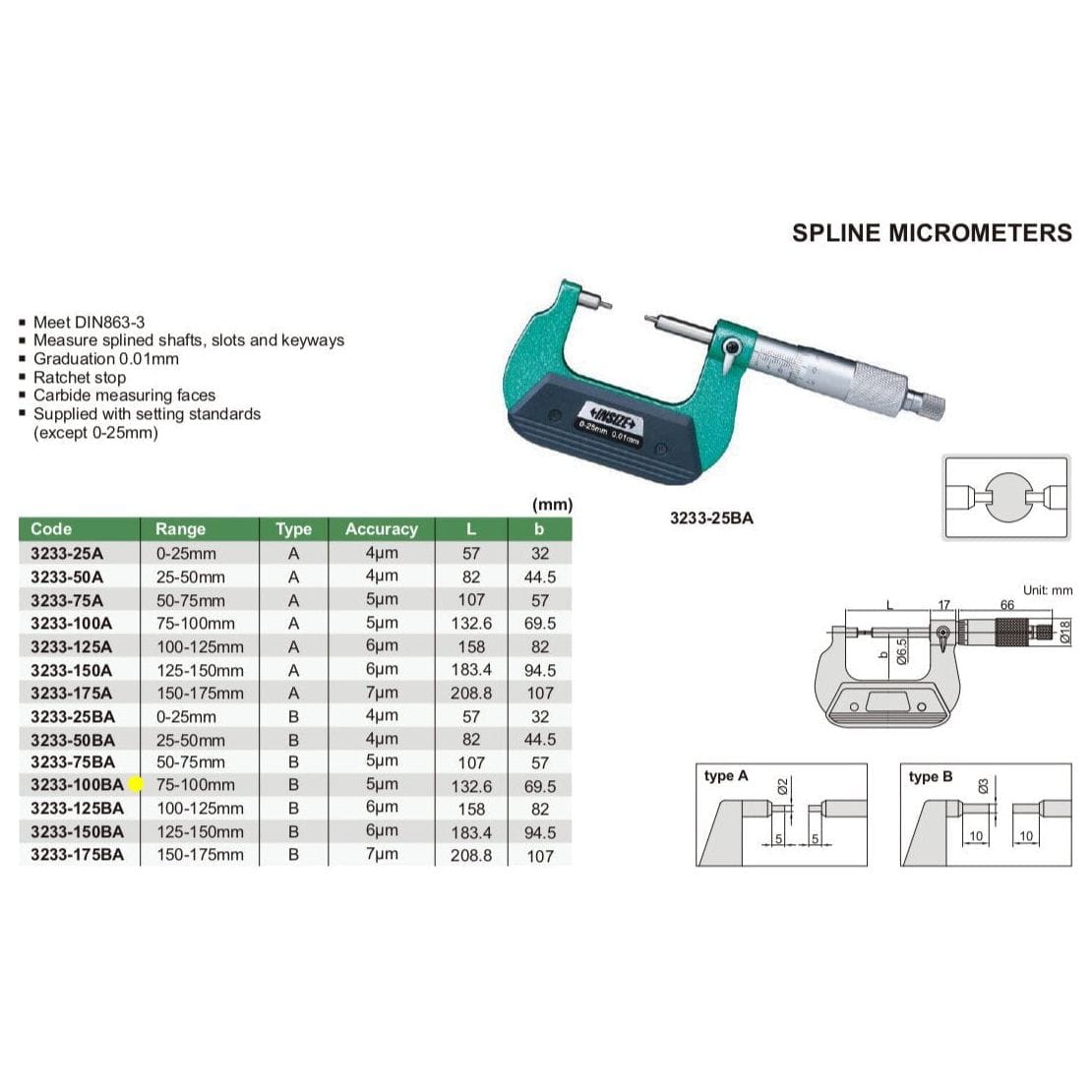

Specifications :
-
Part No: 3233-100BA
-
Measuring Range: 75–100 mm
-
Graduation: 0.01 mm
-

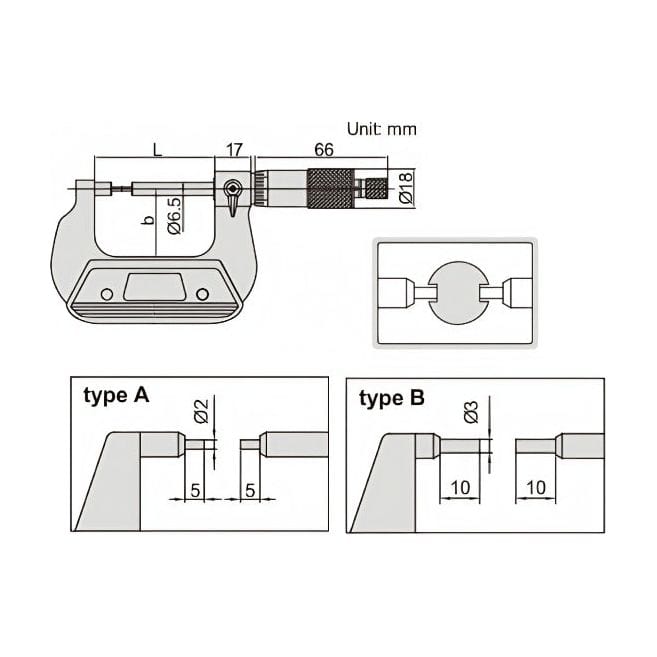

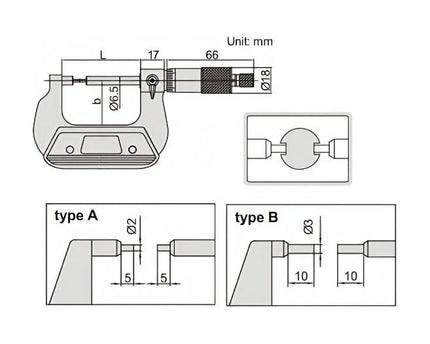

Type: Type B spline micrometer
-

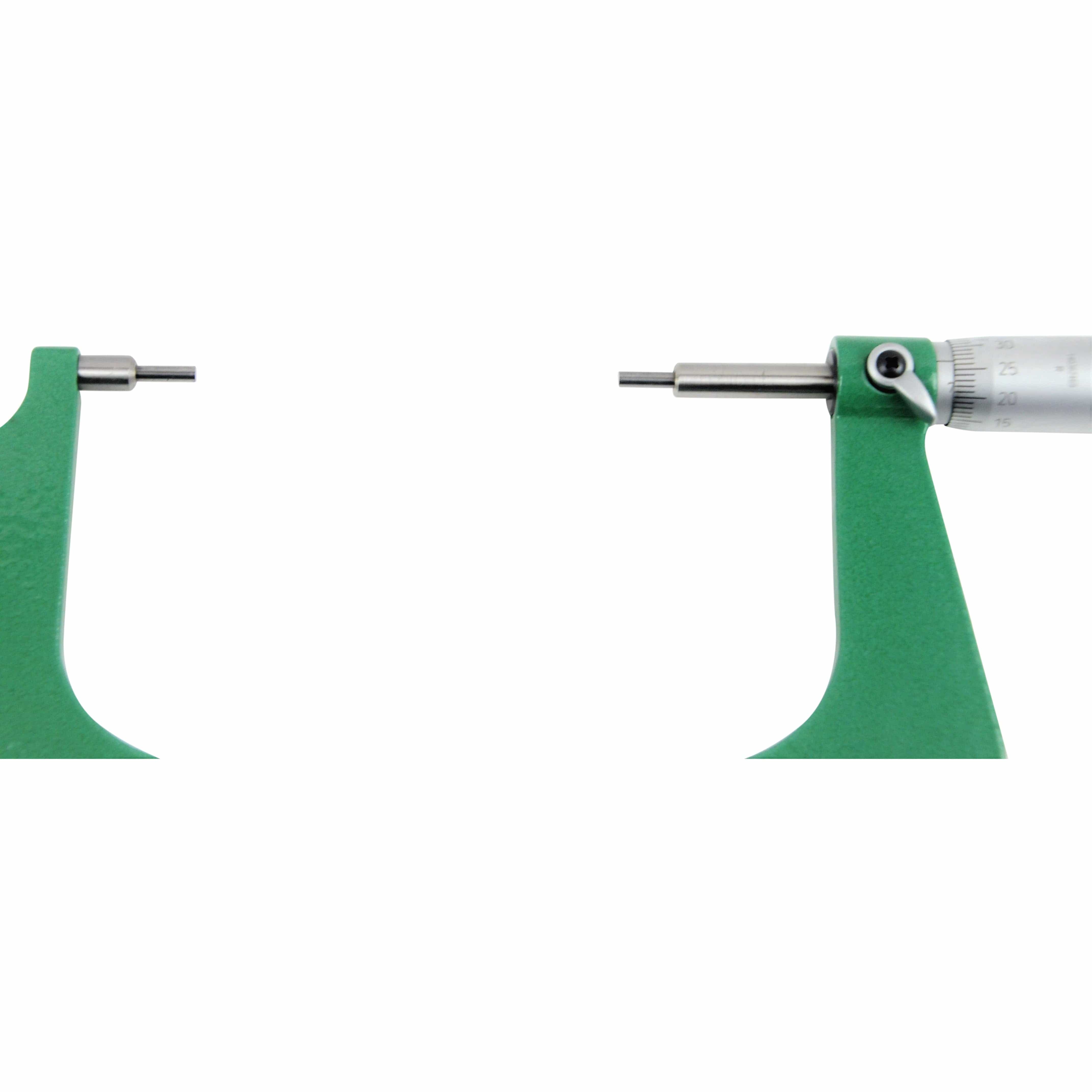

Measuring Faces: Carbide
-
Dimensions: L: 132.6 mm, b: 69.5 mm
- Designed for measuring splined shafts, slots, and keyways

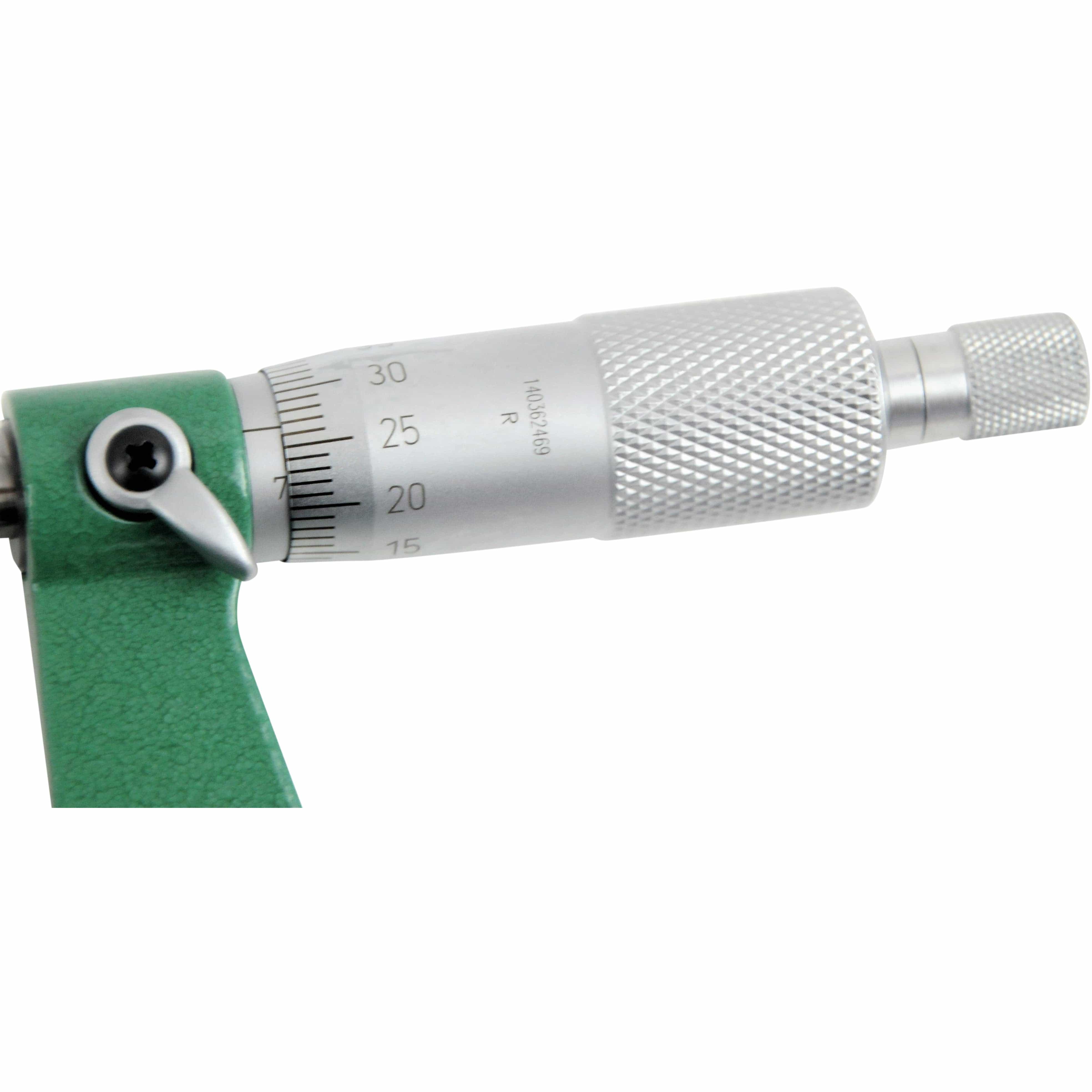

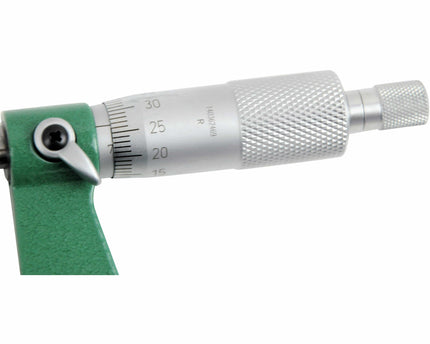

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-3

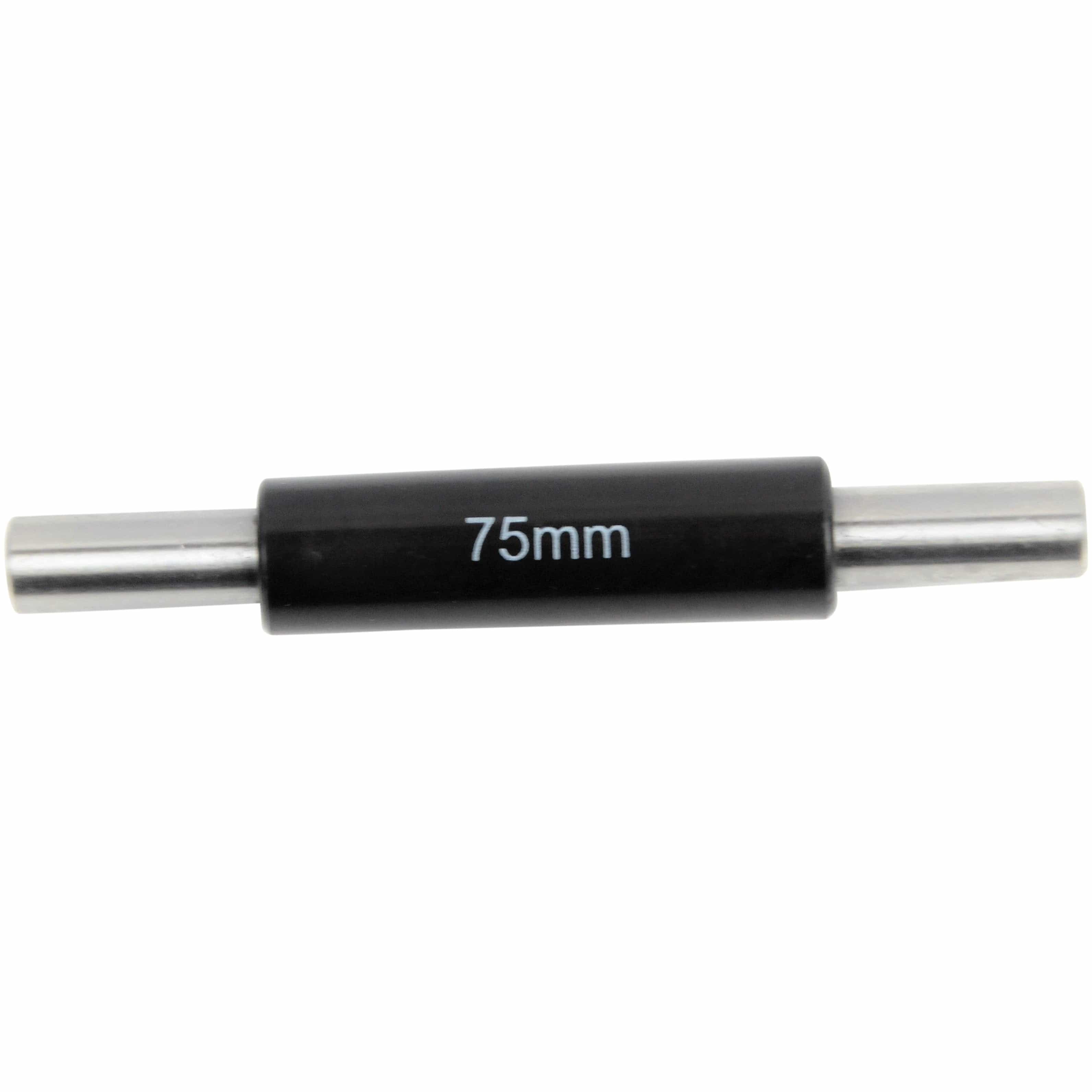

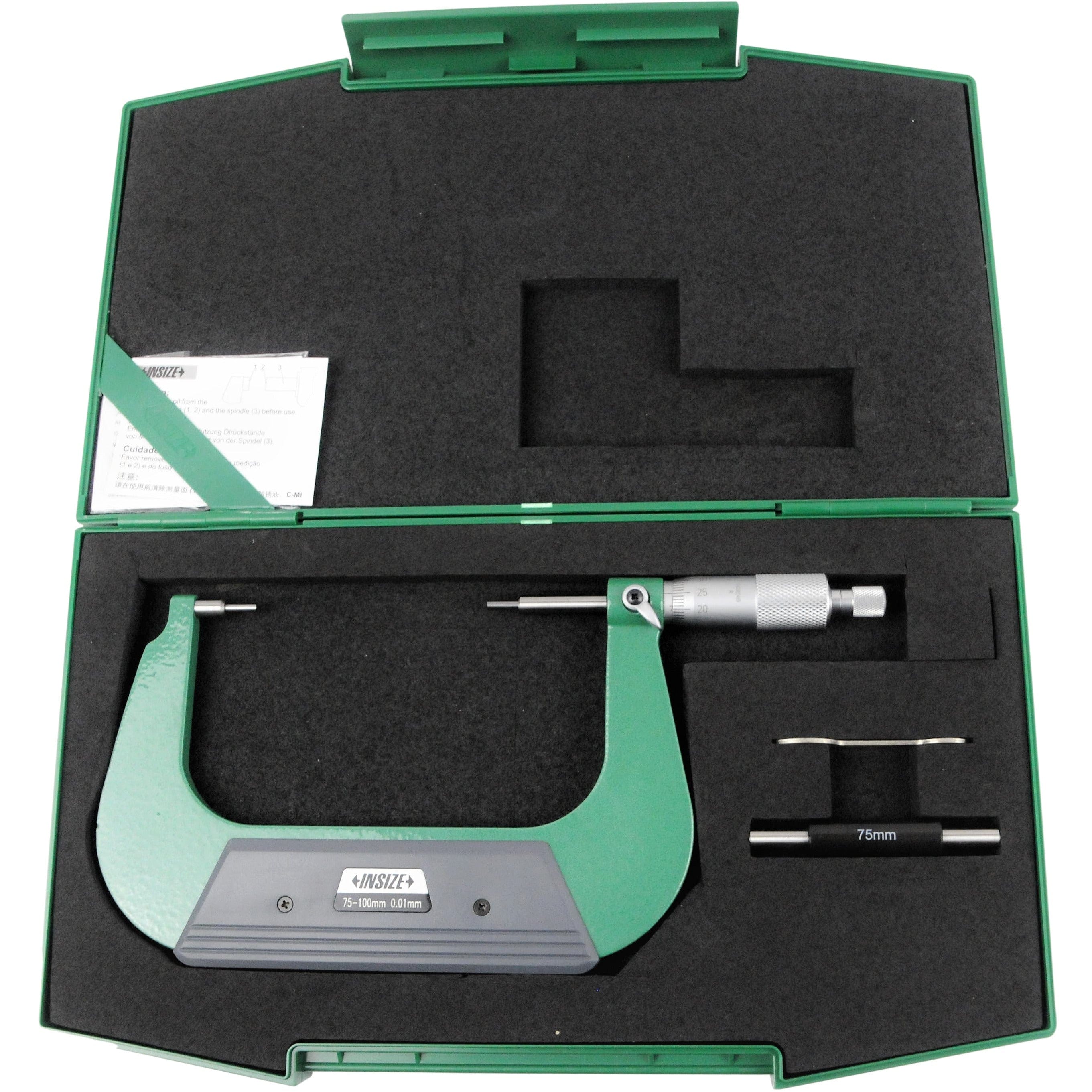

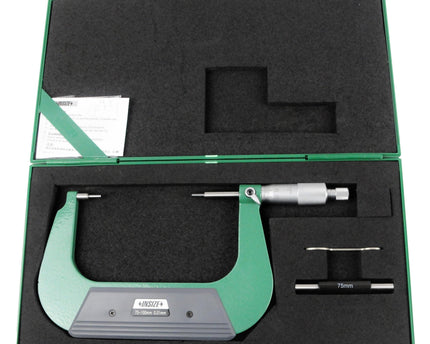

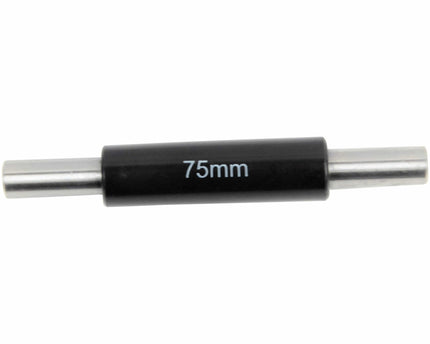

- Supplied with setting standards (except 0–25 mm)
Well-designed, durable, and highly accurate, Insize spline micrometers are ideal for precision measurement of splined components and recessed features where standard micrometers are not suitable.
