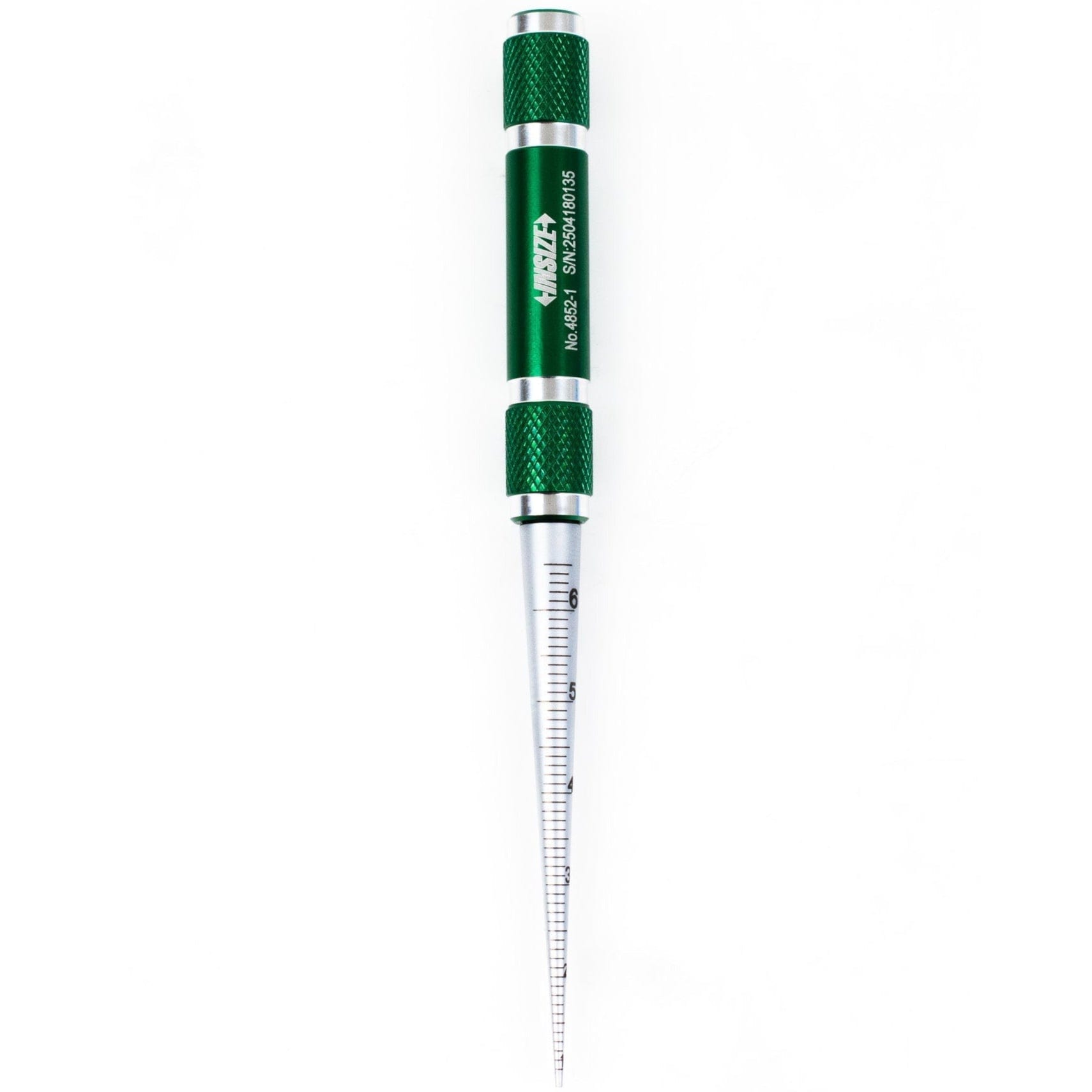

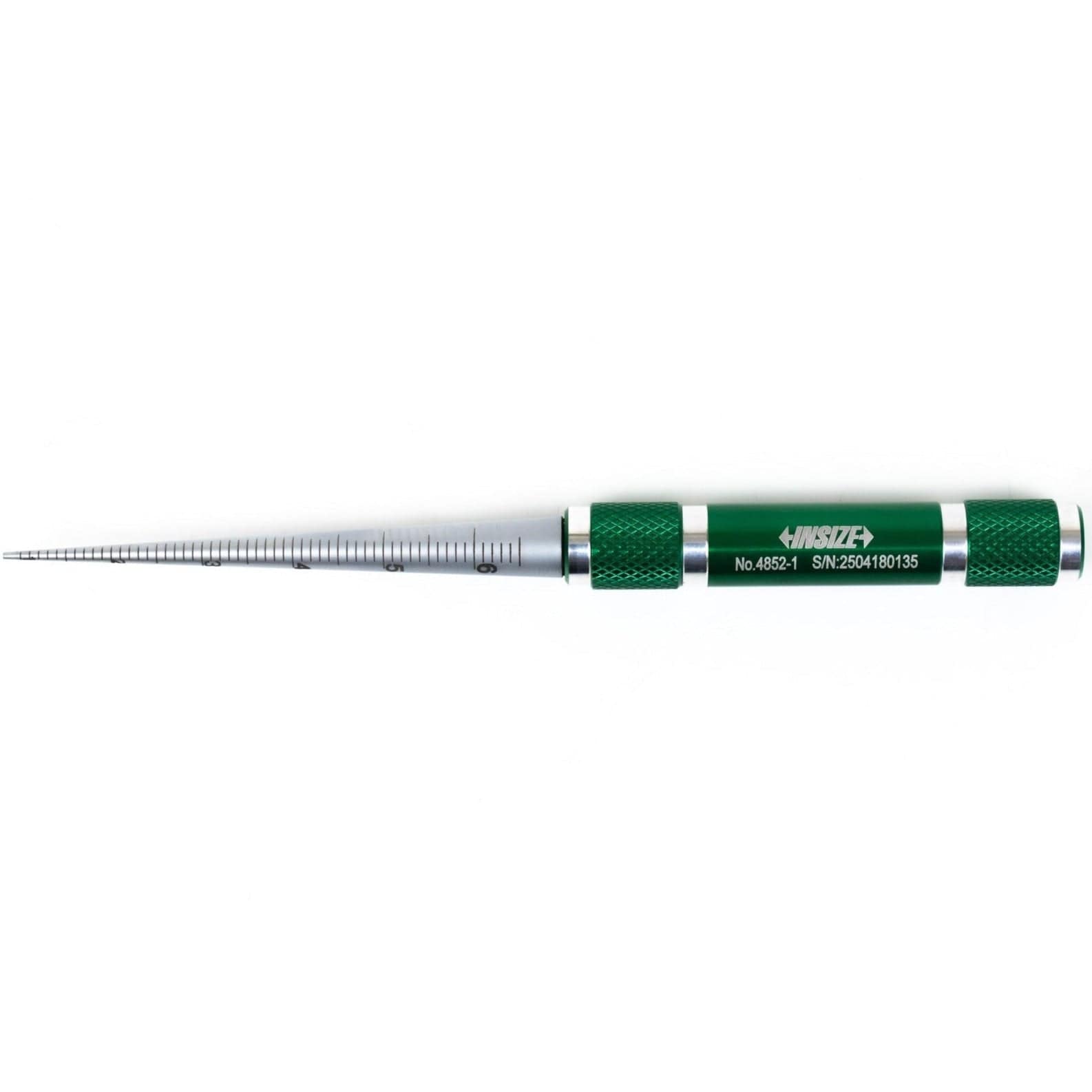

Insize Taper Bore Gauge
Insize Taper Bore Gauge is designed for quick and precise measurement of small bore diameters in machining and inspection applications. The hardened steel construction with a satin chrome-plated surface ensures durability, accuracy, and clear readability during use.

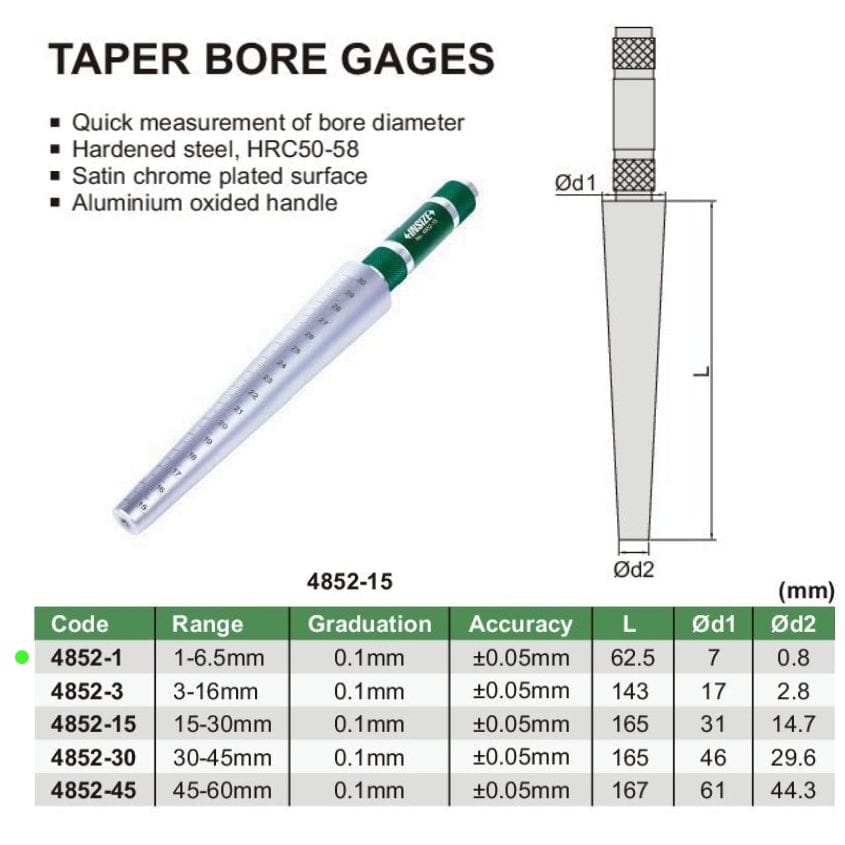

Specifications:
-
Part Number: 4852-1
-
Accuracy: ±0.05 mm
-
Graduation: 0.1 mm
-
Range: 1–6.5 mm
-
Length (L): 62.5 mm
-
Diameter: ⌀d1: 7 mm, ⌀d2: 0.8 mm
-
Measurement: Bore diameter
-
Material: Hardened steel (HRC 50–58)
-
Finish: Satin chrome plated
-
Handle: Aluminium oxidised
Manufactured for reliable and repeatable bore measurement, this taper bore gauge is suitable for precision engineering, toolrooms, and quality control environments.
