Description

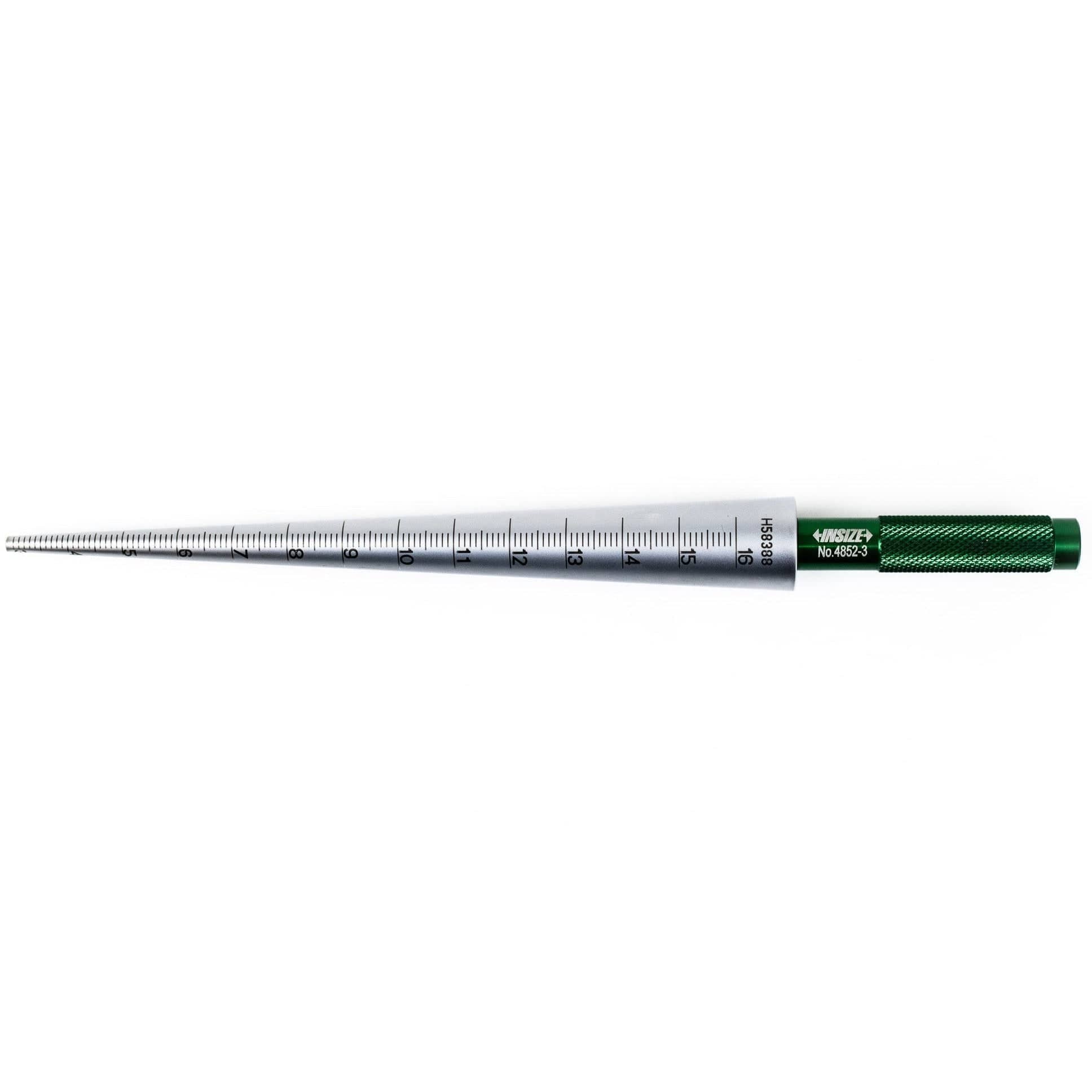

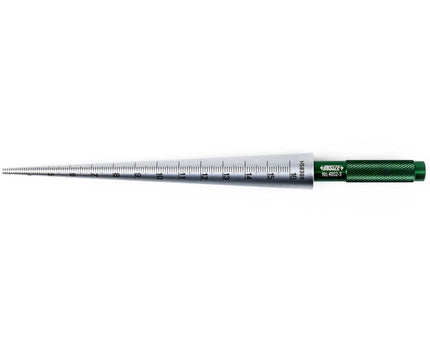

Insize Taper Bore Gauge
Insize Taper Bore Gauge is designed for fast and accurate measurement of bore diameters in machining, inspection, and quality control applications. The tapered measuring body allows reliable size indication, while the hardened steel construction ensures long service life and consistent accuracy.

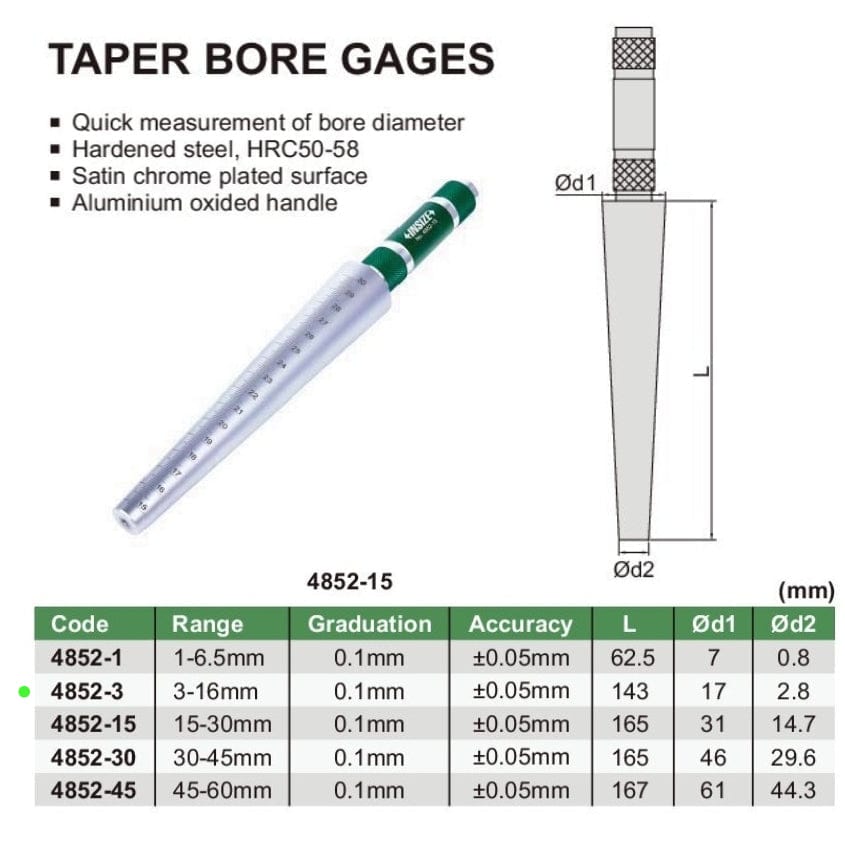

Specifications:
-
Part Number: 4852-3
-
Accuracy: ±0.05 mm
-
Graduation: 0.1 mm
-
Measuring Range: 3–16 mm
-
Length (L): 143 mm
-
Diameter: ⌀d1: 17 mm, ⌀d2: 2.8 mm
-
Measurement: Bore diameter
-
Material: Hardened steel (HRC 50–58)
-
Finish: Satin chrome-plated surface
-
Handle: Aluminium oxidised
Manufactured for dependable and repeatable bore measurement, this taper bore gauge is well-suited to precision engineering, toolroom, and industrial inspection environments.
