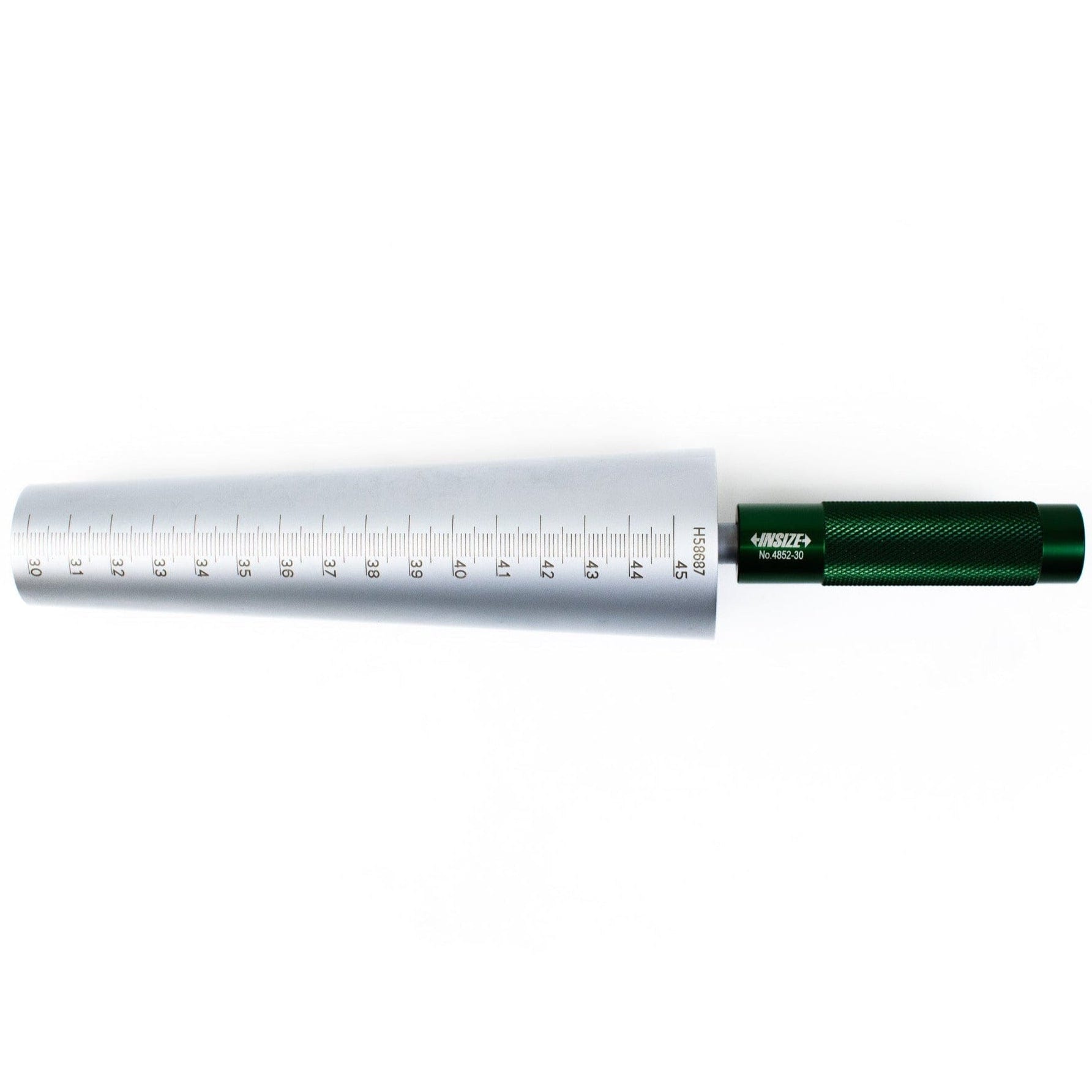

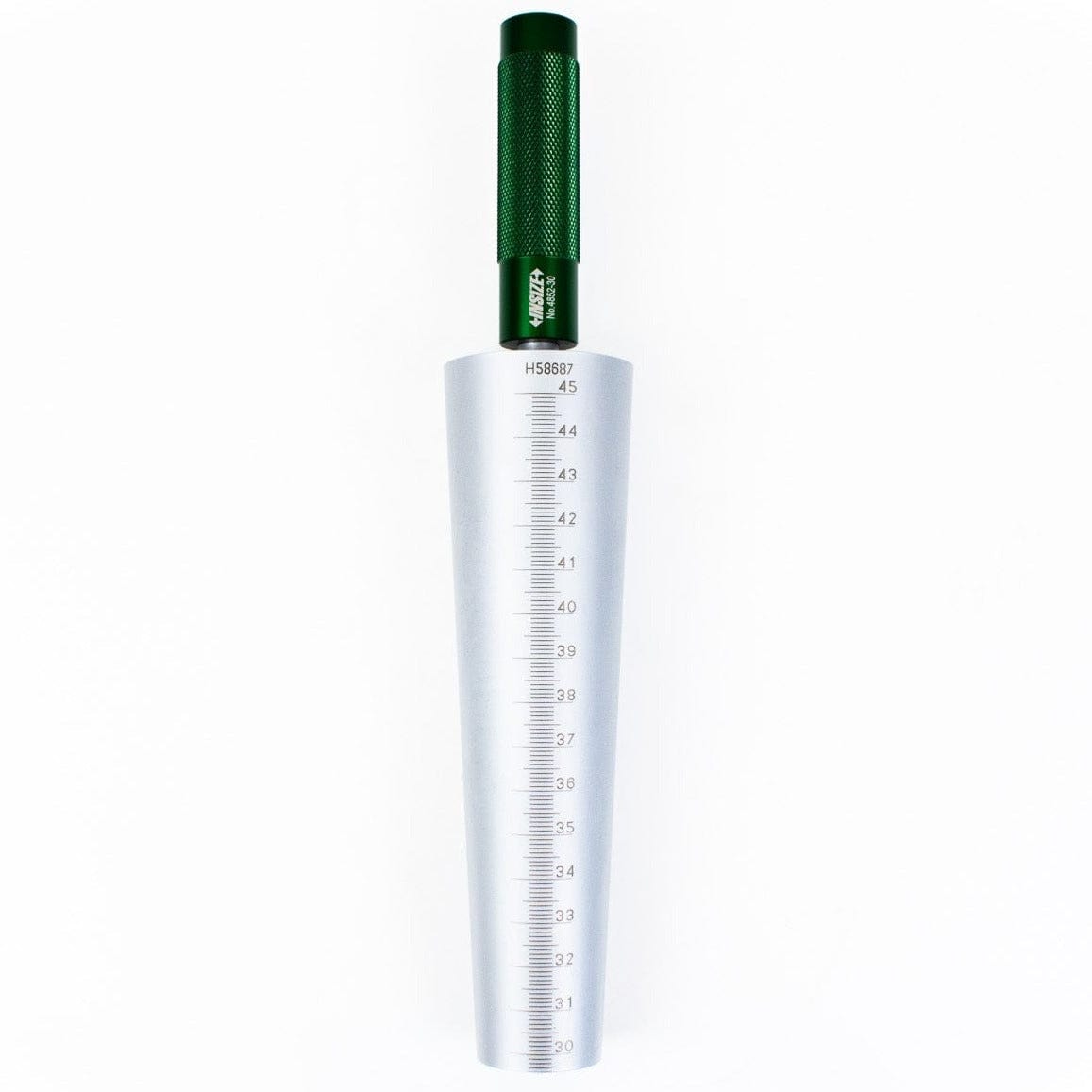

Insize Taper Bore Gauge
The Insize Taper Bore Gauge is engineered for fast and accurate measurement of bore diameters in machining, inspection, and quality control applications. Its tapered measuring design allows reliable diameter indication, while the hardened steel construction ensures durability and long-term accuracy.

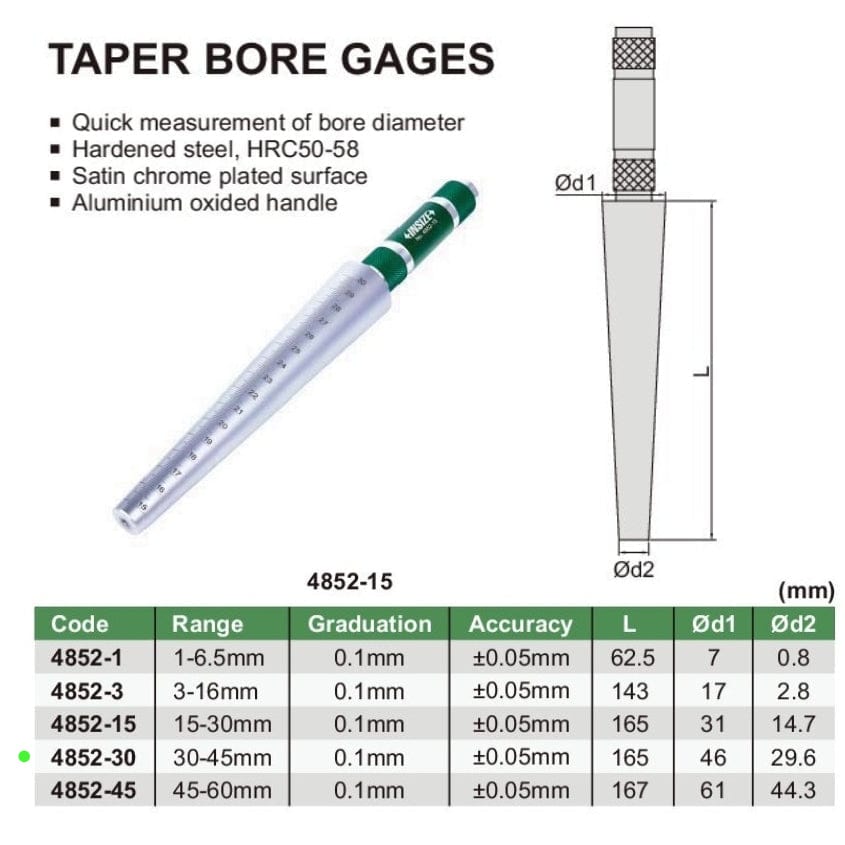

Specifications:
-
Part Number: 4852-30
-
Accuracy: ±0.05 mm
-
Graduation: 0.1 mm
-
Measuring Range: 30–45 mm
-
Length (L): 165 mm
-
Diameter: ⌀d1: 46 mm, ⌀d2: 29.6 mm
-
Measurement: Quick bore diameter measurement
-
Material: Hardened steel (HRC 50–58)
-
Finish: Satin chrome-plated surface
-
Handle: Aluminium oxidised
Designed for precision and ease of use, this INSIZE taper bore gauge is ideal for toolrooms, workshops, and industrial inspection environments where reliable bore measurement is essential.
