Insize Taper Gauge
The Insize Taper Gauge is a precision measuring tool designed for accurate measurement of openings, slot widths, and hole diameters. Its tapered design allows quick and reliable readings, making it suitable for inspection, machining, and general workshop measurement tasks.

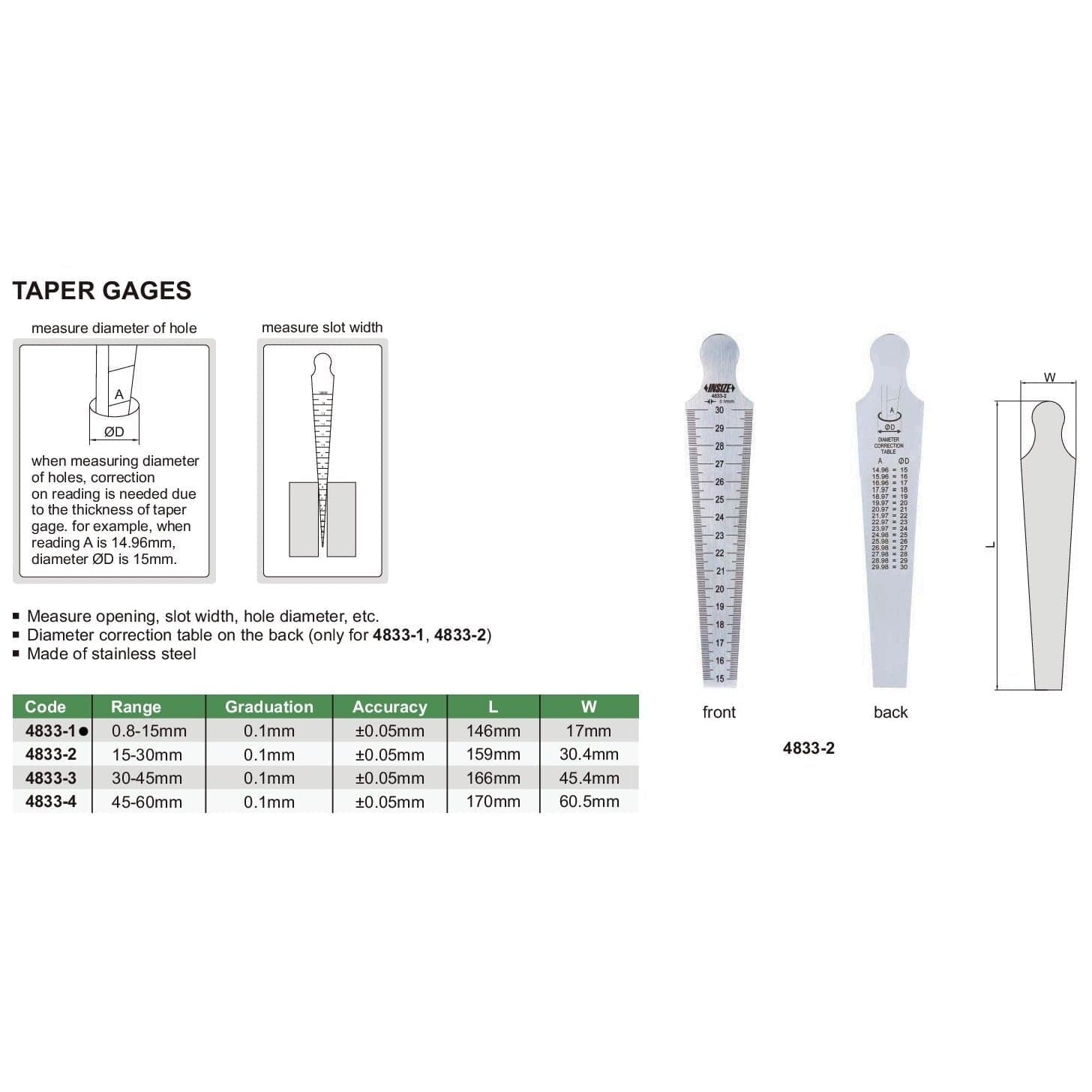

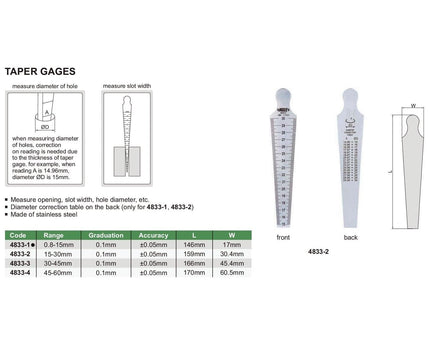

Specifications:
-
Part No.: 4833-1
-
Accuracy: ±0.05 mm / 0.004"
-
Graduation: 0.1 mm
-
Measuring Range: 0.8 – 15 mm
-
Dimensions: Length 146 mm, Width 17 mm
-
Measurement Capability: Openings, slot widths, hole diameters
-
Feature: Diameter correction table on the back
-
Material: Stainless steel
Designed for durability and precision, this taper gauge enables fast and consistent measurement of internal dimensions, supporting accurate inspection and quality control.
