Description
Insize Taper Gauge

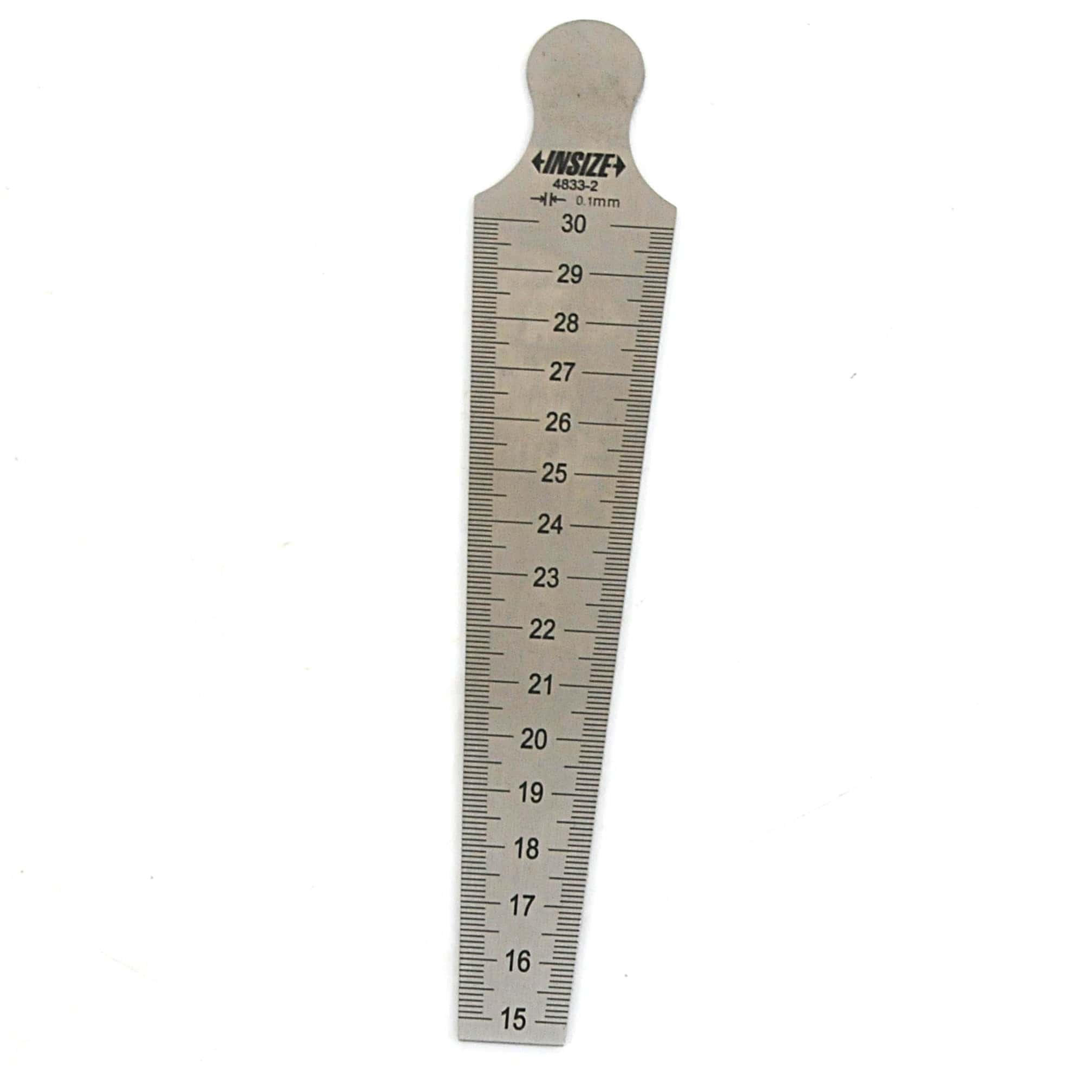

The Insize Taper Gauge is a precision measuring instrument designed for accurate measurement of openings, slot widths, and hole diameters. Its tapered profile allows fast, direct measurement, making it suitable for inspection, machining, and general workshop applications.

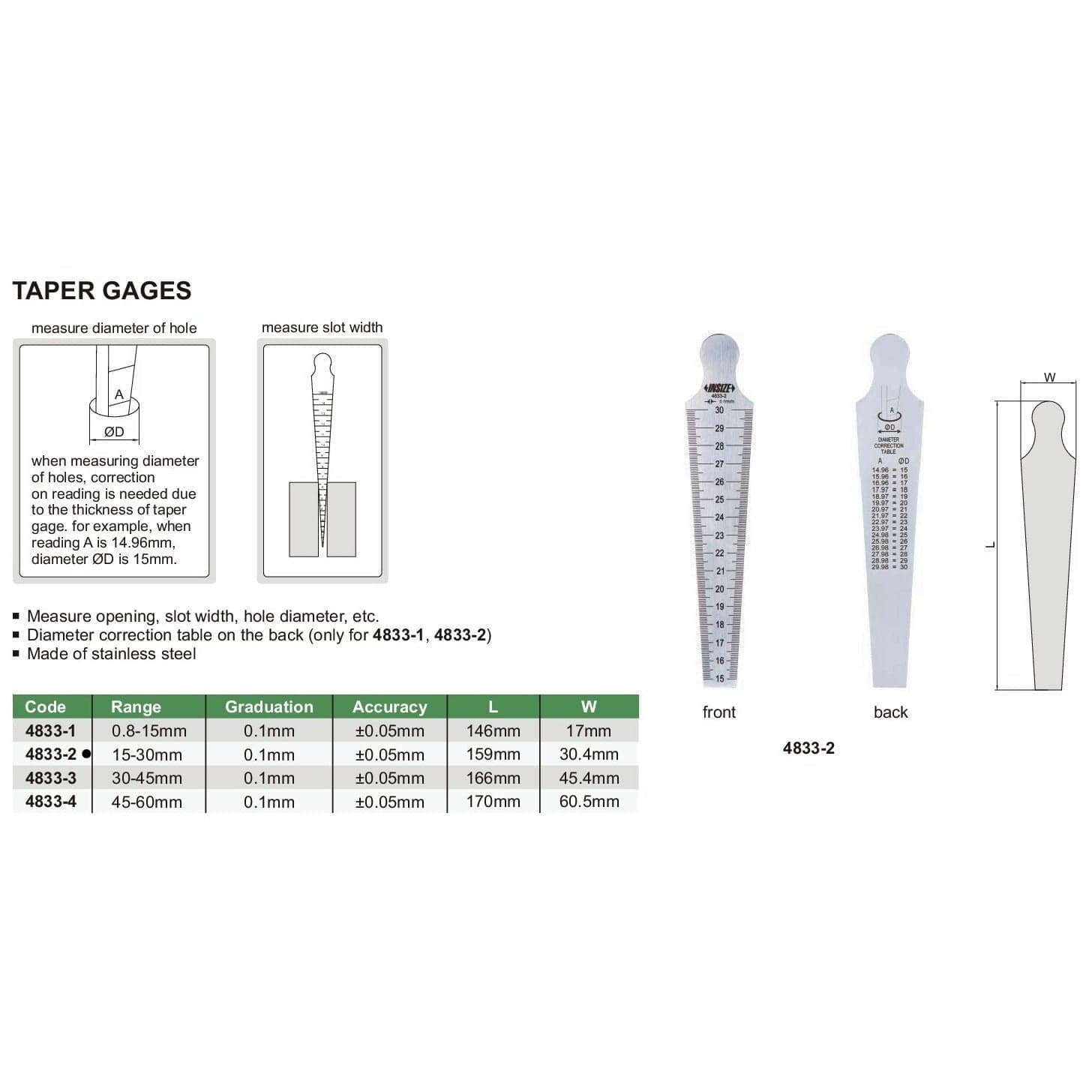

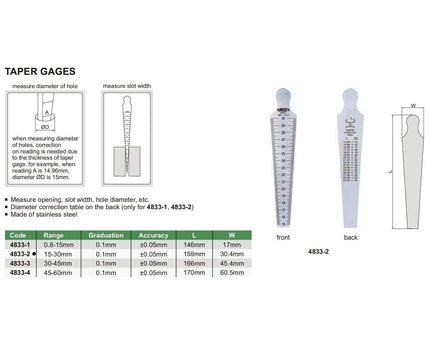

Specifications:
-
Part No.: 4833-2
-
Accuracy: ±0.05 mm / 0.004"
-
Graduation: 0.1 mm
-
Measuring Range: 15–30 mm / 5/8"–1-3/16"
-
Dimensions: Length 159 mm, Width 30.4 mm
-
Measurement Capability: Openings, slot widths, hole diameters
-

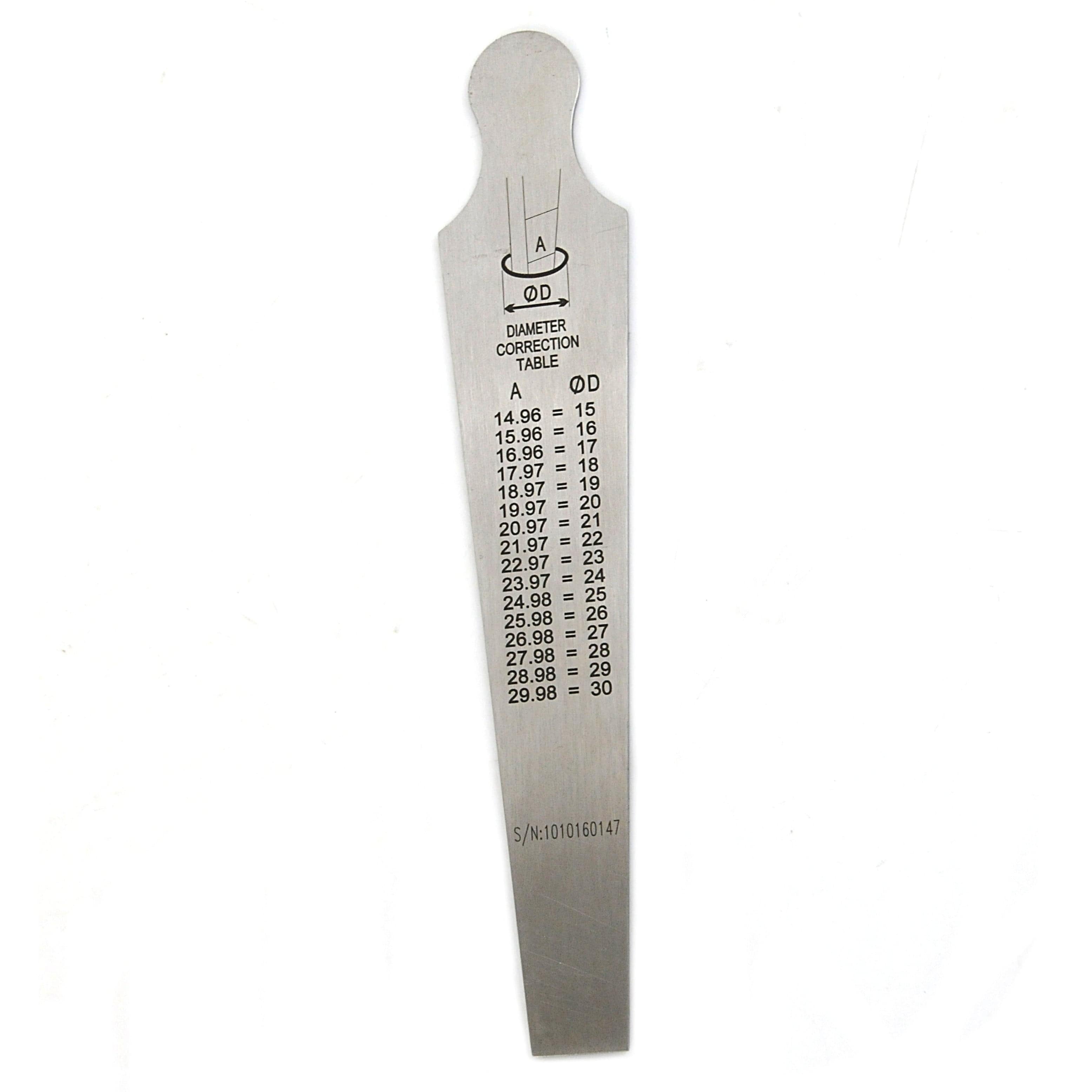

Feature: Diameter correction table on the back
-
Material: Stainless steel
Manufactured for durability and consistent accuracy, this taper gauge provides reliable internal dimension measurement for precision inspection and quality control tasks.
