Description

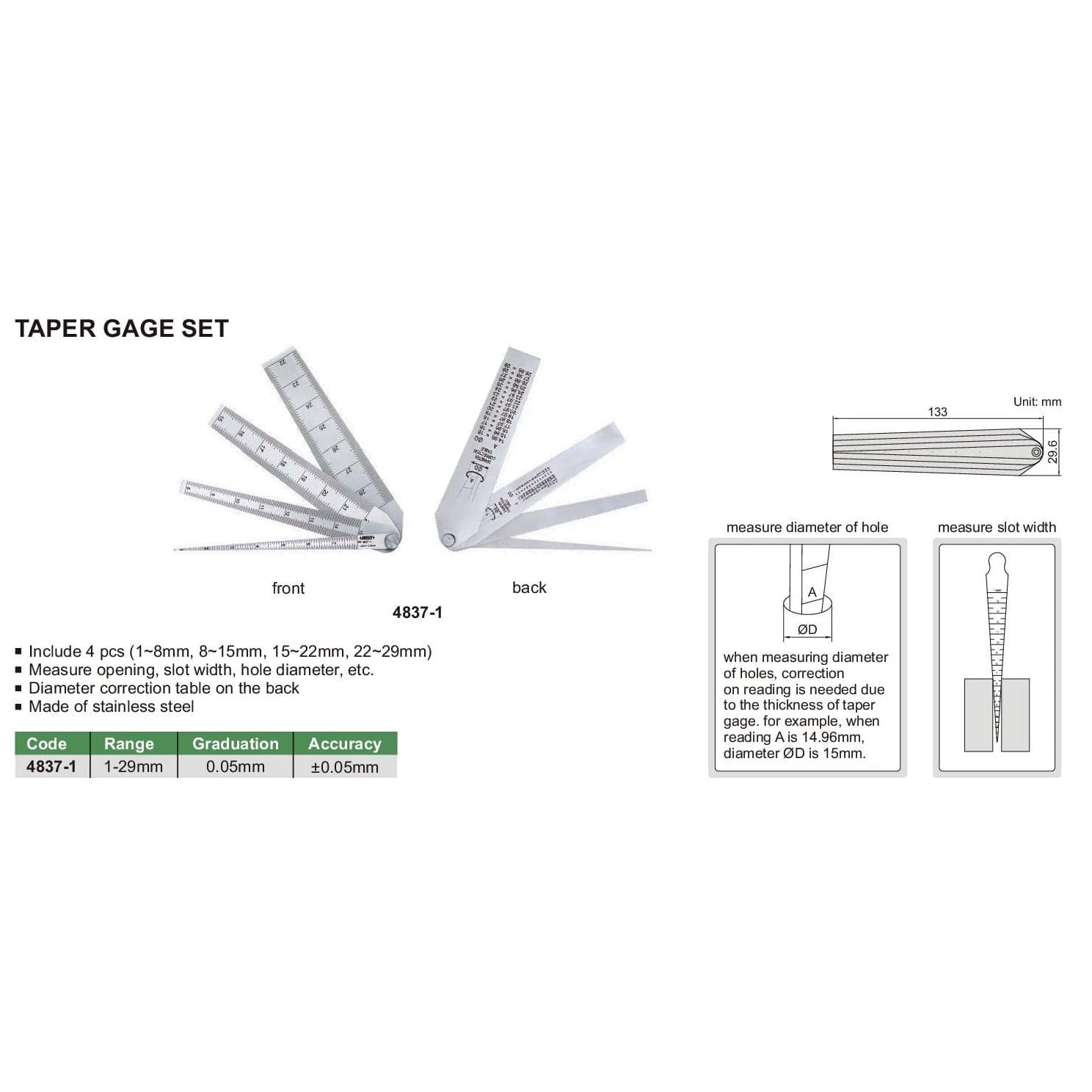

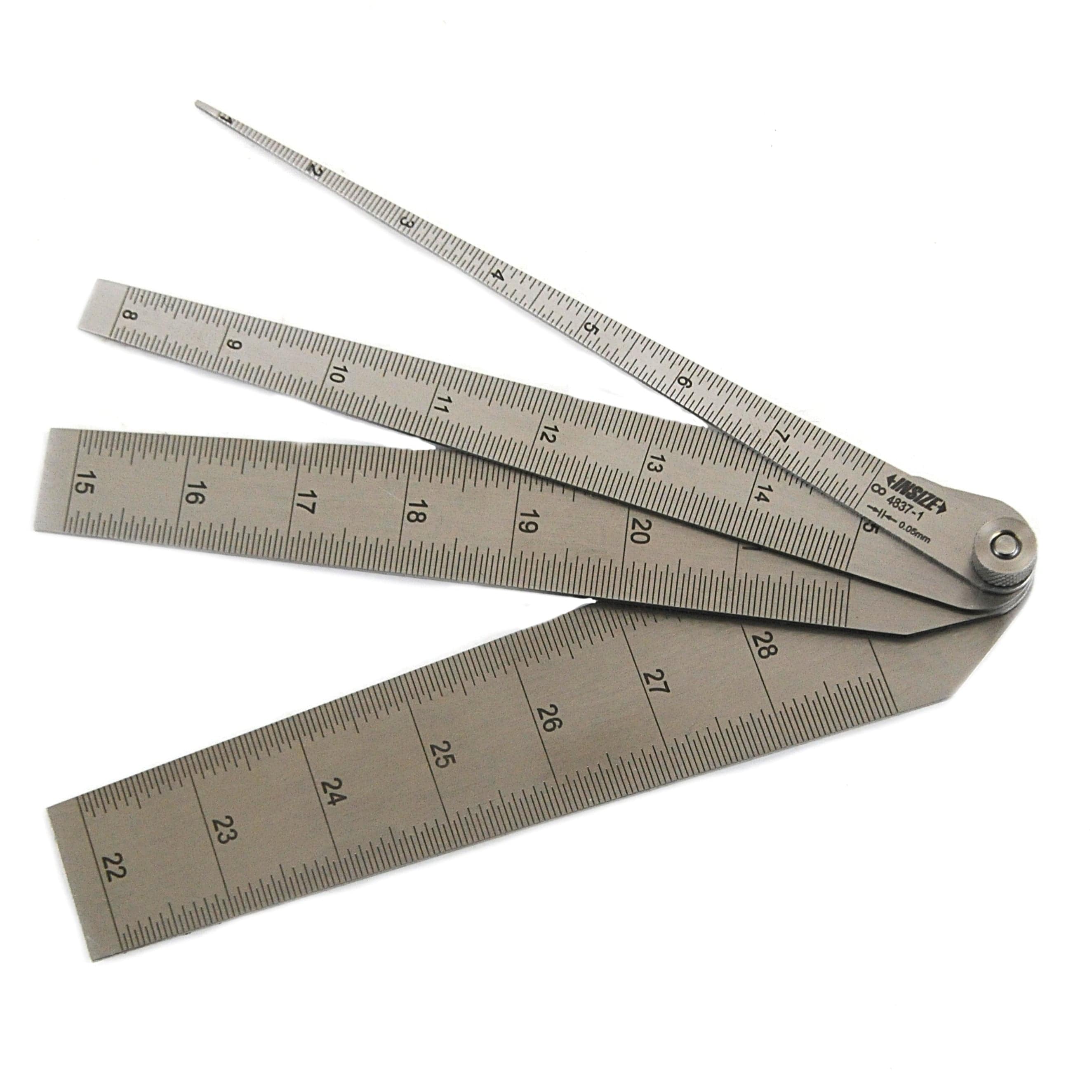

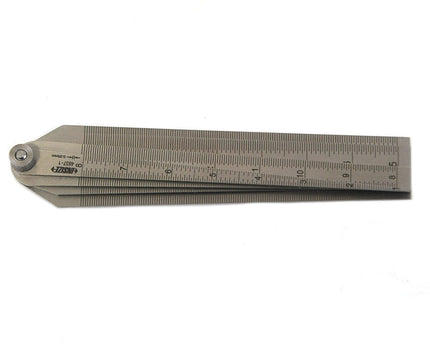

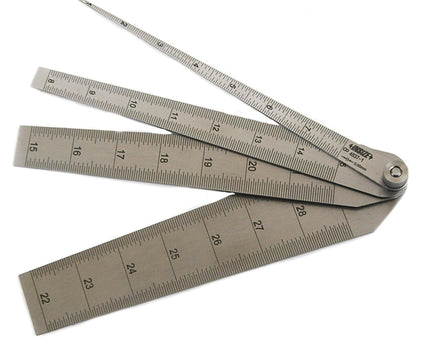

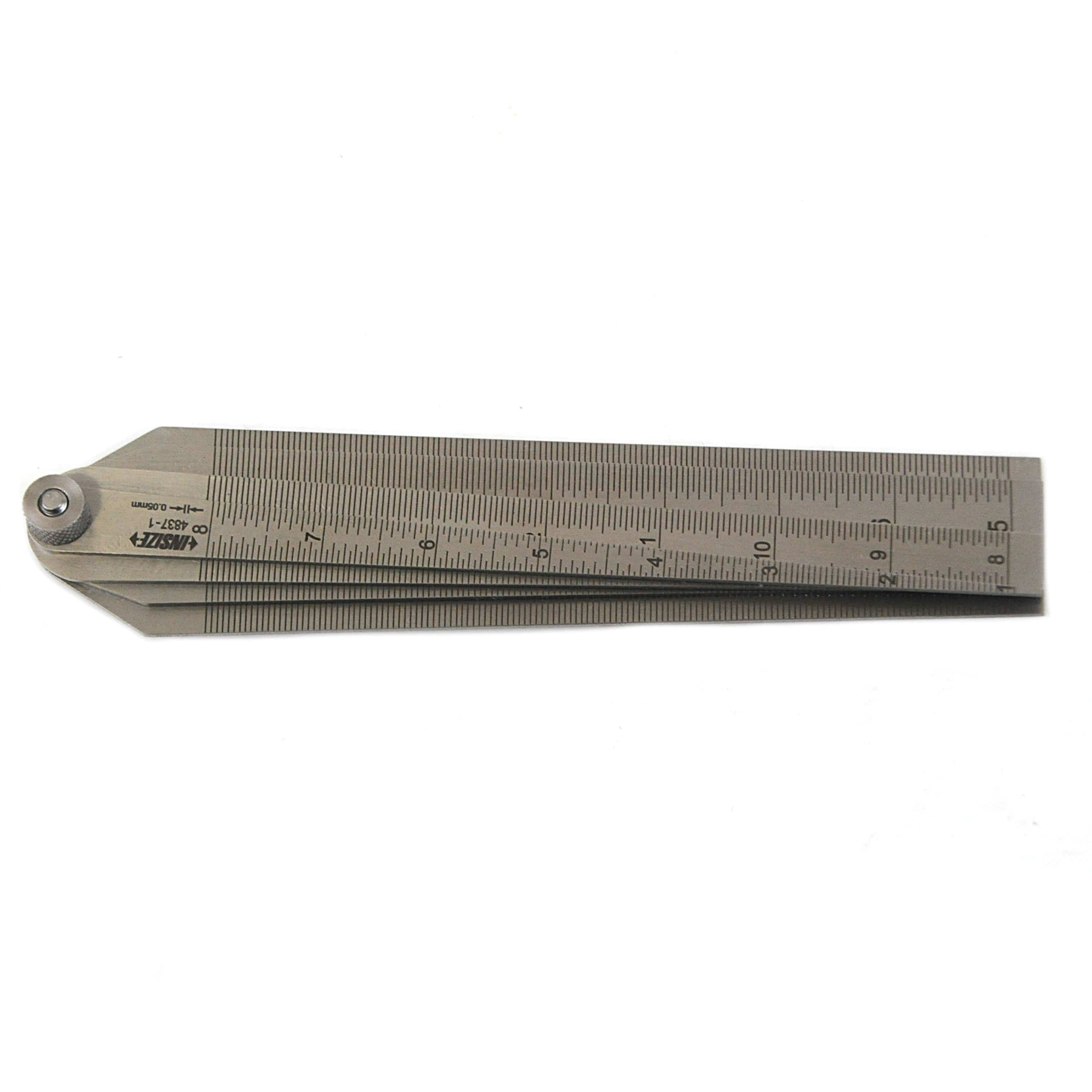

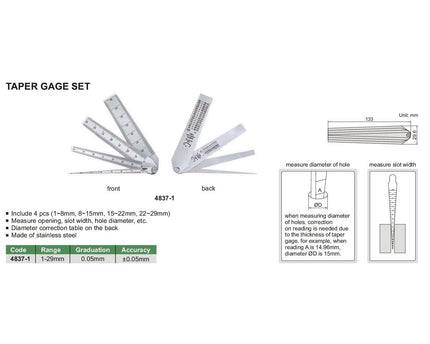

Insize Taper Gauge
Insize Taper Gauge is designed for precise measurement of openings, slot widths, and hole diameters in machining, inspection, and general workshop applications. Manufactured from stainless steel, it provides reliable accuracy and consistent measurement performance.
Specifications:
-
Part Number: 4837-1
-
Accuracy: ±0.05 mm
-
Graduation: 0.05 mm
-
Measuring Range: 1–29 mm
-
Set Configuration: 4 pieces (1–8 mm, 8–15 mm, 15–22 mm, 22–29 mm)
-
Application: Measurement of openings, slot widths, hole diameters, etc.
-
Feature: Diameter correction table on the back
-
Material: Stainless steel
Designed for durability and precision, this taper gauge enables quick and accurate measurement of a wide range of internal dimensions in workshop and inspection environments.
