Description

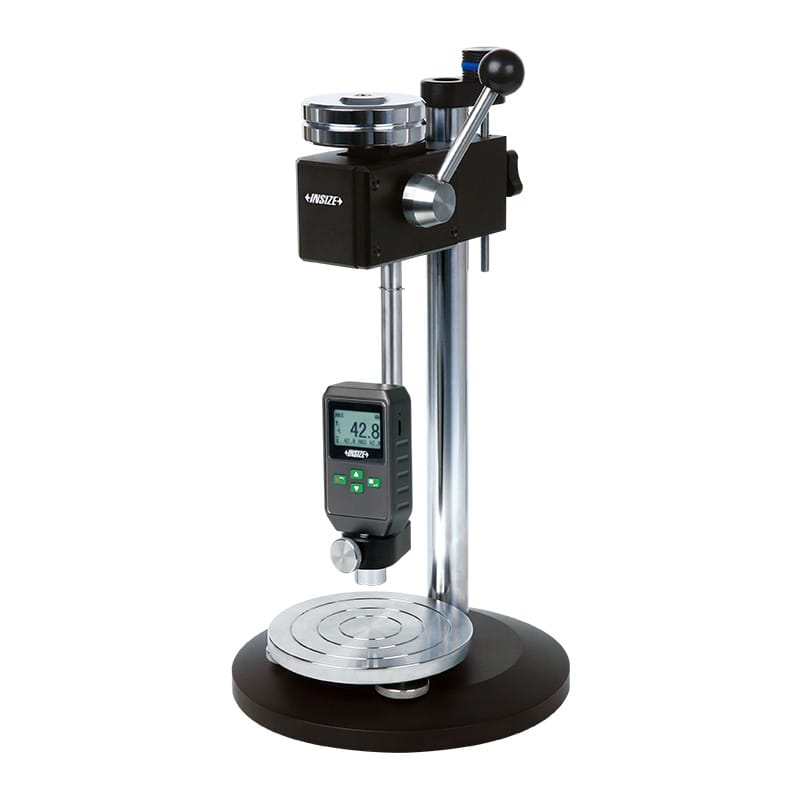

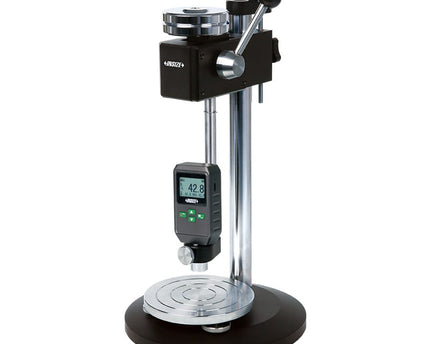

The Insize ISH-DS-STANDA Test Stand is a precision instrument designed to provide stable and repeatable hardness testing when used with digital shore durometers. It eliminates inconsistencies caused by manual operation, ensuring accurate and reliable measurement results in quality control, laboratory, and industrial environments.
Engineered with a robust structure and controlled loading mechanism, this test stand enhances measurement repeatability by minimizing human error. It is compatible with Insize digital shore durometers including ISH-DSA, ISH-DSD, and ISH-DSOO models, making it a versatile solution for hardness testing applications.
Key Features & Benefits
- Designed for digital shore durometers (ISH-DSA, ISH-DSD, ISH-DSOO)
- Ensures repeatable hardness measurements with reduced human error
- Stable loading system for consistent test force application
- Robust column and stage design for enhanced rigidity and durability
- Load handle and lifting screw provide controlled testing operation
- Weight block A included for ISH-DSA applications
- Optional weight block D available for ISH-DSD
- Weight block removable for ISH-DSOO configuration

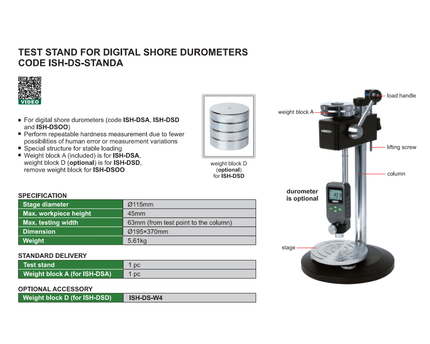

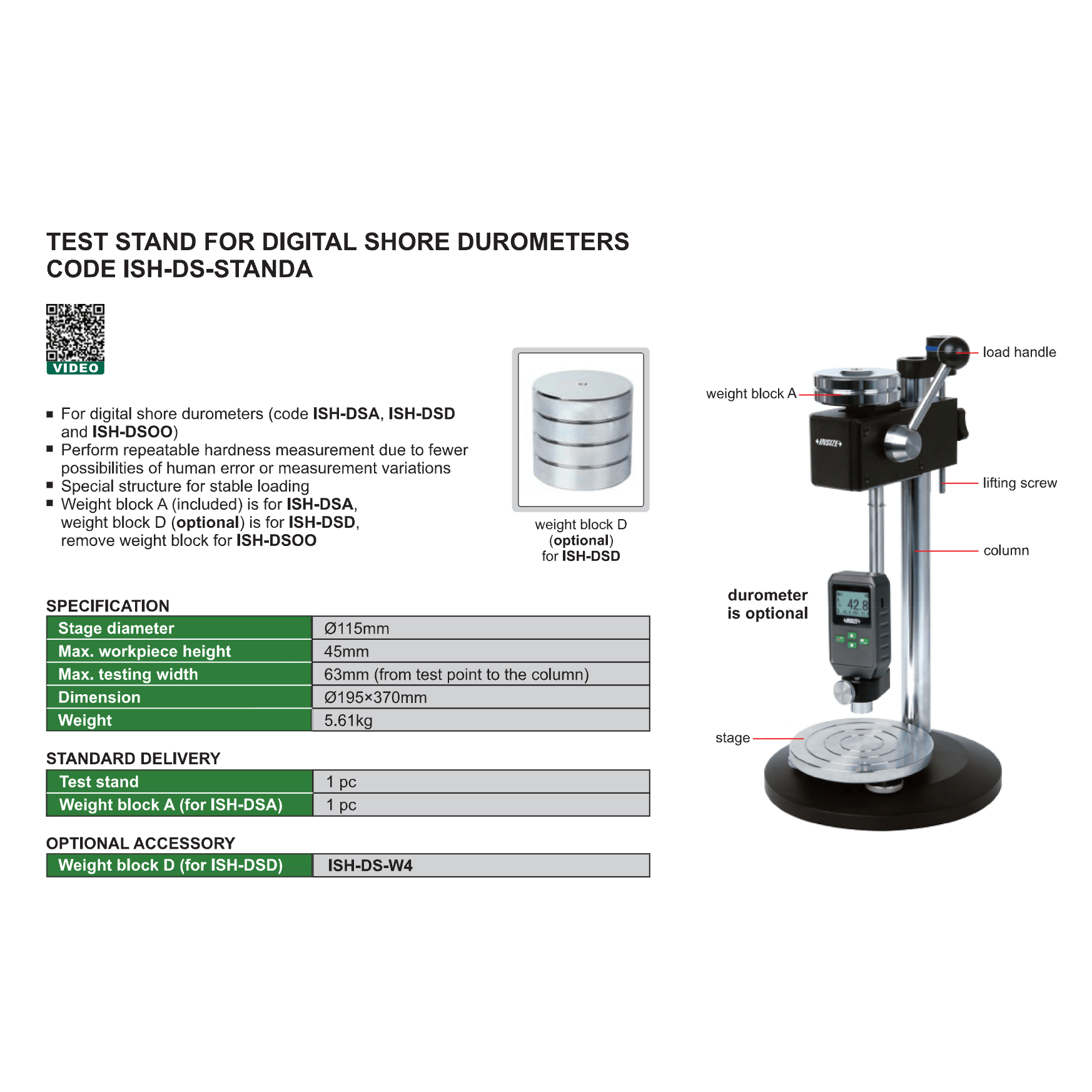

Technical Specifications
- Part Number: ISH-DS-STANDA
- Stage Diameter: Ø115mm
- Maximum Workpiece Height: 45mm
- Maximum Testing Width: 63mm
- Dimensions: Ø195 × 370mm
- Weight: 5.61kg
This test stand is essential for applications requiring consistent hardness testing, particularly in rubber, plastics, and soft material inspection where repeatability and controlled force are critical to accurate measurement outcomes.
