Insize Thread Angle Gauge ACME 30°

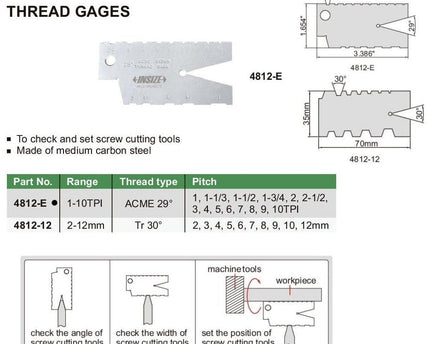

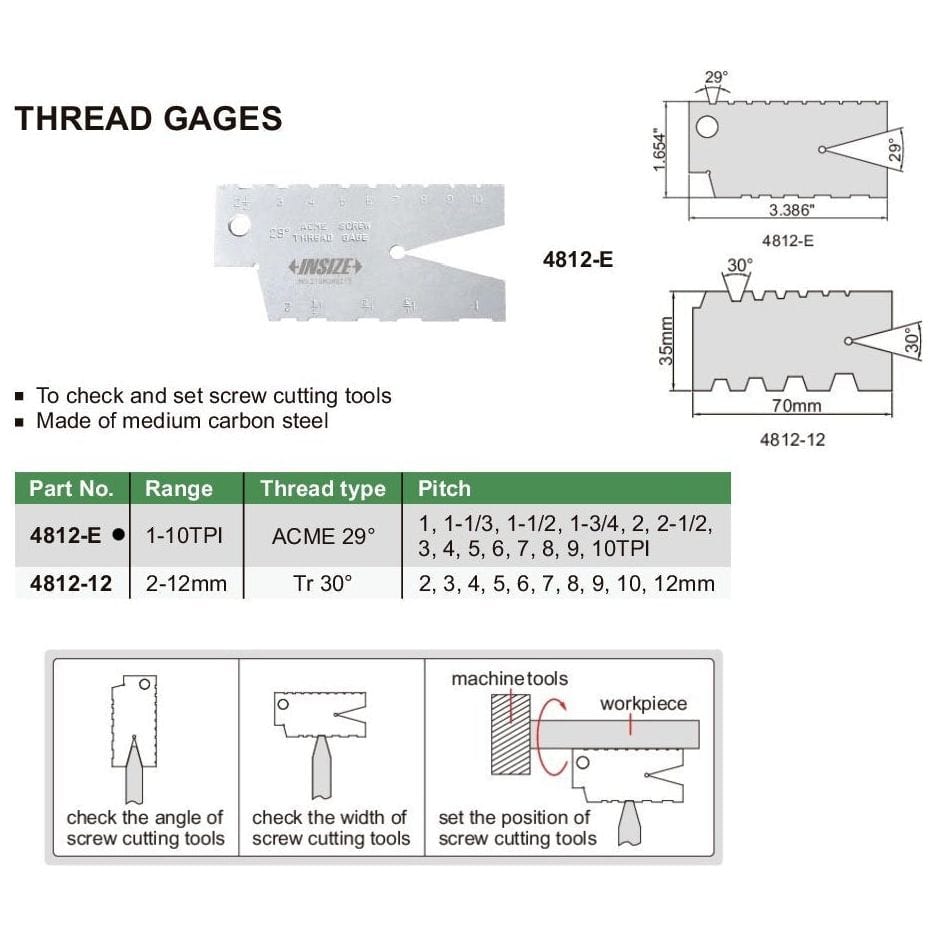

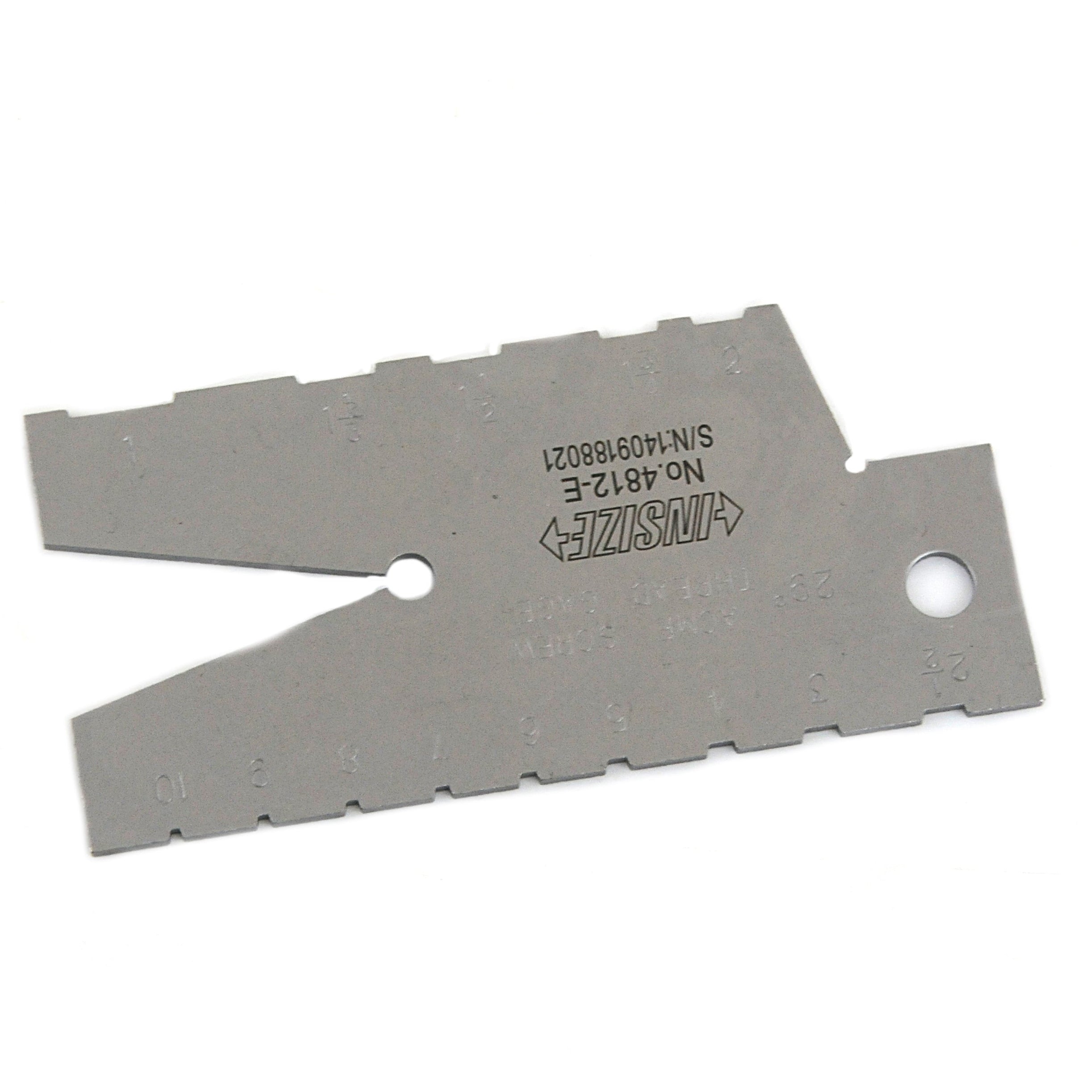

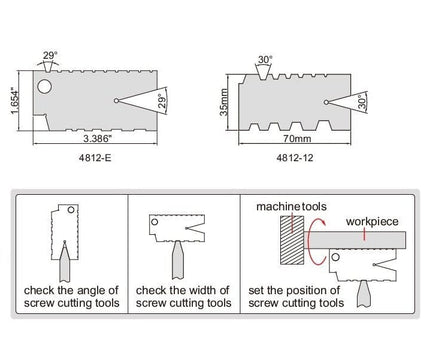

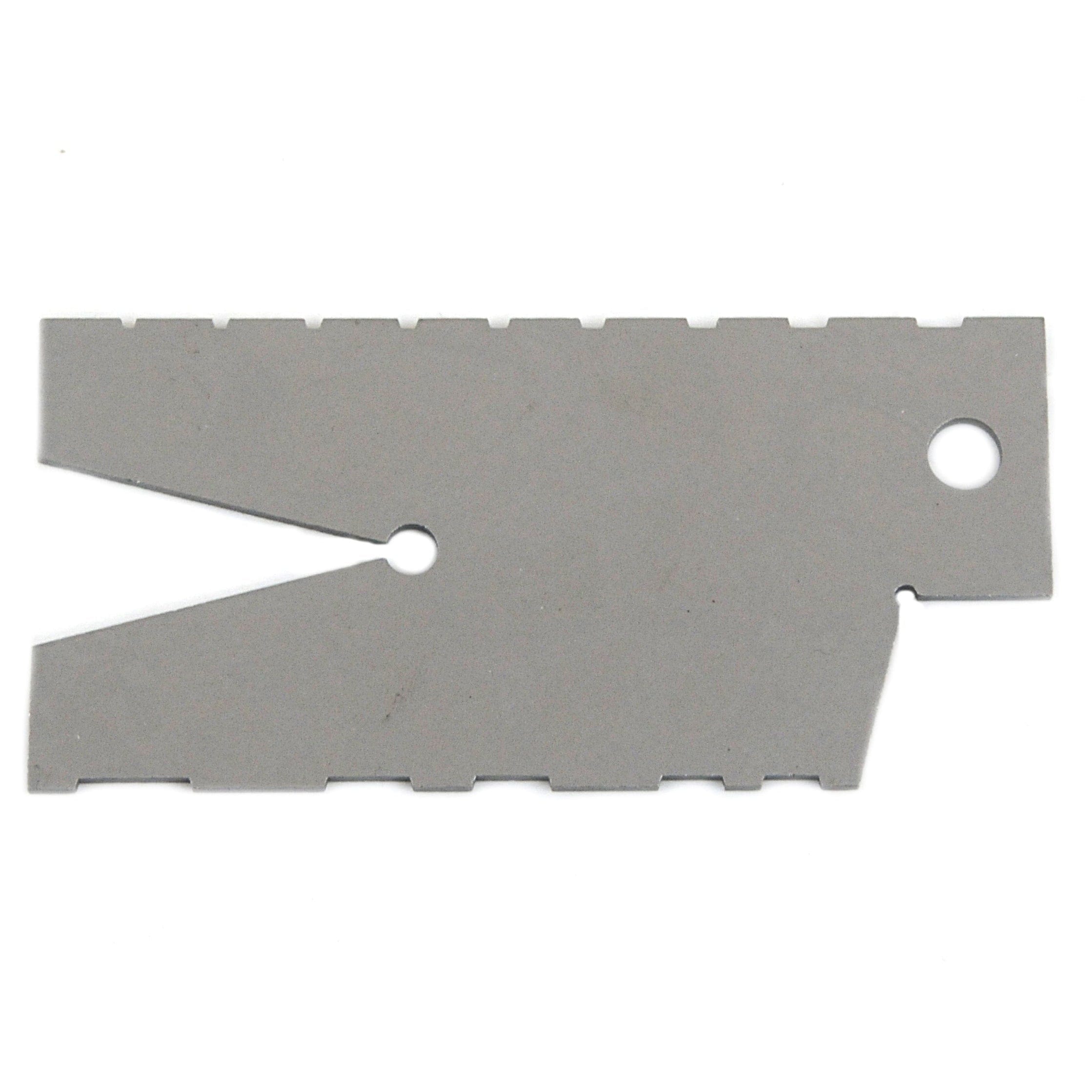

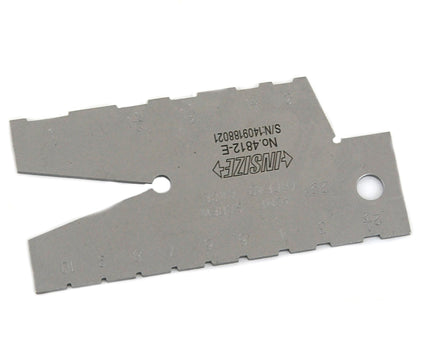

The Insize ACME Thread Angle Gauge is a precision fish tail gauge designed for checking and setting ACME thread profiles. It is ideal for machining and inspection tasks where accurate verification of ACME thread angles and pitches is required.
Key Features:
-
Part Number: 4812-E
-
Thread Type: ACME
-
Type: Fish tail thread gauge
-
Range: 1–10 TPI
-
Thread Angle: 29° (ACME)
-
Included Pitches (TPI): 1, 1-1/3, 1-1/2, 1-3/4, 2, 2-1/2, 3, 4, 5, 6, 7, 8, 9, 10
-
Angle Accuracy: ±10 minutes
-
Material: Medium carbon steel

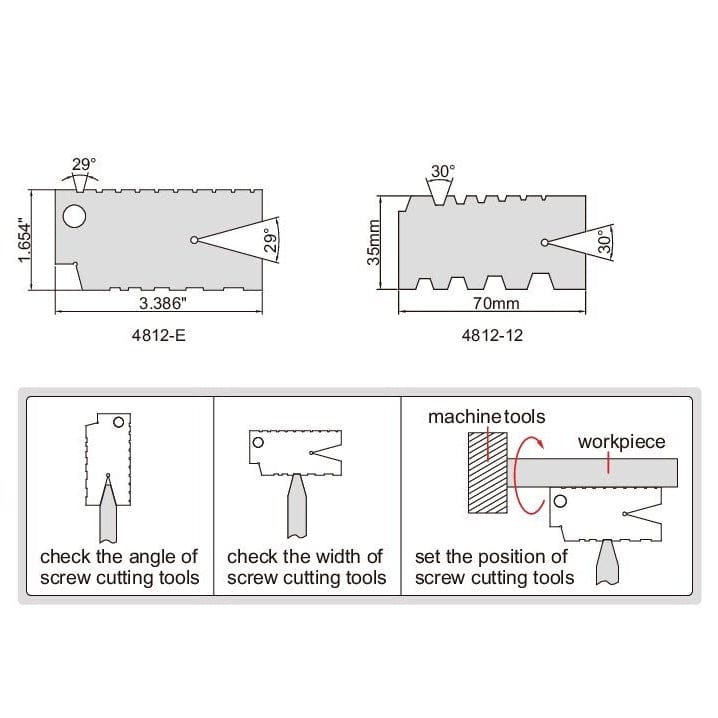

Manufactured for durability and precision, this thread angle gauge allows quick and reliable checking of ACME thread forms. It is commonly used for setting screw-cutting tools on lathes and verifying thread geometry during machining and inspection.
