Description

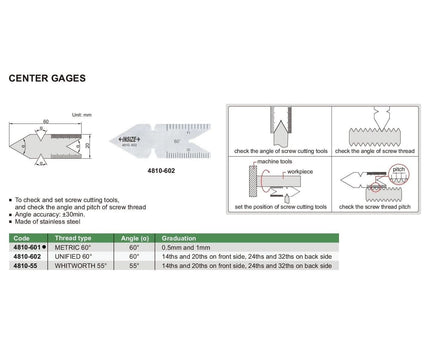

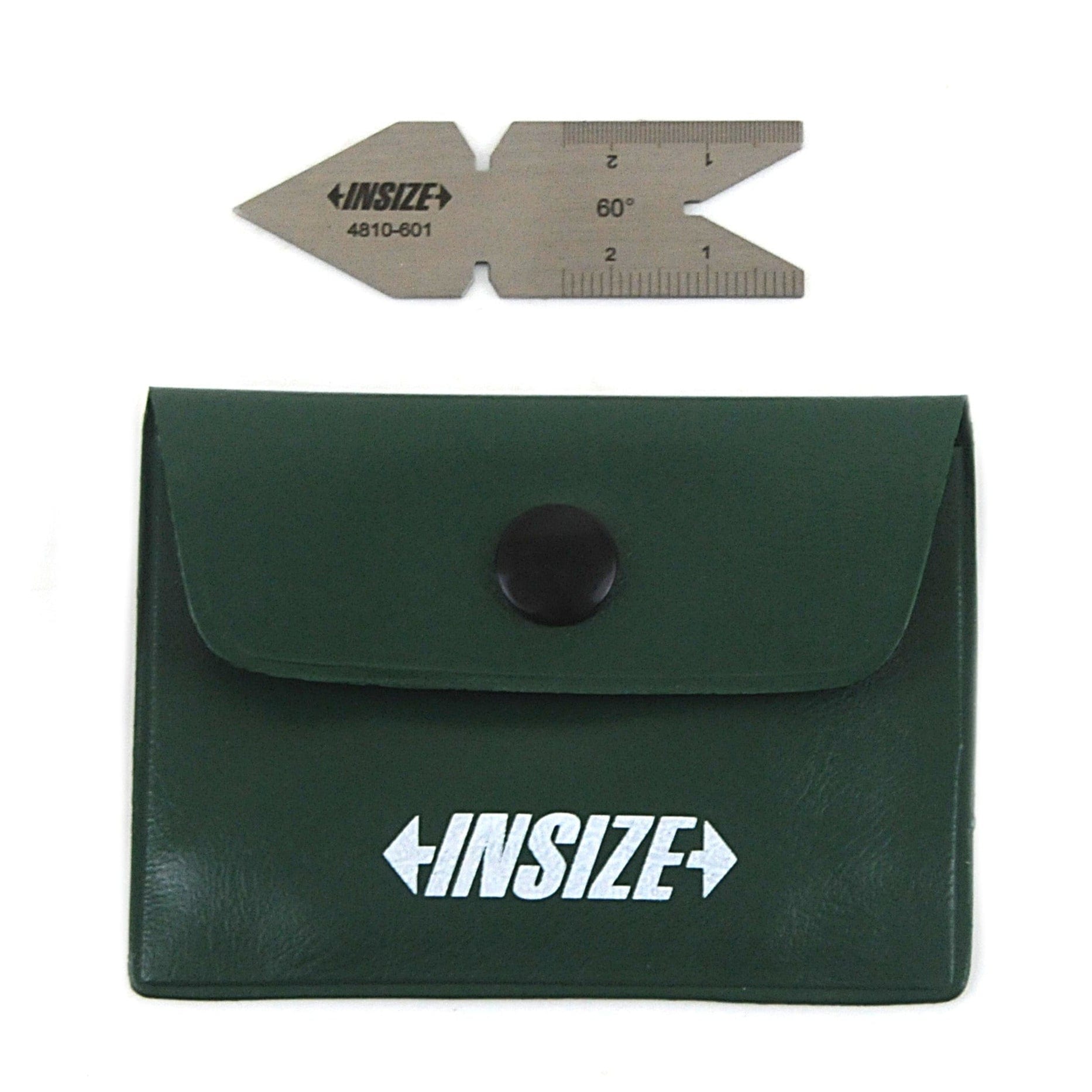

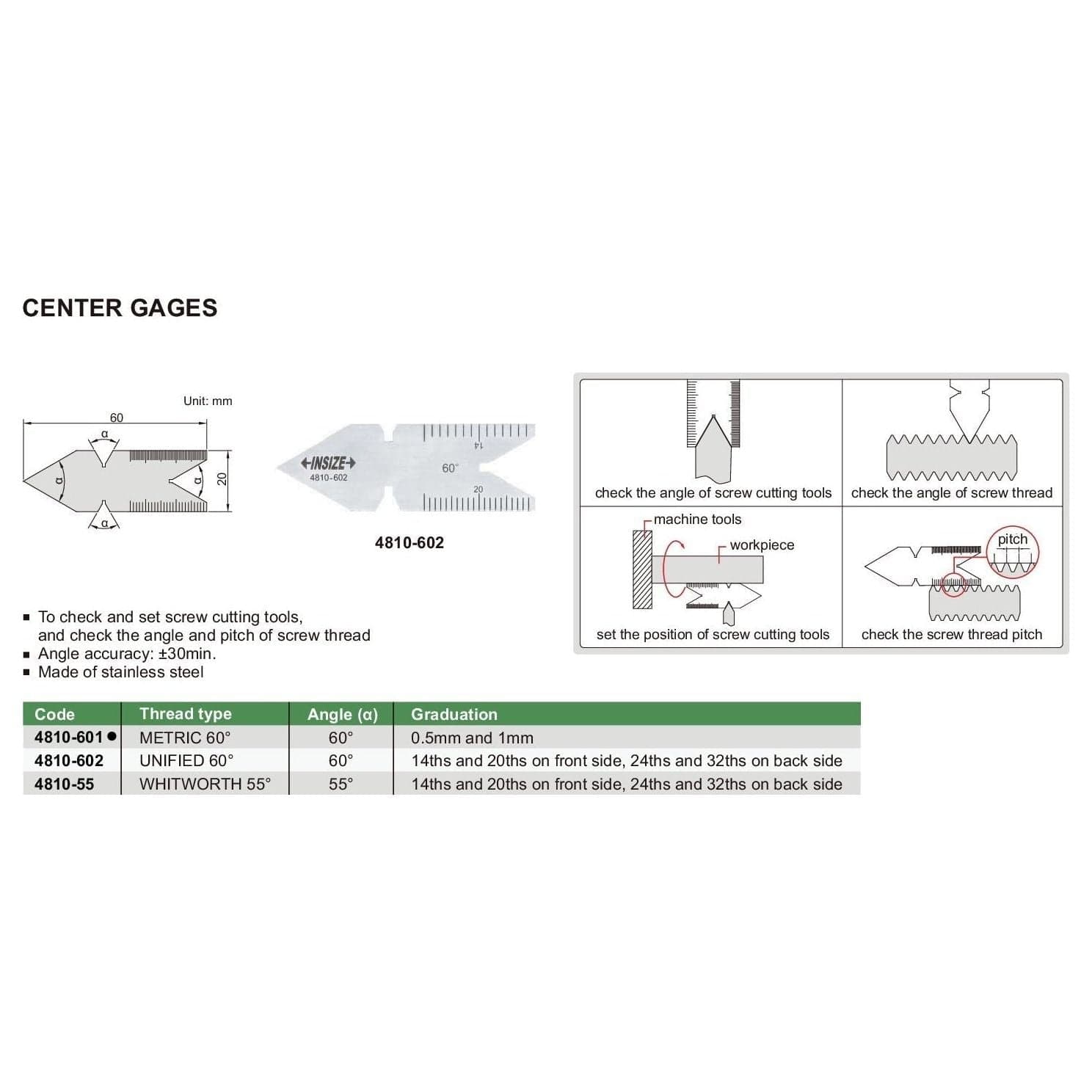

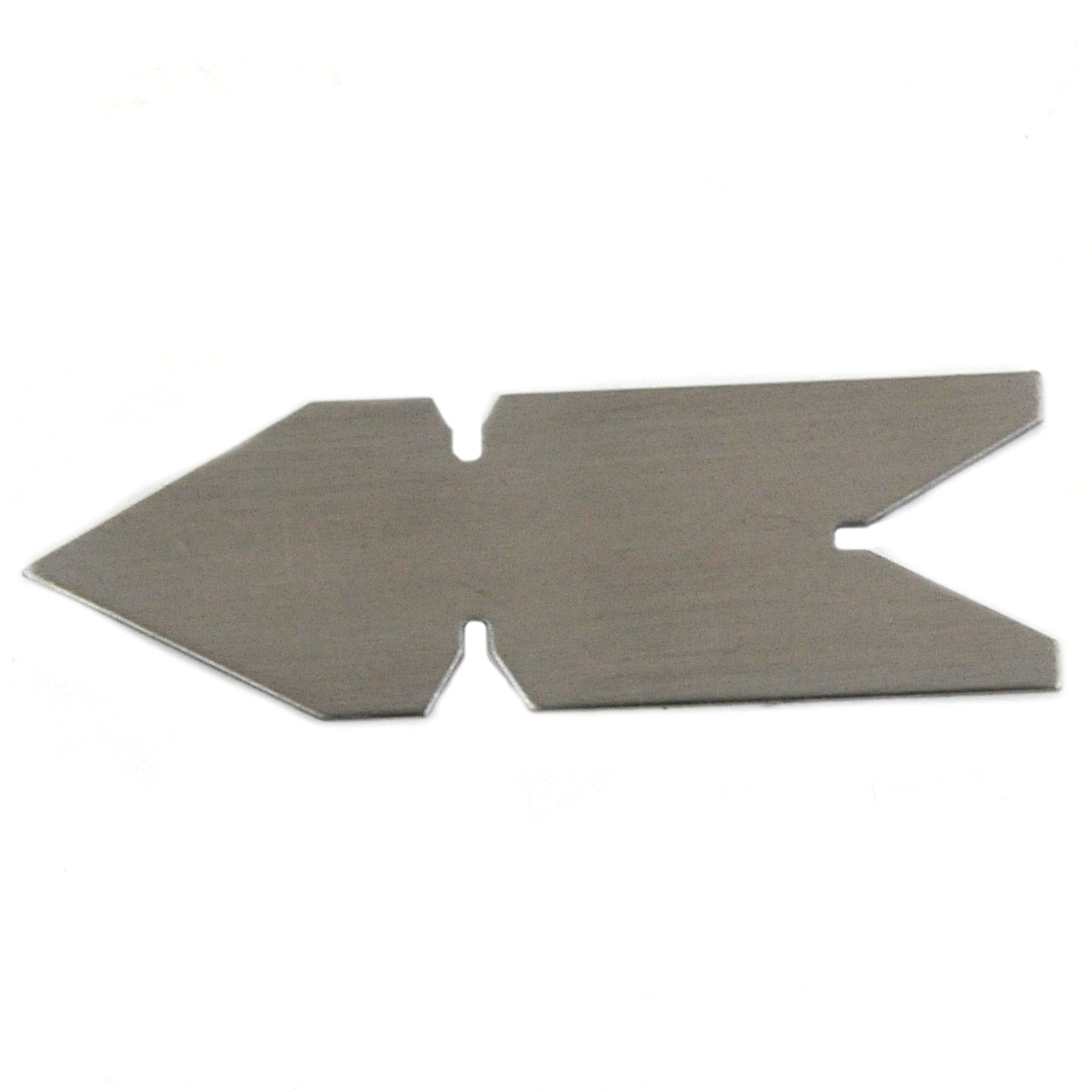

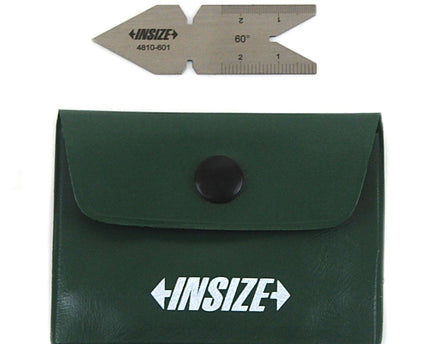

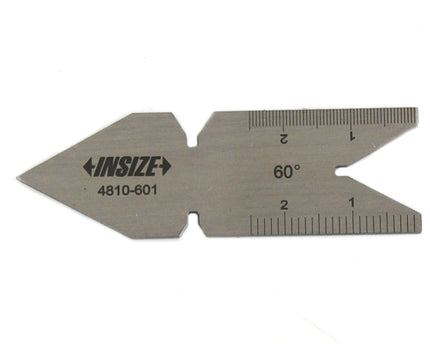

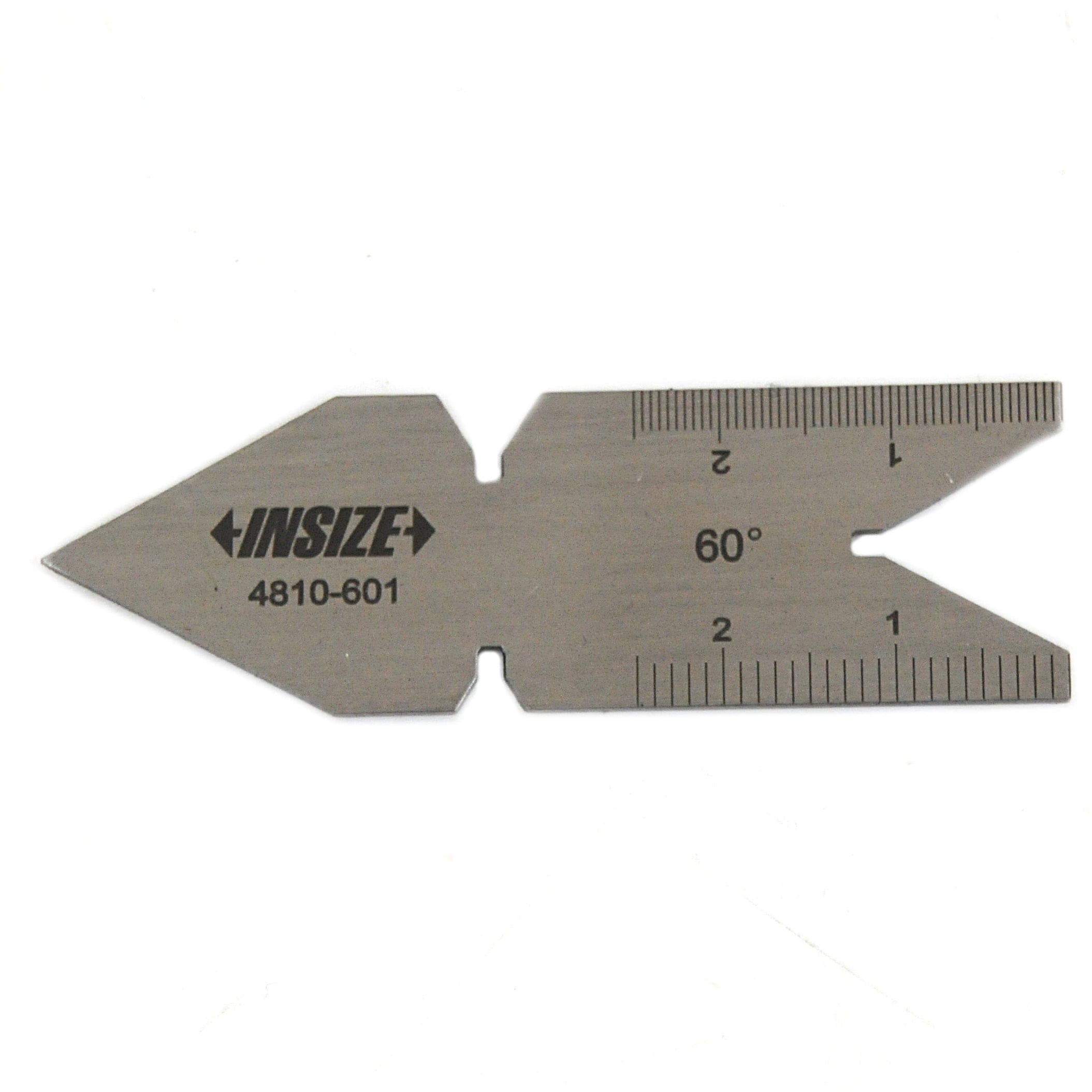

Insize Thread Angle Gauge Metric 60°
The Insize Metric 60° Thread Angle Gauge is a precision centre gauge designed for checking and setting metric screw thread profiles. It is ideal for use in machining, toolroom, and inspection applications where accurate thread angle and pitch verification is required.
Key Features:
-
Part Number: 4810-601
-
Thread Type: Metric 60°
-
Type: Centre gauge
-
Graduations: 0.5 mm and 1.0 mm
-
Angle Accuracy: ±30 minutes
-
Material: Stainless steel
Manufactured for durability and consistent accuracy, this INSIZE thread angle gauge enables quick checking of metric thread angles and pitches. It is commonly used for setting screw-cutting tools on lathes and for verifying metric thread forms during machining and inspection.
