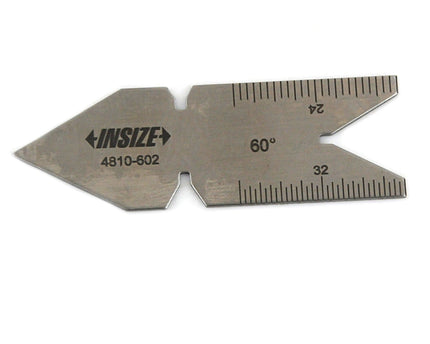

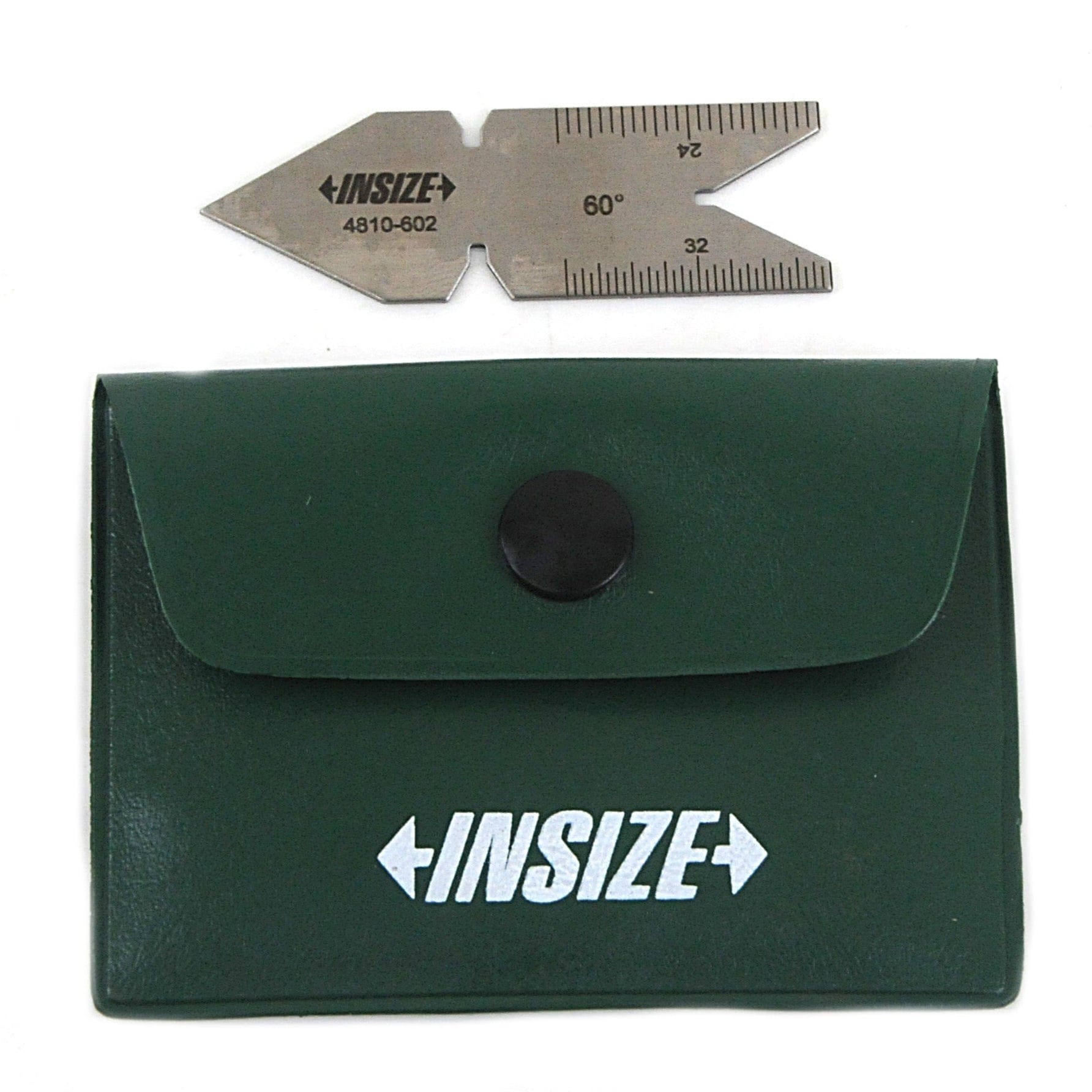

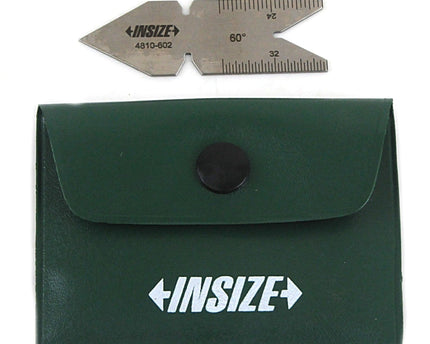

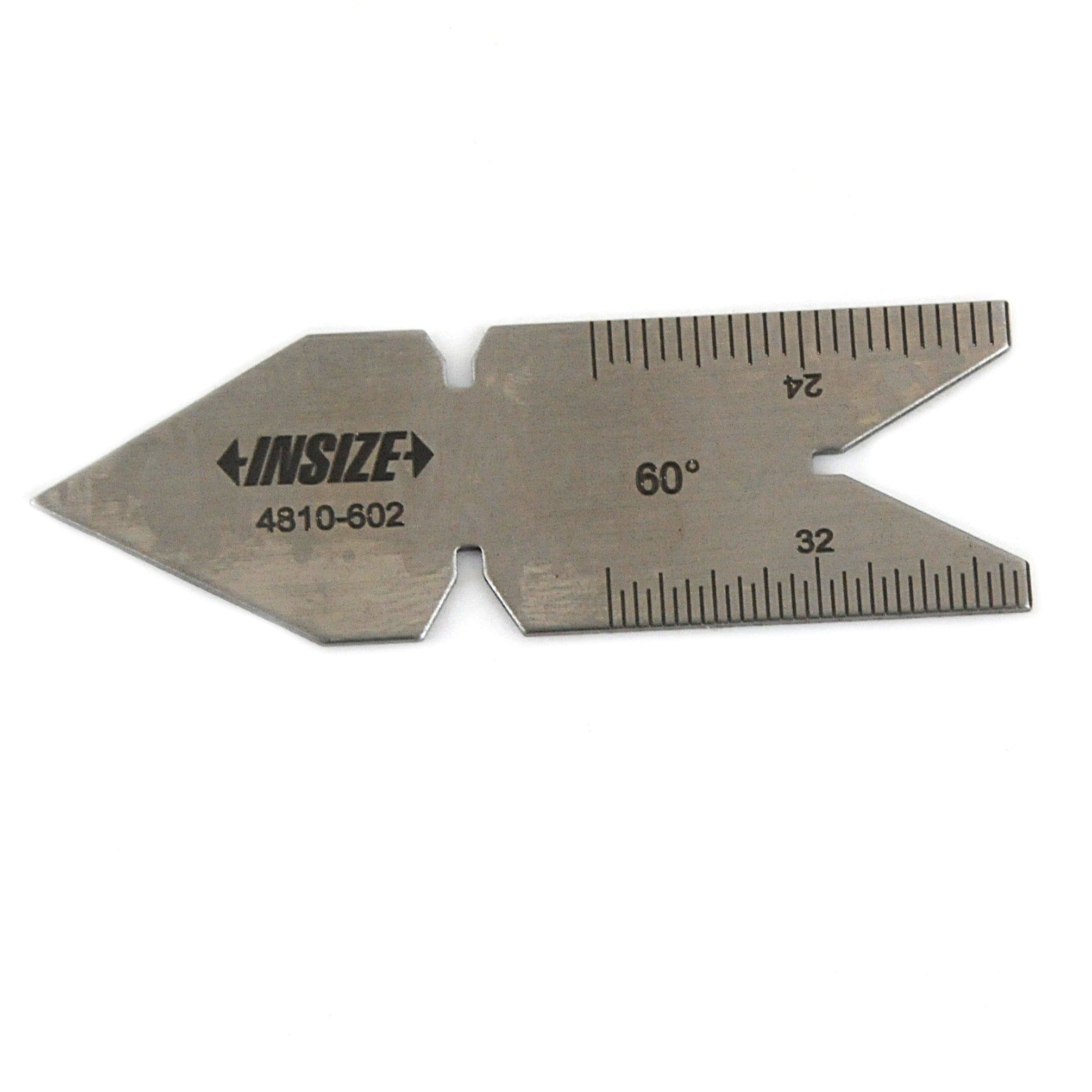

Insize Thread Angle Gauge Unified 60°
The Insize Unified 60° Thread Angle Gauge is a precision centre gauge designed for accurately checking and setting Unified screw thread profiles. It is widely used in machining and inspection environments to ensure correct thread angle and pitch alignment during cutting and verification operations.
Key Features:
-
Part Number: 4810-602
-
Thread Type: Unified 60°
-
Type: Centre gauge
-
Graduations: 14 TPI and 20 TPI (front side); 24 TPI and 32 TPI (back side)
-
Angle Accuracy: ±30 minutes
-
Material: Stainless steel

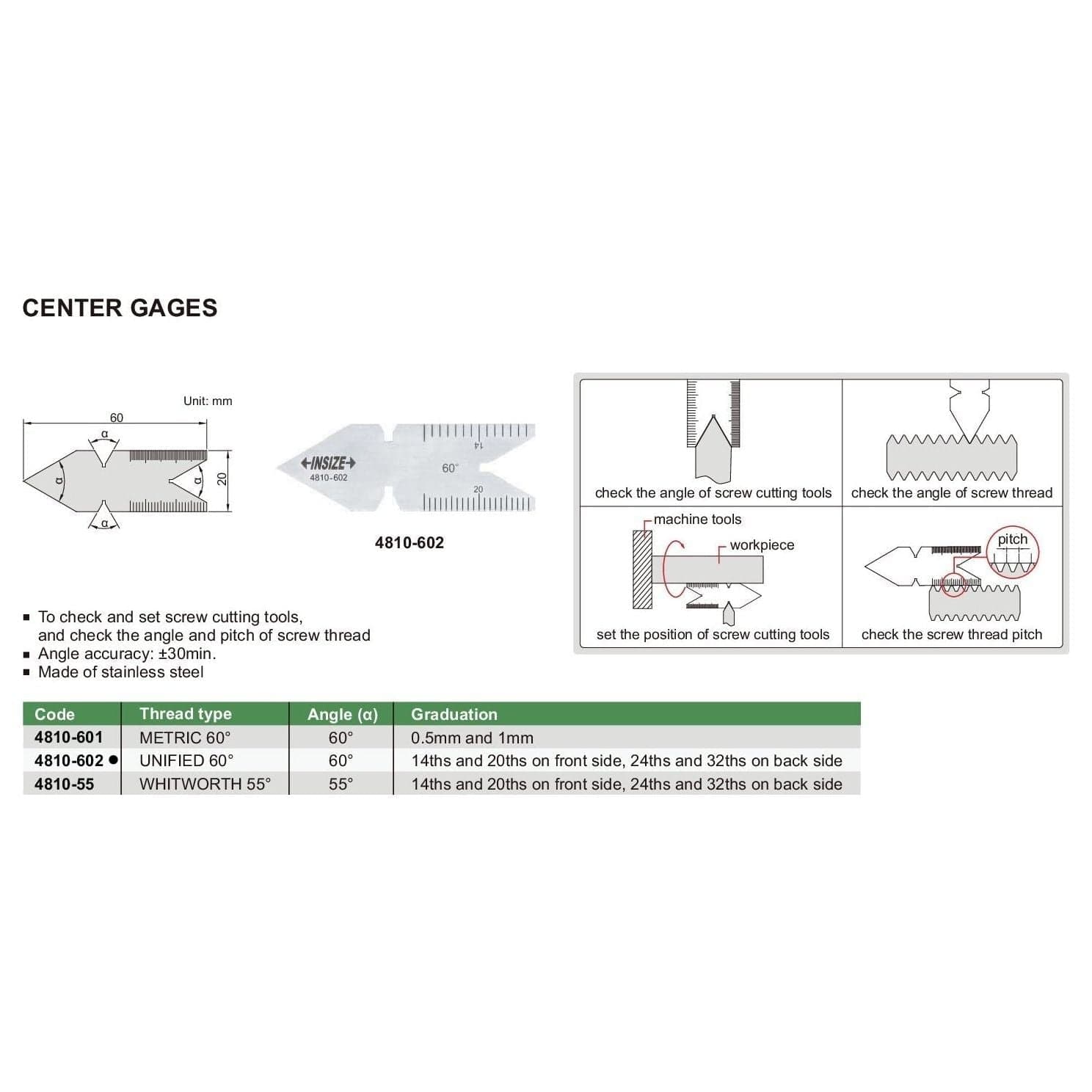

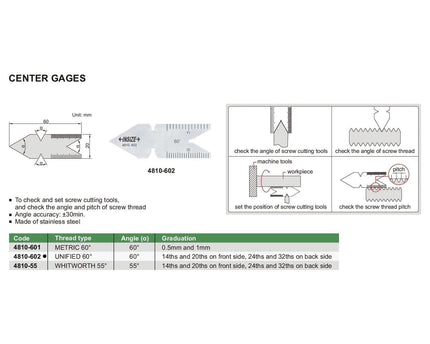

Manufactured for durability and precision, this INSIZE thread angle gauge allows quick and reliable checking of Unified thread angles and pitches. It is commonly used for setting screw-cutting tools on lathes and for verifying Unified thread forms during machining and inspection.
