Description

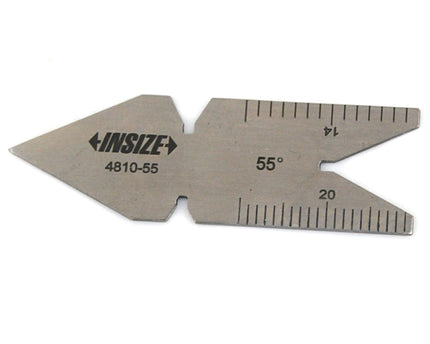

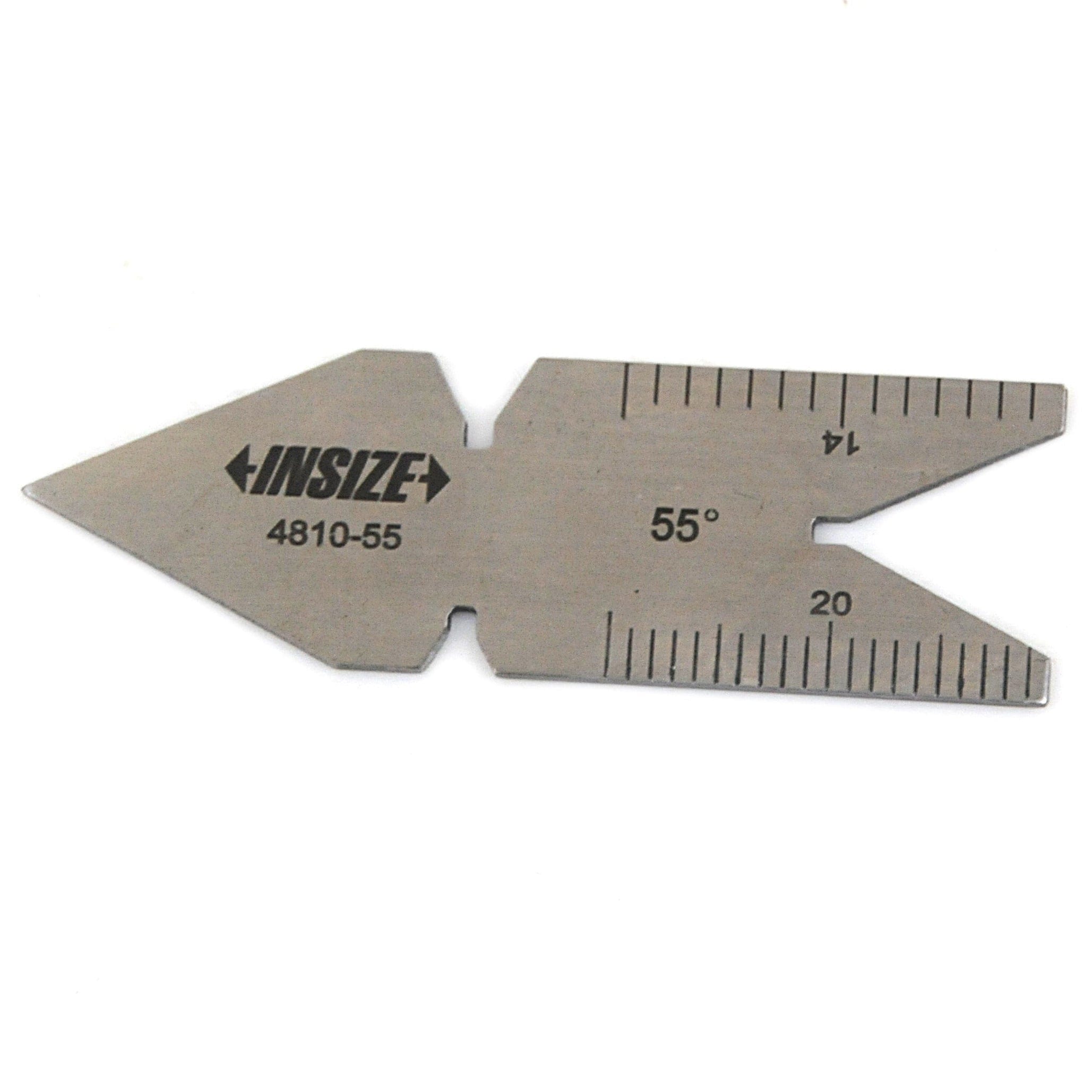

Insize Thread Angle Gauge Whitworth 55°
The Insize Whitworth 55° Thread Angle Gauge is a precision centre gauge designed for accurately checking and setting Whitworth thread profiles. It is ideal for use in toolrooms, machining, and inspection environments where correct thread form and pitch alignment are critical.
Key Features:
-
Part Number: 4810-55
-
Thread Type: Whitworth 55°
-
Type: Centre gauge
-

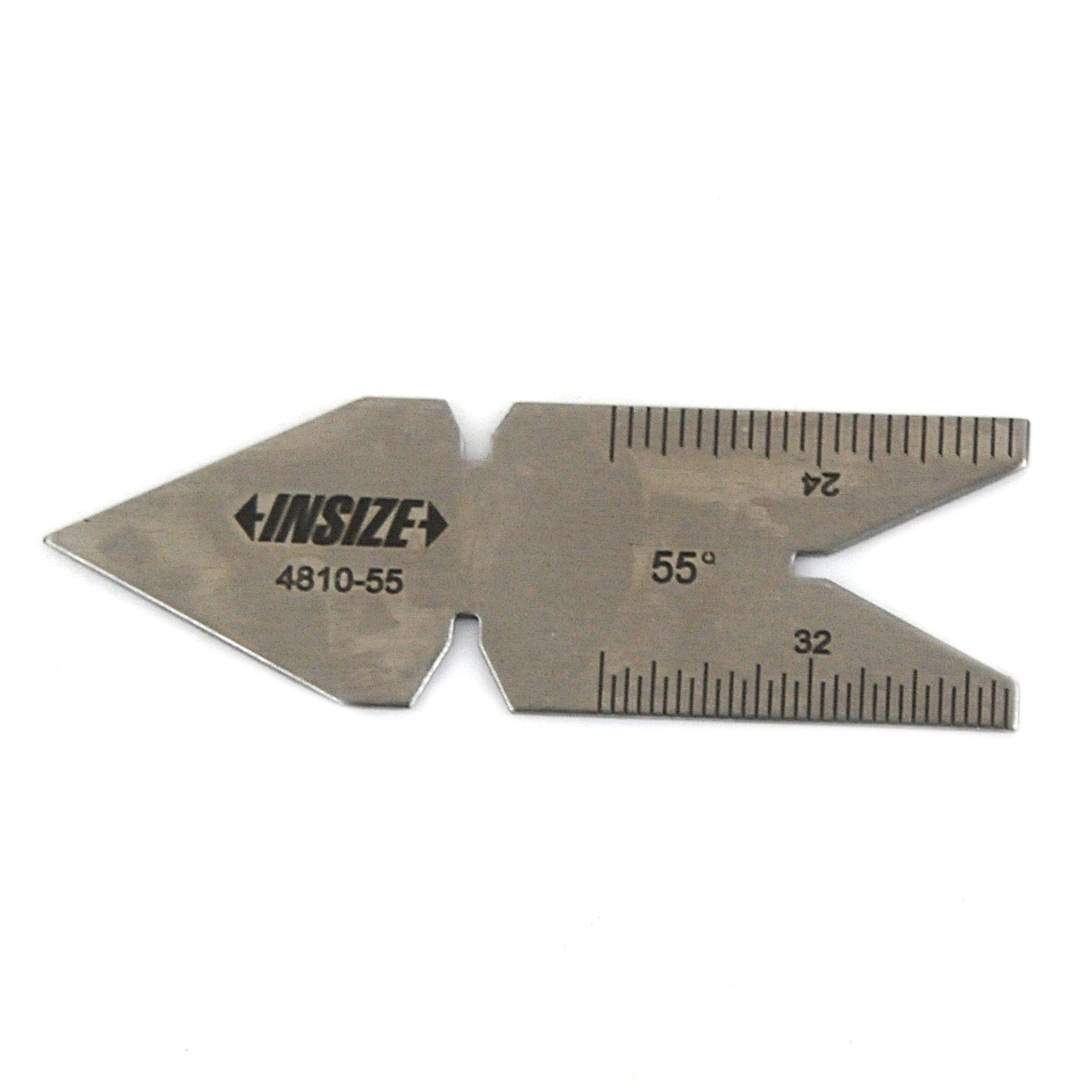

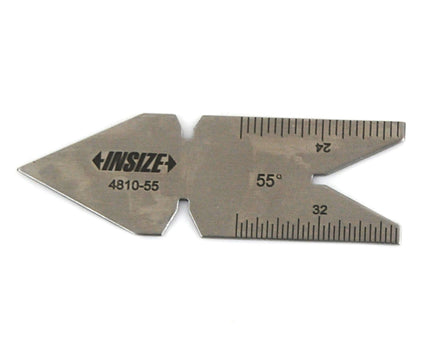

Graduations: 14 TPI and 20 TPI (front side); 24 TPI and 32 TPI (back side)
-
Angle Accuracy: ±30 minutes
-
Material: Stainless steel
Manufactured for durability and precision, this INSIZE thread angle gauge allows quick and reliable checking of thread angles and pitches. It is commonly used for setting screw-cutting tools on lathes and for verifying Whitworth thread profiles during machining and inspection.
