Description
Insize Thread Plug Gauge
The Insize Thread Plug Gauge is a precision inspection tool designed to verify internal Unified National Fine (UNF) threads for correct size, pitch, and tolerance. Using the GO / NO-GO gauging principle, it provides a fast and reliable method for confirming thread conformity in machining, maintenance, and quality control applications.
Specifications :
-
Part No: 4131-1A2
-
Thread Size: 1/2" – 20 UNF
-

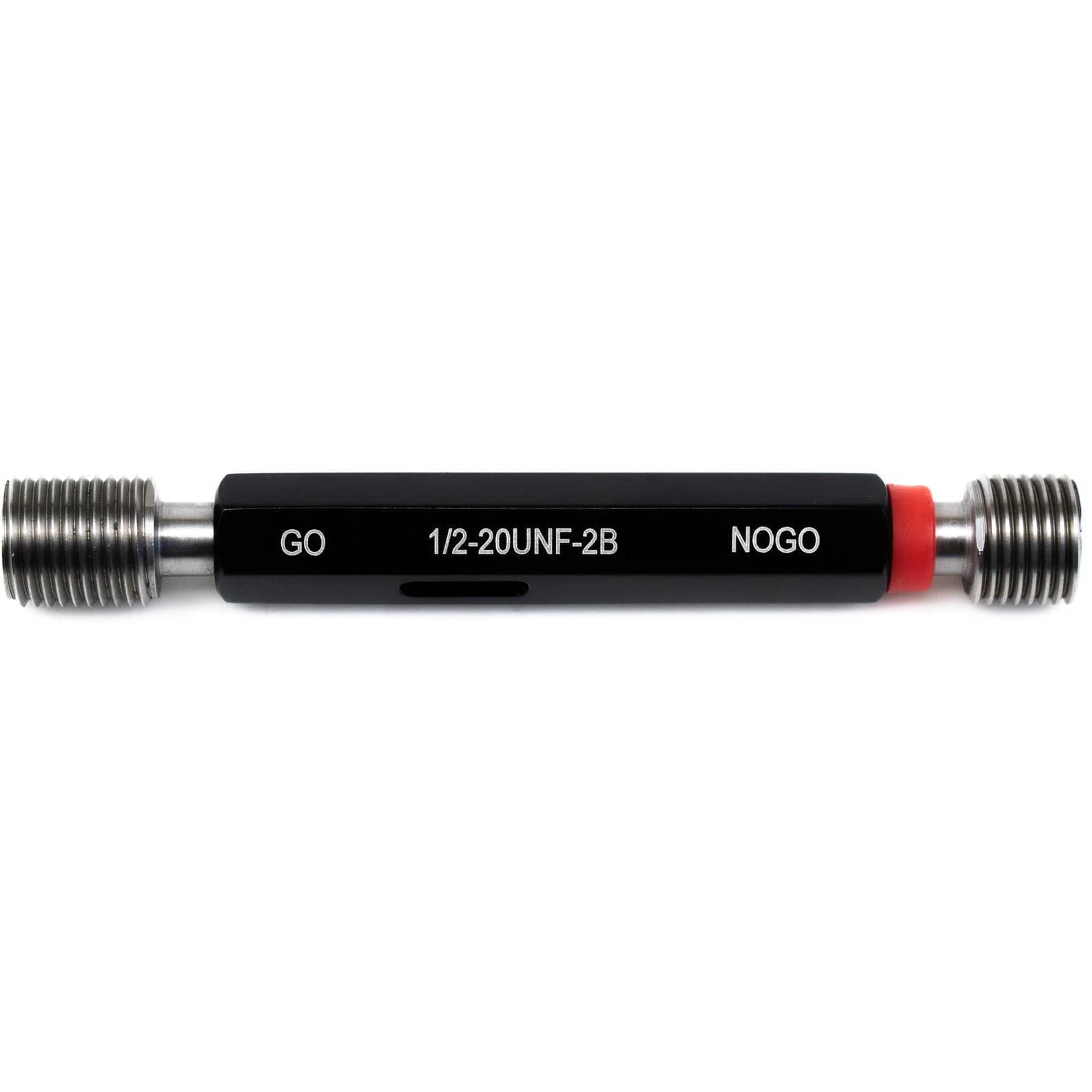

Gauge Type: GO & NO-GO supplied together
-
Standard: ANSI / ASME B1.2
-
Certification: Manufacturer inspection certificate supplied

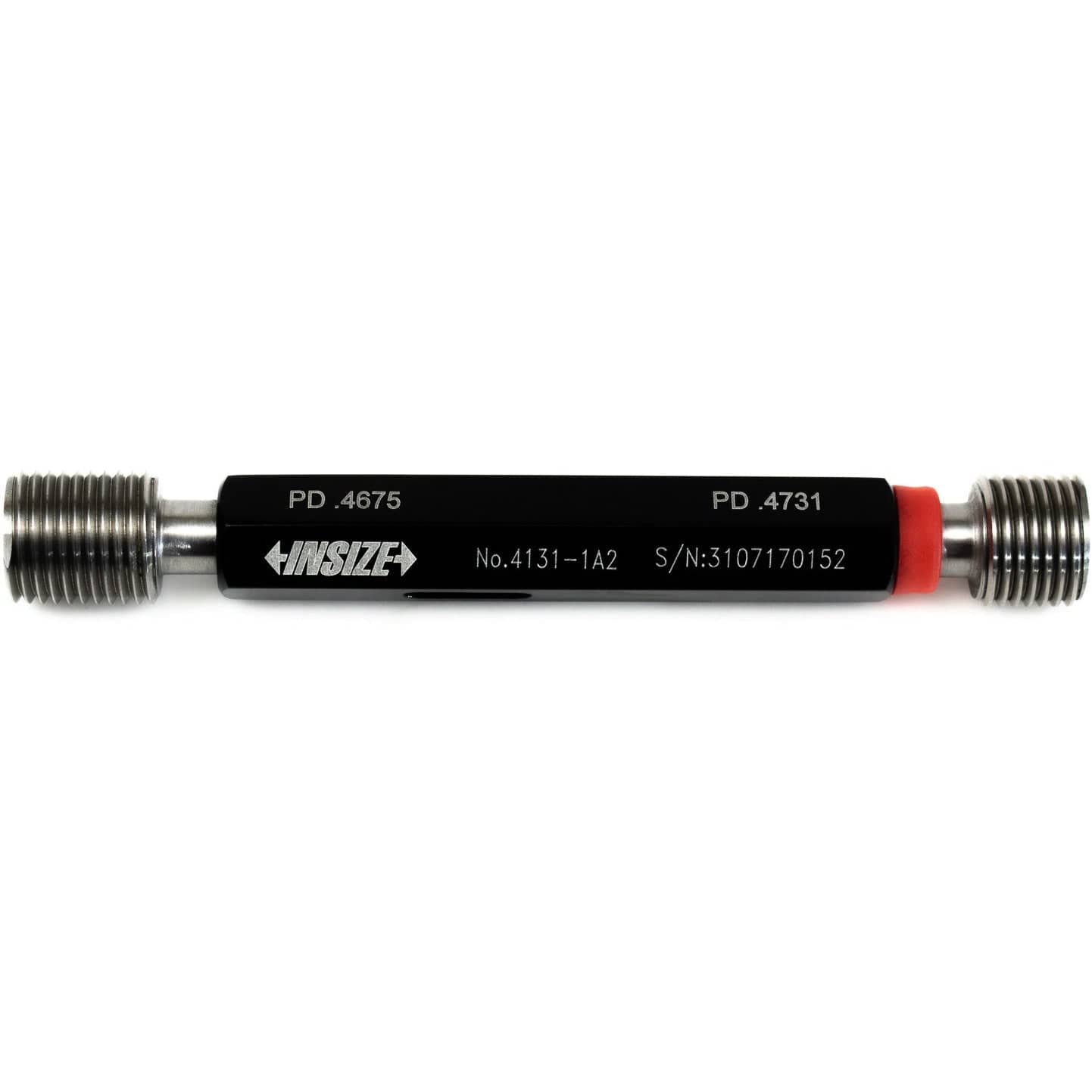

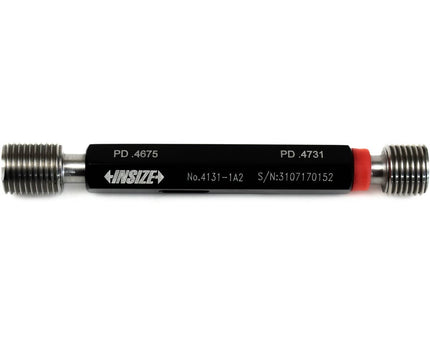

Manufactured from hardened, precision-ground gauge steel, Insize thread plug gauges deliver excellent wear resistance, dimensional stability, and repeatable inspection results. Clearly marked GO and NO-GO ends allow quick verification of internal threads, helping to ensure correct fit, interchangeability, and compliance with specified standards in workshop, toolroom, and production environments.
