Description
Insize Thread Plug Gauge
The Insize Thread Plug Gauge is a precision inspection tool designed for checking internal Unified National threads to ensure they meet specified dimensional tolerances. Using the GO / NO-GO gauging principle, it provides a fast and reliable method for verifying correct thread form, pitch diameter, and interchangeability in machining, production, and quality control environments.

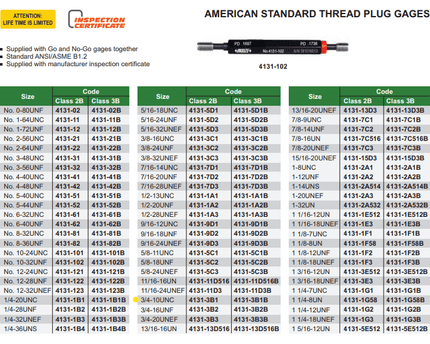

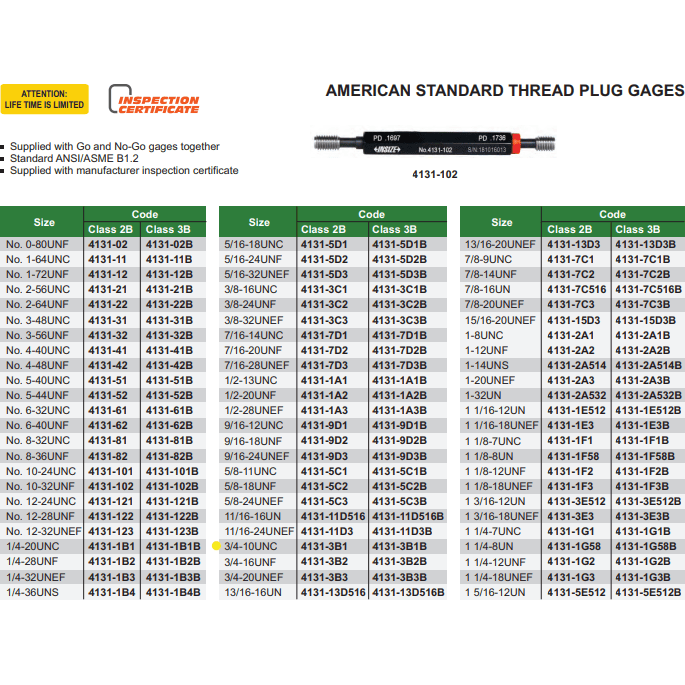

Specifications :
-
Part No: 4131-3B1
-
Thread Size: 3/4" – 10 UNF
-
Gauge Type: GO & NO-GO gauges supplied together
-
Standard: ANSI / ASME B1.2
-
Certification: Manufacturer inspection certificate supplied

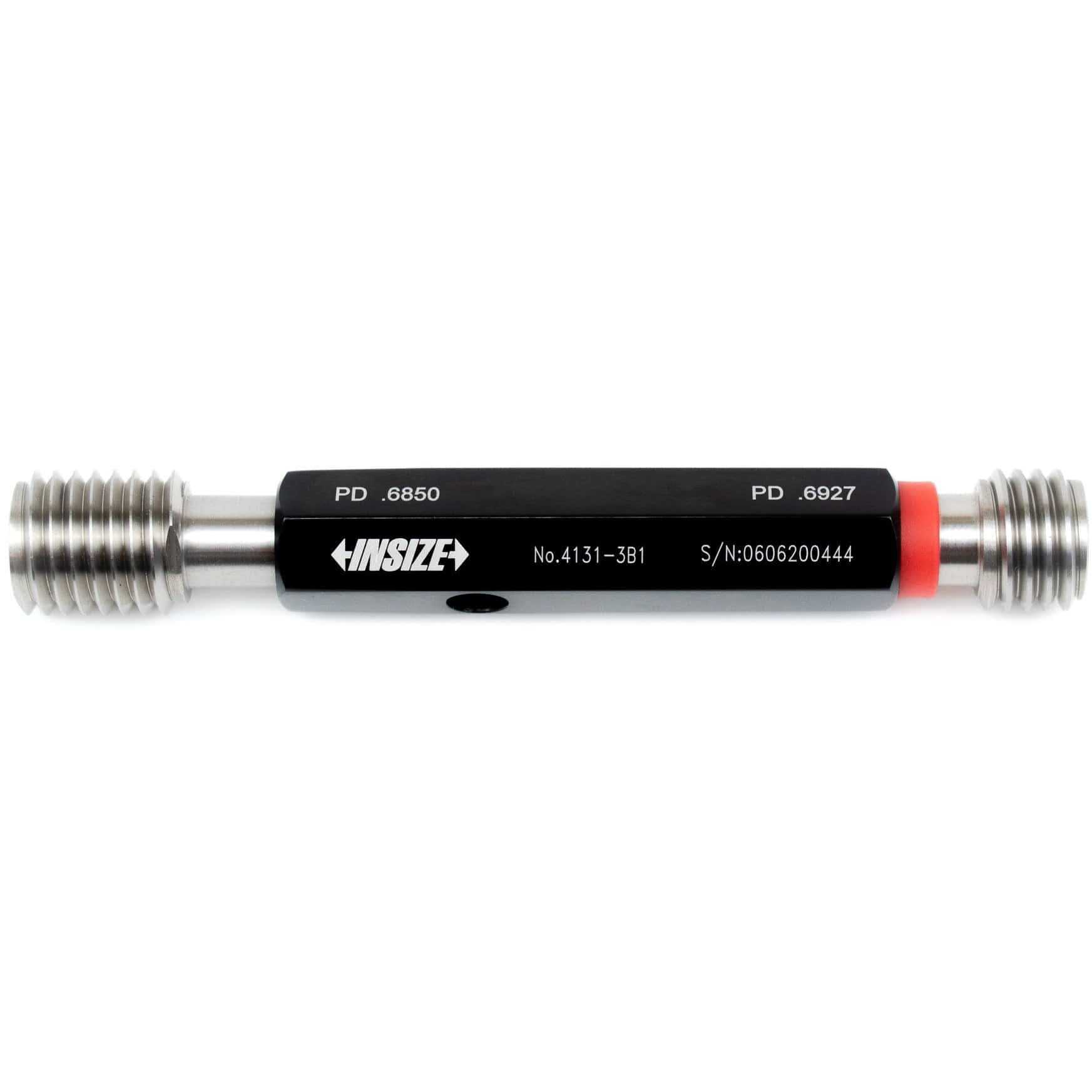

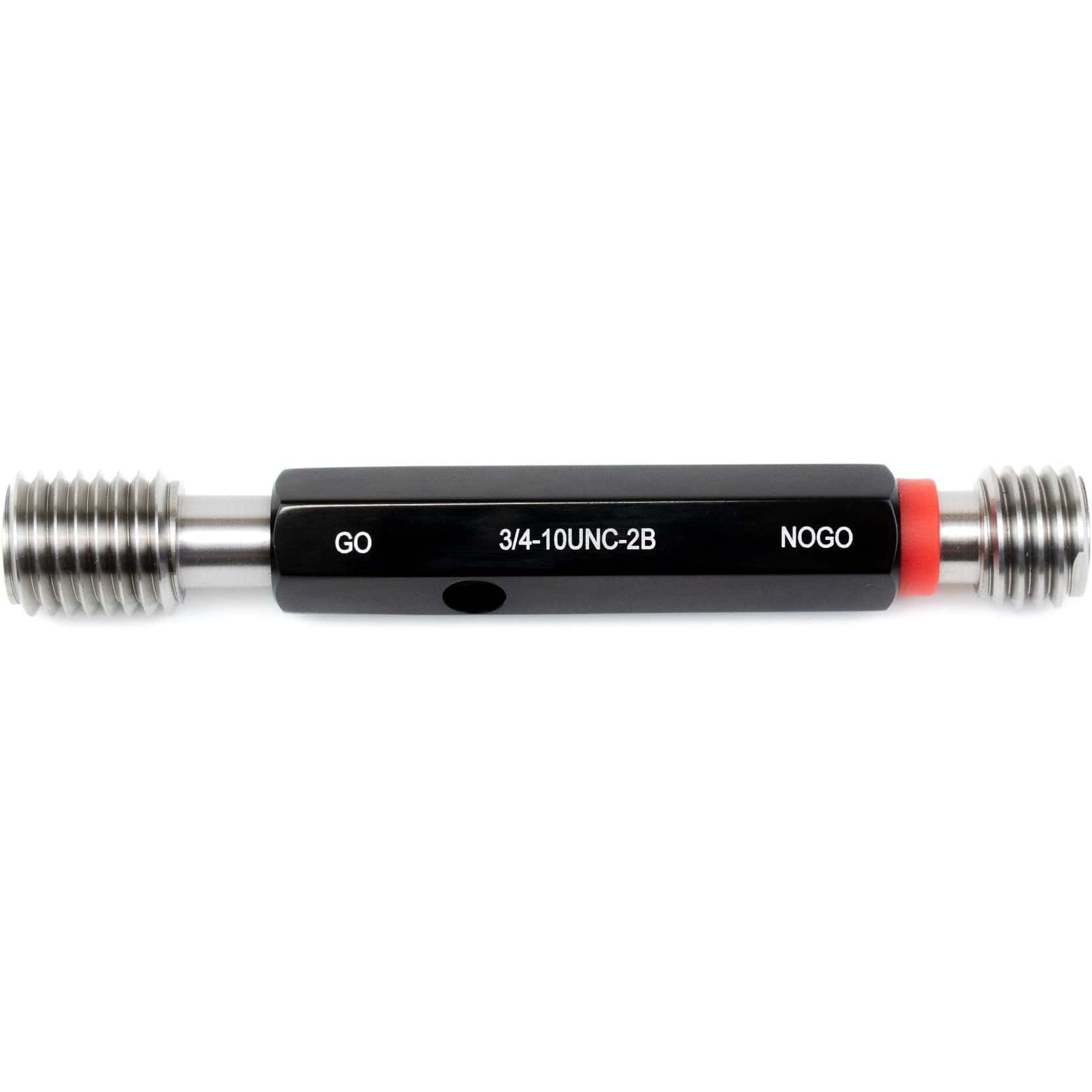

Manufactured from hardened, precision-ground gauge steel, Insize thread plug gauges deliver excellent wear resistance and long-term dimensional stability. Clearly marked GO and NO-GO ends allow quick, repeatable inspection of internal threads, helping to prevent oversize or undersize tapped holes while maintaining consistent quality and compliance with international standards.
