Description
Insize Thread Plug Gauge

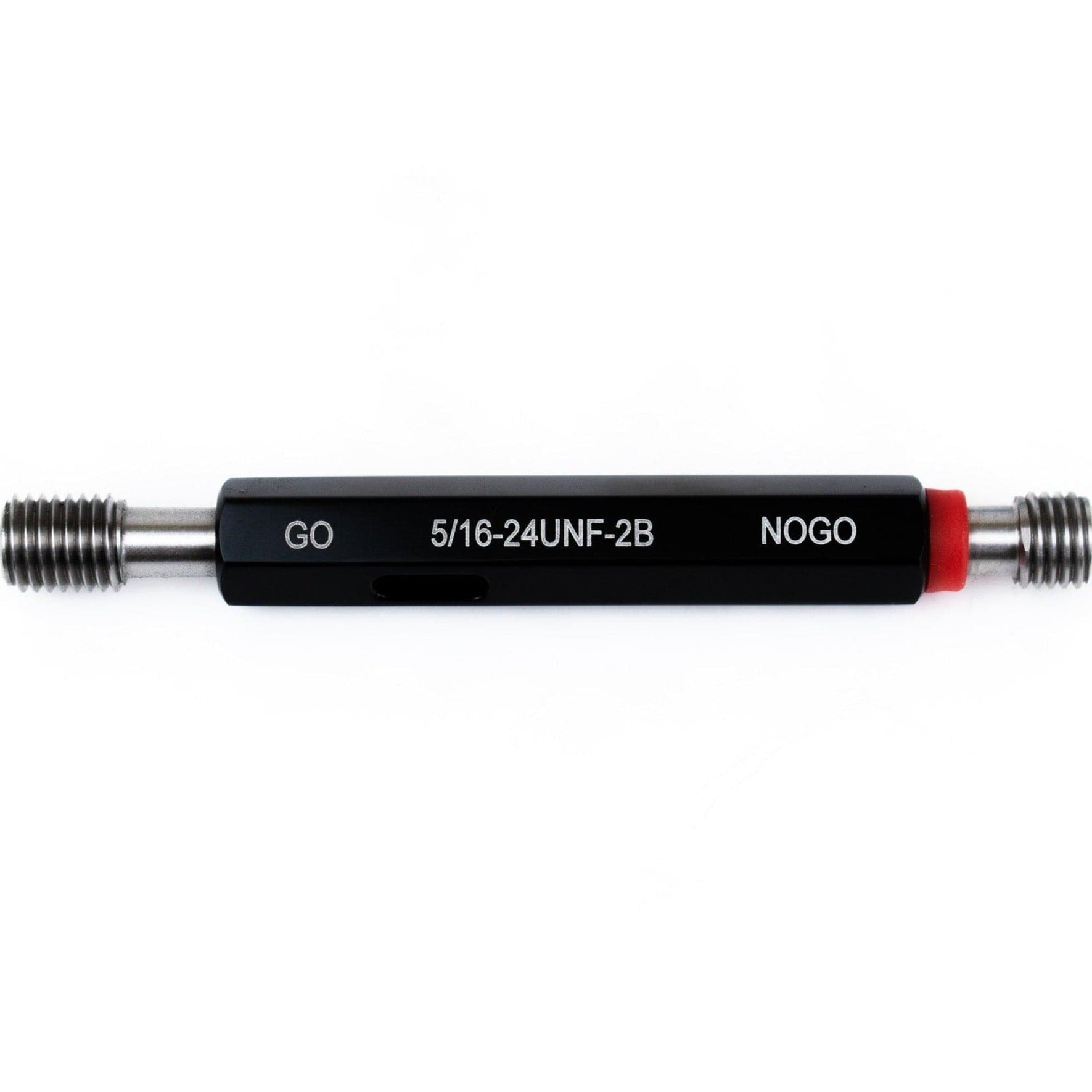

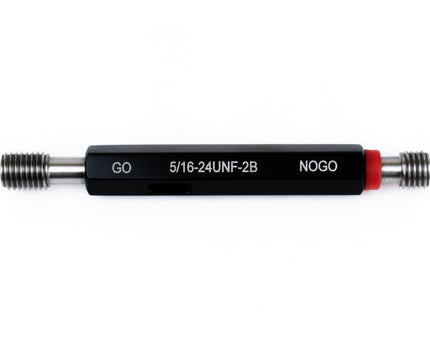

INSIZE GO/NO-GO thread plug gauges are manufactured as dedicated inspection tools for verifying the accuracy and conformity of internal threaded holes. Precision ground to the UNF 60° thread form, these gauges allow machinists to quickly confirm that pitch diameter, lead, and flank geometry remain within the limits defined by ANSI/ASME B1.2. The hardened steel construction delivers excellent wear resistance, so the gauge maintains its size over long periods of repetitive checking in production environments.
Using a plug gauge during and after tapping reduces the risk of assembling out-of-tolerance components and helps identify tool wear or incorrect setup before parts progress further in the workflow. Separate GO and NO-GO ends provide an unambiguous result: a correct thread will accept the GO end fully while rejecting the NO-GO end. Each INSIZE gauge is supplied with a manufacturer's inspection certificate to support formal quality assurance records.
Specifications :

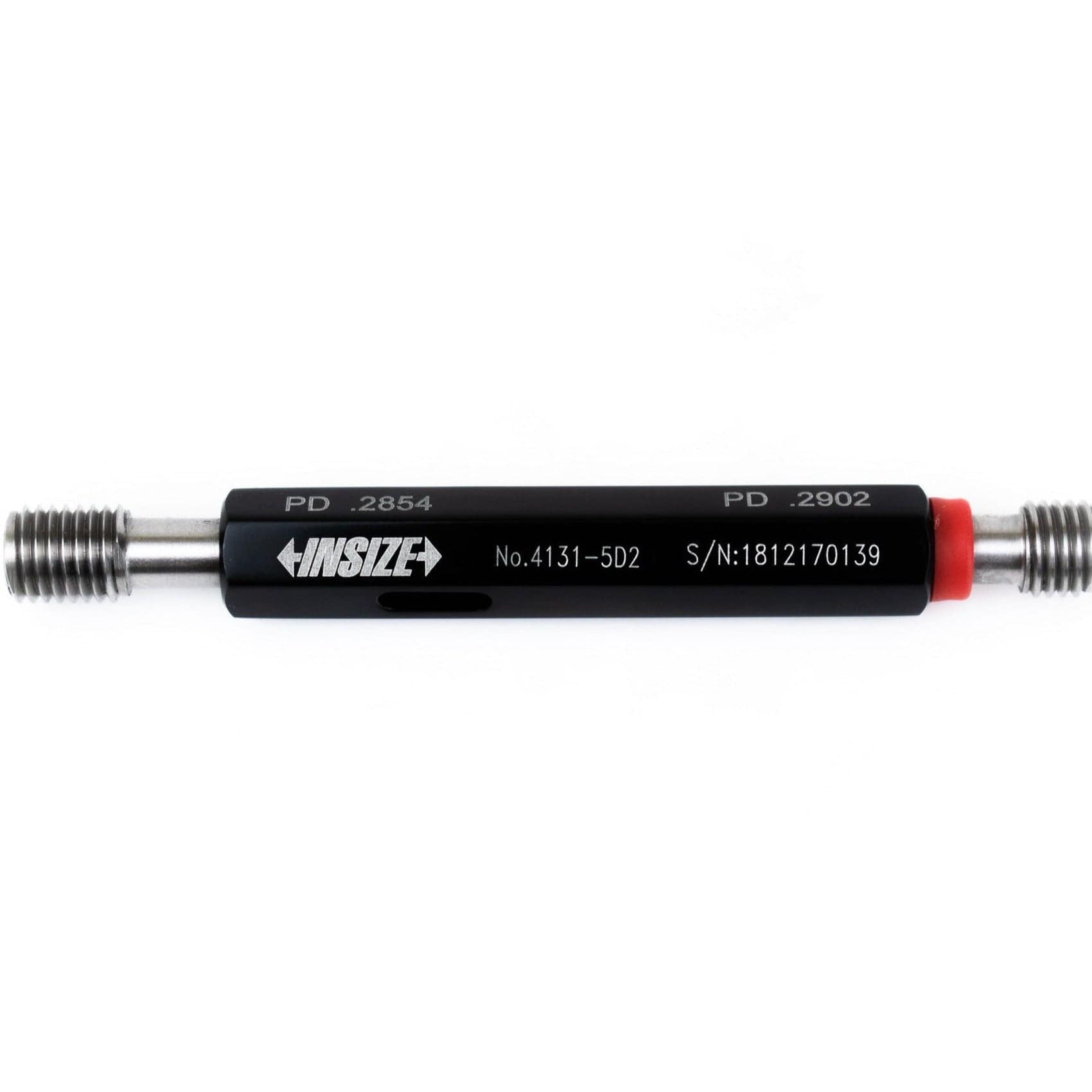

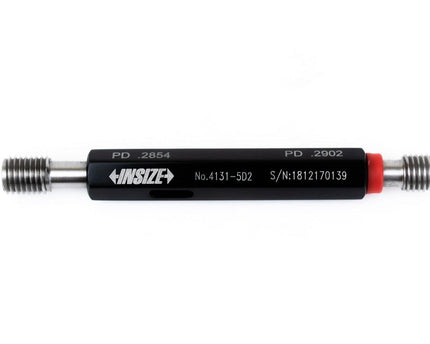

- Part No: 4131-5D2
- Size: 5/16"-24 UNF
- Supplied with GO & NO-GO gauges together.
- Standard: ANSI/ASME B1.2
- Manufacture inspection certificate included
Well-designed, durable, high-precision tools that are suitable for various measuring ranges. INSIZE measuring tool sets include the perfect instruments for measuring a wide range of components. Easy-to-use tools for measuring.
INSIZE is recognised internationally for dependable metrology equipment used throughout engineering, manufacturing, and maintenance industries. The brand’s comprehensive inspection range reflects its commitment to accurate dimensional control and practical workshop performance.
