Description

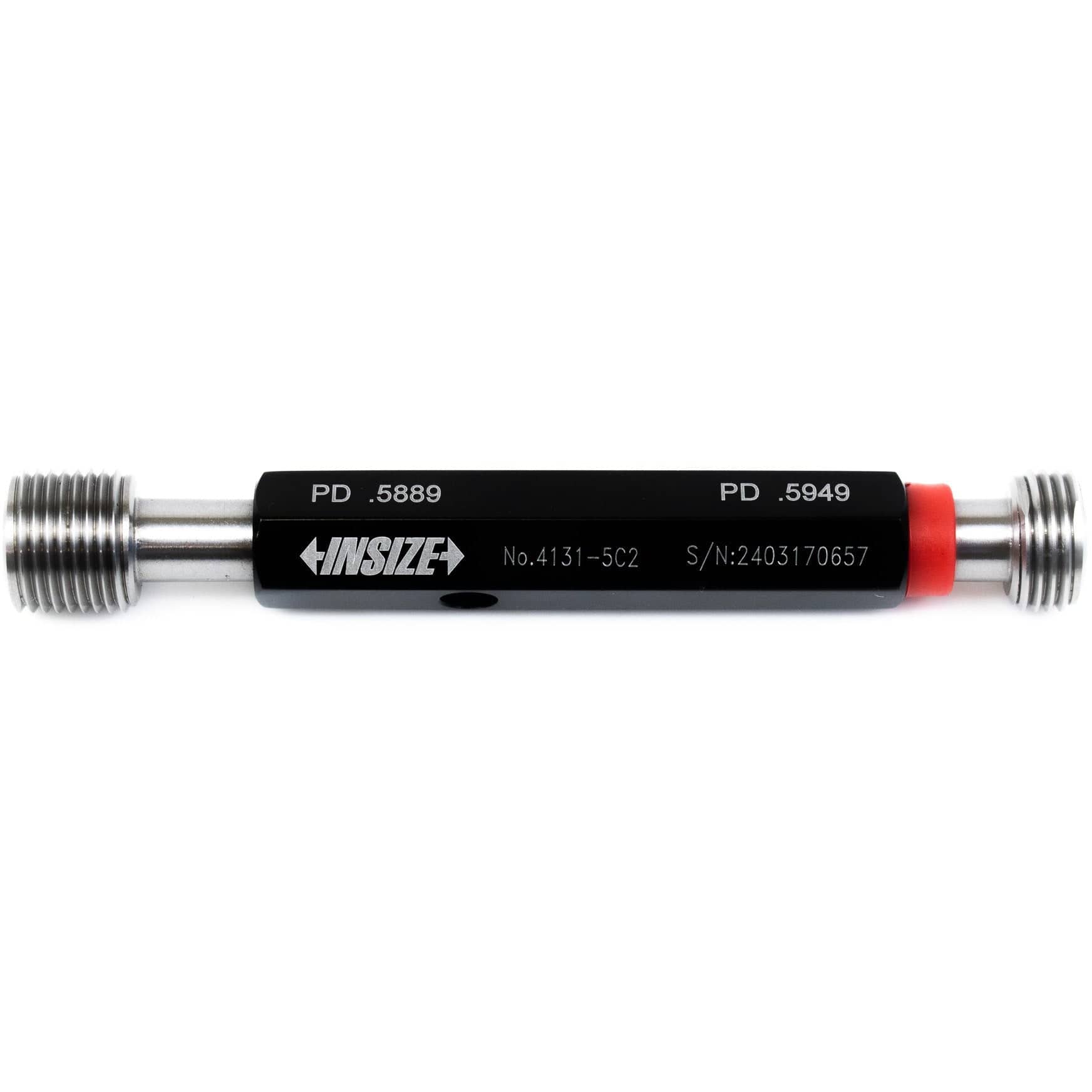

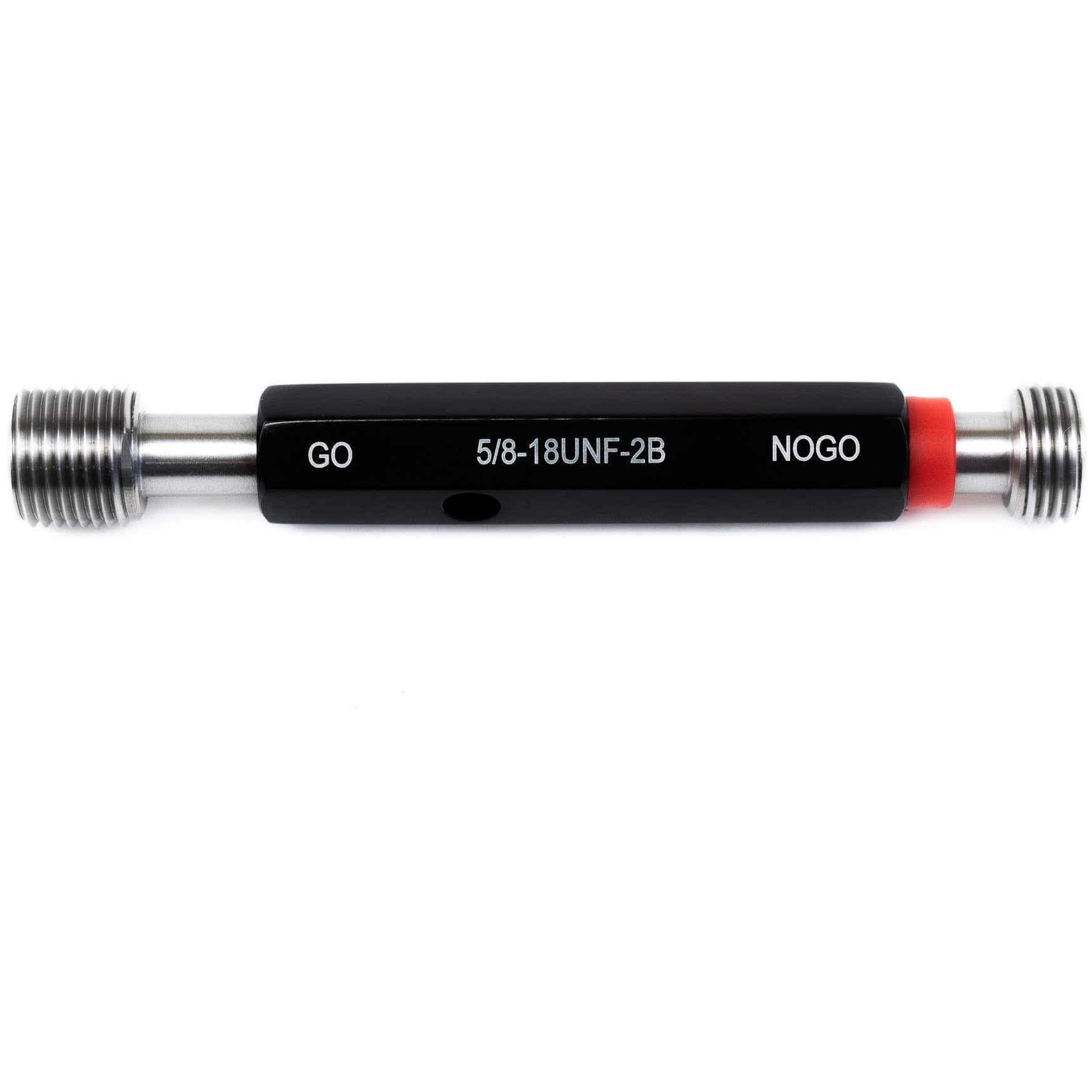

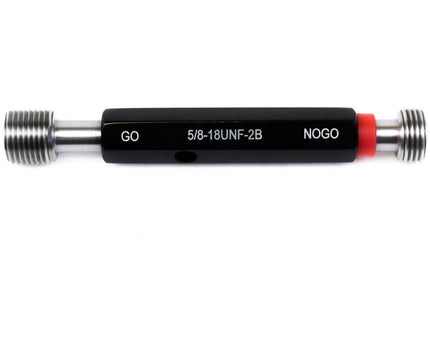

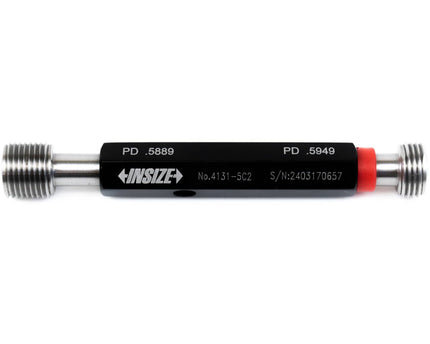

Insize Thread Plug Gauge
A GO/NO-GO thread plug gauge is a precision inspection instrument used to verify internal threads by checking that the pitch diameter is within the allowable tolerance range. The GO end must screw into or enter the threaded hole fully, while the NO-GO end must not pass beyond the permitted limit. This simple process confirms that the tapped thread size, pitch, and form comply with recognised standards, providing fast and reliable thread quality assurance for machining, production, and maintenance environments.
-
Part No: 4131-5C2
-
Size: 5/8"-18 UNF
- Supplied with GO & NO-GO gauges together
-
Standard: ANSI/ASME B1.2
- Manufacture inspection certificate included
Key Features
- Hardened and precision-ground gauge threads for long service life
- Clearly marked GO and NO-GO ends for quick identification
- Designed for accurate pitch diameter verification of internal threads
- Suitable for workshop, CNC, and industrial inspection applications
- Provides immediate confirmation of thread compliance and quality
Insize is an established global manufacturer of measuring and inspection equipment, supplying professional metrology tools that are trusted across engineering and manufacturing industries. The comprehensive Insize range supports precise dimensional control, efficient quality checks, and consistent results in modern production environments.
