Description

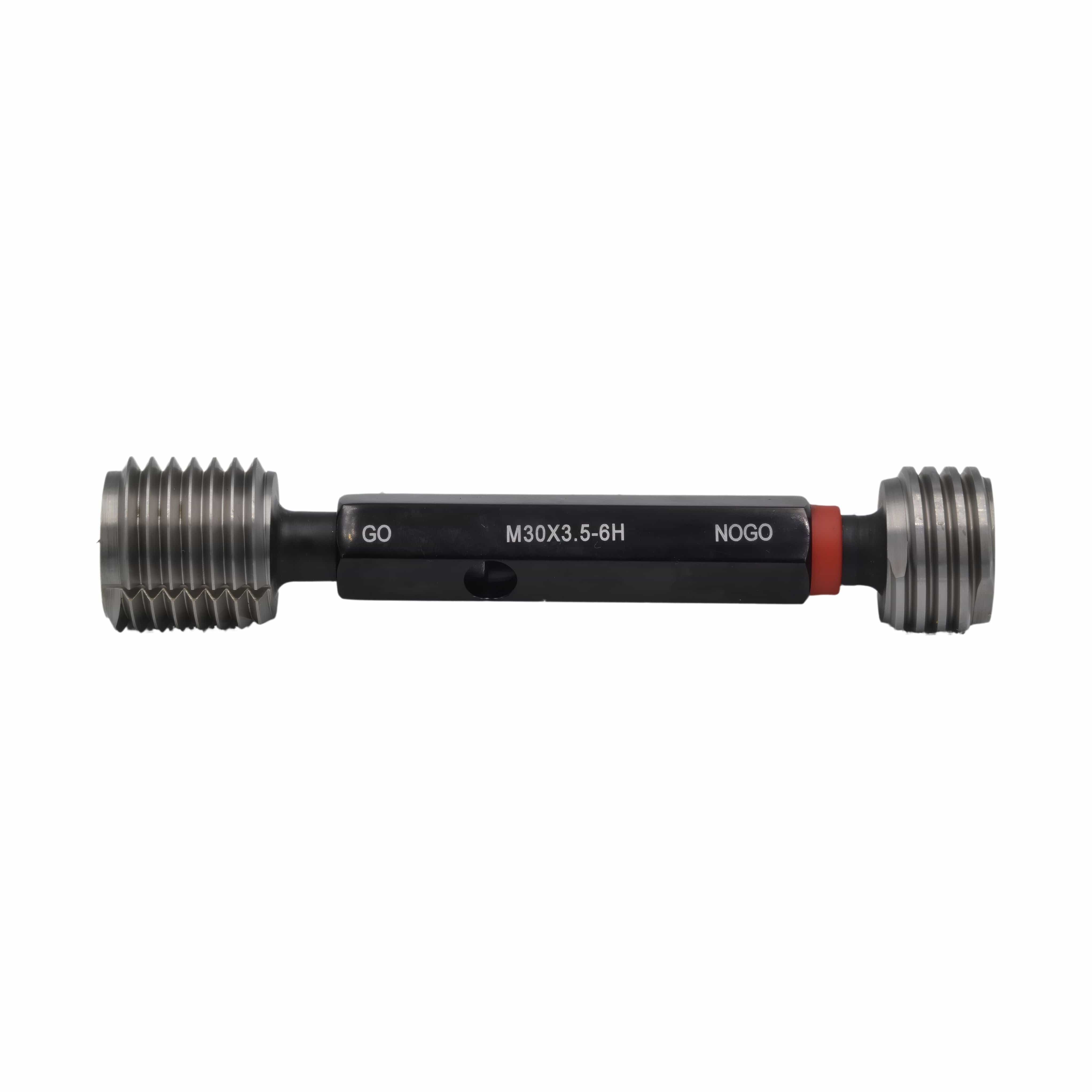

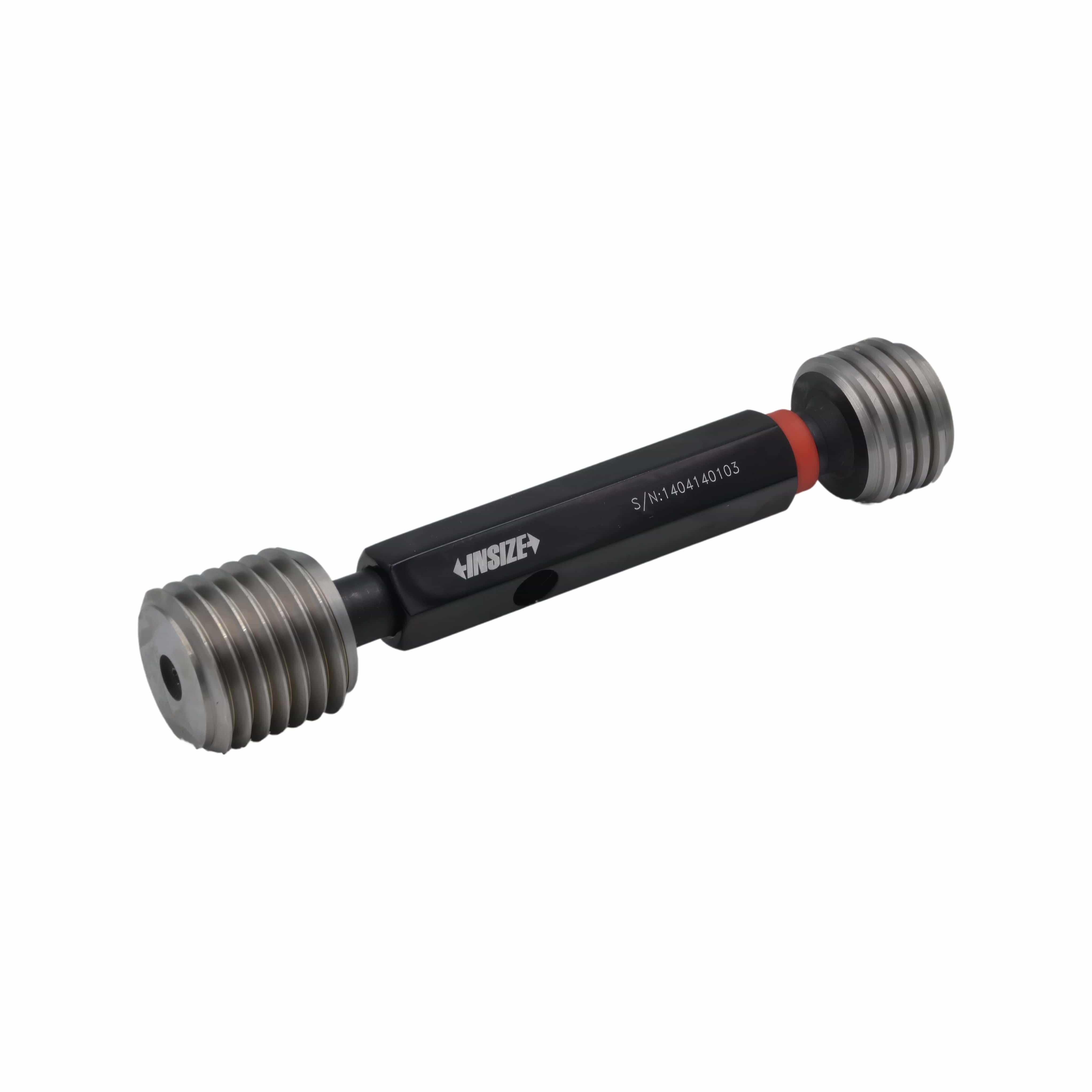

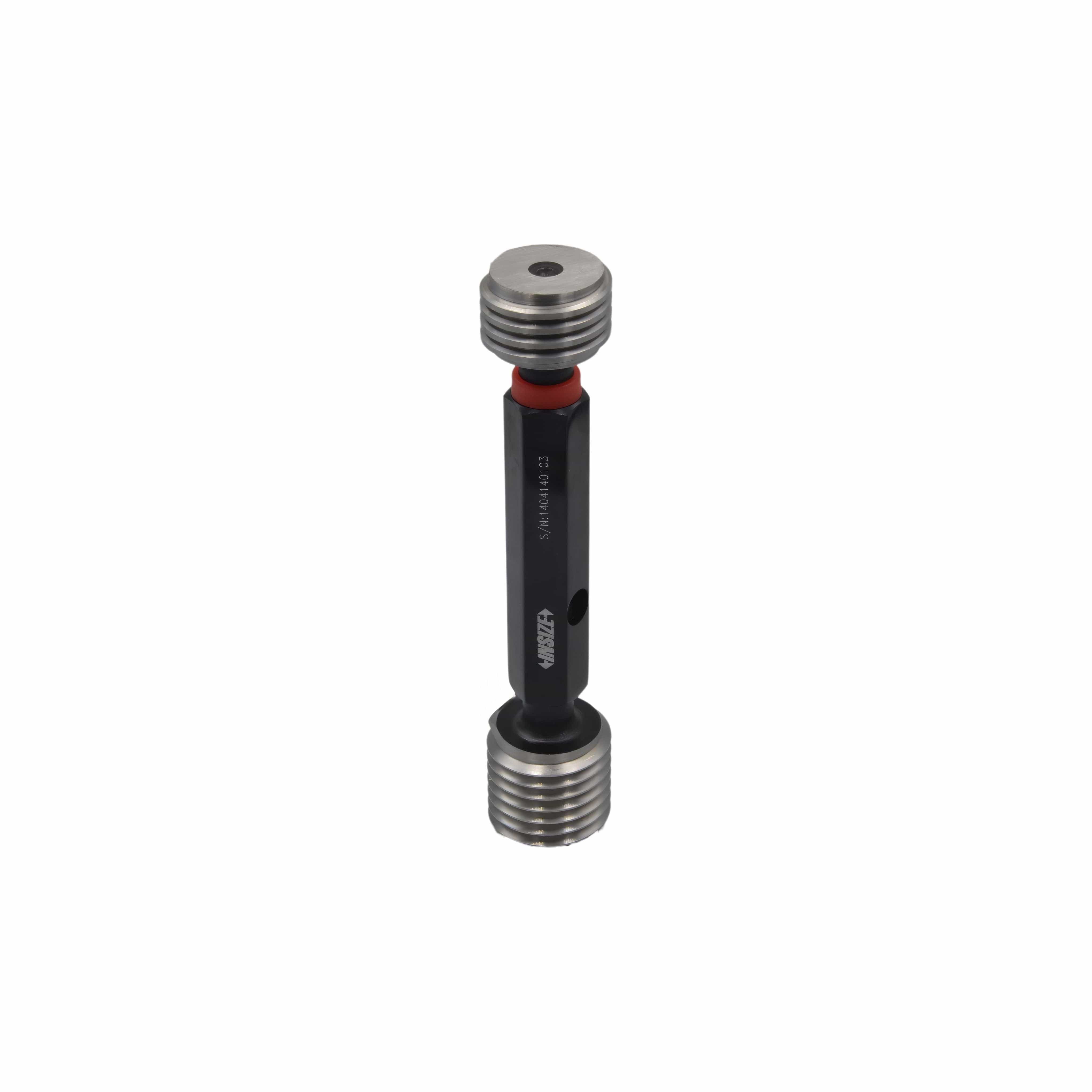

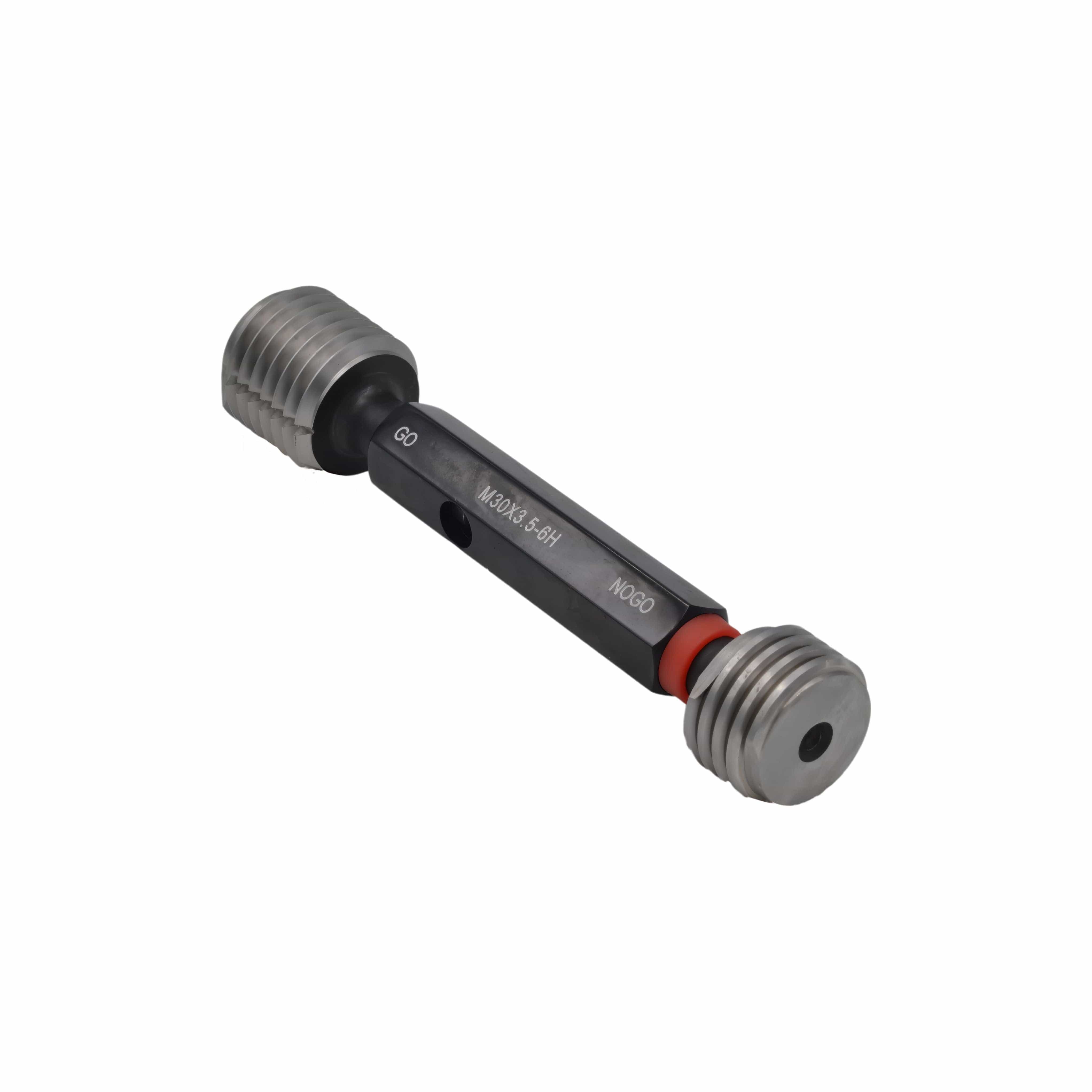

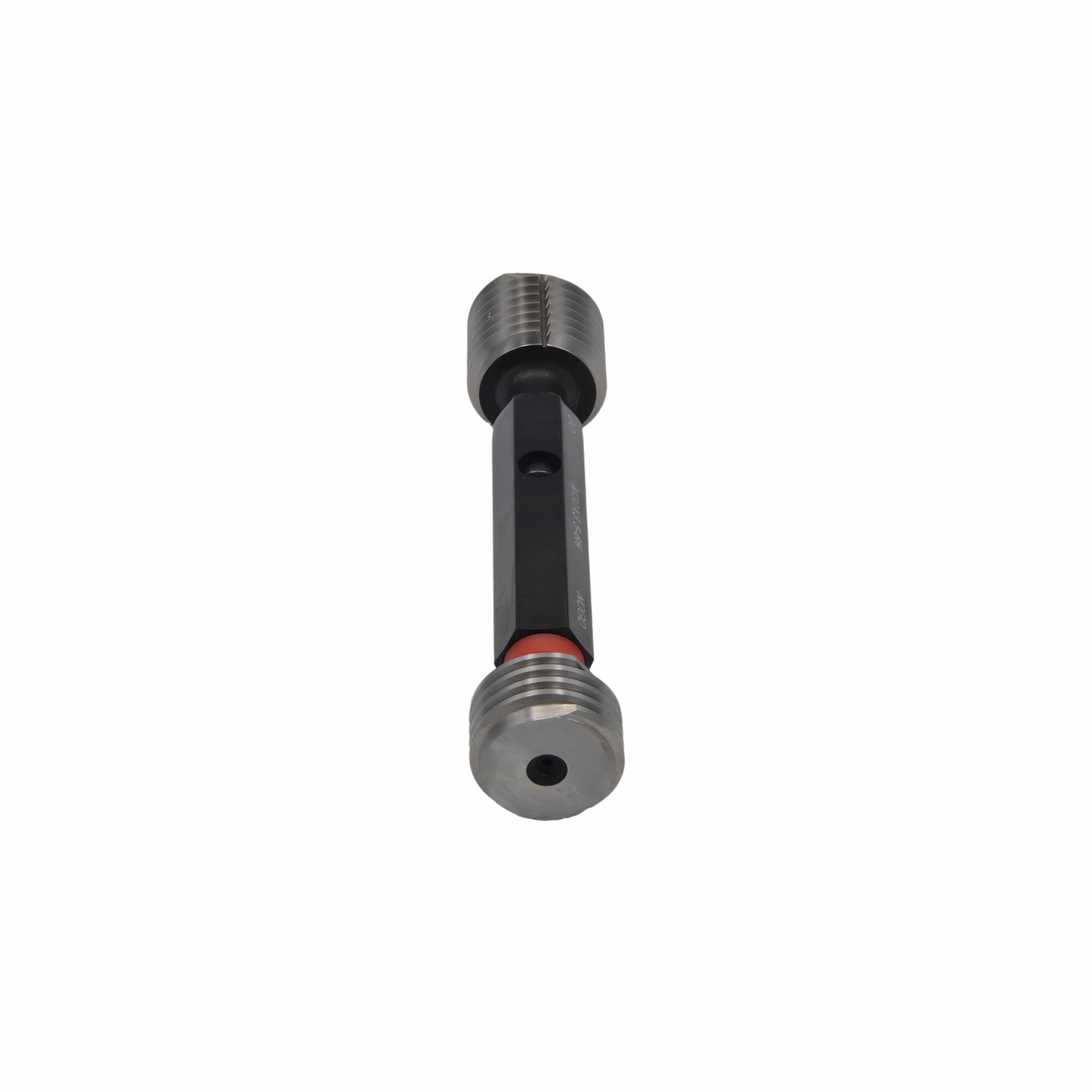

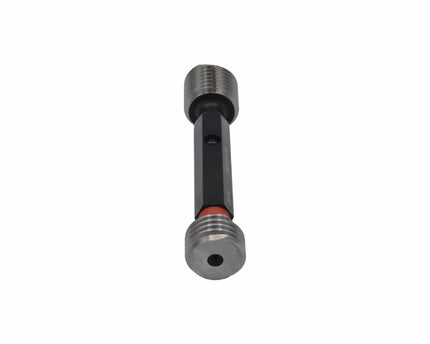

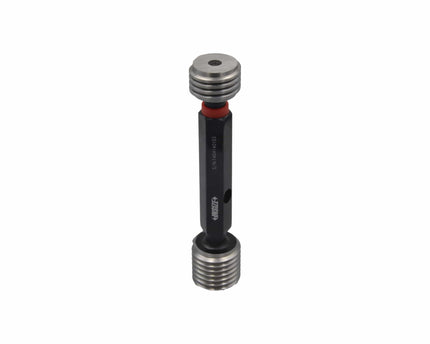

Insize Thread Plug Gauge
The INSIZE thread plug gauge is engineered specifically for accurate verification of internal metric threads using the GO/NO-GO principle. Manufactured in accordance with ISO 1502, the gauge provides a fast and dependable method to confirm that a threaded hole meets the required Class 6H tolerance. The GO end must engage fully with the component thread, while the NO-GO end must not enter beyond the permitted limit, ensuring correct assembly fit, interchangeability, and protection against oversize tapping in production environments.
Specifications :
- Part No : 4130-30
- Size : M30 × 3.5 mm
- Class 6H – No Allowance
- Supplied with GO & NO-GO gauges together
- Meet ISO1502
- Supplied with manufacture inspection certificate.
Constructed from hardened precision steel with clear permanent markings, the INSIZE 4130-30 thread plug gauge delivers repeatable and wear-resistant performance for workshop and industrial thread inspection. Ideal for routine verification of tapped holes, incoming quality checks, and high-volume manufacturing where consistent thread compliance is essential.
