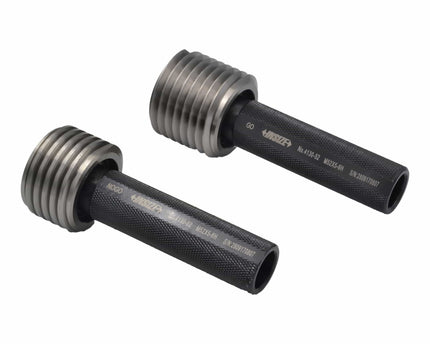

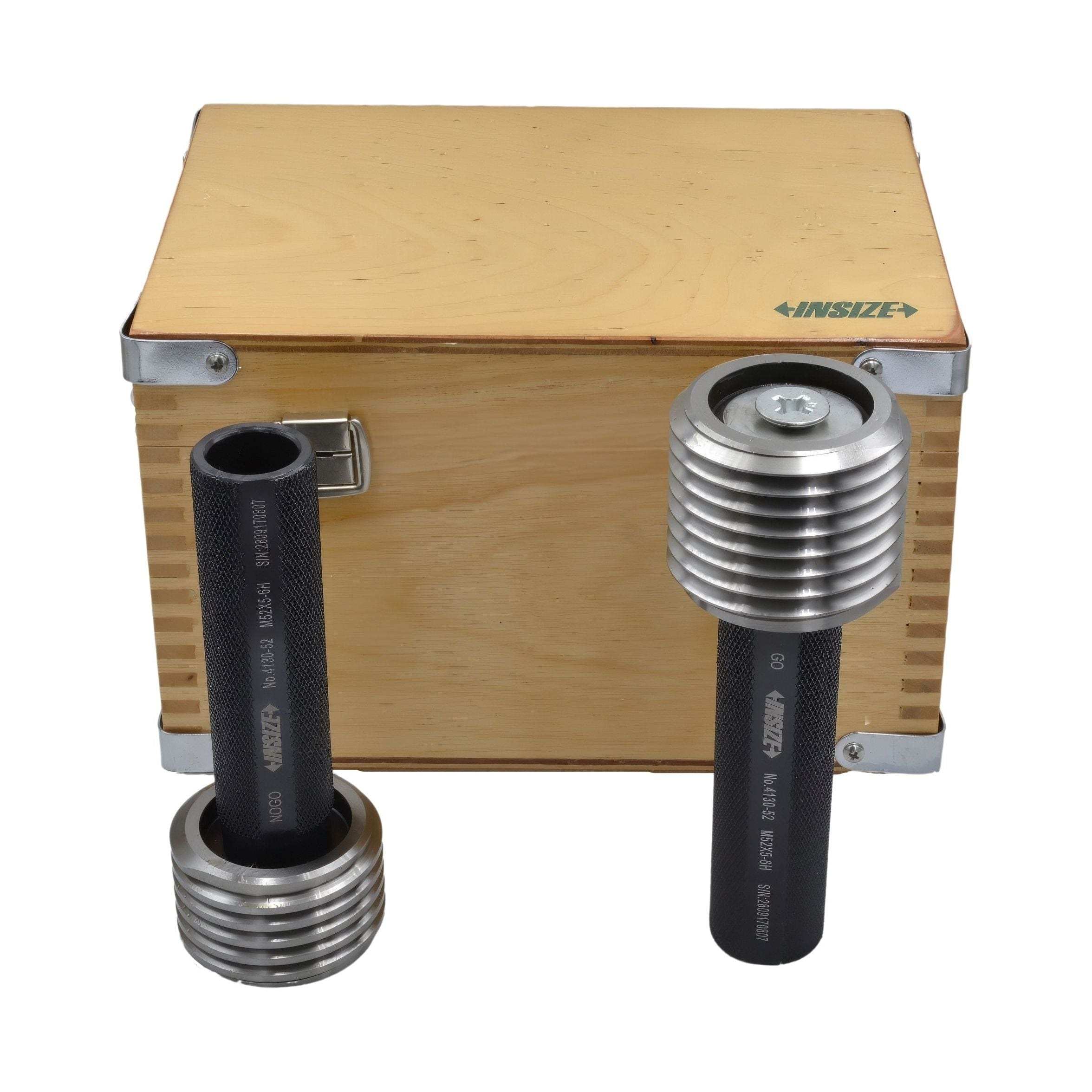

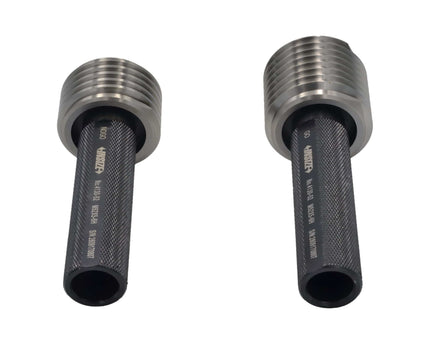

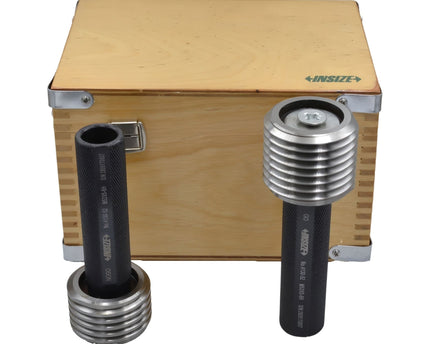

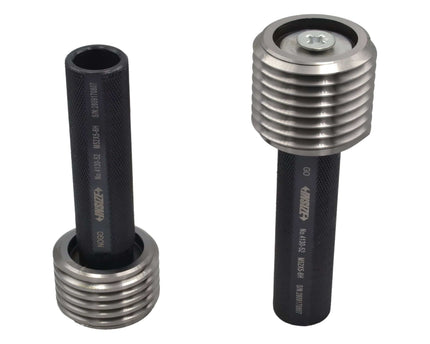

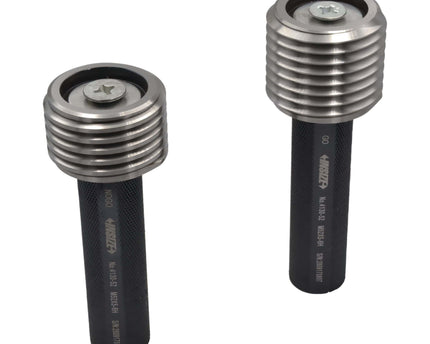

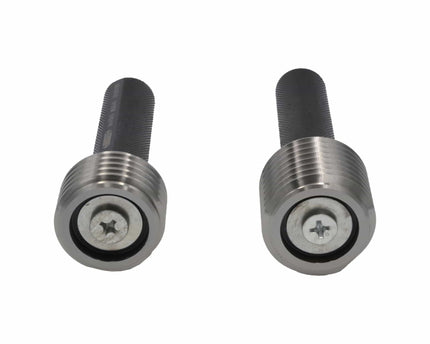

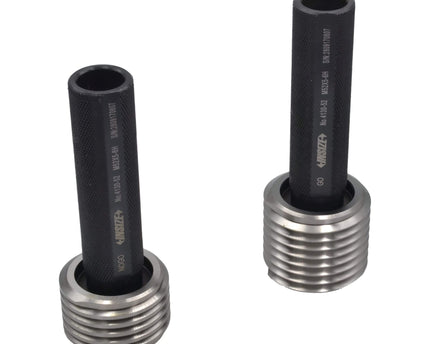

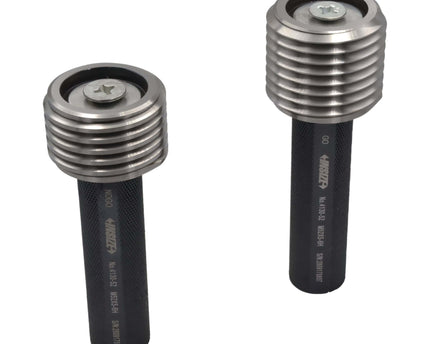

Insize Thread Plug Gauge
The Insize Thread Plug Gauge is a precision inspection tool designed for checking internal metric threads against specified tolerance limits. It provides a fast and reliable GO/NO-GO method to confirm correct thread form, pitch diameter, and interchangeability in machining, manufacturing, and quality control applications.
During inspection, the GO end must screw fully into the threaded hole, while the NO-GO end must not enter beyond the allowable limit. This ensures threads are produced within ISO tolerance requirements and helps prevent oversize, undersize, or damaged tapped holes.

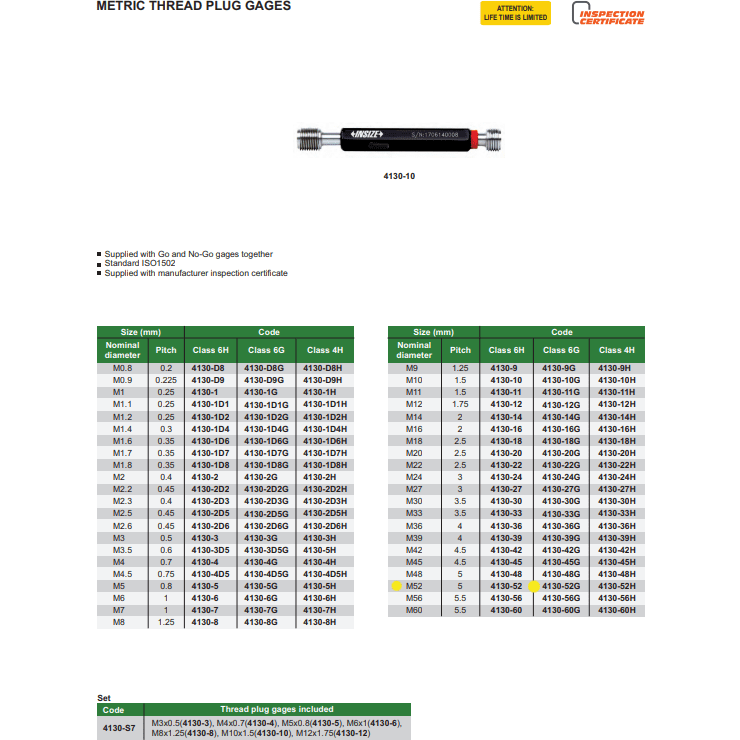

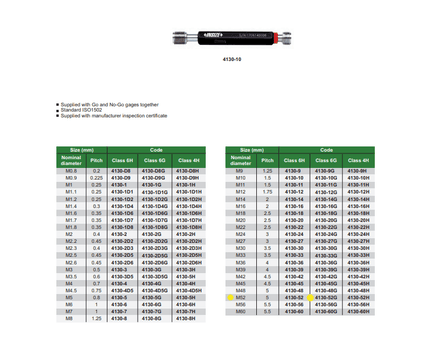

Specifications :
-
Part No: 4130-52
-
Thread Size: M52 × 4.5 mm
-
Thread Class: 6H (No Allowance)
-
Gauge Type: GO & NO-GO plug gauge set
-
Standard: ISO 1502

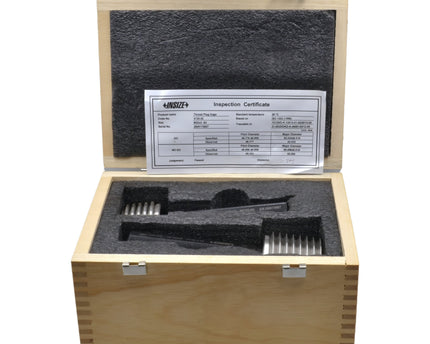

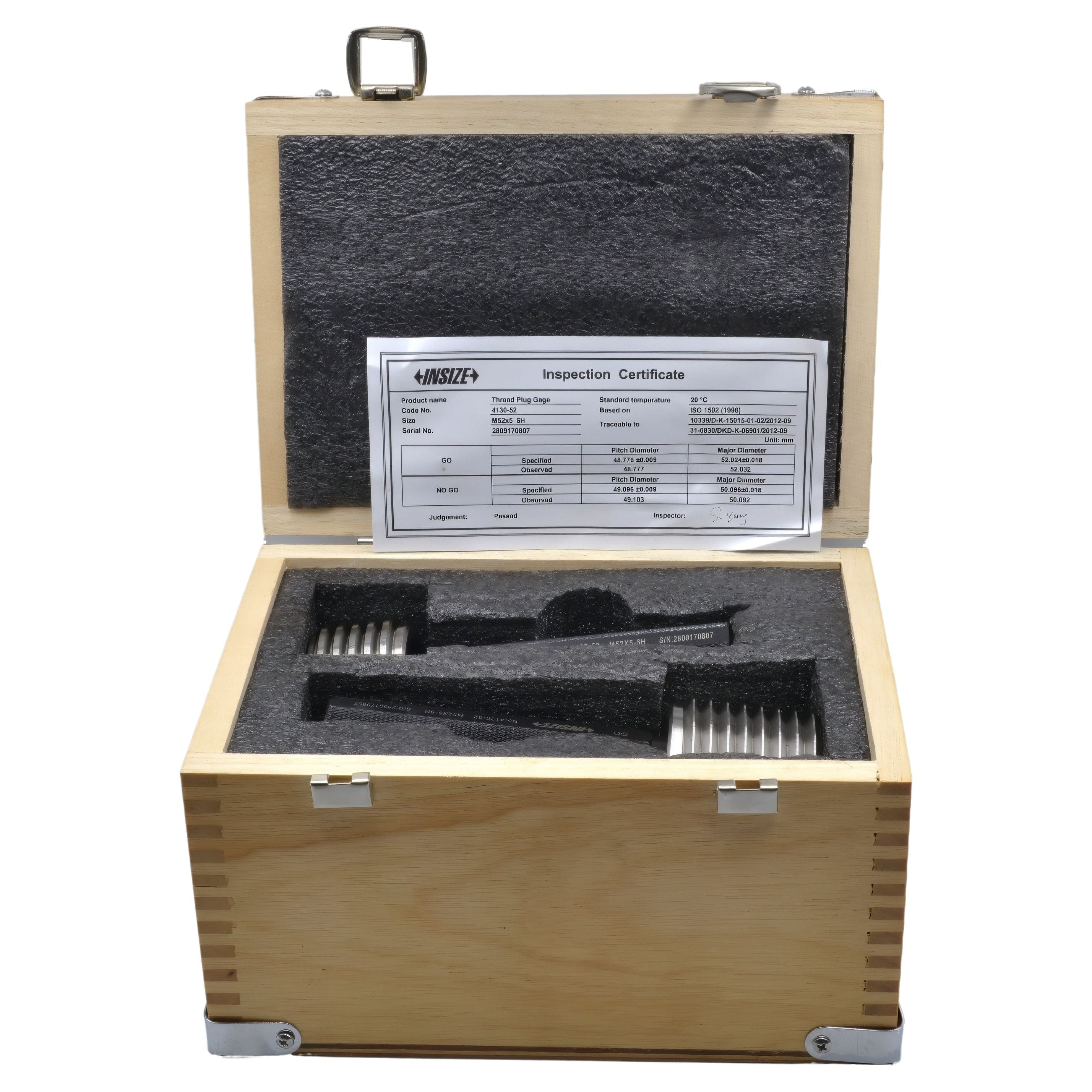

- Manufacturer inspection certificate supplied

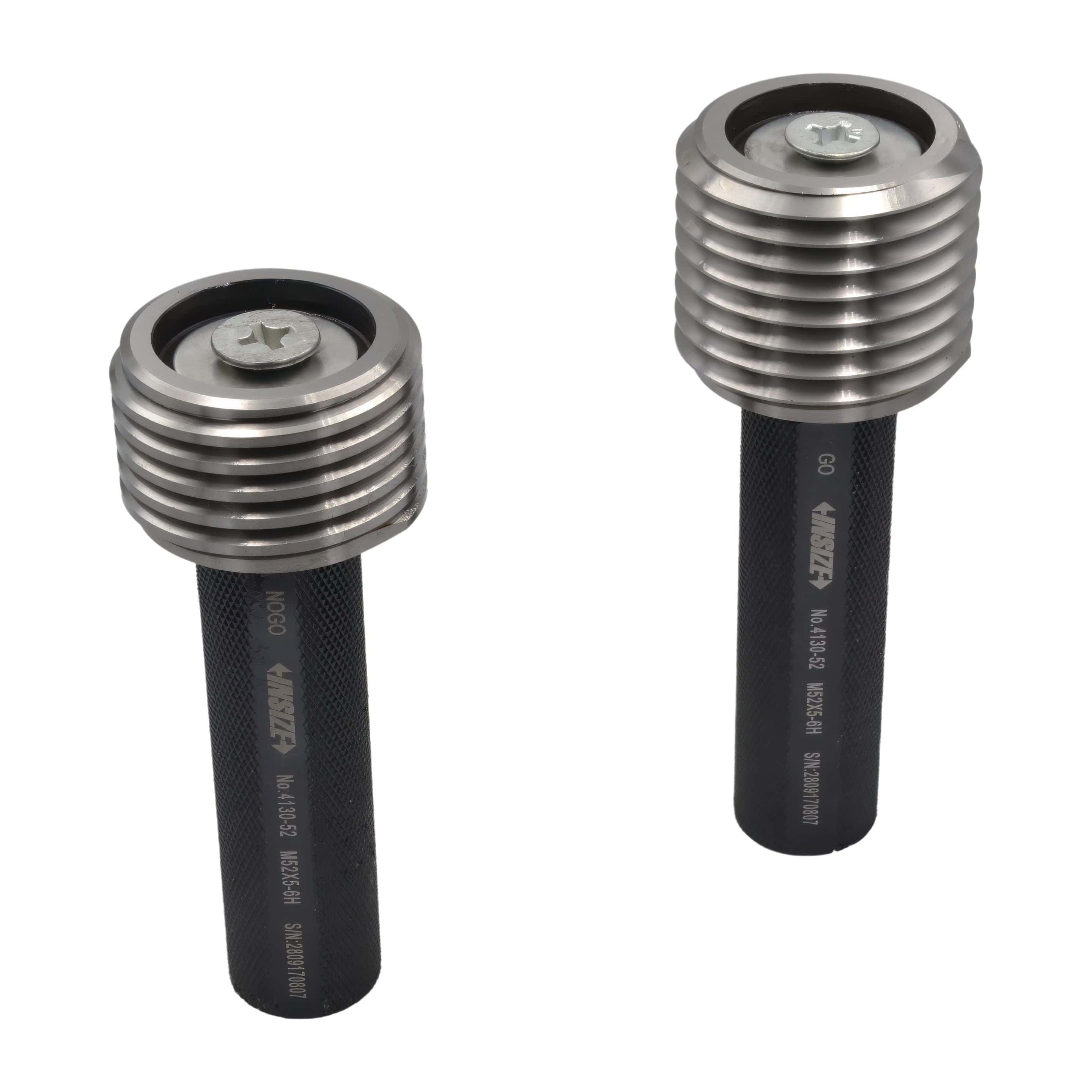

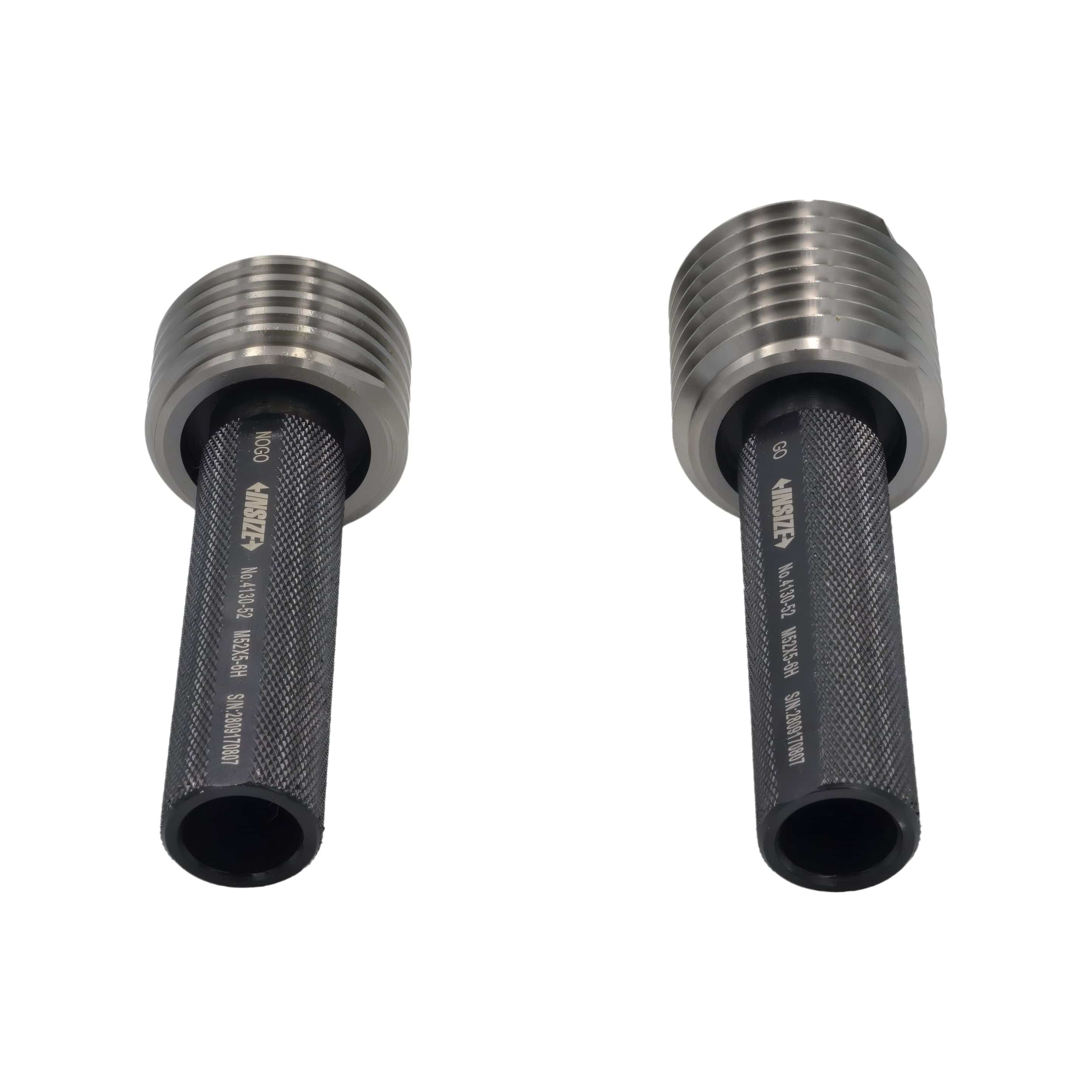

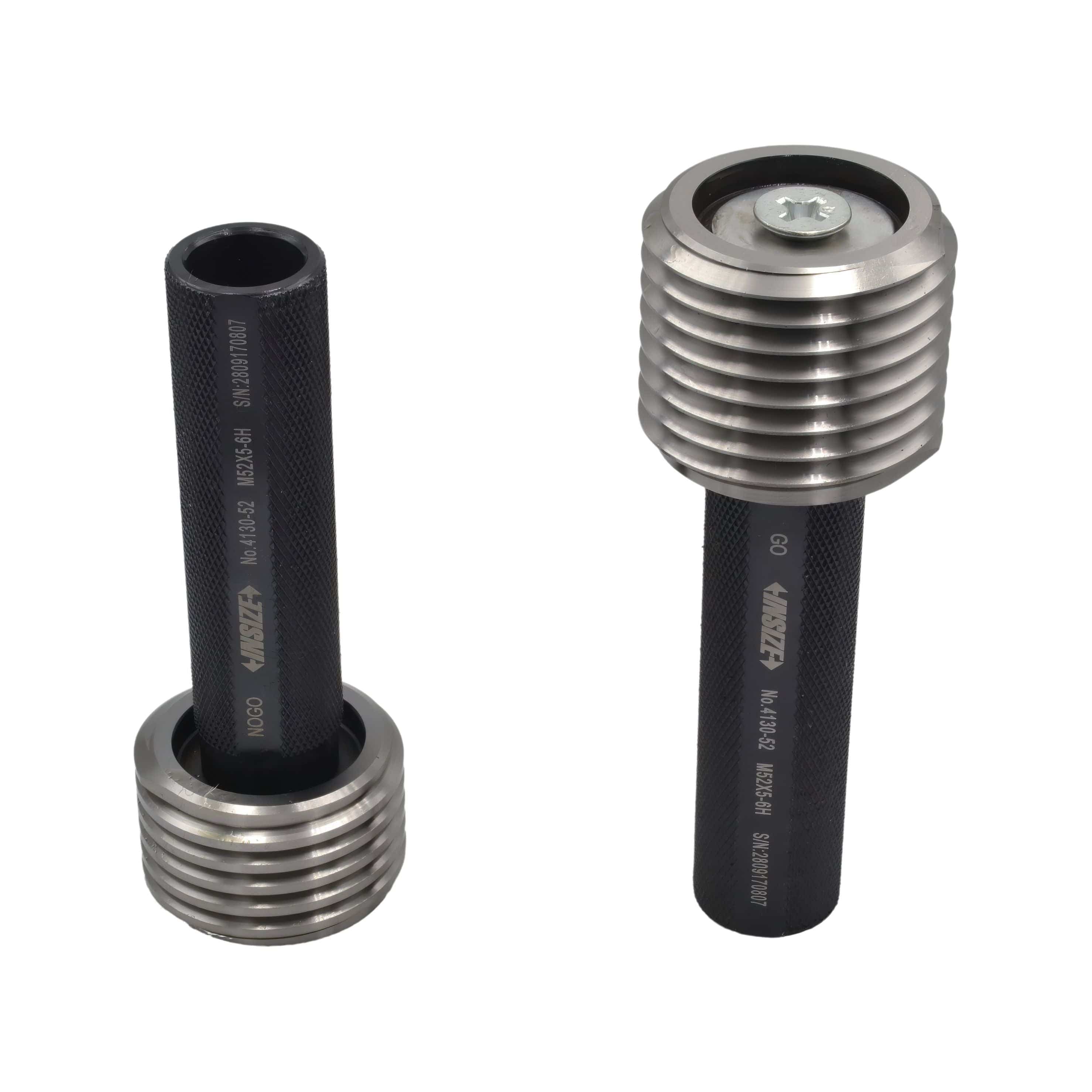

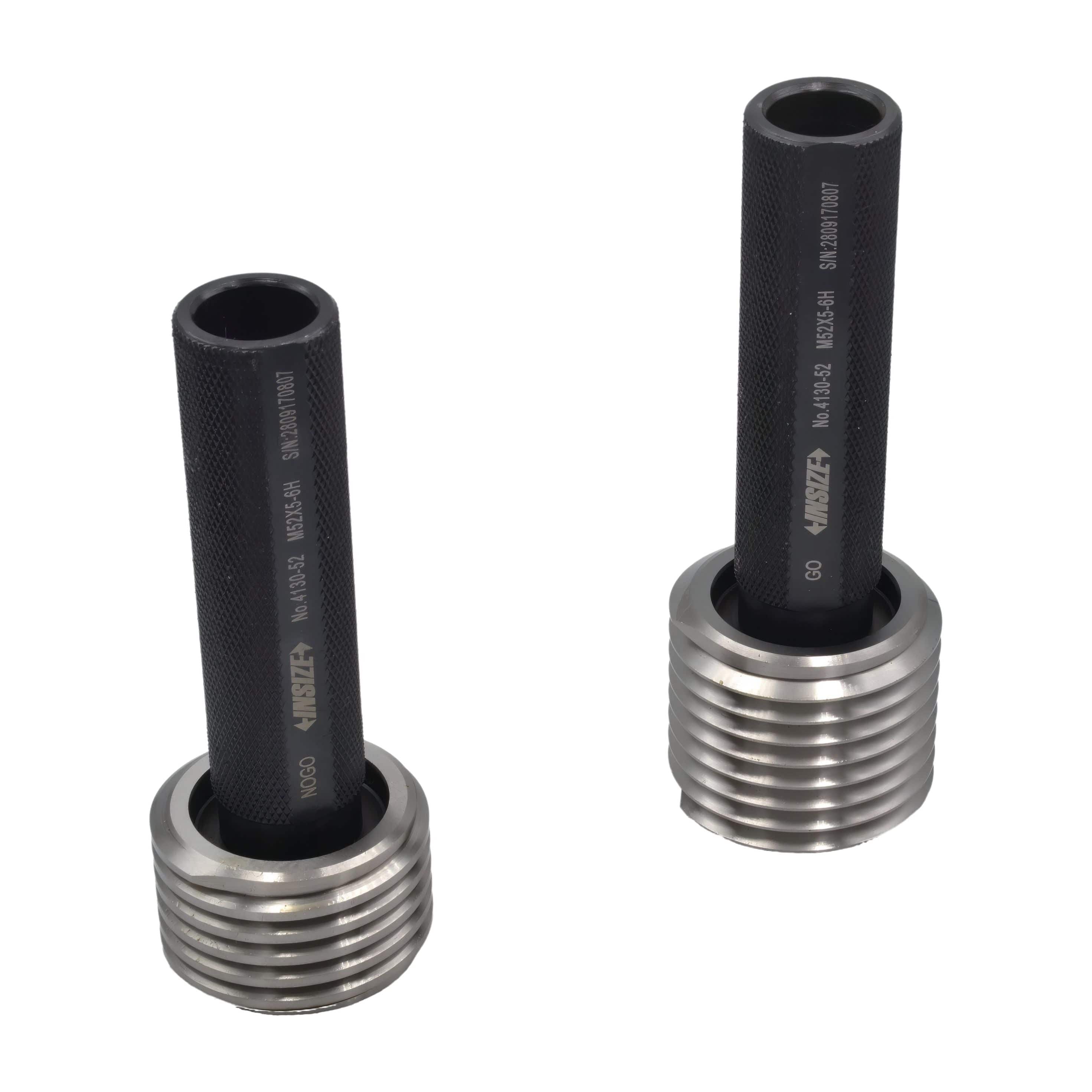

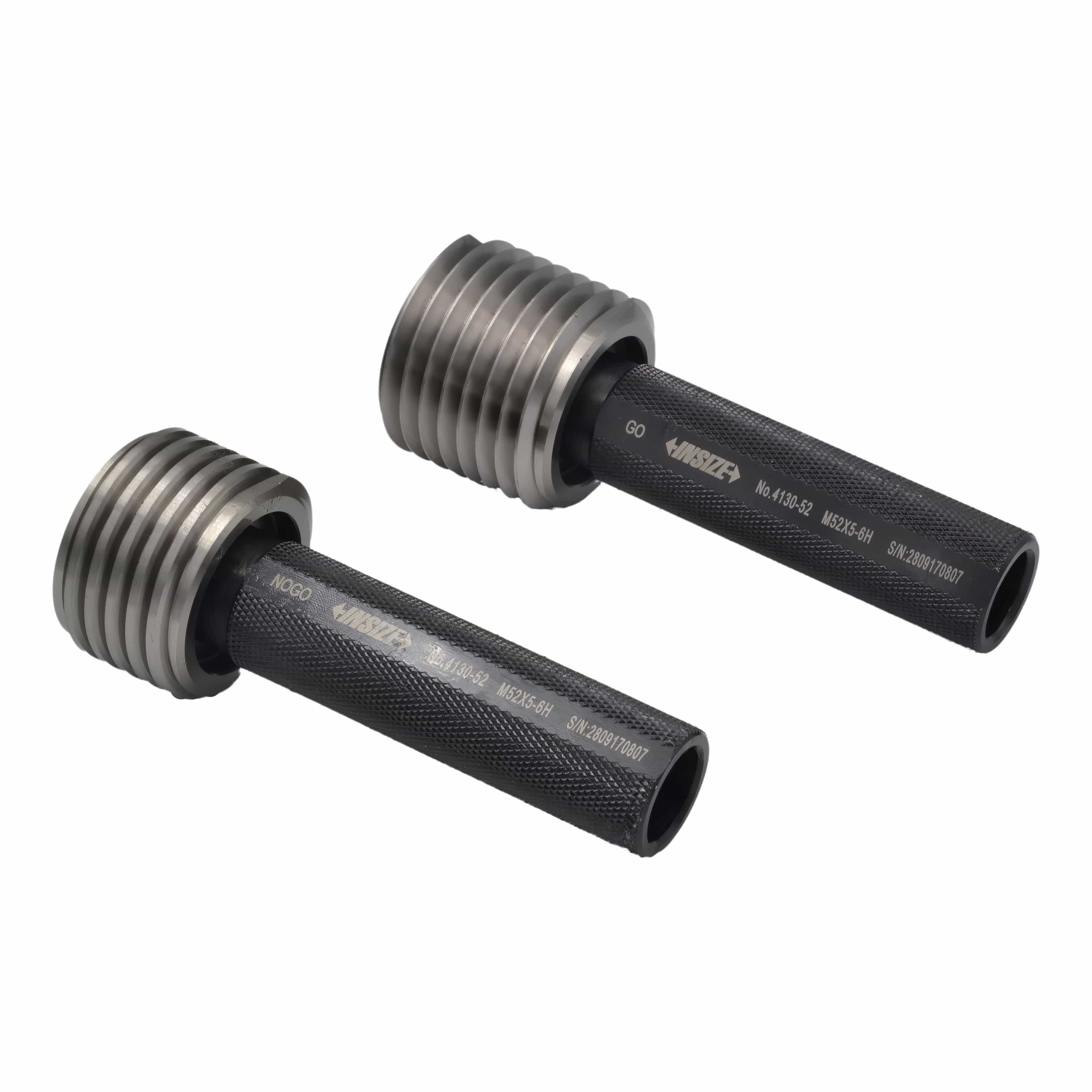

Manufactured from hardened and precision-ground gauge steel, the Insize 4130-52 thread plug gauge offers excellent wear resistance, dimensional stability, and repeatable accuracy. Clearly marked GO and NO-GO ends ensure ease of use, making it well-suited for routine thread inspection in workshop, production, and inspection environments.
