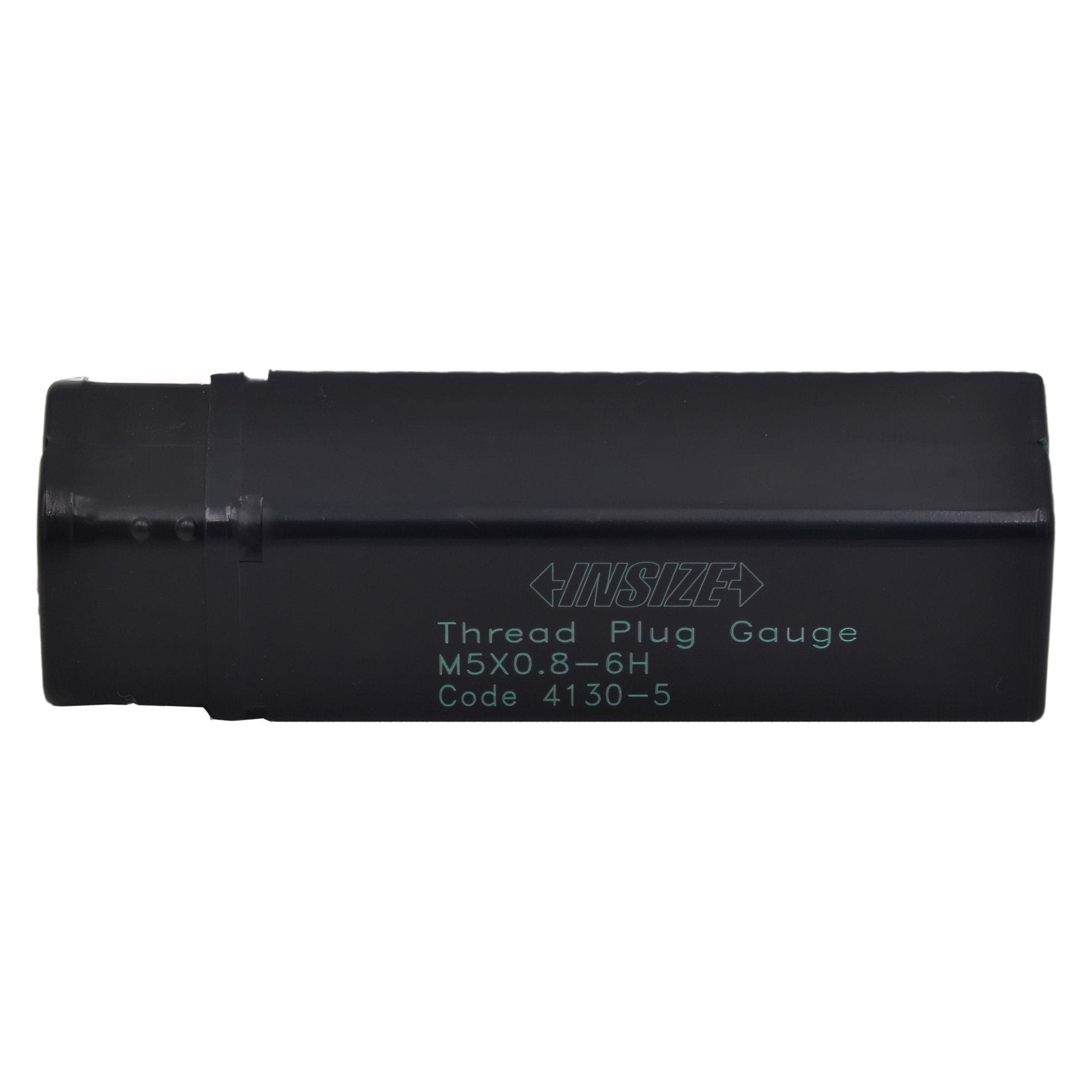

Insize Thread Plug Gauge
The Insize Thread Plug Gauge is a precision inspection tool designed to verify internal metric threads to specified tolerance limits. It provides a fast and reliable pass/fail method for checking thread accuracy in machining, manufacturing, and quality control environments.

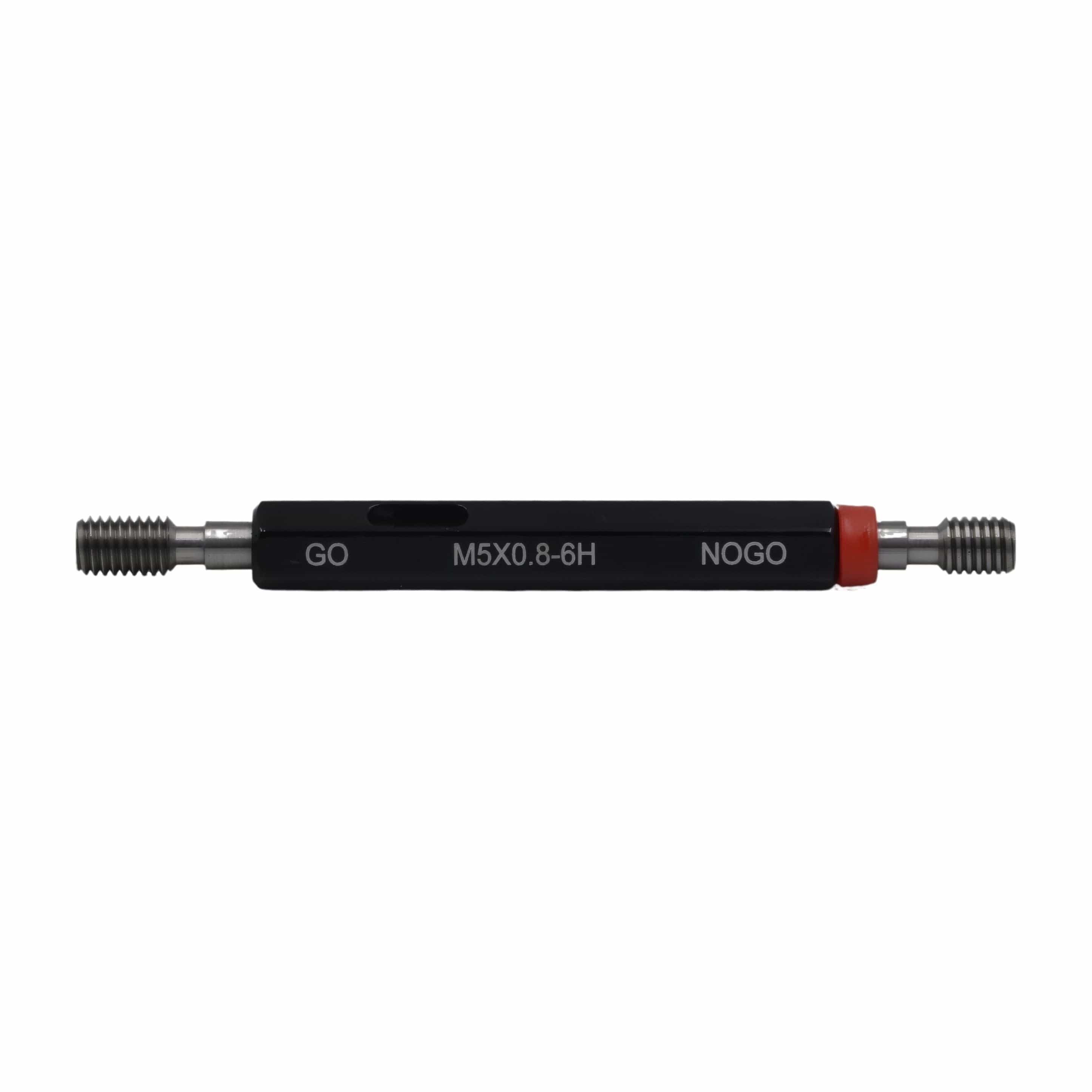

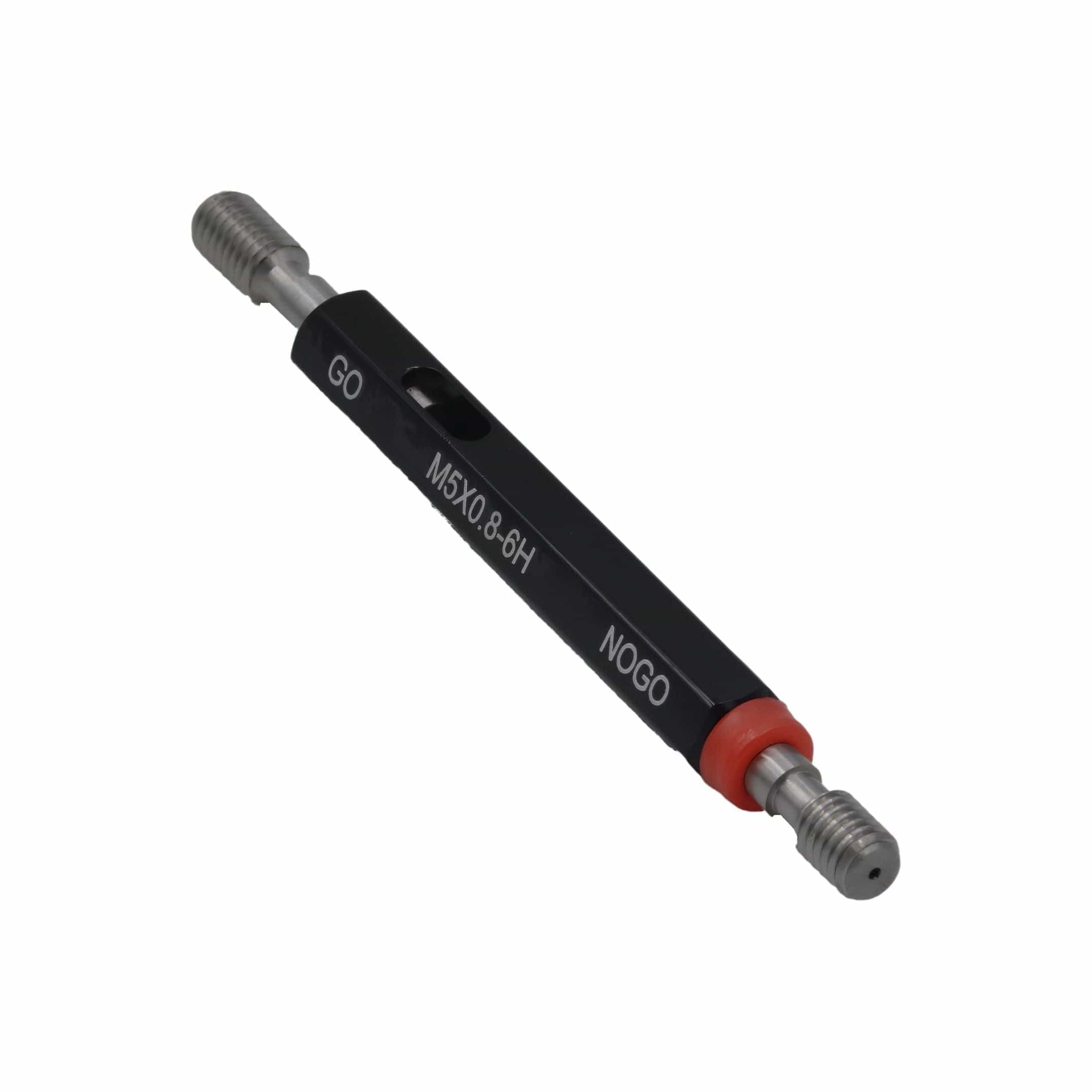

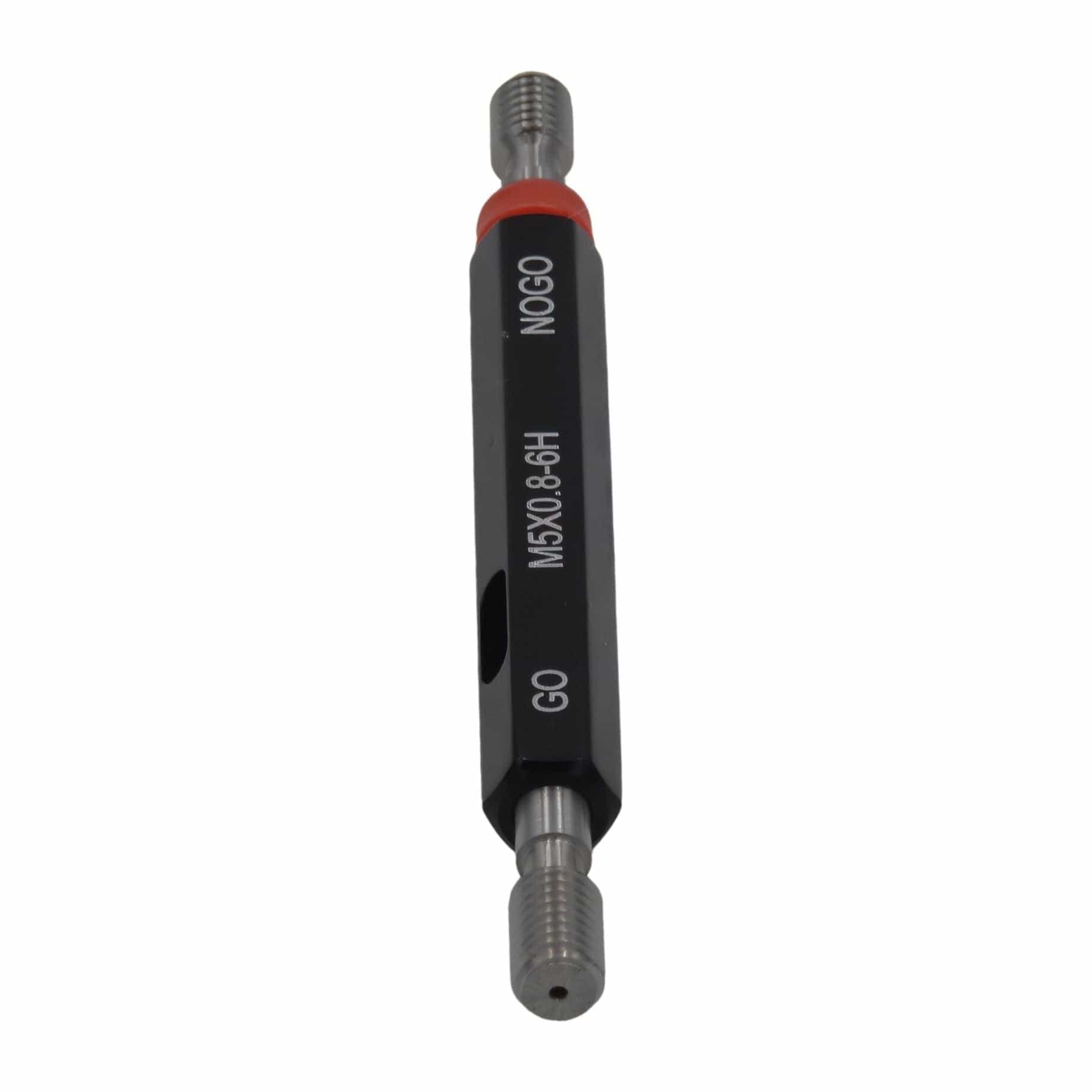

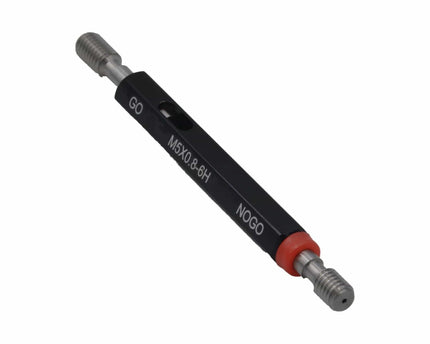

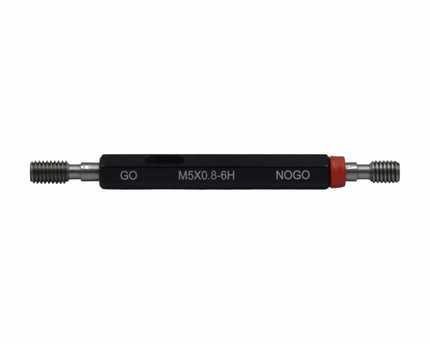

A GO/NO-GO thread plug gauge ensures correct thread form, pitch diameter, and interchangeability. The GO end must screw fully into the threaded hole, while the NO-GO end must not enter beyond the allowable limit, helping prevent oversize or damaged tapped holes during production.

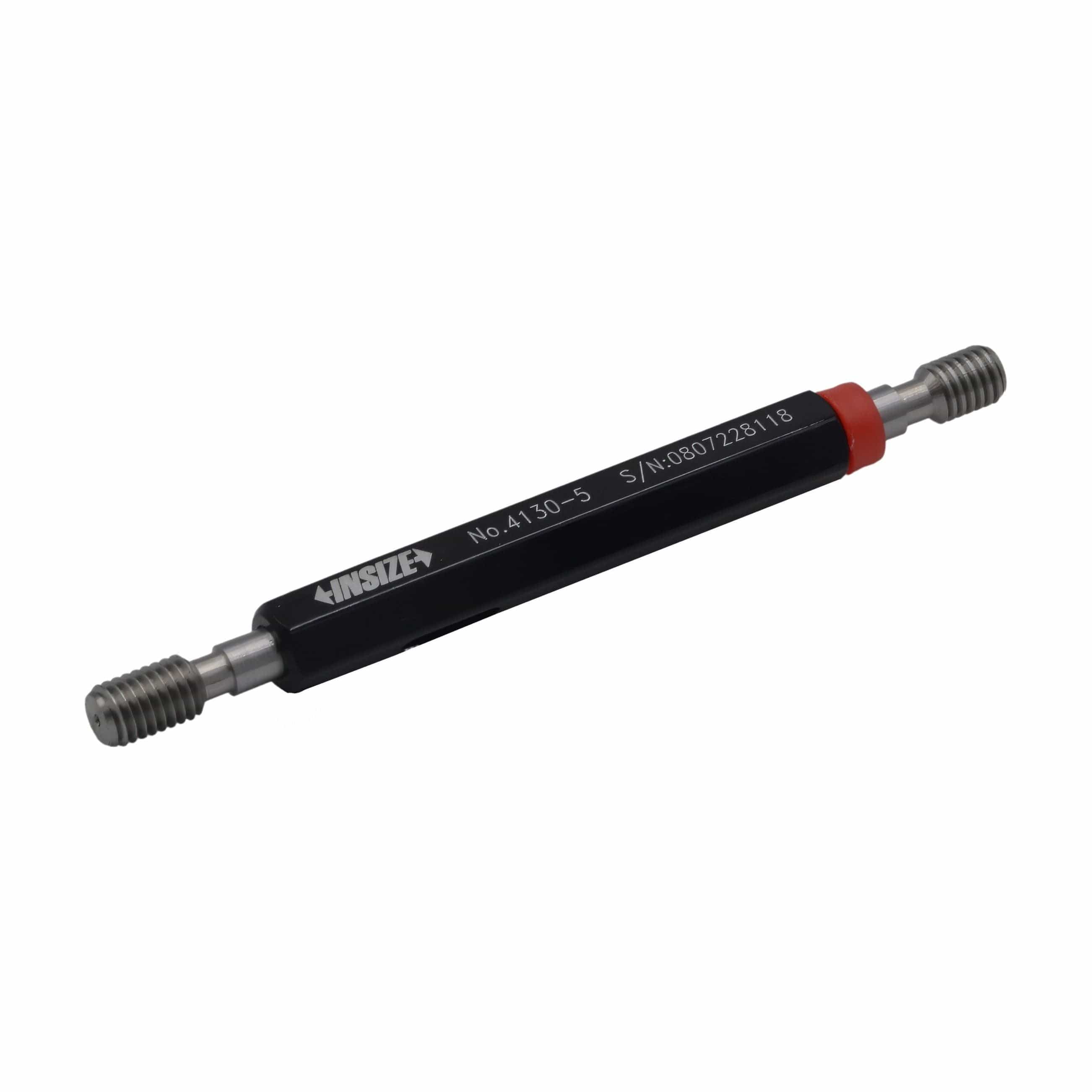

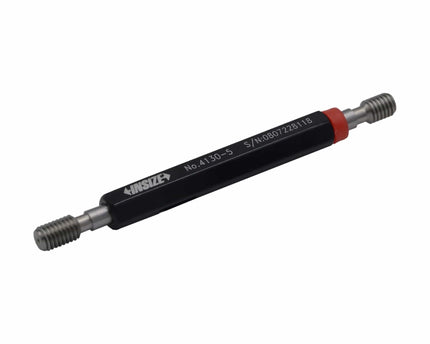

This product is supplied through authorised Australian distribution channels and is supported by local warranty coverage. Each gauge is provided with manufacturer traceability and a unique identifier for quality assurance and inspection confidence.
Specifications :
-
Part No: 4130-5
-
Thread Size: M5 × 0.8 mm
-
Thread Class: 6H (No Allowance)
-
Gauge Type: GO & NO-GO plug gauge set
-
Standard: ISO 1502
- Manufacturer inspection certificate supplied

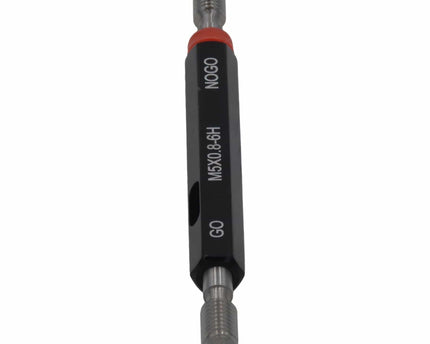

Manufactured from hardened, precision-ground gauge steel, the Insize 4130-5 thread plug gauge delivers excellent wear resistance, dimensional stability, and repeatable accuracy. Clearly marked GO and NO-GO ends ensure ease of use, making it ideal for routine thread inspection in workshop, production, and inspection applications.
