Description

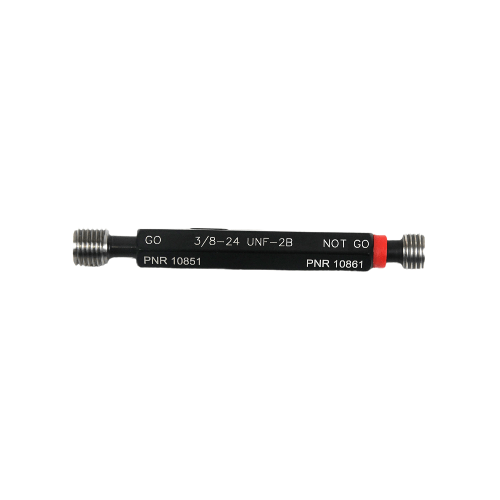

Insize Thread Plug Gage 3/8-24 UNF Class 2B Series 4643-3C2
The Insize 4643-3C2 Thread Plug Gage is designed for measuring 3/8-24 UNF internal threads, Class 2B. Conforming to ANSI B1.2, it comes with GO and NOGO ends for reliable gauging. Made from OHNS steel, hardened to HRC60–62, it ensures accuracy and durability. Includes manufacturer inspection certificate for traceability.
Specifications:
-
Part No: 4643-3C2
-
Thread Size: 3/8-24 UNF
-
Class: 2B
-
Type: Thread Plug Gage (GO & NOGO)
-
Standard: ANSI B1.2
-
Material: OHNS steel
-
Hardness: HRC60–62
-
Certificate: Manufacturer inspection certificate
With its hardened construction, the Insize 4643-3C2 provides accurate and long-lasting thread inspection.
