Description

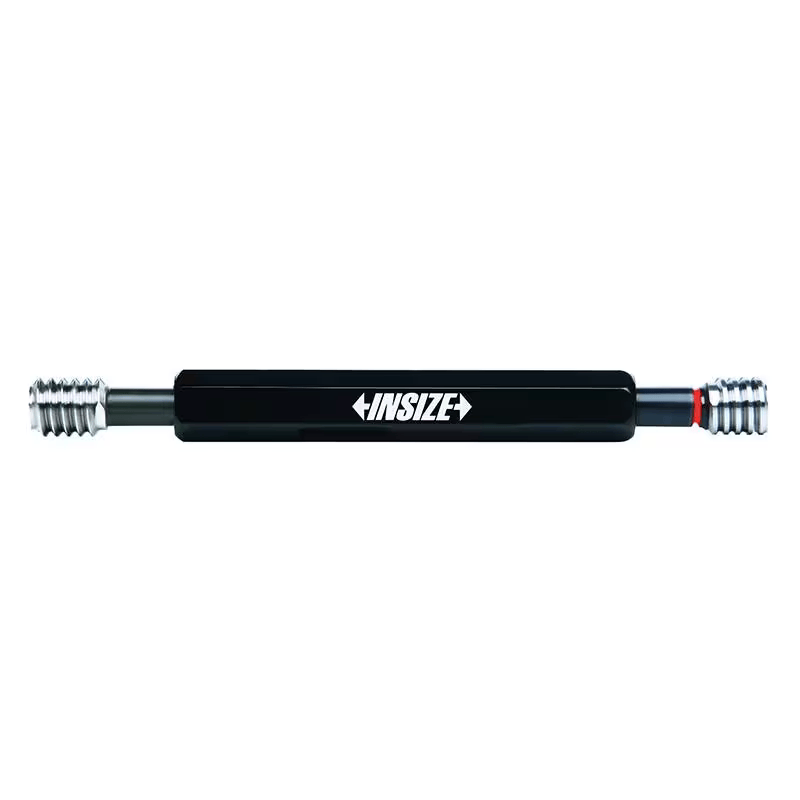

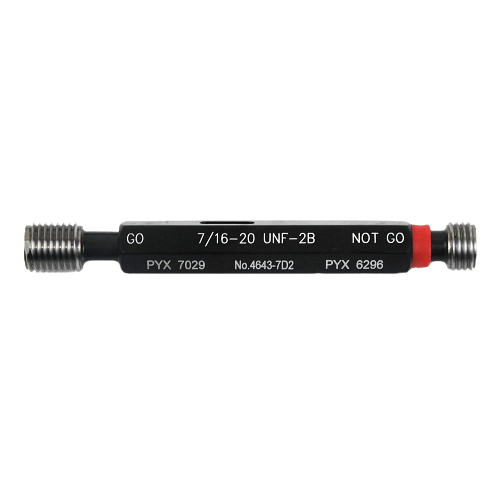

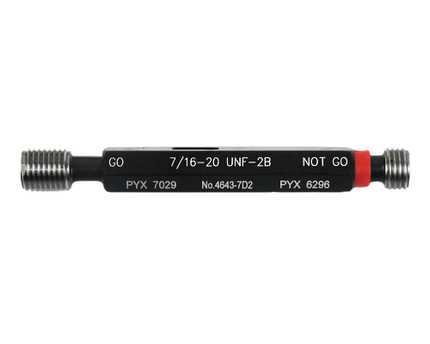

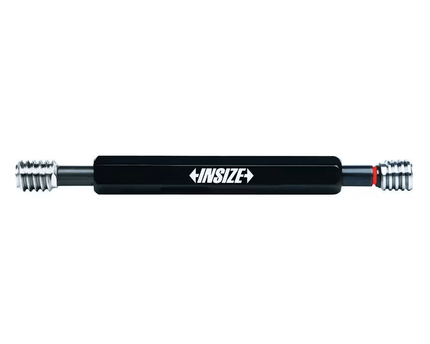

Insize Thread Plug Gage 7/16-20 UNF Class 2B Series 4643-7D2
The Insize 4643-7D2 Thread Plug Gage is designed for checking 7/16-20 UNF internal threads, Class 2B. Conforming to ANSI B1.2 standards, it comes with GO and NOGO members for accurate thread gauging. Built from OHNS steel hardened to HRC60–62, this gage provides long-lasting accuracy and wear resistance. Includes a manufacturer inspection certificate.
Specifications:
-
Part No: 4643-7D2
-
Thread Size: 7/16-20 UNF
-
Class: 2B
-
Type: Thread Plug Gage (GO & NOGO)
-
Standard: ANSI B1.2
-
Material: OHNS steel
-
Hardness: HRC60–62
-
Certificate: Manufacturer inspection certificate
The Insize 4643-7D2 delivers dependable performance and precision for thread gauging in production and inspection tasks.
