Description

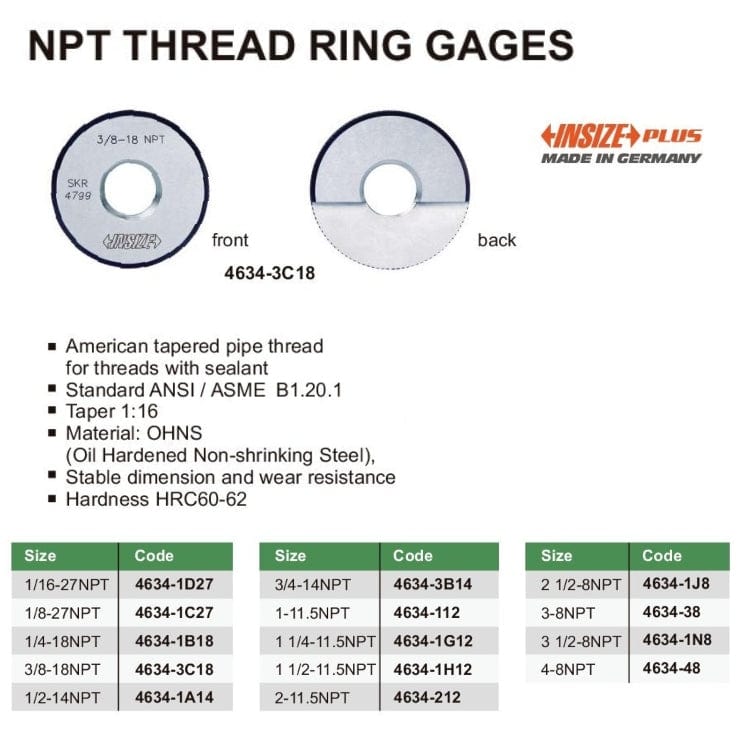

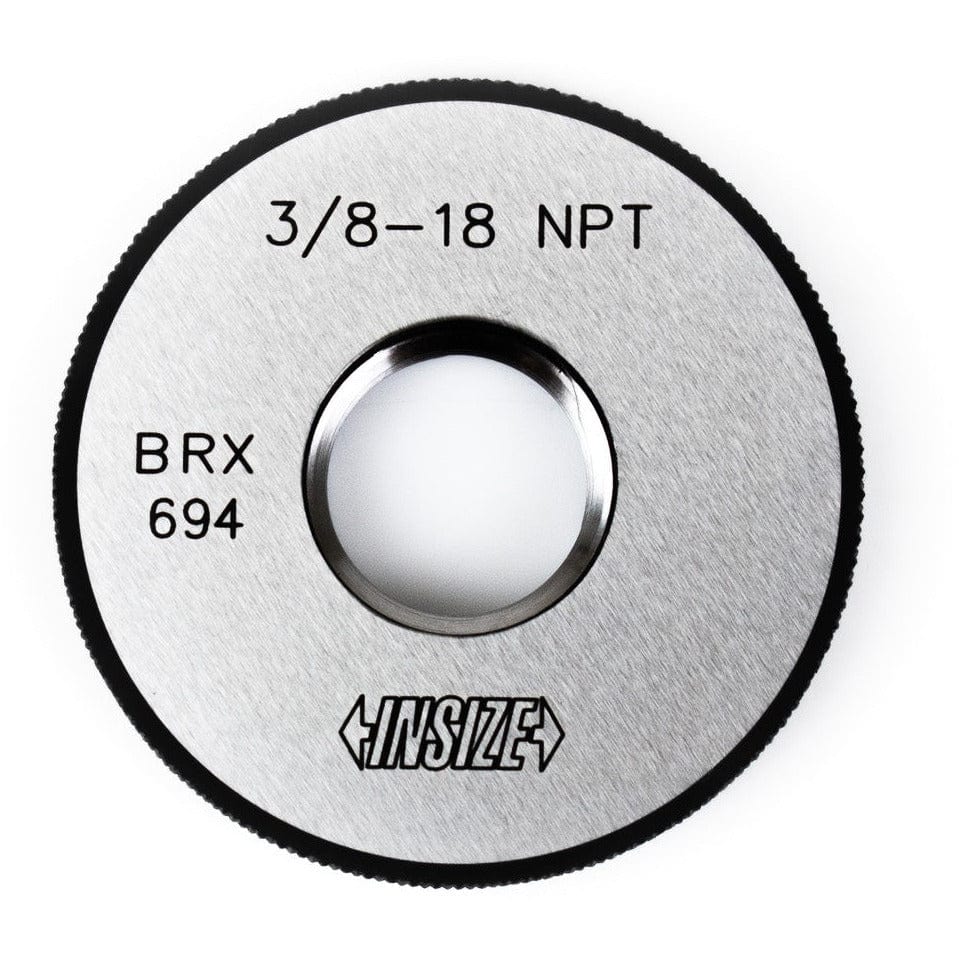

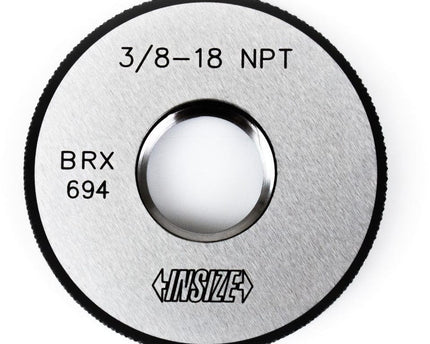

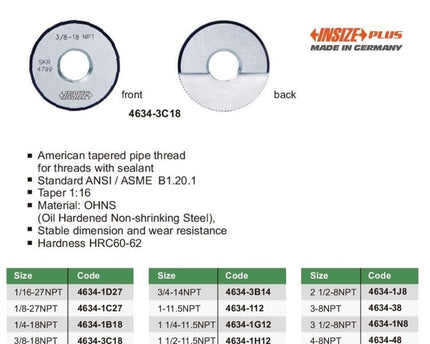

Insize Thread Ring Gauge
Insize Thread Ring Gauge is designed for accurate inspection of tapered pipe threads, ensuring correct thread form and fit in machining, inspection, and quality control applications. The precision-ground taper allows reliable verification of NPT threads used with sealants.
Key Features:
-
Part No.: 4634-3C18
-
Thread Size: 3/8"–18 NPT
-
Standard: ANSI/ASME B1.20.1
-
Taper: 1:16
-
Material: OHNS (Oil Hardened Non-Shrinking Steel)
-
Hardness: HRC 60–62
-
Application: For inspection of tapered pipe threads with sealant
Manufactured for durability and dimensional stability, this thread ring gauge provides excellent wear resistance and consistent accuracy, making it suitable for precision engineering, inspection, and workshop measurement tasks.
