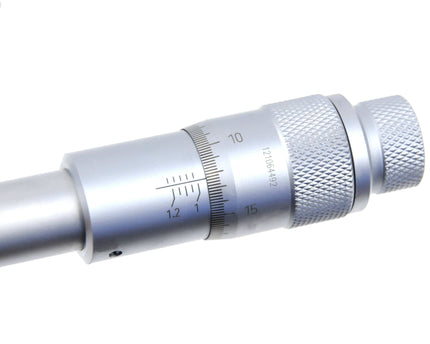

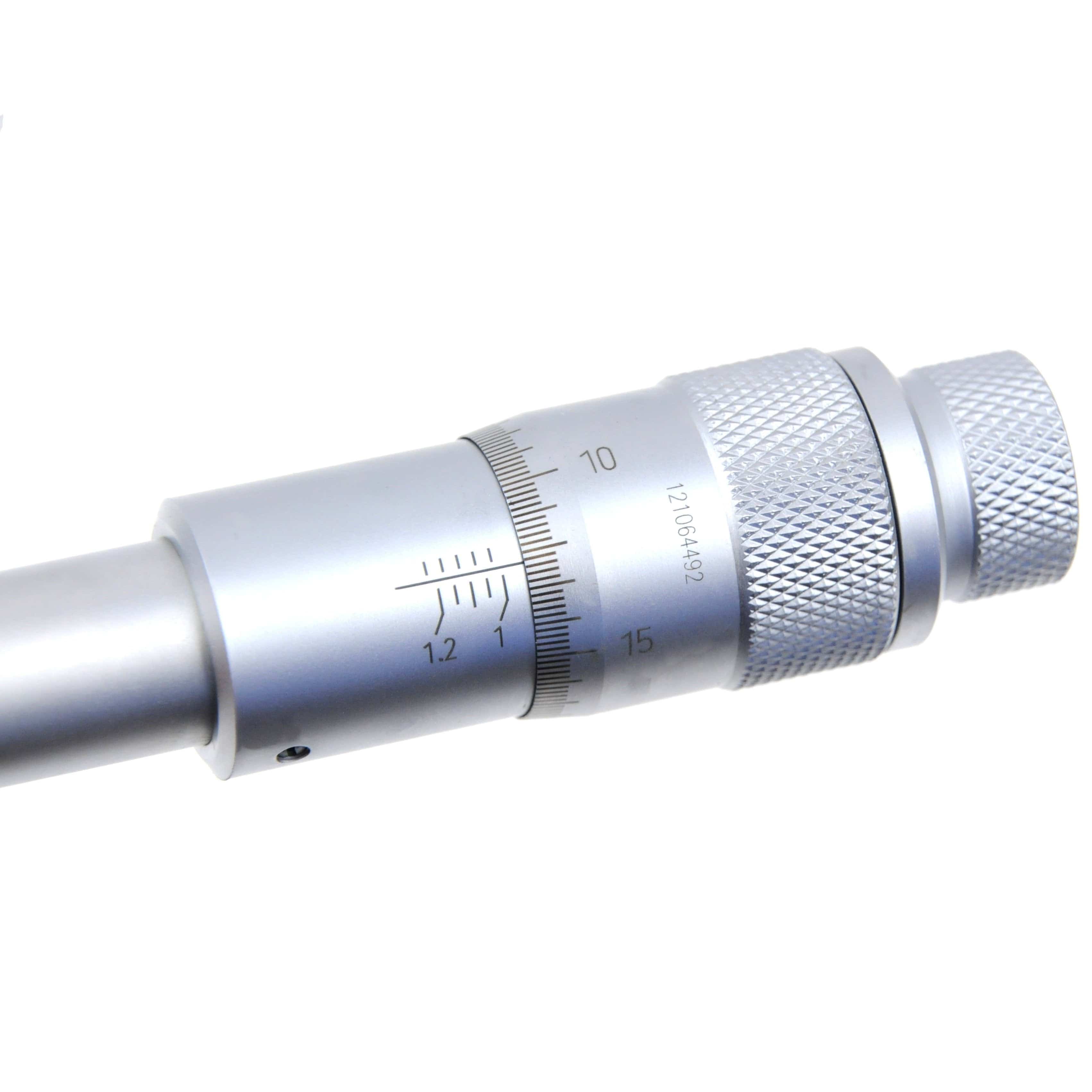

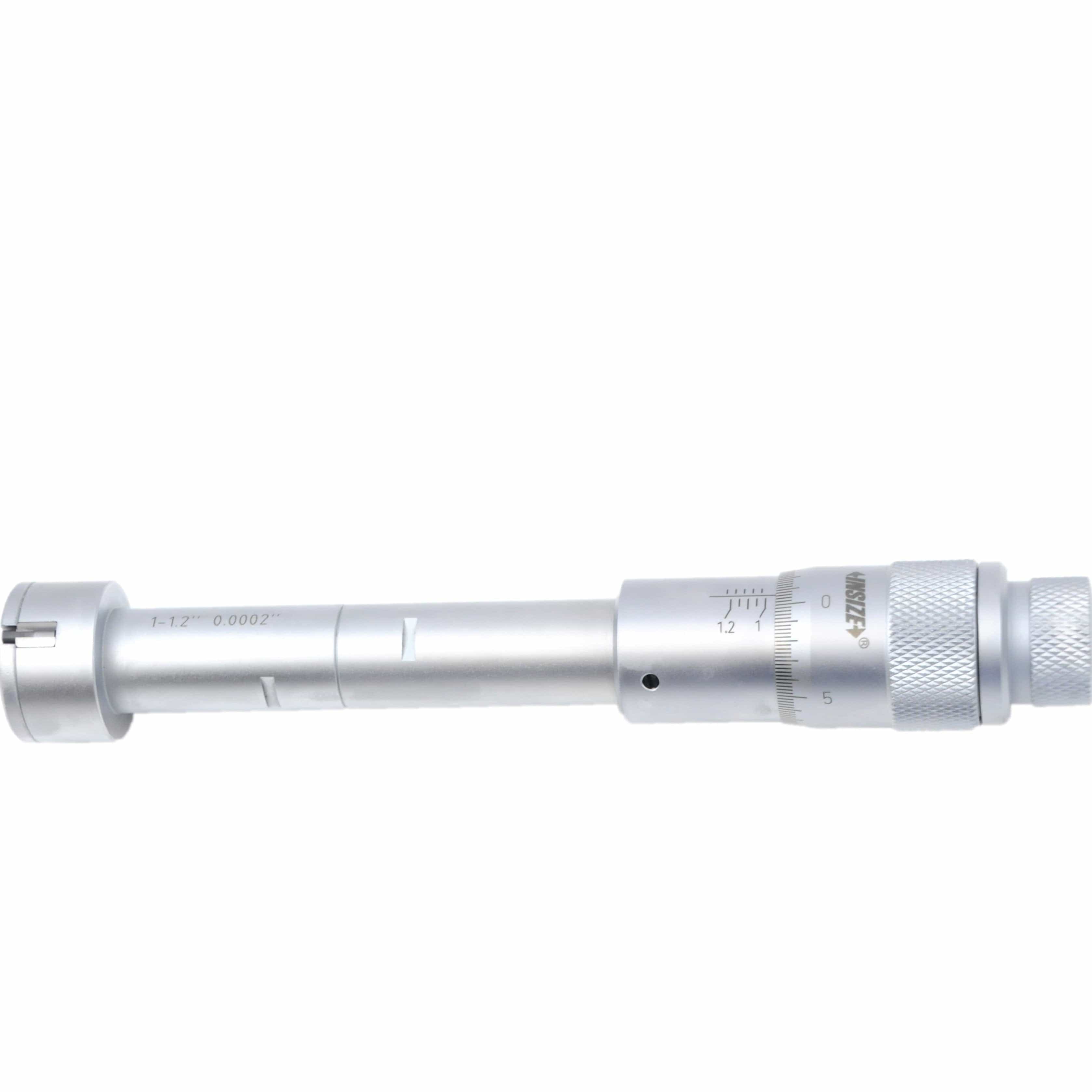

Insize 1–1.2″ Inside Micrometer
The Insize 1–1.2″ Inside Micrometer is designed for high-precision internal diameter measurement of small bores in machining, inspection, and quality control applications. Its three-point measuring system provides excellent centring, stability, and repeatable accuracy for inch-based measurement work.
Specifications :
-
Part No: 3227-E112
-
Measuring Range: 1–1.2″
-
Accuracy: 0.00015″
-

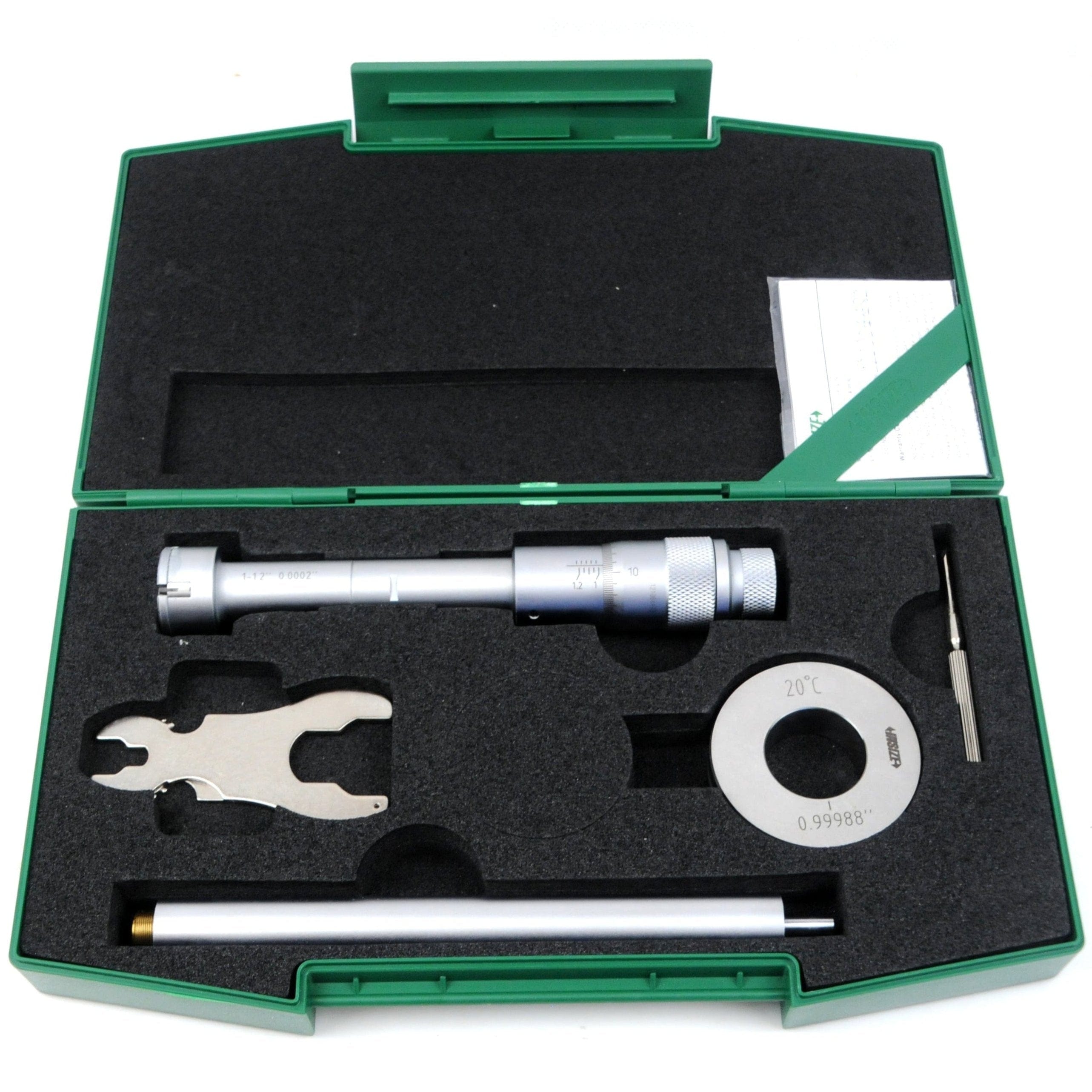

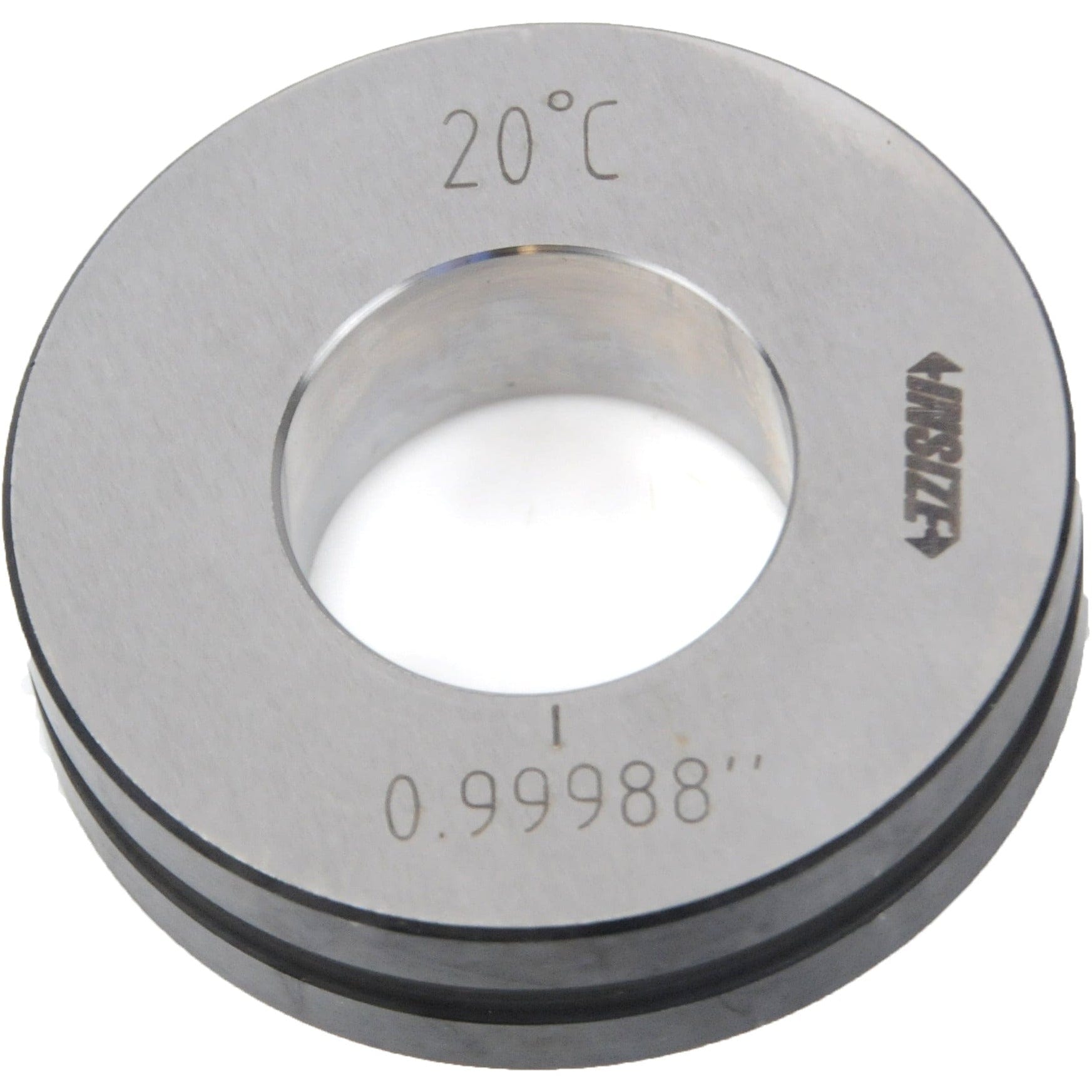

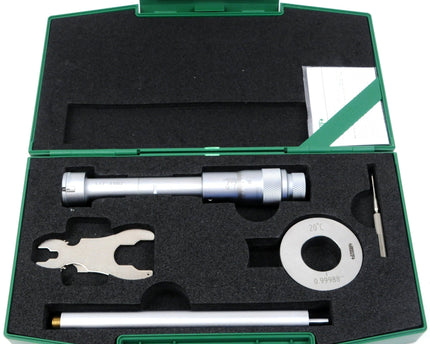

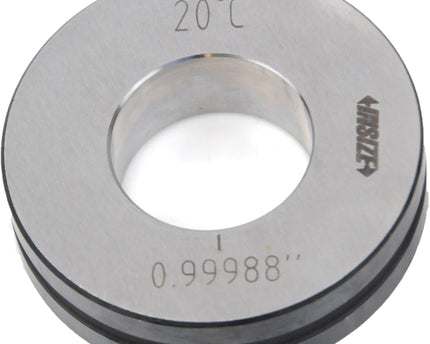

Setting Ring: 1.0″ diameter (included)
-
Graduation (0.08″–5″ range reference): 0.0001″
-
Graduation (0.5″–12″ range): 0.0002″
-
Type: C – Three-point inside micrometer
-

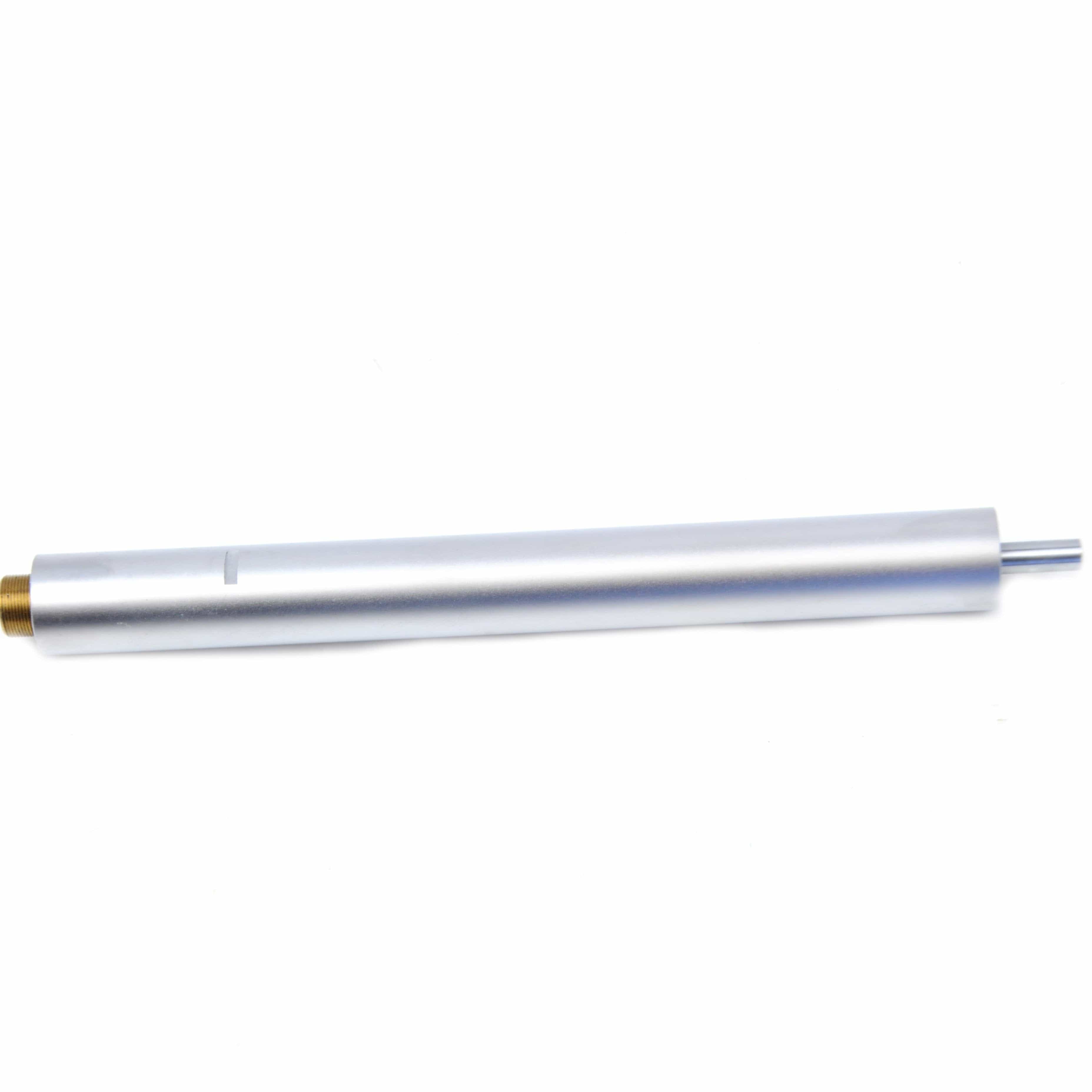

Extension Rod: 6″
-
L: 3.543″
-
A: 0.020″
-
B: 0.315″
-
C: 0.236″

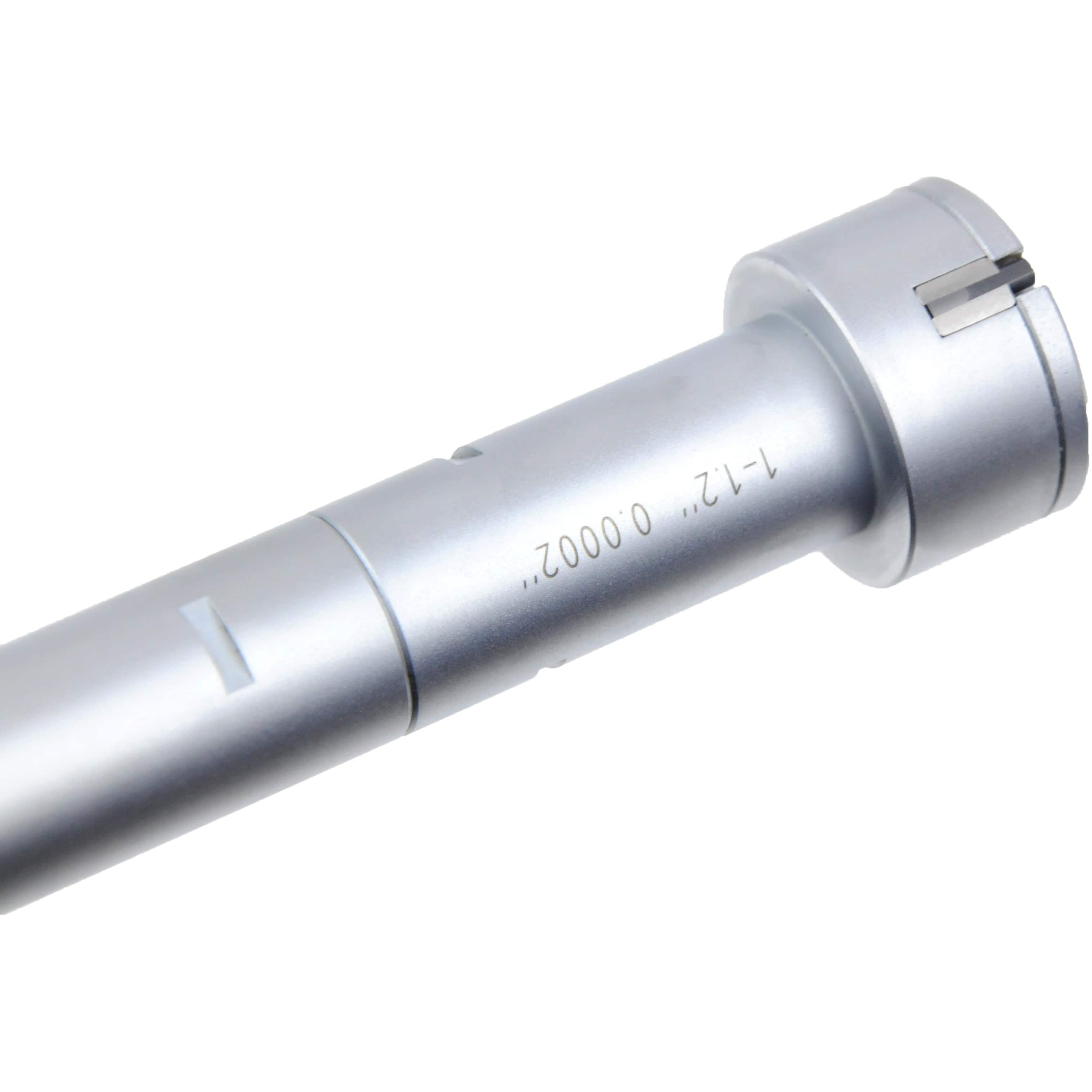

- Carbide measuring points
- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers provide dependable accuracy and ease of use for precision inch-based internal diameter measurement.
