Insize 1.2–1.6″ Inside Micrometer
The Insize 1.2–1.6″ Inside Micrometer is designed for high-precision internal diameter measurement of small to medium bores in machining, inspection, and quality control applications. Its three-point measuring system ensures excellent centring, stability, and repeatable accuracy for inch-based measurement tasks.

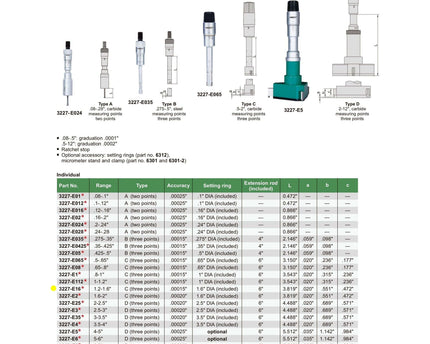

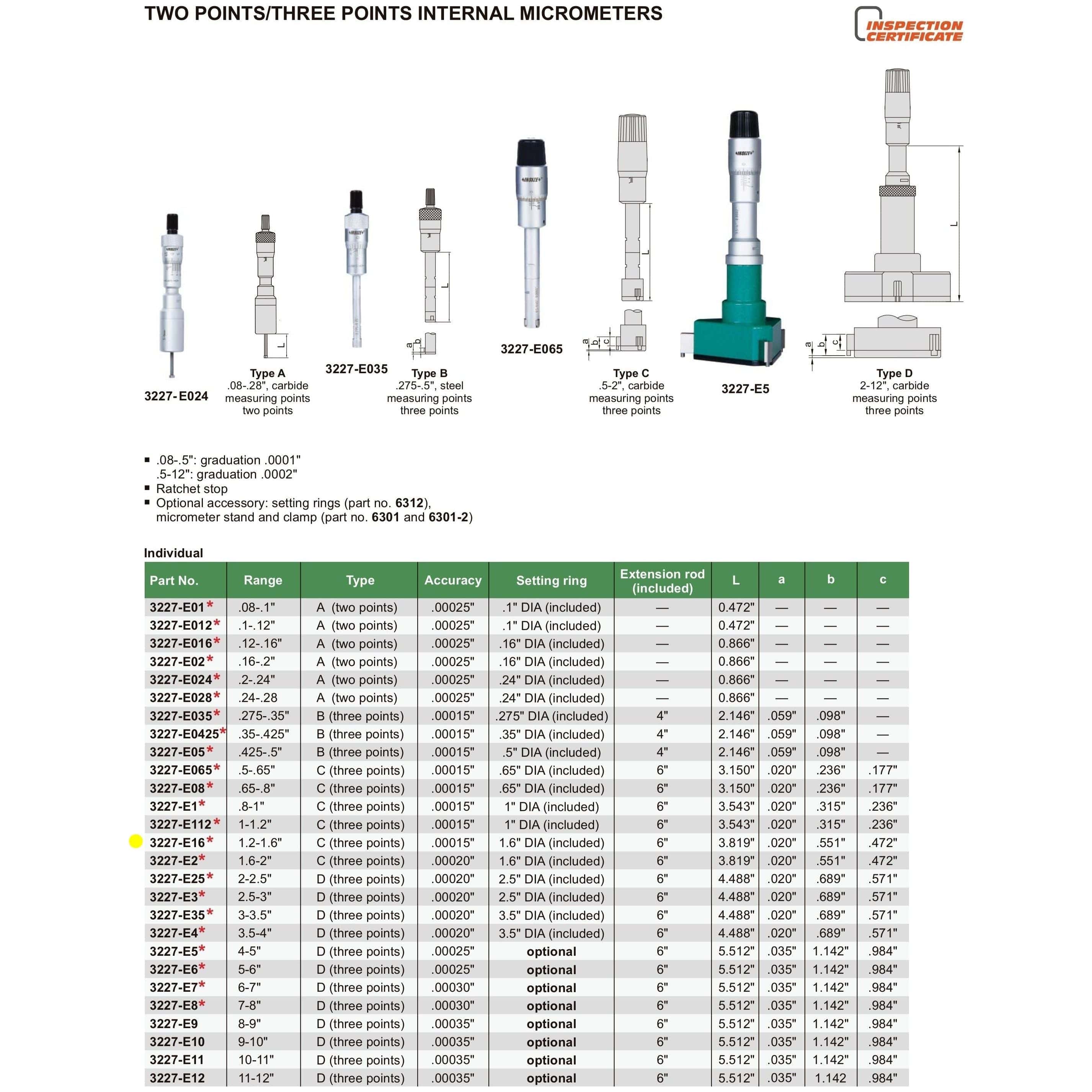

Specifications :
-
Part No: 3227-E16
-
Measuring Range: 1.2–1.6″
-
Accuracy: 0.00015″
-

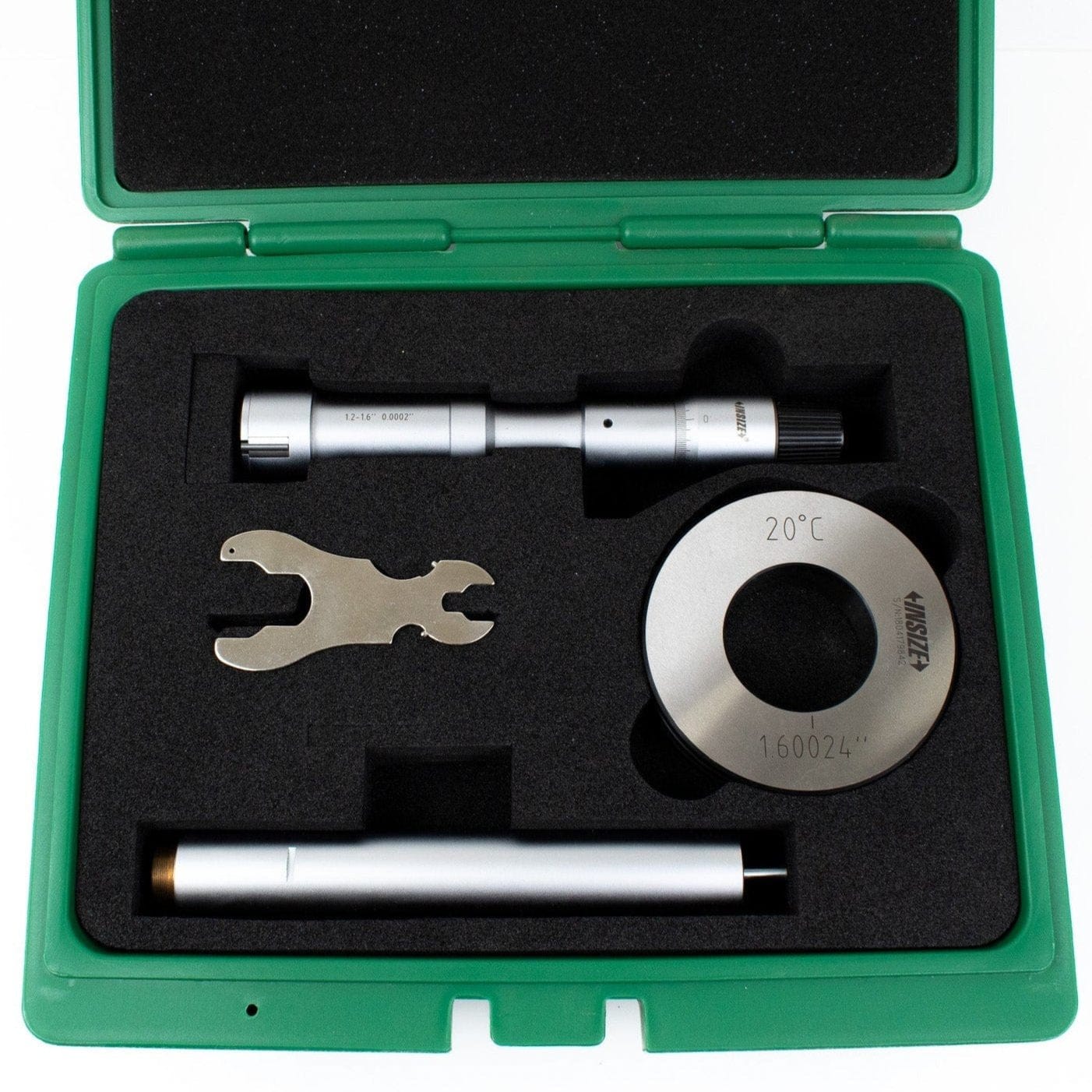

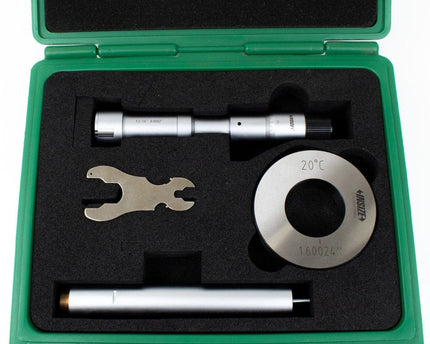

Setting Ring: 1.6″ diameter (included)
-
Graduation (0.08″–5″ range reference): 0.0001″
-
Graduation (0.5″–12″ range): 0.0002″
-

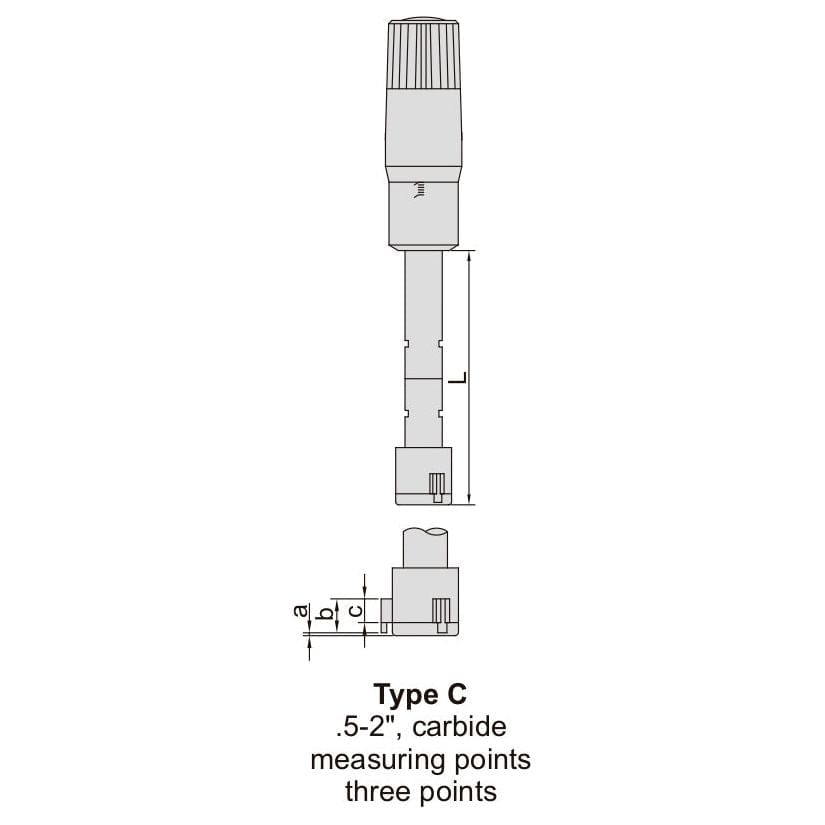

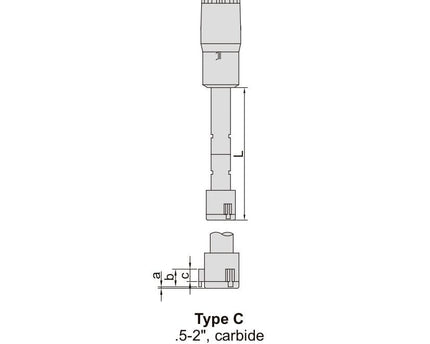

Type: C – Three-point inside micrometer
-
Extension Rod: 6″
-
L: 3.819″
-
A: 0.020″
-
B: 0.551″
-
C: 0.472″
- Carbide measuring points
- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers provide dependable accuracy and ease of use for precision inch-based internal diameter measurement.
