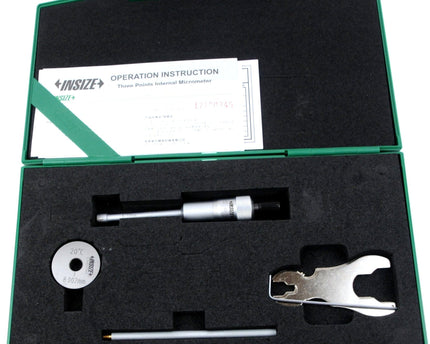

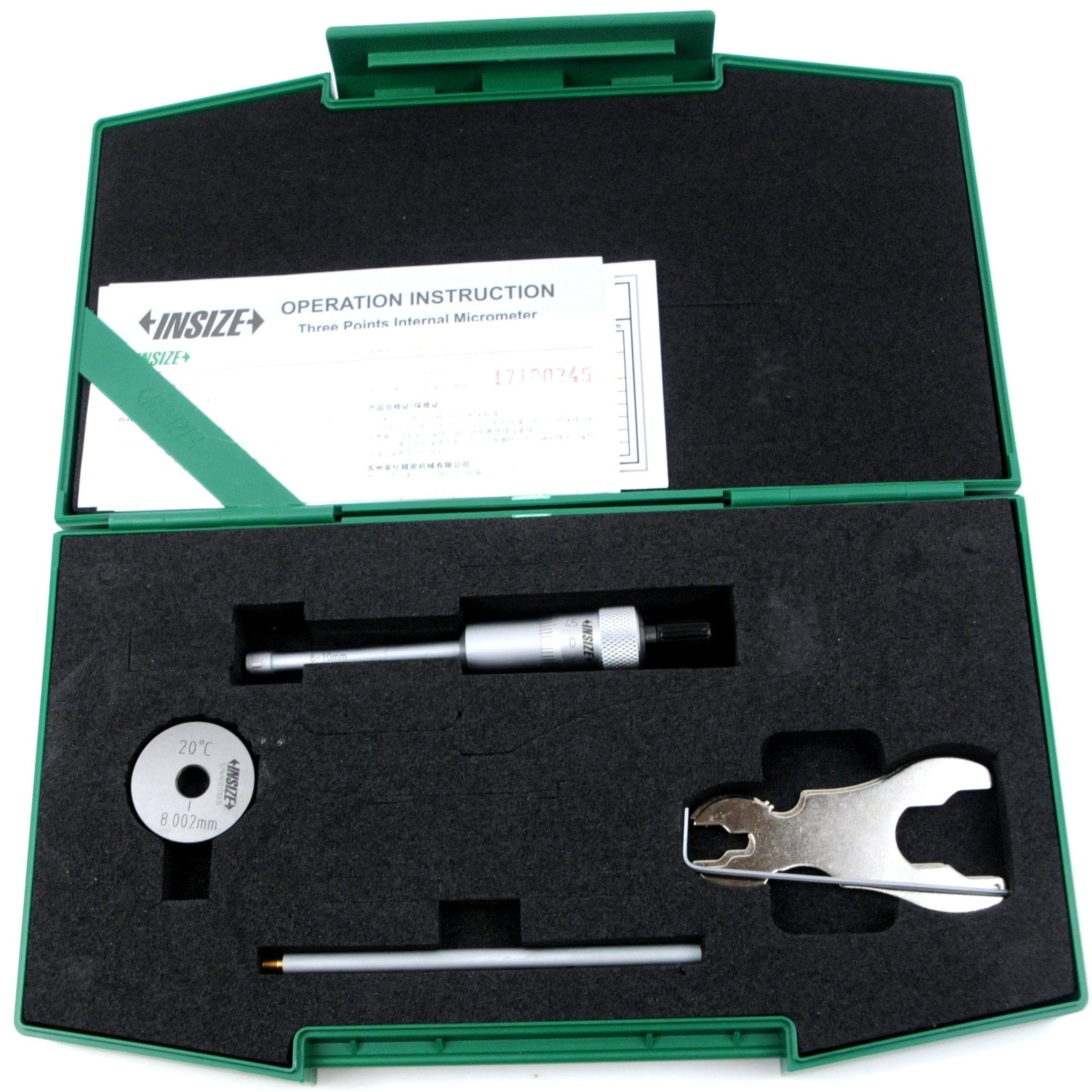

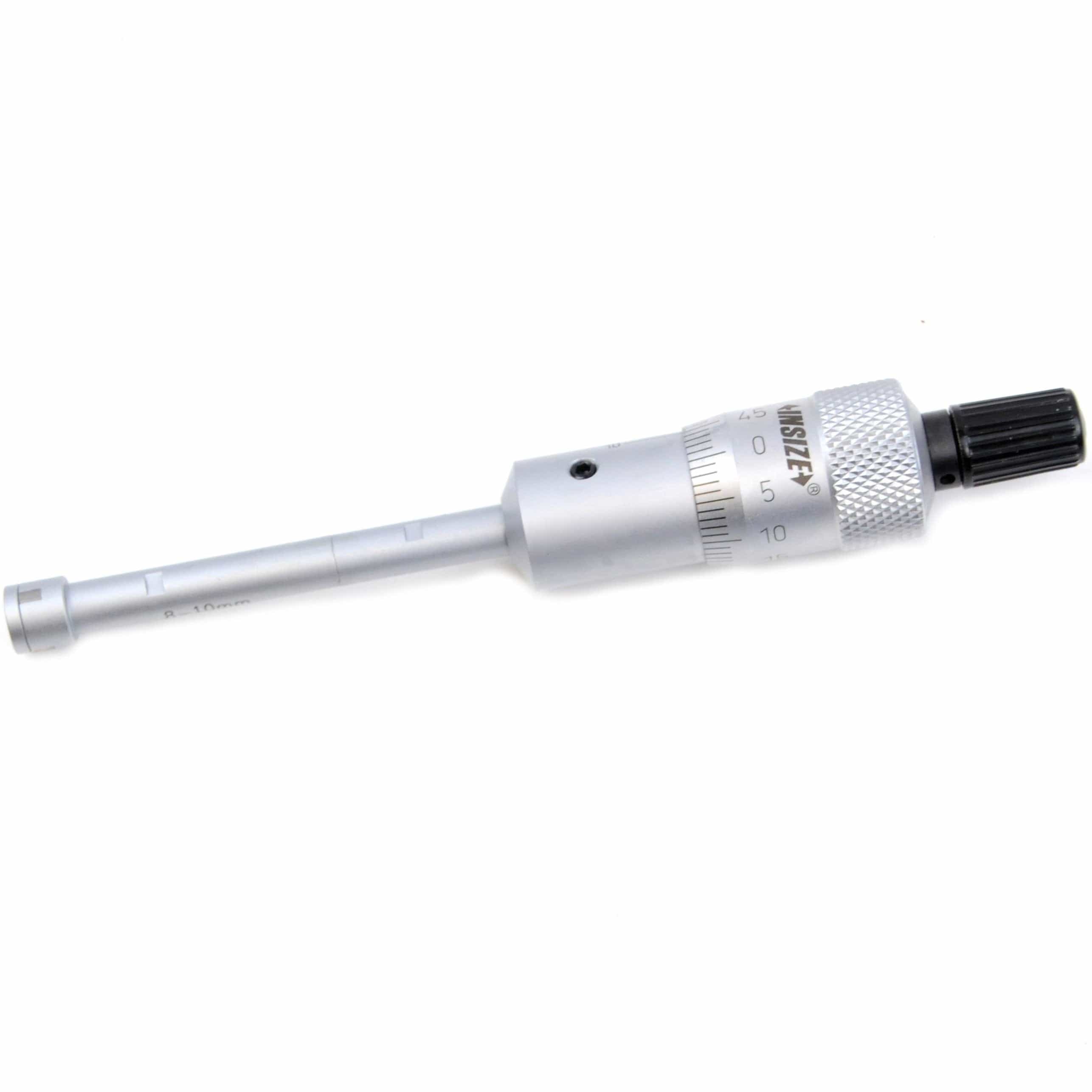

Insize 10–12mm Inside Micrometer
The Insize 10–12mm Inside Micrometer is designed for high-precision internal diameter measurement of small bores in machining, inspection, and toolroom applications. Featuring a three-point measuring system, this micrometer provides excellent centring, stability, and repeatability for accurate measurement of tight internal tolerances.

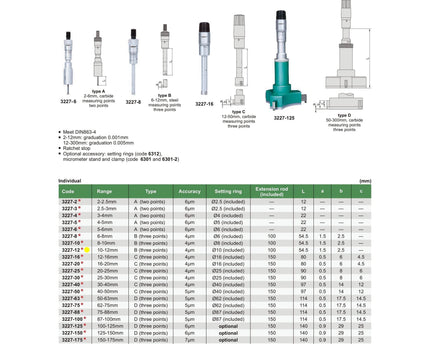

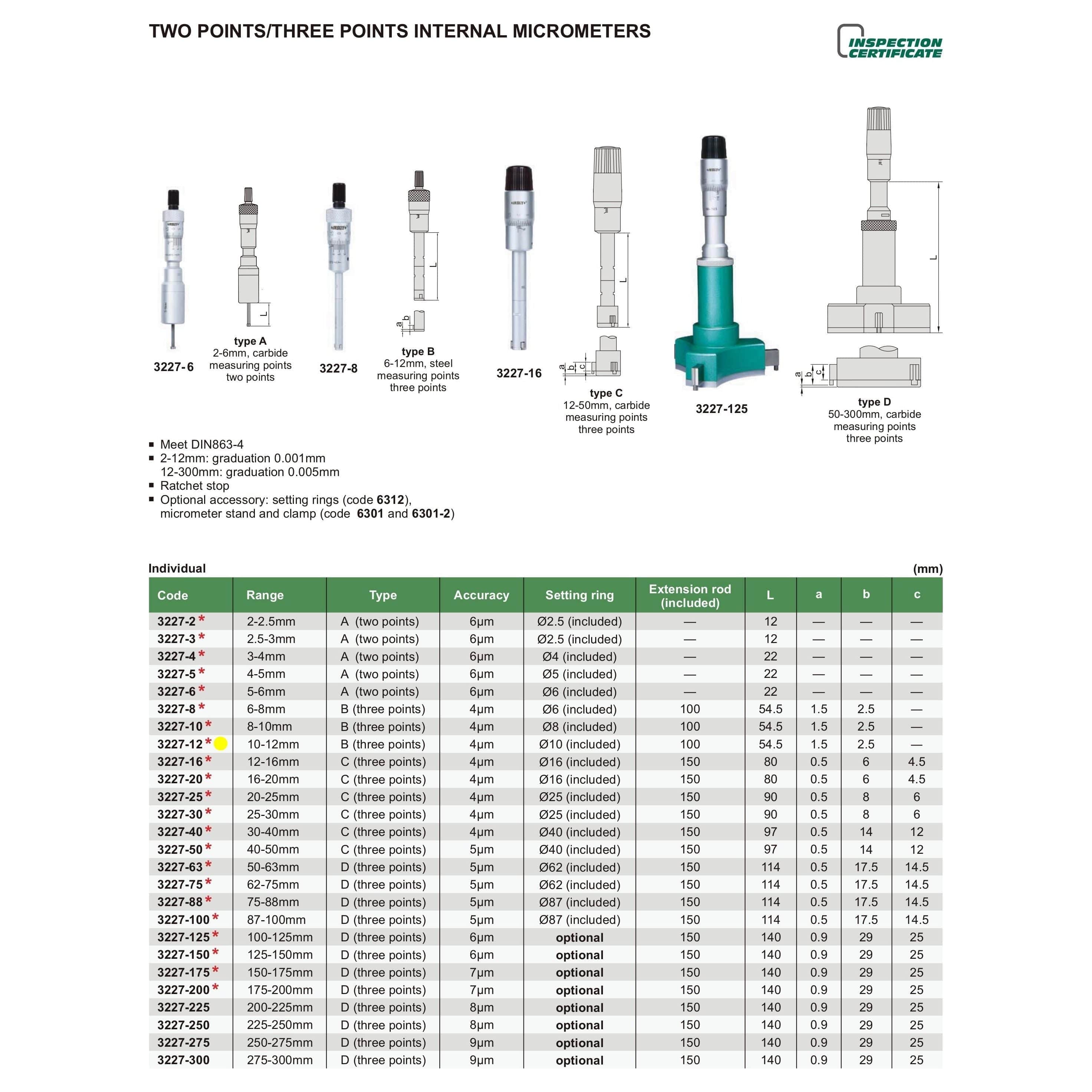

Specifications :
-
Part No: 3227-12
-
Measuring Range: 10–12 mm
-
Setting Ring: Ø10 mm (included)
-
Graduation: 0.001 mm (6–12 mm range)
-
Graduation: 0.005 mm (12–300 mm range)
-

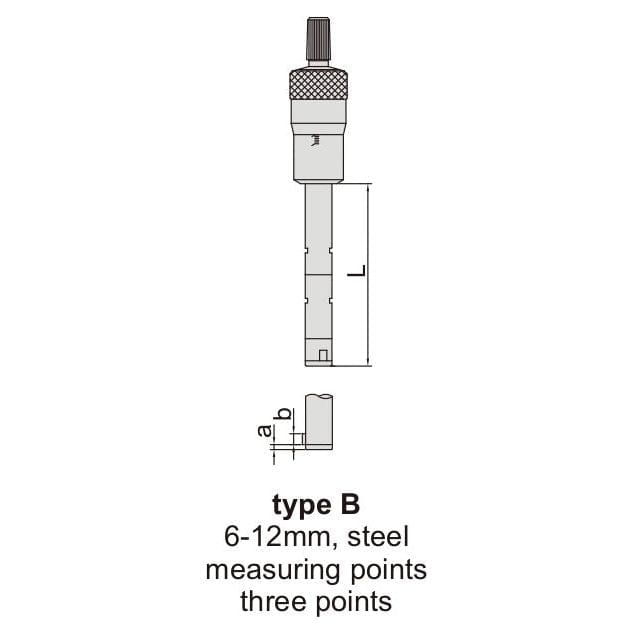

Type: B – Three-point internal micrometer
-

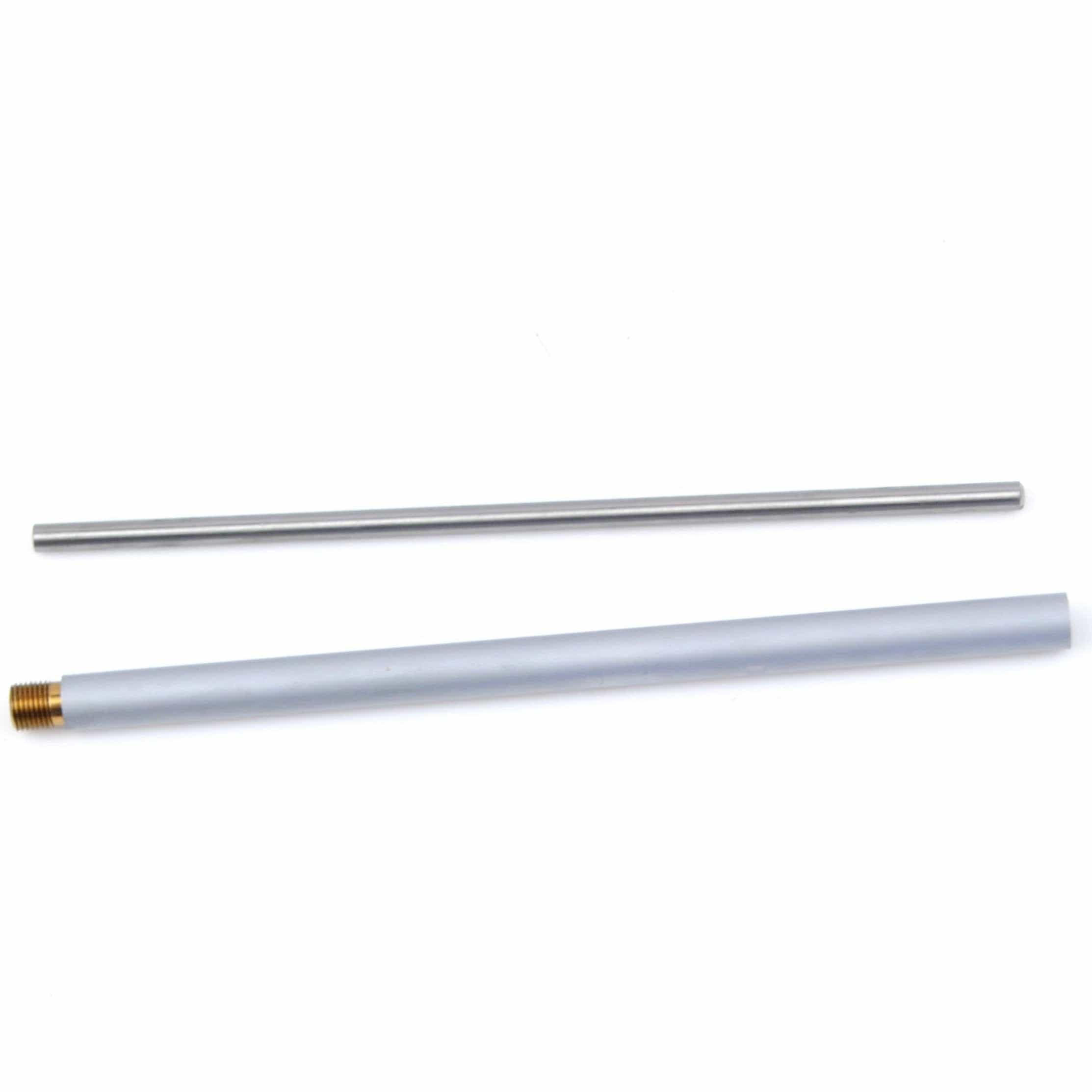

Extension Rods: 100 mm
-
L: 54.5 mm
-
A: 1.5 mm
-
B: 2.5 mm

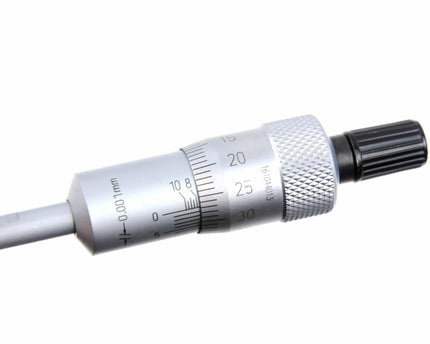

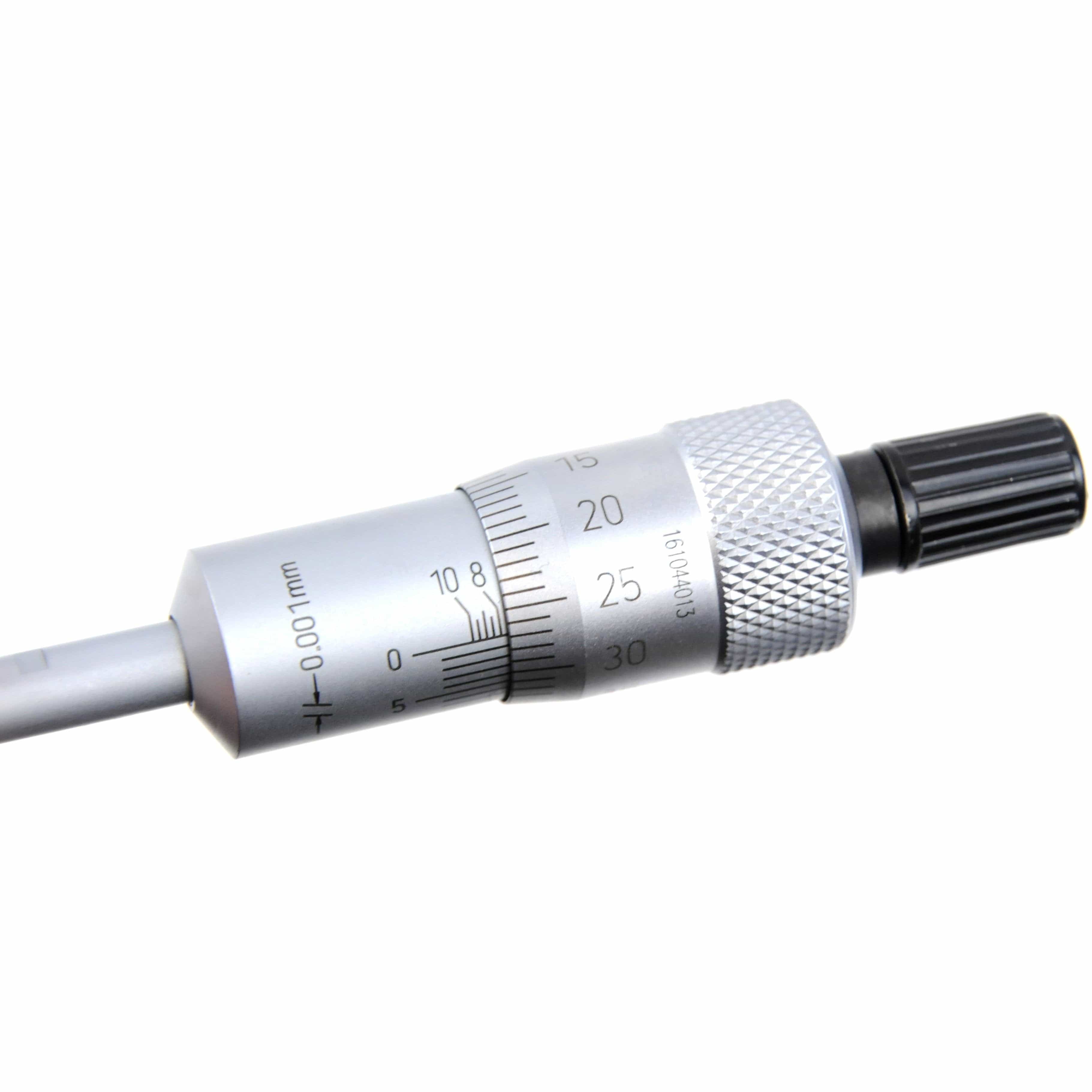

- Ratchet stop for consistent measuring force.
- Steel measuring points.
- Conforms to DIN 863-4.
-

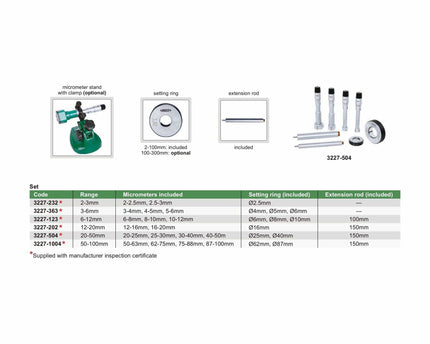

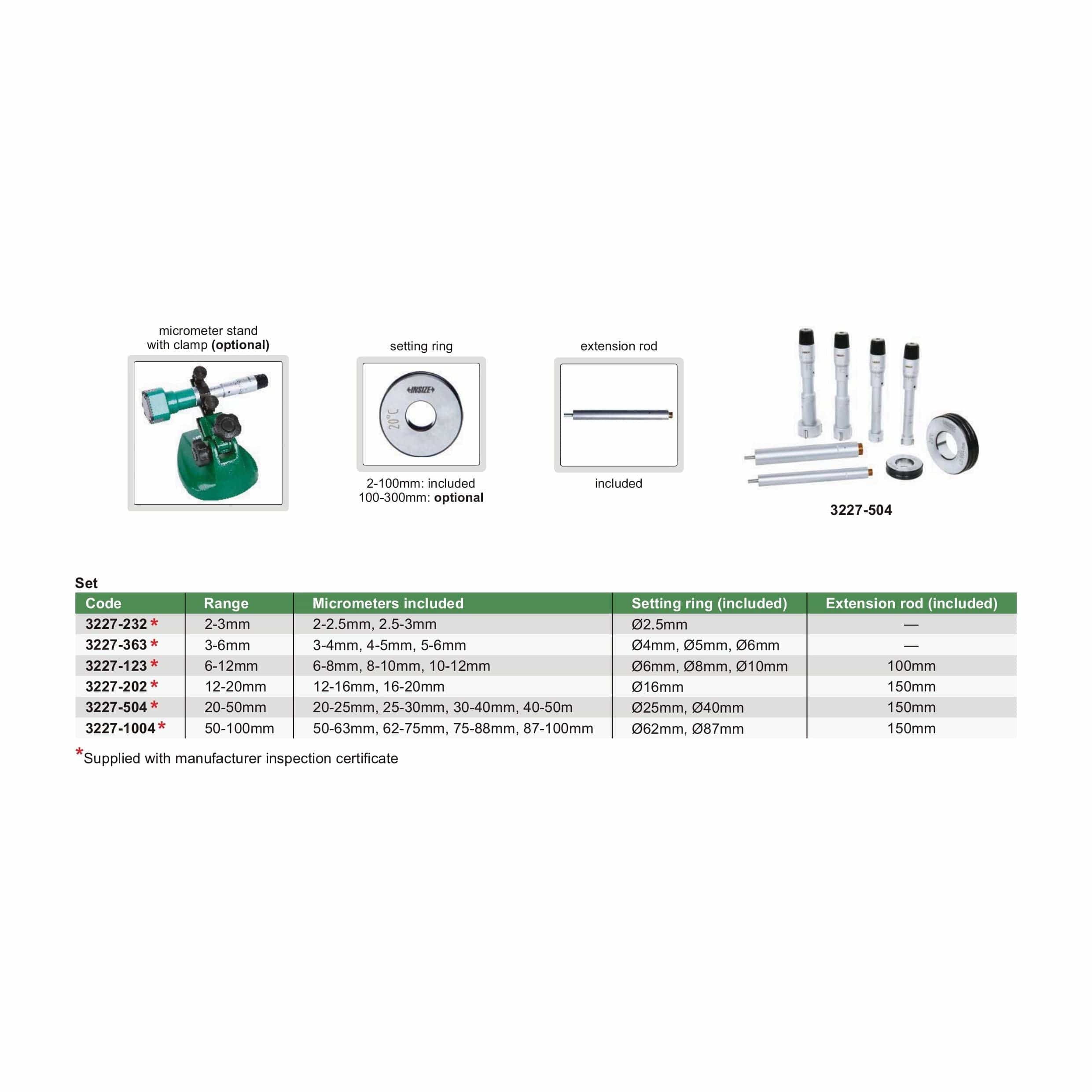

Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Codes 6301, 6301-2).
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement tasks. Insize three-point inside micrometers deliver dependable accuracy and ease of use for precise internal measurement of small-diameter components.
