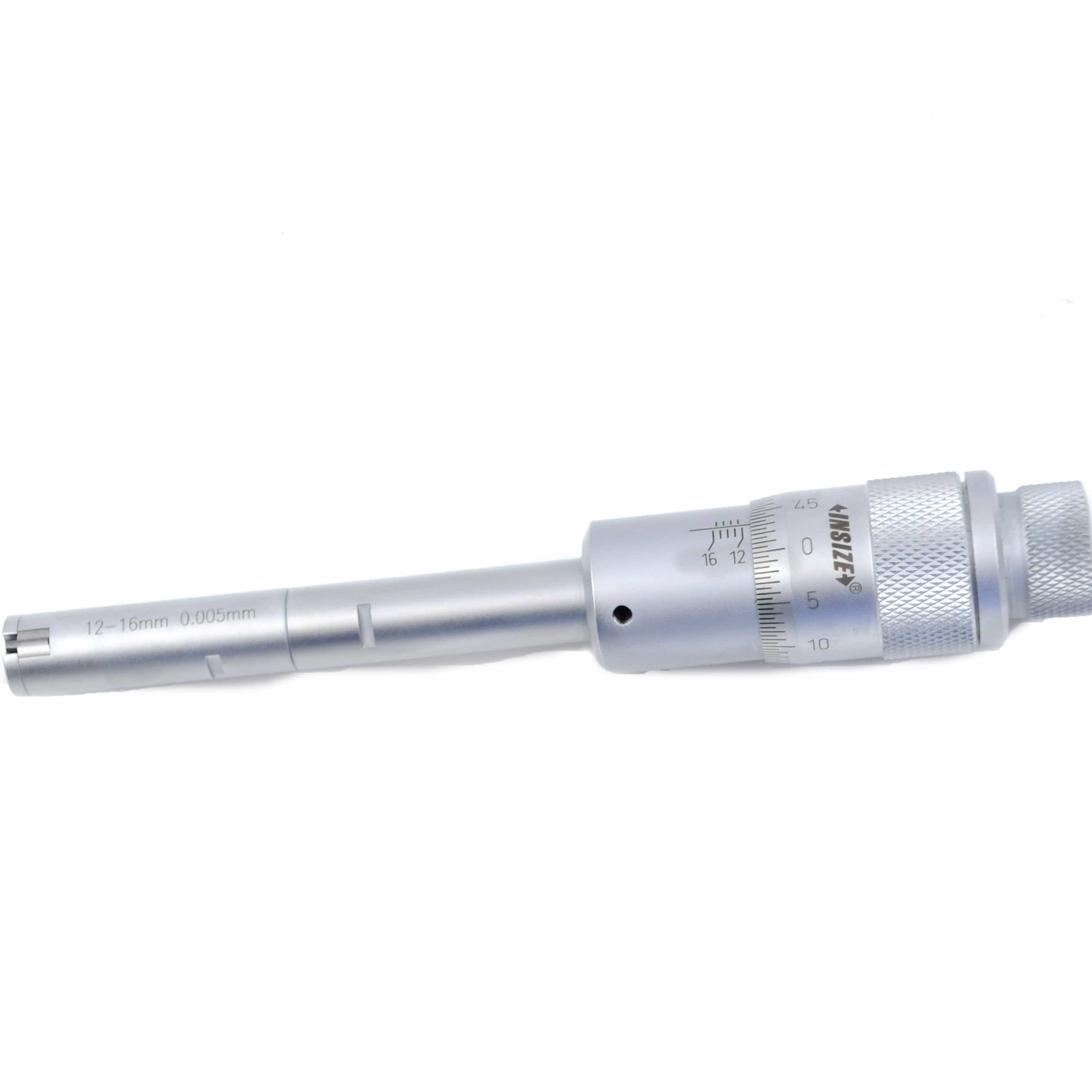

Insize 12–16mm Inside Micrometer
The Insize 12–16mm Inside Micrometer is designed for accurate internal diameter measurement of small bores in precision machining, inspection, and quality control applications. Featuring a three-point measuring system, this micrometer ensures excellent centring, stability, and repeatable results.

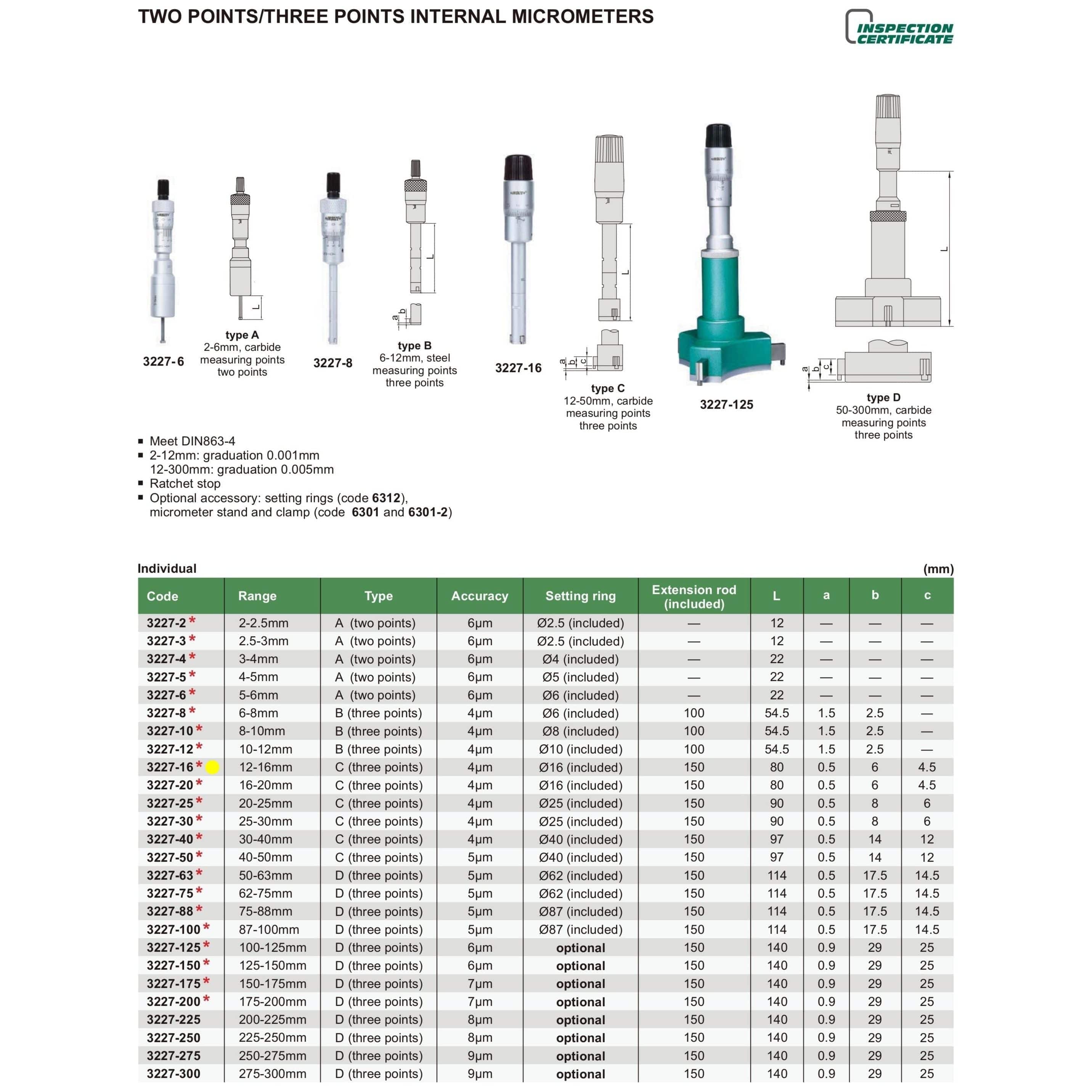

Specifications :
-
Part No: 3227-16
-
Measuring Range: 12–16 mm
-

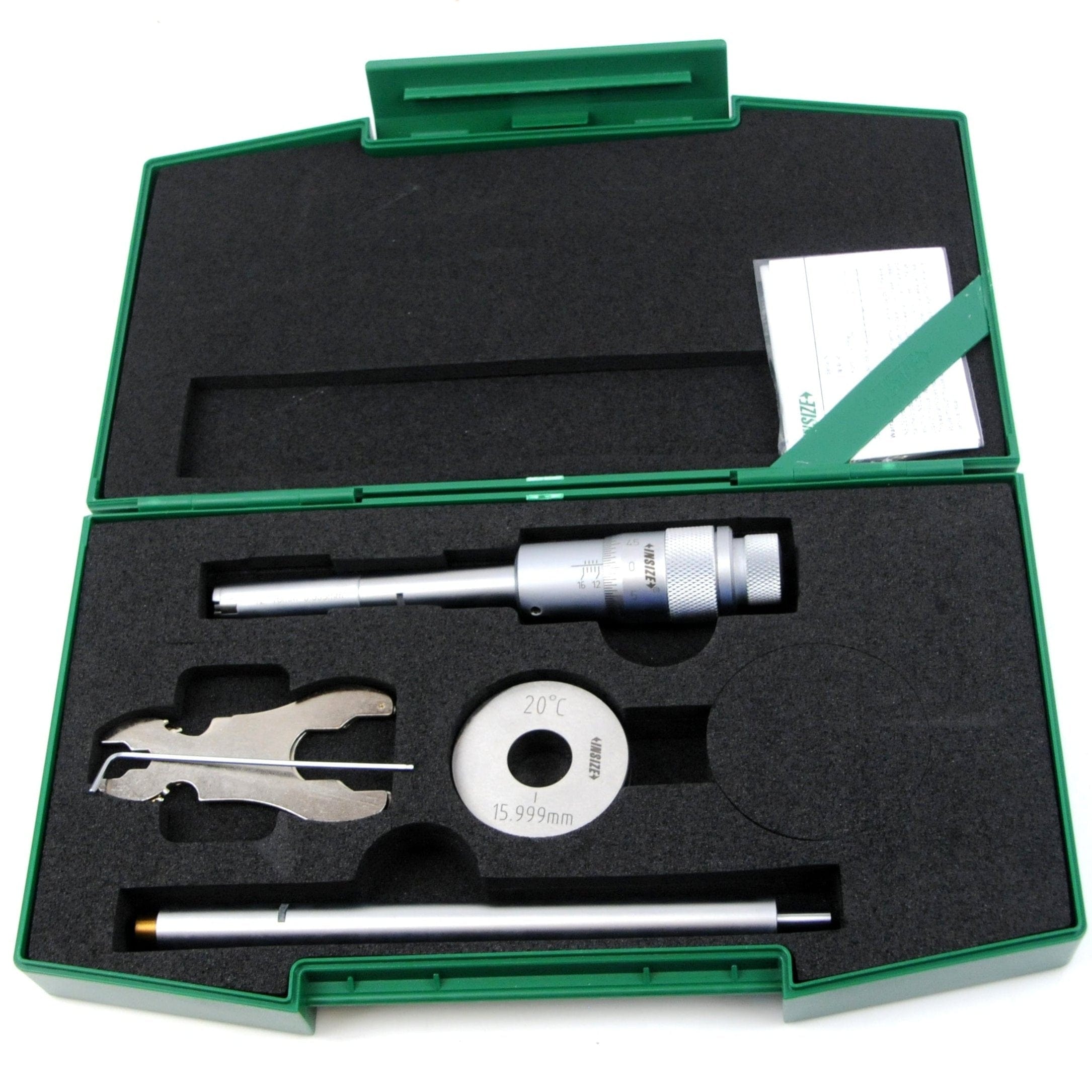

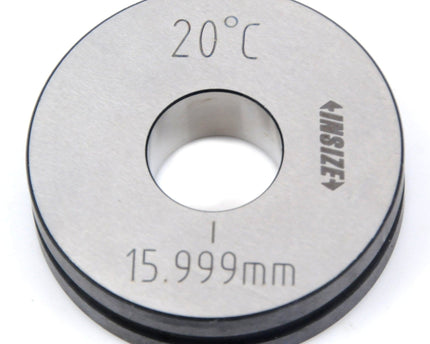

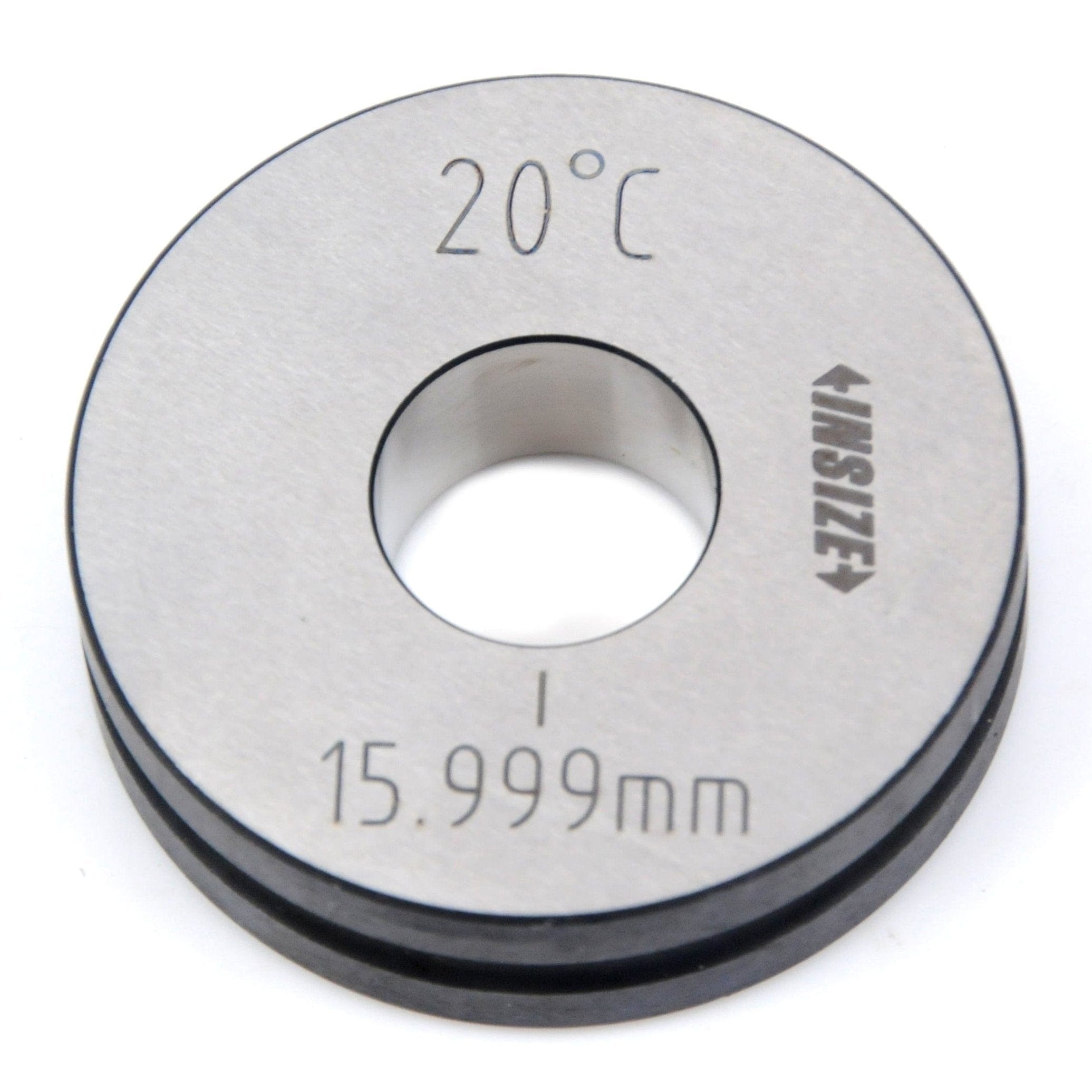

Setting Ring: Ø16 mm (included)
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-

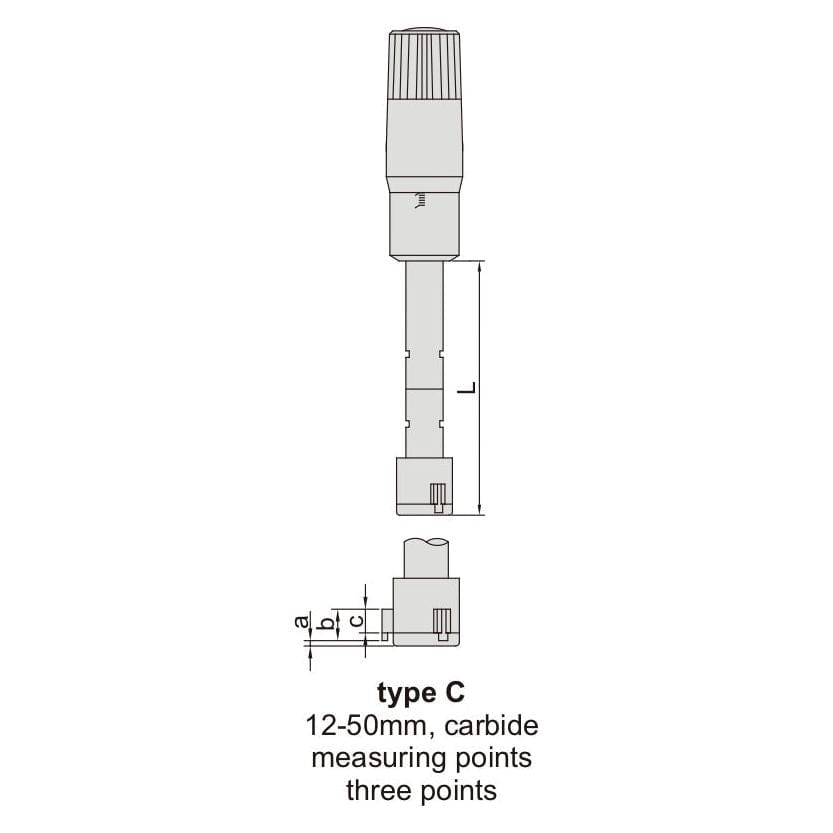

Type: C – Three-point inside micrometer
-

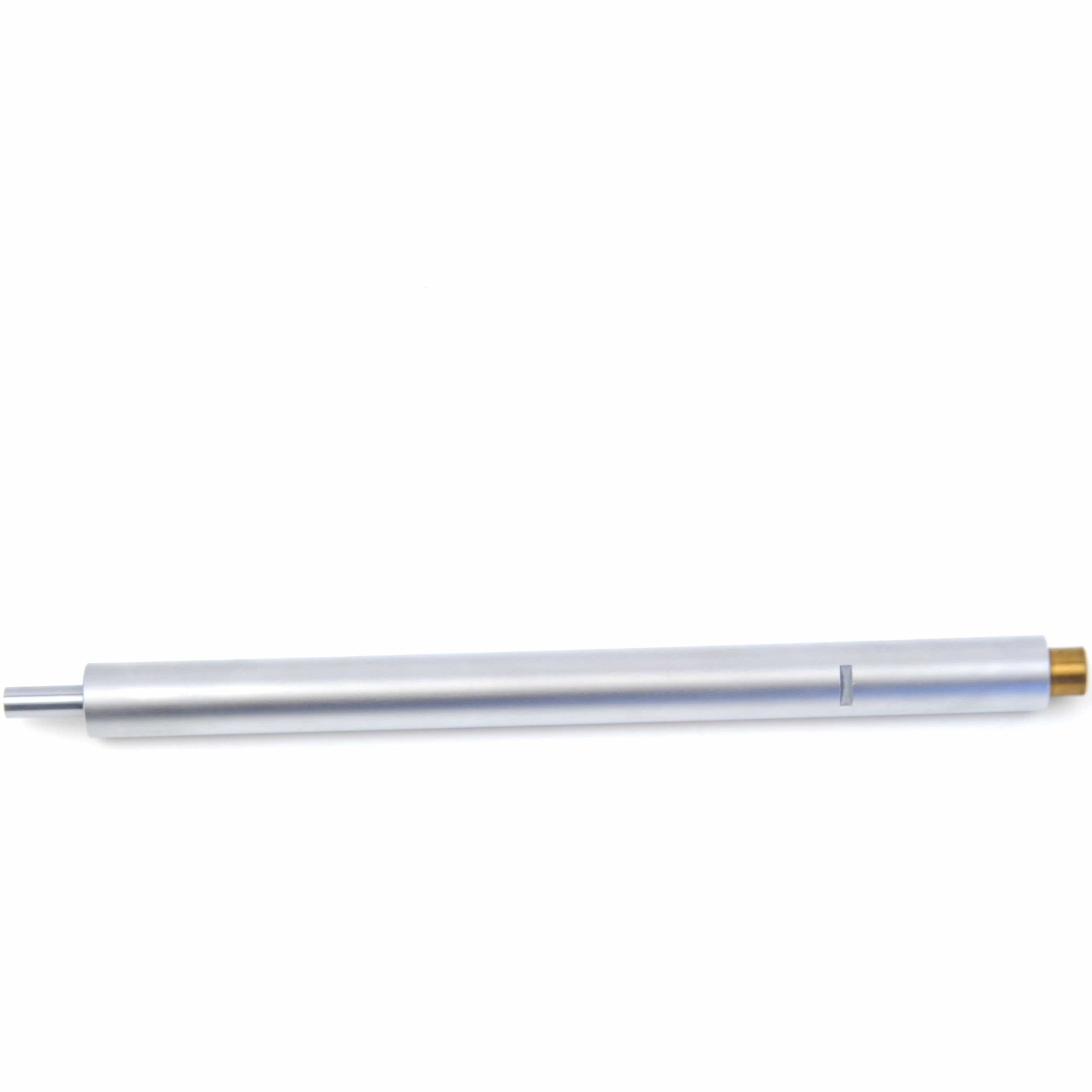

Extension Rod: 150 mm
-
L: 80 mm
-
A: 0.5 mm
-
B: 6 mm
-
C: 4.5 mm

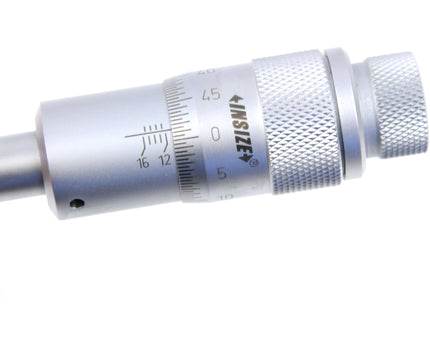

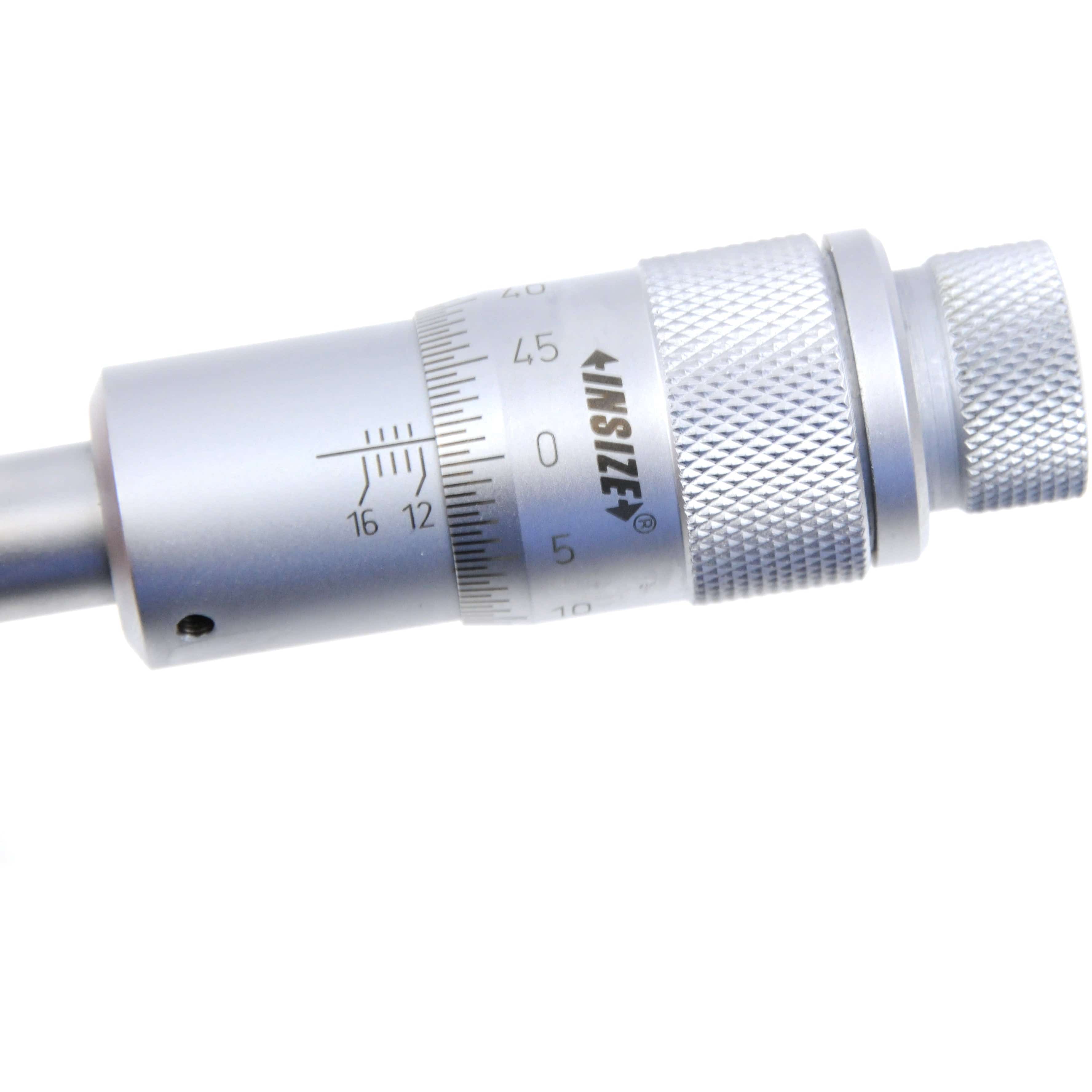

- Ratchet stop for consistent measuring force

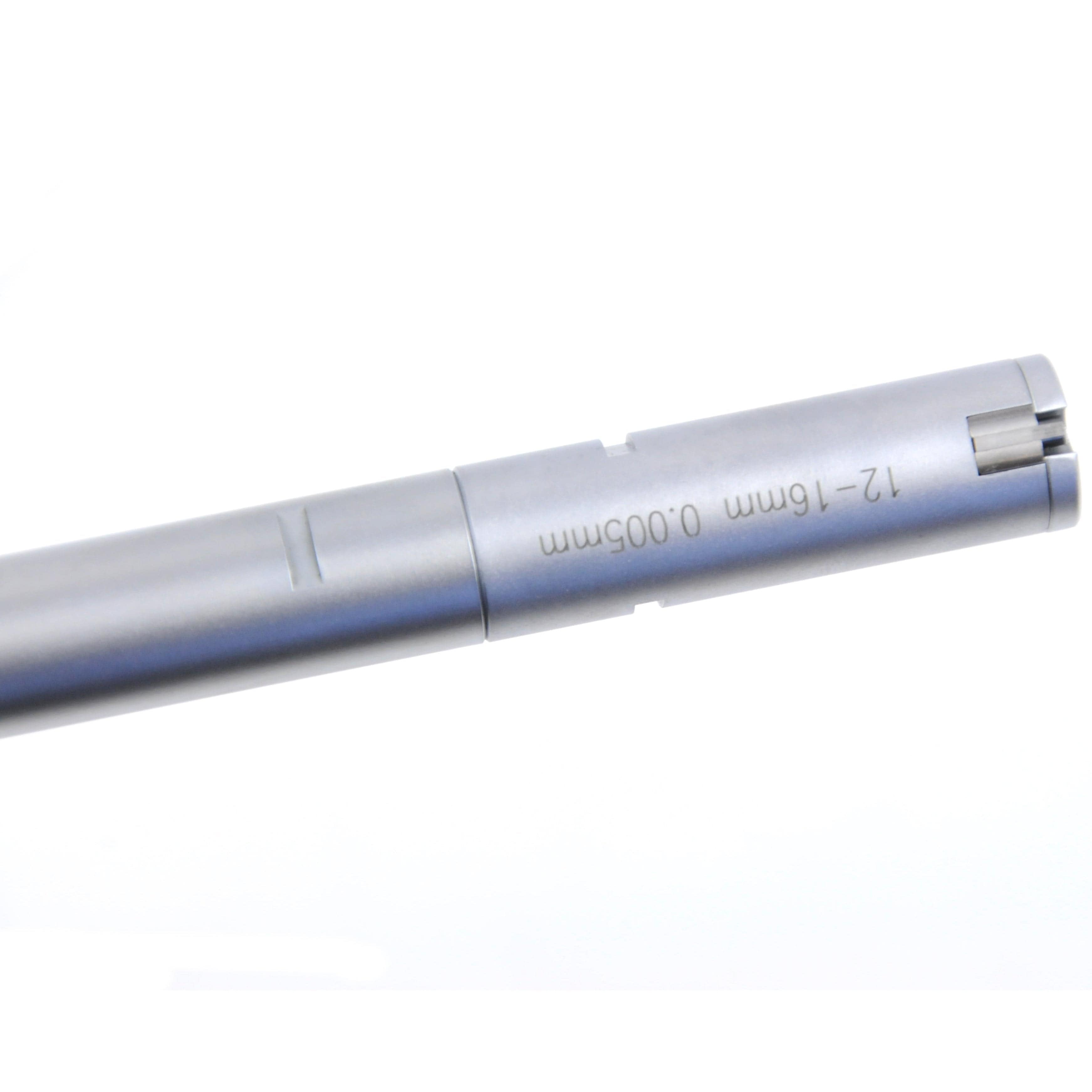

- Carbide measuring points
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement applications. Insize three-point inside micrometers provide reliable accuracy, ease of use, and consistent results across precision machining tasks.
