Insize 12–20mm Inside Micrometer Set

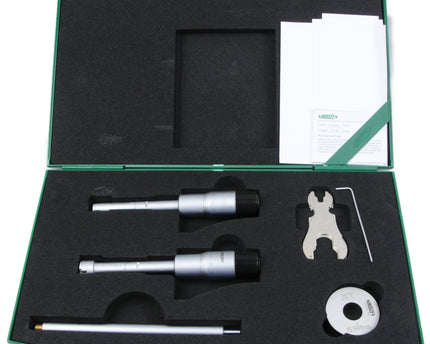

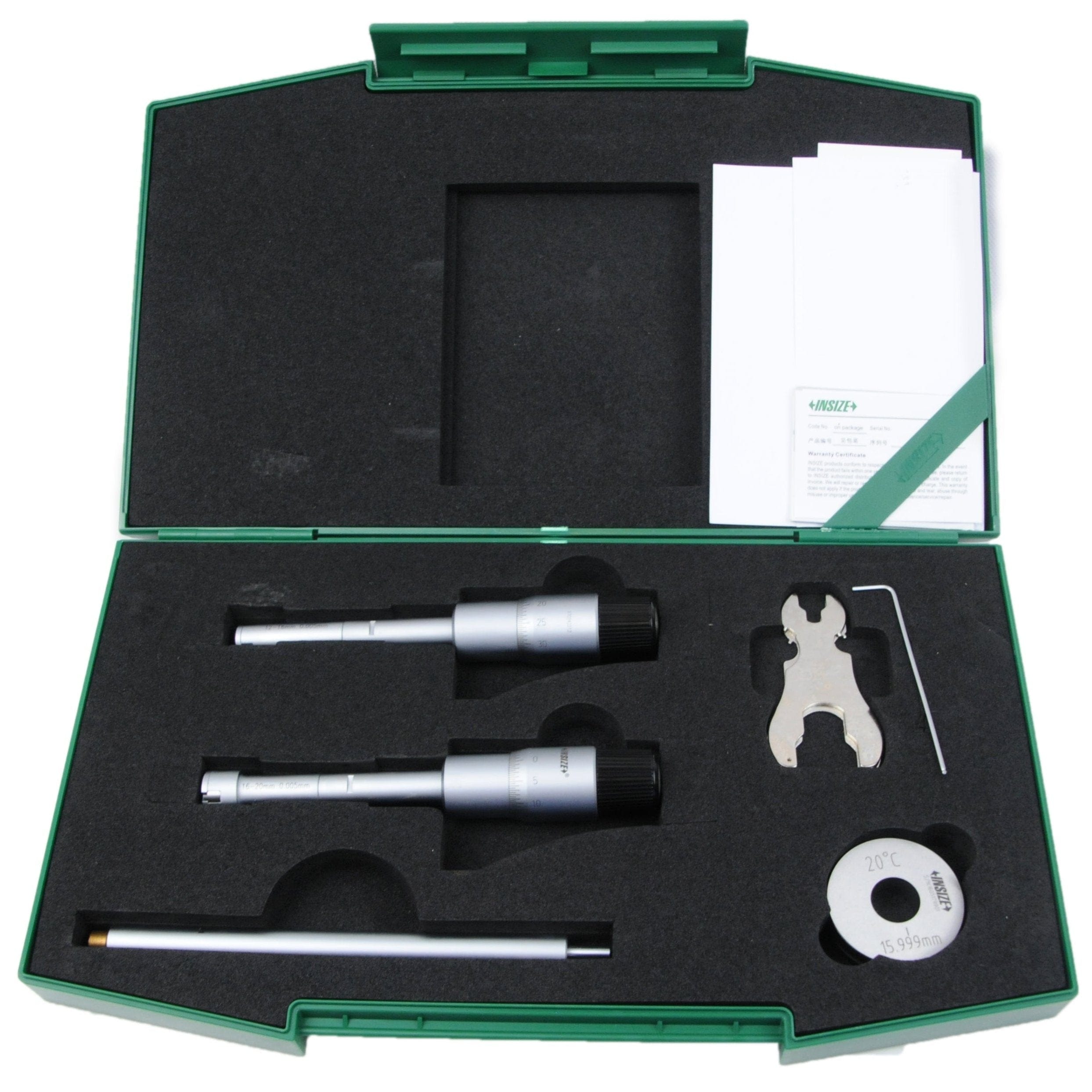

The Insize 12–20mm Inside Micrometer Set is designed for precise internal diameter measurement of small bores in machining, inspection, and quality control applications. This set includes two three-point inside micrometers, providing excellent centring, stability, and repeatable accuracy across the full measuring range.

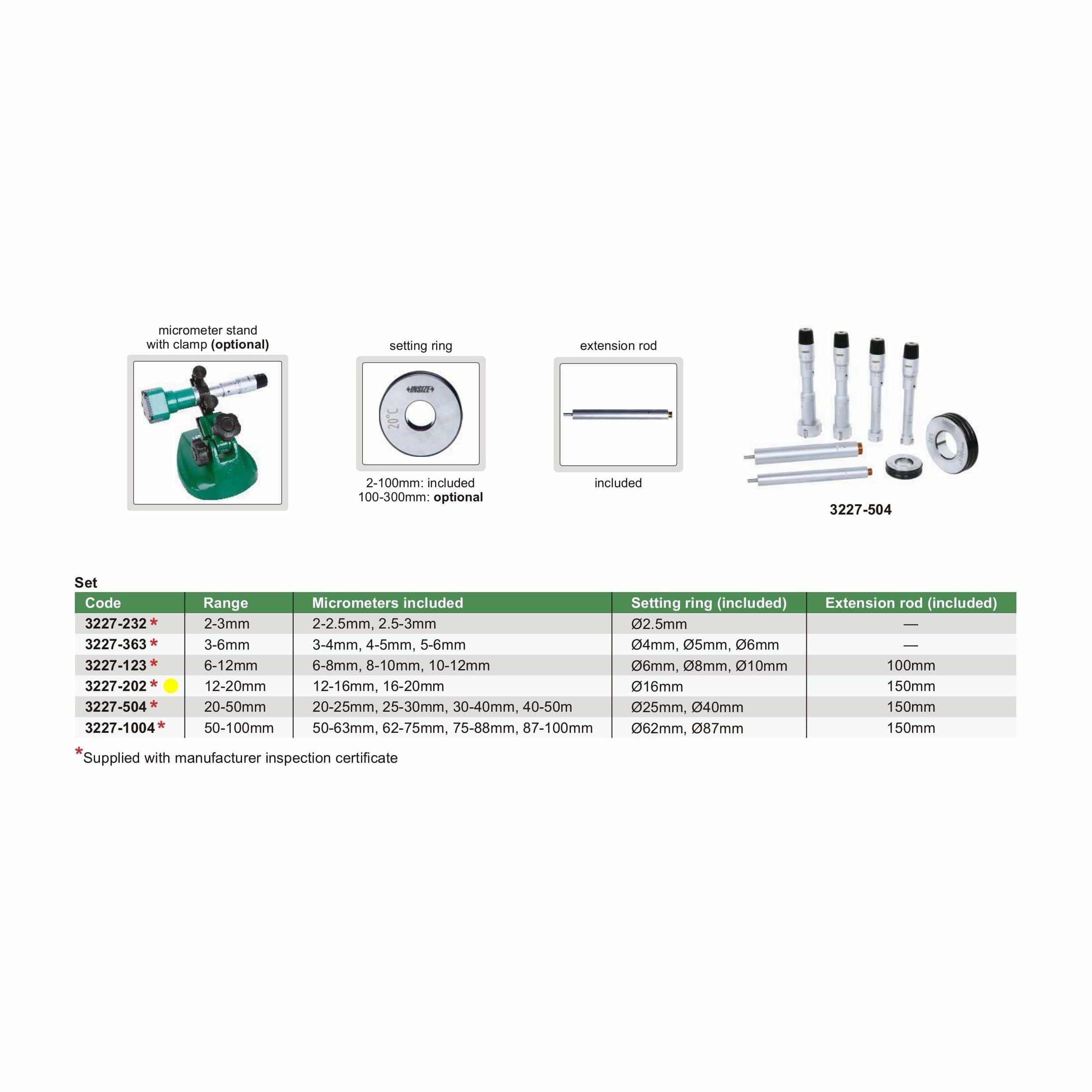

Specifications :
-
Part No: 3227-202
-
Measuring Range: 12–20 mm
-

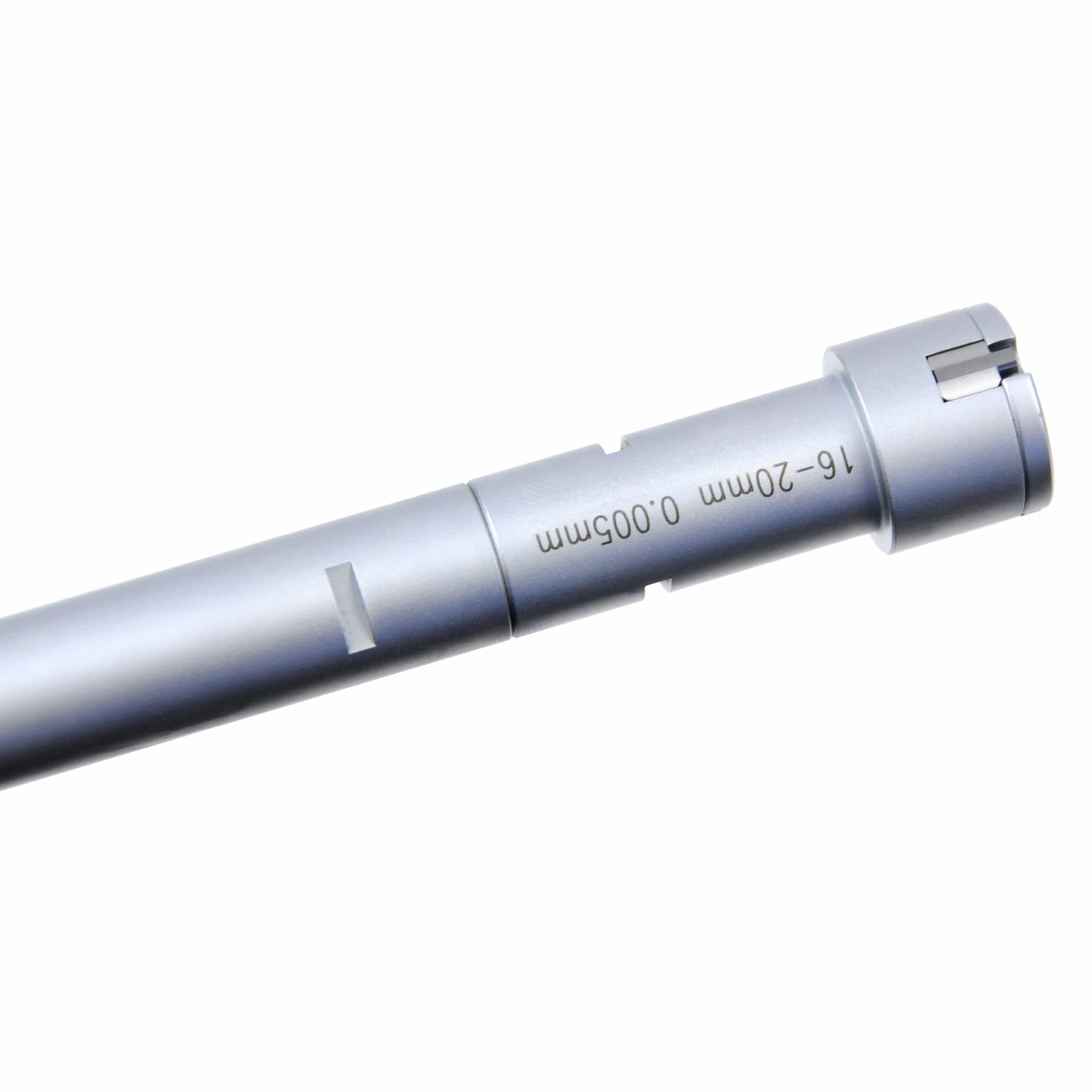

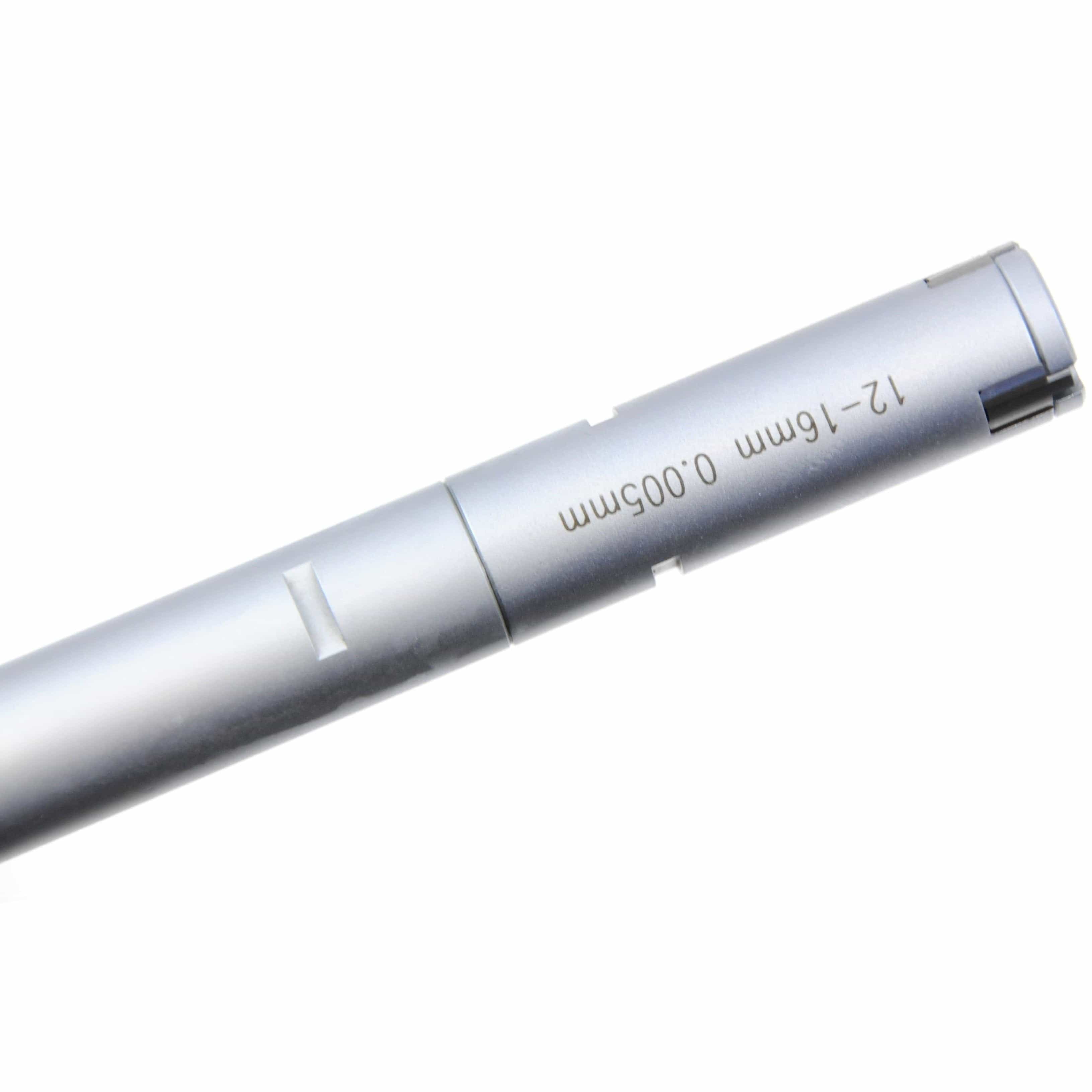

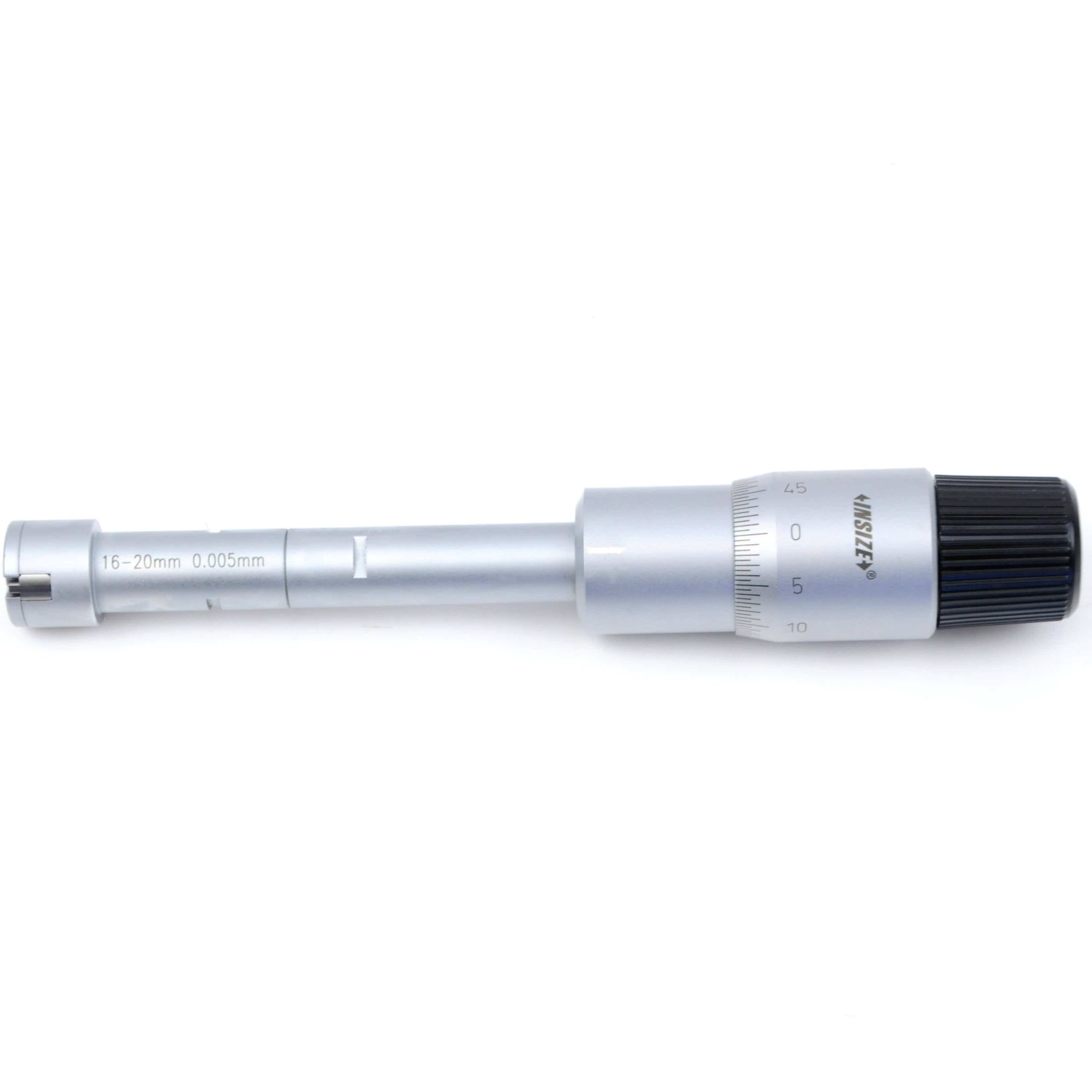

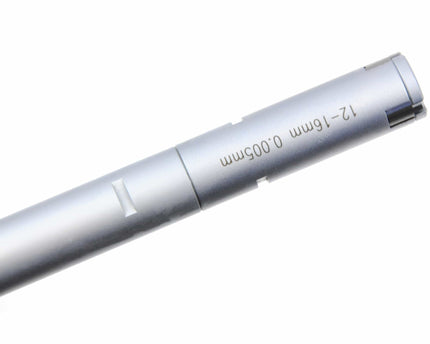

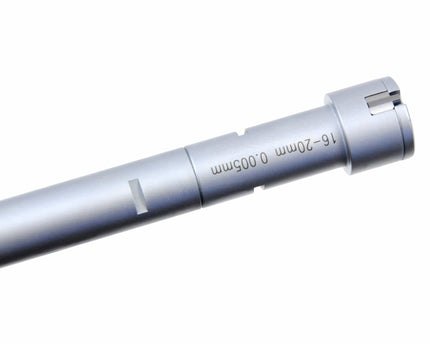

Micrometers Included: 12–16 mm, 16–20 mm
-

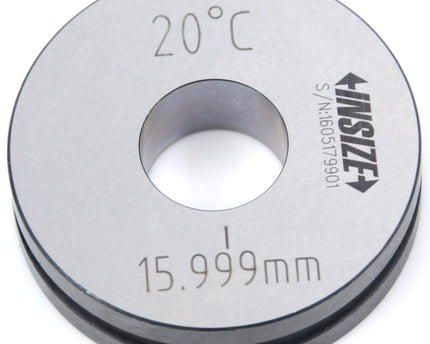

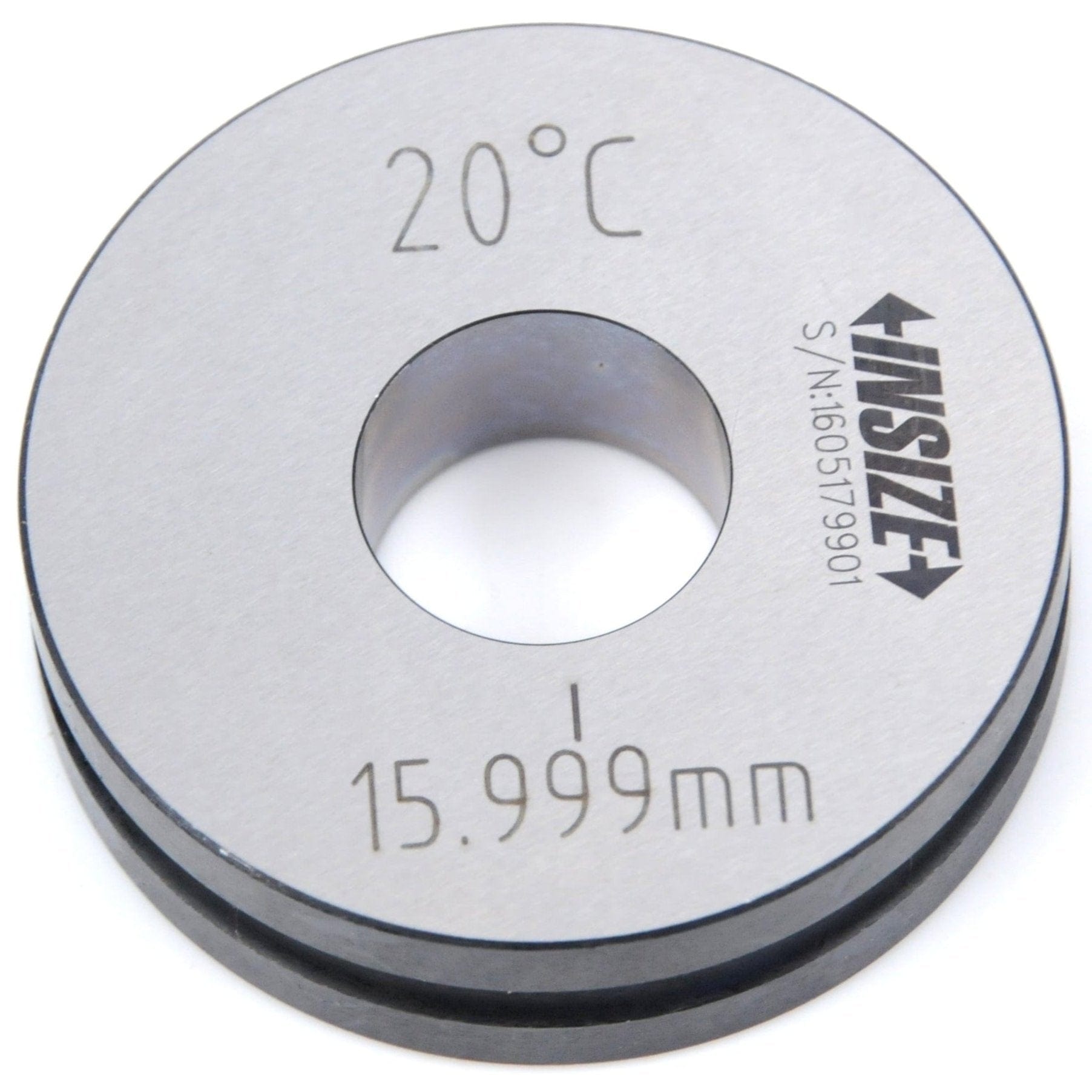

Setting Ring: Ø16 mm (included)
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-

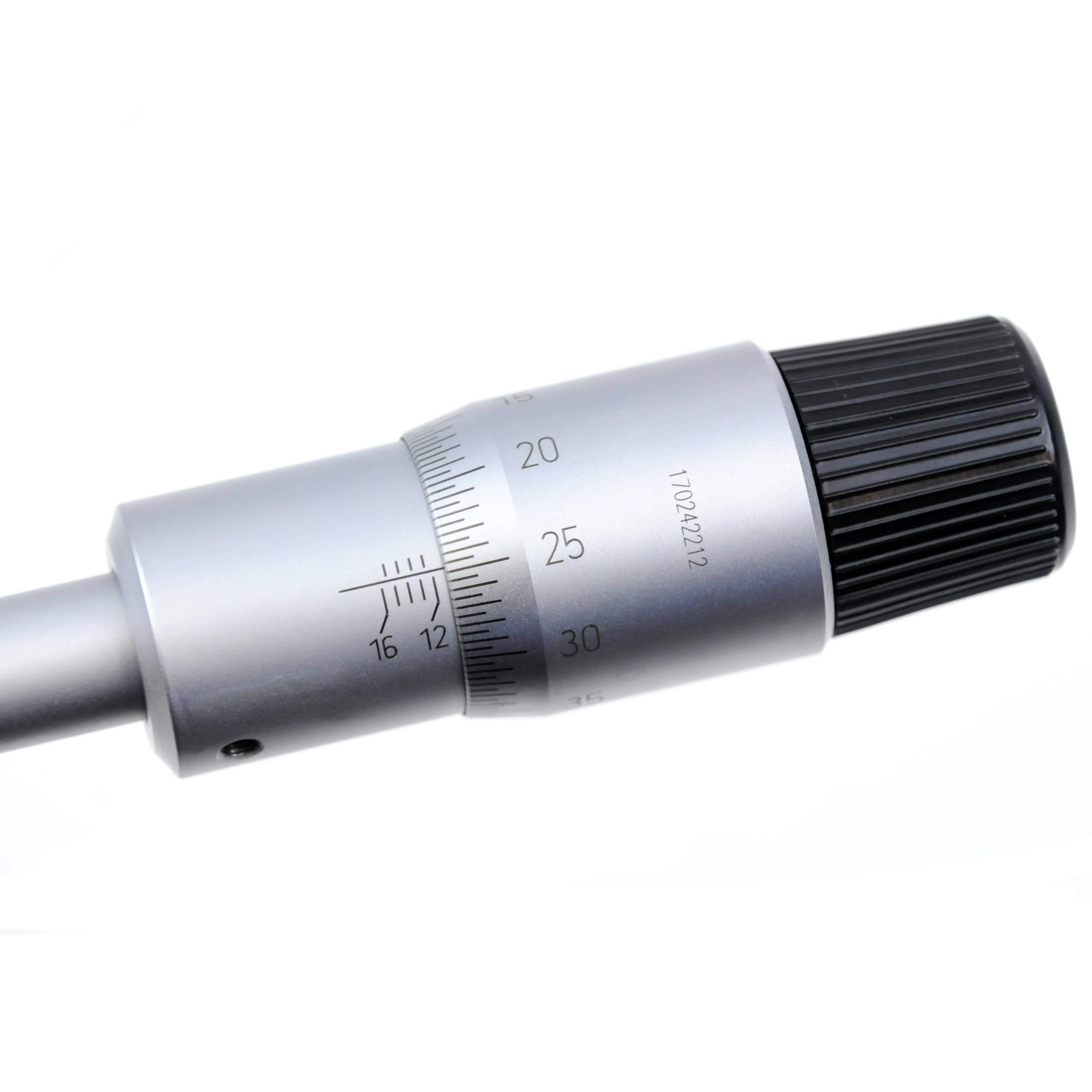

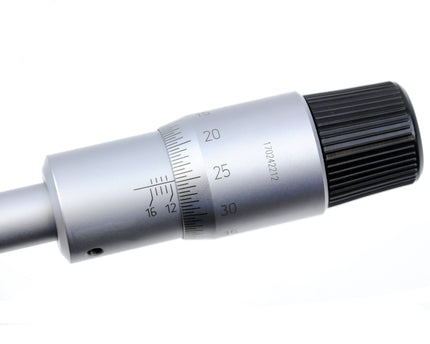

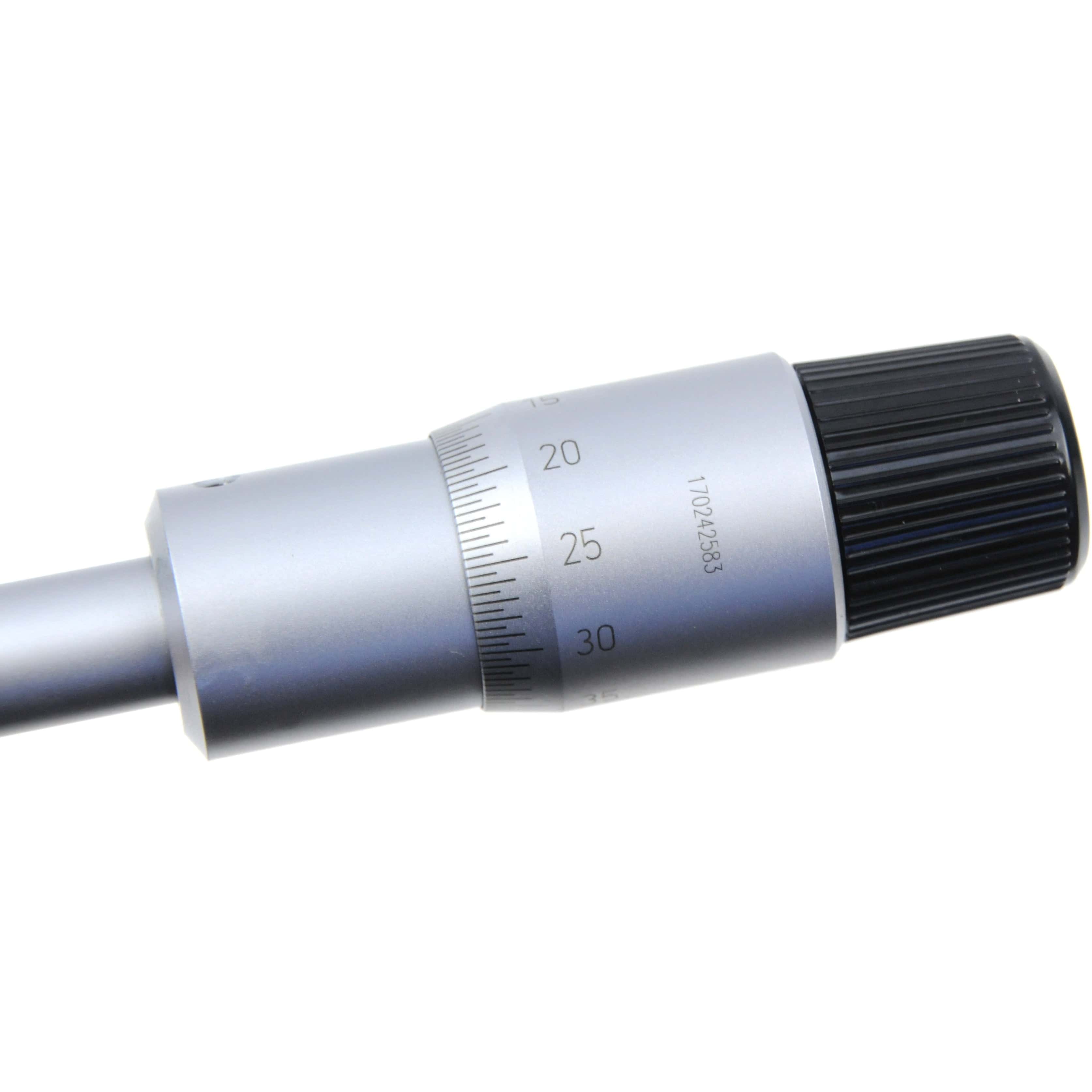

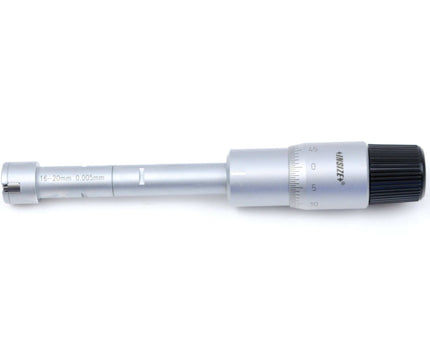

Type: Three-point inside micrometers
-

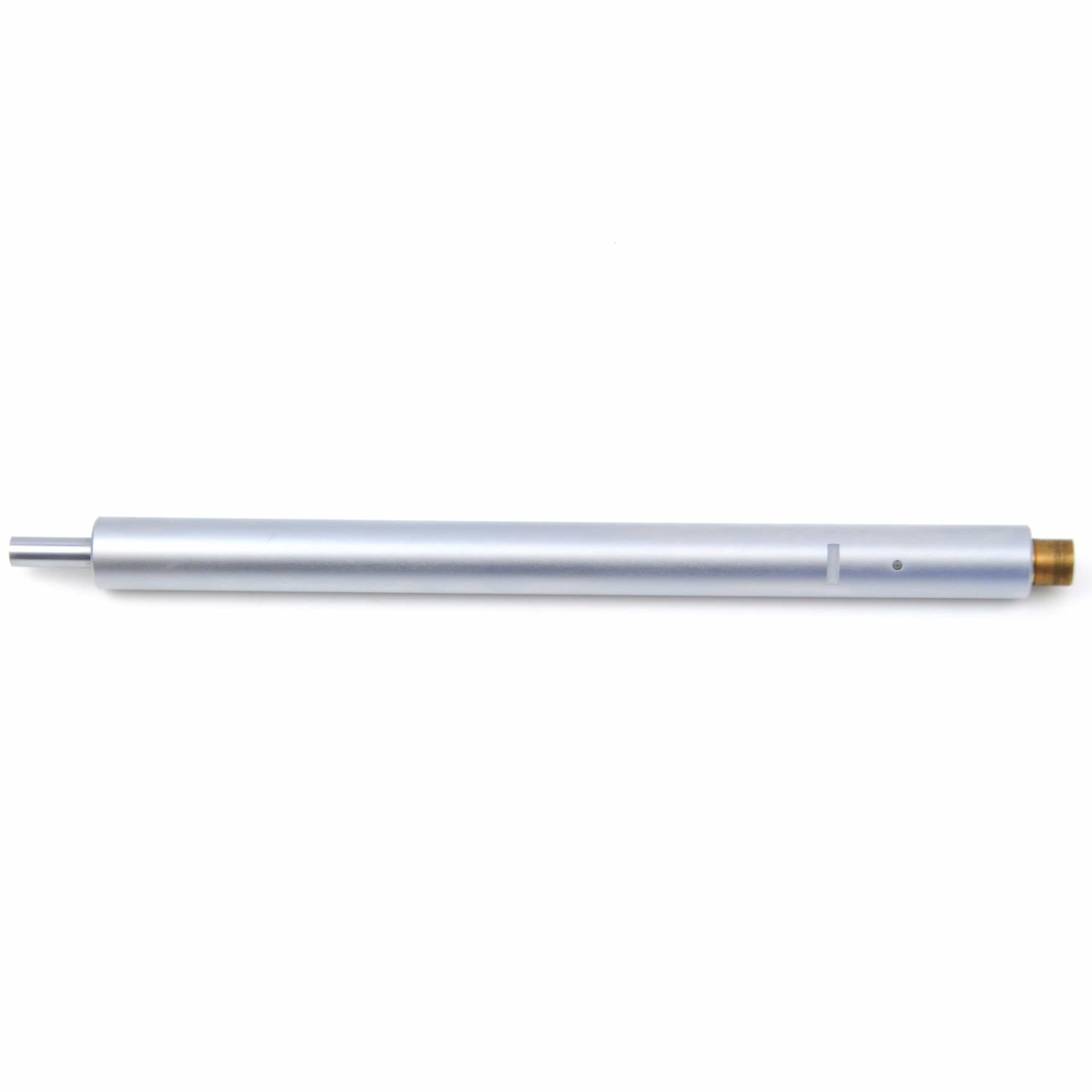

Extension Rod: 150 mm

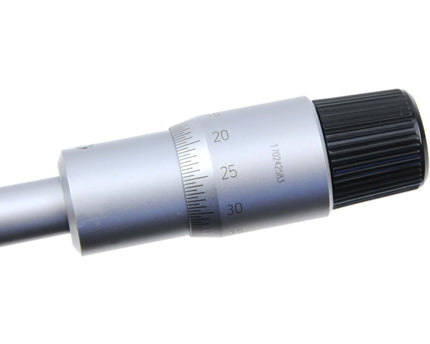

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
- Supplied with manufacturer inspection certificate
-

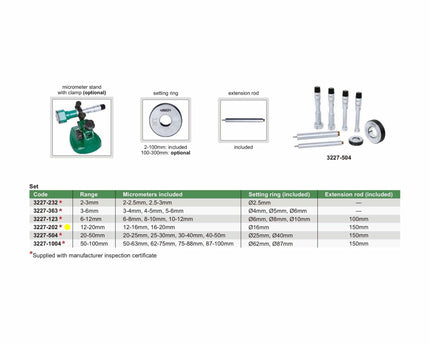

Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometer sets deliver reliable accuracy and ease of use for precision measurement of small-diameter components.
