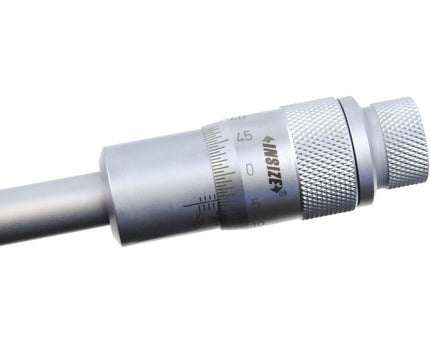

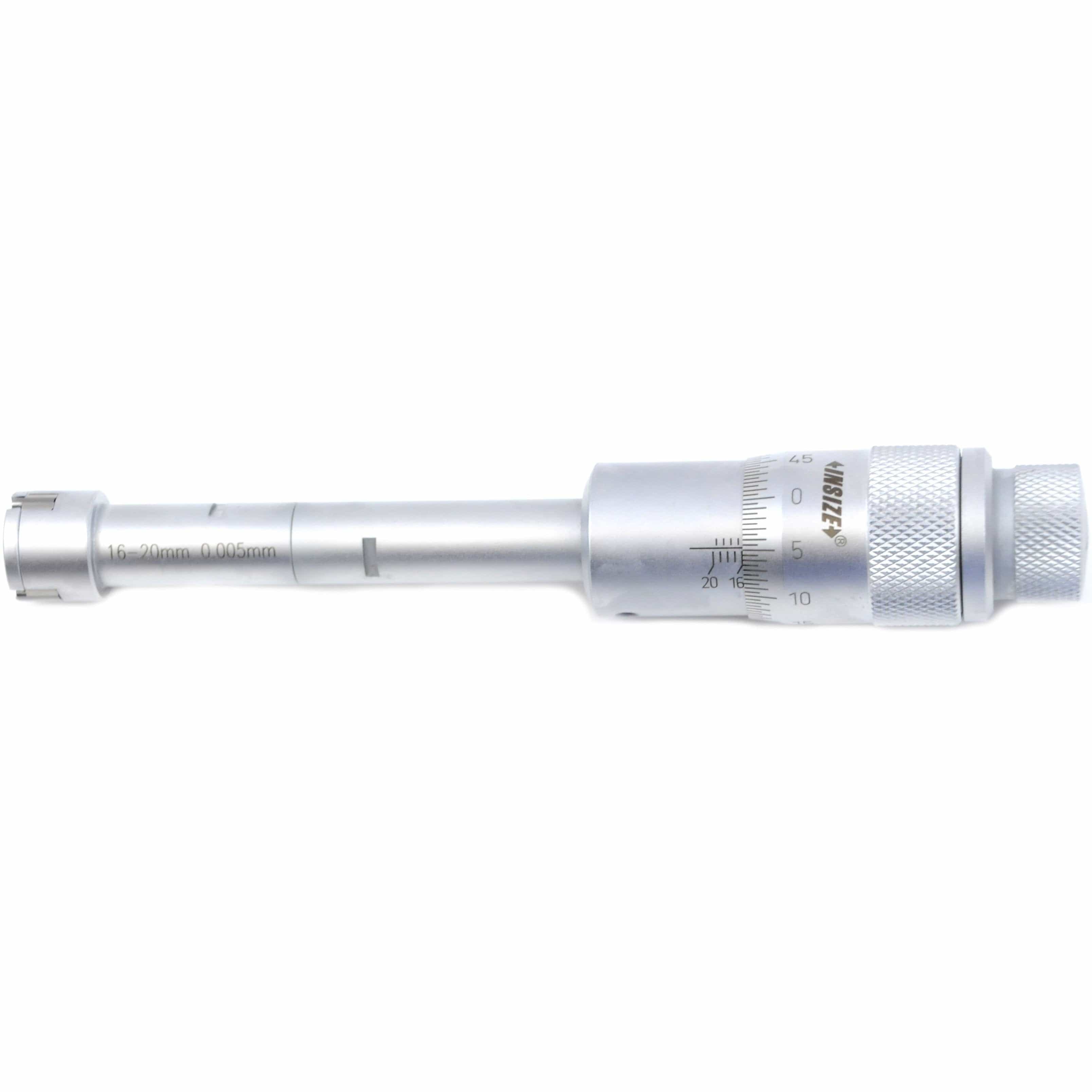

Insize 16–20mm Inside Micrometer
The Insize 16–20mm Inside Micrometer is designed for precise internal diameter measurement of small bores in machining, inspection, and quality control applications. Its three-point measuring system provides excellent centring, stability, and repeatable accuracy for dependable results.

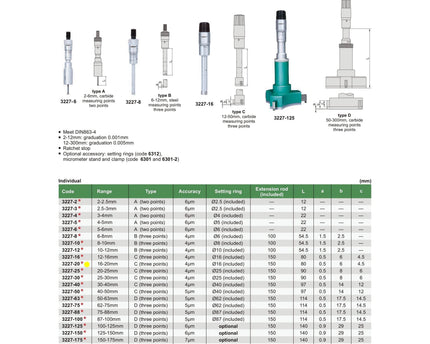

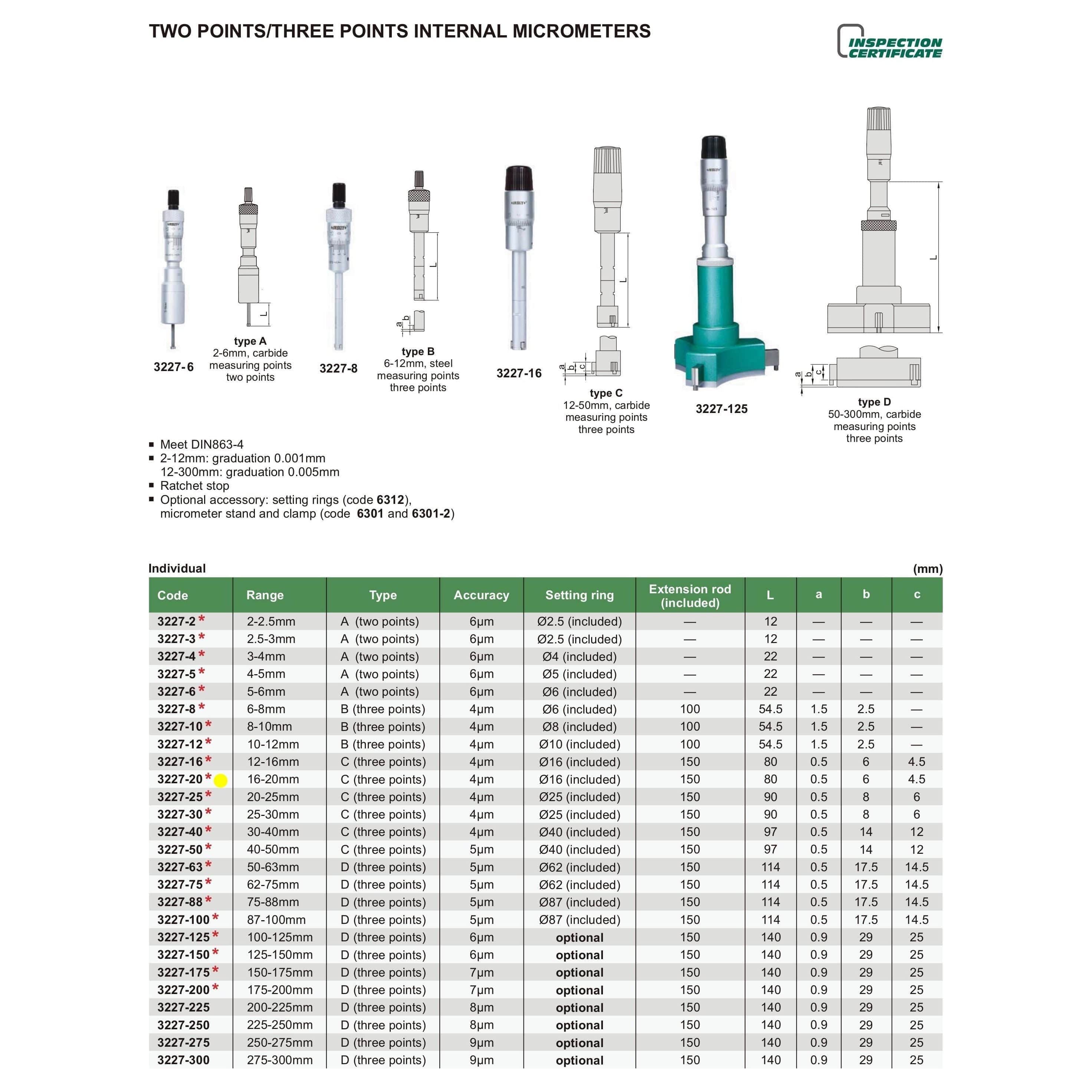

Specifications :
-
Part No: 3227-20
-
Measuring Range: 16–20 mm
-

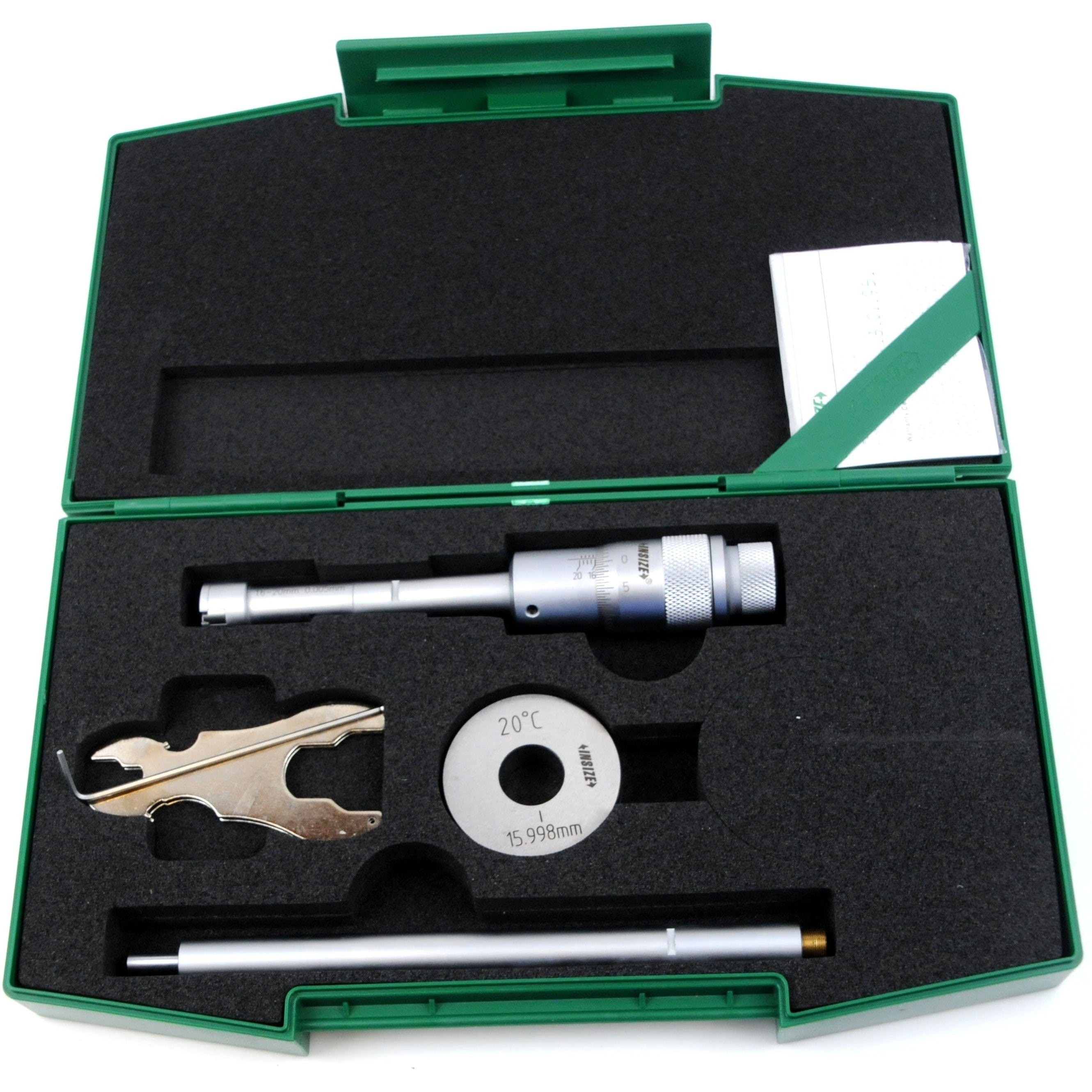

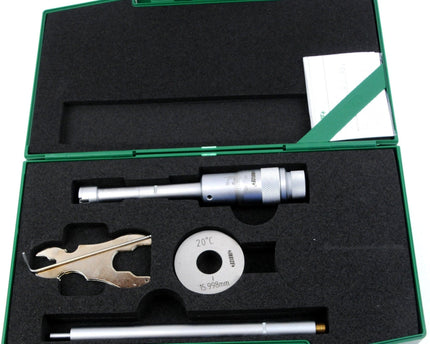

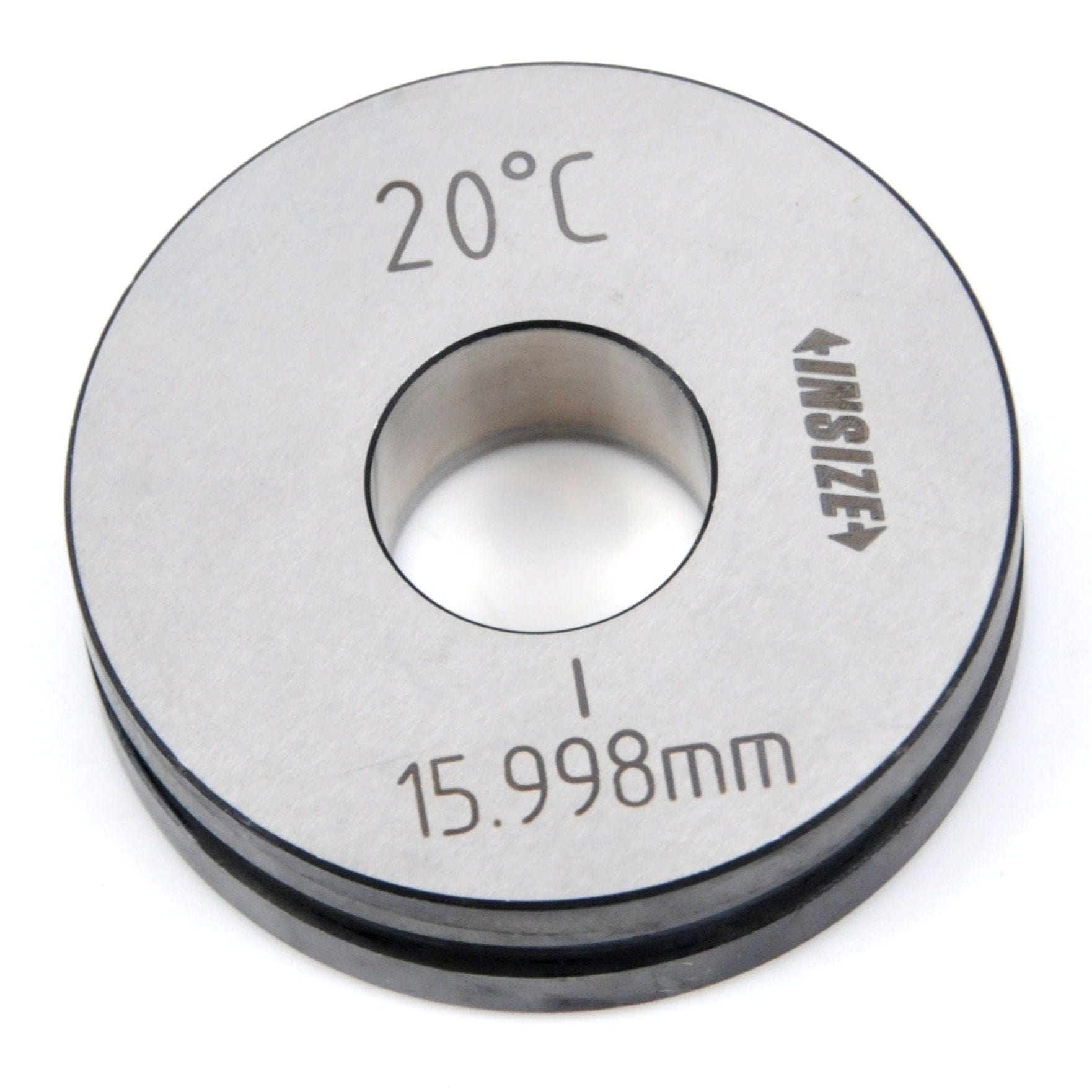

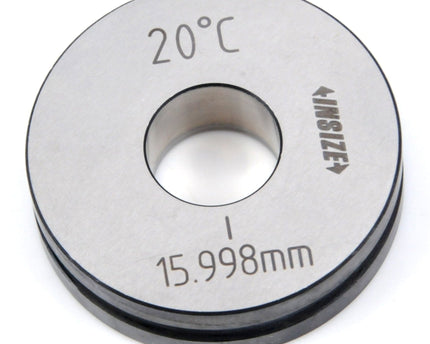

Setting Ring: Ø16 mm (included)
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-

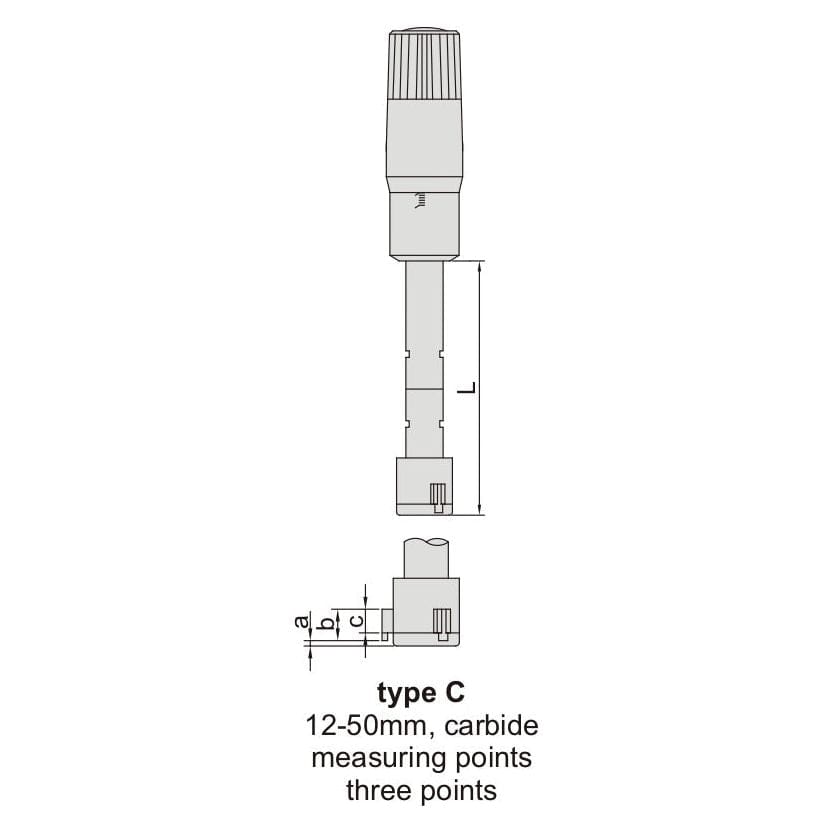

Type: C – Three-point inside micrometer
-

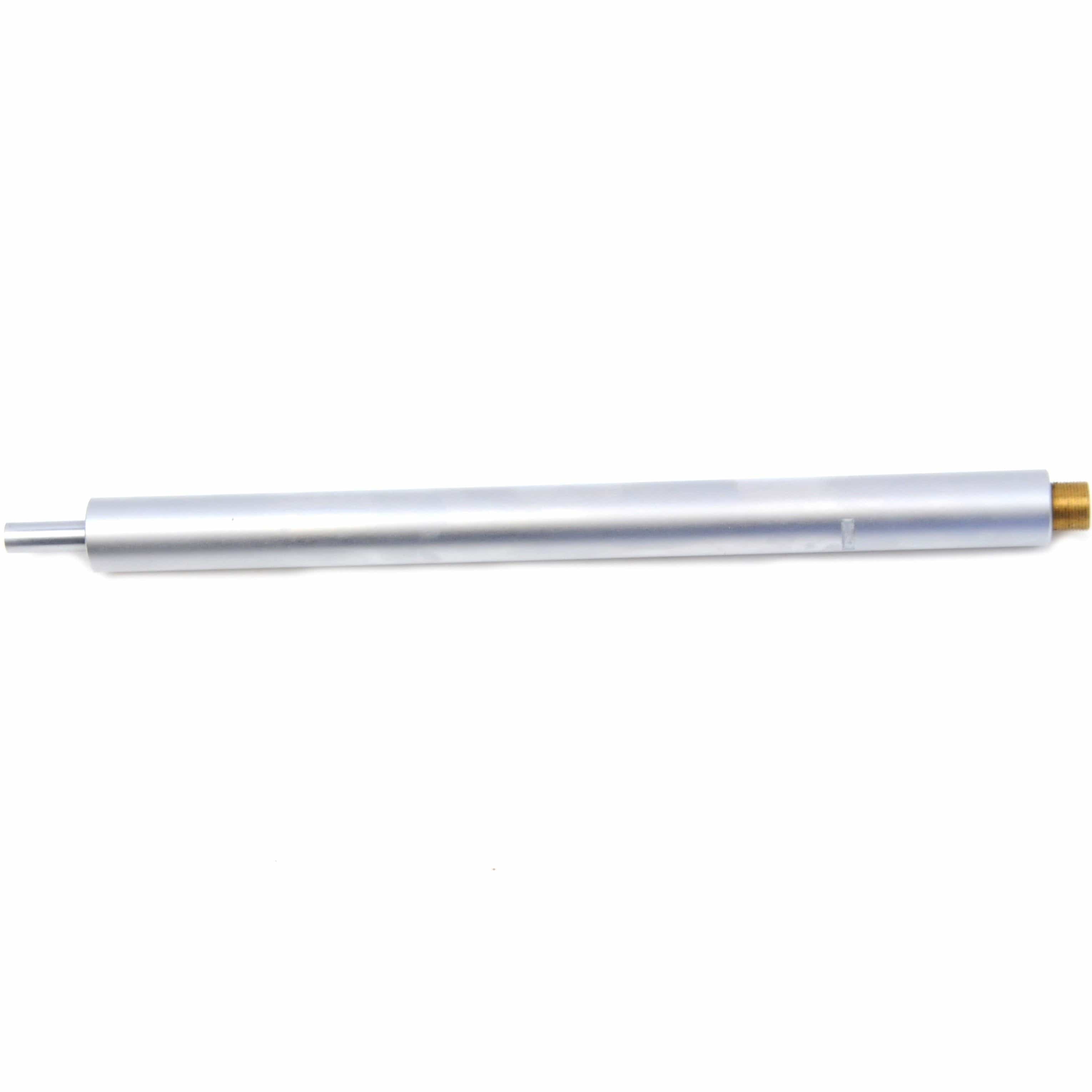

Extension Rod: 150 mm
-
L: 80 mm
-
A: 0.5 mm
-
B: 6 mm
-
C: 4.5 mm

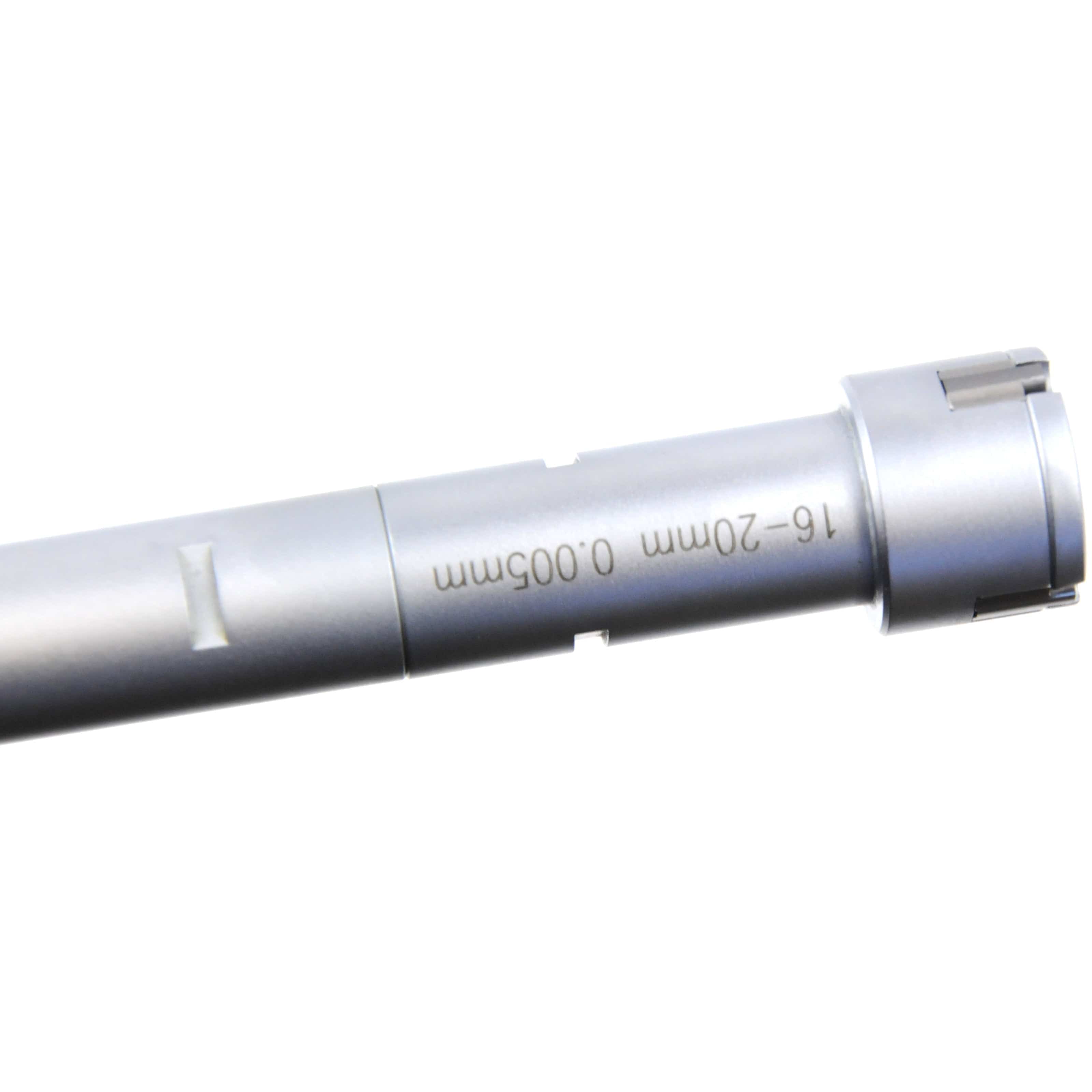

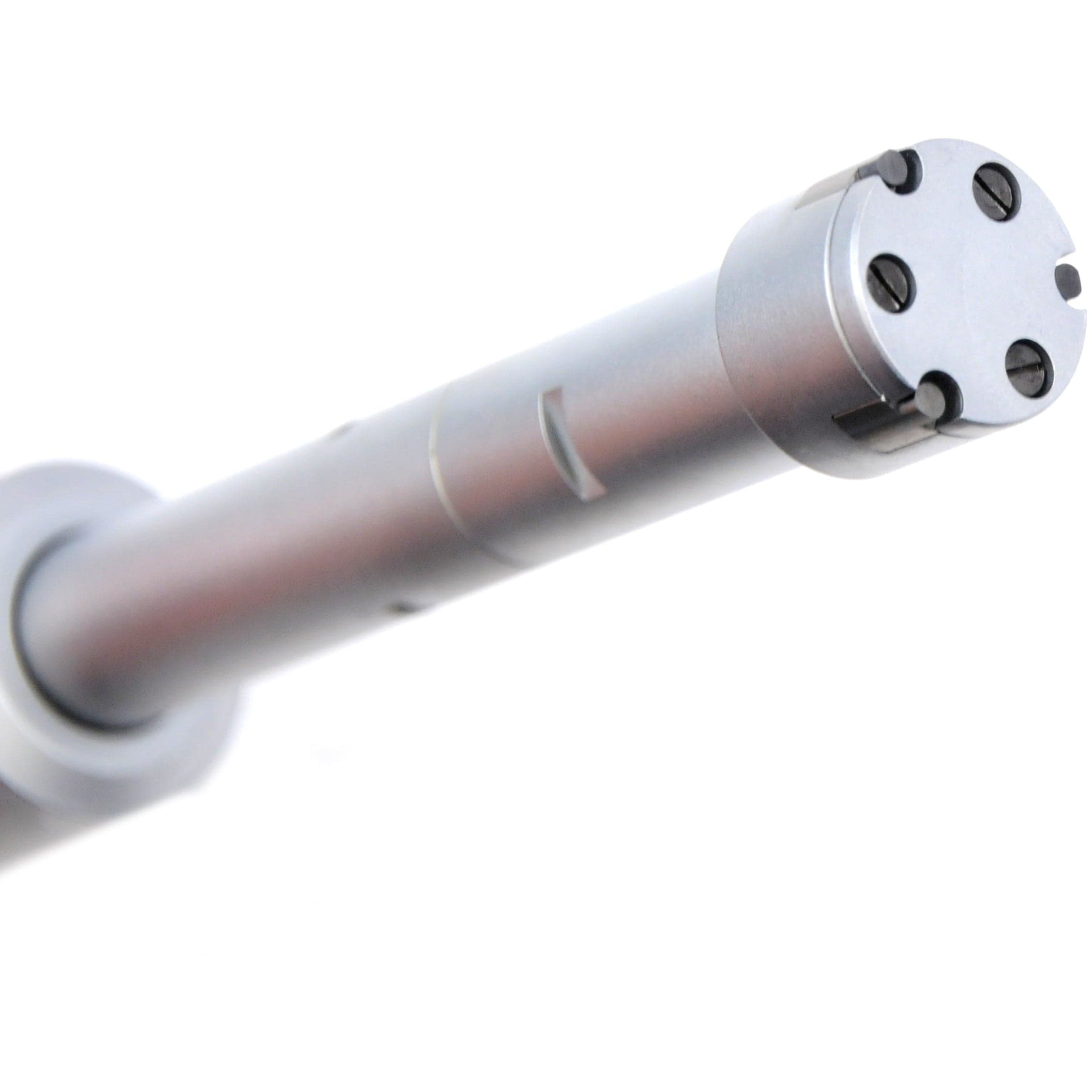

- Carbide measuring points

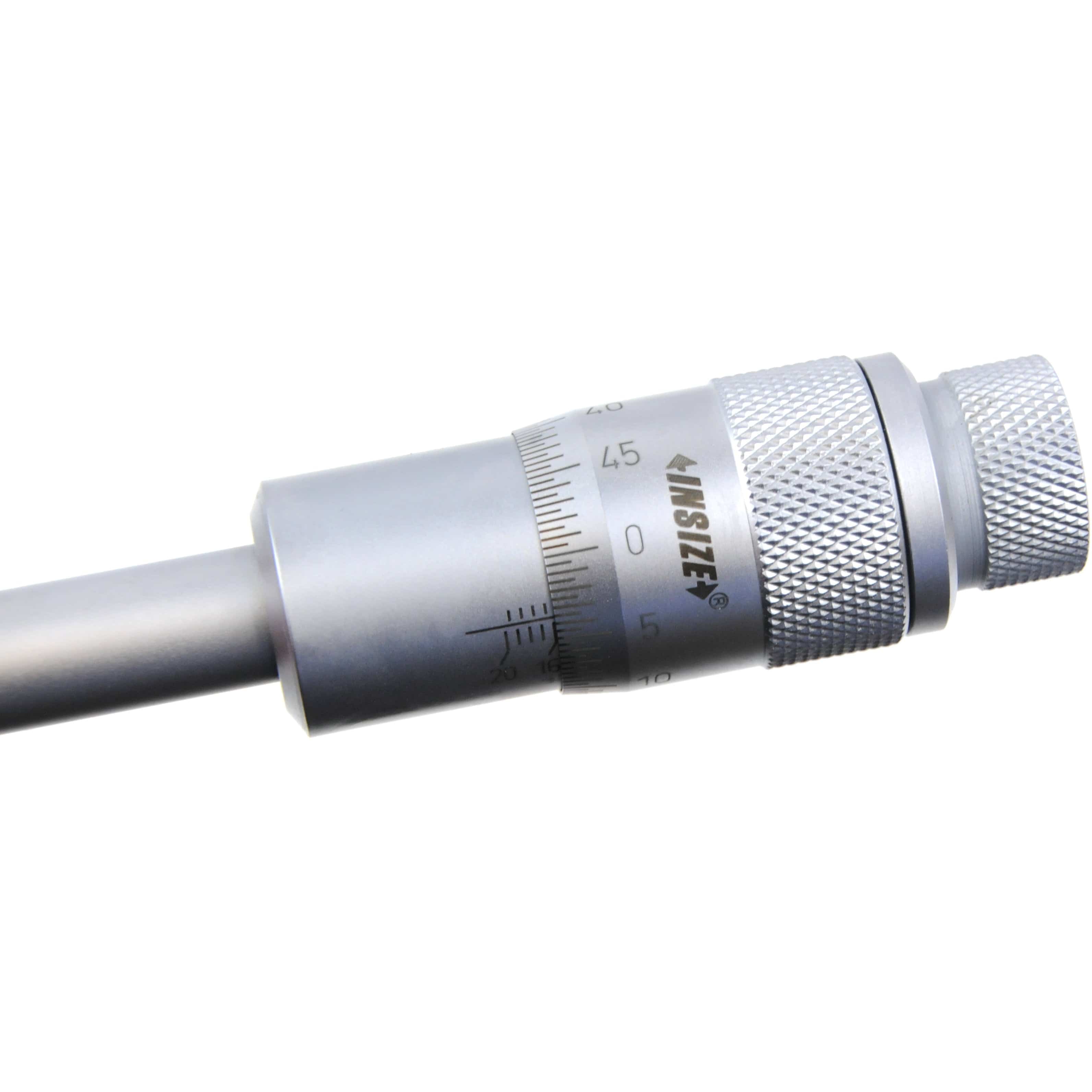

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers deliver reliable accuracy and ease of use for precision measurement of small-diameter components.
