Description

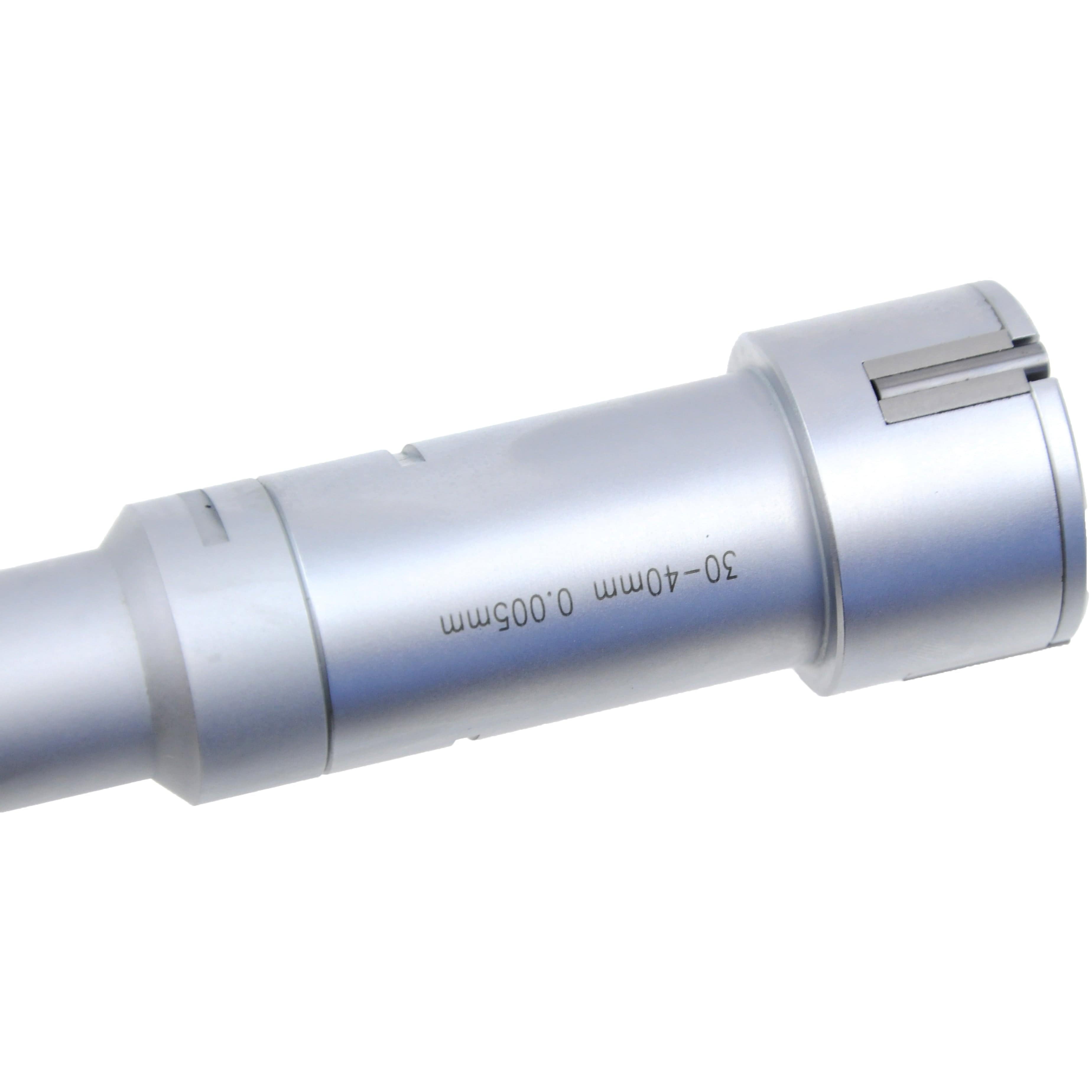

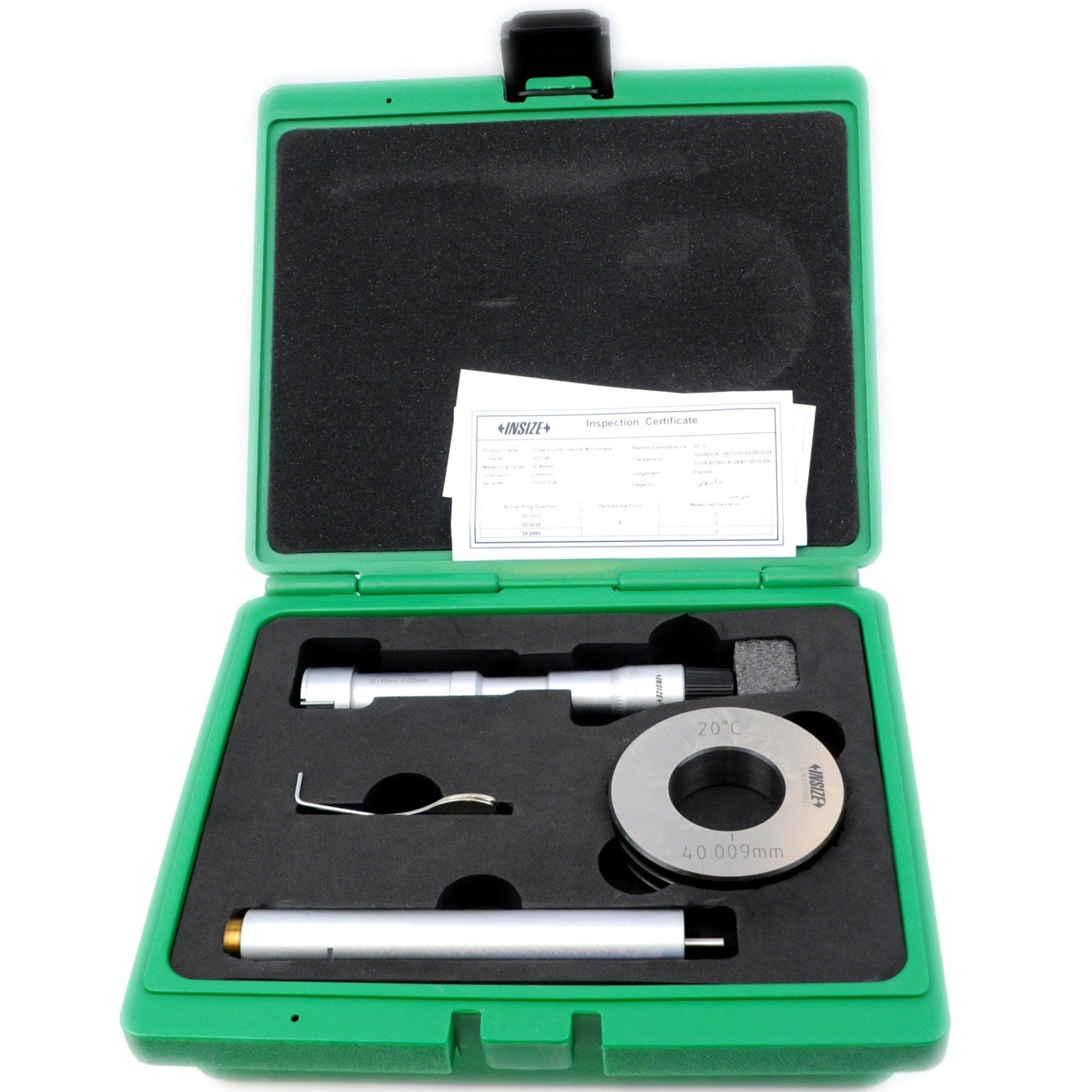

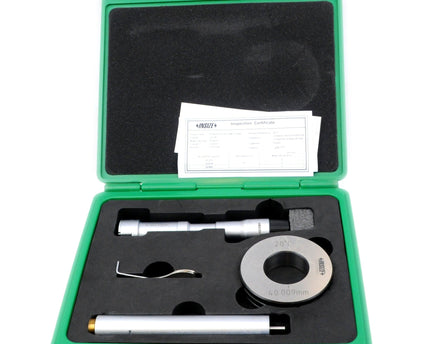

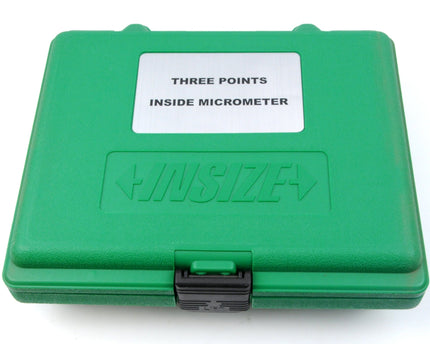

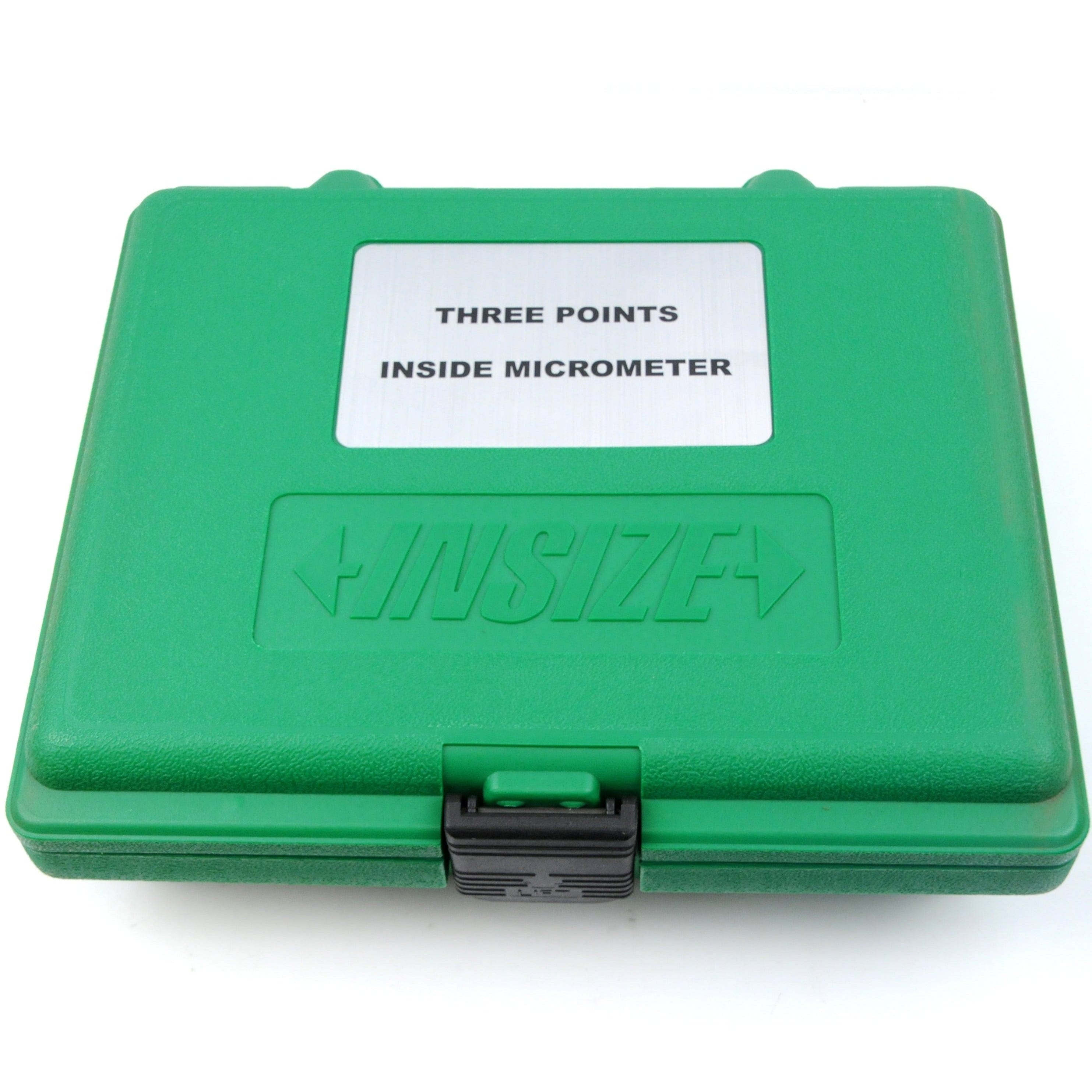

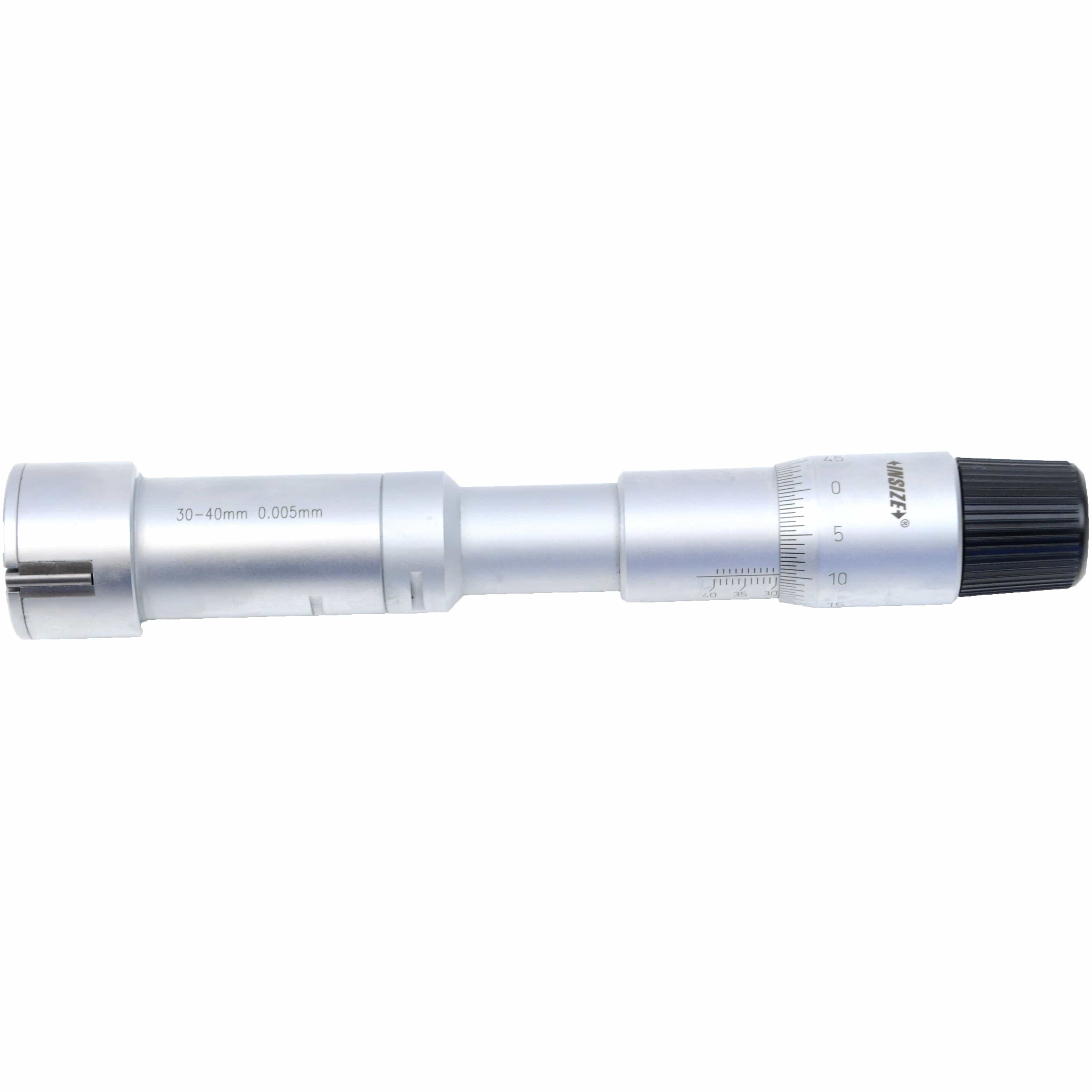

Insize 30–40mm Inside Micrometer
The Insize 30–40mm Inside Micrometer is designed for precise internal diameter measurement of small to medium bores in machining, inspection, and quality control applications. Its three-point measuring system ensures excellent centring, stability, and repeatable accuracy.

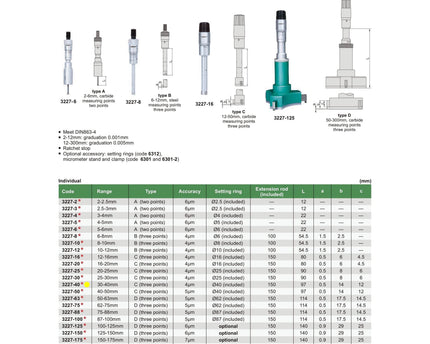

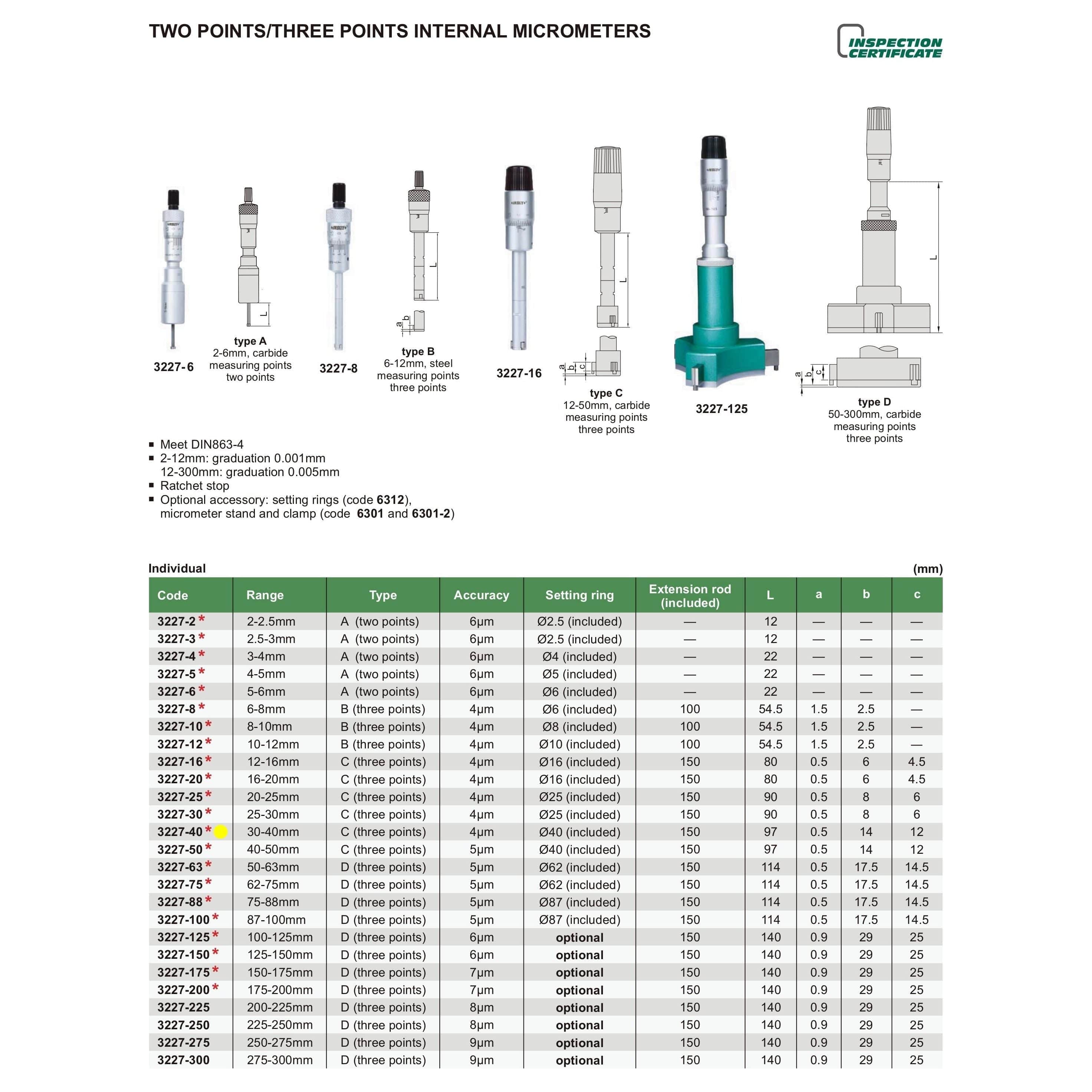

Specifications :
-
Part No: 3227-40
-
Measuring Range: 30–40 mm
-

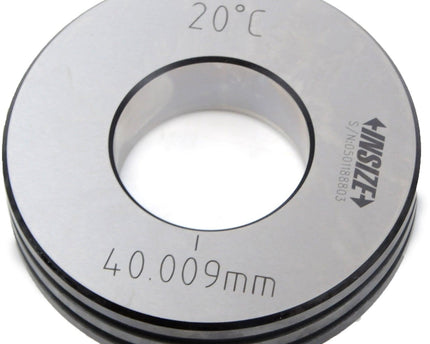

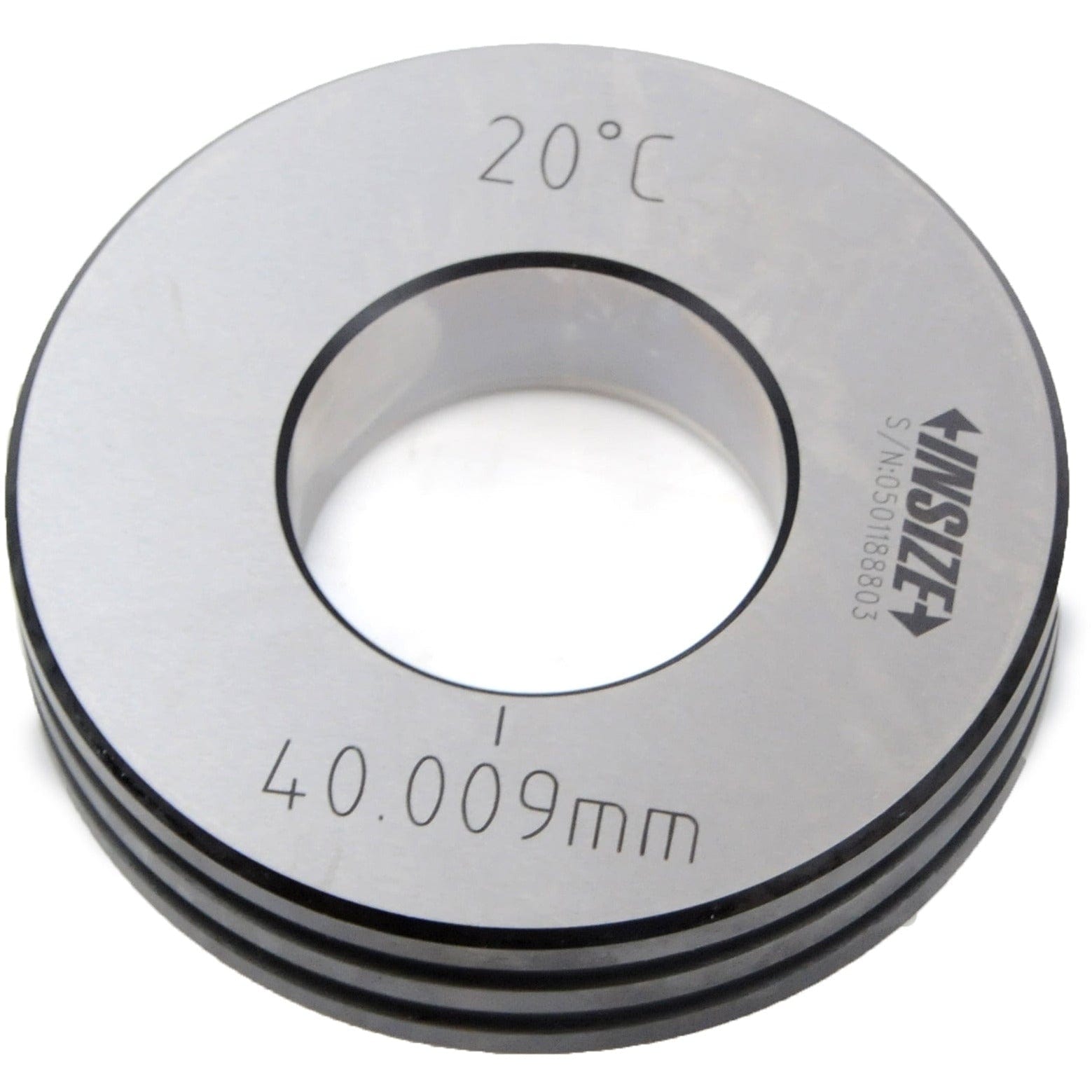

Setting Ring: Ø40 mm (included)
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-

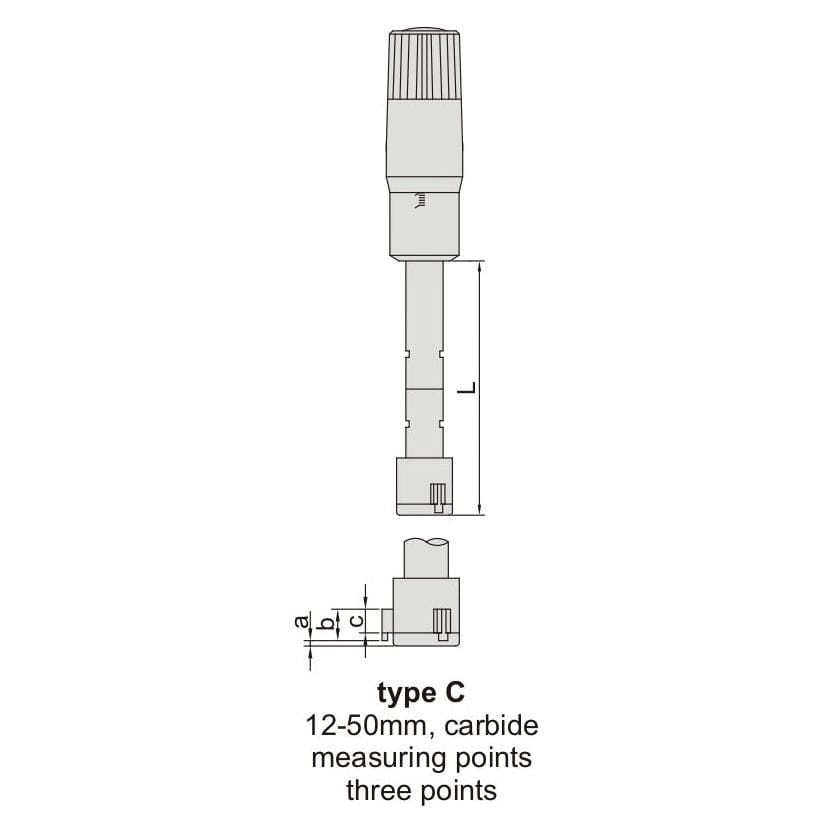

Type: C – Three-point inside micrometer
-

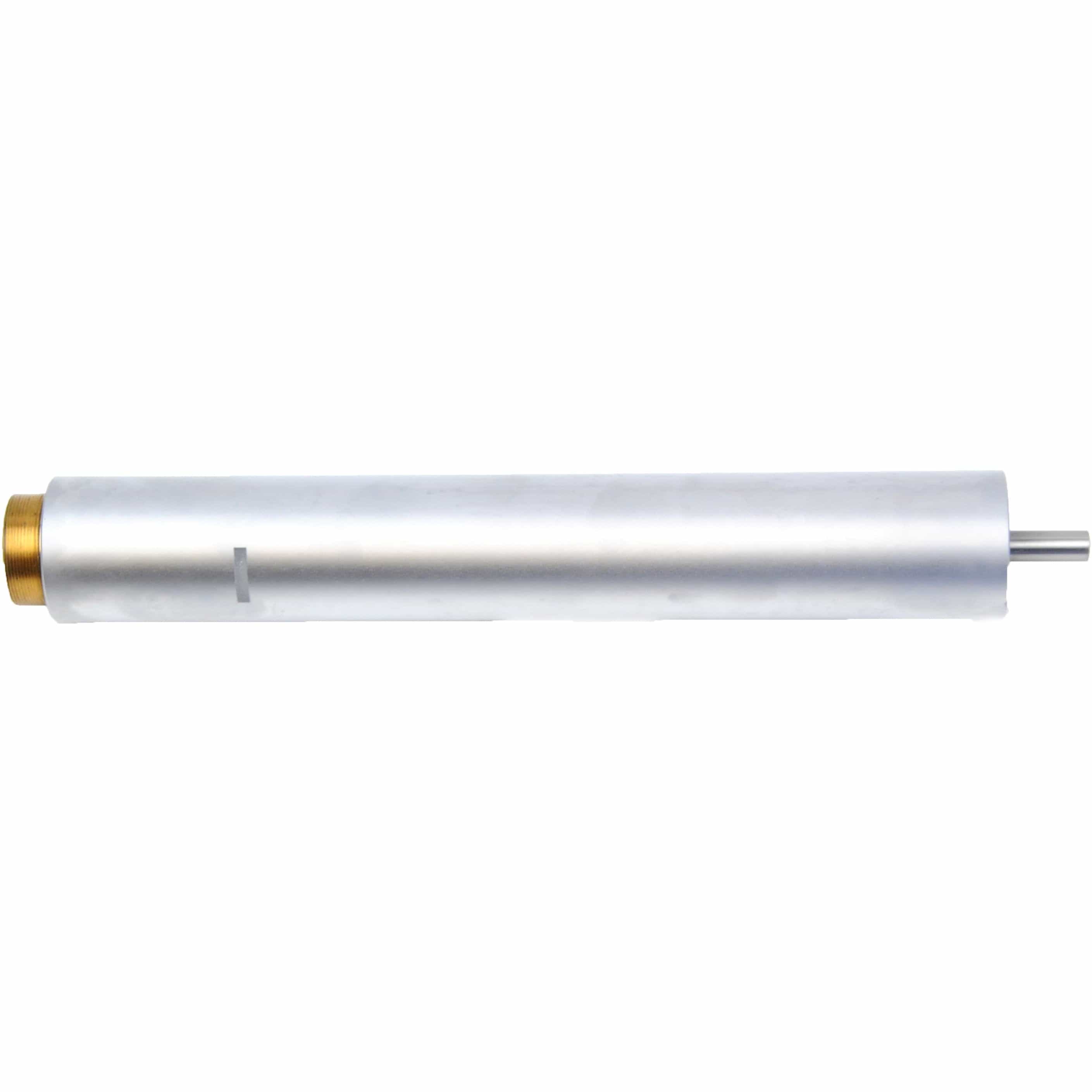

Extension Rod: 150 mm
-
L: 97 mm
-
A: 0.5 mm
-
B: 14 mm
-
C: 12 mm
- Carbide measuring points

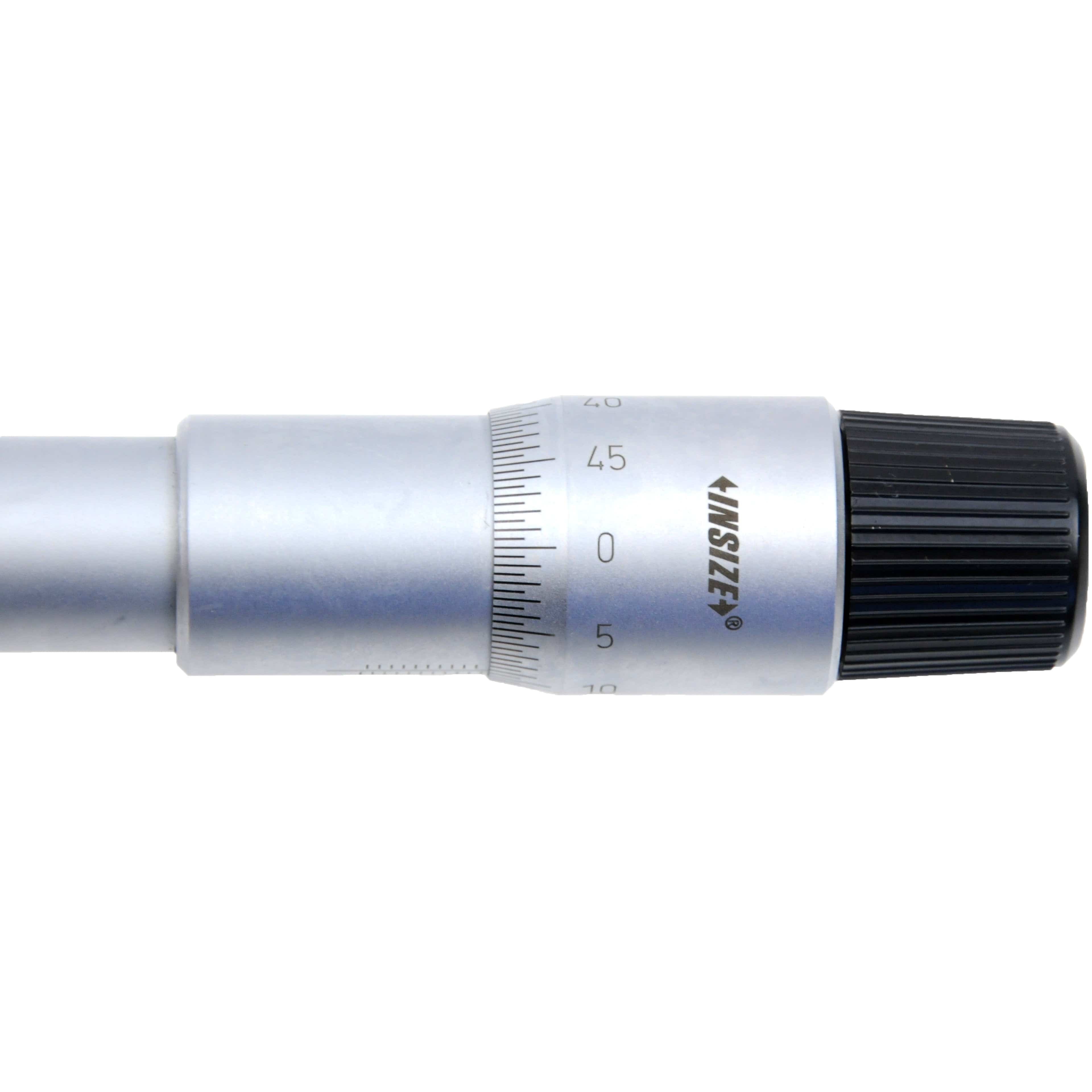

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers deliver reliable accuracy and ease of use for precision measurement of internal diameters.
