Description

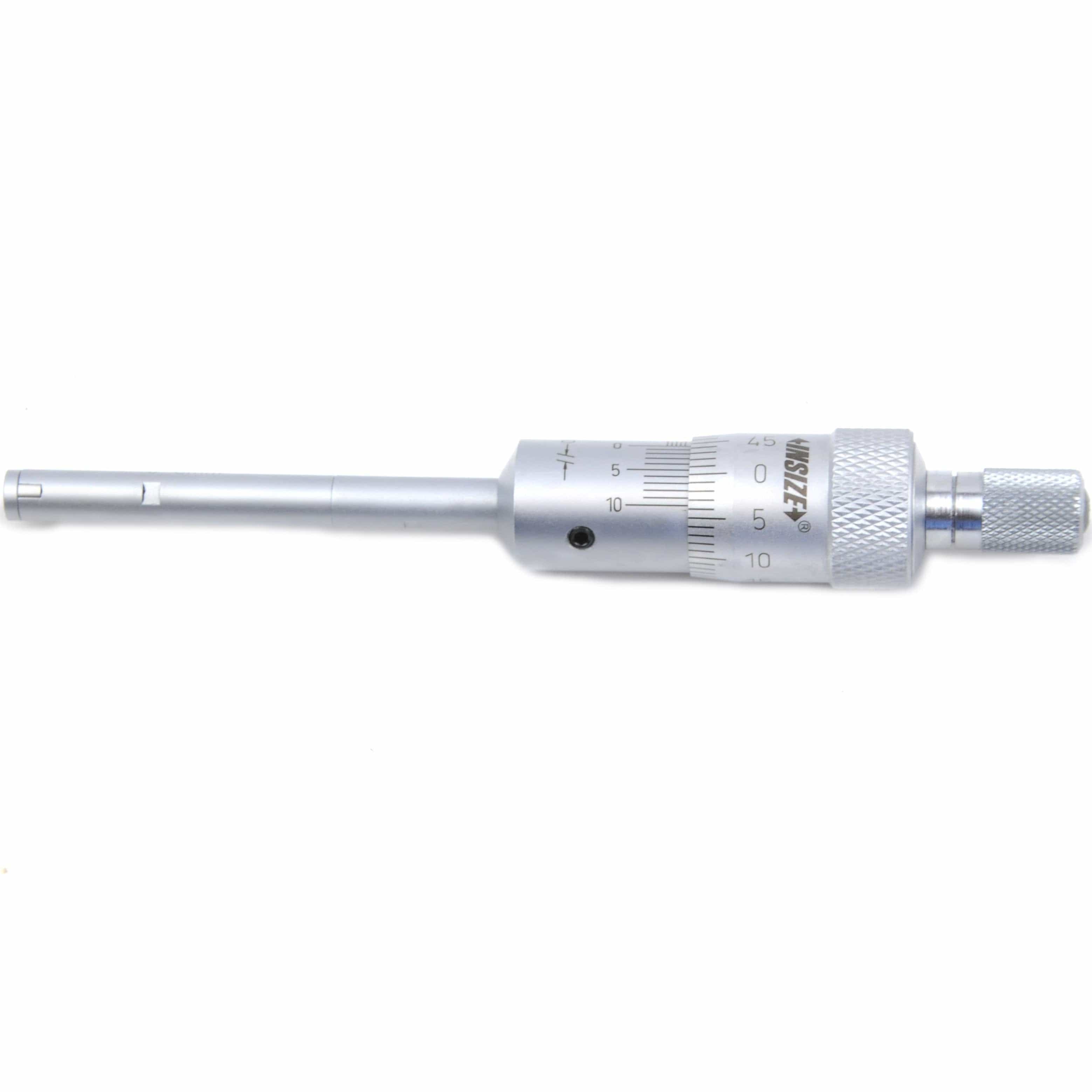

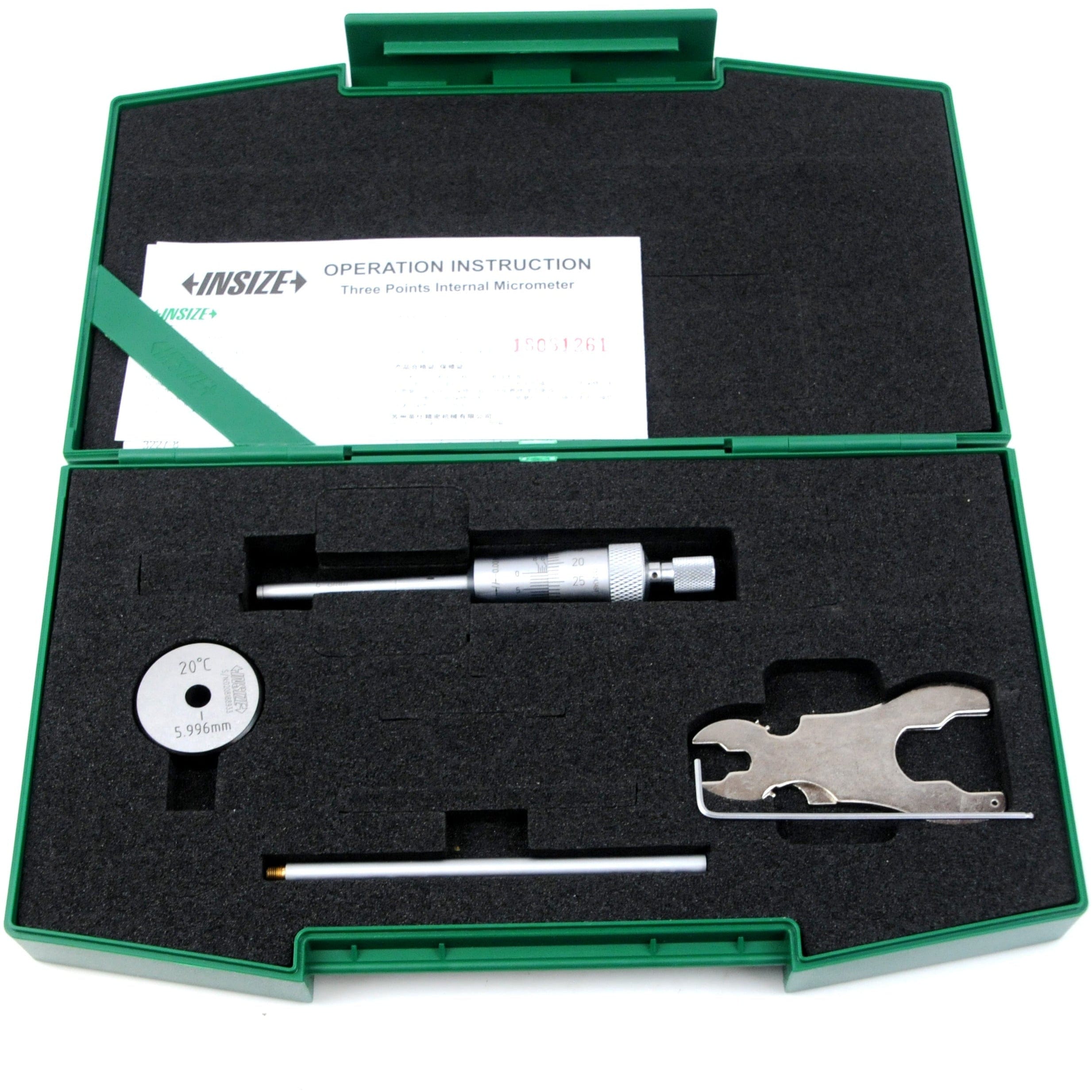

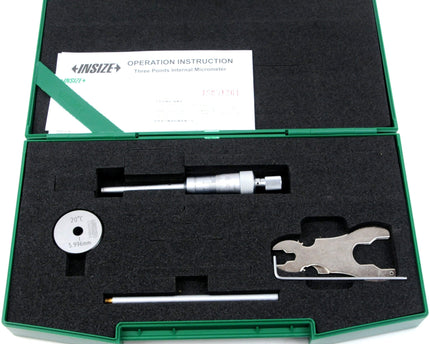

Insize 6–8mm Inside Micrometer

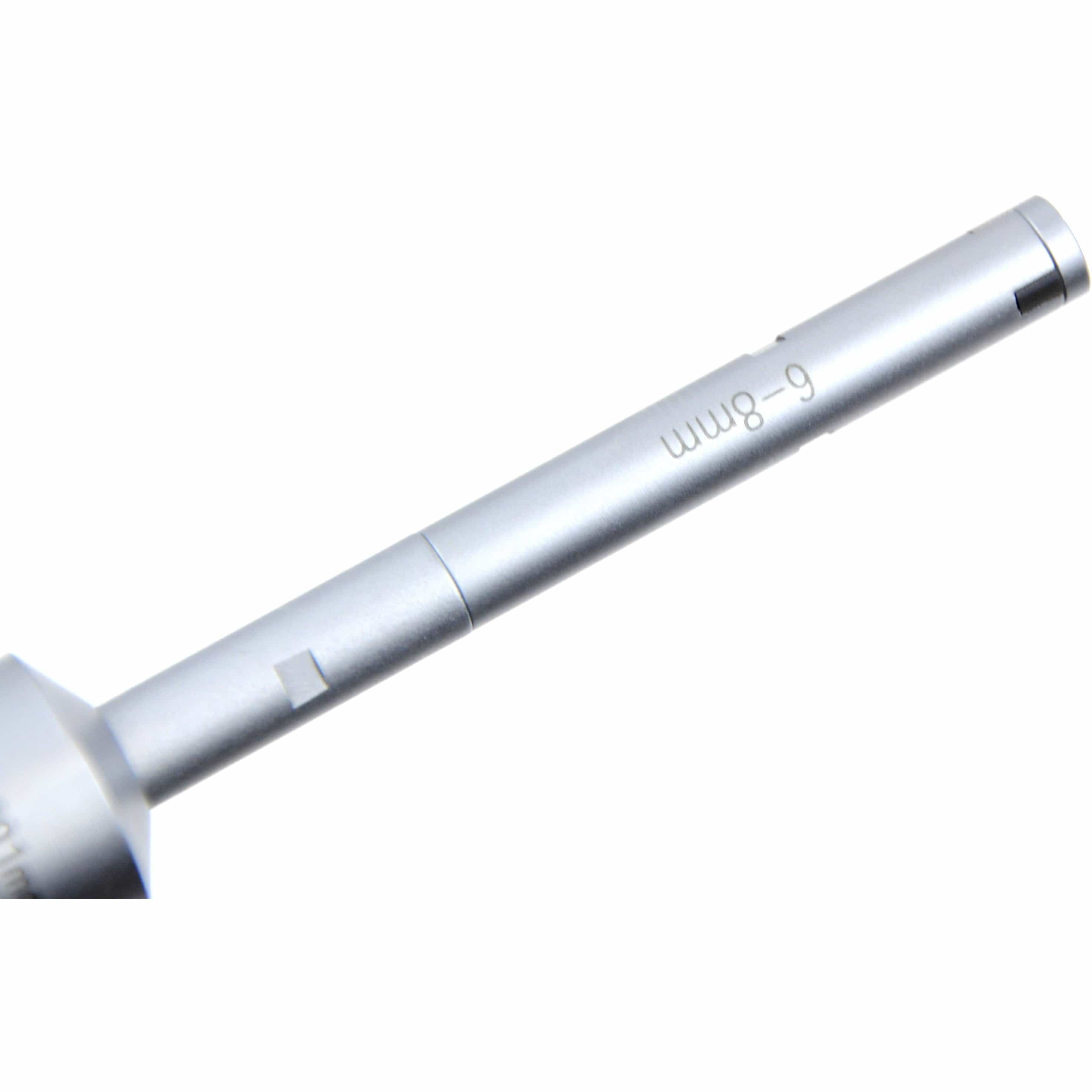

The Insize 6–8mm Inside Micrometer is designed for precise internal diameter measurement of very small bores in machining, inspection, and toolroom applications. Its three-point measuring system ensures accurate centring, stability, and repeatable results in tight tolerance work.

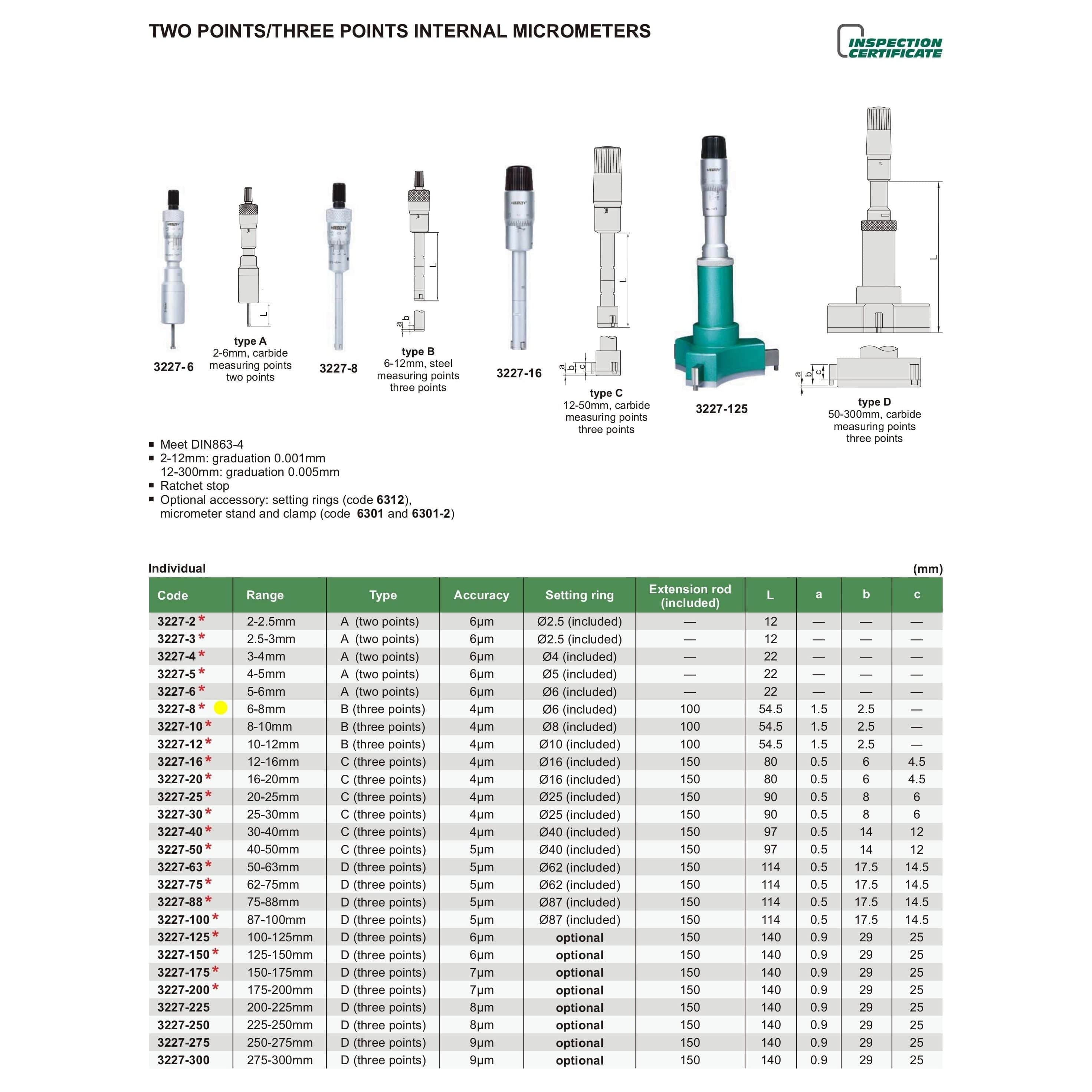

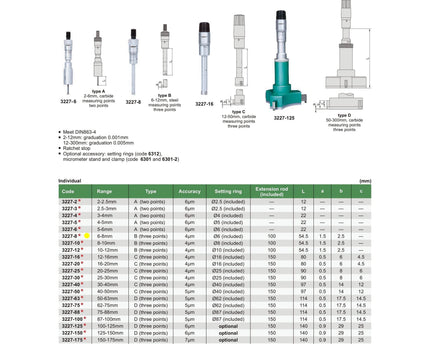

Specifications :
-
Part No: 3227-8
-
Measuring Range: 6–8 mm
-

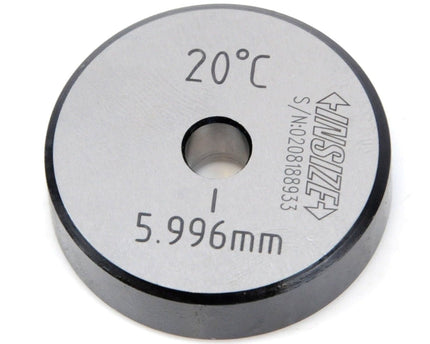

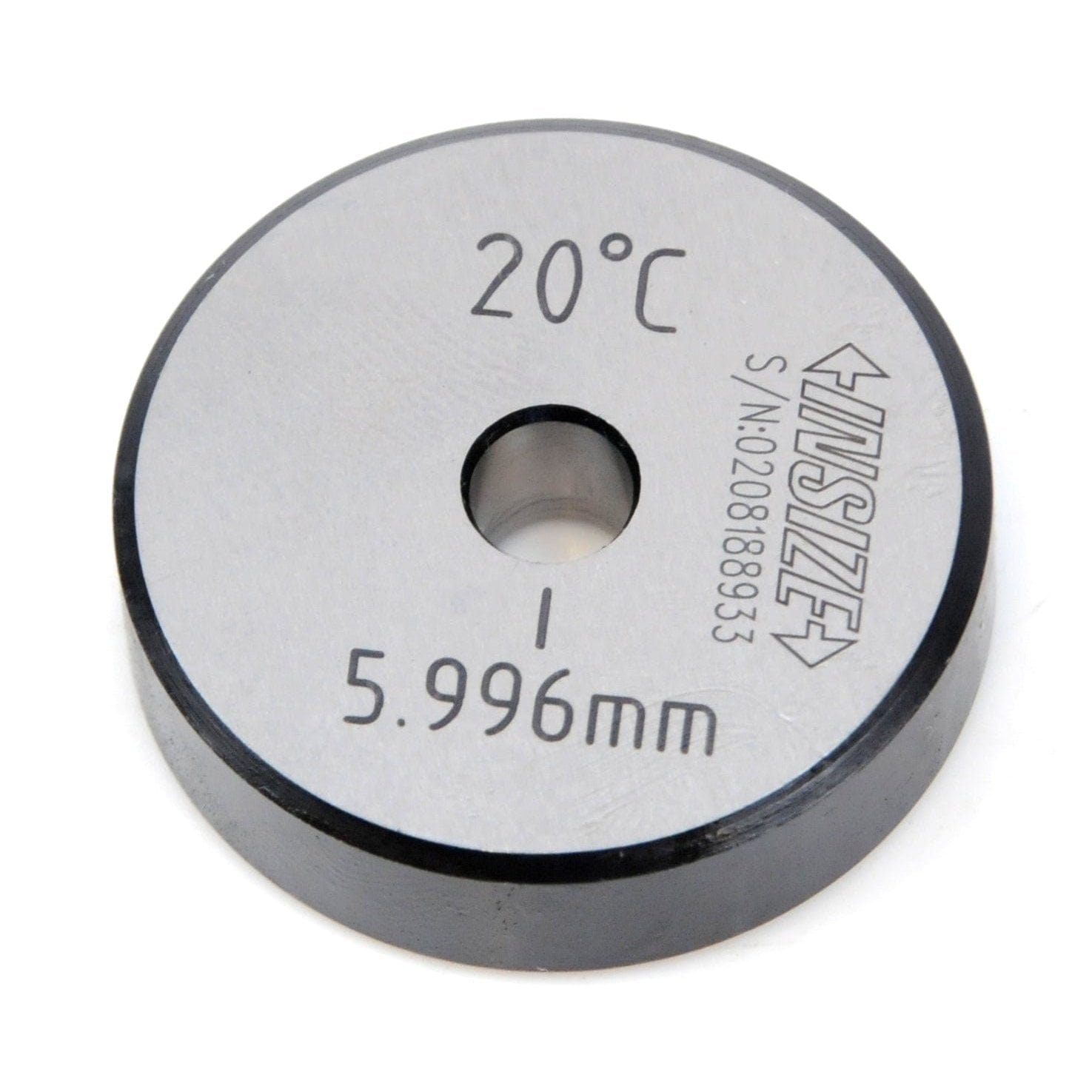

Setting Ring: Ø6 mm (included)
-
Graduation (6–12 mm range): 0.001 mm
-
Graduation (12–300 mm range reference): 0.005 mm
-

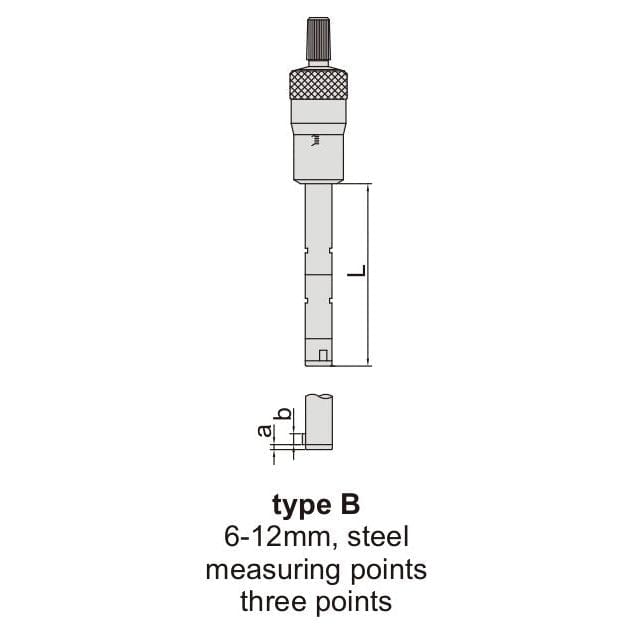

Type: B – Three-point inside micrometer
-

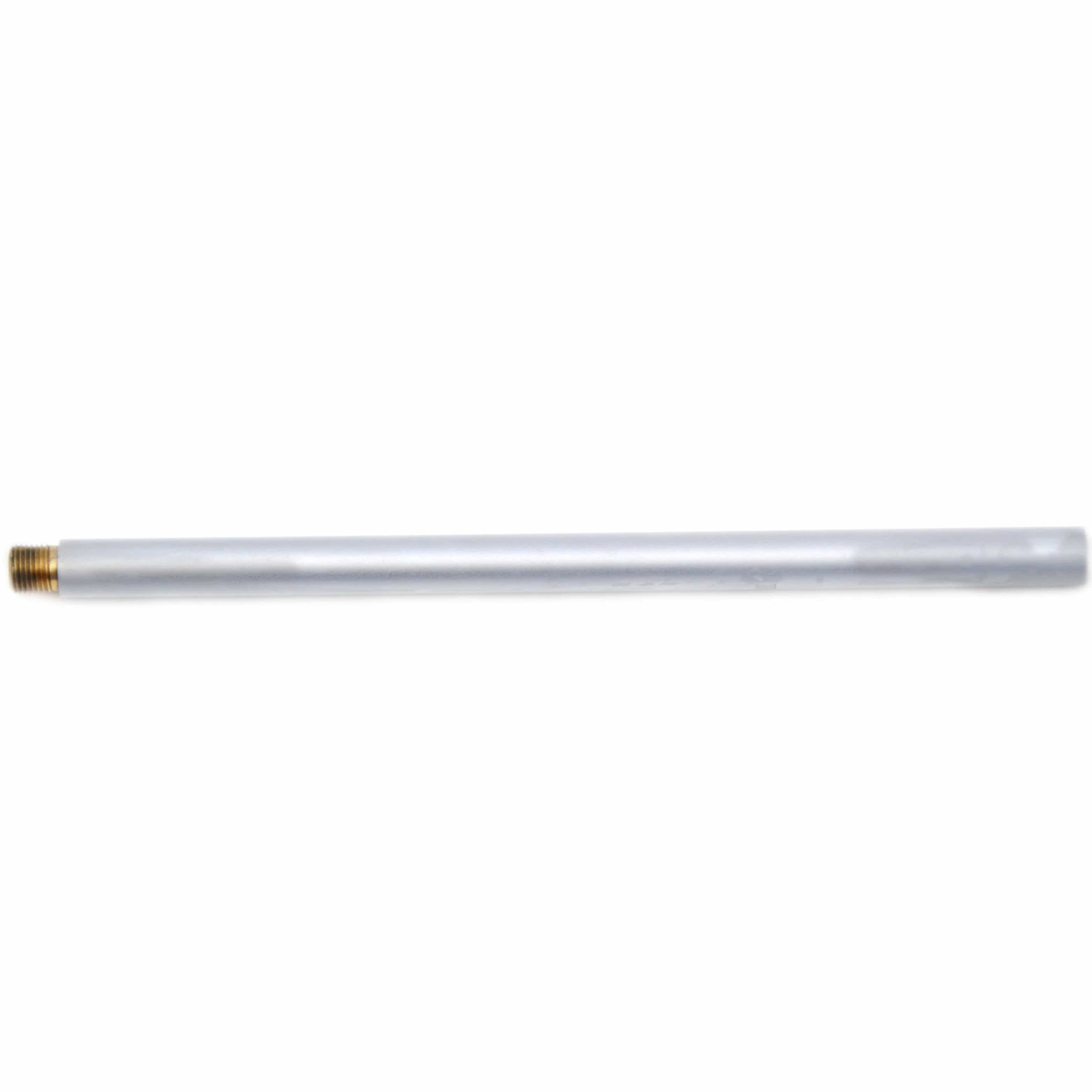

Extension Rod: 100 mm
-
L: 54.5 mm
-
A: 1.5 mm
-
B: 2.5 mm
- Steel measuring points

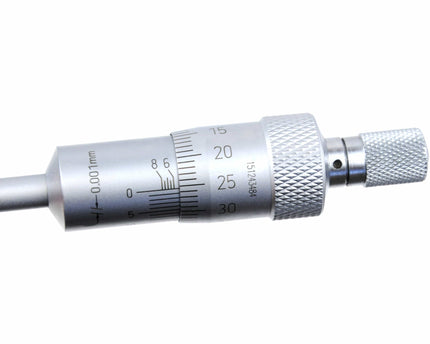

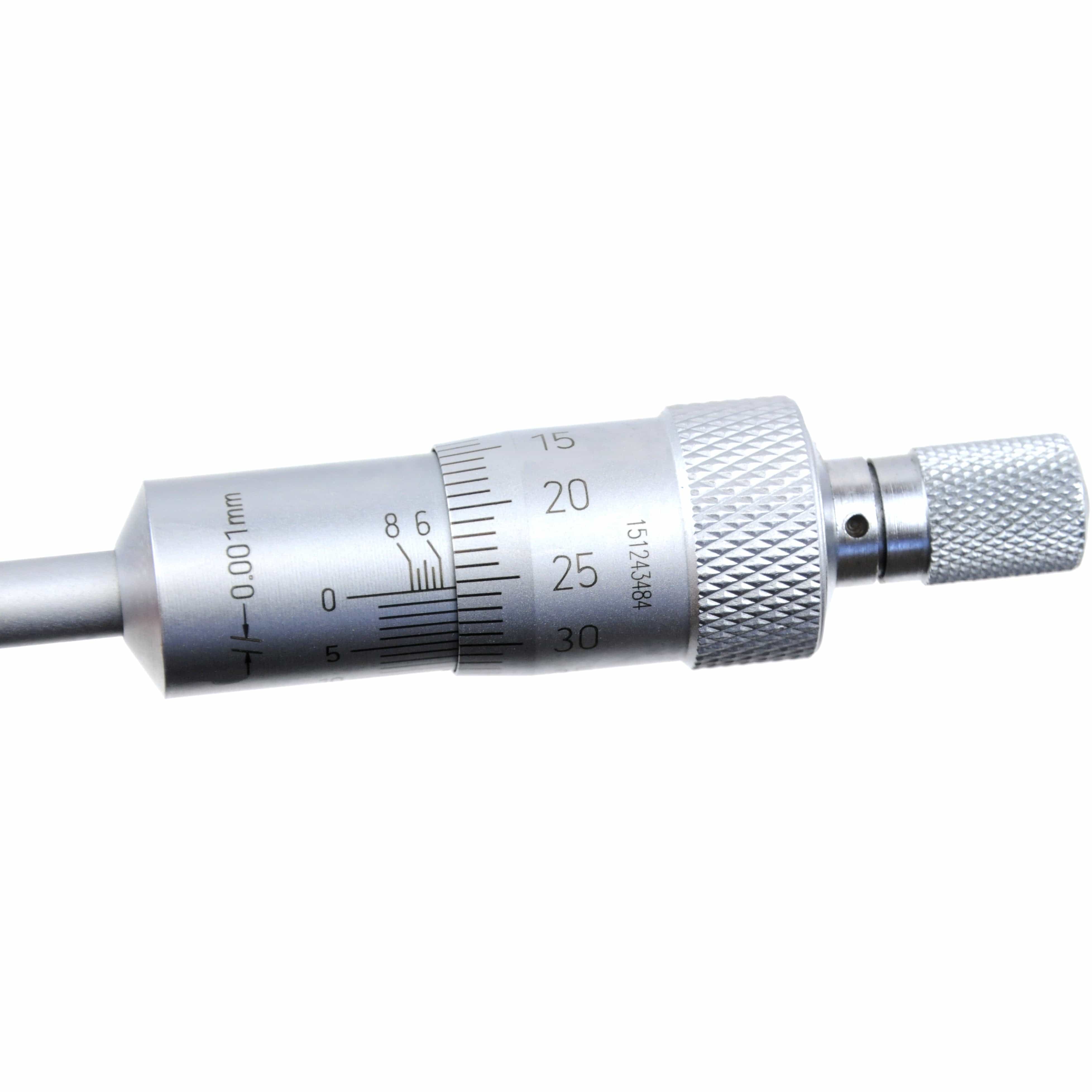

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-

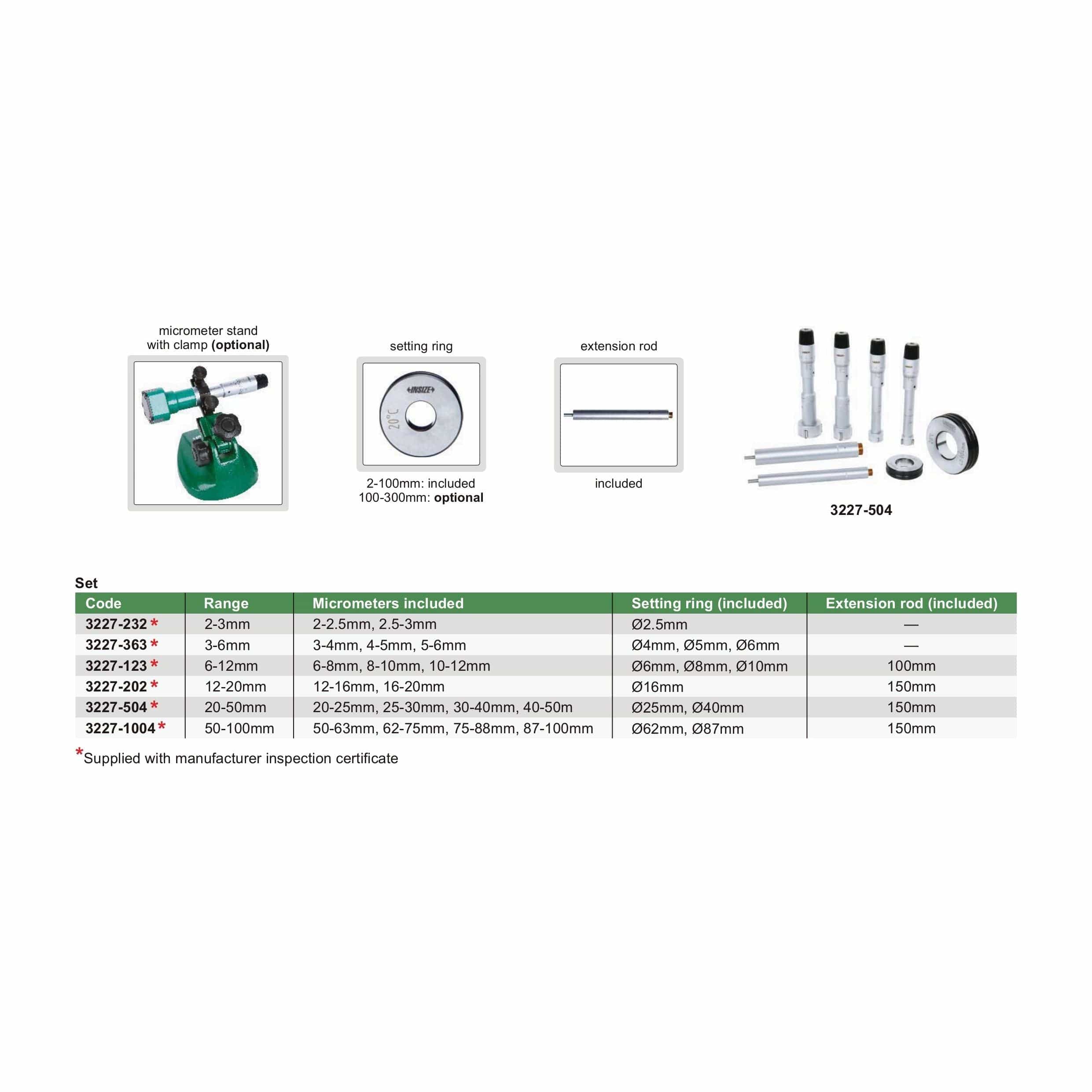

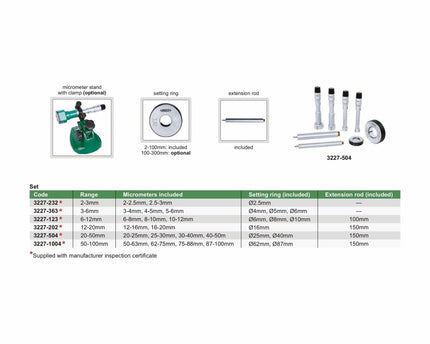

Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers provide dependable accuracy and ease of use for precision measurement of small internal diameters.
