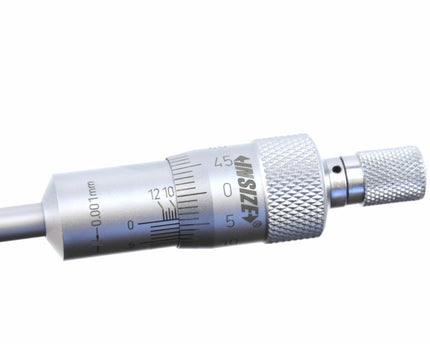

Insize 8–10mm Inside Micrometer
The Insize 8–10mm Inside Micrometer is designed for high-precision internal diameter measurement of small bores in machining, inspection, and toolroom applications. Featuring a three-point measuring system, this micrometer ensures excellent centring, repeatability, and accuracy when measuring tight internal tolerances.

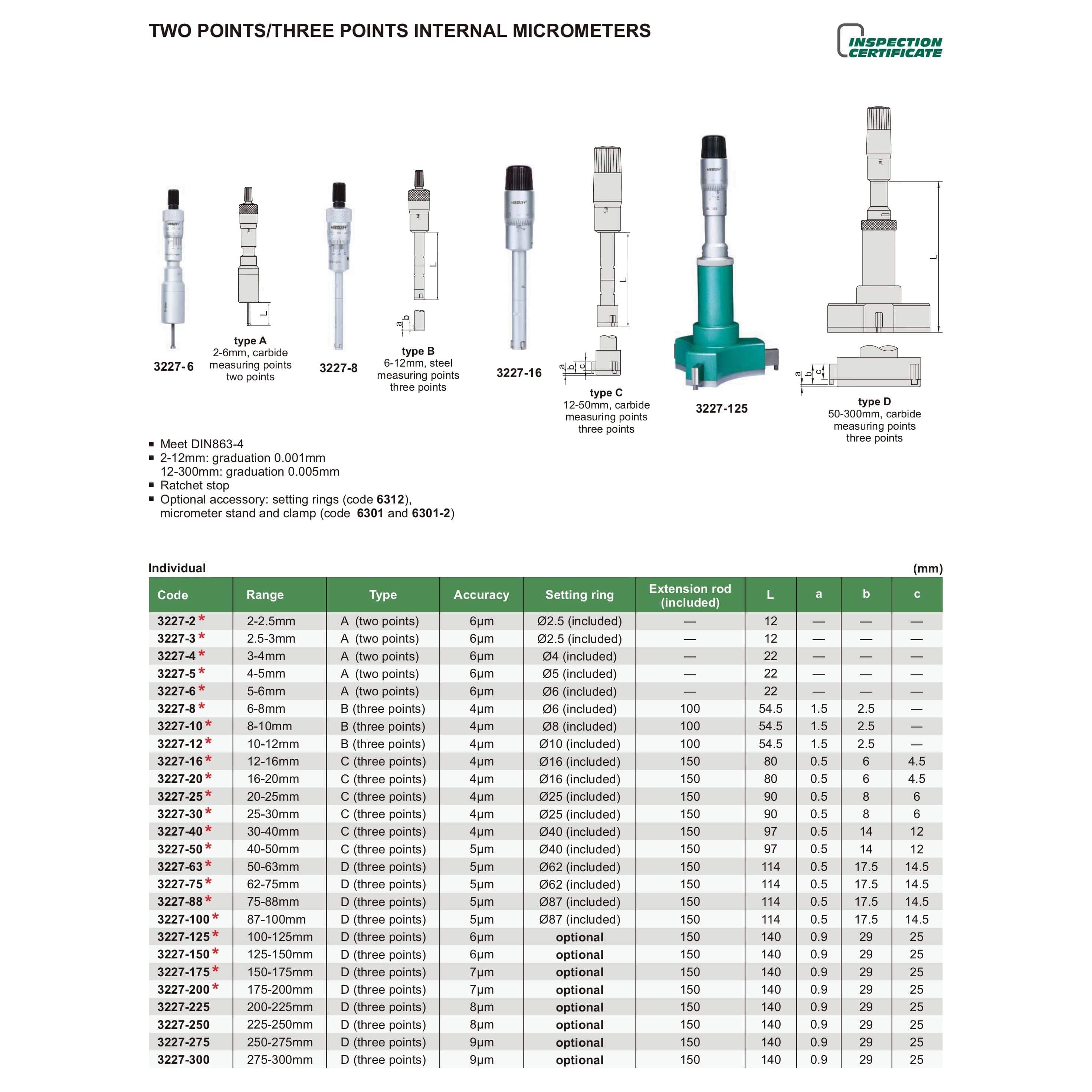

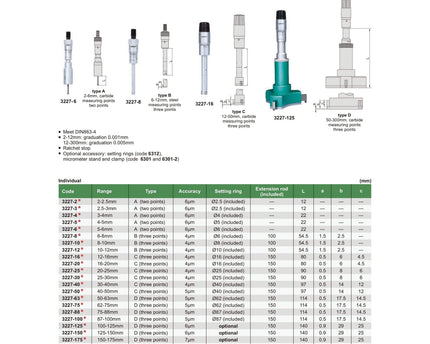

Specifications :
-
Part No: 3227-10
-
Measuring Range: 8–10 mm
-

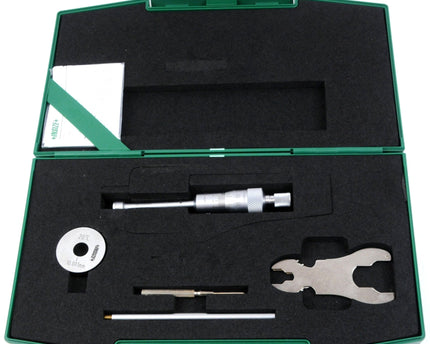

Setting Ring: Ø8 mm (included)
-

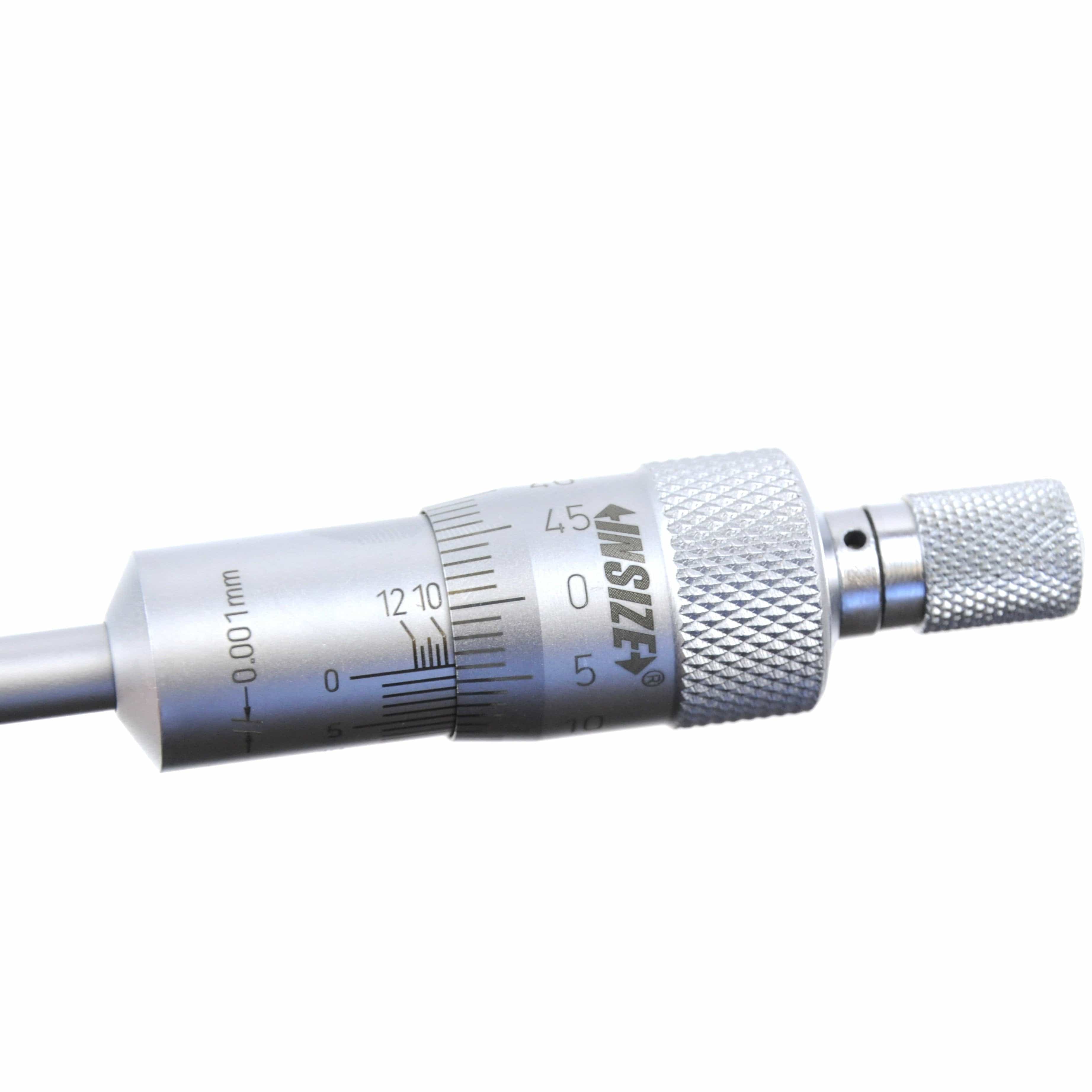

Graduation: 0.001 mm (6–12 mm range)
-
Graduation: 0.005 mm (12–300 mm range)
-

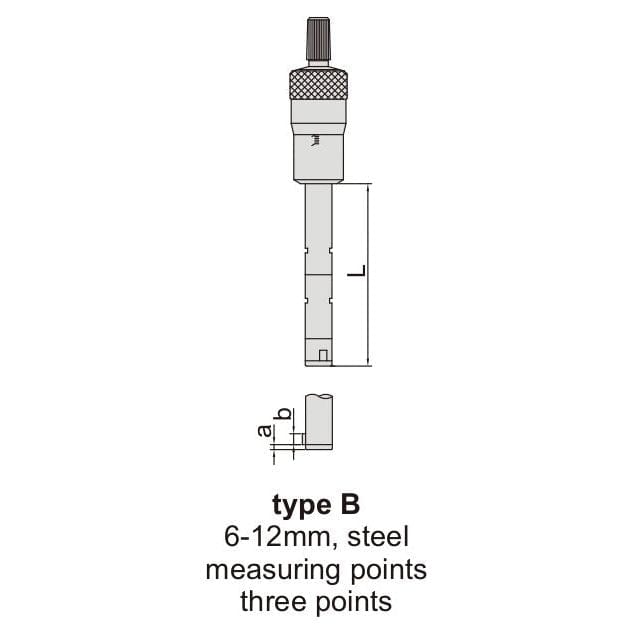

Type: B – Three-point internal micrometer
-

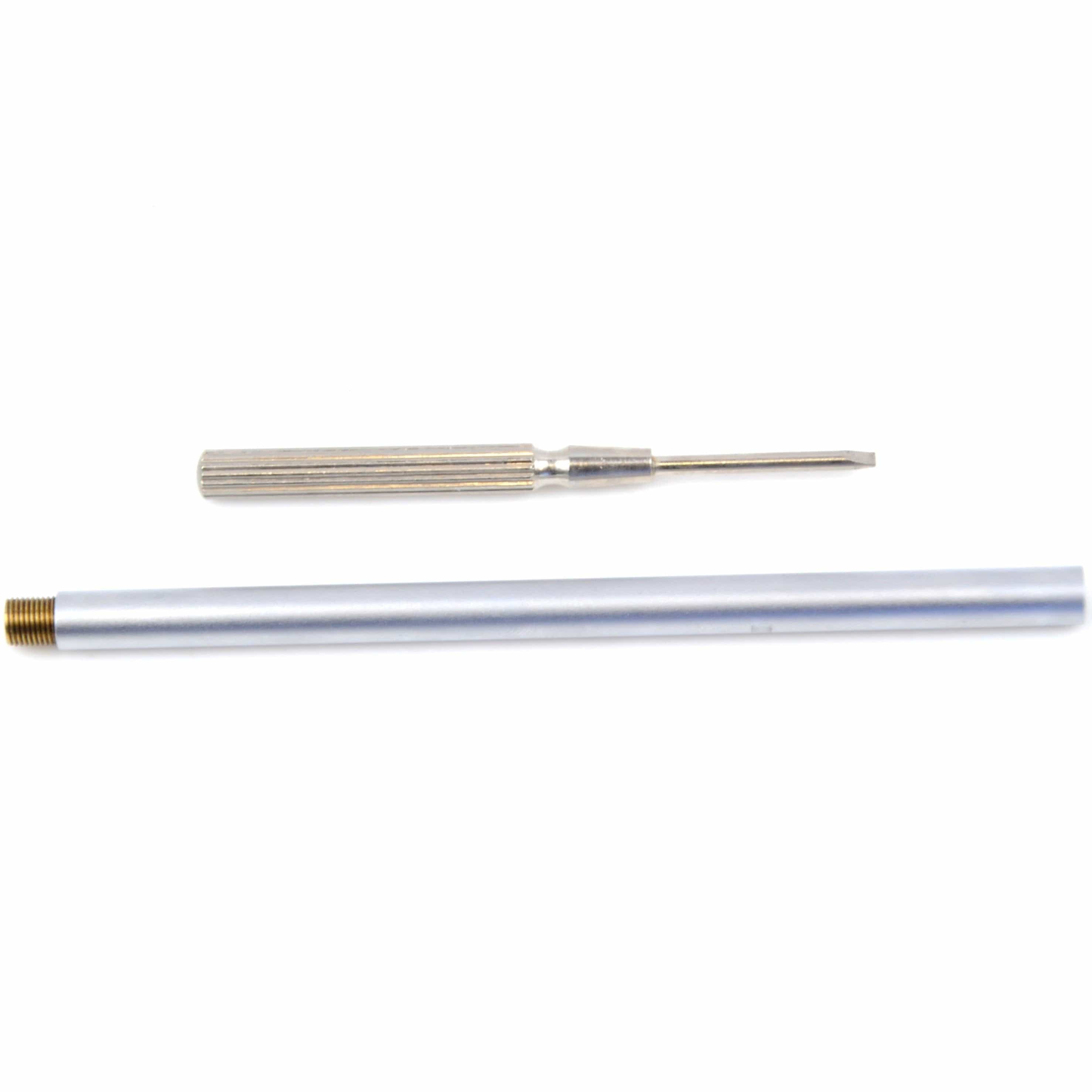

Extension Rods: 100 mm
-
L: 54.5 mm
-
A: 1.5 mm
-
B: 2.5 mm

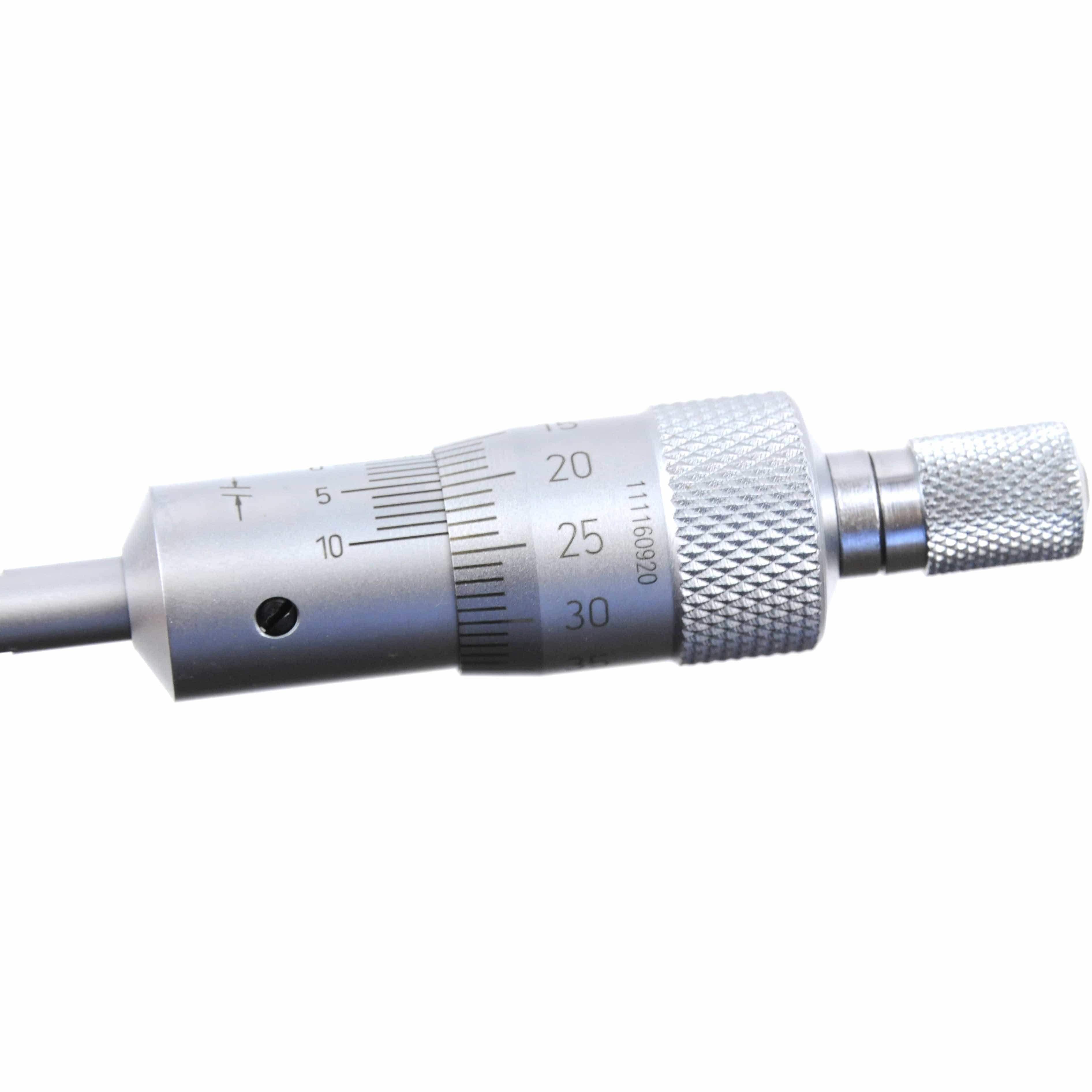

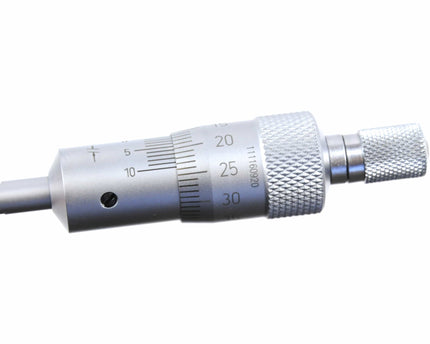

- Ratchet stop for consistent measuring force.

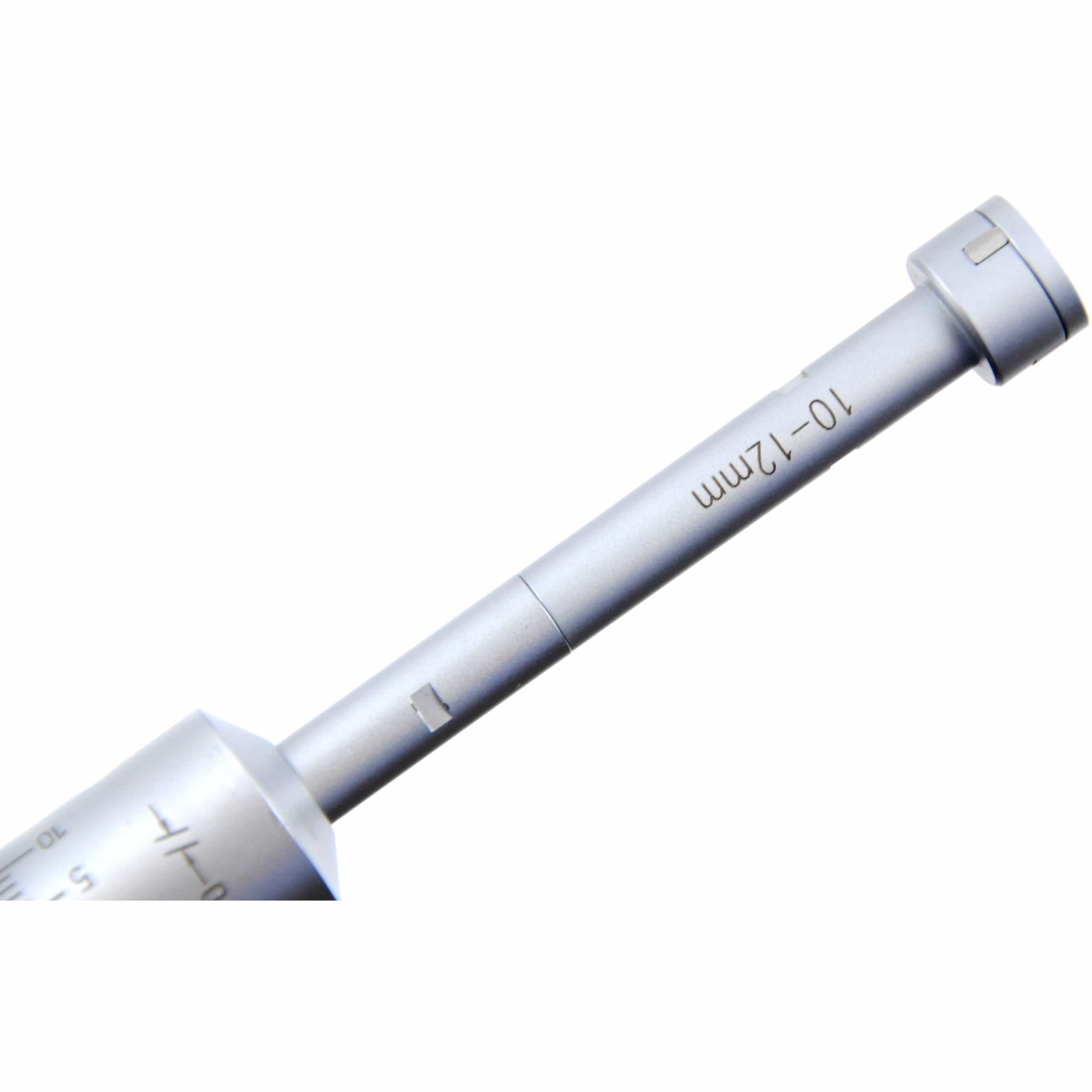

- Steel measuring points.
- Conforms to DIN 863-4.
-

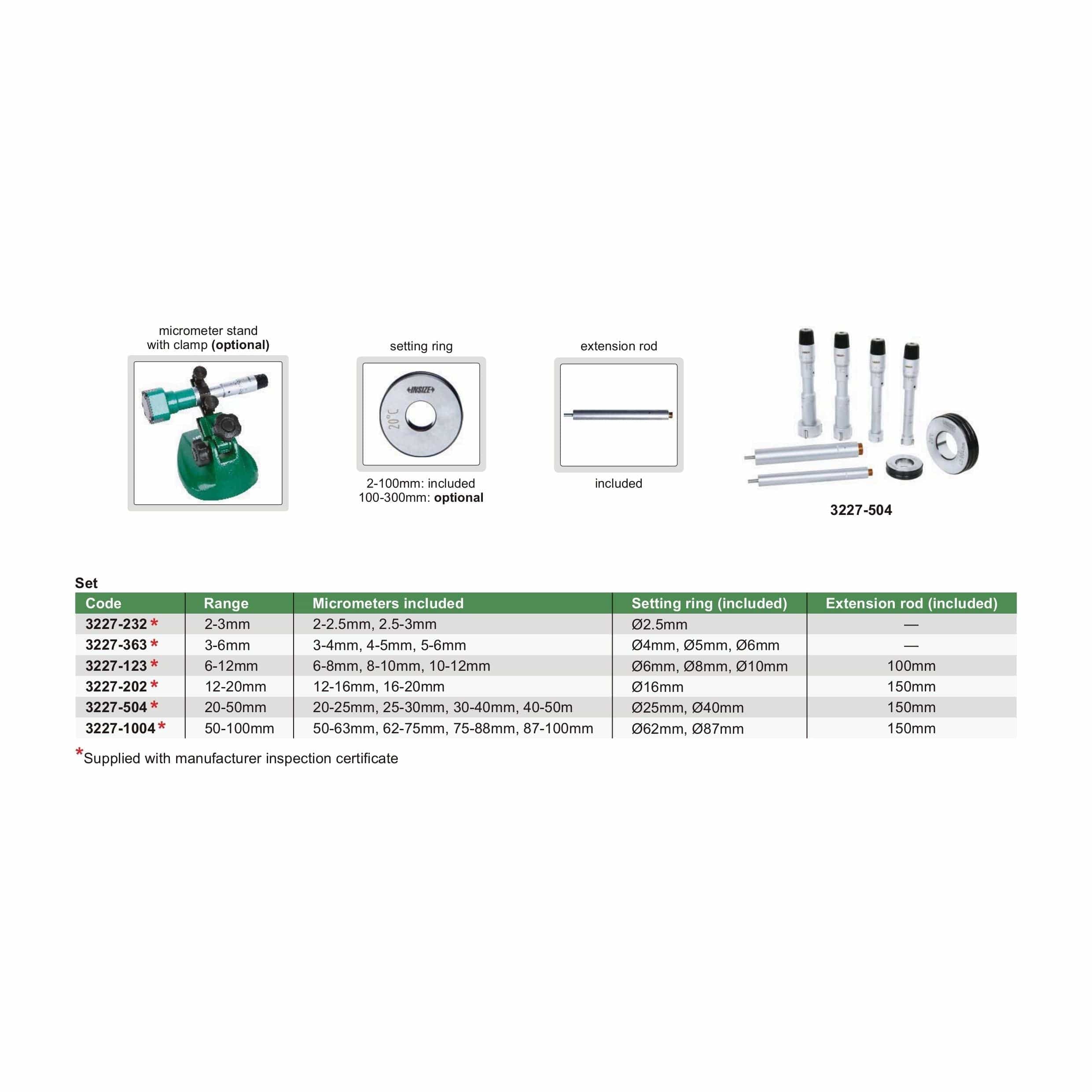

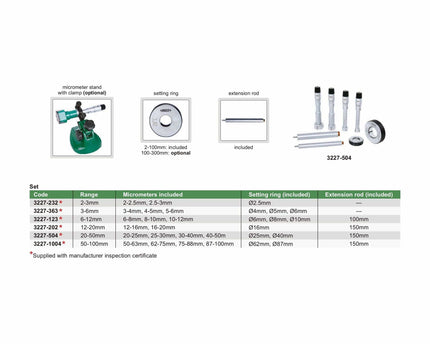

Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Codes 6301, 6301-2).
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement tasks. Insize three-point inside micrometers provide excellent accuracy, stability, and ease of use for precise internal measurement of small-diameter components.
