Insize 20–50mm Inside Micrometer Set

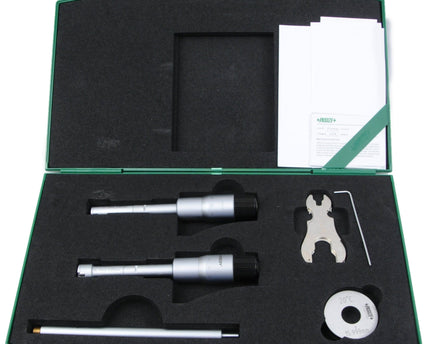

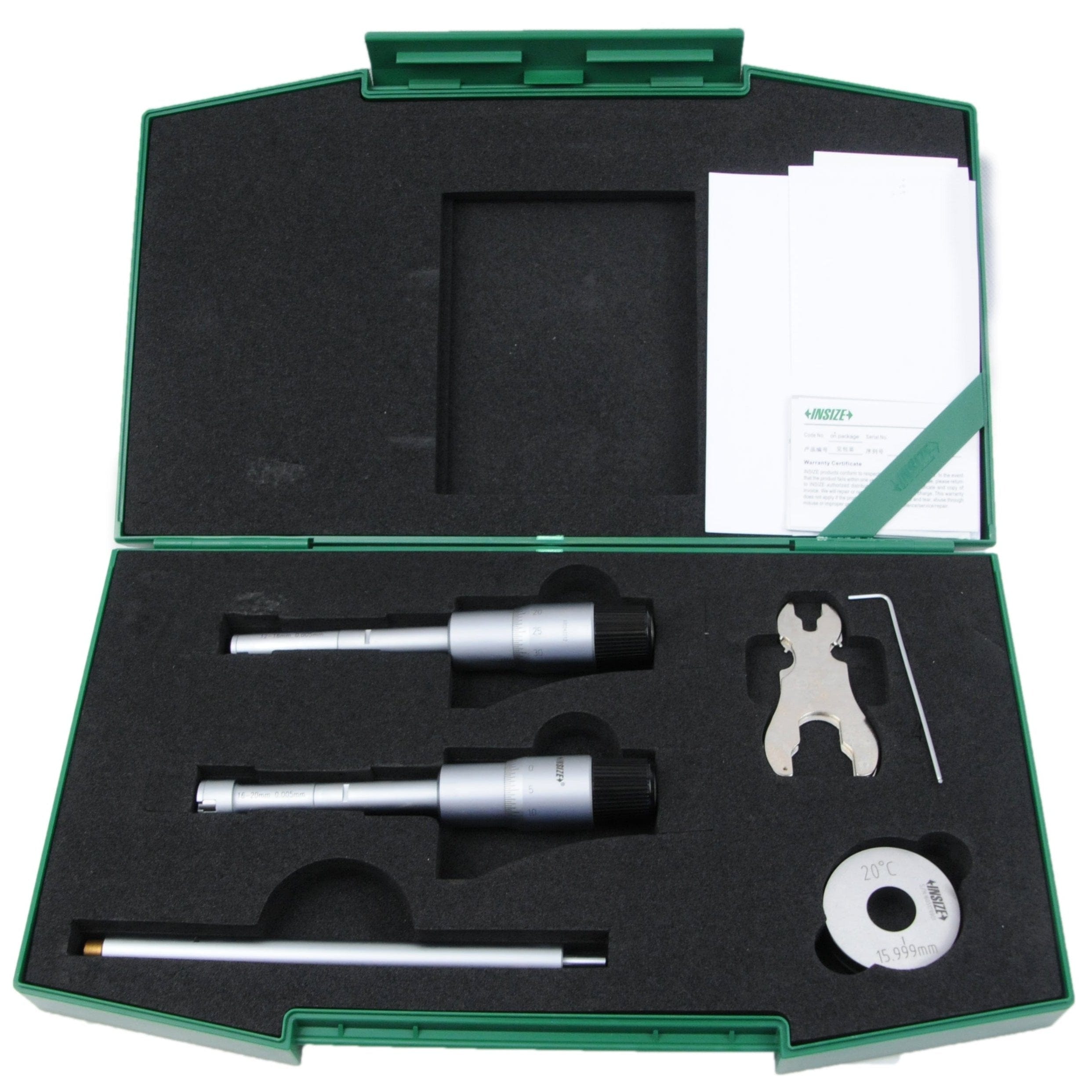

The Insize 20–50mm Inside Micrometer Set is designed for precise internal diameter measurement across a wide range of small to medium bores in machining, inspection, and quality control applications. This set includes four three-point inside micrometers, delivering excellent centring, stability, and repeatable accuracy throughout the measuring range.

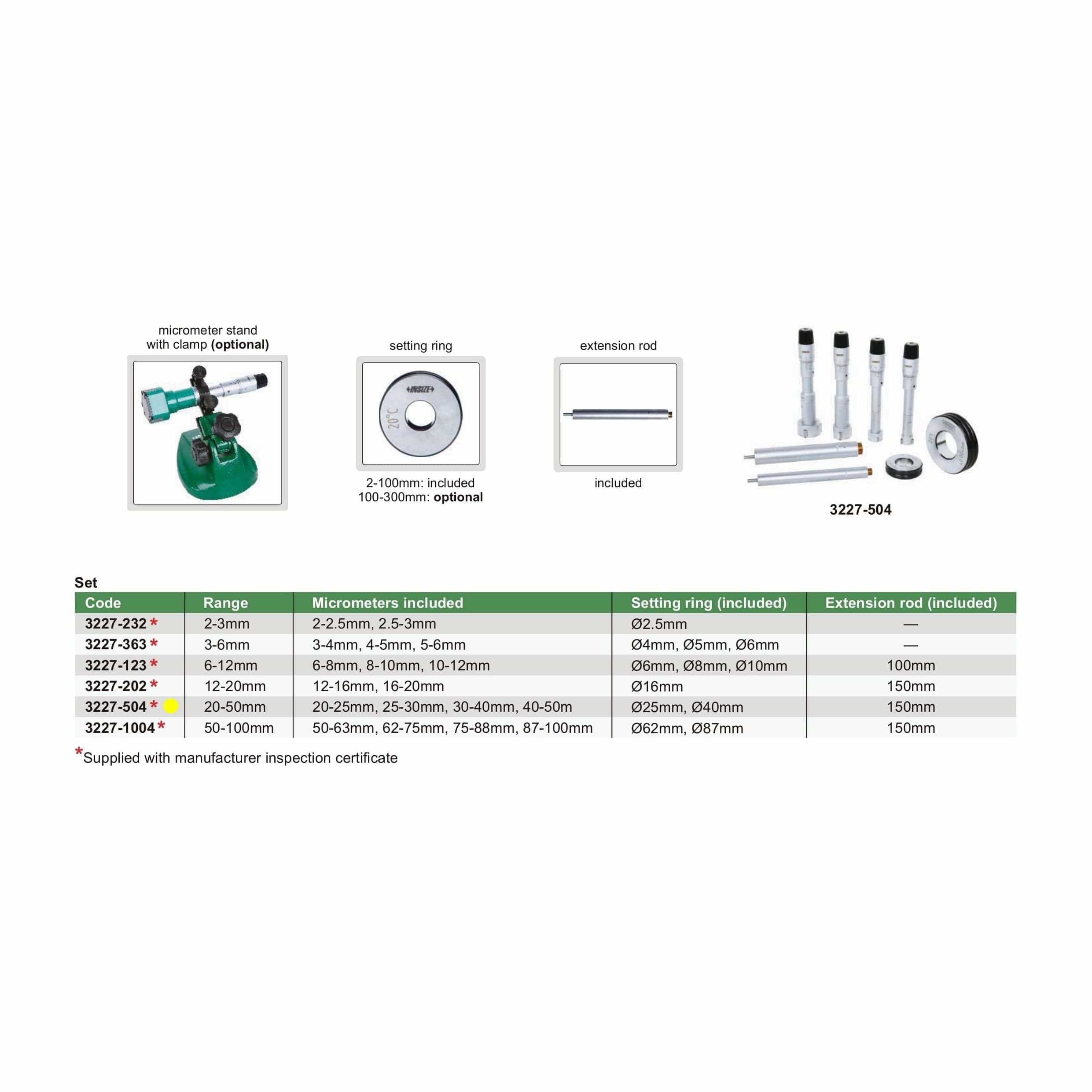

Specifications :
-
Part No: 3227-504
-
Measuring Range: 20–50 mm
-

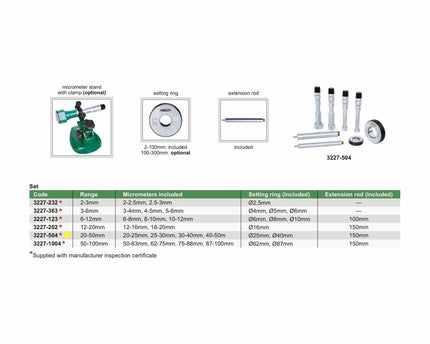

Micrometers Included: 20–25 mm, 25–30 mm, 30–40 mm, 40–50 mm
-

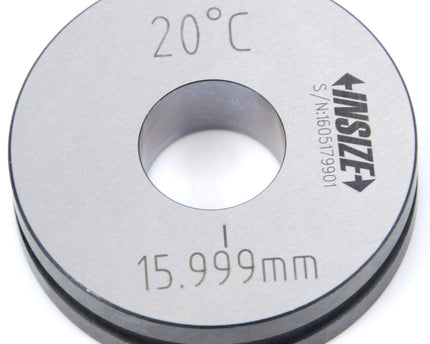

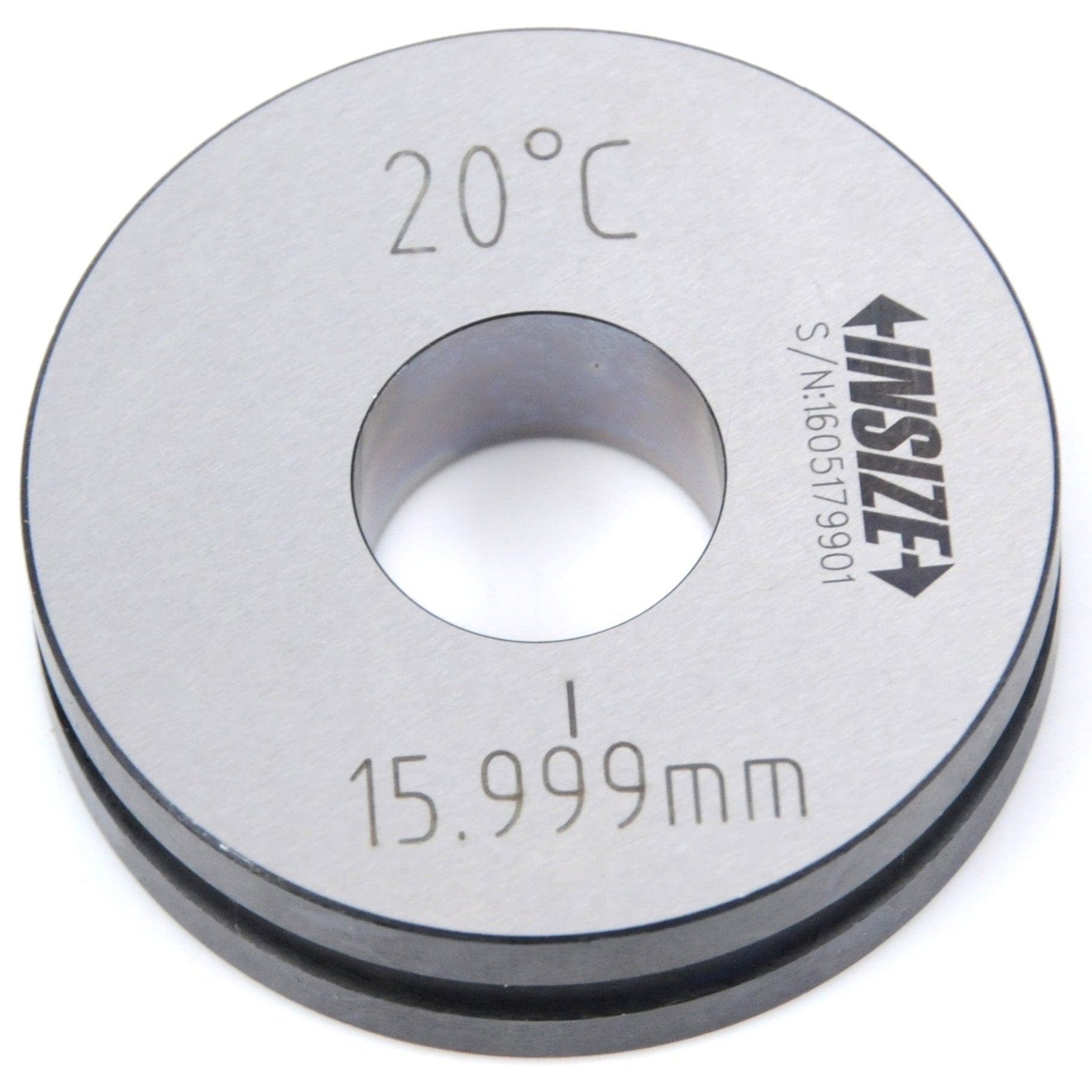

Setting Rings Included: Ø25 mm, Ø40 mm
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-

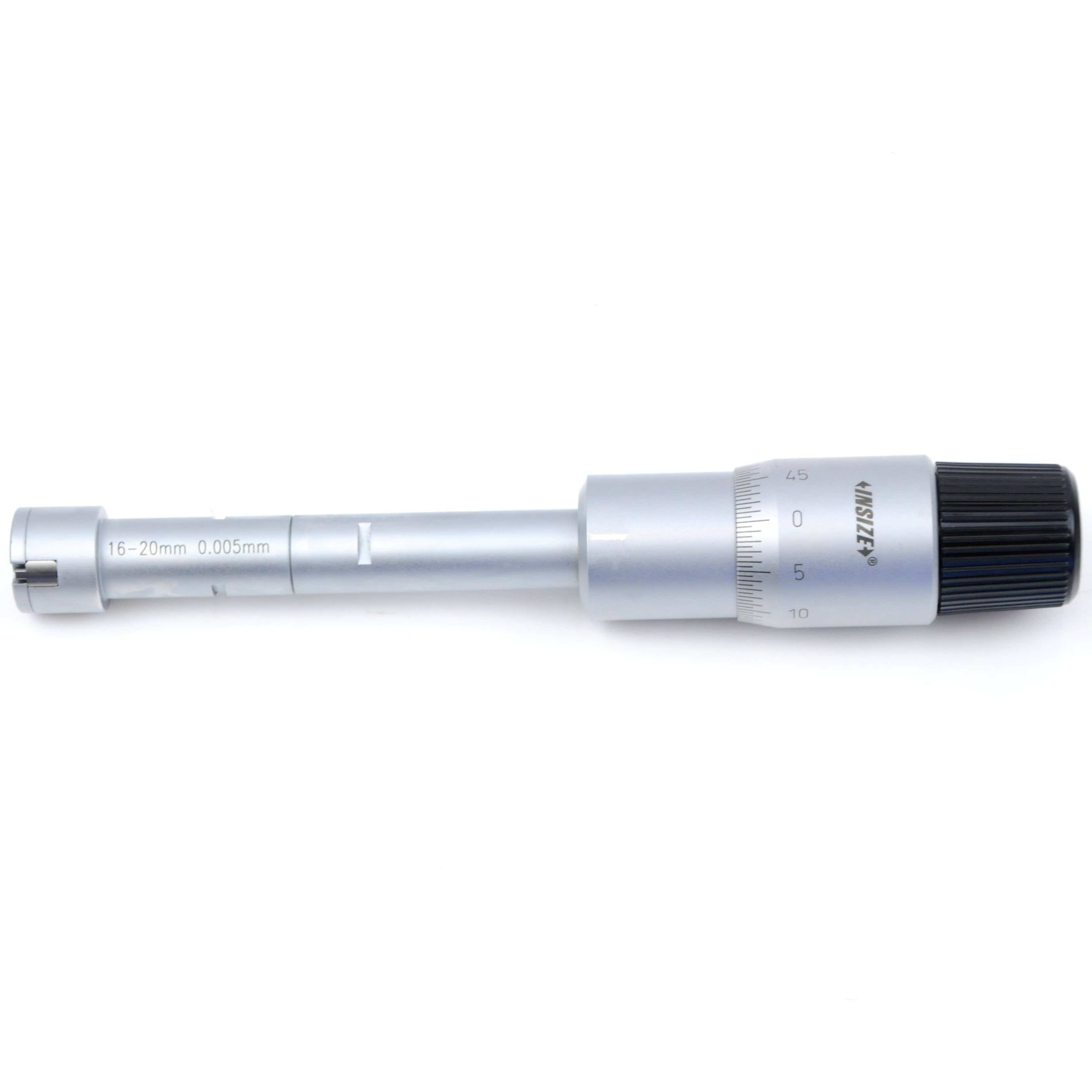

Type: Three-point inside micrometers
-
Extension Rod: 150 mm
- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
- Supplied with the manufacturer's inspection certificate
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometer sets provide dependable accuracy and ease of use for precision measurement of internal diameters across multiple size ranges.
