Description

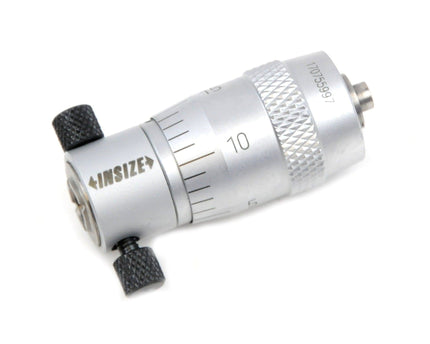

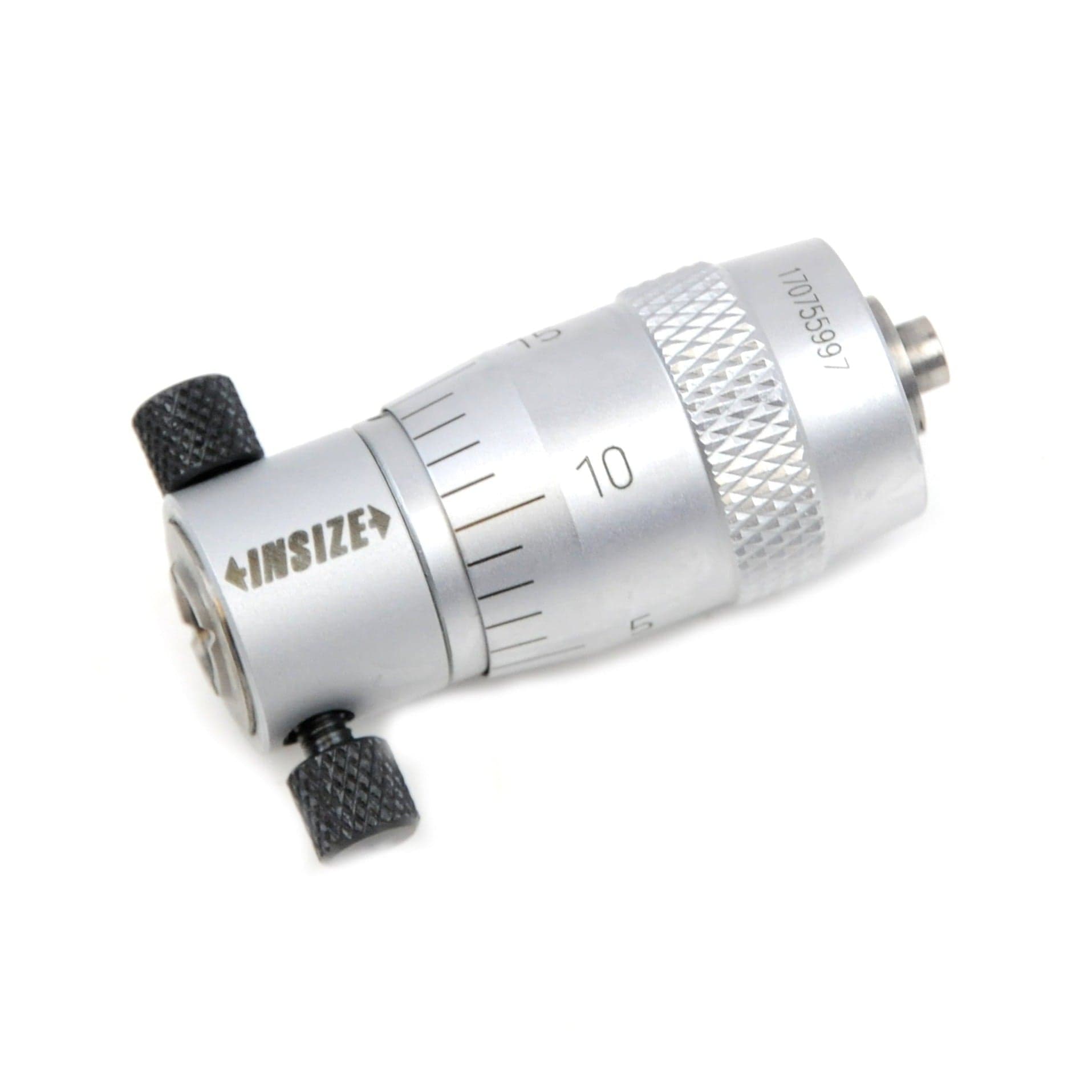

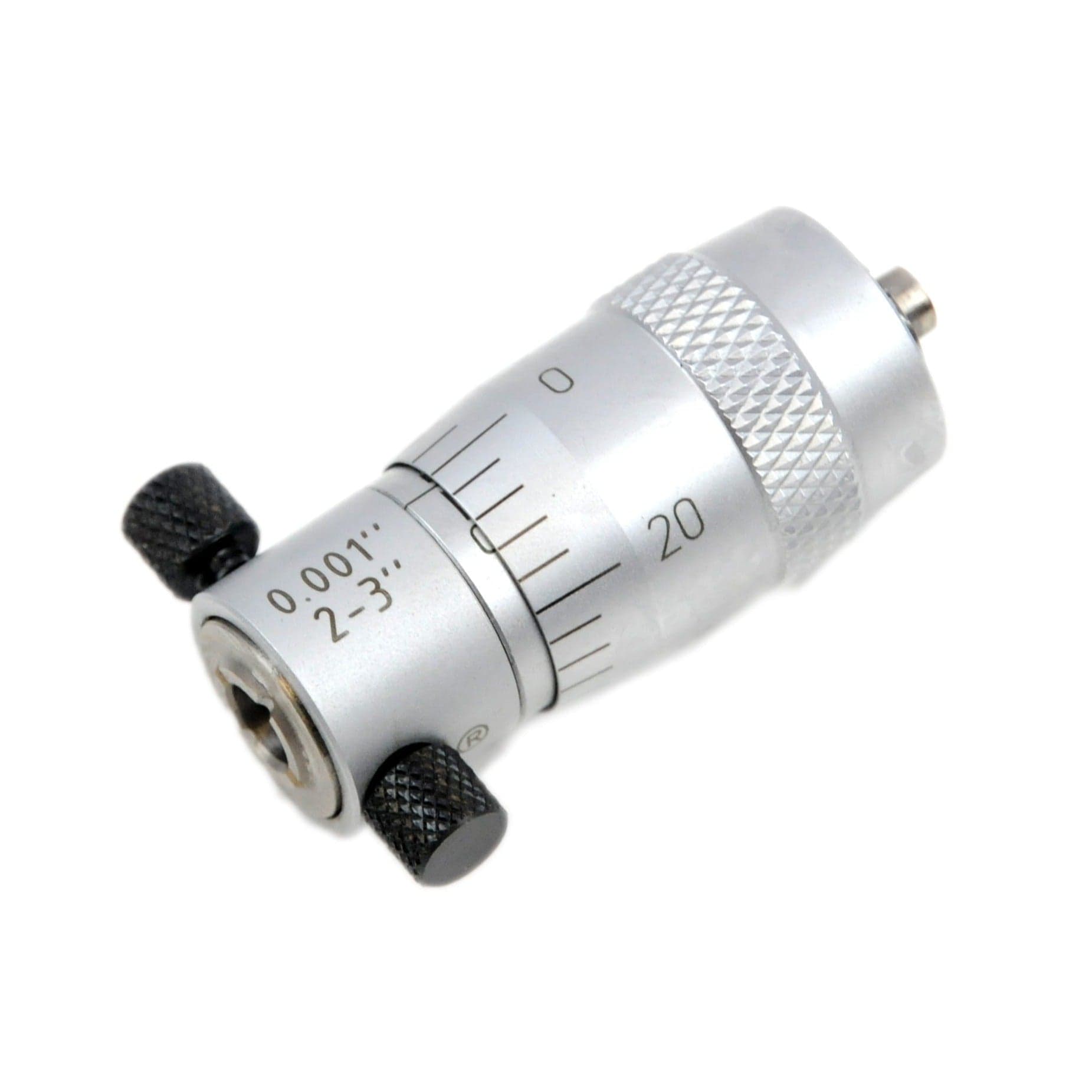

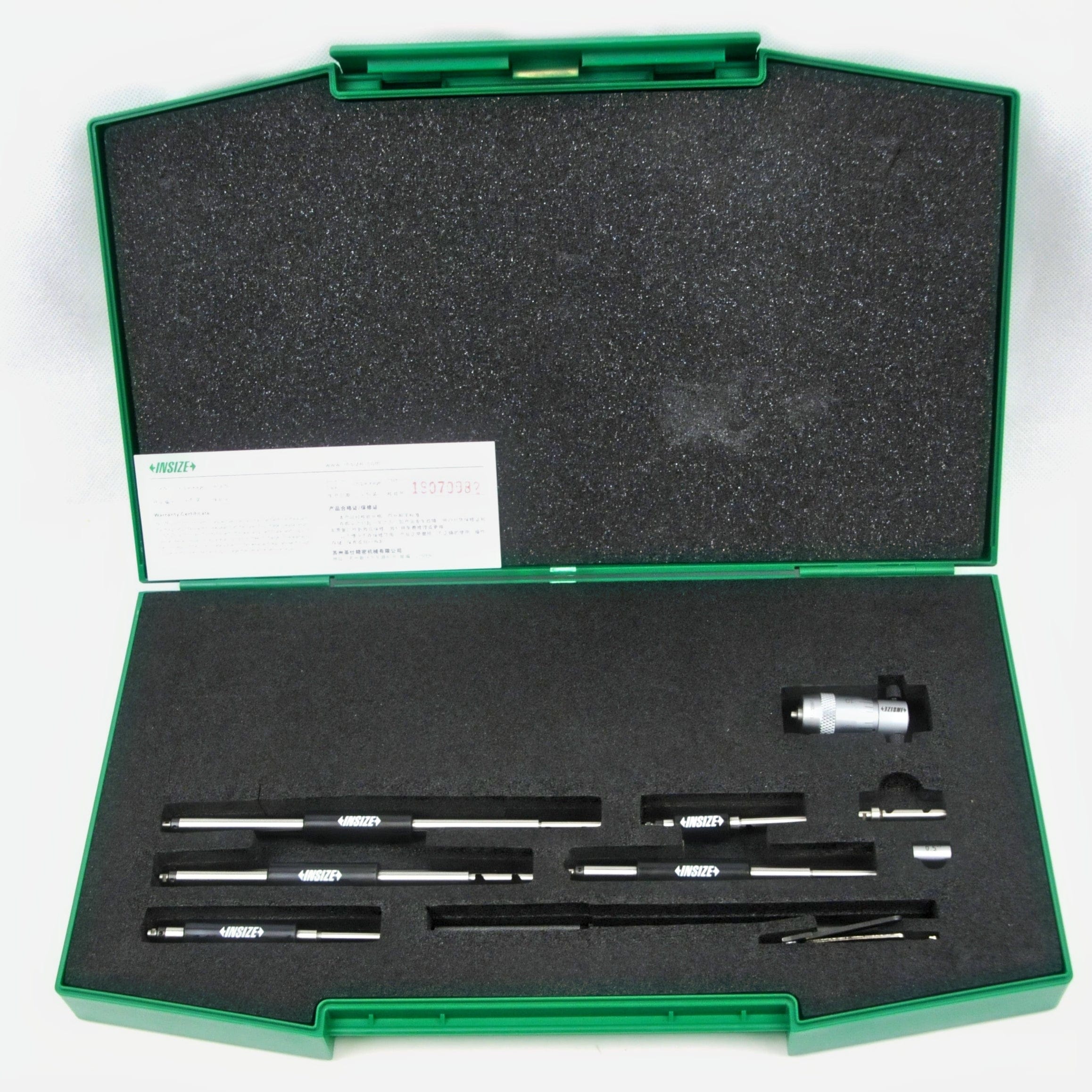

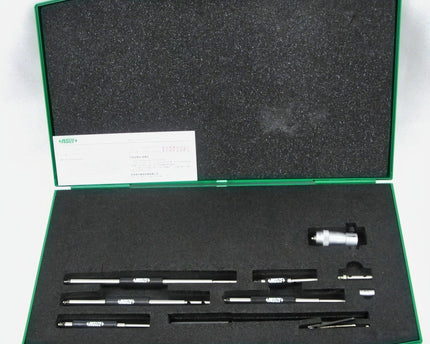

Insize 2–8" Inside Micrometer

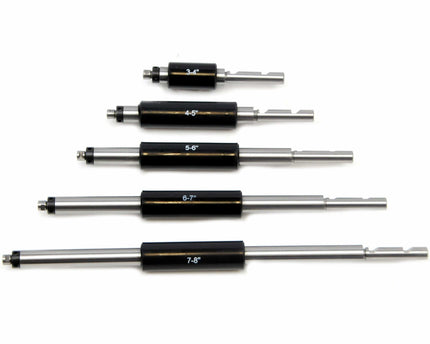

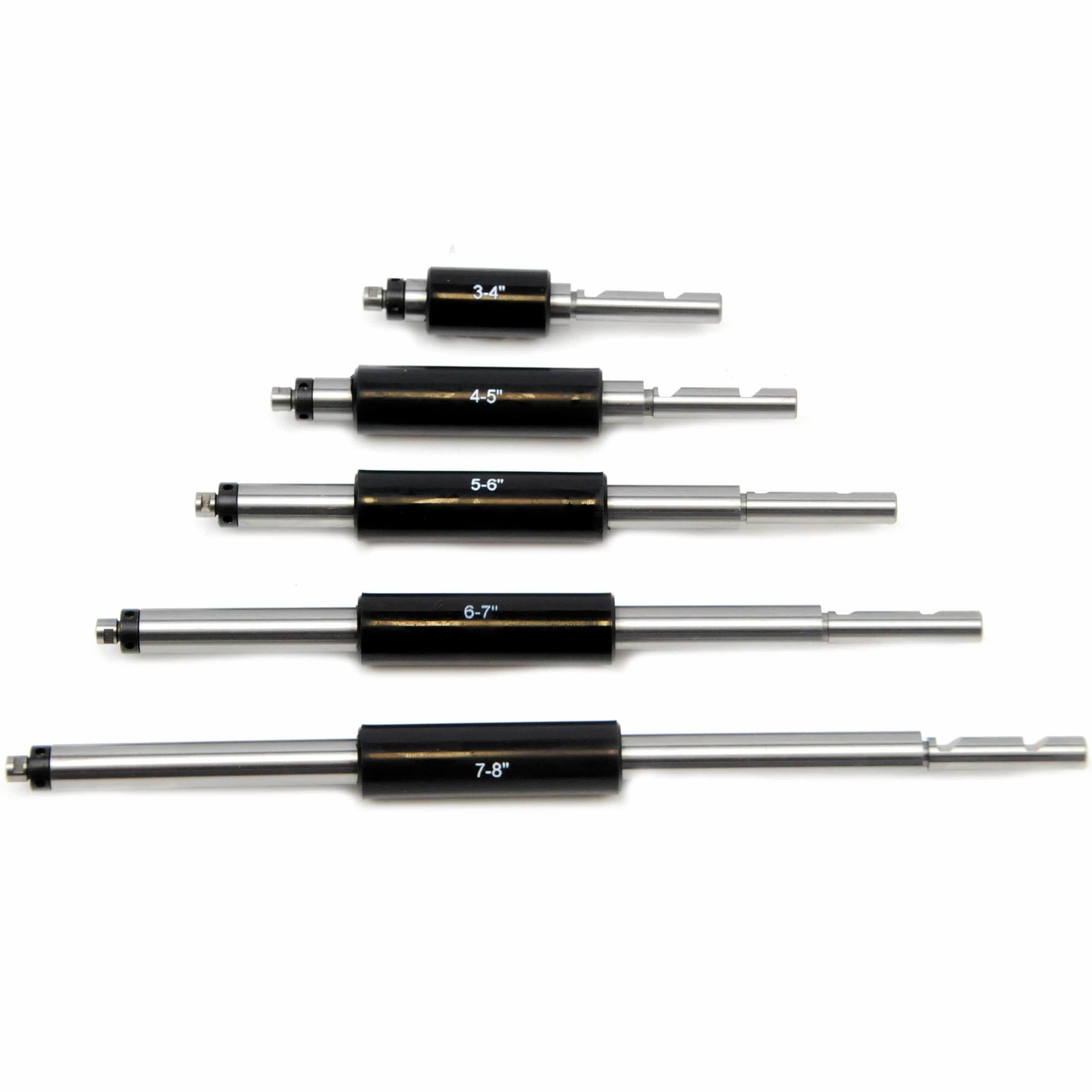

The Insize 2–8" Inside Micrometer is designed for accurate internal diameter measurements across extended inch ranges in machining, inspection, and toolroom applications. Featuring a controlled-travel micrometer head and modular extension system, this instrument delivers reliable accuracy and consistent repeatability for precision internal measurement tasks.

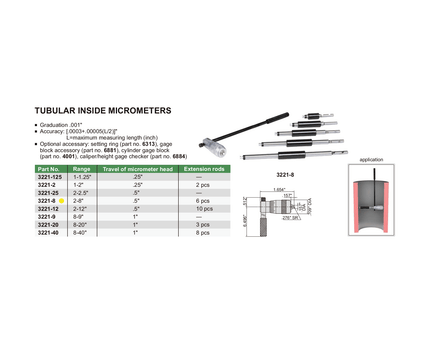

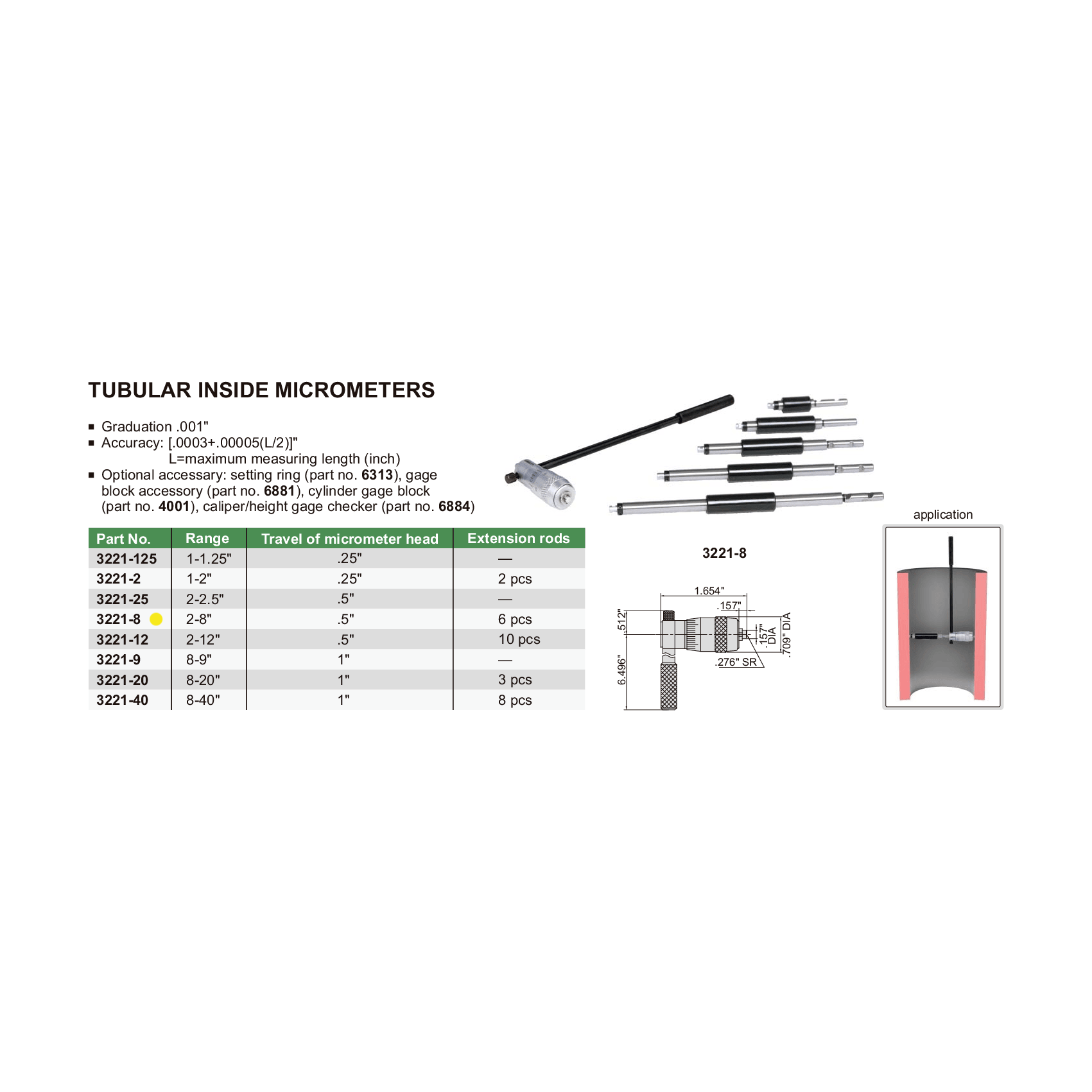

Specifications :
-
Part No: 3221-8
-
Measuring Range: 2–8"
-
Graduation: 0.001"
-

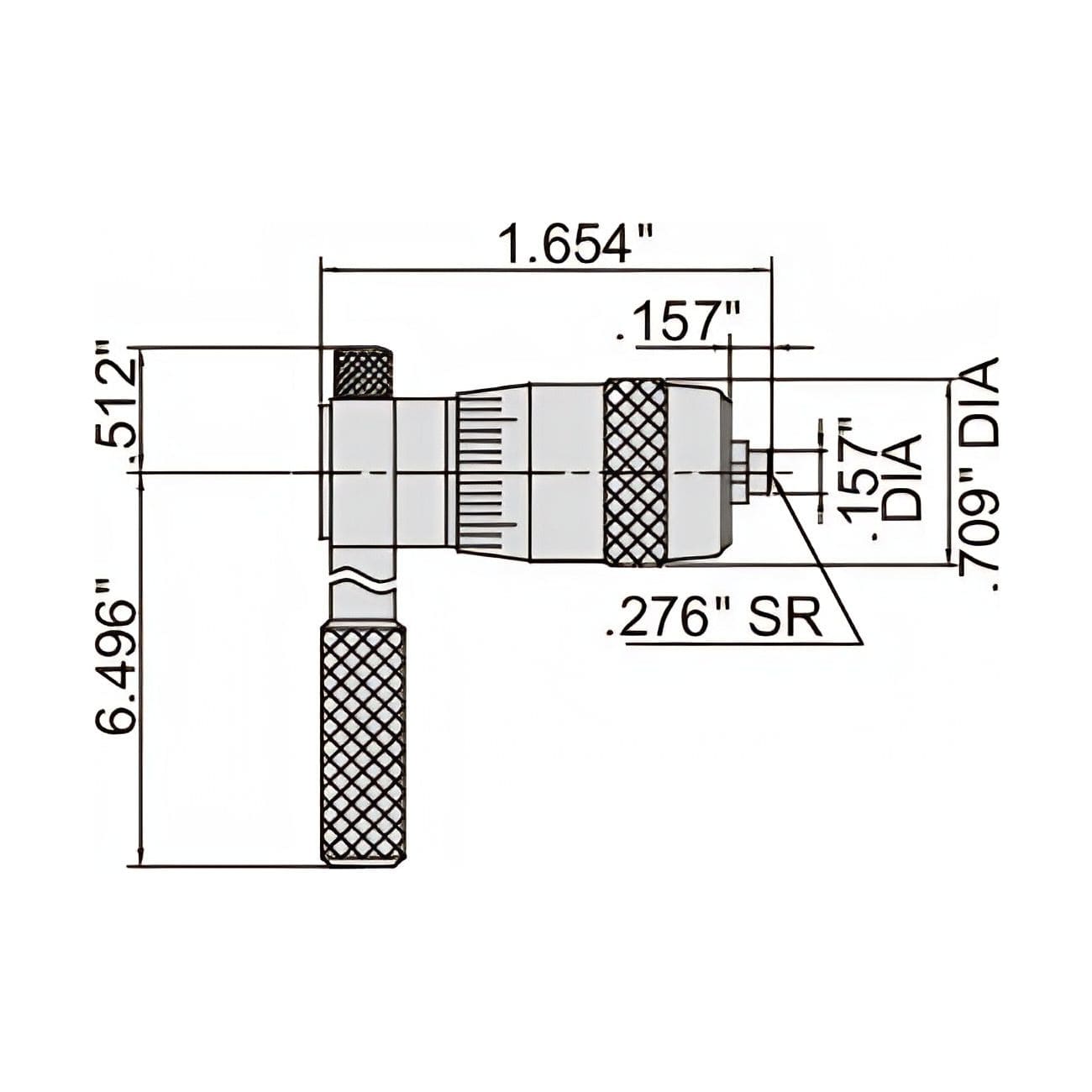

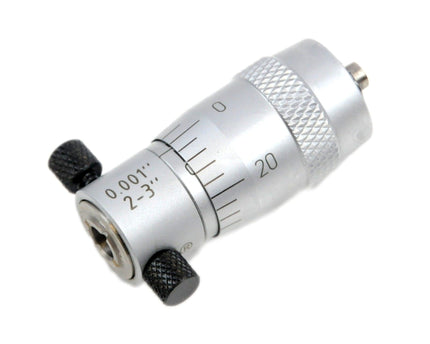

Micrometer Head Travel: 0.5"
-
Accuracy: [0.0003 + 0.00005 (L / 2)]"
- L = maximum measuring length (inches)
Please Note:
- Optional accessory: Setting ring (Code 6313).
- Gauge block accessory (Part No. 6881).
- Cylinder gauge block (Part No. 4001).
- Caliper/height gauge checker (Part No. 6884).
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement applications. Insize large-range inside micrometer systems provide dependable accuracy and flexibility for precise internal measurement of a wide range of components.
