Description

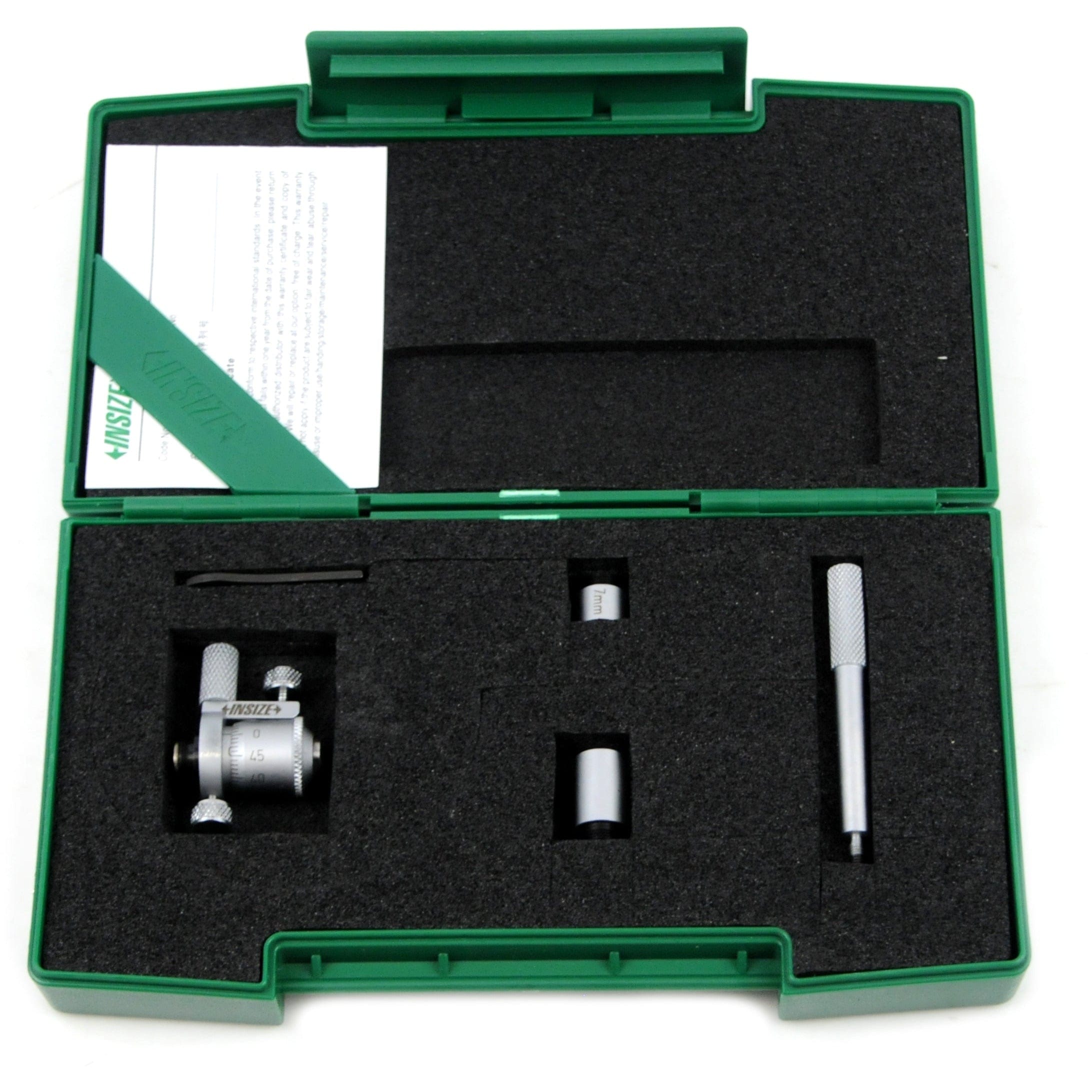

Insize 8–40" Inside Micrometer
The Insize 8–40" Inside Micrometer is designed for accurate internal diameter measurements across very large measuring ranges in precision machining, inspection, and heavy-industry applications. Featuring a long-travel micrometer head and modular extension system, this instrument delivers dependable accuracy and repeatable results when measuring large internal dimensions.

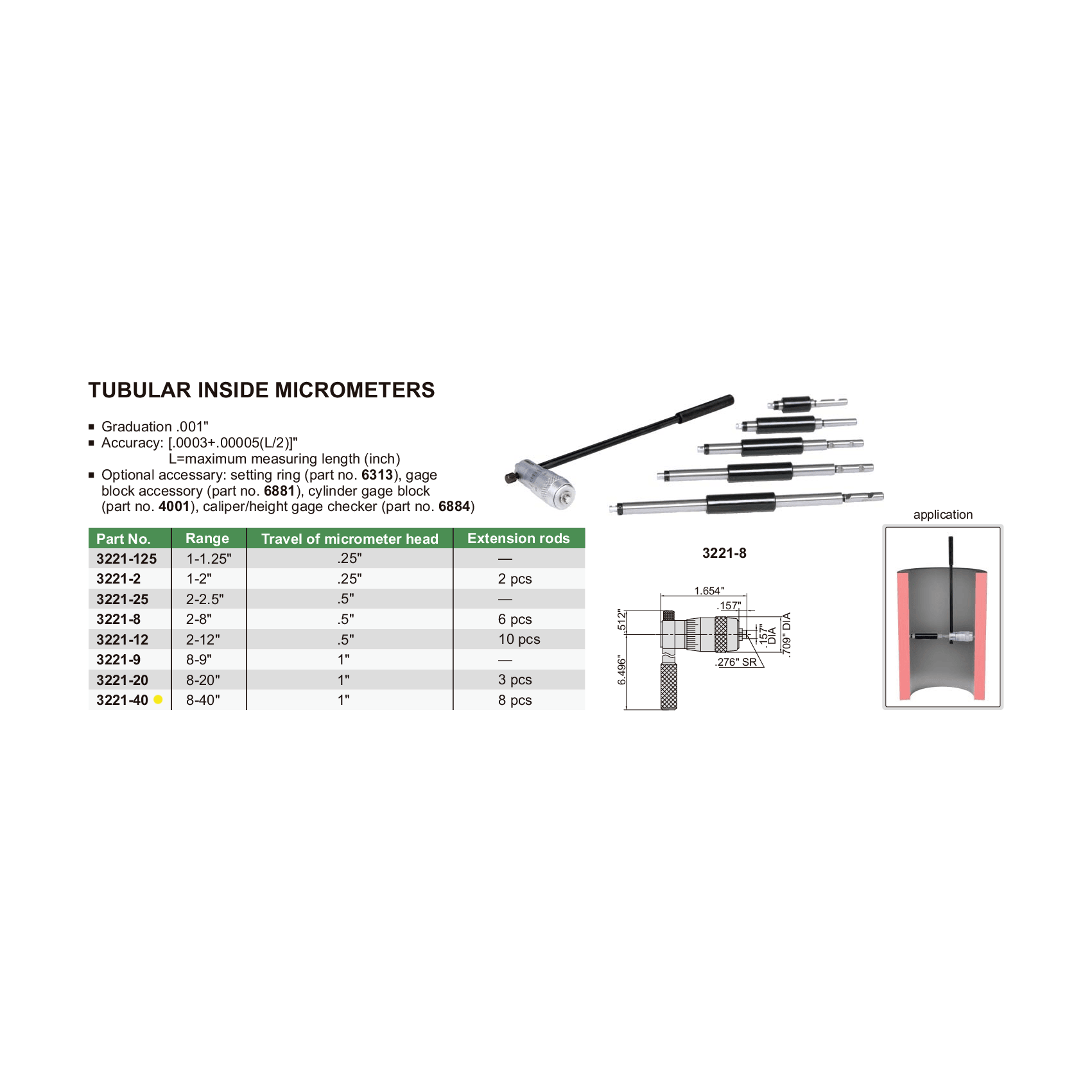

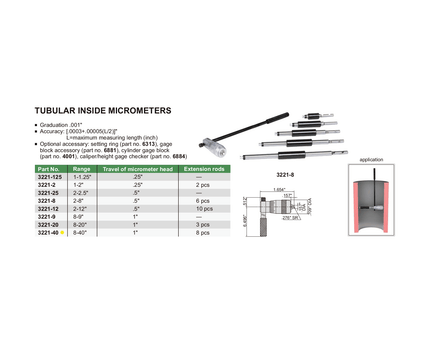

Specifications :
-
Part No: 3221-40
-
Measuring Range: 8–40"
-
Graduation: 0.001"
-

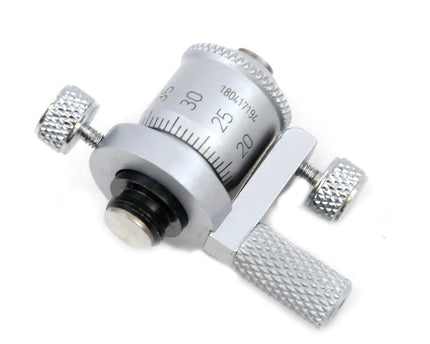

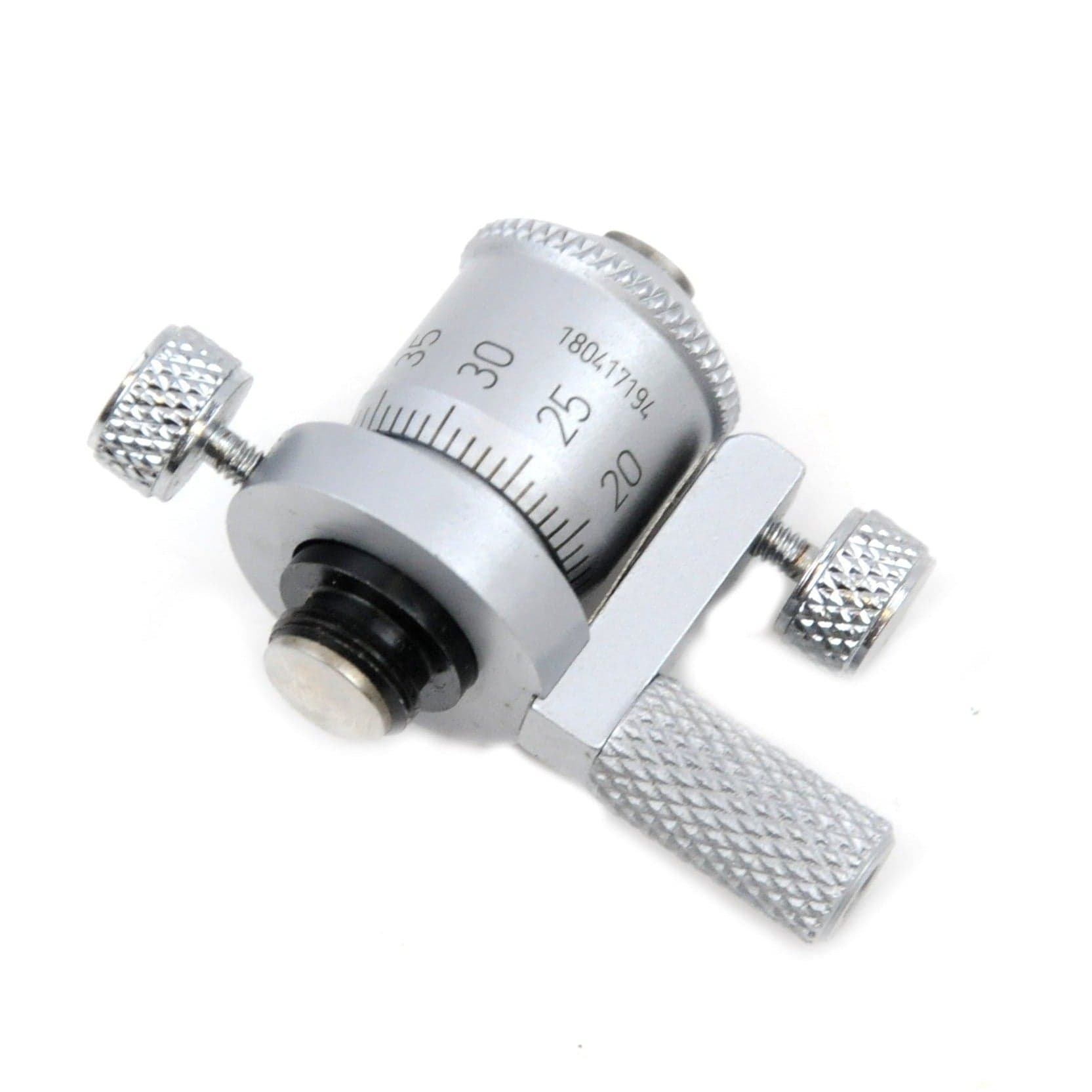

Micrometer Head Travel: 1"
-
Accuracy: [0.0003 + 0.00005 (L / 2)]"
- L = maximum measuring length (inches)
Please Note:
- Optional accessory: Setting ring (Code 6313).
- Gauge block accessory (Part No. 6881).
- Cylinder gauge block (Part No. 4001).
- Caliper/height gauge checker (Part No. 6884).
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement applications. Insize large-range inside micrometer systems provide reliable accuracy and flexibility for precise internal measurement of large components.
