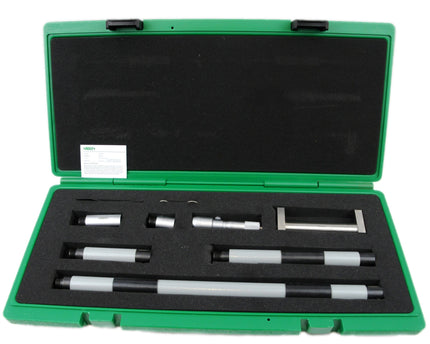

Insize 100–900mm Inside Micrometer
The Insize 100–900mm Inside Micrometer is designed for precise internal diameter measurements across large metric ranges in machining, inspection, and heavy-industry applications. Featuring a modular extension rod system and a long-travel precision micrometer head, this instrument delivers reliable accuracy, stability, and repeatable performance for demanding internal measurement tasks.

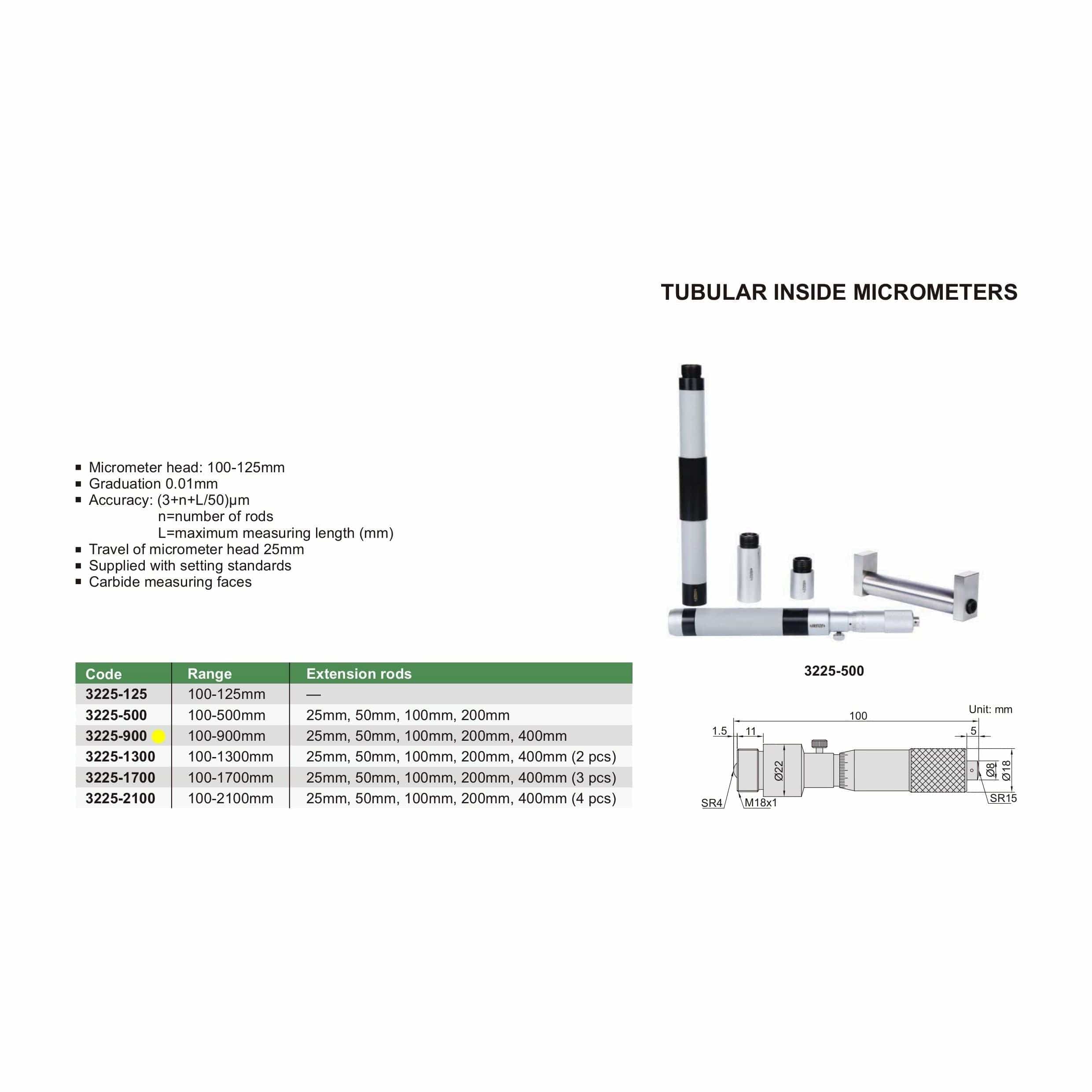

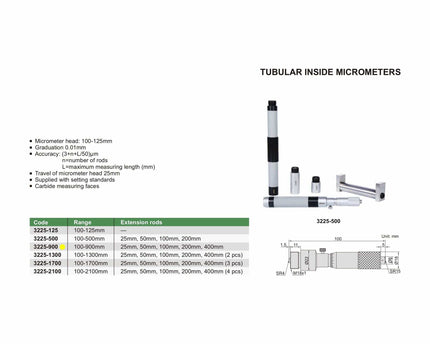

Specifications :
-
Part No: 3225-900
-
Measuring Range: 100–900 mm
-
Graduation: 0.01 mm
-
Accuracy: (3 + n + L / 50) μm
- n = number of extension rods used
- L = maximum measuring length (mm)
- Carbide measuring faces for extended service life.

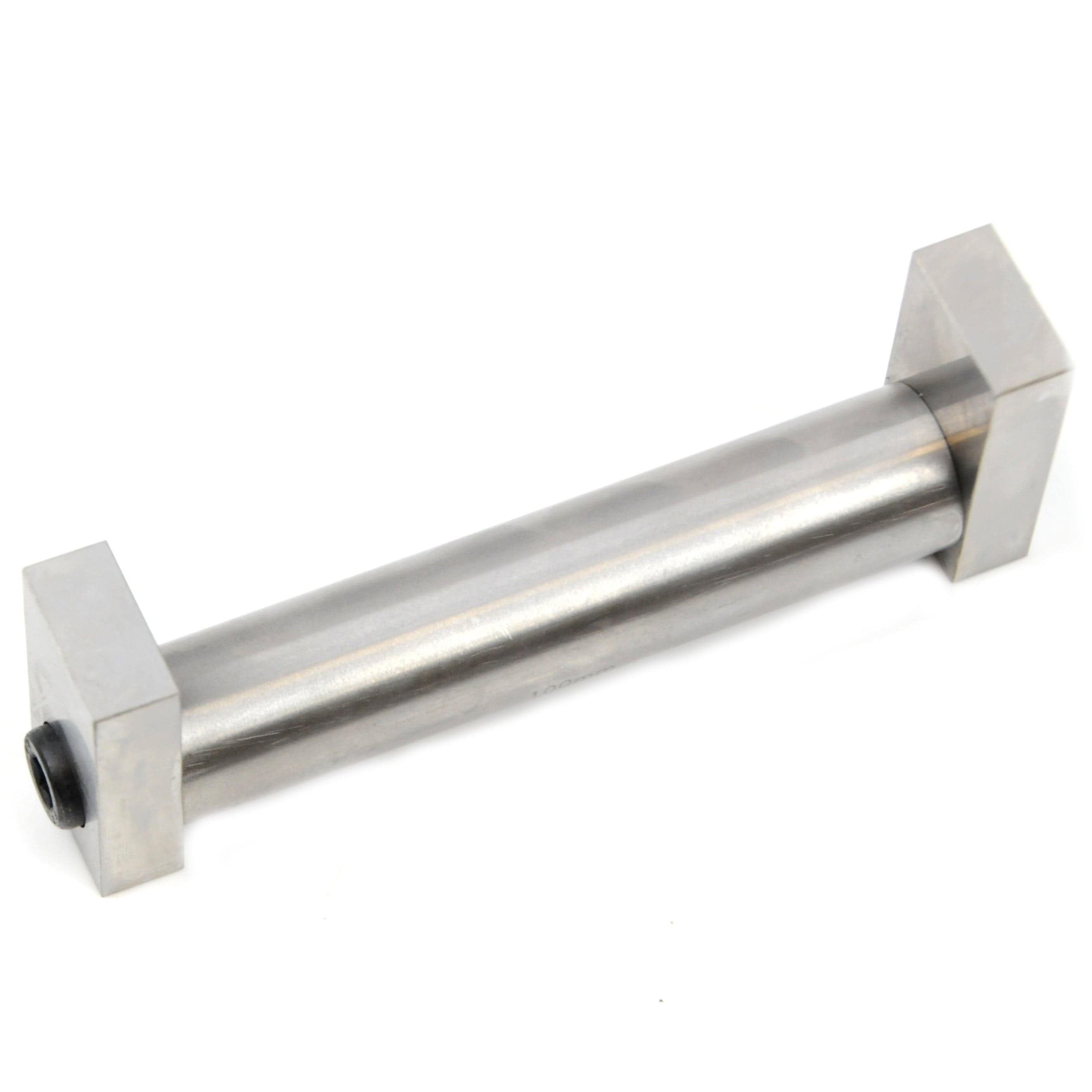

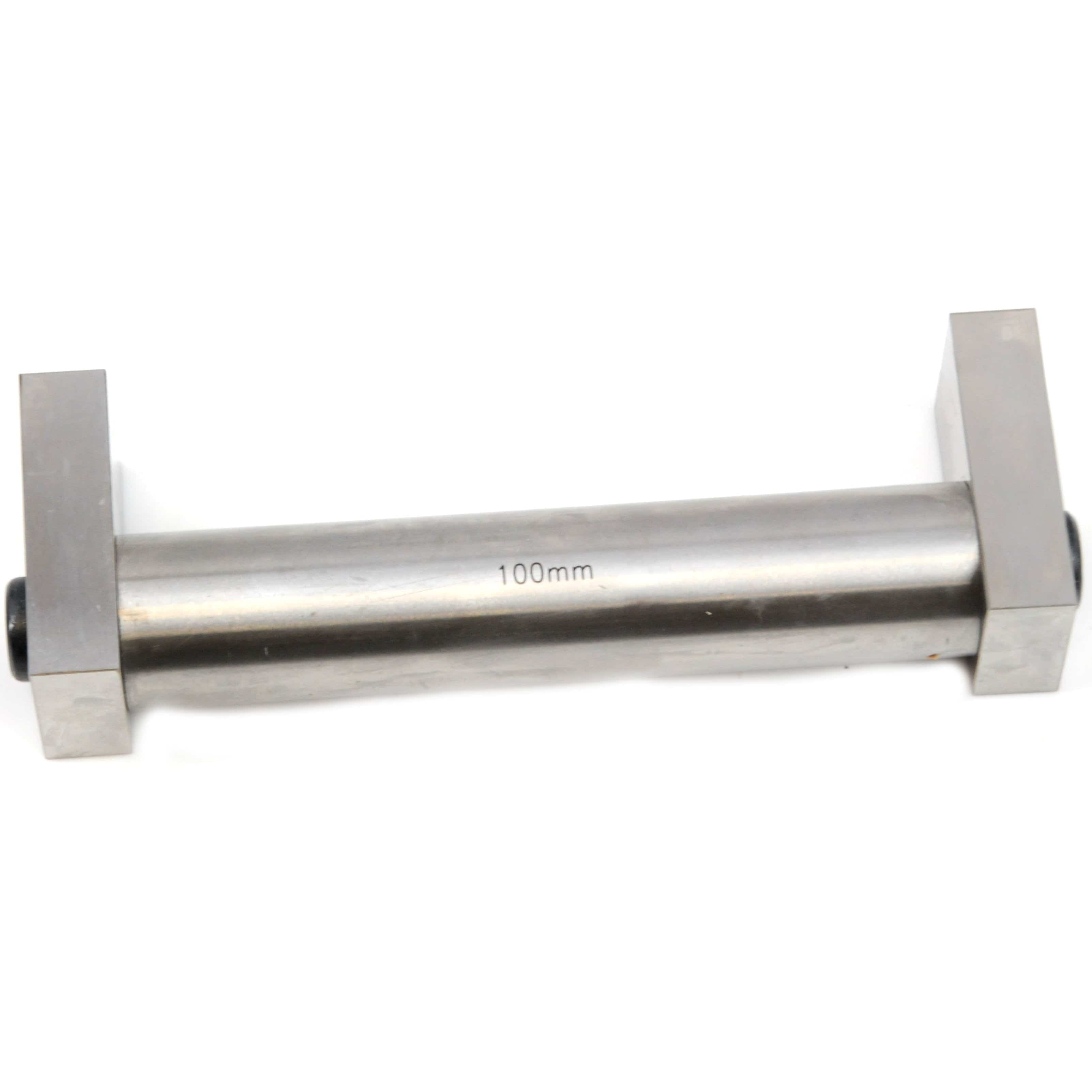

- Supplied with setting standards.
-

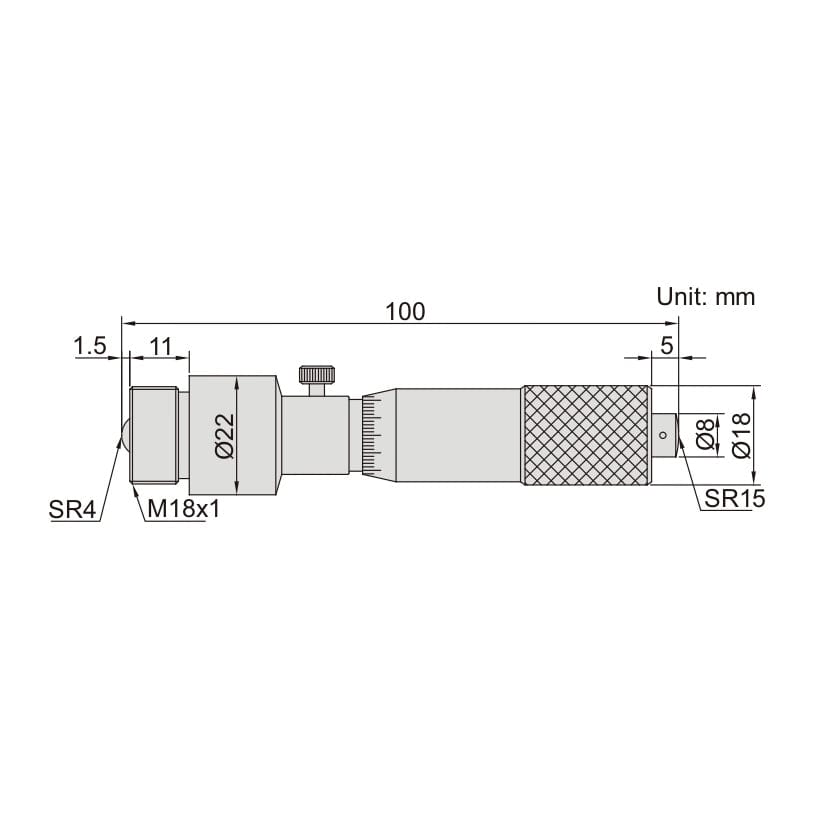

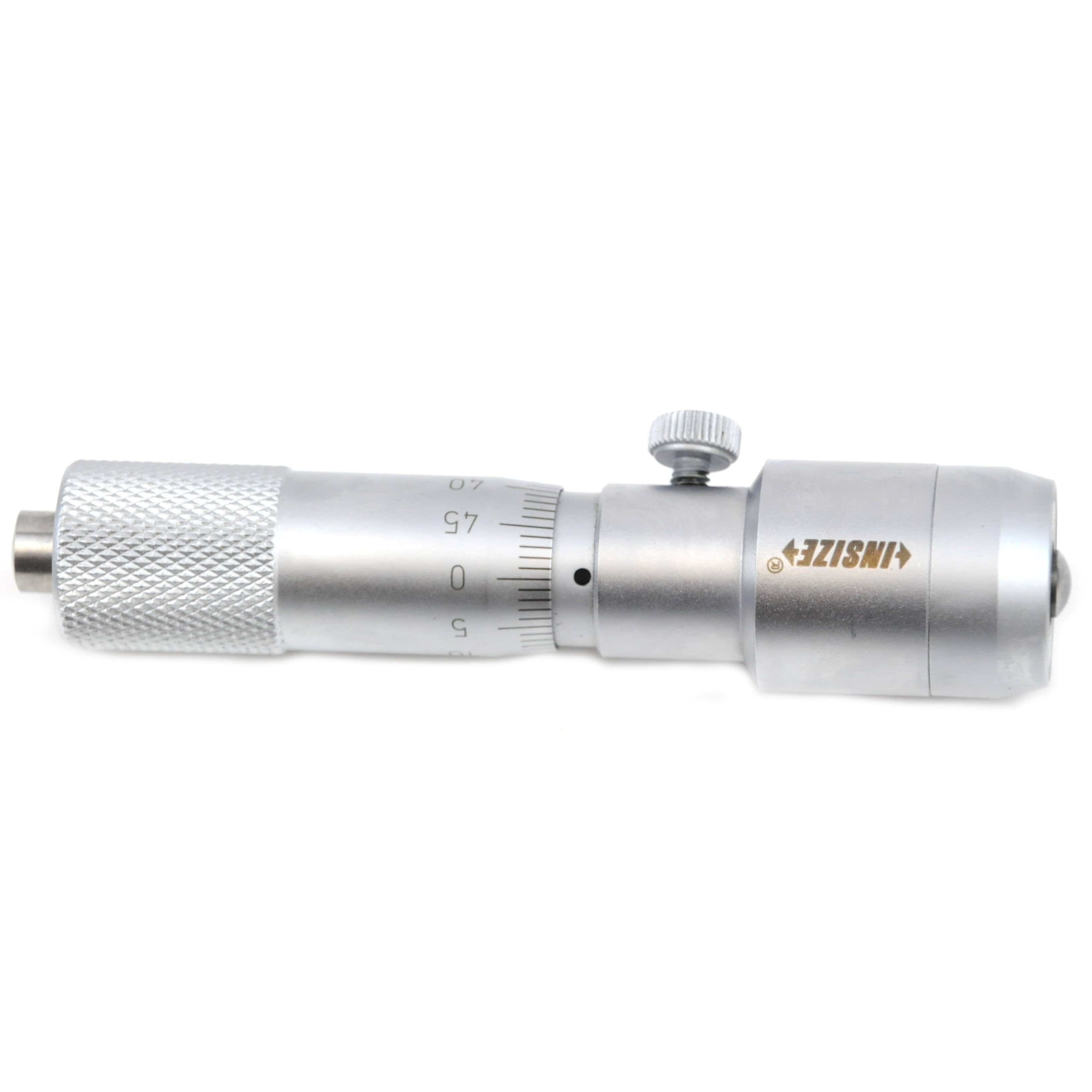

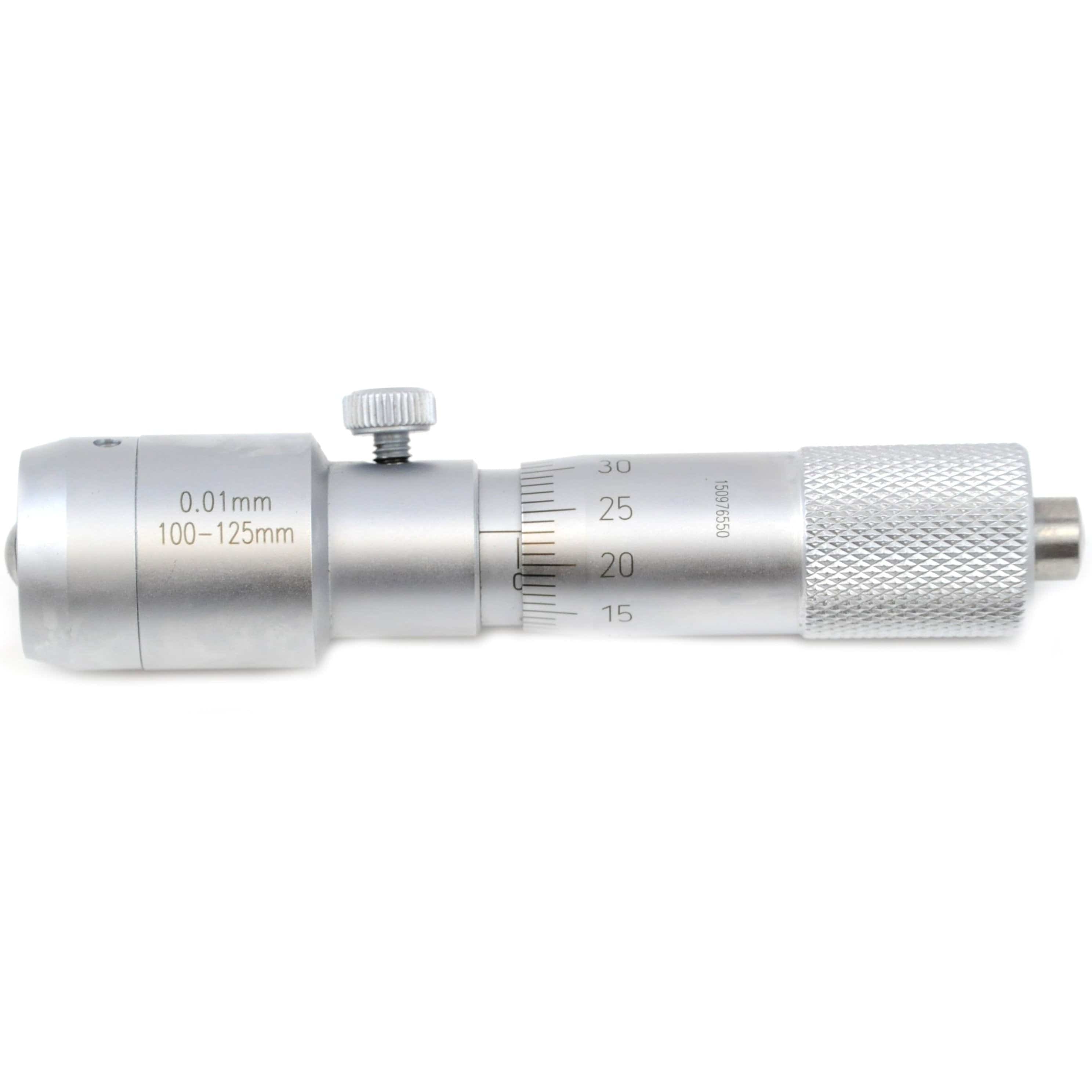

Micrometer Head Travel: 25 mm
-

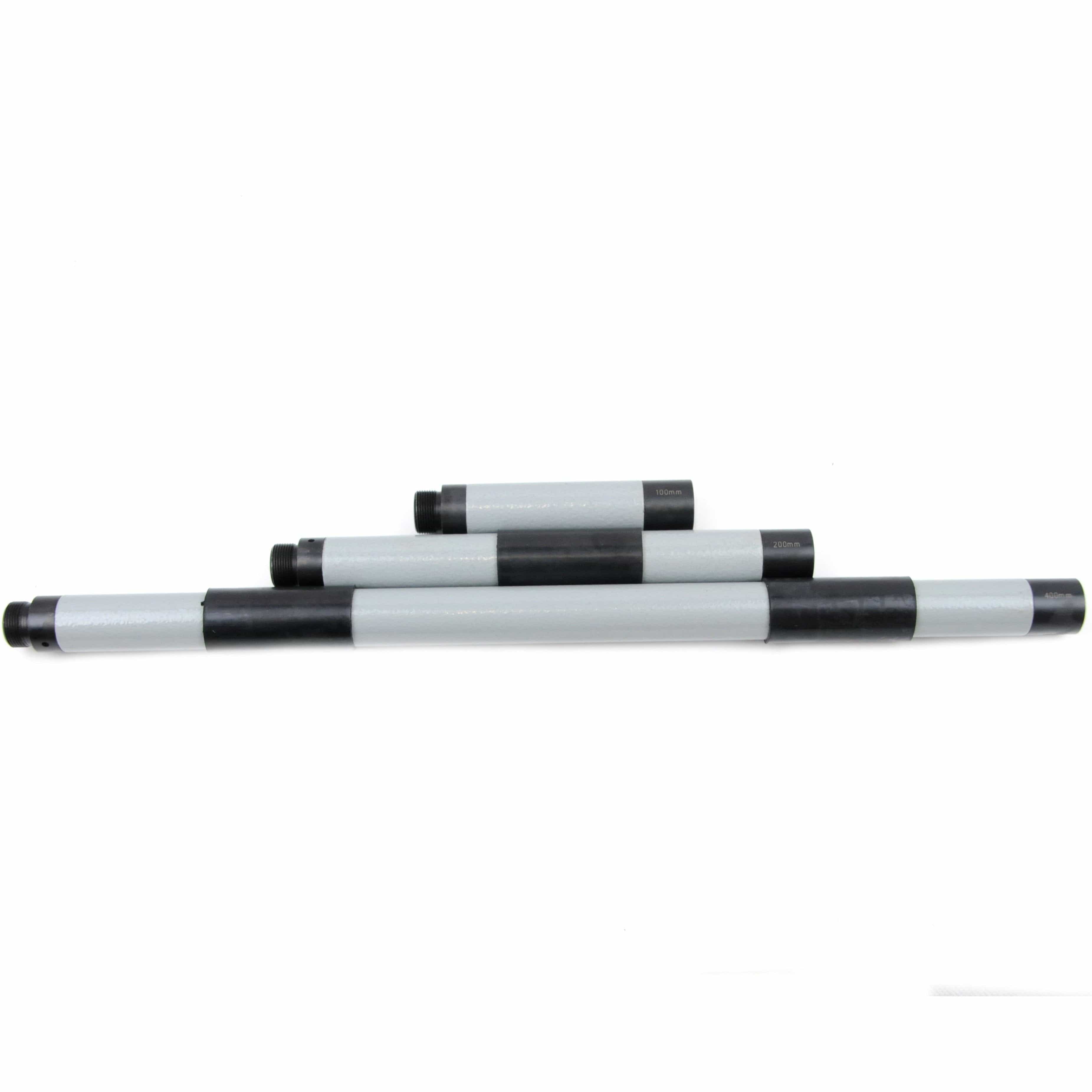

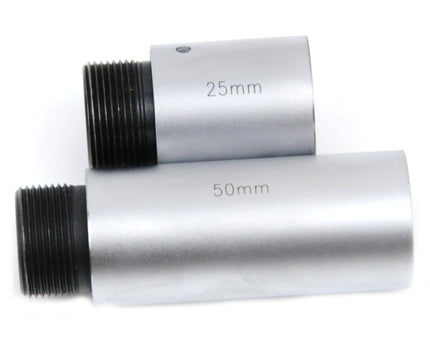

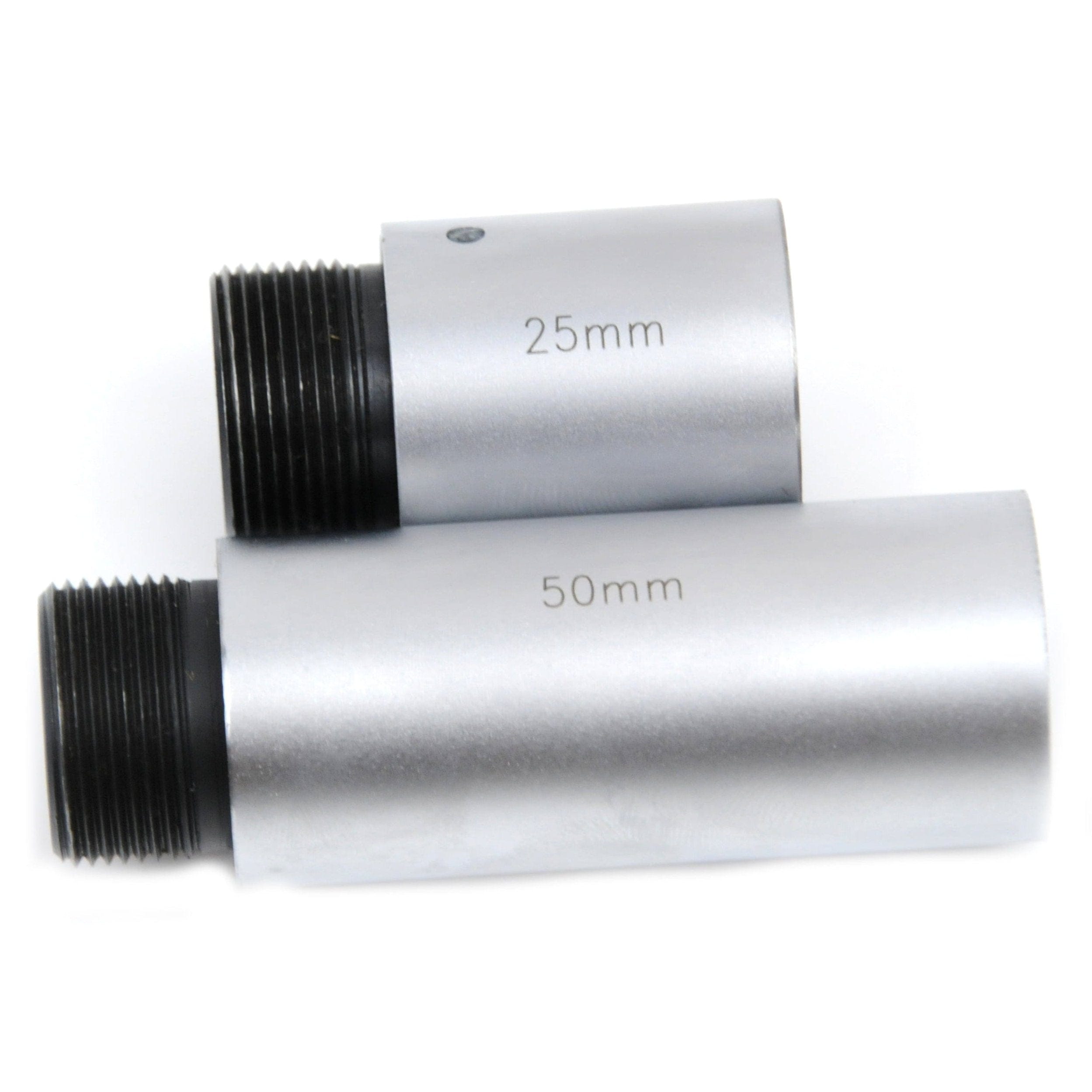

Extension Rods Included: 25 mm, 50 mm, 100 mm, 200 mm, 400 mm
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement applications. Insize large-range inside micrometer systems provide dependable accuracy, ease of use, and versatility for precise internal measurement of large components.
