Description
Insize 1000–4000mm Inside Micrometer
The Insize 1000–4000mm Inside Micrometer is designed for precise internal diameter measurements across ultra-large metric ranges in heavy-industry, manufacturing, and inspection environments. Featuring a long-travel micrometer head and a modular extension rod system, this instrument provides dependable accuracy, stability, and repeatable performance for measuring very large internal dimensions.

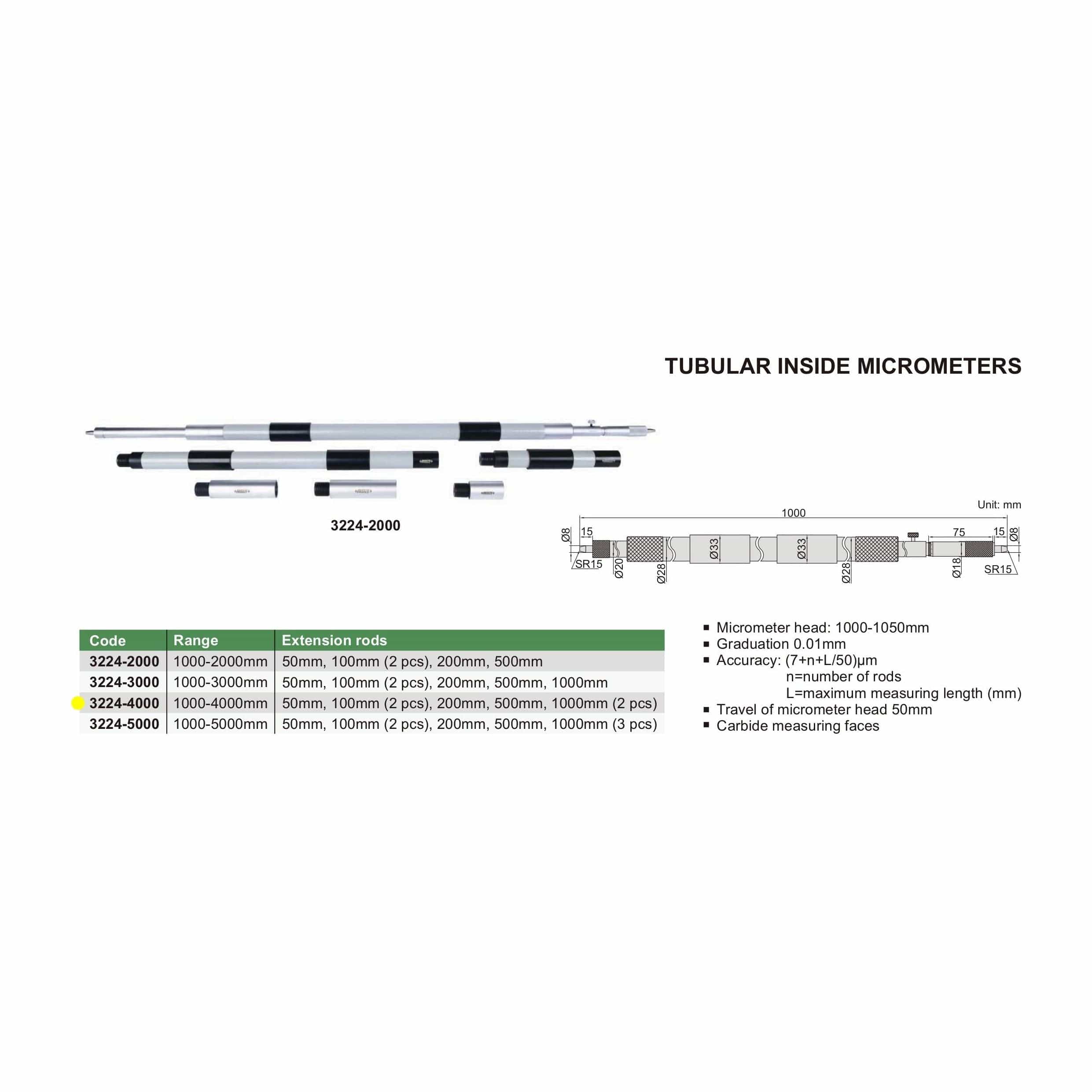

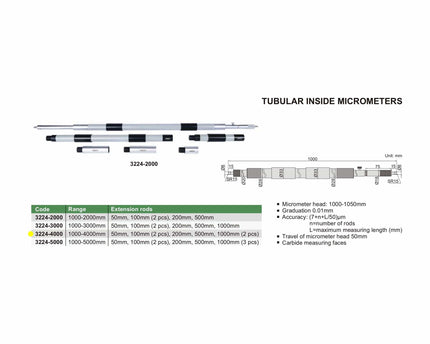

Specifications :
-
Part No: 3224-4000
-
Measuring Range: 1000–4000 mm
-
Graduation: 0.01 mm
-
Accuracy: (7 + n + L / 50) μm
- n = number of extension rods used
- L = maximum measuring length (mm)
- Carbide measuring faces for extended service life.
- Supplied with setting standards.
-
Micrometer Head Travel: 50 mm
-

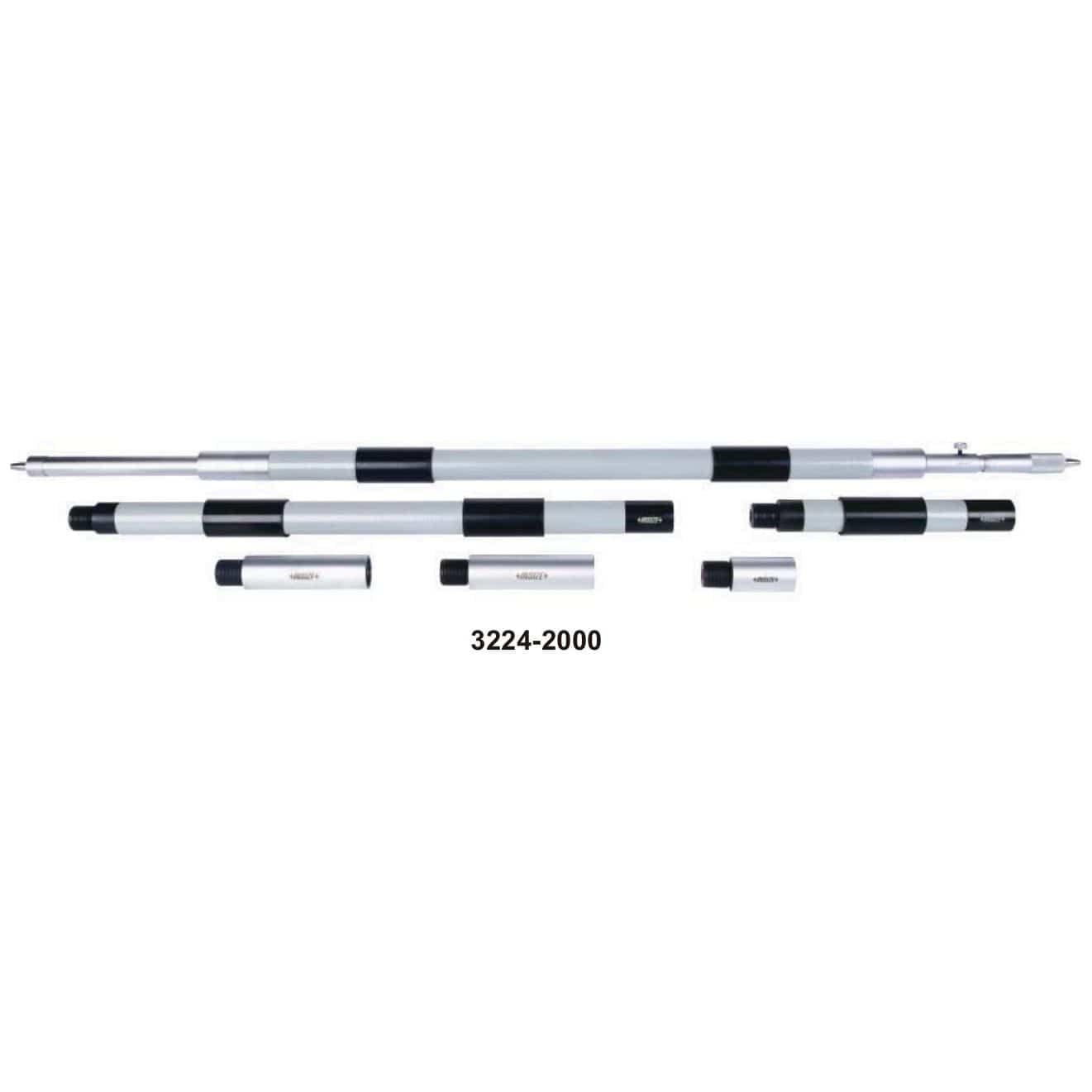

Extension Rods Included: 50 mm, 100 mm (2 pcs), 200 mm, 500 mm, 1000 mm (2 pcs)
Well-designed, durable, and high-precision measuring tools suitable for the most demanding measurement applications. Insize ultra-large range inside micrometer systems provide reliable accuracy and flexibility for precise internal measurement of large-scale components.
