Description

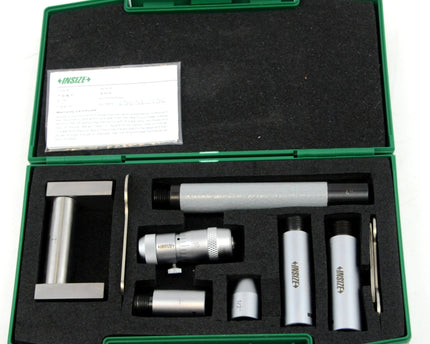

Insize 2–12" Inside Micrometer

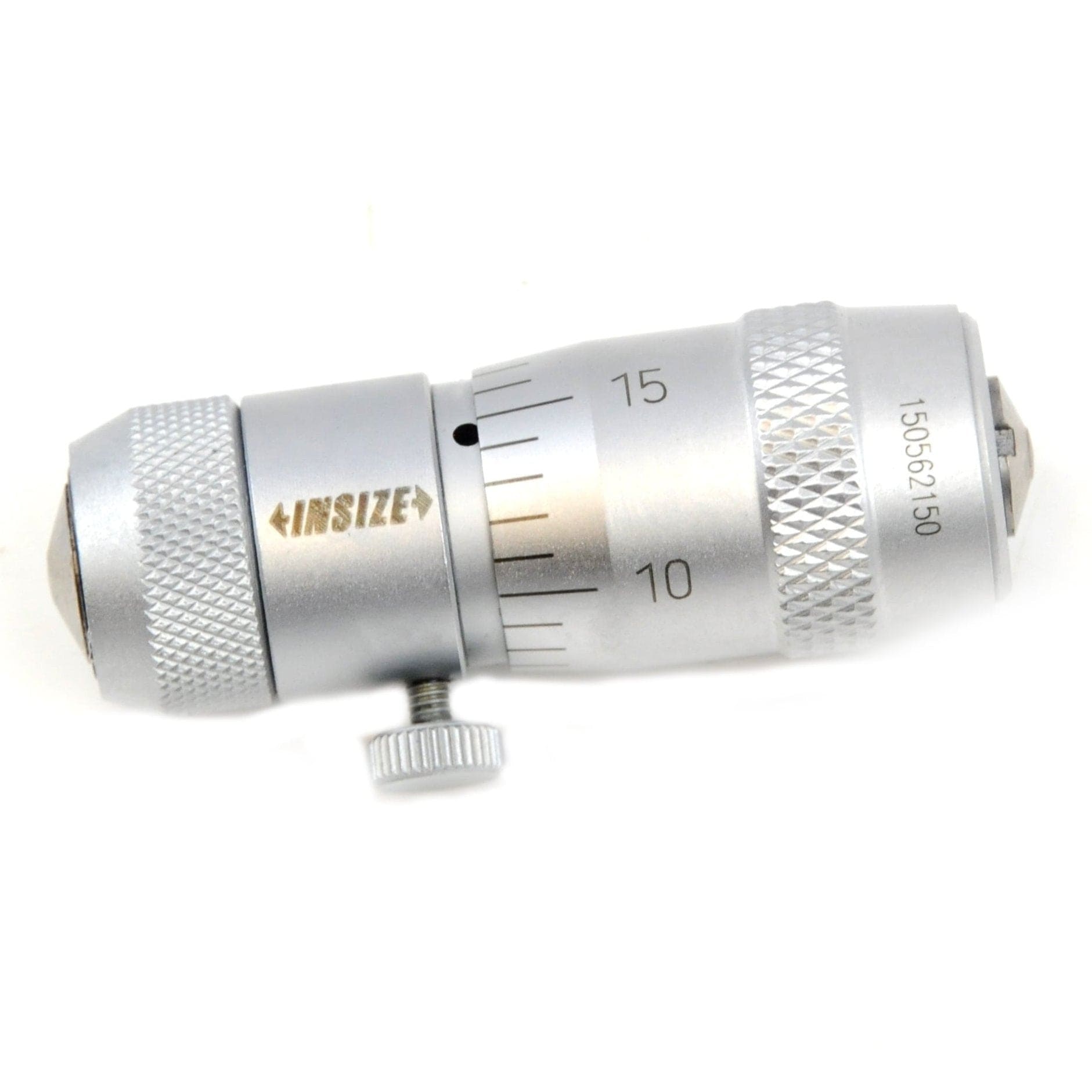

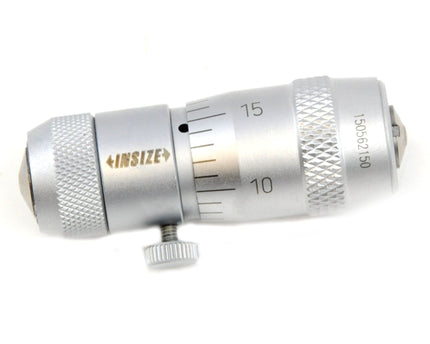

The Insize 2–12" Inside Micrometer is designed for accurate internal diameter measurements across extended inch ranges in machining, inspection, and heavy-industry applications. Featuring a modular extension rod system and precision micrometer head, this instrument delivers reliable accuracy, flexibility, and repeatable performance for large internal measurement tasks.

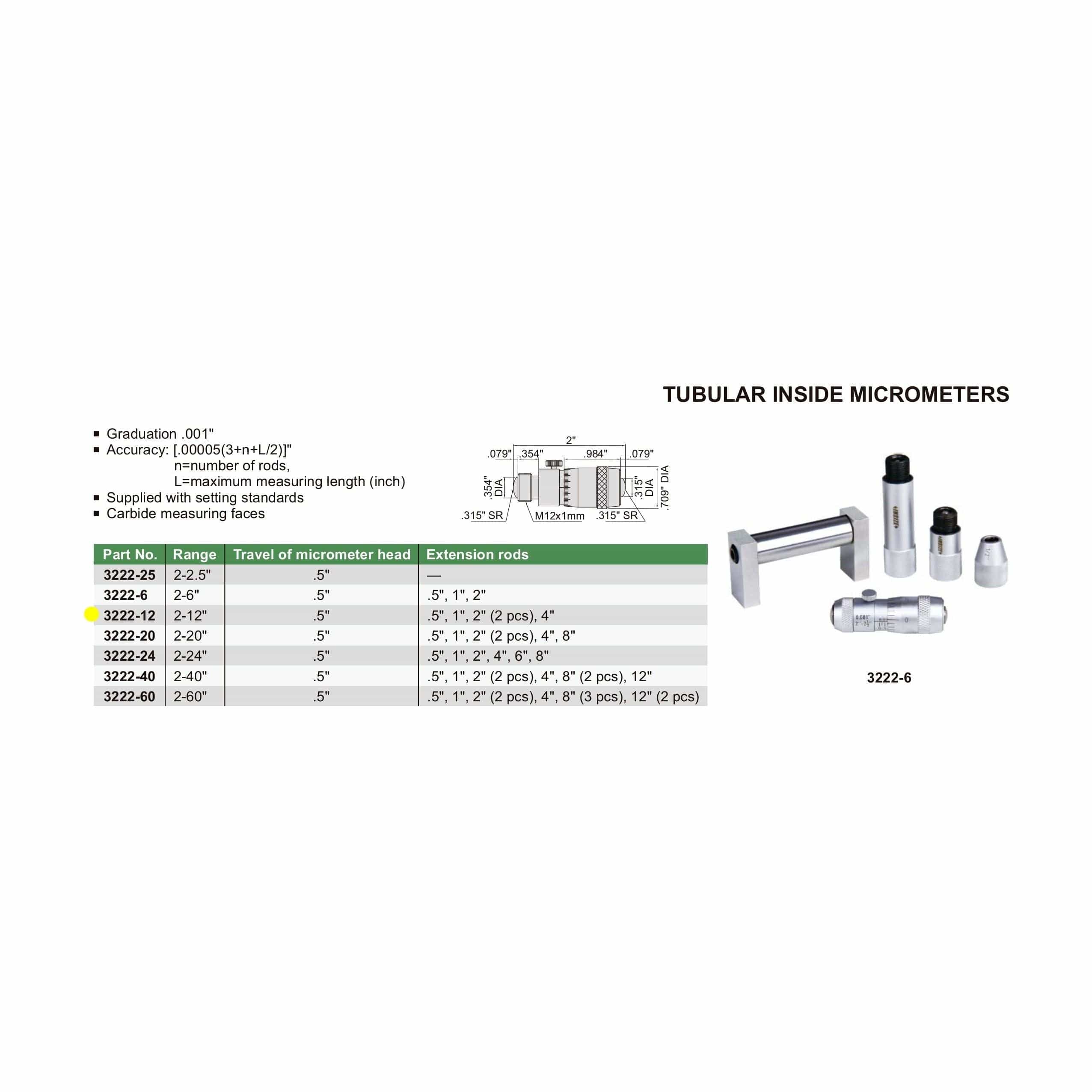

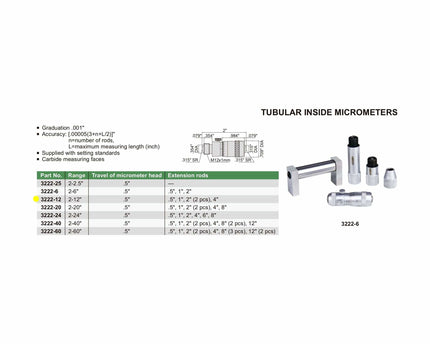

Specifications :
-
Part No: 3222-12
-
Measuring Range: 2–12"
-
Graduation: 0.001"
-
Accuracy: (3 + n + L / 50) μm
- n = number of extension rods used
- L = maximum measuring length (mm)
- Carbide measuring faces for extended service life.

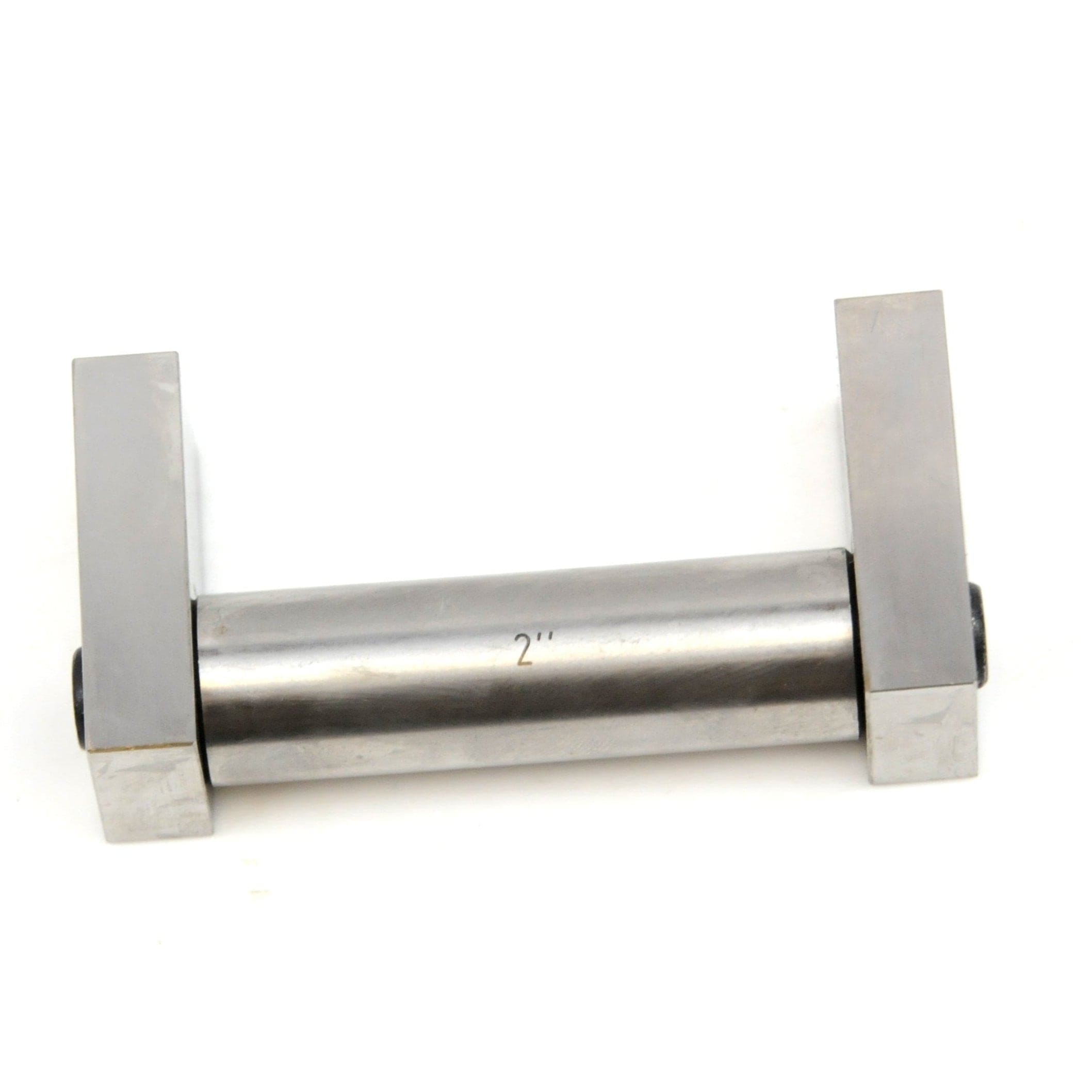

- Supplied with setting standards.
-

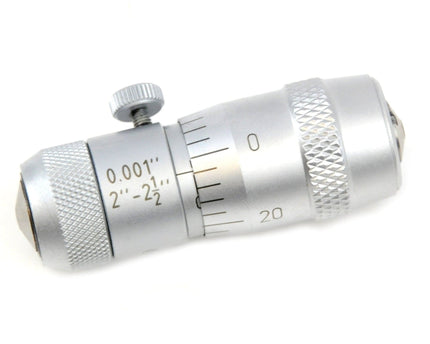

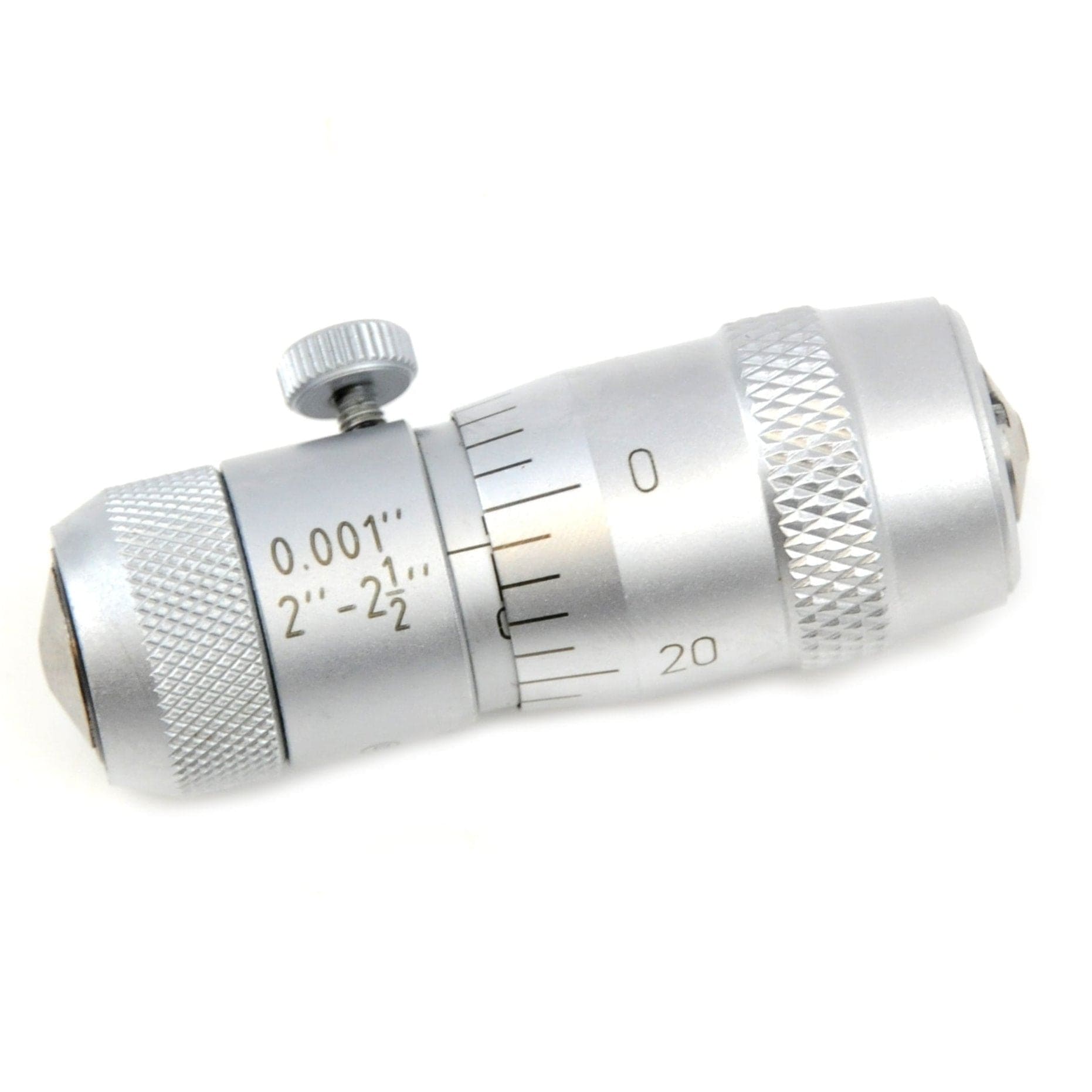

Micrometer Head Travel: 0.5"
-

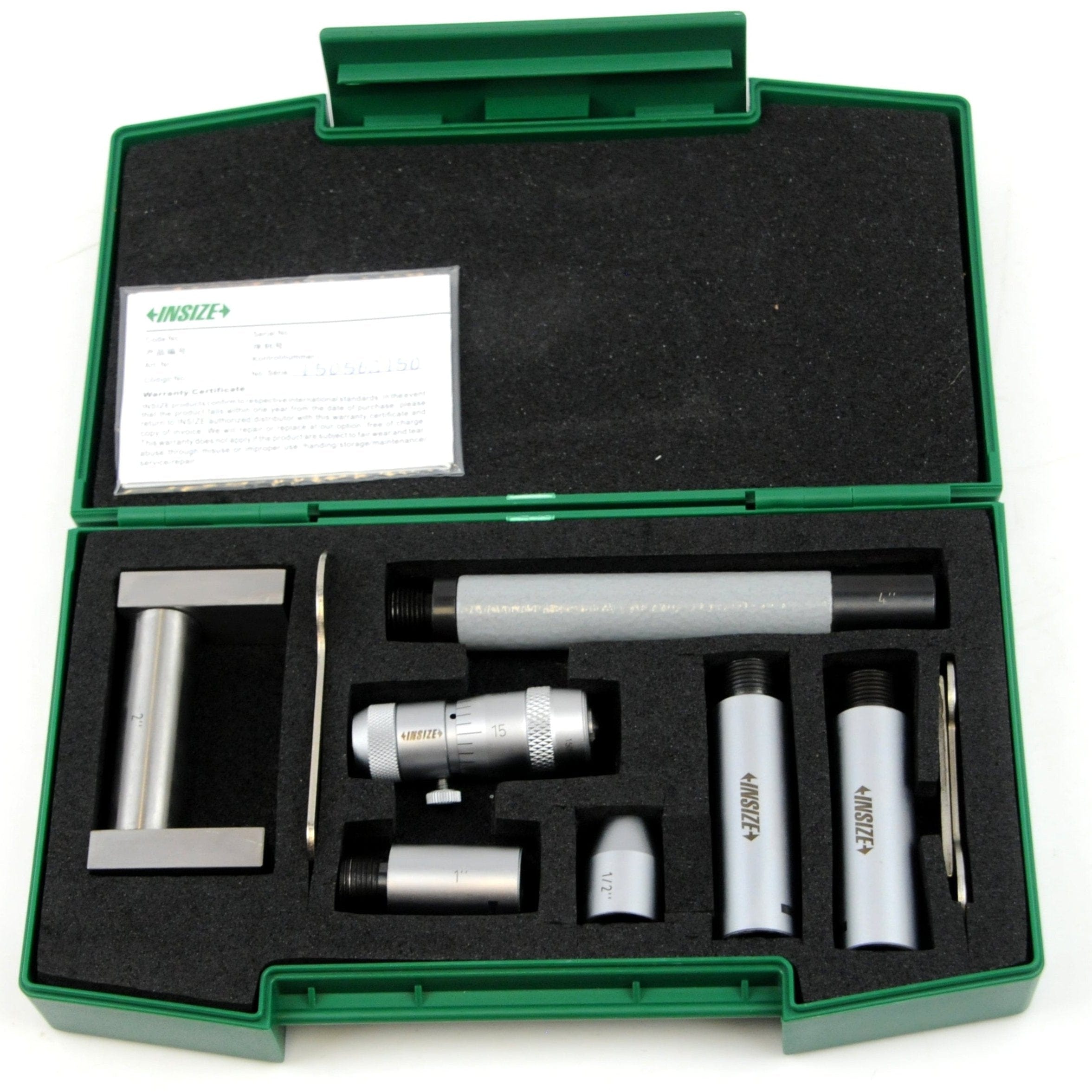

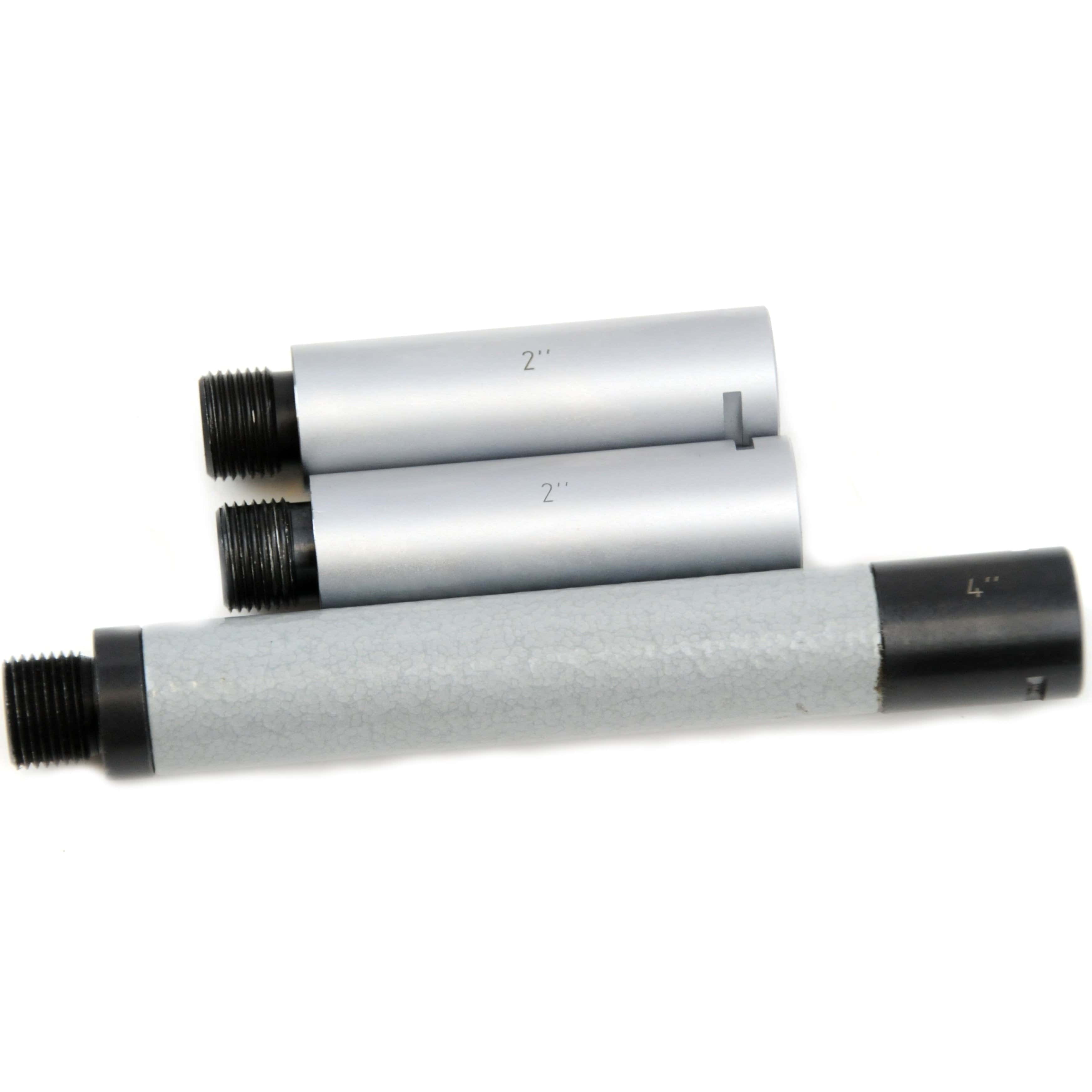

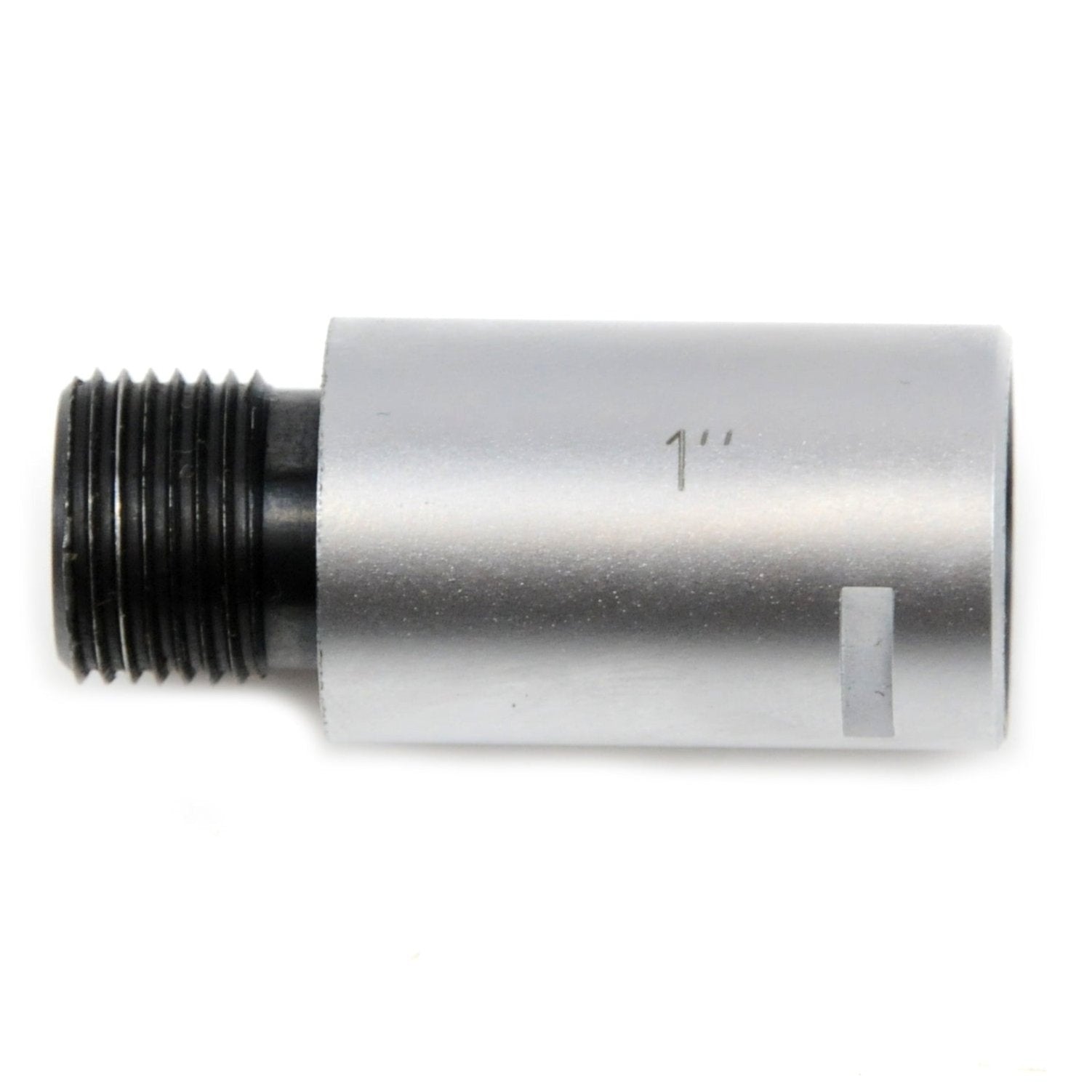

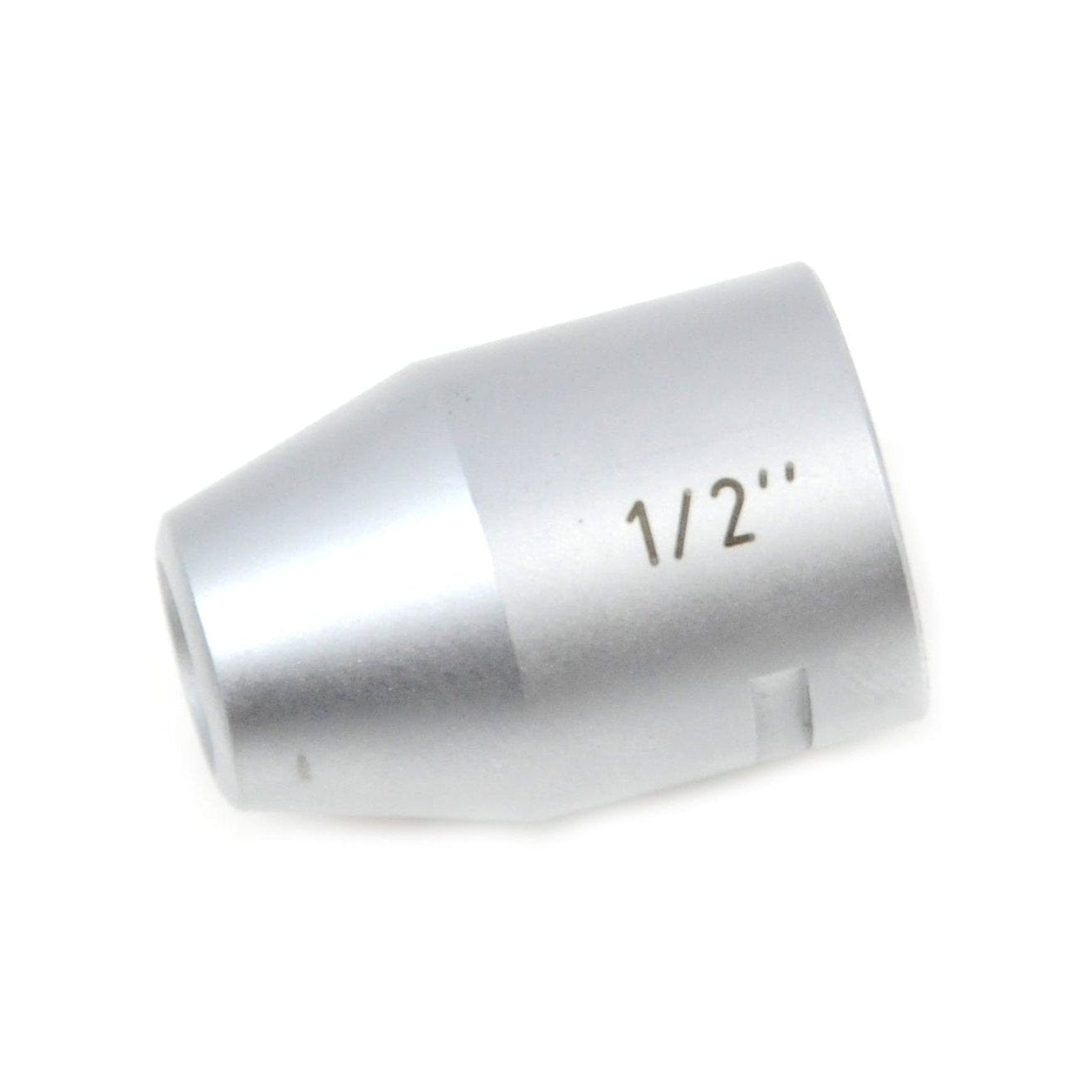

Extension Rods Included: 0.5", 1", 2" (2 pcs), 4"
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement applications. Insize large-range inside micrometer systems provide dependable accuracy and ease of use for precise internal measurement of a wide range of components.
