Description
Insize 50–1500mm Inside Micrometer

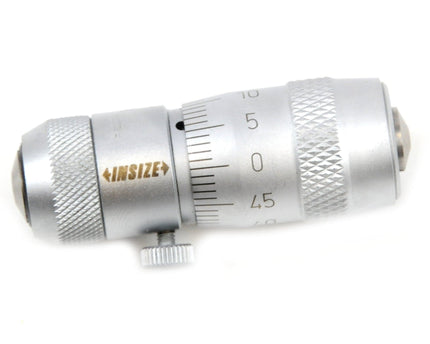

The Insize 50–1500mm Inside Micrometer is designed for accurate internal diameter measurements across extremely large metric ranges in machining, inspection, and heavy-industry applications. Featuring a modular extension rod system and a precision micrometer head, this instrument delivers reliable accuracy, flexibility, and repeatable performance for large internal measurement tasks.

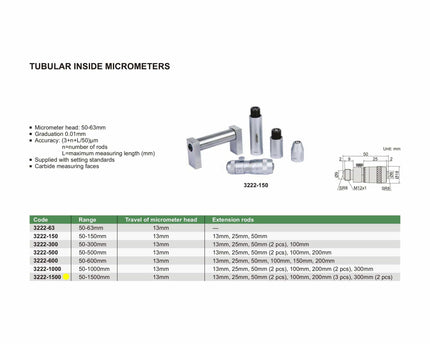

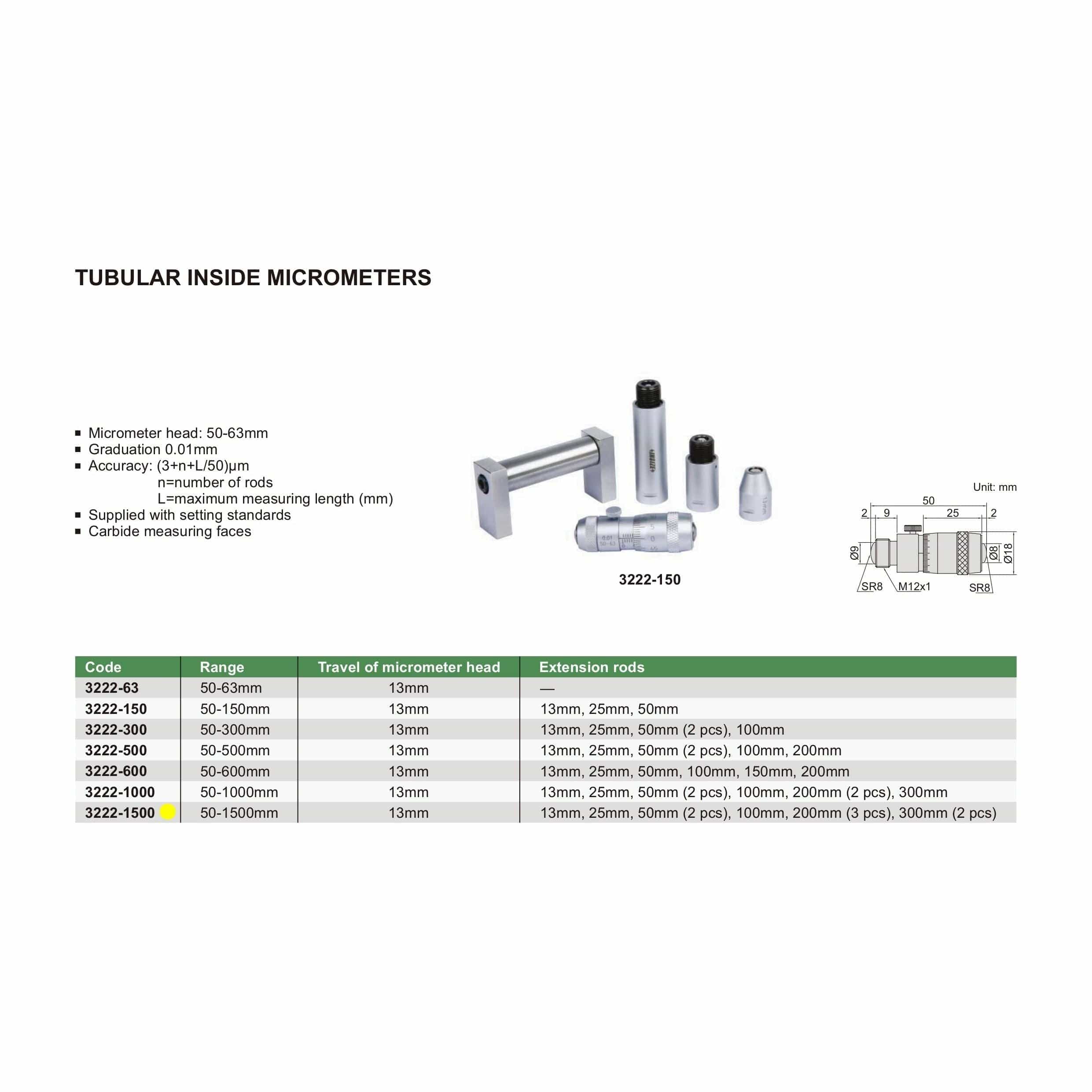

Specifications :
-
Part No: 3222-1500
-
Measuring Range: 50–1500 mm
-
Graduation: 0.01 mm
-
Accuracy: (3 + n + L / 50) μm
- n = number of extension rods used
- L = maximum measuring length (mm)
- Carbide measuring faces for extended service life.

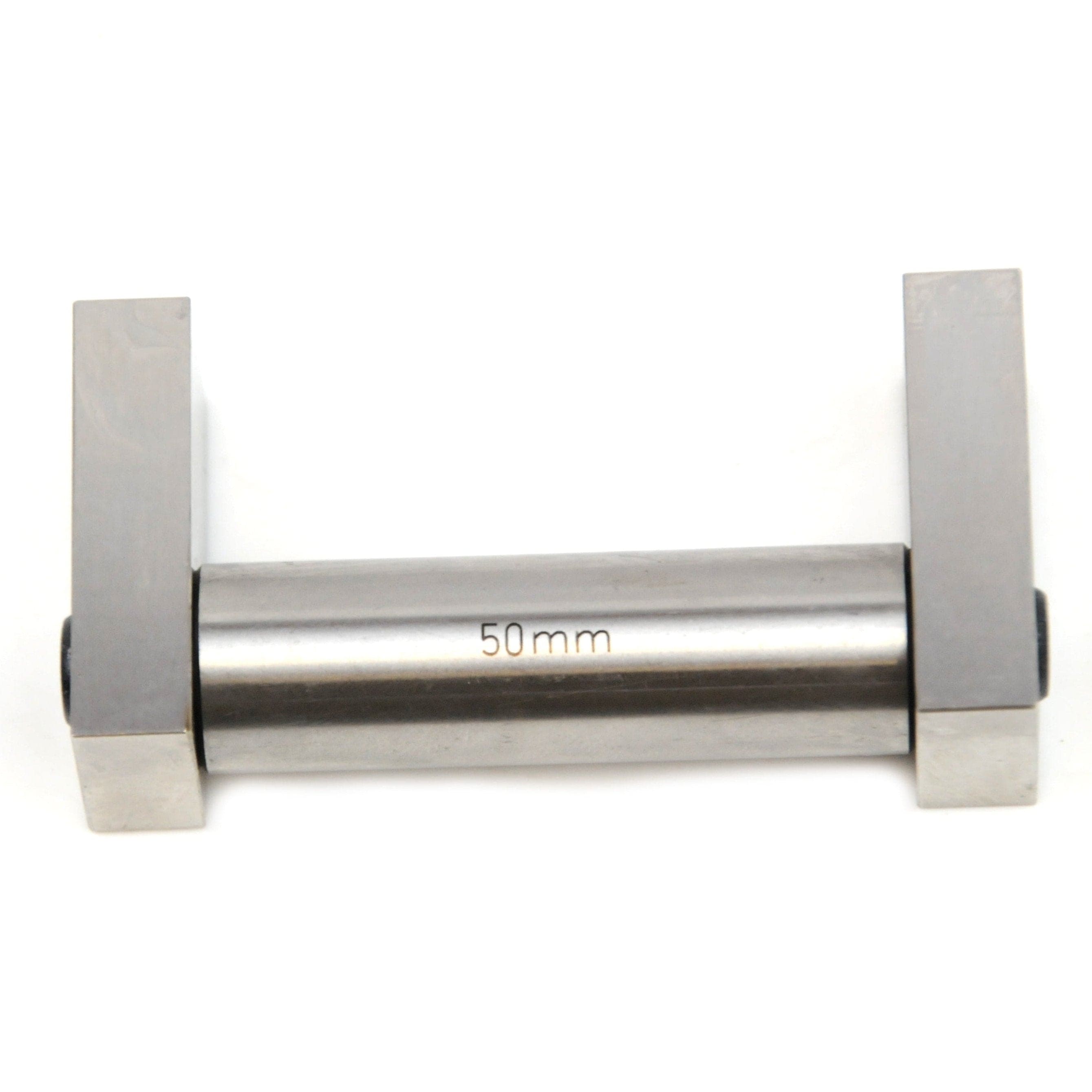

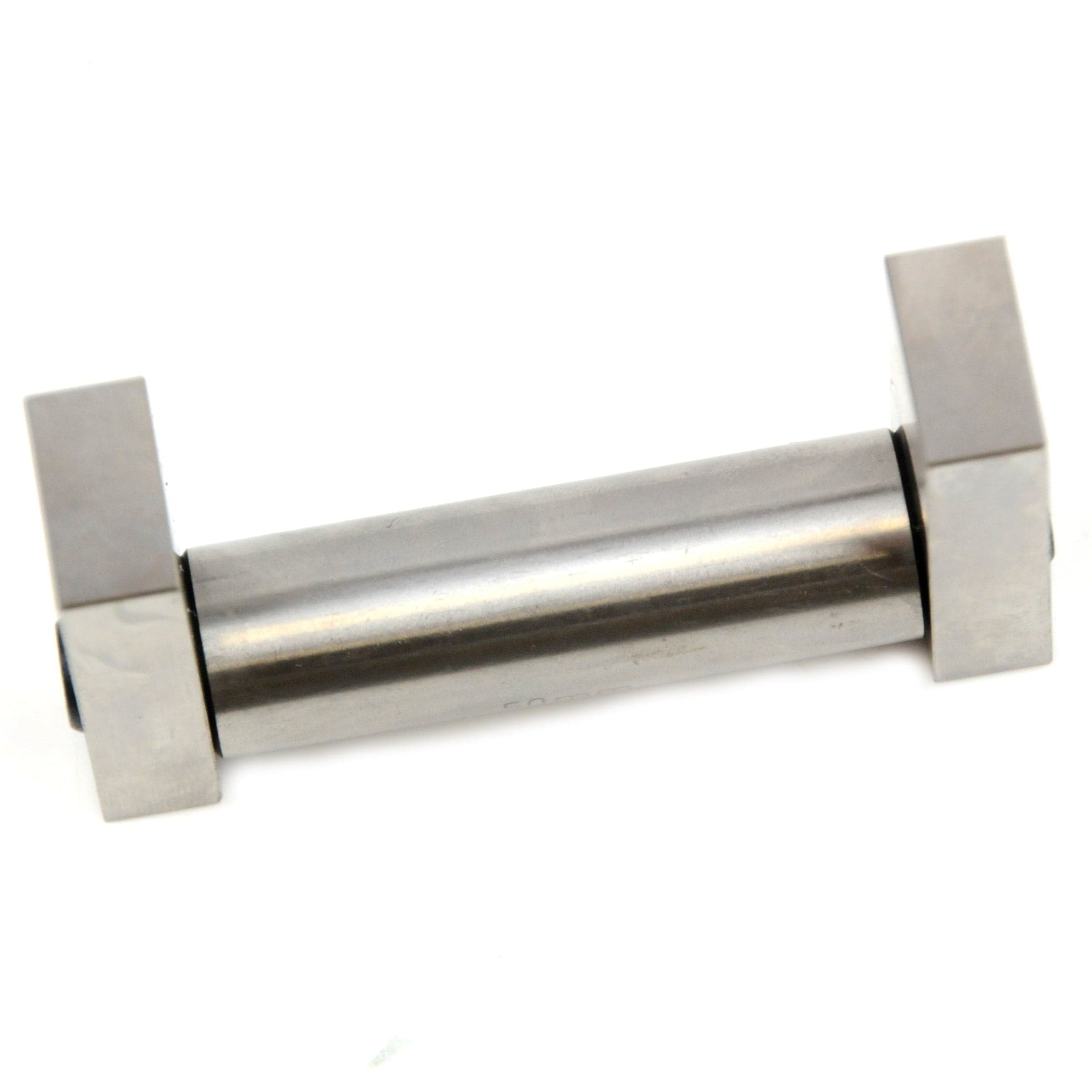

- Supplied with setting standards.
-

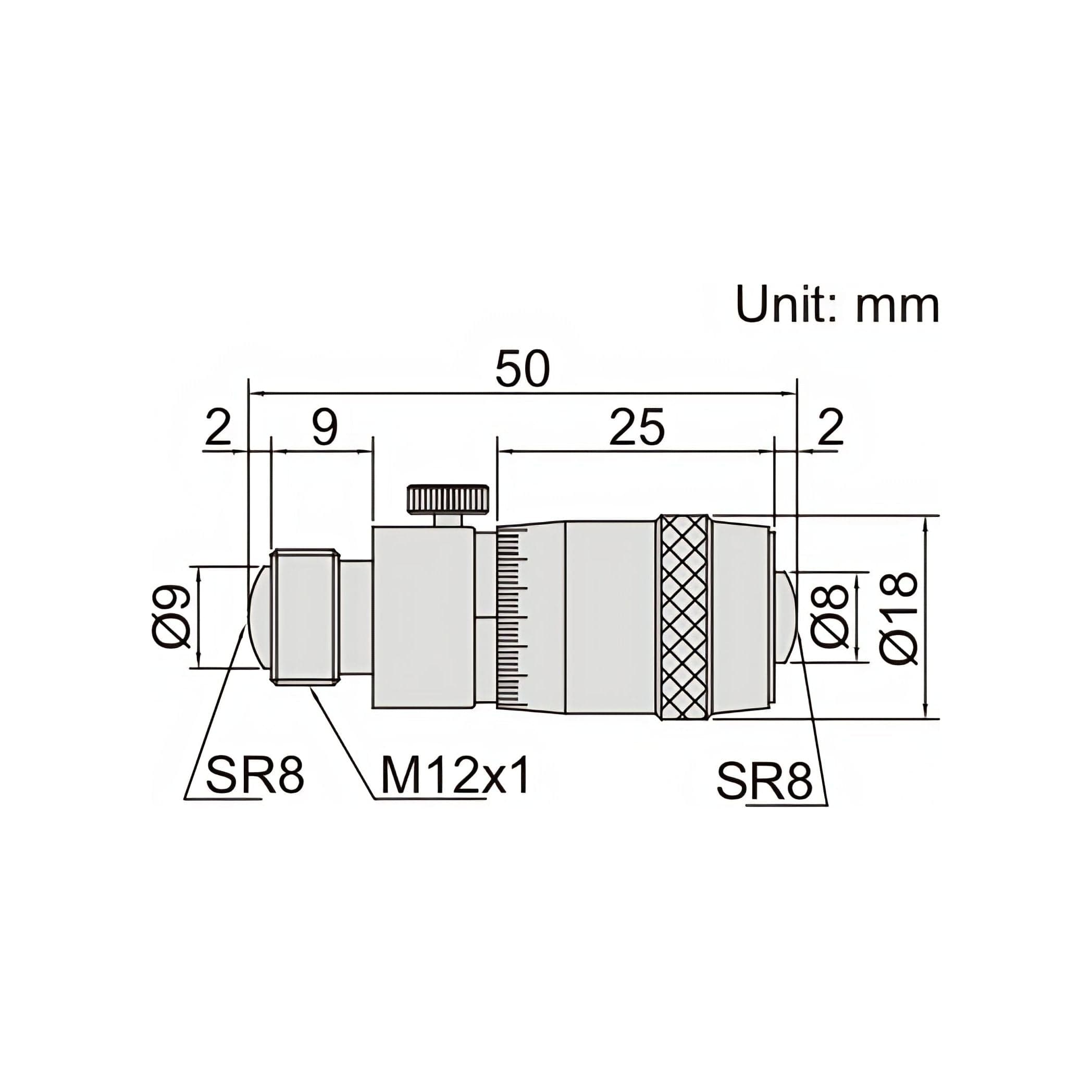

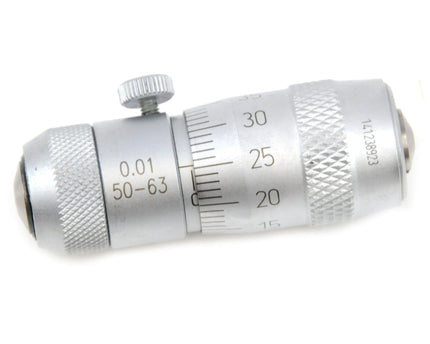

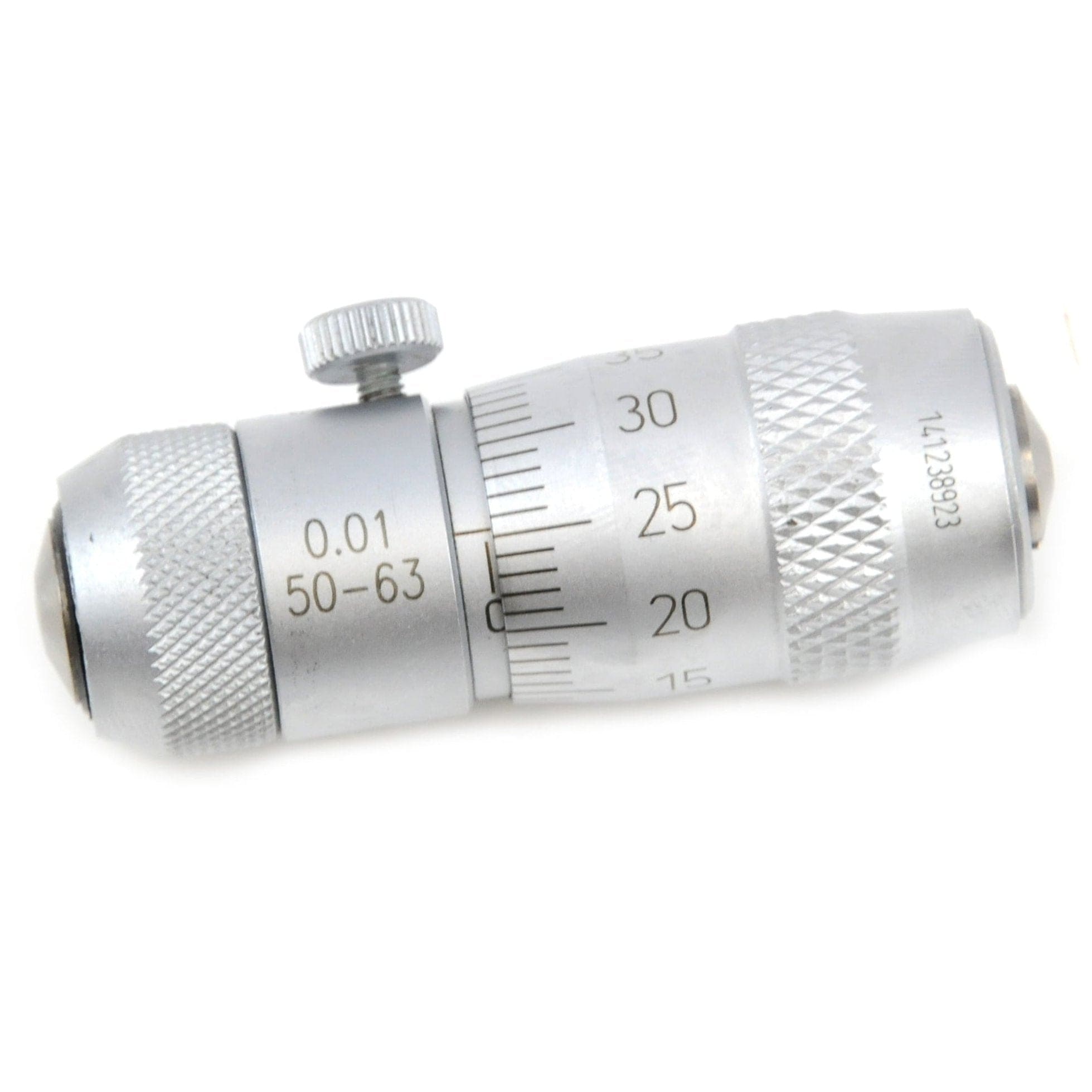

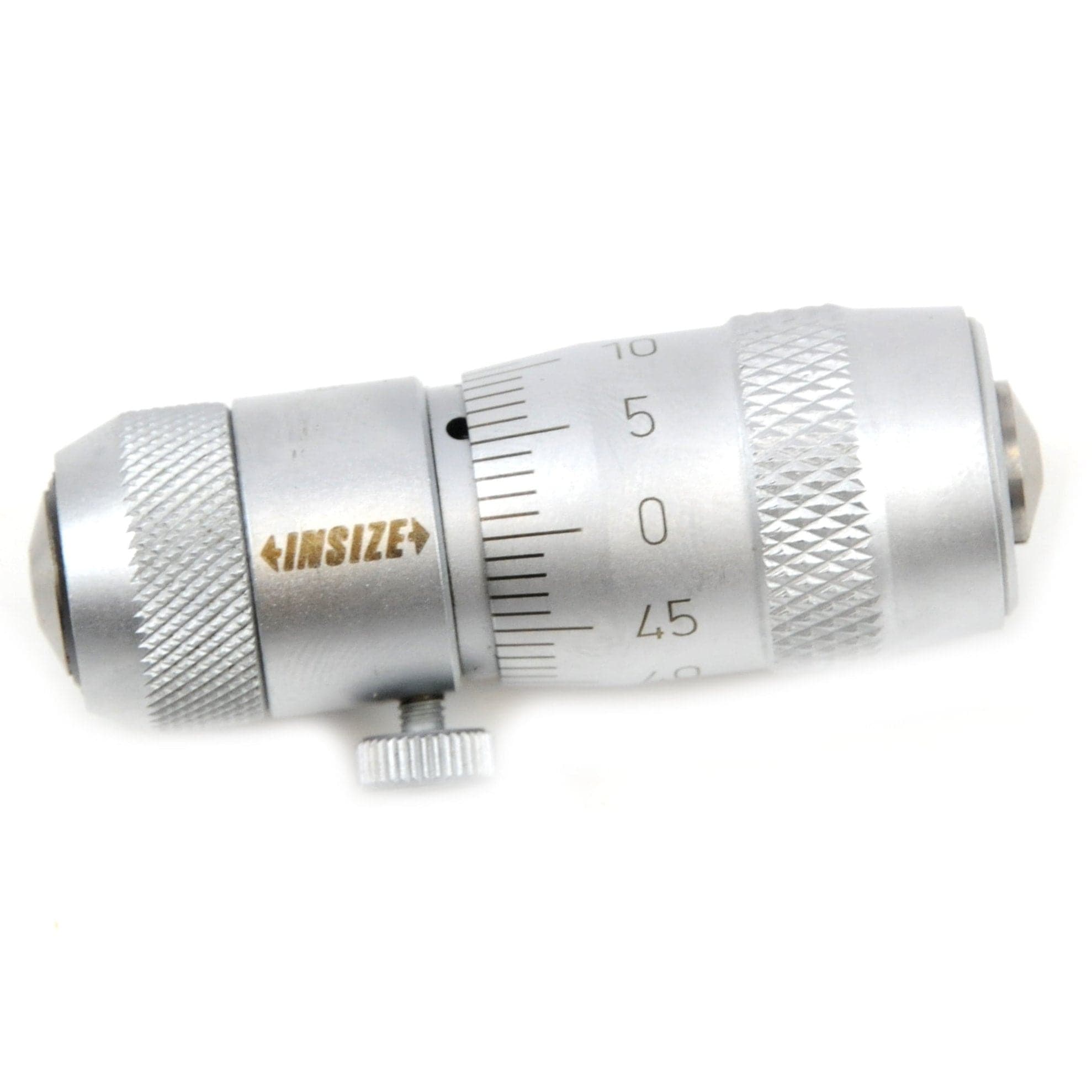

Micrometer Head Travel: 13 mm
-

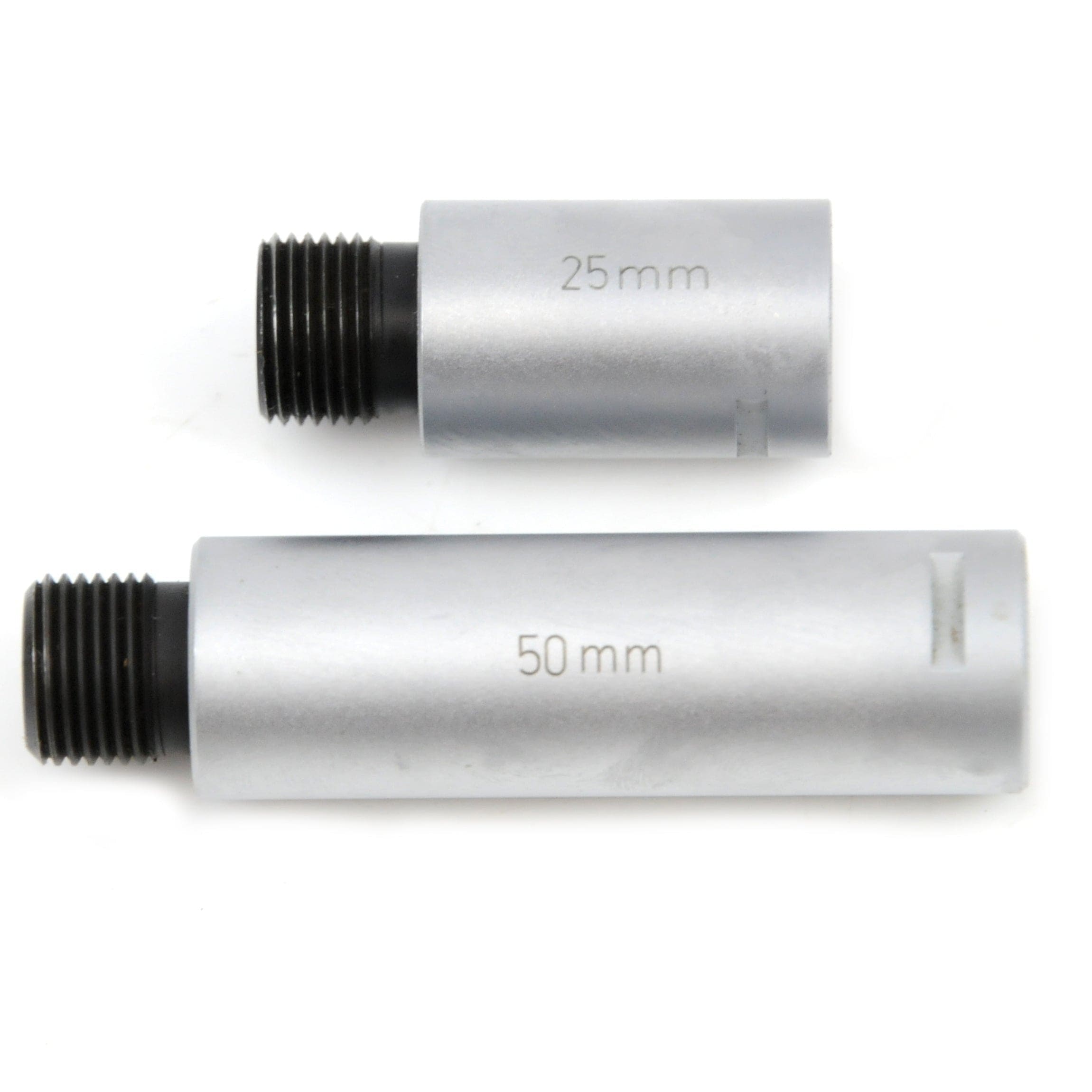

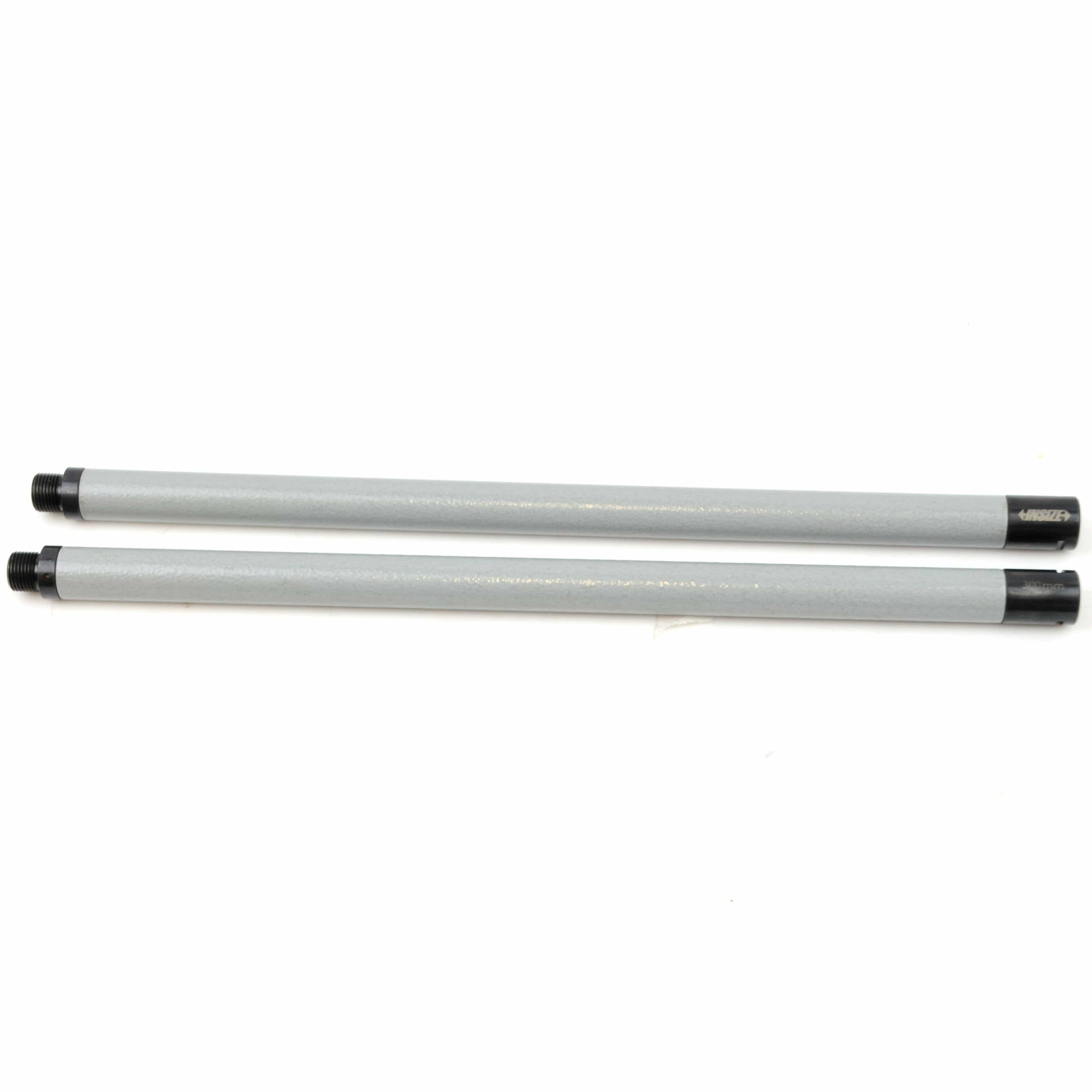

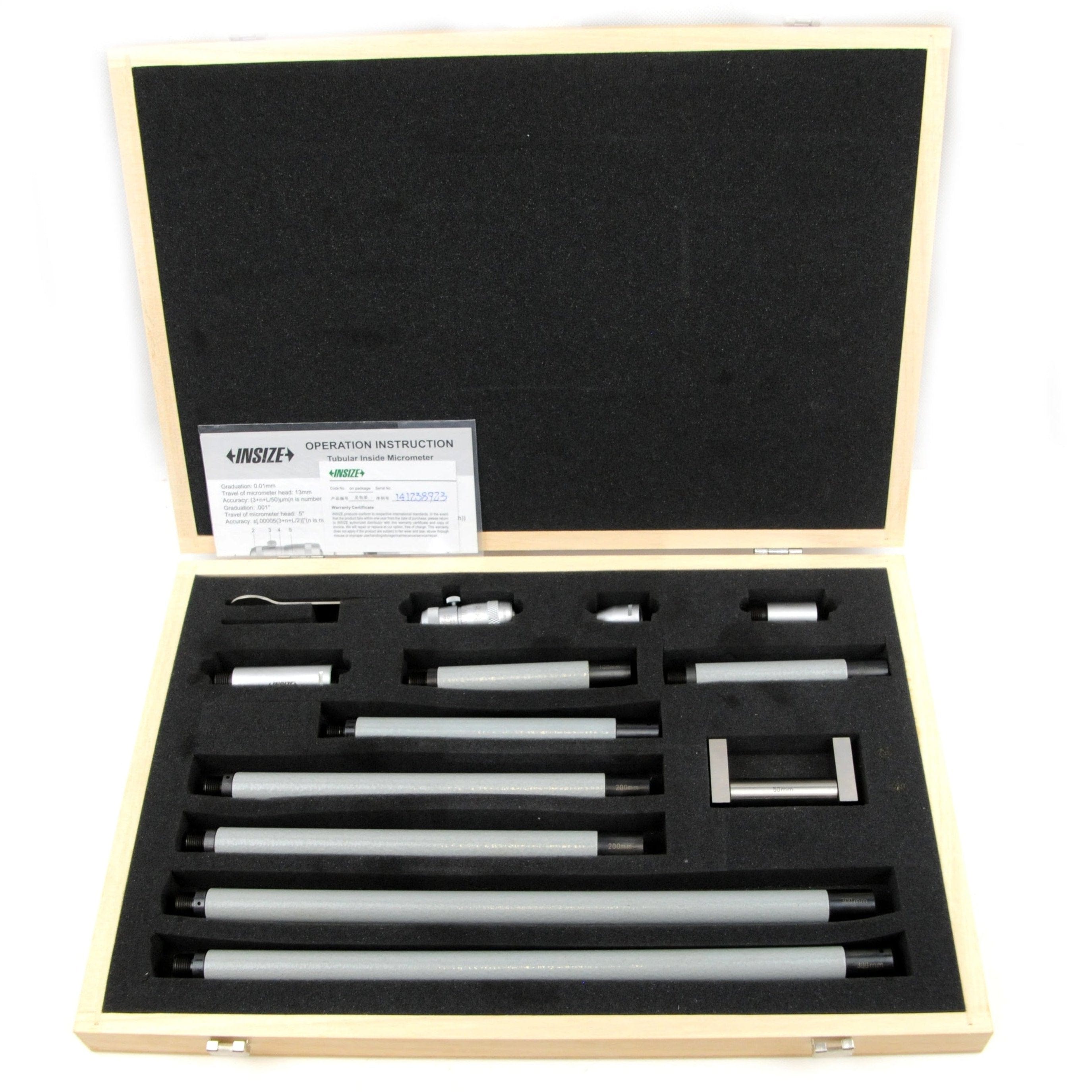

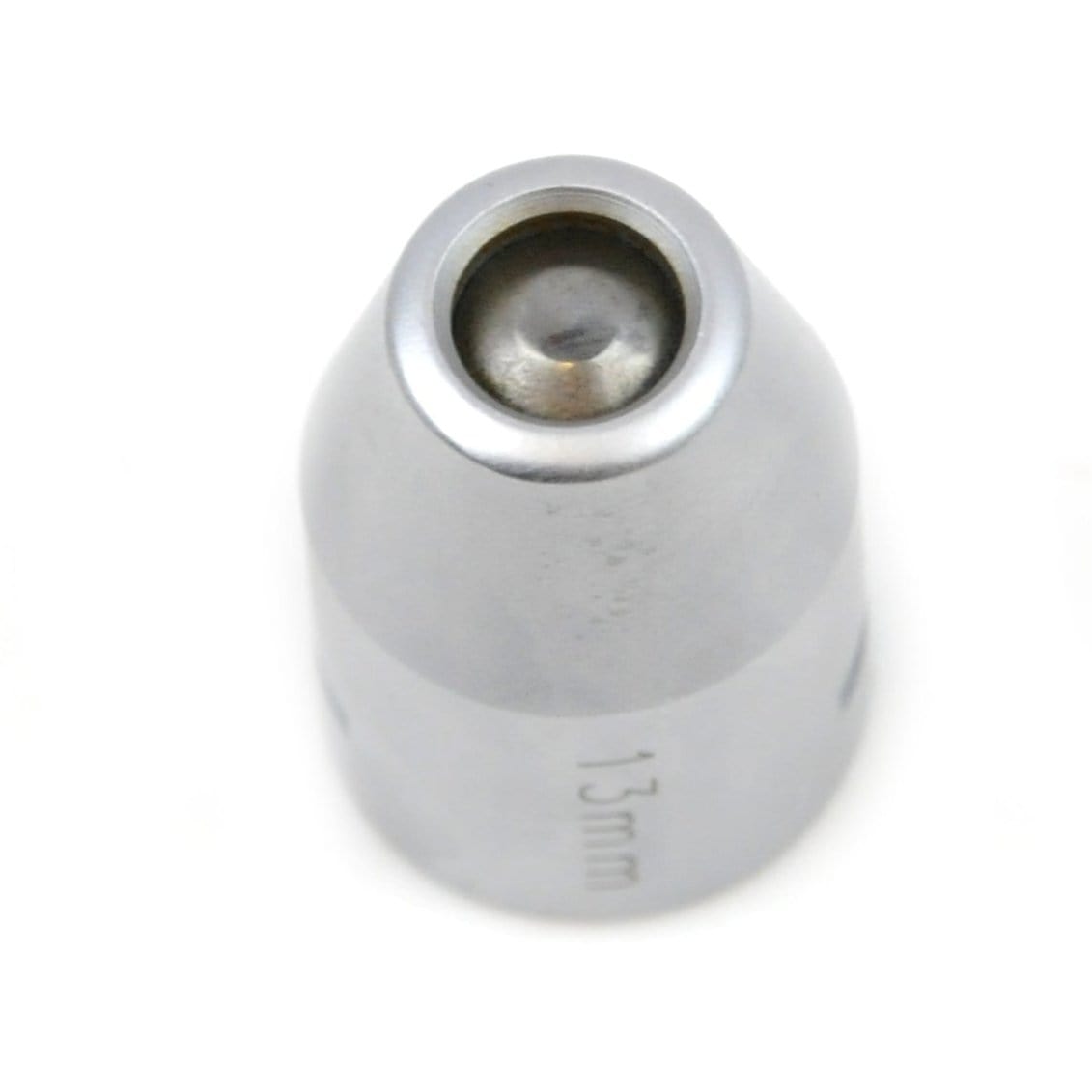

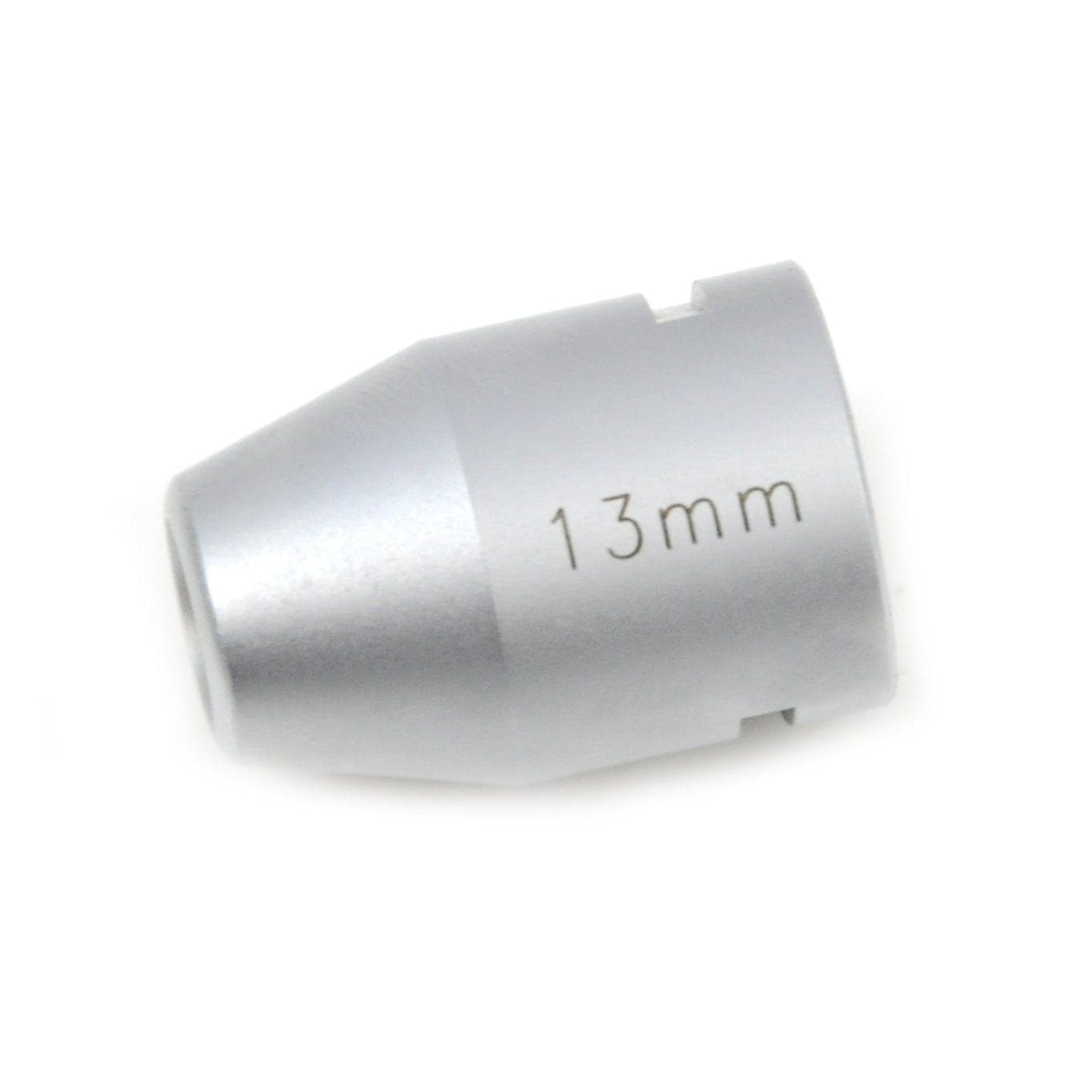

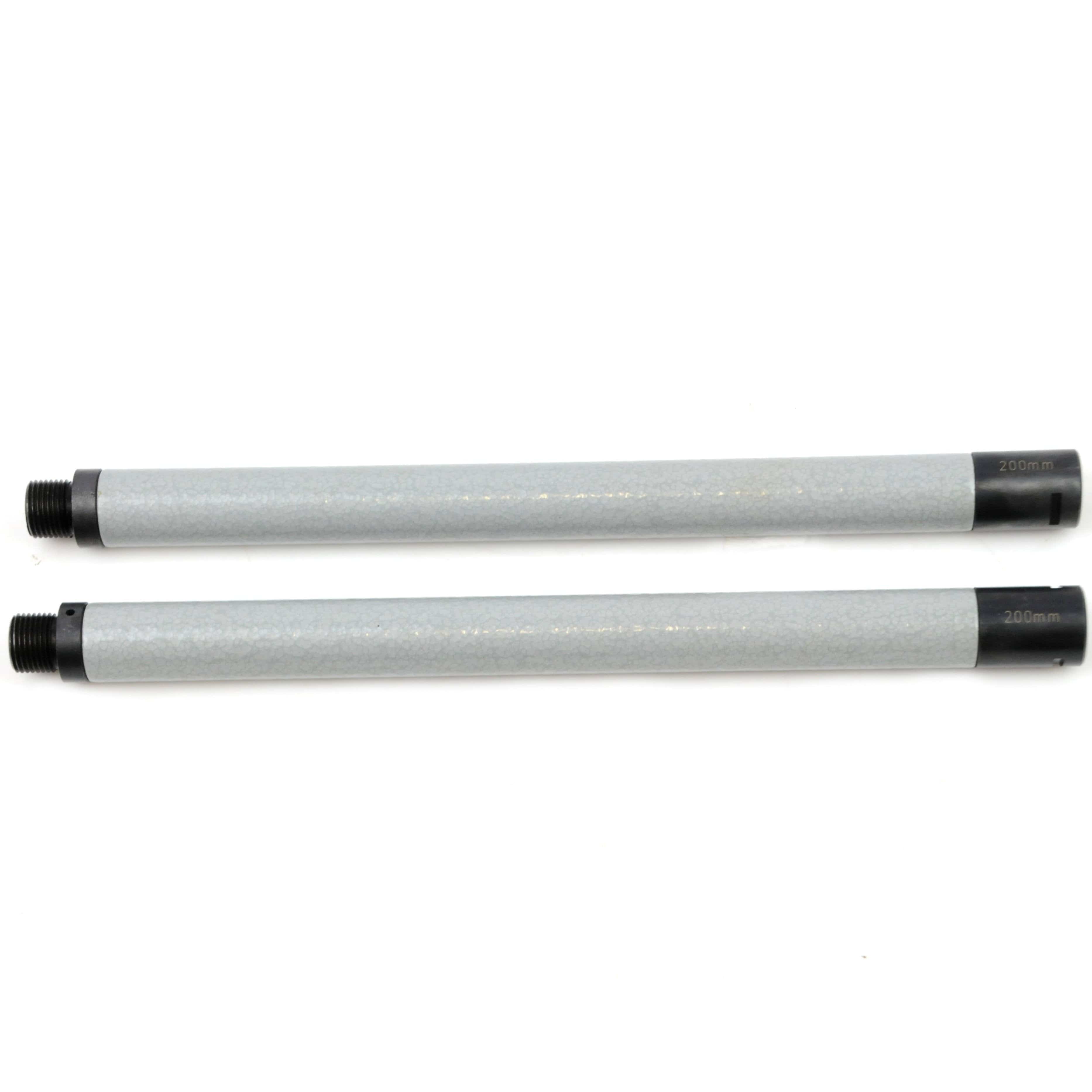

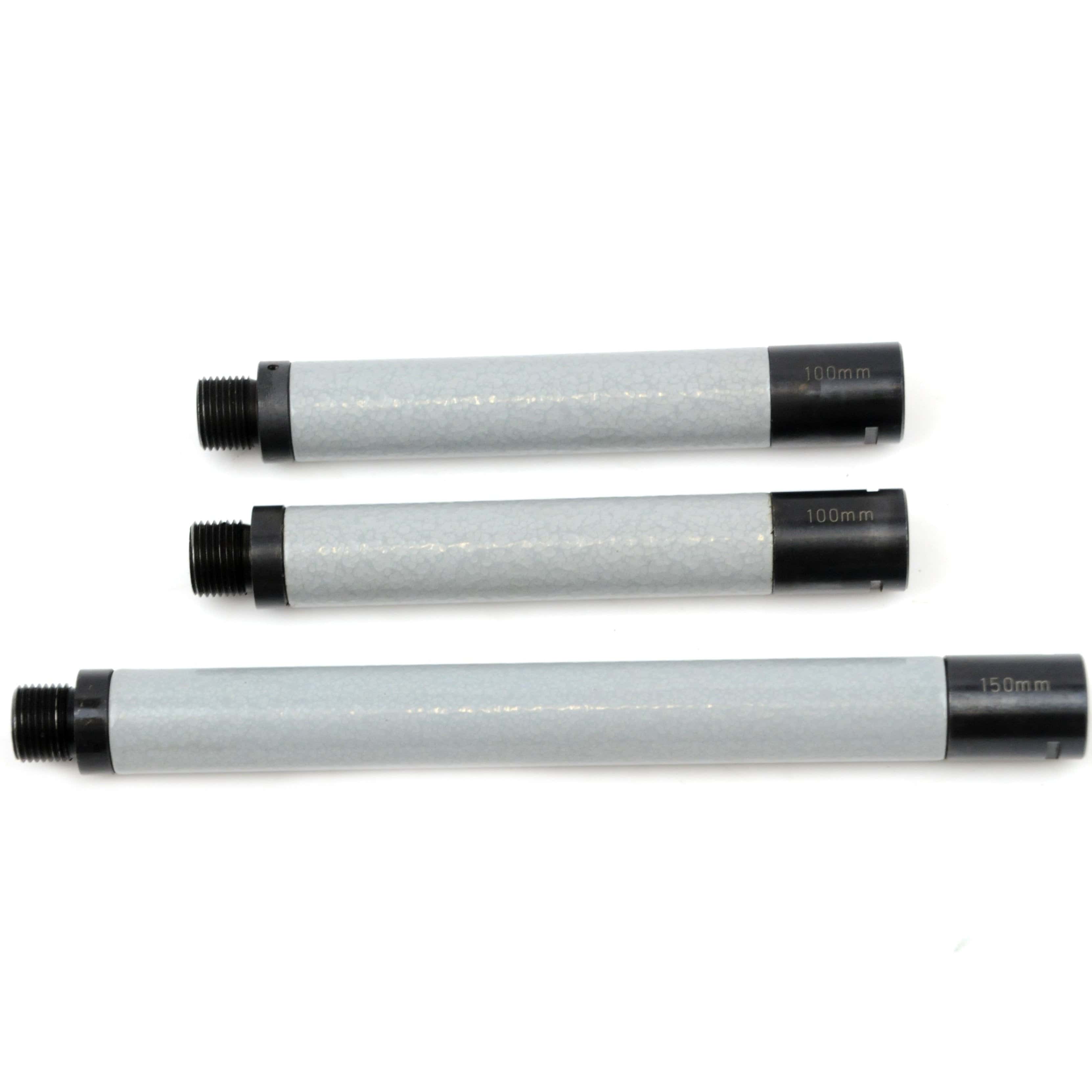

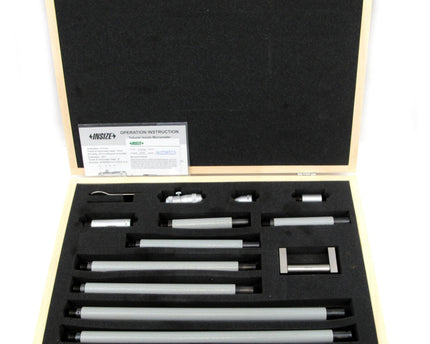

Extension Rods Included: 13 mm, 25 mm, 50 mm (2 pcs), 100 mm, 200 mm (3 pcs), 300 mm (2 pcs)
Well-designed, durable, and high-precision measuring tools suitable for demanding measurement applications. Insize large-range inside micrometer systems provide dependable accuracy, ease of use, and versatility for precise internal measurement of very large components.
