Description

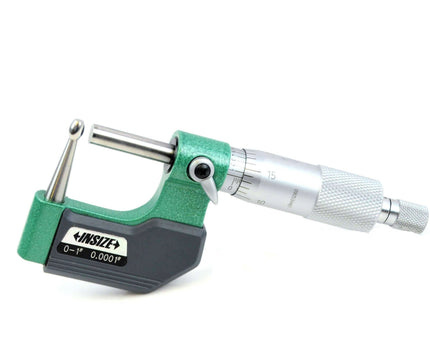

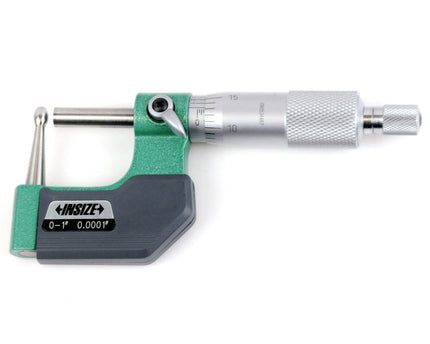

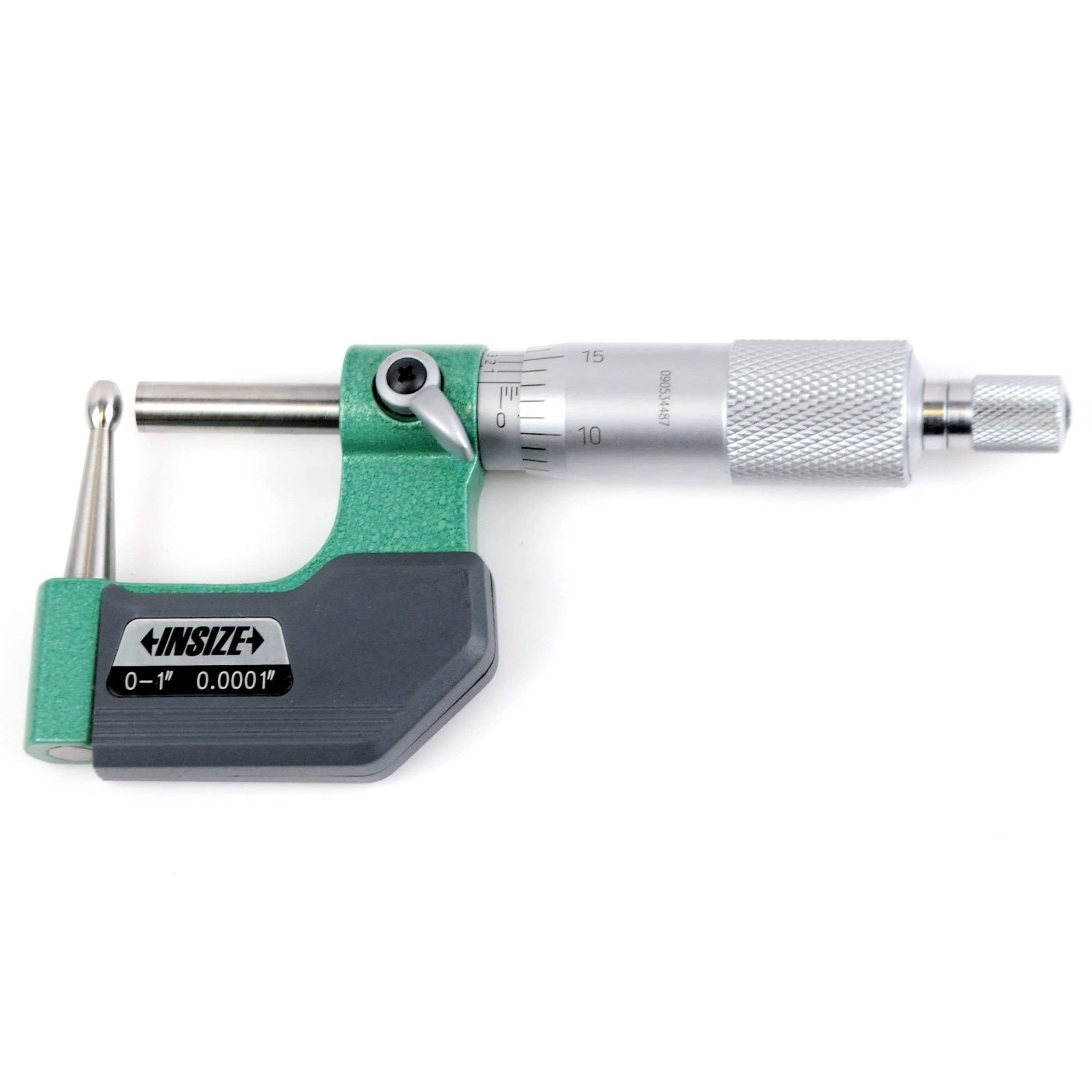

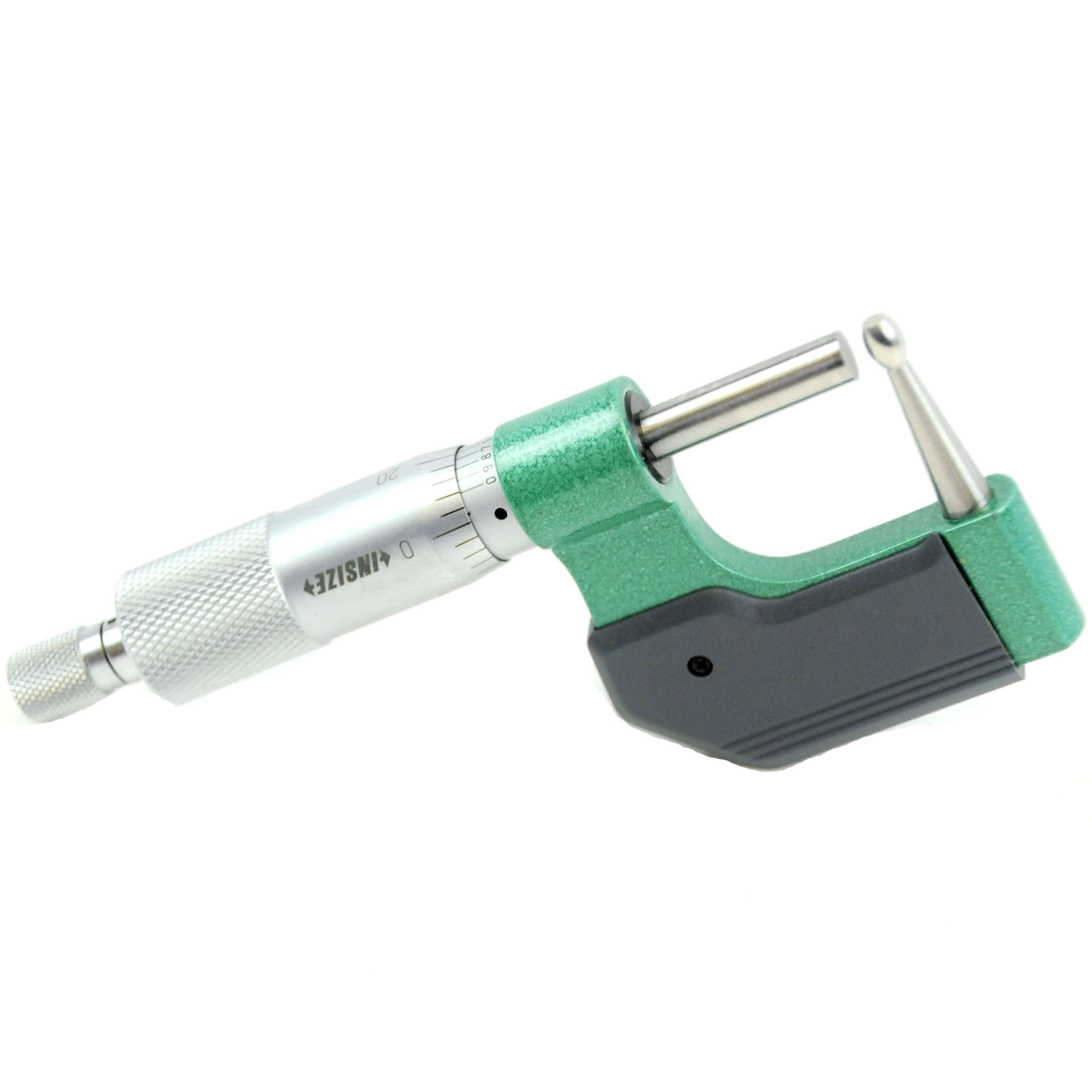

Insize 0–1" Imperial Cylindrical Anvil Micrometer
The Insize 0–1" Imperial Cylindrical Anvil Micrometer is designed for accurate external measurement of cylindrical features, steps, and narrow surfaces where standard flat anvils are not suitable. The cylindrical anvil design ensures stable contact and reliable readings, making it ideal for precision machining, inspection, and quality control applications.
Key Features:
-
Part Number: 3261-1C
-
Measurement Range: 0–1"
-
Graduation: 0.0001"
-
Accuracy: 0.00025"
-

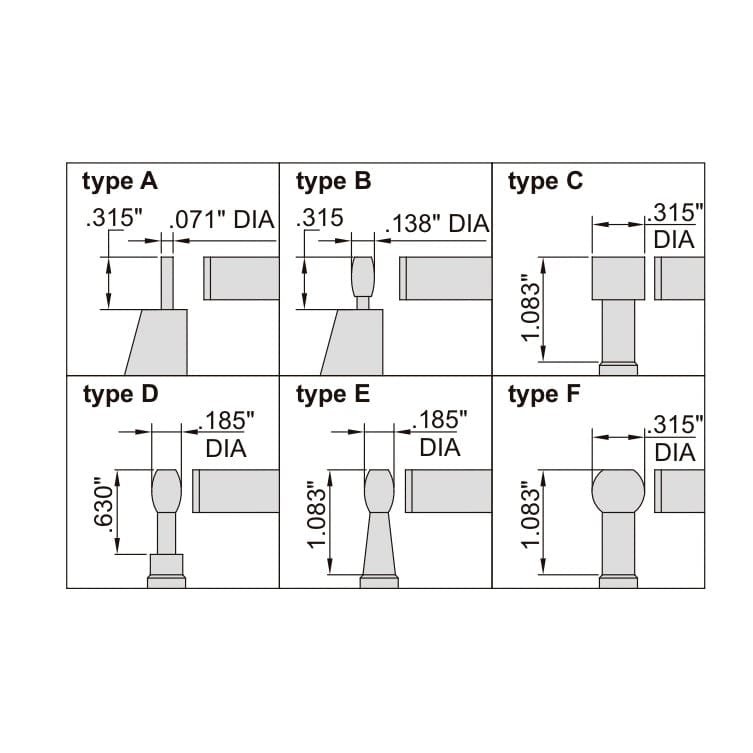

Type: Type C cylindrical anvil micrometer
-
Dimensions: L: 1.417", b: 0.984"
-
Cylindrical Anvil & Carbide Spindle Tip: Provide durability, wear resistance, and stable measuring contact
-
Ratchet Stop: Ensures consistent measuring pressure and repeatable results
-
Setting Standards: Supplied for calibration and accuracy verification (except for 0–1" range)
Well designed and built for durability, Insize cylindrical anvil micrometers deliver reliable and repeatable measurements for specialised external measurement tasks. Their robust construction and precision graduations make them well-suited to workshop, toolroom, and inspection environments.
