Description

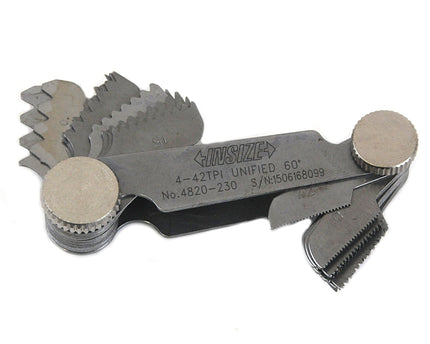

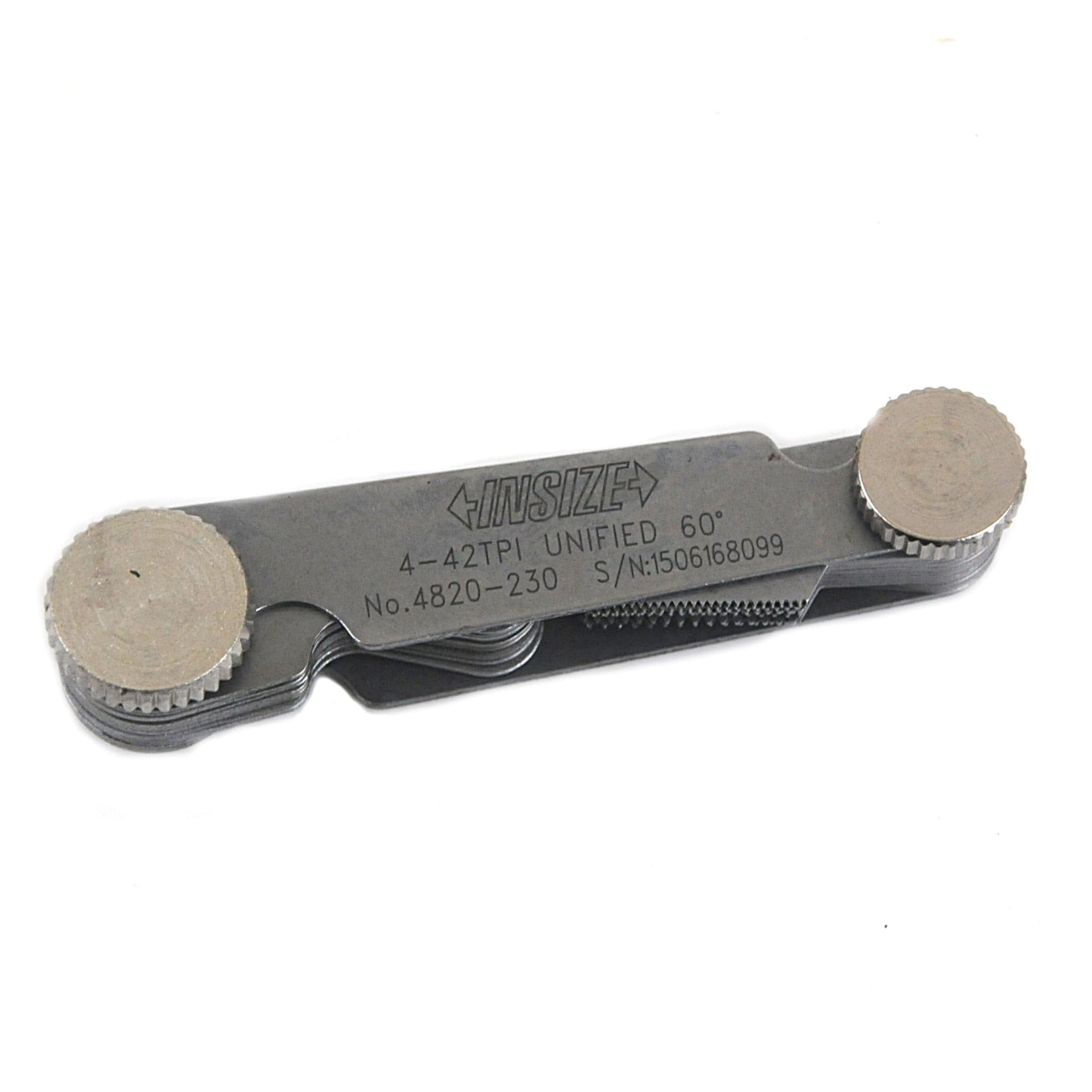

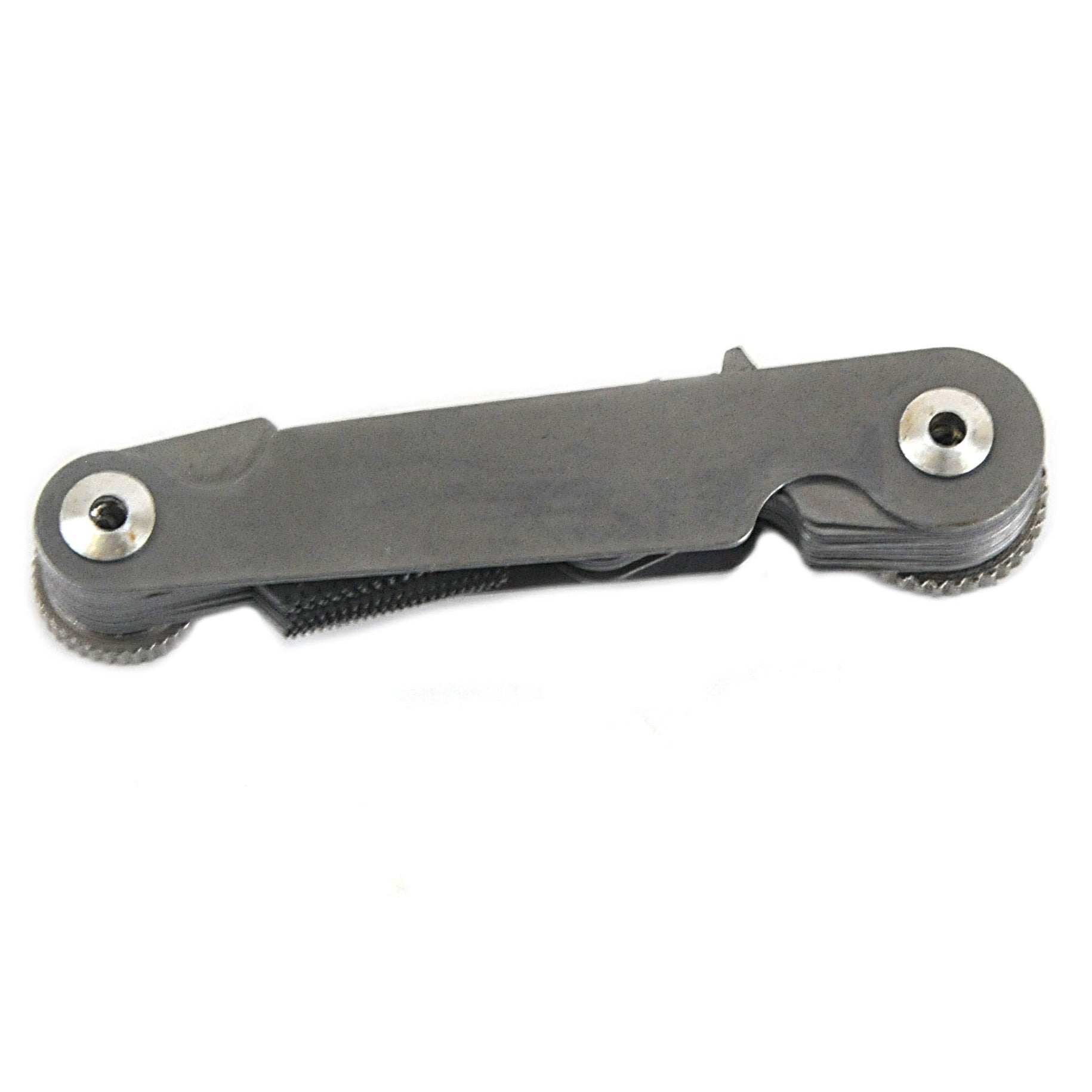

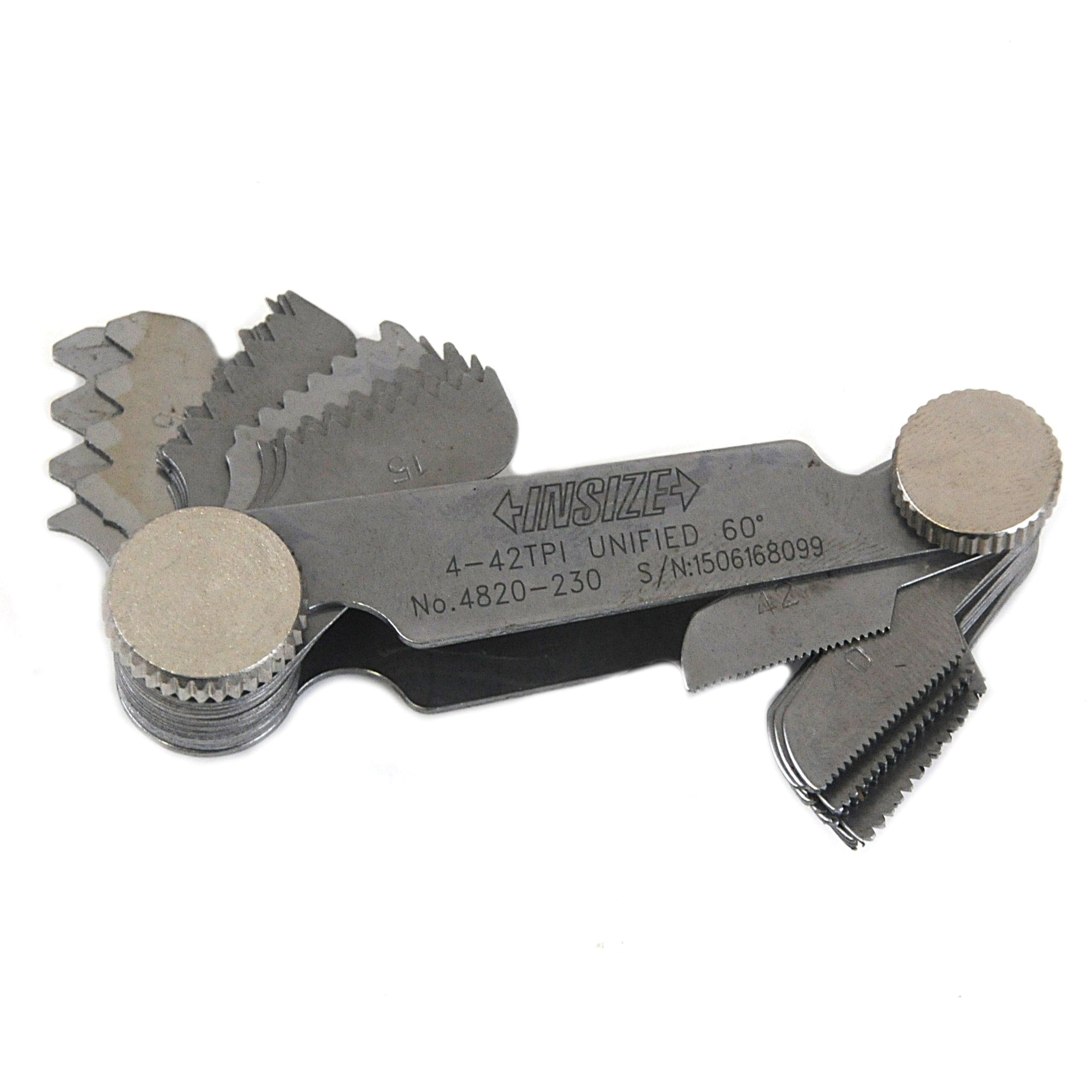

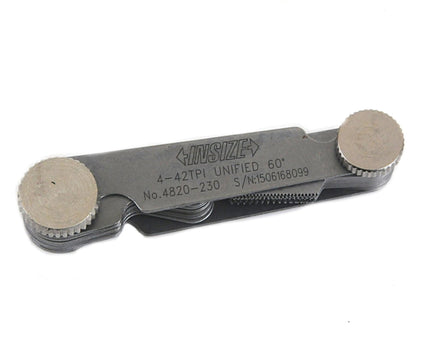

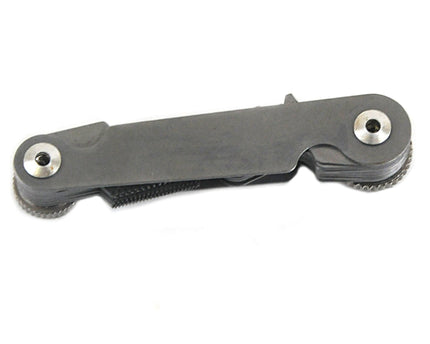

Insize Unified Screw Pitch Gauge 60°
The Insize Unified Screw Pitch Gauge is a precision measuring tool designed to accurately identify the pitch of Unified screw threads with a 60° thread profile. It is suitable for machining, maintenance, and inspection tasks where reliable thread pitch verification is required.
Key Features:
-
Part Number: 4820-230
-
Thread Type: Unified screw, 60°
-
Range: 4–42 TPI
-
Accuracy: ±0.0028"
-

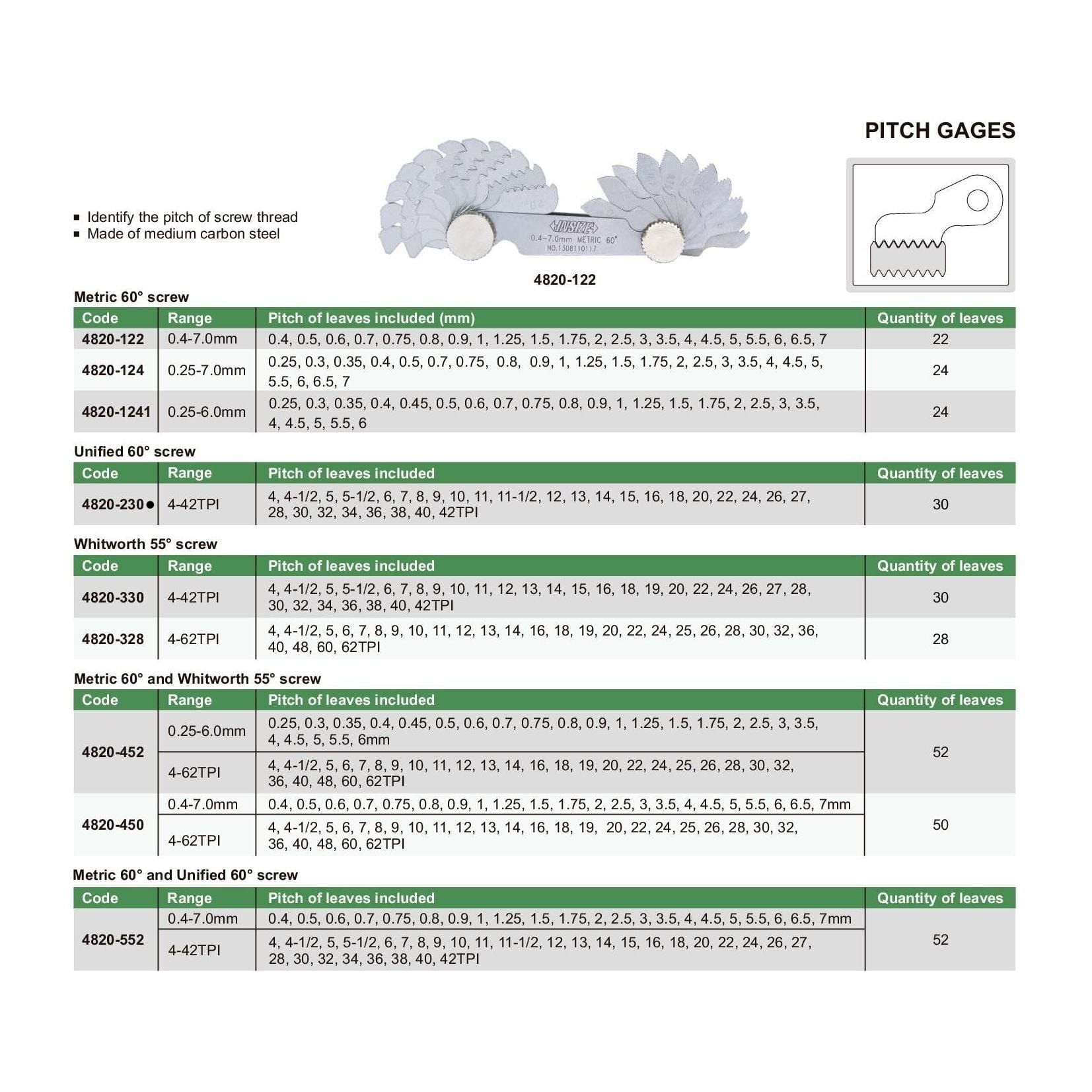

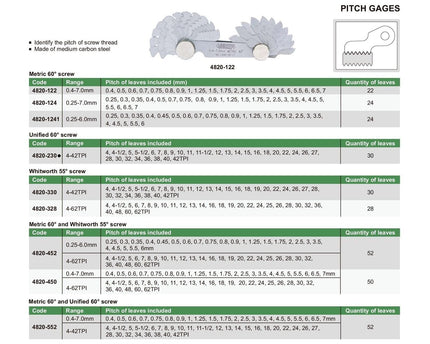

Included Pitches (TPI): 4, 4½, 5, 5½, 6, 7, 8, 9, 10, 11, 11½, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42
-
Number of Leaves: 30
-
Application: Identification of Unified screw thread pitch
-
Material: Medium carbon steel
Manufactured for durability and consistent accuracy, this INSIZE unified screw pitch gauge enables quick and precise determination of thread pitch, making it a practical tool for workshops, toolrooms, and inspection environments.
