Insize Magnetic V-Block

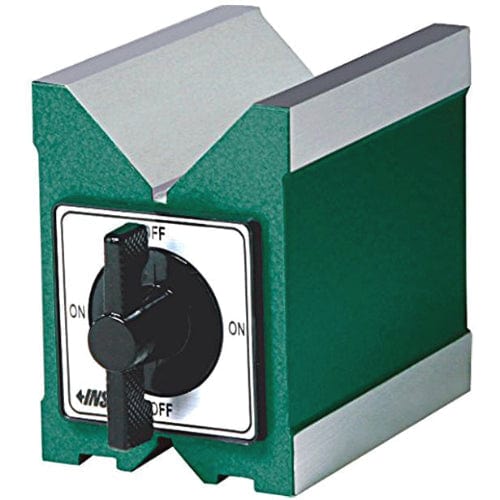

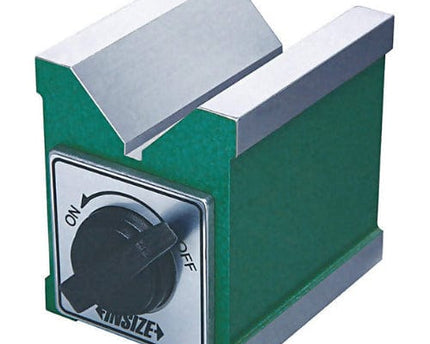

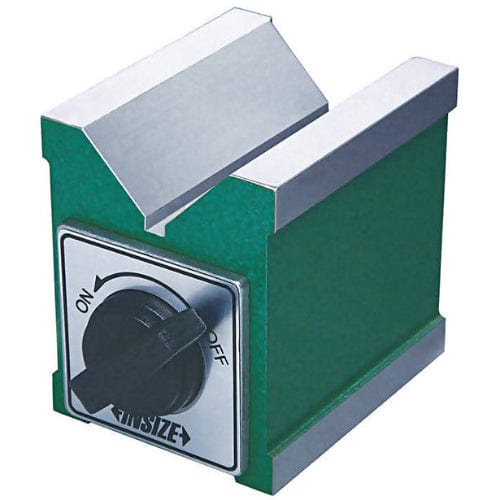

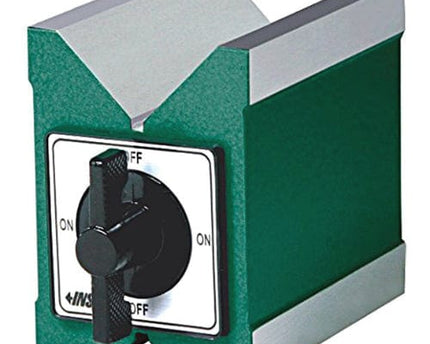

The INSIZE 6801-1202 Magnetic V-Block is a precision-engineered tool designed to securely hold cylindrical workpieces during inspection and machining processes. Its robust magnetic force ensures stable positioning, making it an essential accessory for accurate measurements and machining operations.

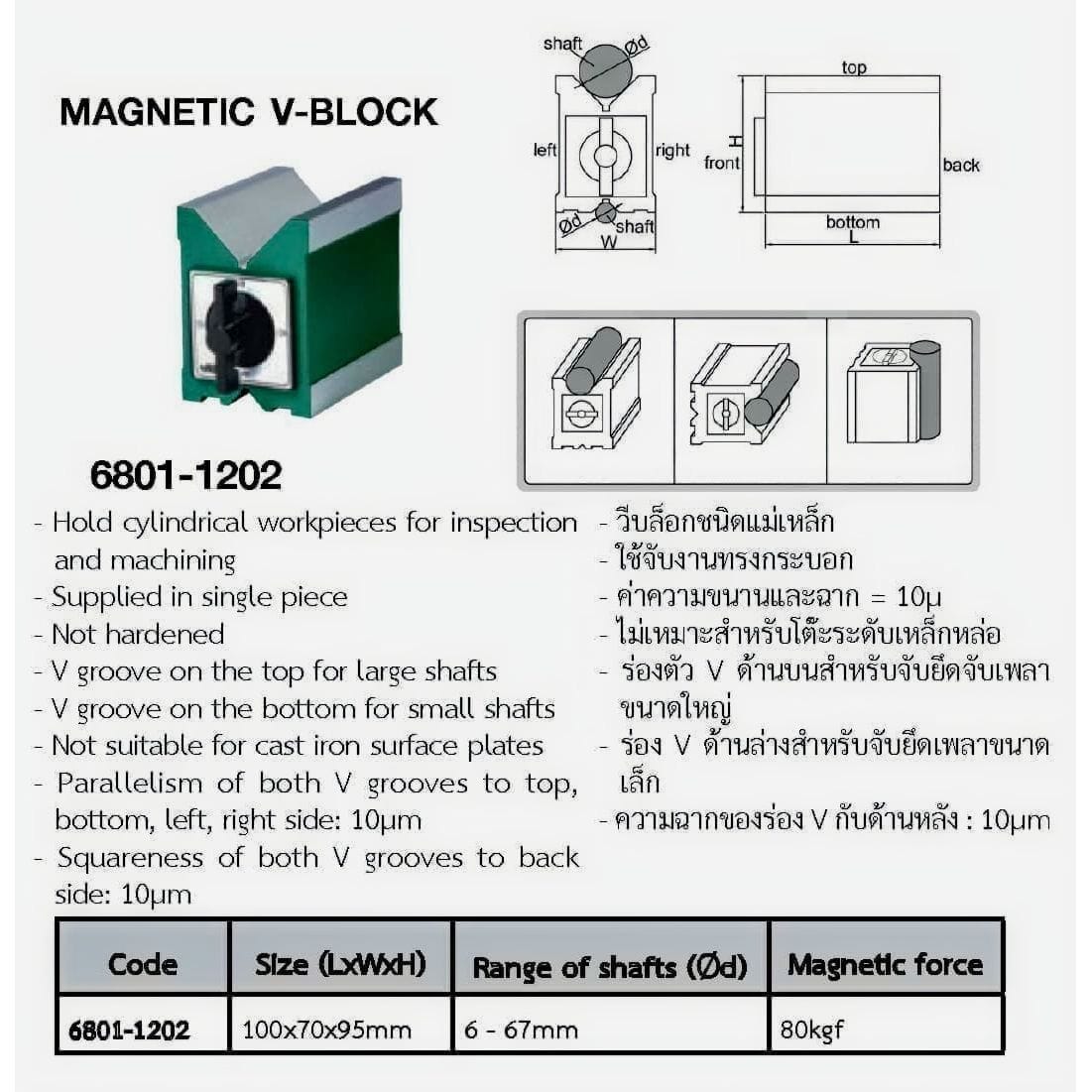

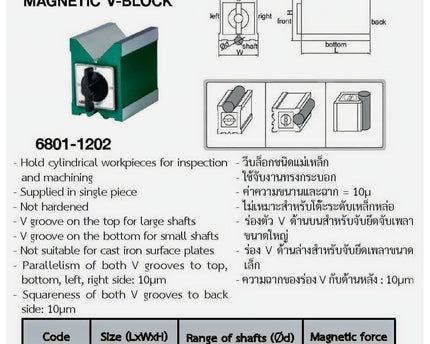

Specifications :
-
Part No: 6801-1202
-
Dimensions (L×W×H): 100×70×95 mm
-
Shaft Holding Range (Ød): 6–67 mm
-
Magnetic Force: 80 kgf
-
Parallelism of V-Groove to Top, Bottom, Left, and Right Sides: 10 µm
-
Squareness of V-Groove to Back Side: 10 µm
-
V-Groove Configuration: Top groove for large shafts; bottom groove for small shafts
-
Hardness: Not hardened
-
Supplied As: Single piece
-
Note: Not suitable for use on steel or iron surfaces, as magnetic force may be reduced
Well-designed and durable, the INSIZE Magnetic V-Block 6801-1202 is ideal for securely holding cylindrical workpieces during machining, inspection, and measurement. Its strong magnetic force provides stable positioning, and the V-groove design allows for versatile use with a range of shaft sizes. An essential tool for precision work in machining and inspection processes.
