Insize Magnetic V-Block

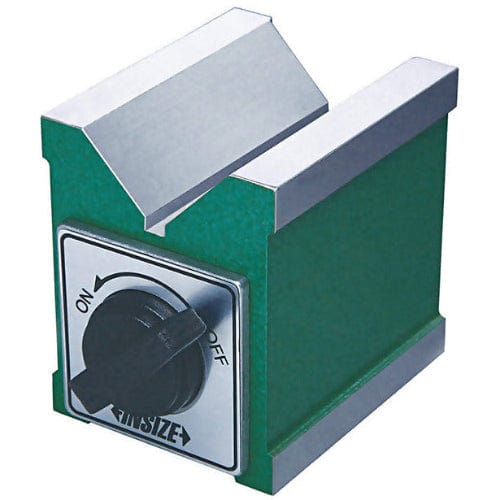

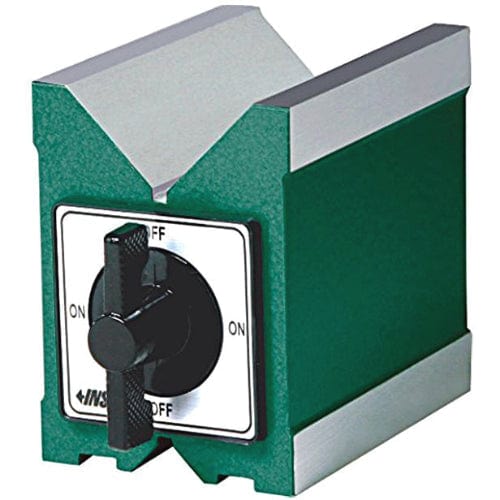

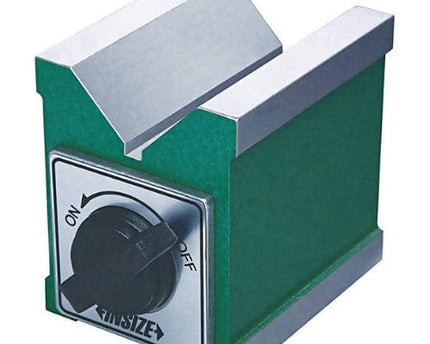

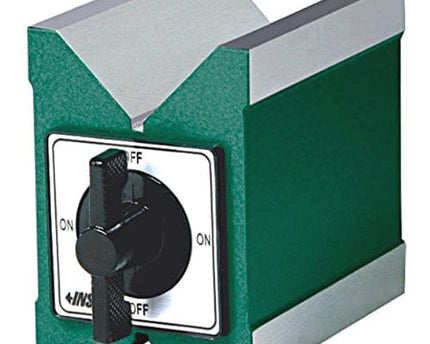

The INSIZE 6890-702 Magnetic V-Block is a precision tool designed to securely hold cylindrical workpieces during inspection and machining processes. Its robust magnetic force ensures stable positioning, making it an essential accessory for accurate measurements and machining operations.

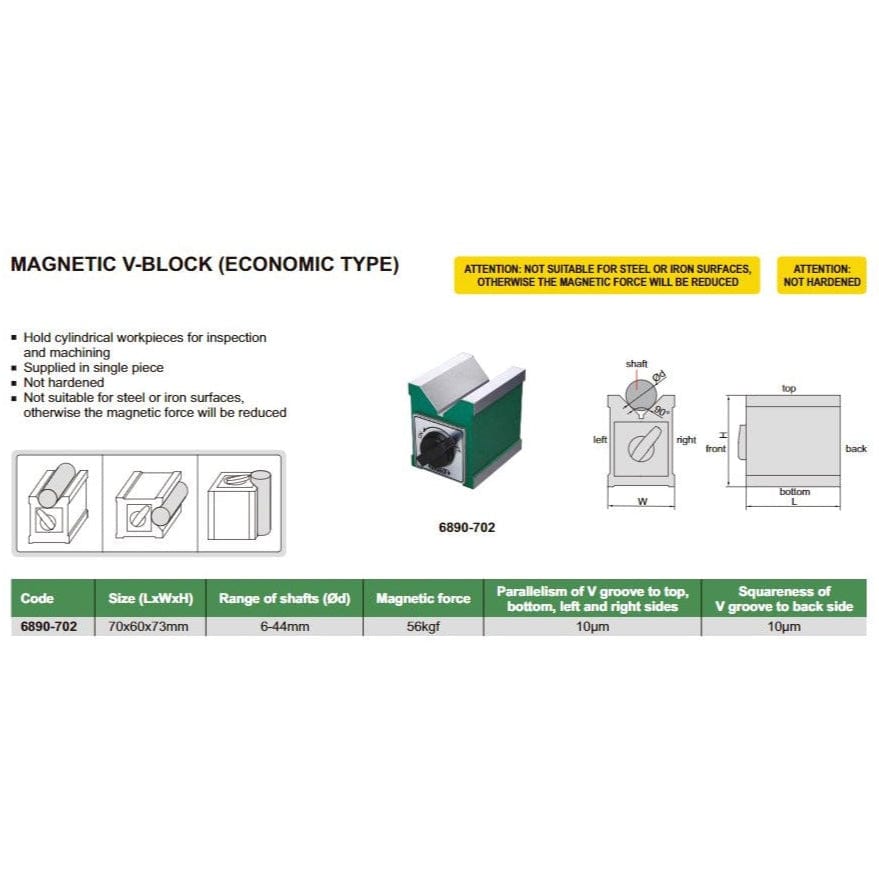

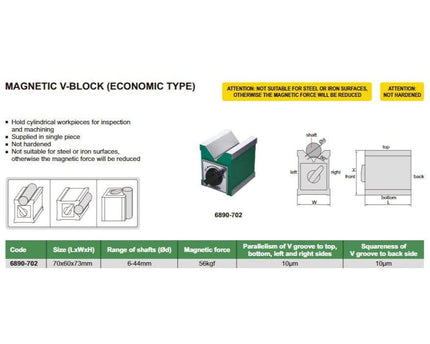

Specifications :
-
Part No: 6890-702
-
Dimensions (L×W×H): 70×60×73 mm
-
Shaft Holding Range (Ød): 6–44 mm
-
Magnetic Force: Not specified
-
Parallelism of V-Groove to Top, Bottom, Left, and Right Sides: 10 µm
-
Squareness of V-Groove to Back Side: 10 µm
-
V-Groove Configuration: Top groove for large shafts
-
Hardness: Not hardened
-
Supplied As: Single piece
-
Note: Not suitable for use on steel or iron surfaces, as magnetic force may be reduced
Well-designed and durable, the INSIZE Magnetic V-Block 6890-702 provides stable and accurate positioning of cylindrical workpieces. Its precise V-groove configuration and magnetic base make it a versatile tool for inspection and machining tasks, ensuring the reliability and precision required in a wide range of applications.
