Description
Insize V-Block

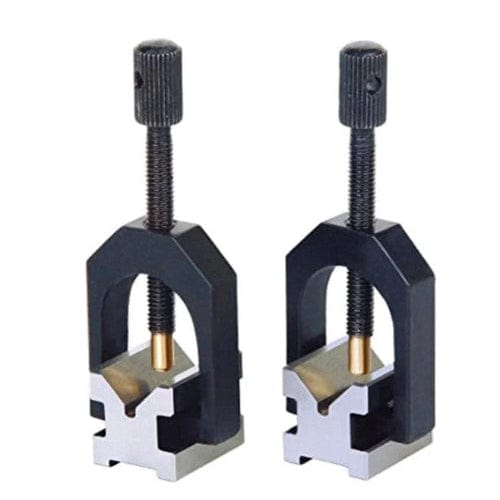

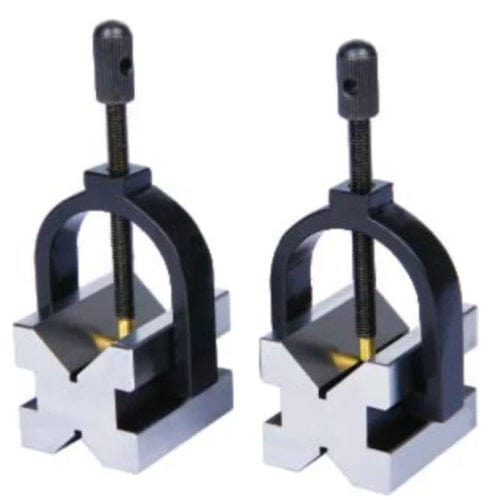

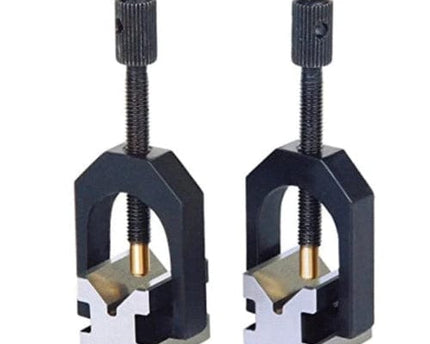

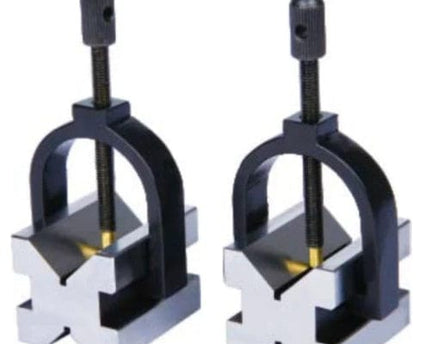

The Insize 6896-11 V-Block Set is a precision tool designed for securely holding cylindrical workpieces during inspection and machining processes. Crafted from hardened alloy steel, these V-blocks ensure stability and accuracy, making them indispensable in quality control and manufacturing environments.

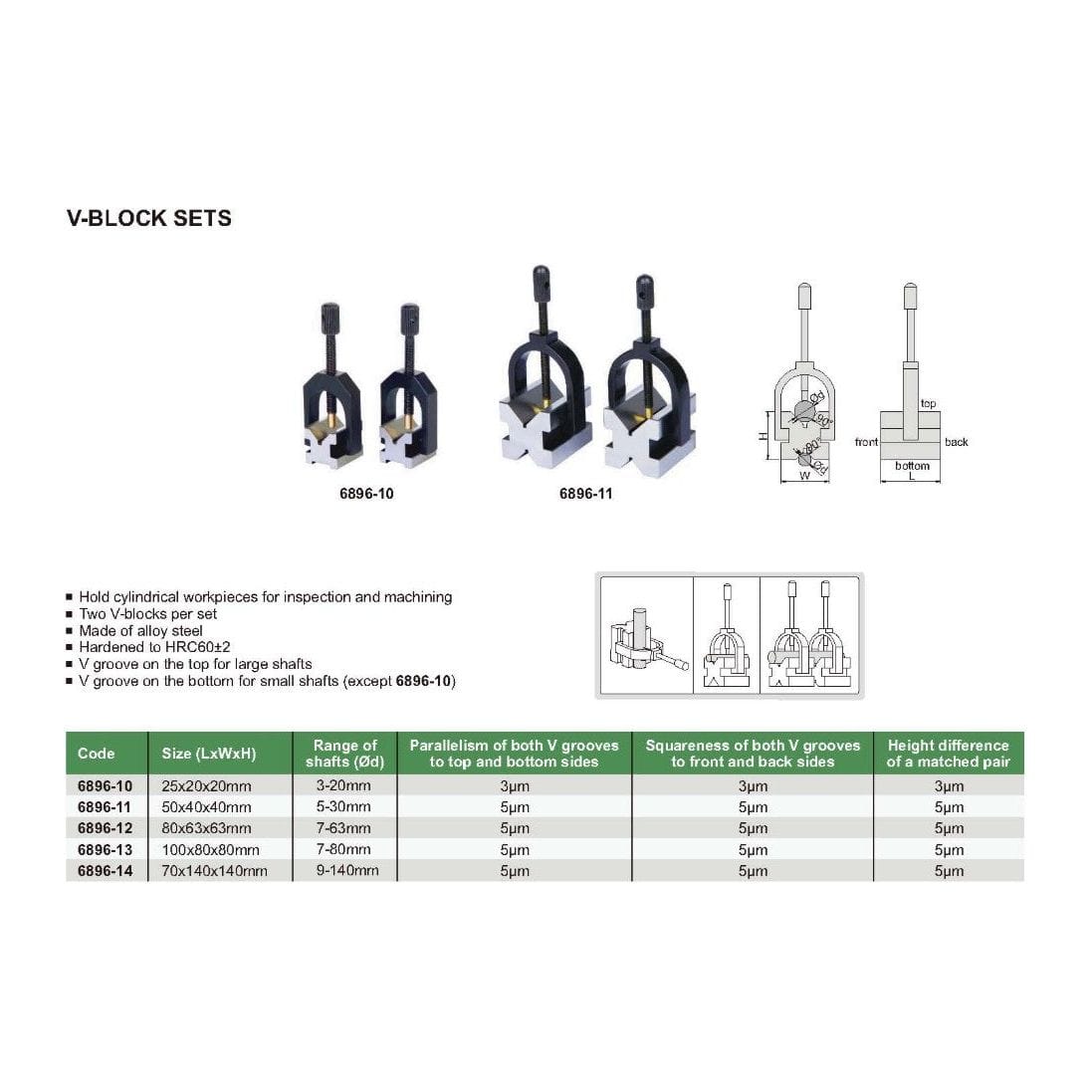

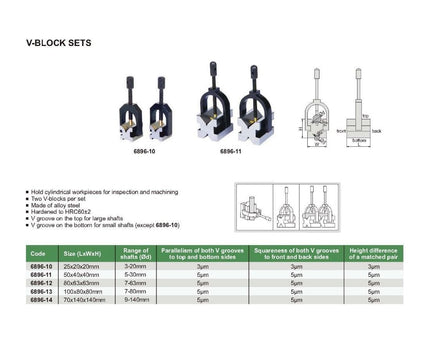

Specifications :
-
Part No: 6896-11
-
Dimensions (L×W×H): 50 mm × 40 mm × 40 mm
-
Shaft Holding Range: 5 mm to 30 mm diameter
-
Material: Alloy steel
-
Hardness: HRC60 ± 2
- V-Groove Configuration:
- Top V-groove for large shafts
- Bottom V-groove for small shafts
- Accuracy:
- Parallelism of V-grooves to top and bottom surfaces: ≤ 5 µm
- Squareness of V-grooves to front and back surfaces: ≤ 5 µm
- Height difference between paired blocks: ≤ 5 µm
-
Set Includes: Two matched V-blocks
Well designed, durable, and high-precision tools that are essential for securely holding cylindrical workpieces during machining and inspection. The Insize V-Block Set ensures excellent stability and accuracy, making it a crucial tool in quality control and manufacturing tasks.
